    So I figured I would start a thread for anybody that might want to build their 5-lug seeing how we are so few, but first a little introduction and background info on the build stages... Mainly just a bunch of nonsense.

    It all started out back in 2002 when I received the truck so I could commute to work after High School as a plumber apprentice making $6.75/hr! It was my first vehicle and sometimes I wish I had left it stock.

    Though I worked at the shop most of the day I really grew into the desert scene since my work was located right next to JD Fabrication where I learned a lot about trucks and builds for getting into the big desert scene...

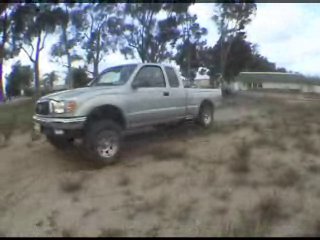

    So this is how she started out... Can't find a silver version but thats it:

    [​IMG]

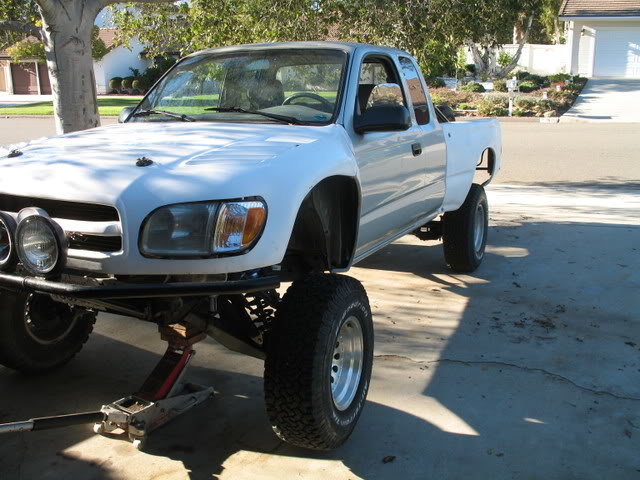

    2003 Toyota Tacoma SR5 Ext Cab 2WD 4cyl 2.4L Gas saving 5-speed manual.

    It didn't take long for me to hit the dirt and see what it was capable of doing with lack of ground clearance and a 1 tire fire on 27's. I did go much further then I thought by having a spotter and picking the right paths but that didn't last so I went with a lift.

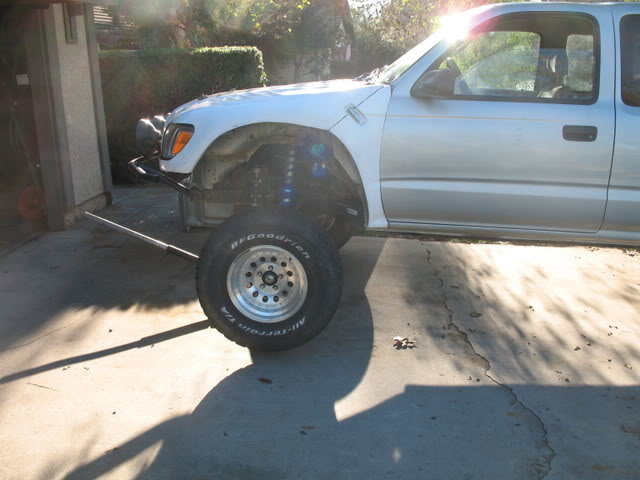

    Fabtech 3" lift coils, new wheels and tires (30x9.5 r15x7).

    [​IMG]

    Later down the road I bought the lift spindle and jumped to 31x10.5r15

    [​IMG]



    I had also gone through a couple trucks before doing the lift on my Taco. I had bought an 88' p/u when I wasn't really sure what to look for and ended up with a heap. Full cage, custom front suspension, c/o, bumps, fuel cell, etc.

    BUT I still use some of the parts from that truck as you can see the tires went to the tacoma as well as a few other things that I ended up using down the line so it wasn't a complete loss.

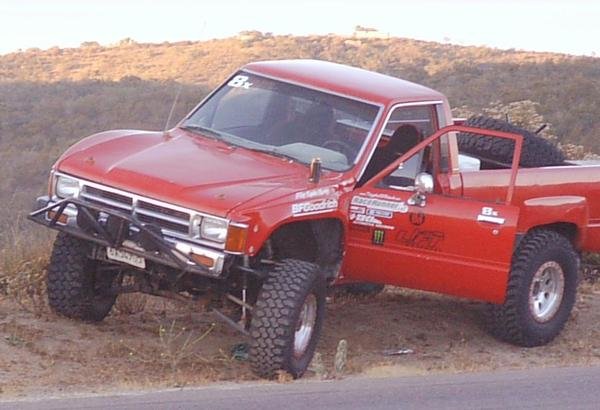

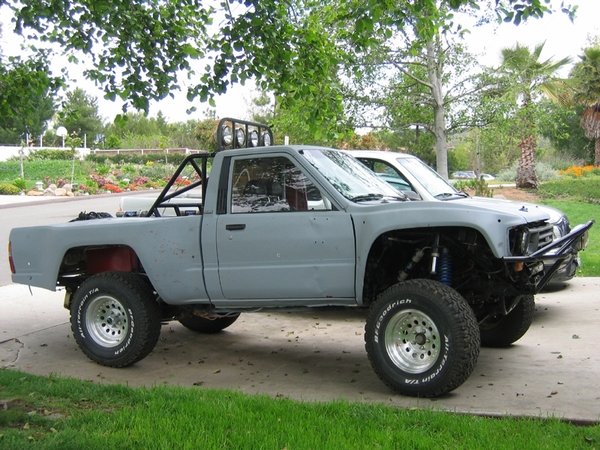

    Here's the junker:

    [​IMG]

    I learned very quickly through the help of Dezert-Rangers (back when you could ask a question and they would give a good response) that what I had bought was crap, but thankfully I parted it out and made most of the money back.

    Afterwards I found a fun little 4x 87' that I built up a bit and cruised around in for a while until I got to the point of wanting to cage it. Here she is, only picture I have left;

    [​IMG]

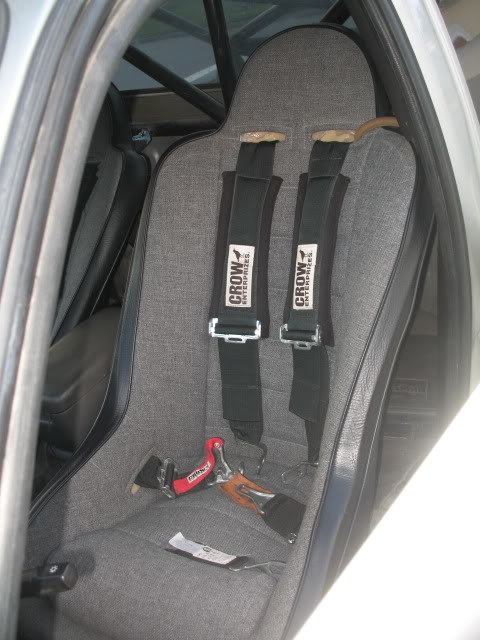

    I realized that putting nice racing seats in a single cab and being 6' tall wasn't going to work and be comfortable with a cage so I ended up parting her out and she found a new home in Hawaii!

    Last edited: Nov 16, 2013
  2. Jan 26, 2013 at 9:34 PM
    #2
    battlescars

    battlescars [OP] Professionull

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    2,367
    Gender:
    Male
    First Name:
    Alex
    Escondido, CA
    Vehicle:
    2003 5-lug
    Coilovers, bypasses & bumps on all 4-corners. +6 over front suspension, 4-link rear
    So back on to the Tacoma I knew how a truck was supposed to work, so I did my research and waited for deals to show up on RDC and DR classifieds.

    First, I had the F67 leaf pack complete with everything minus rear shocks that was going on the red truck and some SAW 8" 2.5 coilovers from the red truck also.

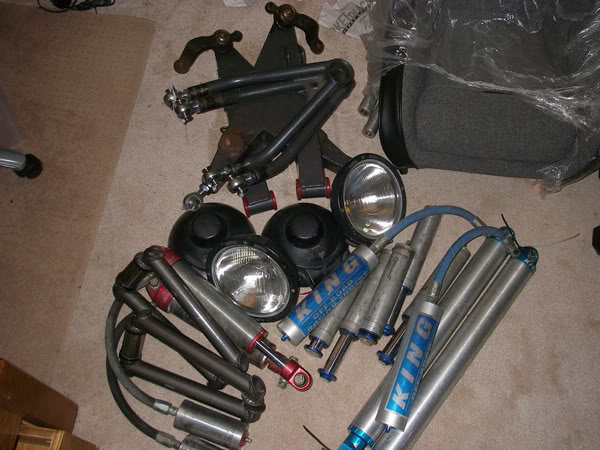

    Second I found a lot of parts for my build and had a stock pile of the goods.
    [​IMG]

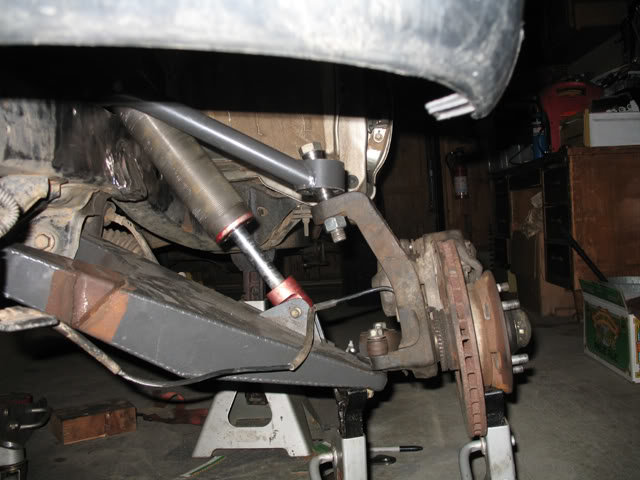

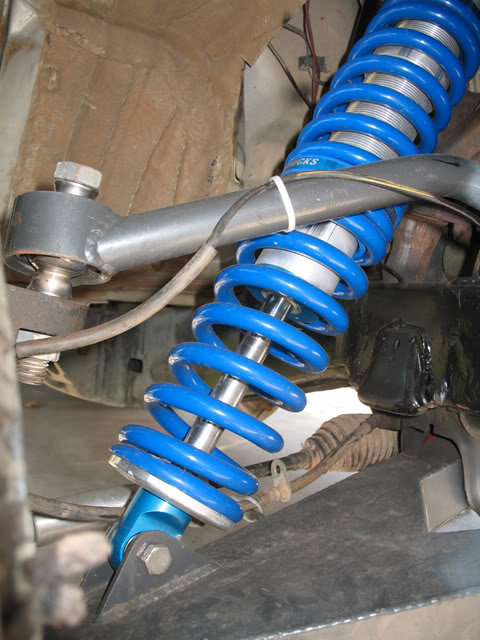

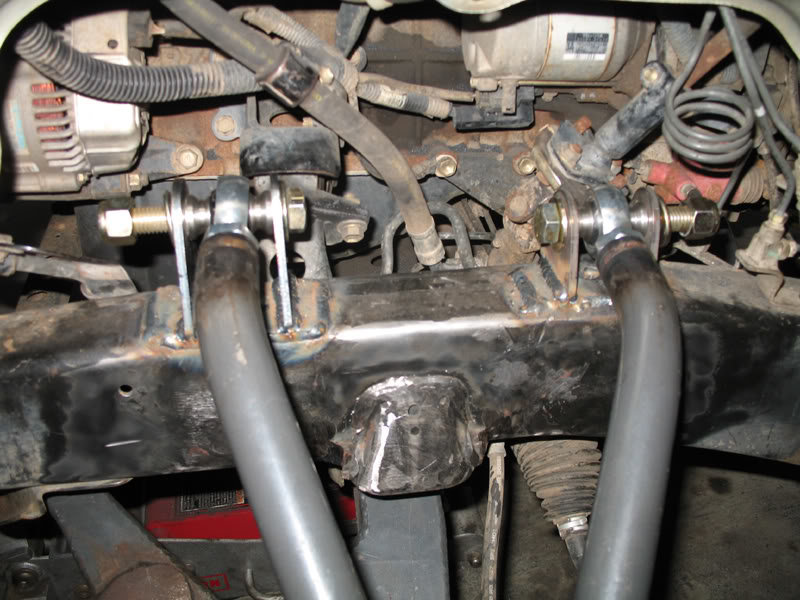

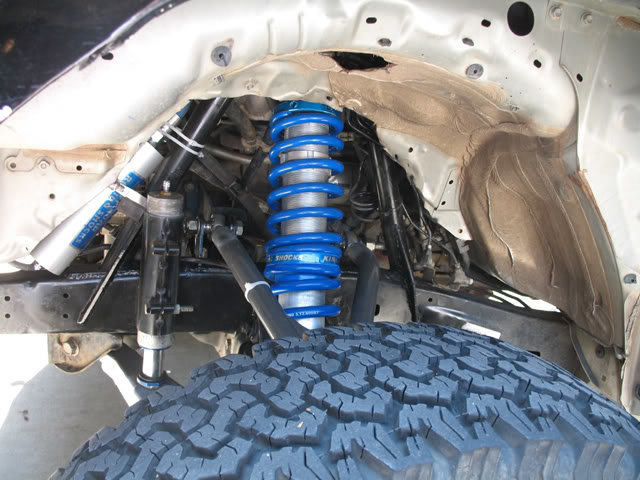

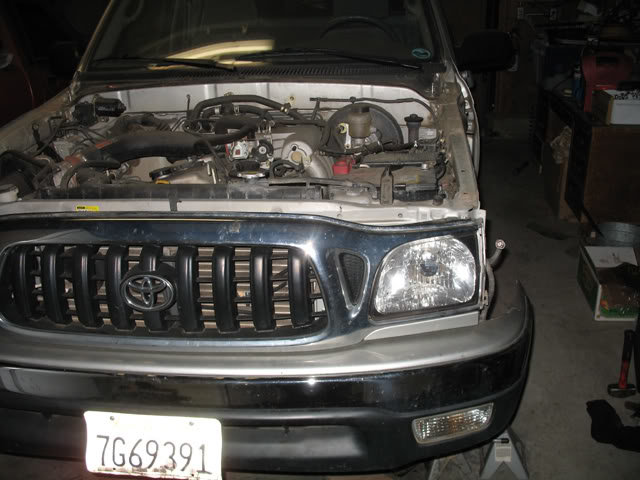

    The JD kit on DR that I found already had the UCA's chopped for heims but had no hardware. So I started to mock it up and found that the person that had chopped the ends didn't do the math and the UCA's were too long.

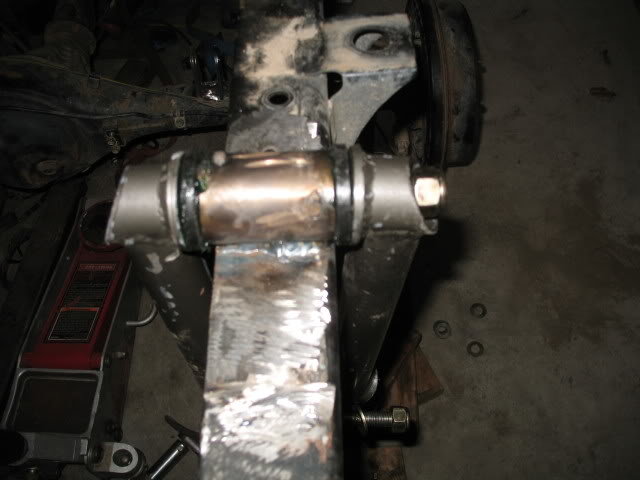

    Great, had to chop them, buy new bungs and get them welded even though I only had a pos 115v mig that I didn't know how to use. Luckily I met Nick (linked2002) while selling parts off my old truck who did a badass job TIG welding the bungs in to get my truck back on track, and Tyler (TC yota) to help get the front suspension welded up.

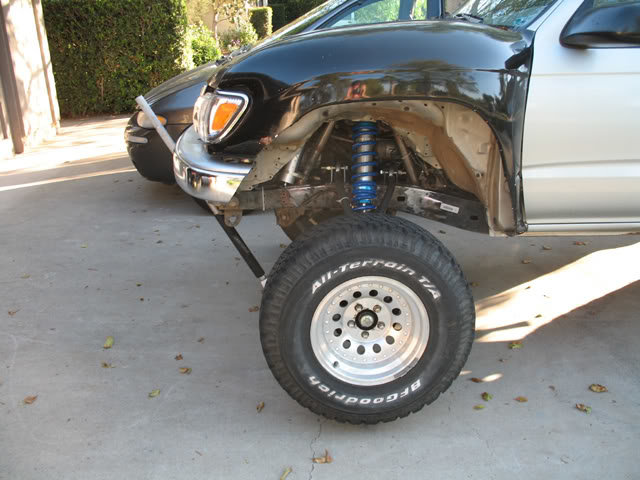

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

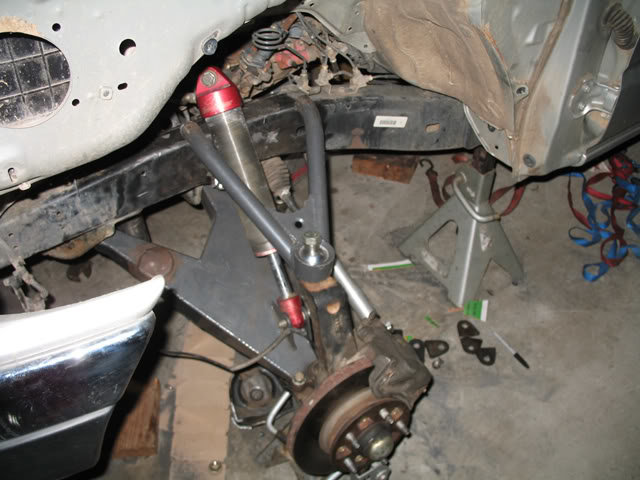

    I decided that the 8" shocks weren't going to work as well as I planned so I went ahead and bought some new King 10" 2.5's and mounted the bumps as well as the hoops and shock brace.

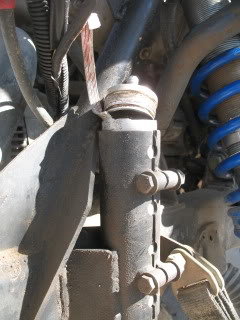

    [​IMG]
    [​IMG]

    Added fiberglass all around;

    [​IMG]
    [​IMG]
    [​IMG]



    Then I went out to the desert knowing that the rear was going to suck but just to get a run time I went out to Ocotillo Wells anyways.

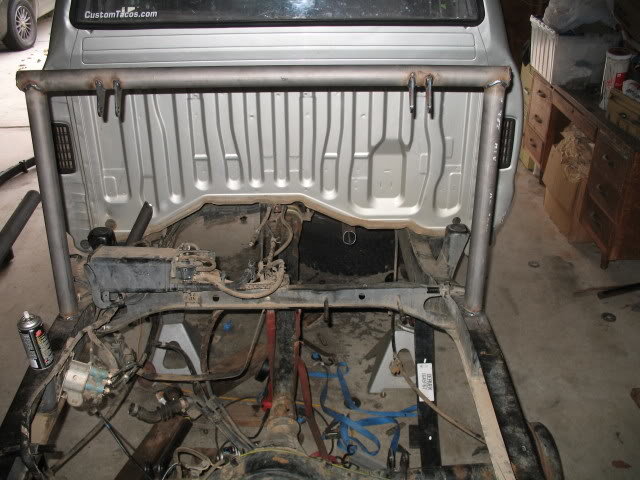

    Needless to say after smashing through the whoops skipping across the tops of them and hurting my back I left mid day, after meeting up shortly for my first TW meet. So everybody went on a run and I drove straight home to start tearing into my rear and install the leaf pack! Ordered my tubing from Summit Steel and started building the new bed cage. At this point I had a welder and the tools to build things on my own but still didn't have the welding skills so I had Tyler helping me out along the way still. Also bought a 1-piece clip from McNeil.

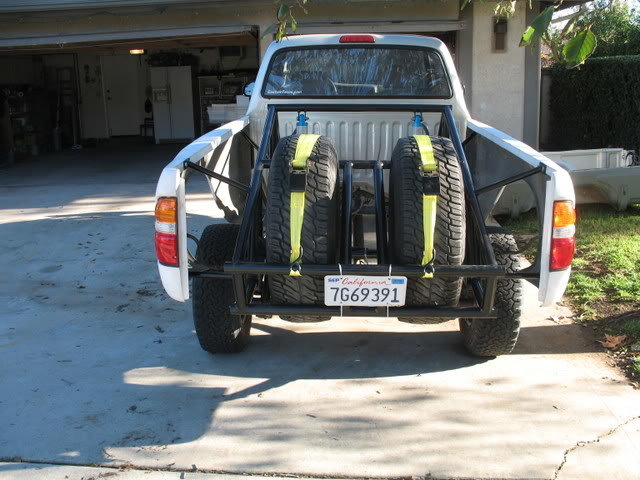

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  3. Jan 26, 2013 at 9:59 PM
    #3
    battlescars

    battlescars [OP] Professionull

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    2,367
    Gender:
    Male
    First Name:
    Alex
    Escondido, CA
    Vehicle:
    2003 5-lug
    Coilovers, bypasses & bumps on all 4-corners. +6 over front suspension, 4-link rear

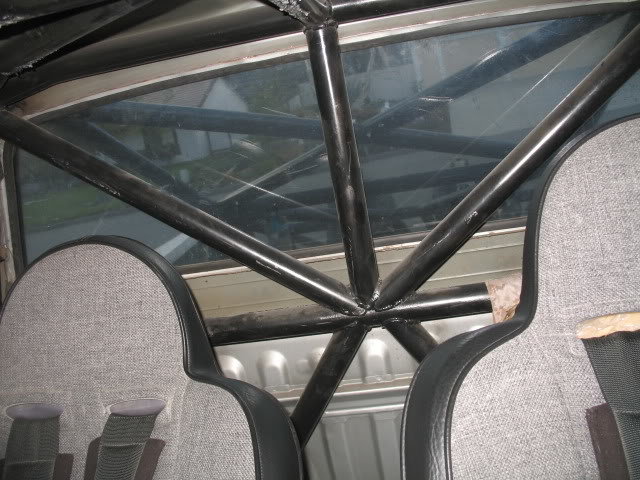

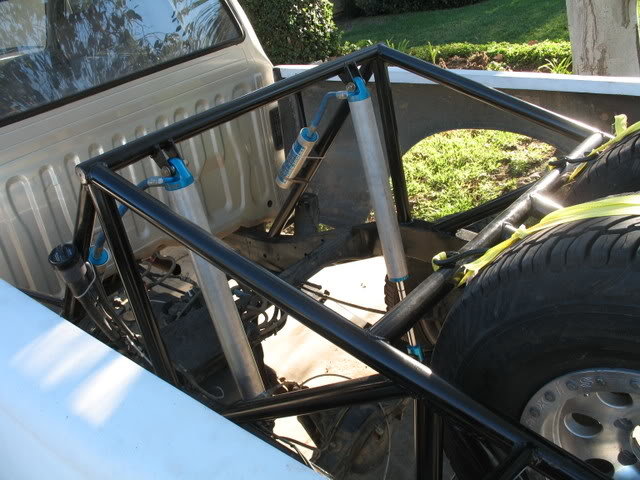

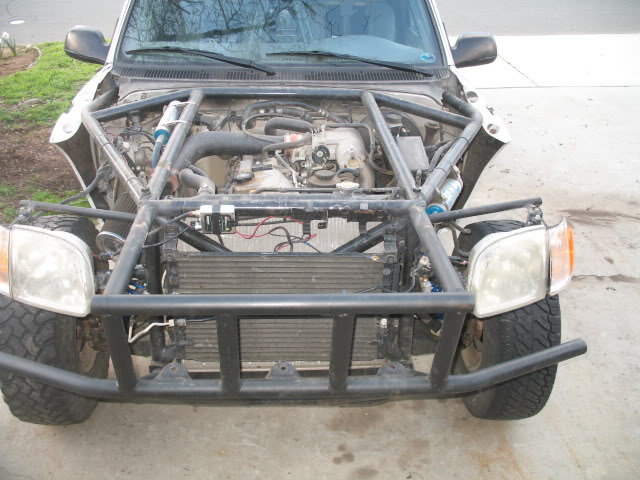

    After a few years it was time to put a cage in so thats what happened next. As well as doing a roll over-front flip when my spindle broke.

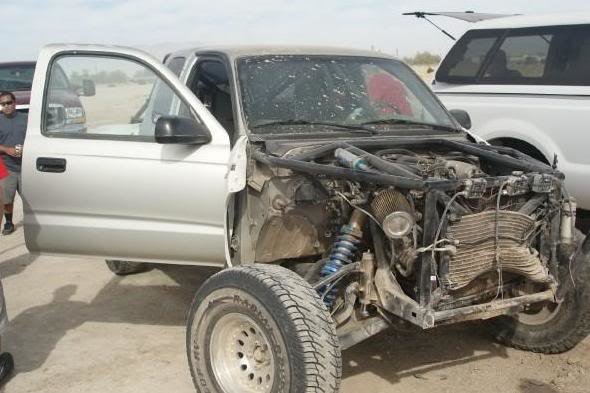

    After the front flip:

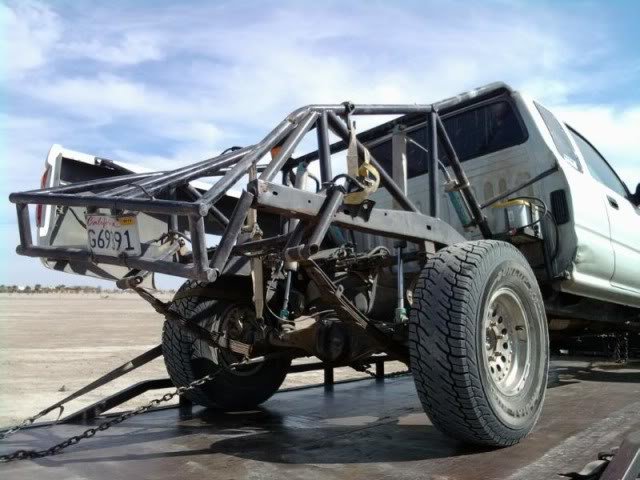

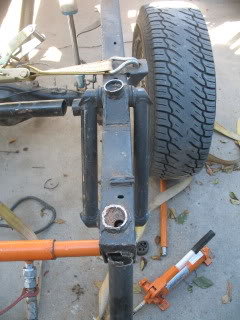

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

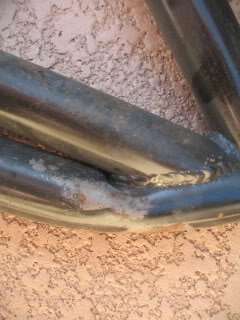

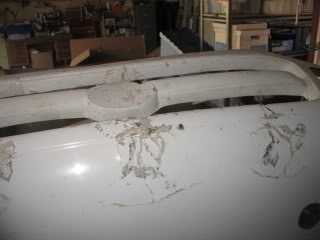

    Engine and cab cage did their job. I had to redo half of the bed cage:

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Mind you this was my daily driver before and after the roll and every trip to the desert since

  4. Jan 26, 2013 at 10:07 PM
    #4
    battlescars

    battlescars [OP] Professionull

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    2,367
    Gender:
    Male
    First Name:
    Alex
    Escondido, CA
    Vehicle:
    2003 5-lug
    Coilovers, bypasses & bumps on all 4-corners. +6 over front suspension, 4-link rear
    Ran the truck for a long time breaking countless ball joints but having fun at the same time.

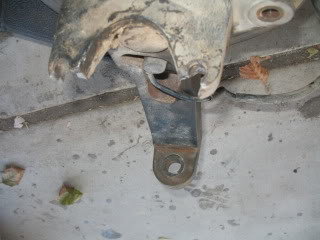

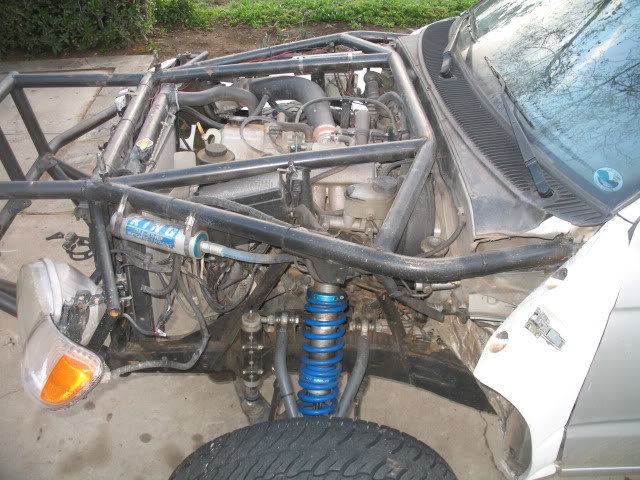

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

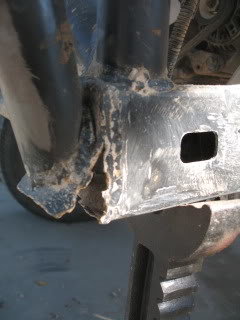

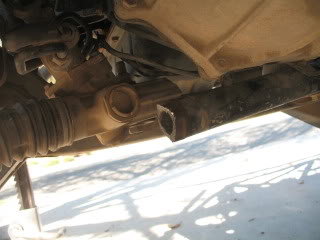

    After getting tired of destroying my mini fenders when my ball joints broke and dodging a few more roll overs I made my way over to check out American Motorsports where I found Brian and his kit as well as a job.

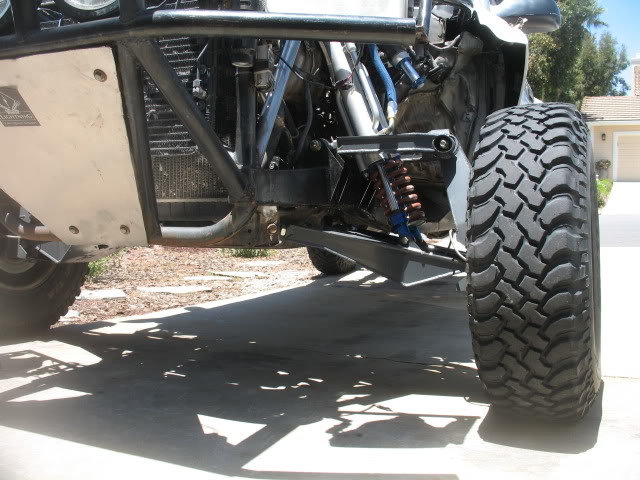

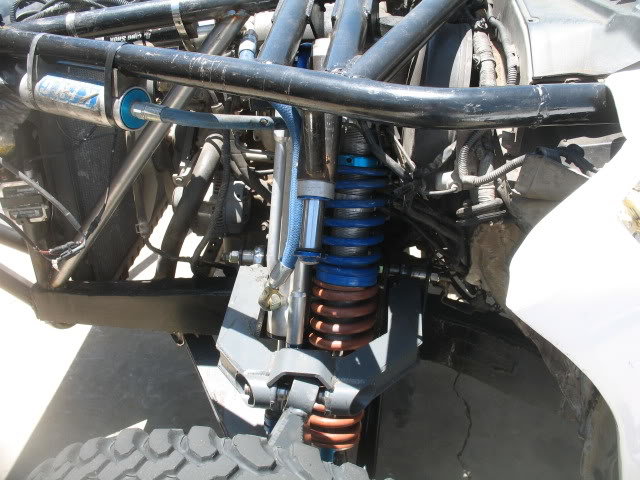

    [​IMG]
    [​IMG]
    [​IMG]

    After getting a sponsor for my truck Brian and I decided to race at the Beehive IV in Elsinore. What we didn't plan on was back halfing the truck and making it race legal in 3.5 days!

    I drove it to the race half asleep from working on it, but weren't able to race because we didn't prep, just made it out on to the track for a couple practice and qualifying laps before things started to fall apart and drove it home where it has been sitting since.

    [​IMG]

    Last edited: Mar 9, 2013
  5. Jan 27, 2013 at 7:49 PM
    #5
    Trigo

    Trigo Because fuck you that's why...

    Joined:
    Dec 21, 2011
    Member:
    #69160
    Messages:
    6,717
    Gender:
    Male
    First Name:
    Rodrigo
    San Diego
    Vehicle:
    2011 DCLB 4x4
    2.5 King Coilovers, Light Racing Upper Control Arms, Bedcage, 2.5 16" King Smoothies, 295/75/16 Nitto Terra Grapplers
    Up until now I had only seen like 2 pictures of your truck haha looks good :thumbsup: what are your plans for the truck now?

  6. Feb 4, 2013 at 6:50 PM
    #6
    battlescars

    battlescars [OP] Professionull

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    2,367
    Gender:
    Male
    First Name:
    Alex
    Escondido, CA
    Vehicle:
    2003 5-lug
    Coilovers, bypasses & bumps on all 4-corners. +6 over front suspension, 4-link rear
    Sorry didn't see this before, my plans are to upgrade the rear end to a full floater and get an LS1/2 motor to keep it street and smog legal.

    Last edited: Mar 19, 2013
  7. Mar 9, 2013 at 10:03 PM
    #7
    battlescars

    battlescars [OP] Professionull

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    2,367
    Gender:
    Male
    First Name:
    Alex
    Escondido, CA
    Vehicle:
    2003 5-lug
    Coilovers, bypasses & bumps on all 4-corners. +6 over front suspension, 4-link rear

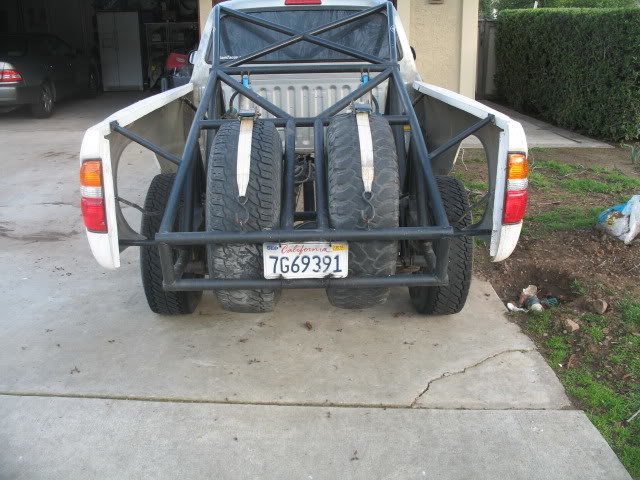

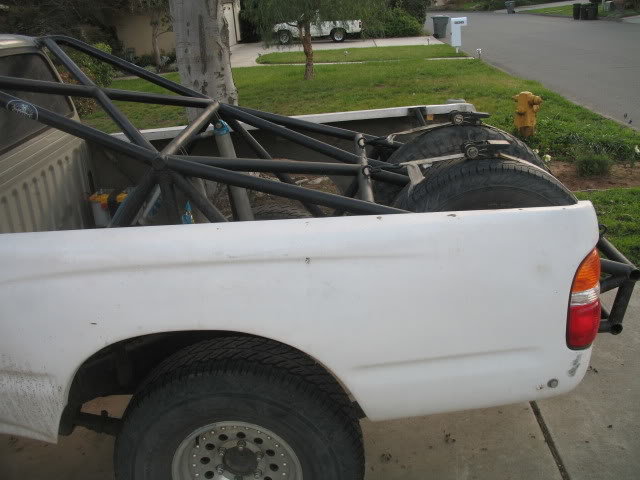

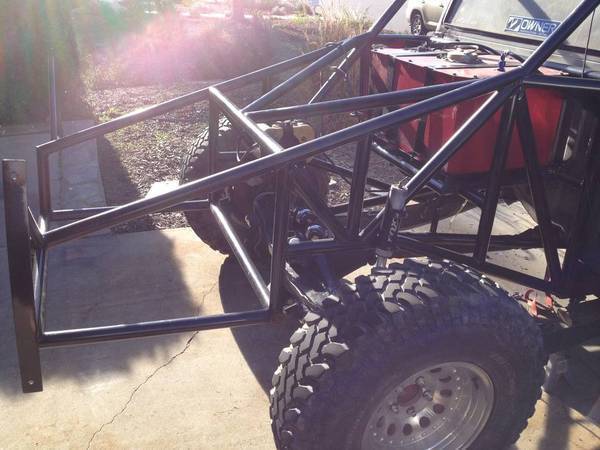

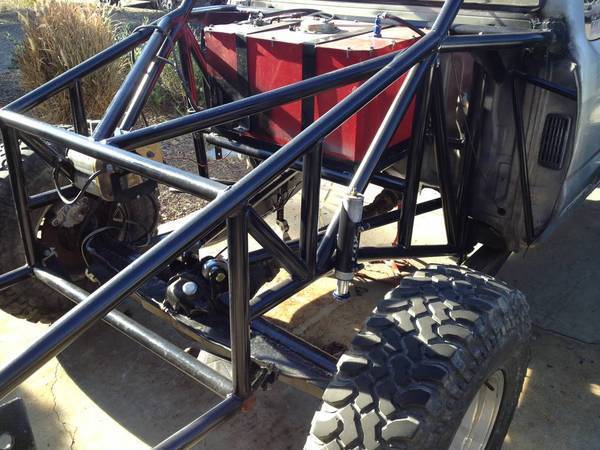

    Couple of pics to show the back half;

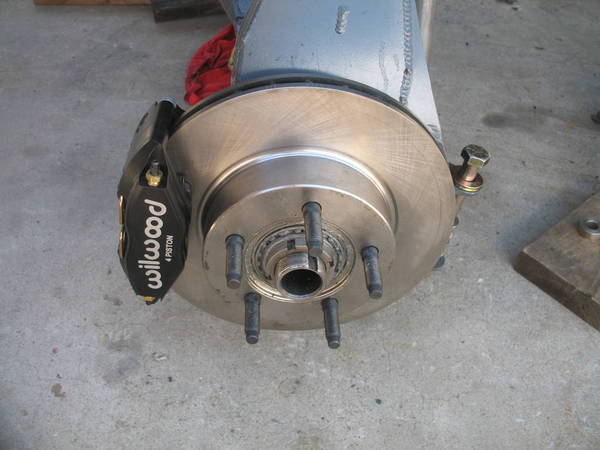

    [​IMG]
    [​IMG]
    [​IMG]

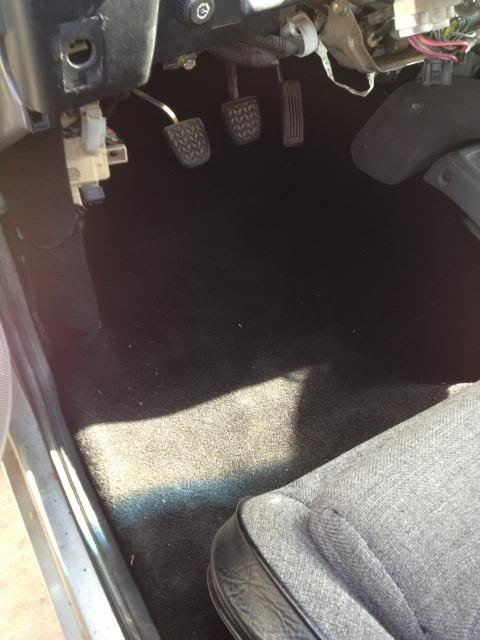

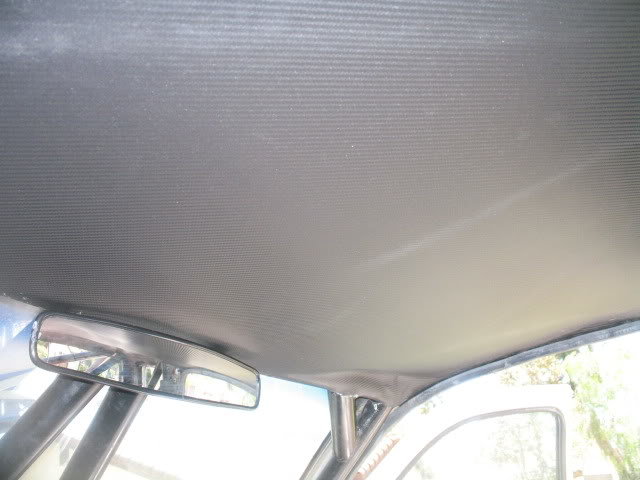

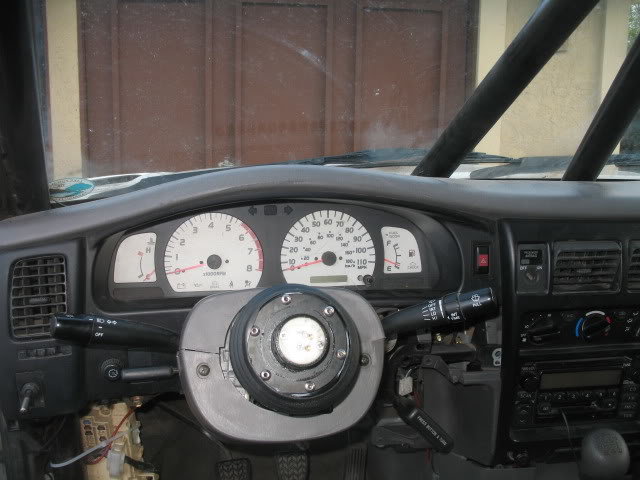

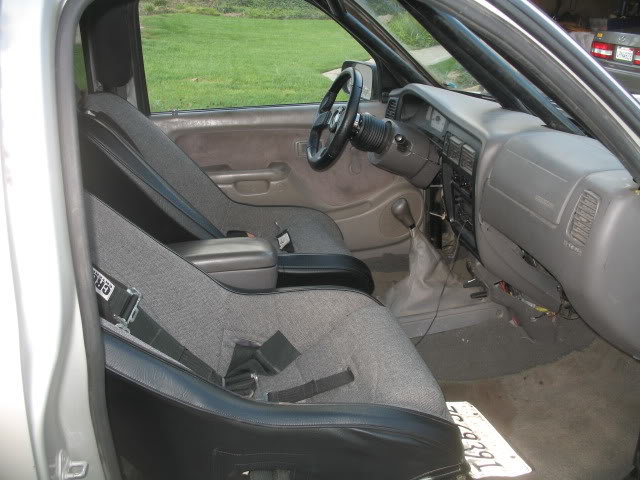

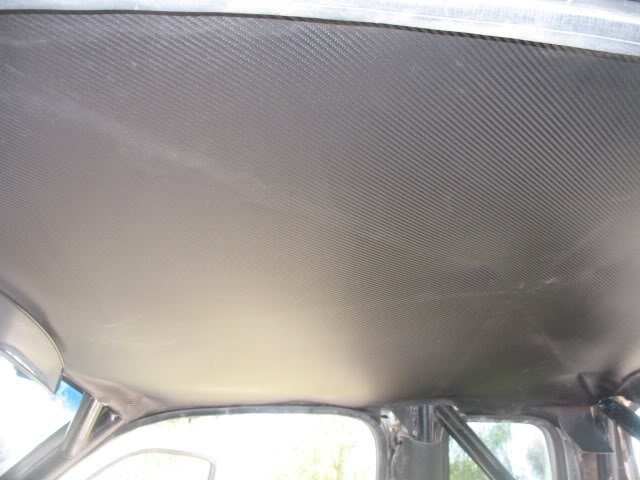

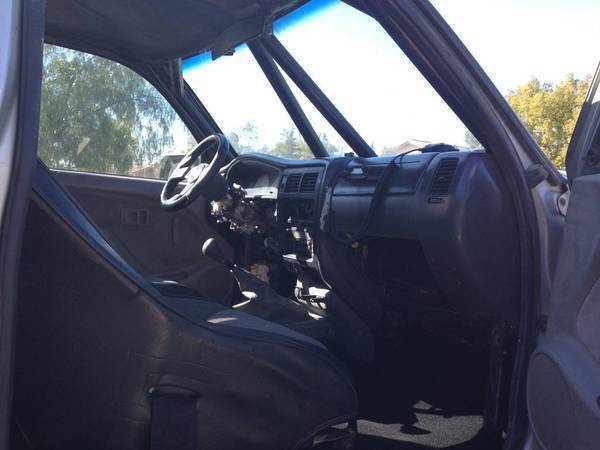

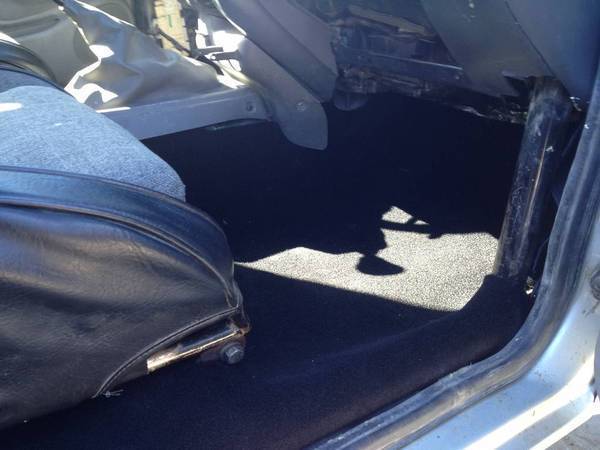

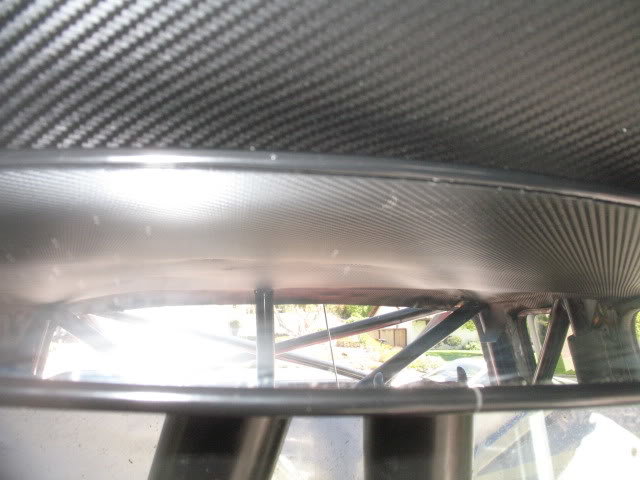

    Did a little interior finishing by adding new carpet and a head liner as well as repainting the dash;
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Mar 28, 2013
  8. Mar 9, 2013 at 10:20 PM
    #8
    battlescars

    battlescars [OP] Professionull

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    2,367
    Gender:
    Male
    First Name:
    Alex
    Escondido, CA
    Vehicle:
    2003 5-lug
    Coilovers, bypasses & bumps on all 4-corners. +6 over front suspension, 4-link rear

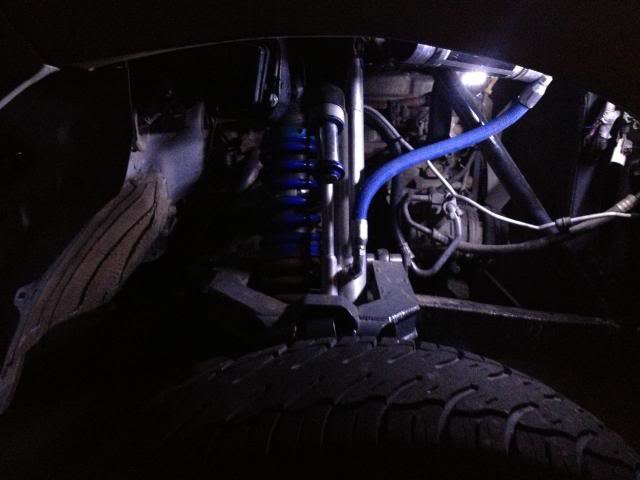

    Added a bit of ambient light to the front end

    [​IMG]
    [​IMG]

    Last edited: Mar 28, 2013
  9. Mar 9, 2013 at 10:20 PM
    #9
    NW4RUNNER

    NW4RUNNER Well-Known Member

    Joined:
    Oct 23, 2012
    Member:
    #89657
    Messages:
    1,460
    Gender:
    Male
    Vehicle:
    4 runner trail
    Dang man. I don't know Sh*t about LT but this thing looks sweet.

  10. Mar 9, 2013 at 10:27 PM
    #10
    95 taco

    95 taco Cornfed

    Joined:
    May 3, 2012
    Member:
    #78175
    Messages:
    10,376
    Gender:
    Male
    South Miss.
    Vehicle:
    2003 4x4 TRD SR5
    Bilsteins front and rear, front set to 1'' and rear are 9'' 5125's, OMD springs in the rear, CSJumper LED's inside, hard wired inverter.
    finally a build thread for the beast.

  11. Mar 19, 2013 at 6:05 PM
    #11
    battlescars

    battlescars [OP] Professionull

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    2,367
    Gender:
    Male
    First Name:
    Alex
    Escondido, CA
    Vehicle:
    2003 5-lug
    Coilovers, bypasses & bumps on all 4-corners. +6 over front suspension, 4-link rear
    I could obtain more travel, but that's as far as my non slip yoke driveshaft will go without having a carrier bearing blow out. I strap it at around 24" just to be on the safe side.


    [​IMG]
    [​IMG]

  12. Mar 19, 2013 at 6:28 PM
    #12
    01GREENTACO

    01GREENTACO Not all who wander are lost

    Joined:
    Aug 21, 2008
    Member:
    #8672
    Messages:
    1,270
    Gender:
    Male
    Germantown, TN
    Vehicle:
    01 4WD
    Lost track many, many mods ago.
    That jack spacer is a bit precarious! Looks good though!

  13. Mar 20, 2013 at 10:14 AM
    #13
    battlescars

    battlescars [OP] Professionull

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    2,367
    Gender:
    Male
    First Name:
    Alex
    Escondido, CA
    Vehicle:
    2003 5-lug
    Coilovers, bypasses & bumps on all 4-corners. +6 over front suspension, 4-link rear
    All it had to do was lift the truck up, if it fell it was no big deal, thats what thecoilovers are for!

  14. Mar 20, 2013 at 9:18 PM
    #14
    Joels98taco

    Joels98taco Well-Known Member

    Joined:
    Mar 10, 2011
    Member:
    #52782
    Messages:
    2,337
    Gender:
    Male
    First Name:
    joel
    chino hills
    Vehicle:
    98 5 lug tacoma
    fabtech 3" spindles, icon aal, 10" bilstein 7100 rear shocks, daystar coil spacers, AFE Pro Dry-s drop in filter, sony head unit, 2 12" pioneer subs, pioneer 6.5s all around, custom 1.25 lift shackles, custom lower ball joint brackets fabbed by me
  15. Mar 20, 2013 at 9:59 PM
    #15
    PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    19,757
    Gender:
    Male
    First Name:
    Brent
    Missouri
    Vehicle:
    2003 Tacoma TRD/SR5 4x4
    Suspension: Front - Bilstein 5100's/Eibach coils Rear - All Pro Expo Leafs/Rear Icon Remote Reservoir Shocks Wheels & Tires: 33x12.50x15 KM2's/Summit Racing 85 Black 8 Series Wheels/15x8/3.75" Backspacing [U]Armor:[/U] - [URL="http://www.tacomaworld.com/forum/relentless-fabrication/152694-just-released-re
    Wow... Subbed!

  16. Mar 28, 2013 at 8:15 PM
    #16
    battlescars

    battlescars [OP] Professionull

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    2,367
    Gender:
    Male
    First Name:
    Alex
    Escondido, CA
    Vehicle:
    2003 5-lug
    Coilovers, bypasses & bumps on all 4-corners. +6 over front suspension, 4-link rear
    Forgotten pictures;

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    A funny;
    [​IMG]

  17. Apr 12, 2013 at 4:23 PM
    #17
    battlescars

    battlescars [OP] Professionull

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    2,367
    Gender:
    Male
    First Name:
    Alex
    Escondido, CA
    Vehicle:
    2003 5-lug
    Coilovers, bypasses & bumps on all 4-corners. +6 over front suspension, 4-link rear
    Haven't been doing too much lately, just redoing my intake so I can run an AEM dryflow instead of the dirty K&N oiled one.

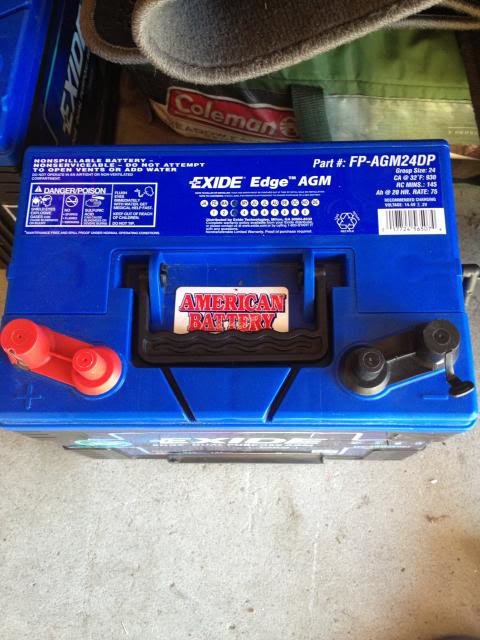

    Optima YT finally died after re-charging it about 7 or 8 times in the past. It's unfortunate that Optima gave up on a great product and the new ones are junk. Picked up 2 new batteries and am in the process of designing custom trays for them which will be similar to do the Optima ones but for the more general purpose batteries for cars/trucks.
