2003 Tacoma ignition buzzer

Discussion in 'Technical Chat' started by Caretaker, Apr 28, 2022.

  1. Apr 28, 2022 at 12:21 PM
    #1
    Caretaker

    Caretaker [OP] Member

    Joined:
    Nov 11, 2019
    Member:
    #310450
    Messages:
    13
    Gender:
    Male
    Vehicle:
    2003 White Tacoma
    I have to fiddle with the key to silence the buzzer after key withdrawal and the door open. Fortunately it still silence when door is shut. With door open and no key in ignition and buzzer sounding off, if I press on ignition key slot with my finger, I can usually silence buzzer. Also opening glove box has triggered it. I'm thinking bad connections. Not sure where to look. Any info is appreciated.

  2. Apr 28, 2022 at 8:12 PM
    #2
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,100
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    You probably have a failed unlock warning switch in the lock cylinder or something hanging up in the lock cylinder, if you just want to disable the chime you can unplug the unlock warning switch.

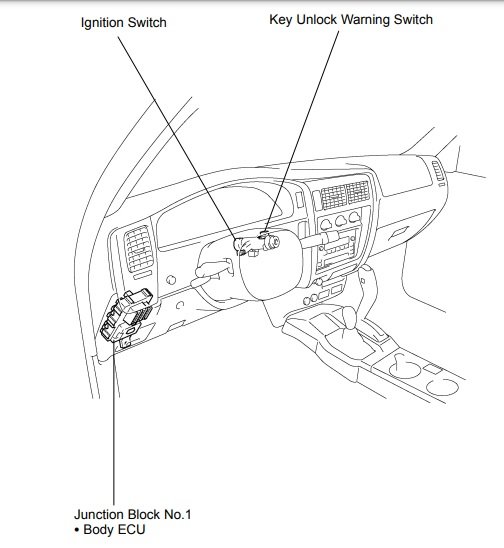

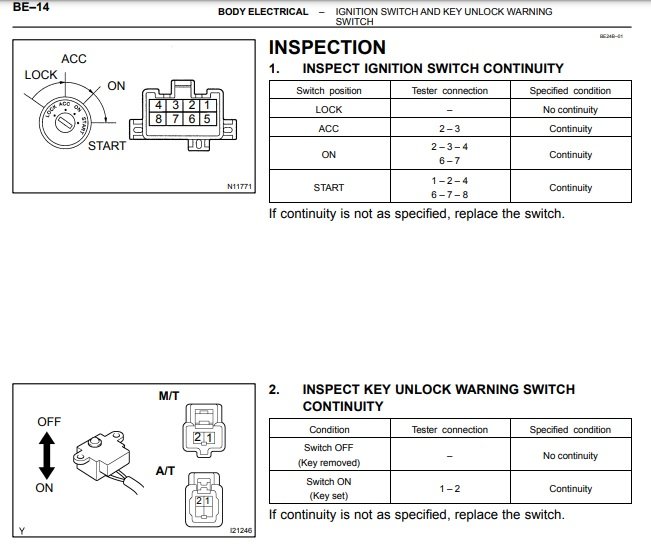

    03 Unlock Warning Switch Location.jpg 03 Ignition & Unlock Warnig Switch Inspection.jpg


    Attached Files:

  3. Apr 29, 2022 at 9:14 AM
    #3
    Caretaker

    Caretaker [OP] Member

    Joined:
    Nov 11, 2019
    Member:
    #310450
    Messages:
    13
    Gender:
    Male
    Vehicle:
    2003 White Tacoma
    Great info. Will both lube switch and remove plug. THANKS!

  4. May 31, 2022 at 4:33 AM
    #4
    Caretaker

    Caretaker [OP] Member

    Joined:
    Nov 11, 2019
    Member:
    #310450
    Messages:
    13
    Gender:
    Male
    Vehicle:
    2003 White Tacoma
    After fooling around with things, I eventually thought to myself "this is a Toyota product and should last forever". You could tell the issue was in the very front part of the key slot. I could silence alarm by merely pressing it with my finger. I then felt (hoped?) that it had to be dirt or debris affecting the movement of the moving part. I flushed with a few small doses of contact cleaner and lubricant (didn't know if any plastic parts were inside and wanted to be very careful). Knock on wood it has stopped chiming and on a consistence basis no less. I'll reclean/relubricate on a periodic basis. I would miss this alarm the first time I lock the doors with key in ignition and seeing spare key on car seat.(lol)
    I wish all problems were this easy to solve.
    And thanks for all the great info.
    These forums are the best thing since sliced bread.

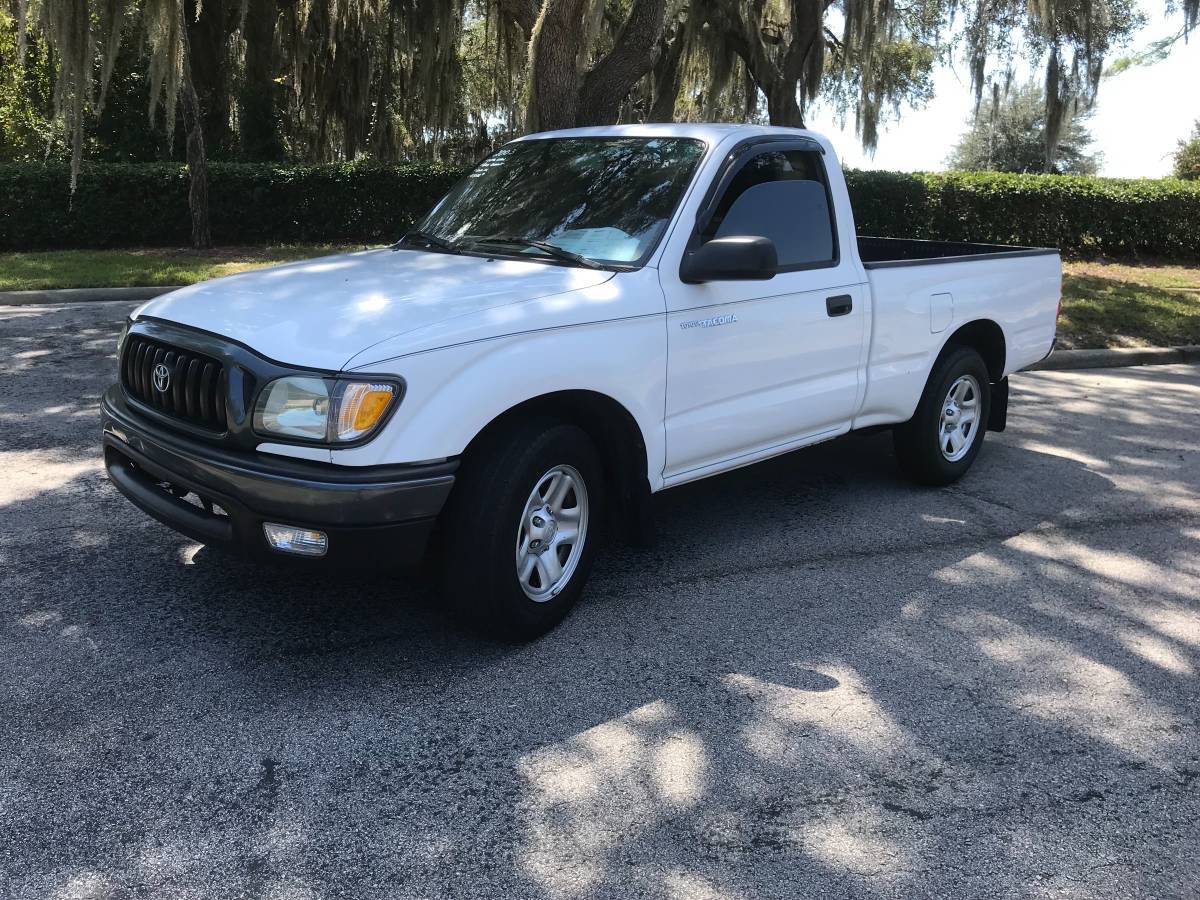

    Tacoma 1.jpg
