2003 Tacoma-Recently torn CV boot from bailing twine...but Toyota suggests new axles

Discussion in '1st Gen. Tacomas (1995-2004)' started by #MatthewHallOriginals, Mar 28, 2022.

  1. Mar 28, 2022 at 9:40 AM
    #1
    #MatthewHallOriginals

    #MatthewHallOriginals [OP] New Member

    Joined:
    Mar 28, 2022
    Member:
    #393657
    Messages:
    3
    Gender:
    Male
    First Name:
    Matthew
    Vehicle:
    2003 Toyota Tacoma 2.7L Manual 5 Ex-Cab 4x4
    No mods yet, just good preservation.
    Hi everyone, (2003 Tacoma Ex-cab 2.7L 5sp 4x4)
    Clean and reboot or replace axle? If replace, should I do both sides at the same time?
    I recently noticed I had some bailing twine wrapped around my outer CV boot, which cut into the rubber releasing some of the grease.
    I've got 171k miles on my 03 Tacoma and I hope to keep her another 10+ years.
    There's no noise coming from my axles as I am pretty gentle on her and rarely turn the wheels to their full extent.
    Toyota is claiming due to the mileage, I should replace the whole axle rather than cleaning/replacing the CV boot... though I'm skeptical at needing to do so.
    From reading a couple other posts about CV axles on here, I noticed a recommendation for CVJ Axles... pulled them up and am now curious of the difference between their (#9804 = Better at $151.) or ( #9804T = Best at $232.)
    Any suggestions?


    Best,
    Matthew

    Last edited: Mar 28, 2022
  2. Mar 28, 2022 at 9:50 AM
    #2
    Kwikvette

    Kwikvette Well-Known Member Vendor

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    80,362
    Gender:
    Male
    Fresno County
    4 run, 2 don't
    Don't get rid of your cv axles, they can be rebooted.

    Can't comment on CVJ boots, but new factory replacements are still available.

    Black DOG Lila likes this.
  3. Mar 28, 2022 at 9:58 AM
    #3
    Black DOG Lila

    Black DOG Lila Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296344
    Messages:
    9,116
    Virginia
    Vehicle:
    2003 Tacoma SR5 2.7 5 speed 4WD
    Stock. EZ pass.Dump pass.Inspection sticker.Convict printed lic.plates.FG cap.
  4. Mar 28, 2022 at 10:11 AM
    #4
    DoubleC

    DoubleC Well-Known Member

    Joined:
    Dec 1, 2015
    Member:
    #171136
    Messages:
    382
    Gender:
    Male
    First Name:
    Christian
    Oxford, MS
    Vehicle:
    1999 Tacoma 3.4 TRD (Natural White - the best white)
    Hey OP! I have a 99, and my suggestion is Napa CVs. Haven't had an issue with them. Like other commenters, I can't say anything about CVJ but I do suggest Napa.

    With the torn boot, just run it like you have it until you hear noise. I wouldn't go rushing to replace it instantly. I had 2 torn boots and waited 2 years, and 2 trips to the ozarks to replace them

    Last edited: Mar 28, 2022
  5. Mar 28, 2022 at 10:13 AM
    #5
    Empty_Lord

    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    28,286
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    Dealers try to avoid boots for warranty reasons. There’s nothing wrong with your axles. DIY a reboot or find a shop willing to. Now if the boot was torn for years I’d be getting new ones. But a fresh tear? They’ll be fine

  6. Mar 28, 2022 at 6:04 PM
    #6
    Diablo169

    Diablo169 ROKRAPR

    Joined:
    Mar 12, 2016
    Member:
    #181079
    Messages:
    2,908
    Gender:
    Male
    First Name:
    Max
    Santa Cruz, CA
    Vehicle:
    99’ Bro-Coma’s Revenge 3RZ 345k+
    Stock

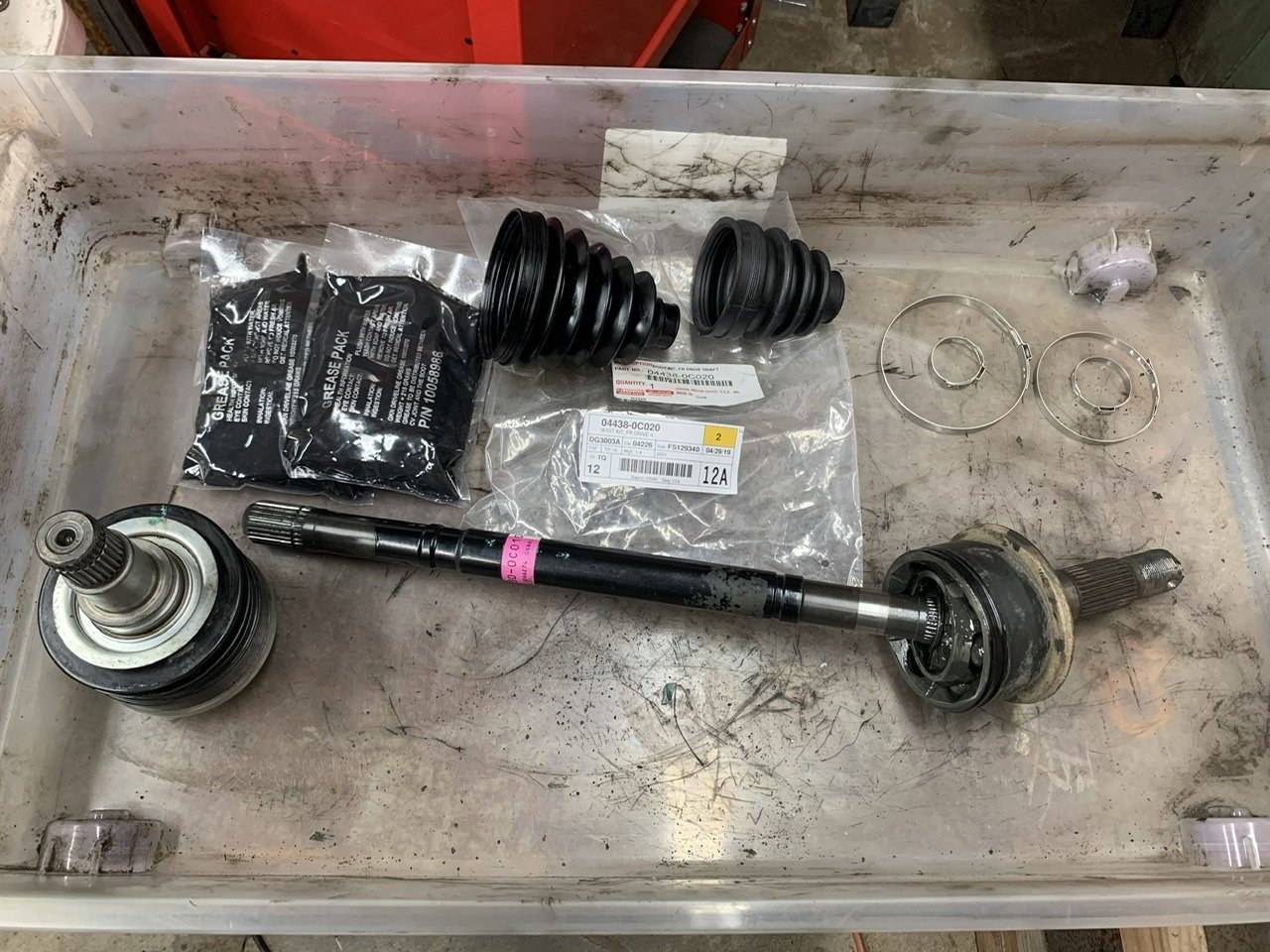

    CV Boot swap isn’t too bad just messy.

    Boot kits with grease from Toyota are about $100 for both axles. Toss the factory clamps and get worm gear hose clamps.

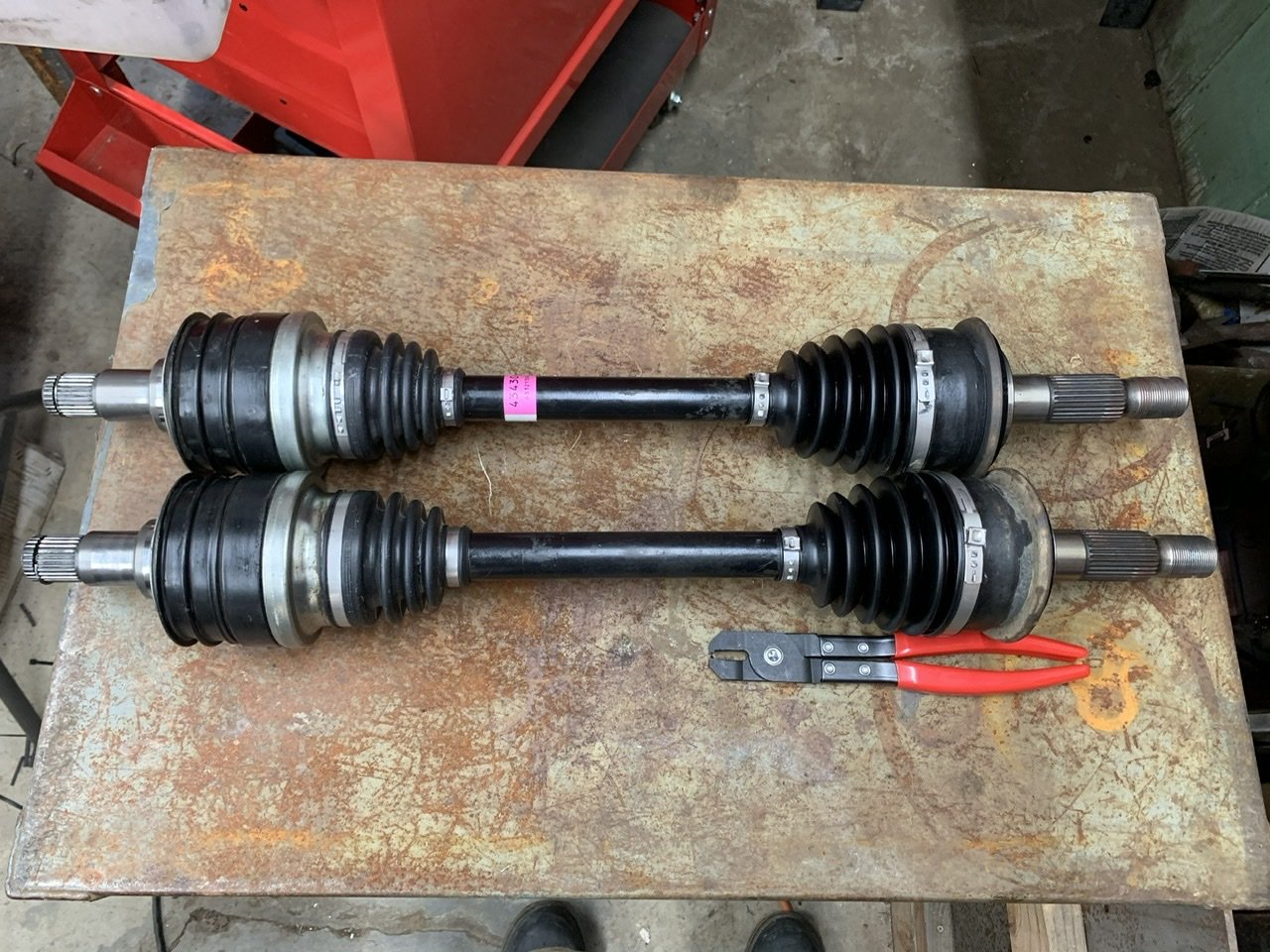

    These are off my first get Tundra. I still need to swap the clamps :frusty:42DFF8C2-72F1-4F6F-9240-B26CC43FD63D.jpg


  7. Mar 28, 2022 at 6:38 PM
    #7
    #MatthewHallOriginals

    #MatthewHallOriginals [OP] New Member

    Joined:
    Mar 28, 2022
    Member:
    #393657
    Messages:
    3
    Gender:
    Male
    First Name:
    Matthew
    Vehicle:
    2003 Toyota Tacoma 2.7L Manual 5 Ex-Cab 4x4
    No mods yet, just good preservation.
    Thank you to everyone so far!
    I've ordered a new set of boots for the 1CV axle and am thinking of doing the job myself. If done carefully and if memory serves me, the only extra parts to order/replace would be the seal between the diff and axle...

  8. Mar 28, 2022 at 6:39 PM
    #8
    Kwikvette

    Kwikvette Well-Known Member Vendor

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    80,362
    Gender:
    Male
    Fresno County
    4 run, 2 don't
    In my signature; part numbers for both :burp:

  9. Mar 28, 2022 at 7:04 PM
    #9
    #MatthewHallOriginals

    #MatthewHallOriginals [OP] New Member

    Joined:
    Mar 28, 2022
    Member:
    #393657
    Messages:
    3
    Gender:
    Male
    First Name:
    Matthew
    Vehicle:
    2003 Toyota Tacoma 2.7L Manual 5 Ex-Cab 4x4
    No mods yet, just good preservation.
    Thank you! I have already ordered the boot kit from Toyota.
    I did try searching for the axles via the part number... but am seeing a note that they are not available. Toyota had told me they don't manufacture new ones for vehicles this old but could get remanufactured ones... but they are on back-order for the next couple months.
