2003 Toyota Tacoma 2wd 2.4

Howzit!! I installed an aftermarket tach and have just one more lead to install. Where would be the easiest signal I can get for the “green” wire for the negative coil? Mahalos



I installed a tach on my Tacoma about a year ago and I hooked the green from tach to the light green with black stripe coming out of the ecu, that seemed the easiest.



Thanks Squizits. Seen that on YouTube but didn’t exactly show how they did it and I didn’t want to cut any wire or splice the wrong ones. Would you happen to have a pic? Mahalos Sam



Thanks Taco Critter!!

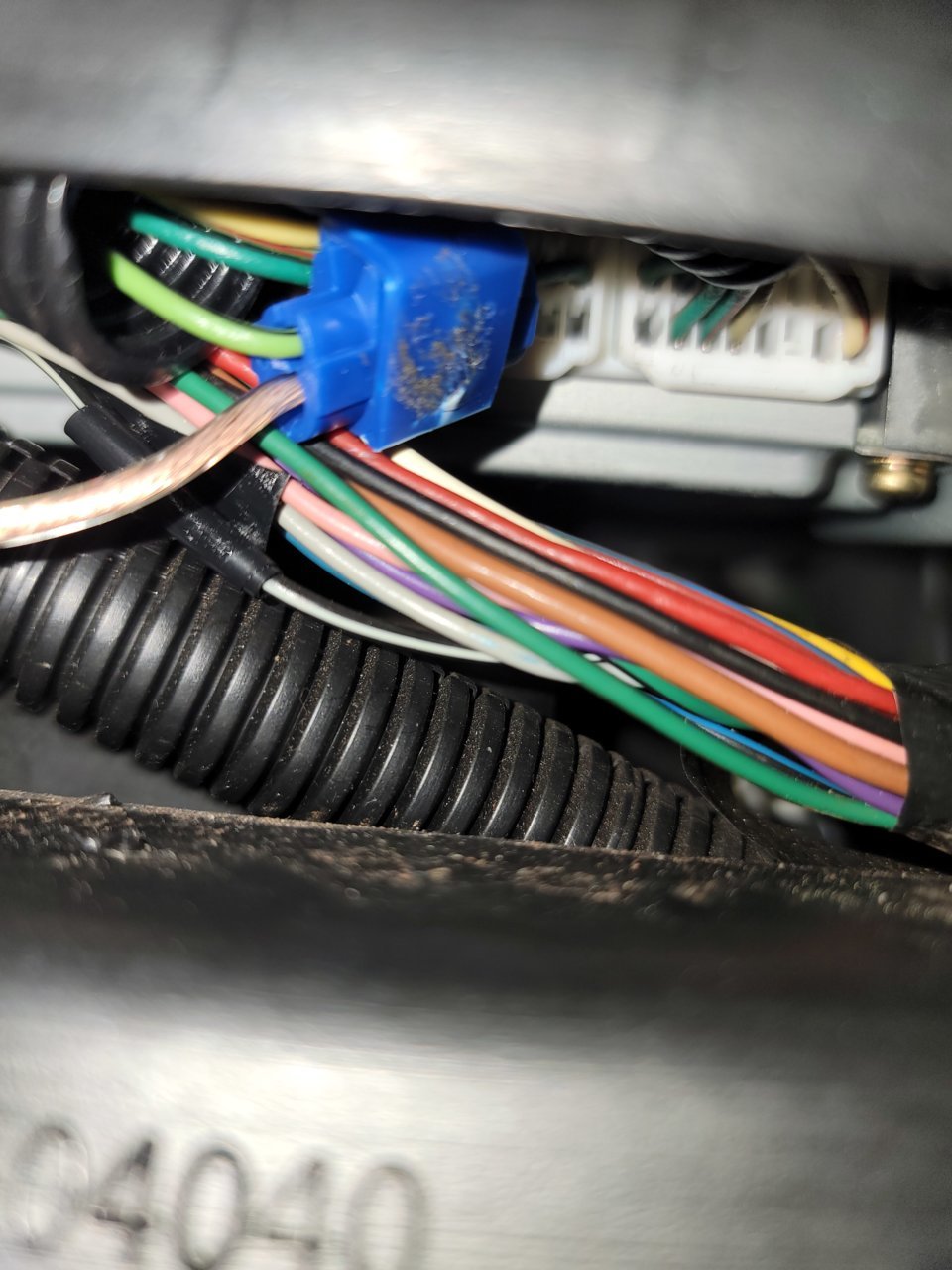

I just used a t tap not the most secure connection but if the tach stops working I know where to look xD



Mahalos!!
