2004 Double Cab OEM Rotor does not fit

Hello.

What is the proper part number for Genuine Toyota rotors for a 2004 Double Cab TRD with 3.4L motor & 6 lug rims.

Was sent a pair of rotors by a Toyota Dealer in South Carolina that do not fit.

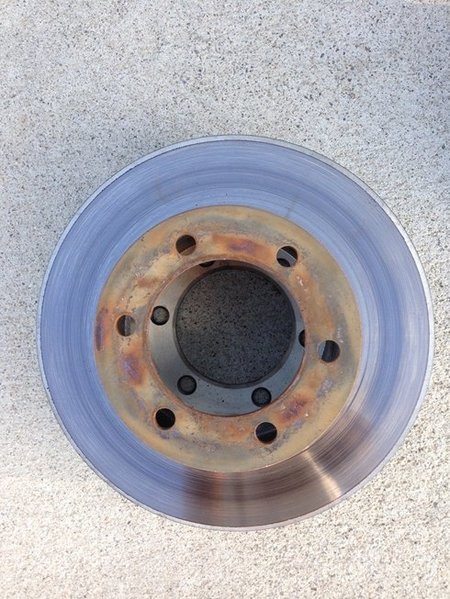

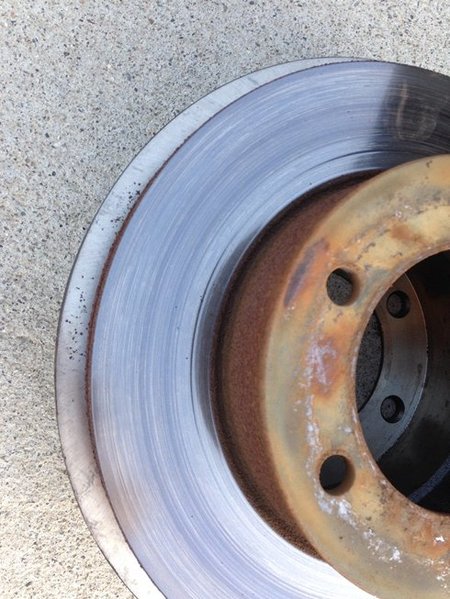

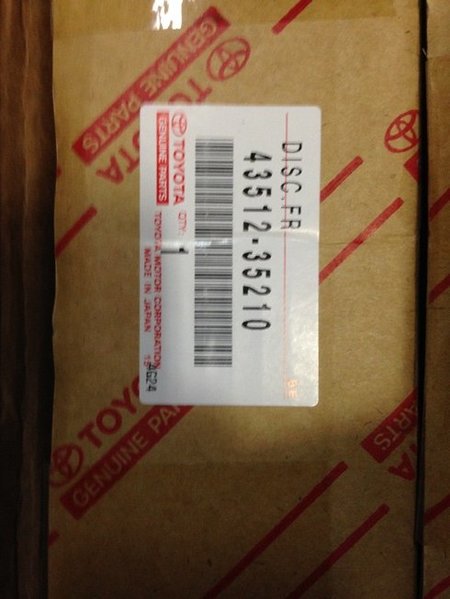

43512-35210 rotors are what they sent me but they are ~25mm too large on the diameter. They will not even fit inside the brake backing tin. I am pretty sure i am OOL on this set so now i need to find the right set. I want to use Genuine Toyota.

(See attached)

Thank you.



I checked the part number they are Rotors for trucks with VSC Vehicle stability control some 04 trucks have it my 04 don't I think your number should be>43512-04020



go here and put in your vin number and it will show you the parts that fit your truck http://www.toyodiy.com/parts/q.html

it will list the vsc and the regular ones with part numbers



I think he got the VSC ones for a non VSC truck. I noticed that when buying new OEM rotors for my non VSC 2004 wasn't sure. Always use the VIN in question first



Thank you. The VIN is 5TEGN92N34Z2328600. It would appear that 43512-04020 is the right part #.

That rotor in many places crosses with the 4WD version of the car. Mine is 2WD. That probably caused the confusion.



http://parts.toyotaofdallas.com/aut...4l-v6-gas-engine/brakes-cat/front-brakes-scat
