(2004 Taco) Help Needed - Wire/Plug Identification

Discussion in '1st Gen. Tacomas (1995-2004)' started by chicagosquatch, Feb 5, 2023.

  1. Feb 5, 2023 at 1:33 PM
    #1
    chicagosquatch

    #1
    chicagosquatch [OP] Member

    Joined:
    Jan 16, 2023
    Member:
    #415607
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2004 Tacoma Xtracab SR5 M/T 4x4 V6 Gray

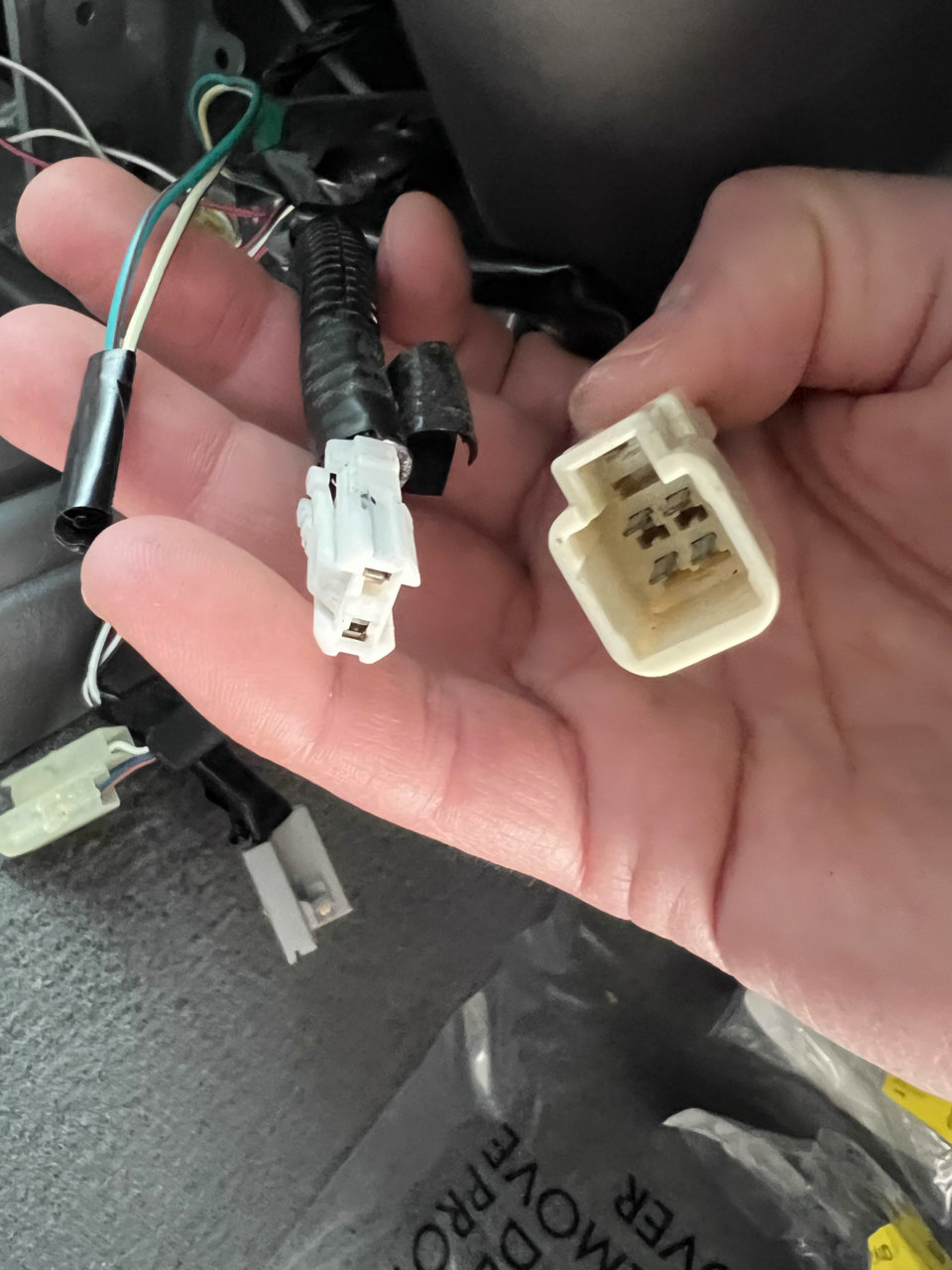

    Happy Sunday! I removed the lower portion of the Instrument Panel Trim and noticed I have three pairs of wires without a home. I'm pretty sure the one on the left (wrapped in electrical tape) belongs to the ashtray light but can't confirm since the housing for the lightbulb is missing. The center plug and right plug...I have no clue. Can someone help me identify where these strays belong?

    Also, if someone does have a picture handy of the ashtray lightbulb housing. Would you mind attaching for my viewing pleasure?

    Thanks in advance for all your help!


    chicagosquatch, Feb 5, 2023
