    Back near post 132 I gave up on bringing my build thread to date and just started with the SAS updates. I get alot of questions about stuffing 37's with IFS so I will add an update from when I tubbed the fenderwells.

  2. Jun 11, 2013 at 8:29 AM
    #502
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,437
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R

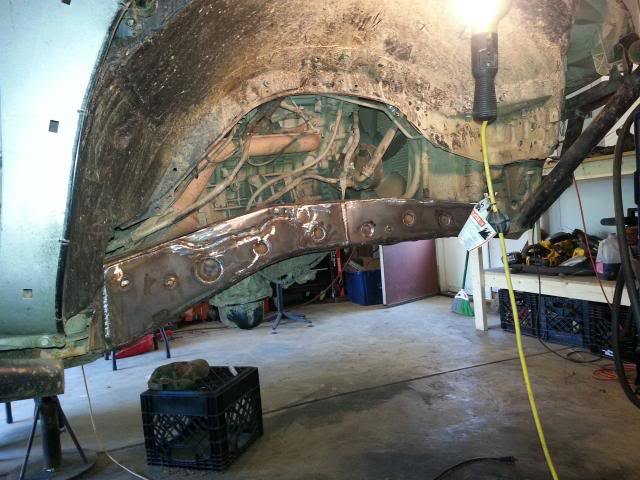

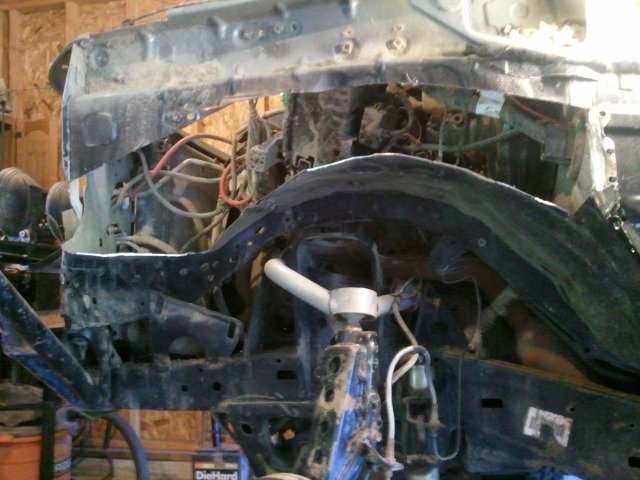

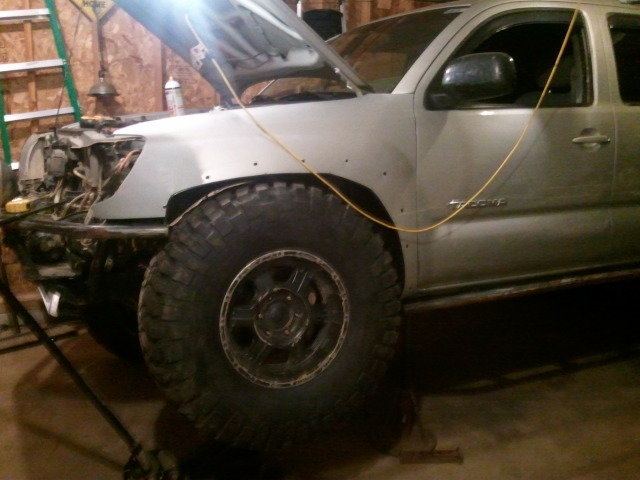

    The beginnings of fitting the drivers side...

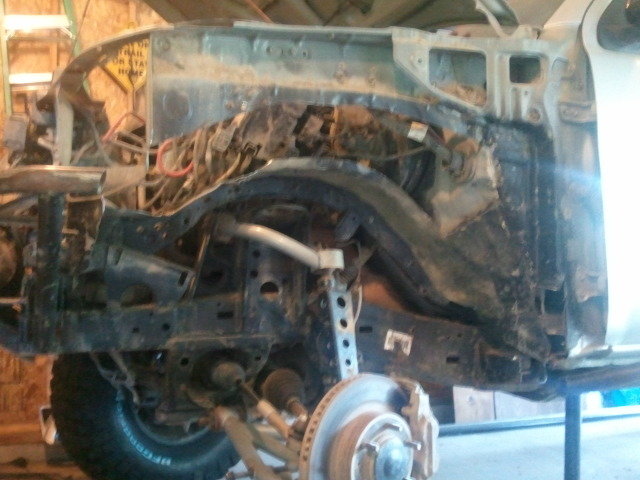

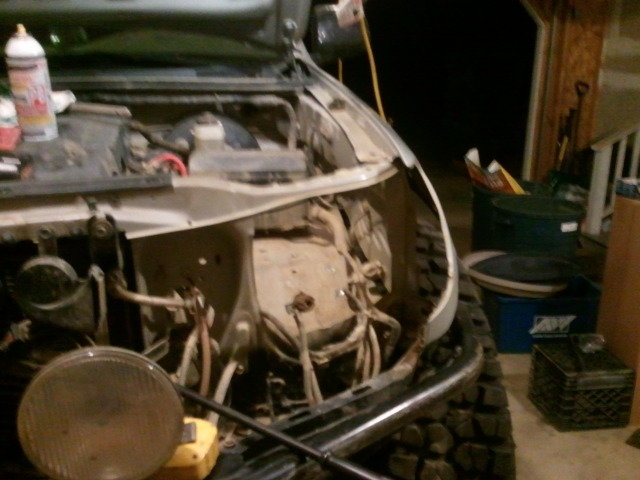

    Removing everything from the wheel well:


    So far it looks like battery is going to be relocated out back, and I may luck out at the firewall. If not the kick panel electronics will be relocated as well to allow firewall tubbing. It would be way worse, but the AP Long travel pushed the spindles forward 1". Only time will tell.

    Last edited: Jun 11, 2013
  3. Jun 11, 2013 at 8:30 AM
    #503
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,437
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R

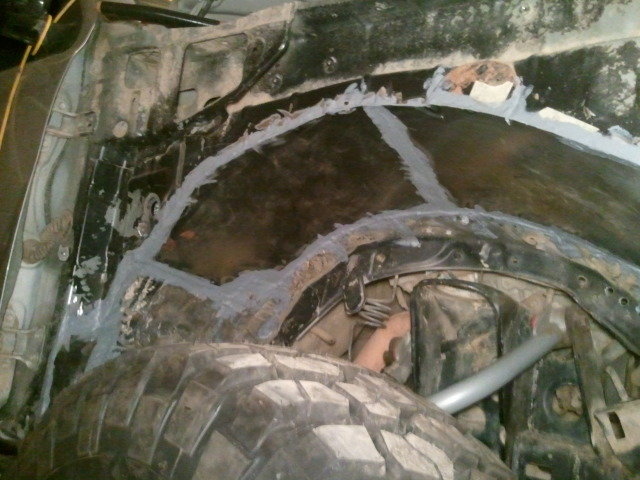

    Almost done with surgery on the drivers side:



    Drivers side complete. New wheel well welded in and seam-sealed. Slight set-back when welding on the outside of the firewall I had a small fire under the dash :eek: Luckily I had a fie extinguisher handy and nothing major burned up, some carpet, sound deadening and a few relays. Really just a big mess from the fire ext. :(


    Last edited: Jun 11, 2013
  4. Jun 11, 2013 at 8:32 AM
    #504
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,437
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R

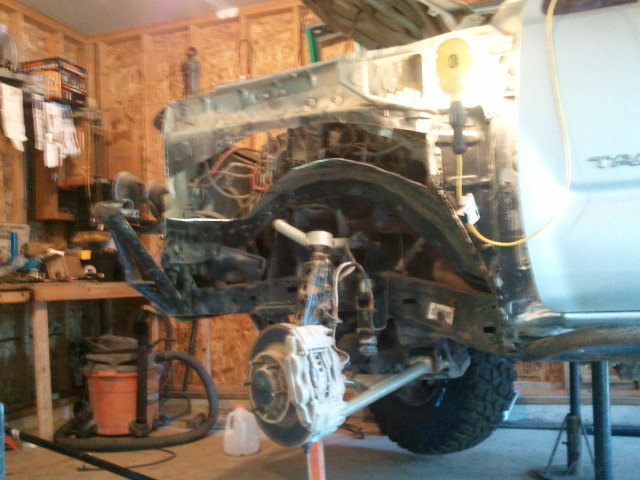

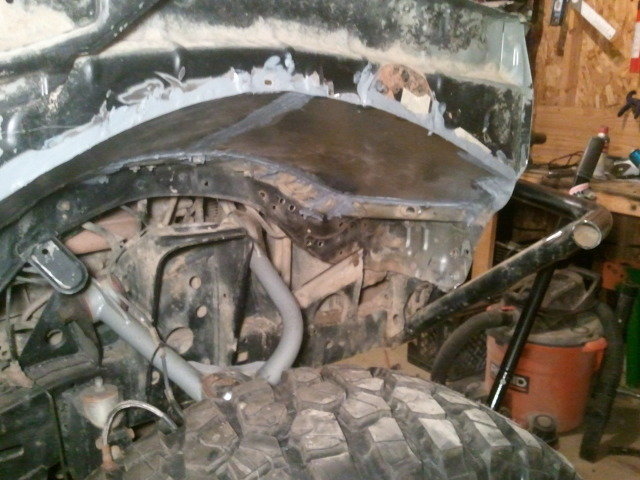

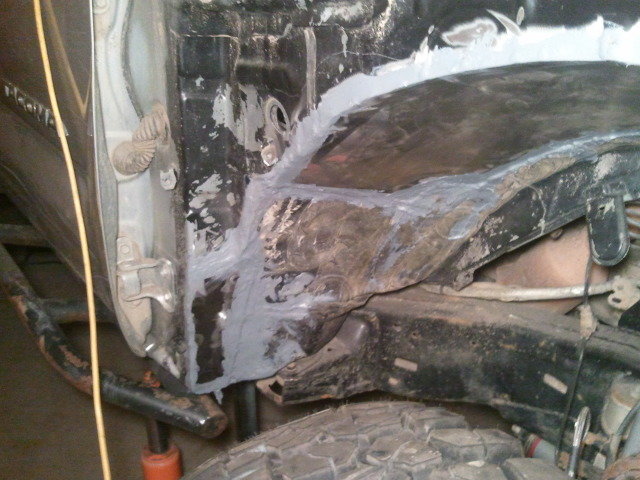

    Finished up the passenger side, need to remount all the peripherals that were mounted to the wheelwell (abs pump, washer reservoir, PS reservoir, etc).





  5. Jun 11, 2013 at 8:34 AM
    #505
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,437
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Thanks!

    /End of thread jack from last years update lol

  6. Jun 11, 2013 at 8:35 AM
    #506
    ajohnson

    ajohnson Glamour Shot

    Joined:
    Apr 19, 2009
    Member:
    #16145
    Messages:
    7,762
    Gender:
    Male
    First Name:
    Andy
    Charlotte, NC
    Vehicle:
    07 DCLB TRD Sport Prerunner 4x4
    Things and stuff and such
  7. Jun 14, 2013 at 7:31 AM
    #507
    Slimwood Shady

    Slimwood Shady I love your mom!

    Joined:
    Jul 12, 2009
    Member:
    #19585
    Messages:
    10,721
    Gender:
    Male
    First Name:
    Linwood
    Hampton, VA
    Vehicle:
    '17 Tundra; '16 Odyssey; ;14 A4
  8. Jun 14, 2013 at 7:49 AM
    #508
    sytfu510

    sytfu510 INSTAGRAM: sytfu510

    Joined:
    Aug 27, 2011
    Member:
    #62453
    Messages:
    4,678
    Gender:
    Male
    First Name:
    Alex
    Bay Area
    Vehicle:
    06 DBL Cab Long Bed TRD Sport
    Dirt Designs LT kit DMZ LT Kit TRD Supercharger SCS Wheels BAMF
    :cool: badass truck.

  9. Jun 14, 2013 at 9:27 AM
    #509
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,437
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R

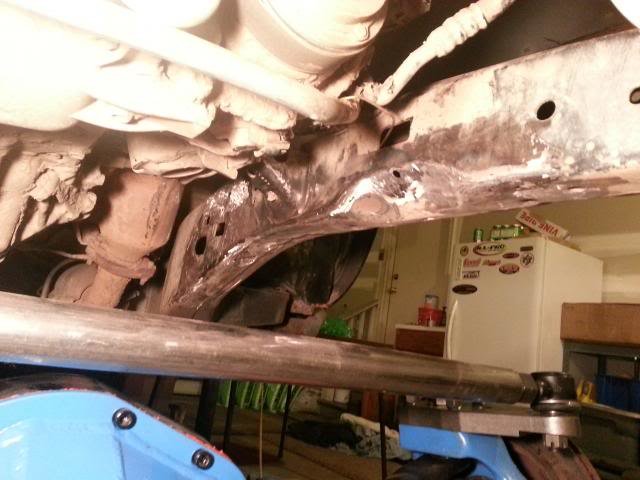

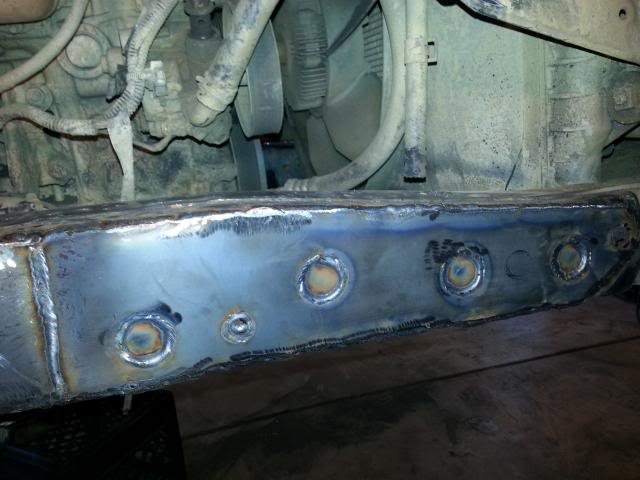

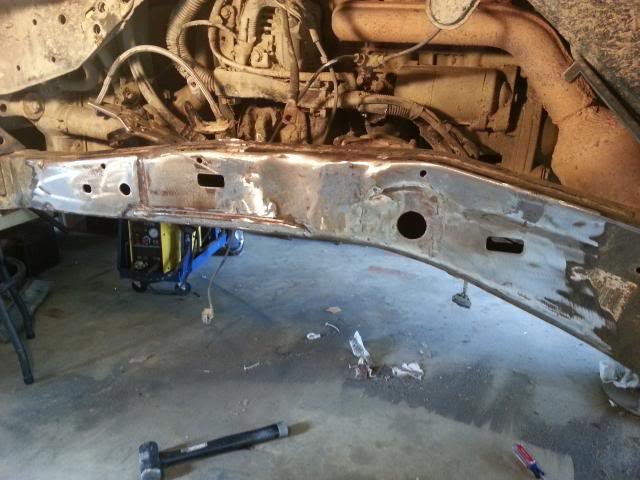

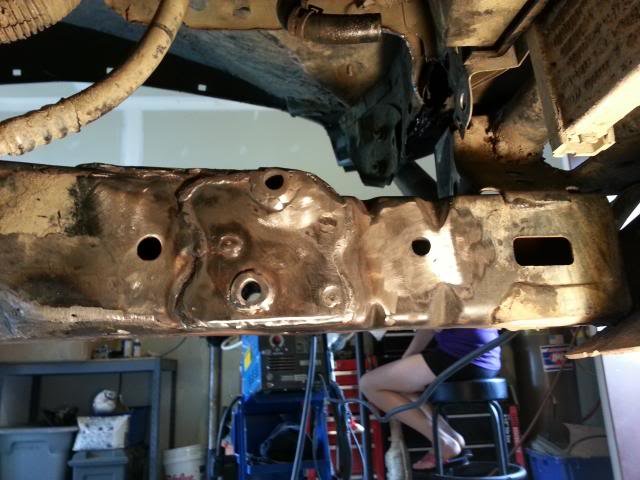

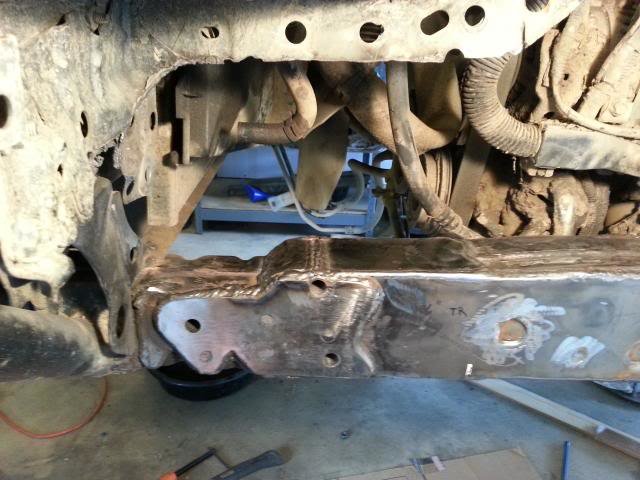

    Drivers side framerail is ready for plating:

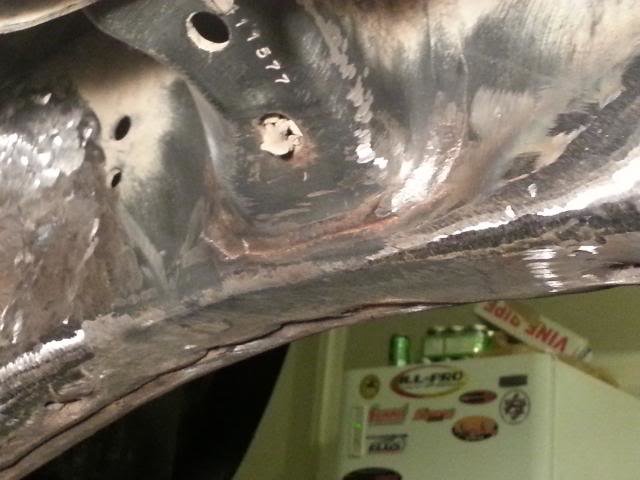

    Motor mount cracked along the bottom/backside:

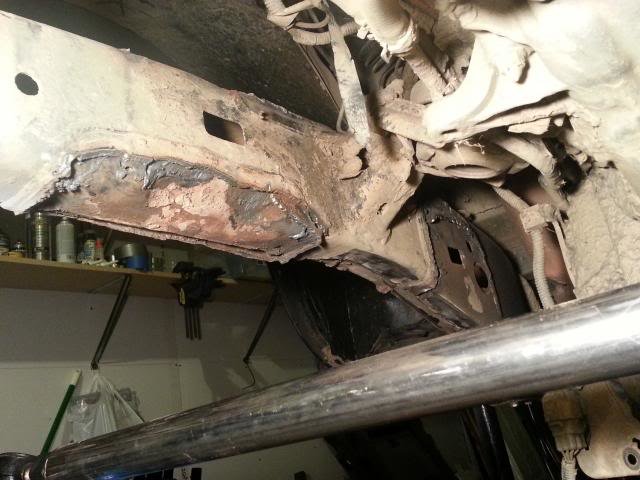

    Pass side framerail :(


  10. Jun 14, 2013 at 9:30 AM
    #510
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,437
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Didn't feel like grinding last night so I starting cutting the plates for the frame reinforcement and steering box mounts.







  11. Jun 14, 2013 at 7:00 PM
    #511
    Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    6,061
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D60 F/R
    SAS.. Need I say more.
  12. Jun 14, 2013 at 8:21 PM
    #512
    Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    6,061
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D60 F/R
    SAS.. Need I say more.
    OH LEWD JESUS, look at this old photo I found of your garage...

    [​IMG]

  13. Jun 17, 2013 at 11:34 AM
    #513
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,437
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Haha. Much nicer to work in now thats for sure!

    Got some more done over the weekend:





  14. Jun 17, 2013 at 1:20 PM
    #514
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    11,481
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Vehicle:
    The "Big Nig"
    Lifted, Locked, Armored. Ready To Wheel.
    Looking beefy!

  15. Jul 1, 2013 at 11:43 AM
    #515
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,437
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Got a little more done this weekend...it seems free time is getting harder and harder to find lately.

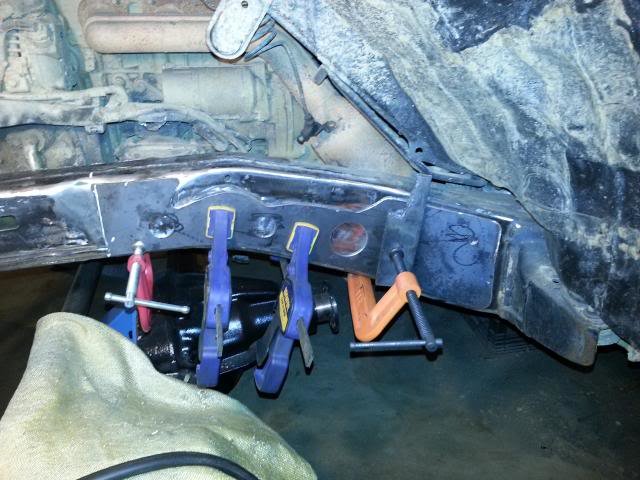

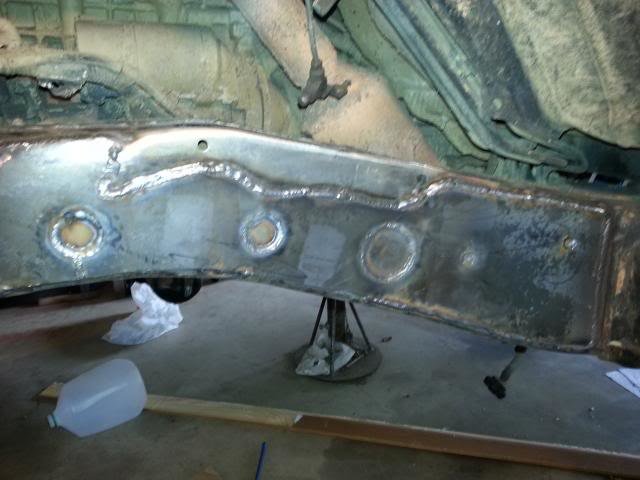

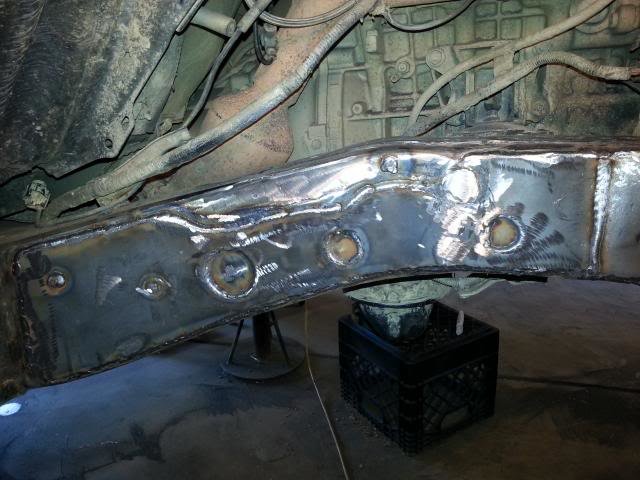

    Finished plating the drivers side with 1/8" all the way back to the cab mount:

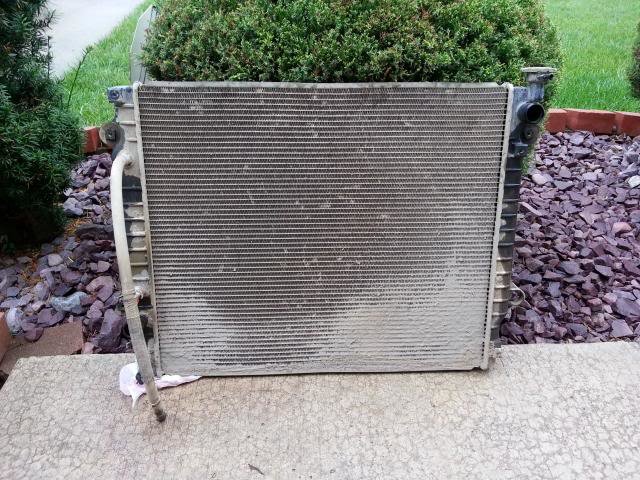

    I wanted to get the box (and axle) as far forward as possible. In order to accomplish this I had to get the box spaced away from the frame a bit to clear a radiator mount on the inside of the rail. Sqeezed another inch out of it. Out the radiator came (gave it a good cleaning post pic):

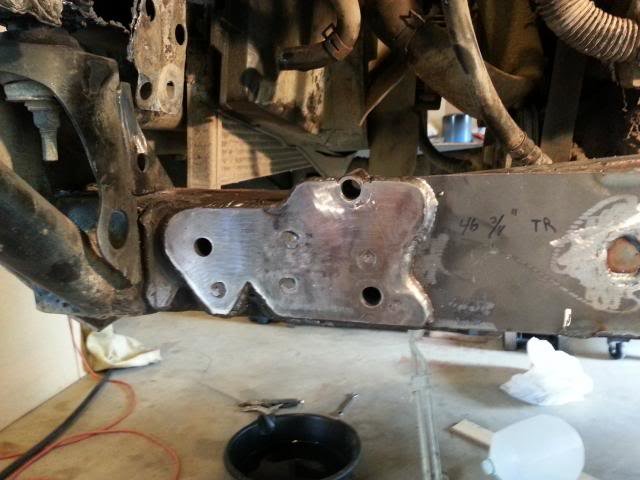

    To help clear I plated the front again with some 1/4":


    Installing the last (top) frame tube:

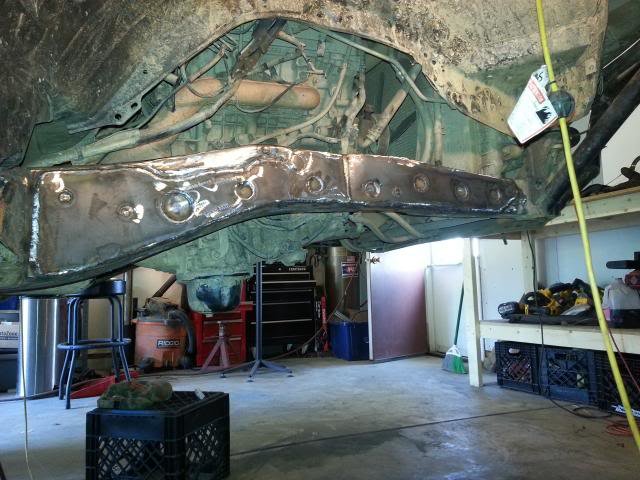

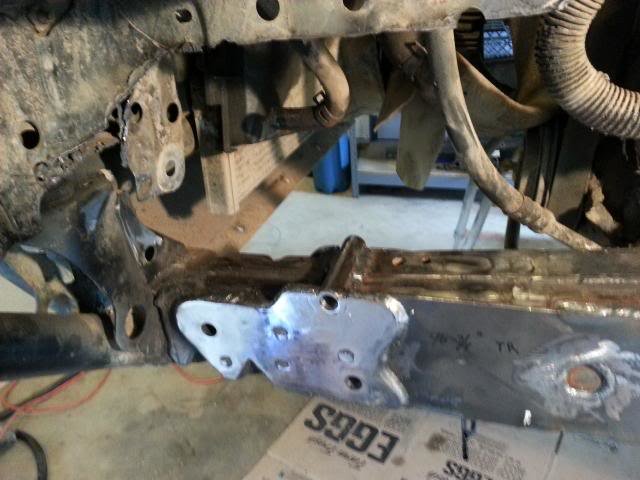

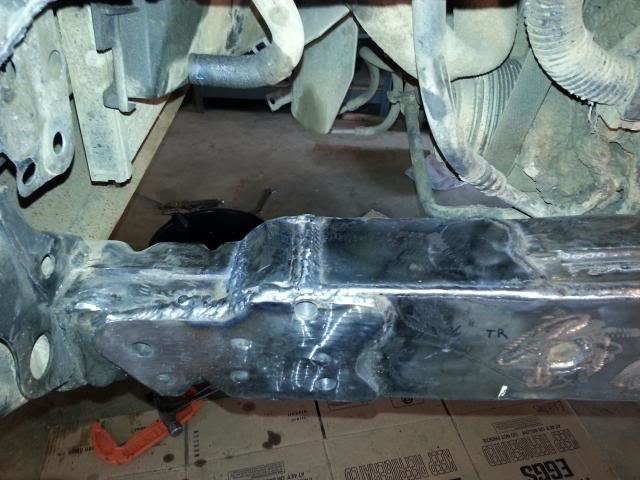

    Plated the inside of the framerail for the back two sleeves only (couldn't afford the increased width and still clear the radiator):

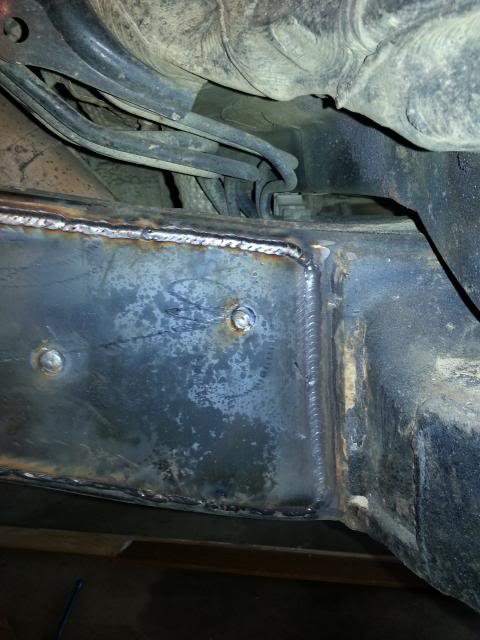

    Plating out the top frame/sleeve:

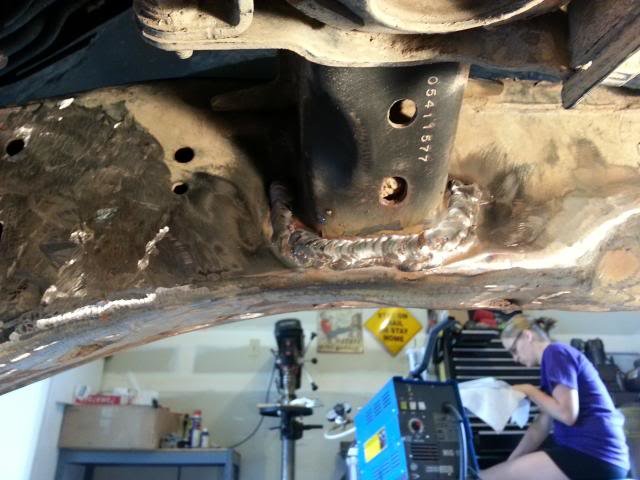

    Welded up the crack in the motor mount while I was under there...3 passes on it so I think its good :D

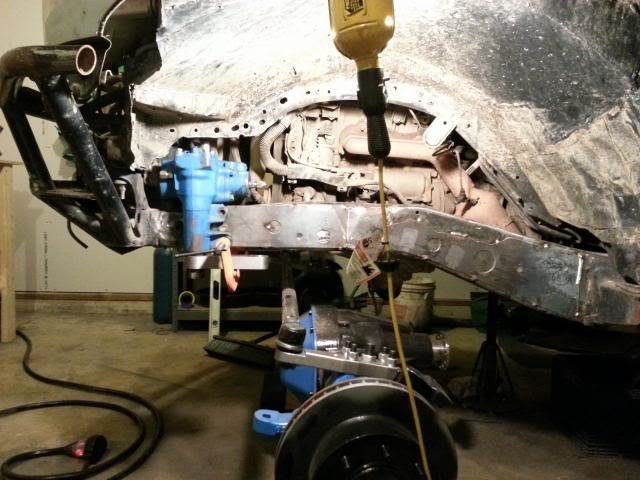

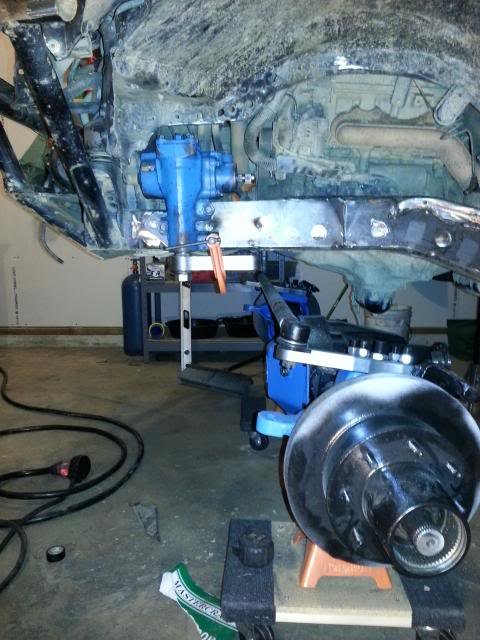

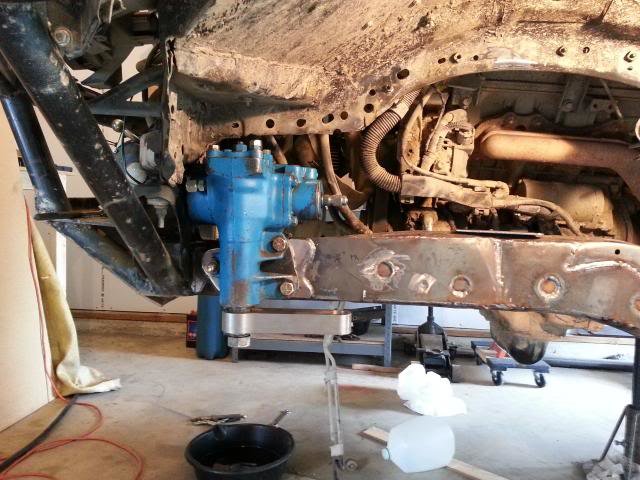

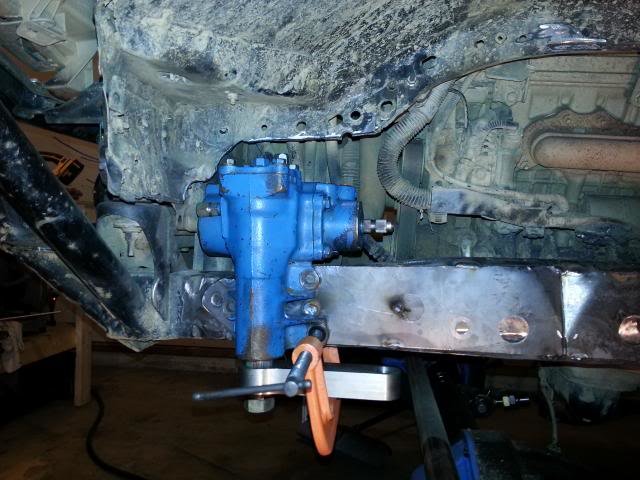

    And the box is mounted with another 1/2" plate spacer behind the box. All in all the box has over 1" of steel behind it on the drivers side:
