2005 Bulletproof Taco: 1 Ton SAC

Discussion in 'Solid Axle Suspension' started by NwiTACO, Jun 6, 2012.

  1. Jul 12, 2013 at 11:45 AM
    #581
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,906
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    I just got tired of playing catchup from my other build thread. Any of the missing timeline can be found here:

    http://ttora.com/forum/showthread.php?t=126570&page=4

    Picks up around page 4 or so...

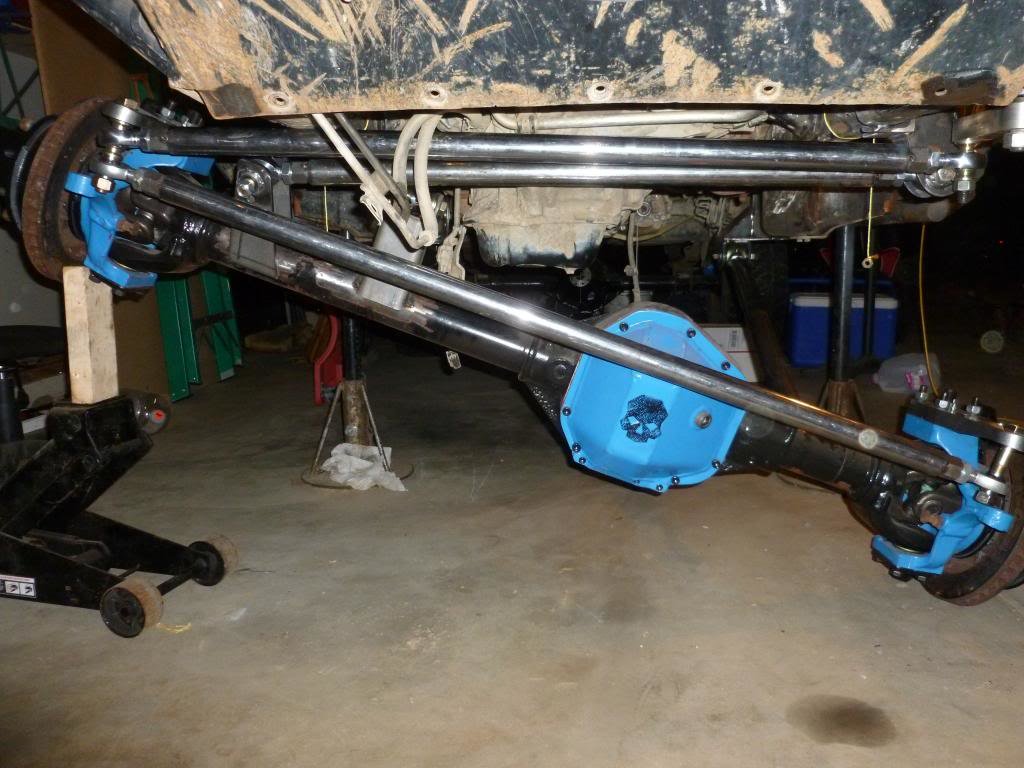

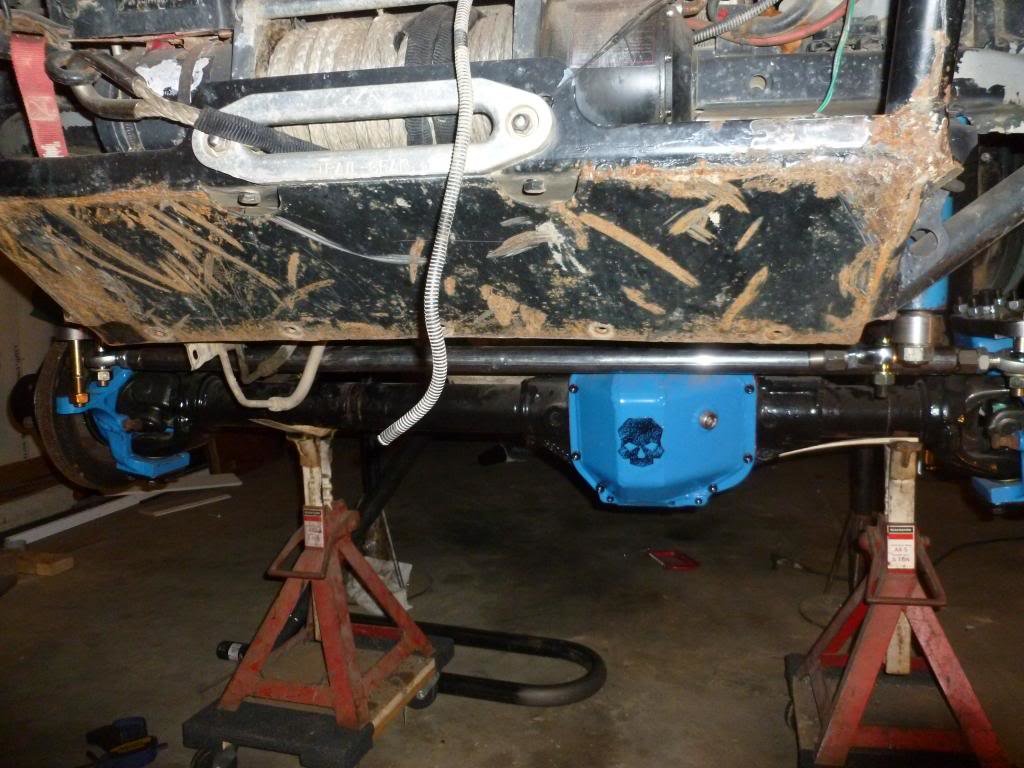

    But this thread is not dead! Nor is my truck. It has just been making love to the jackstands for about 9 months :eek:

    I will have more updates after the weekend!

  2. Jul 15, 2013 at 11:31 AM
    #582
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,906
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R

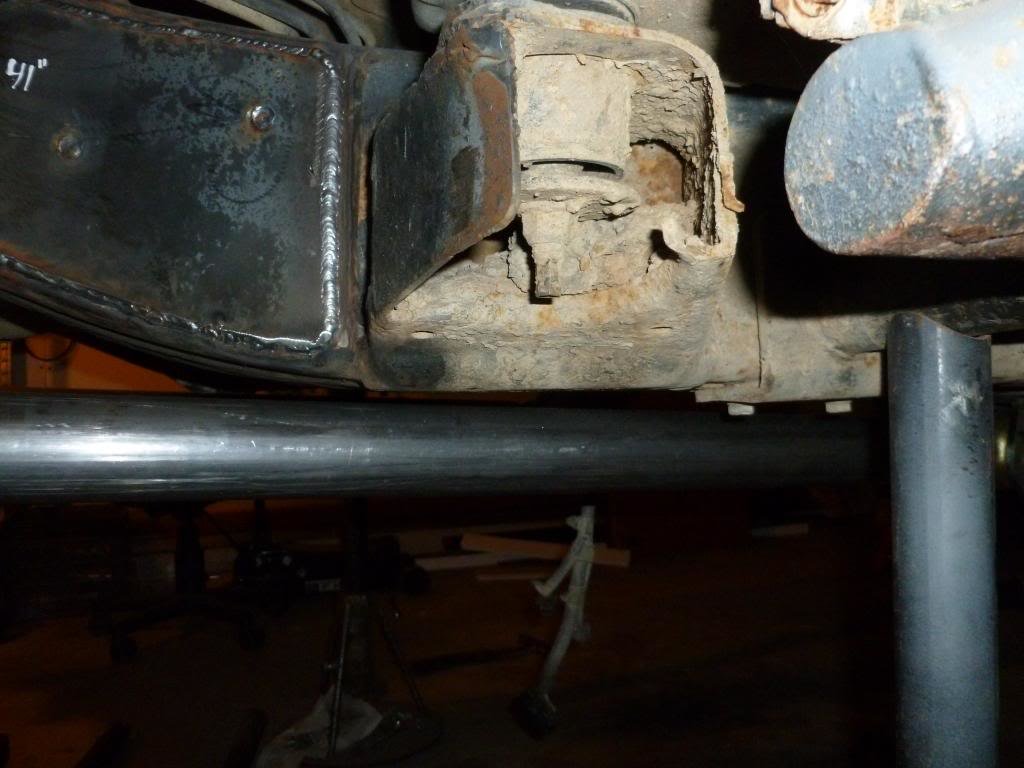

    Got a chance to get some more work done this weekend. I focused on getting my frame end brackets done. The lower links will mount below and inboard of the frame so they triangulate outward, and the upper will mount on the inside of the passenger framerail and triangulate inward towards the center of the axle.

    I started with the passenger bracket which will be the upper and a lower. First made frameplates of the inside and bottom of the frame. Everything will weld to this to make one bracket that will get welded to the frame.

    This is bent to follow the frame contour as well.

    [​IMG]

    [​IMG]

    Then I added my generic brackets from Ruffstuff and Ballistic:

    [​IMG]

    Then mock-up some cardboard:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Now make it out of steel :cool::

    [​IMG]

    [​IMG]

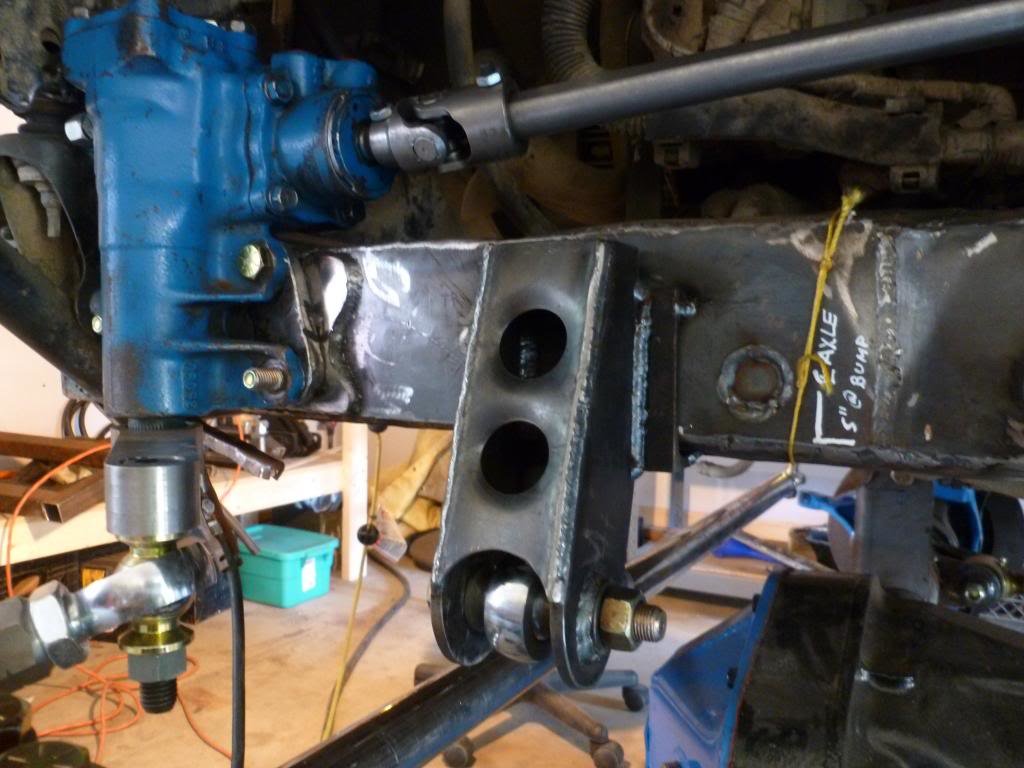

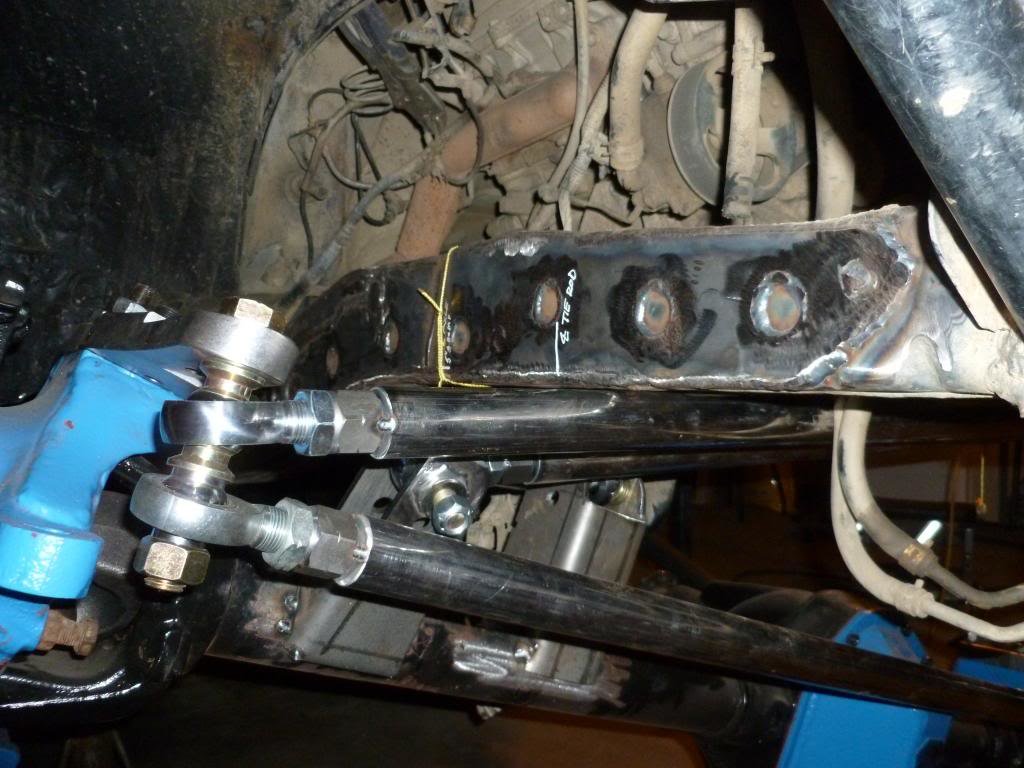

    Can't forget the plug welds to grab the internal gusset:

    [​IMG]

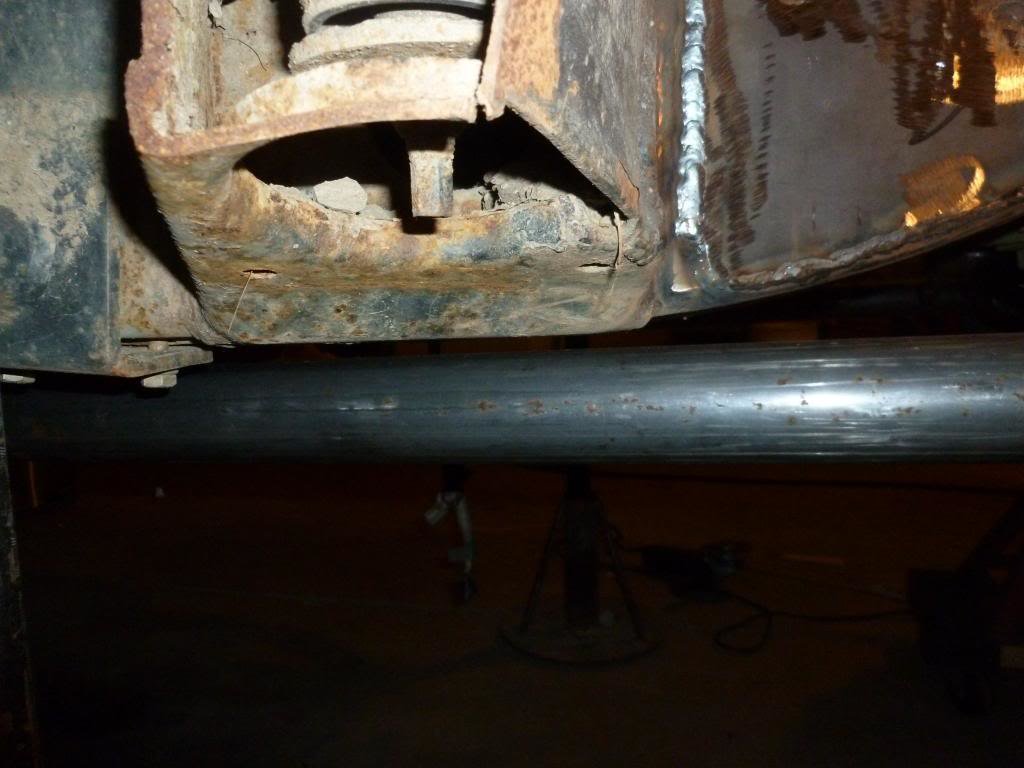

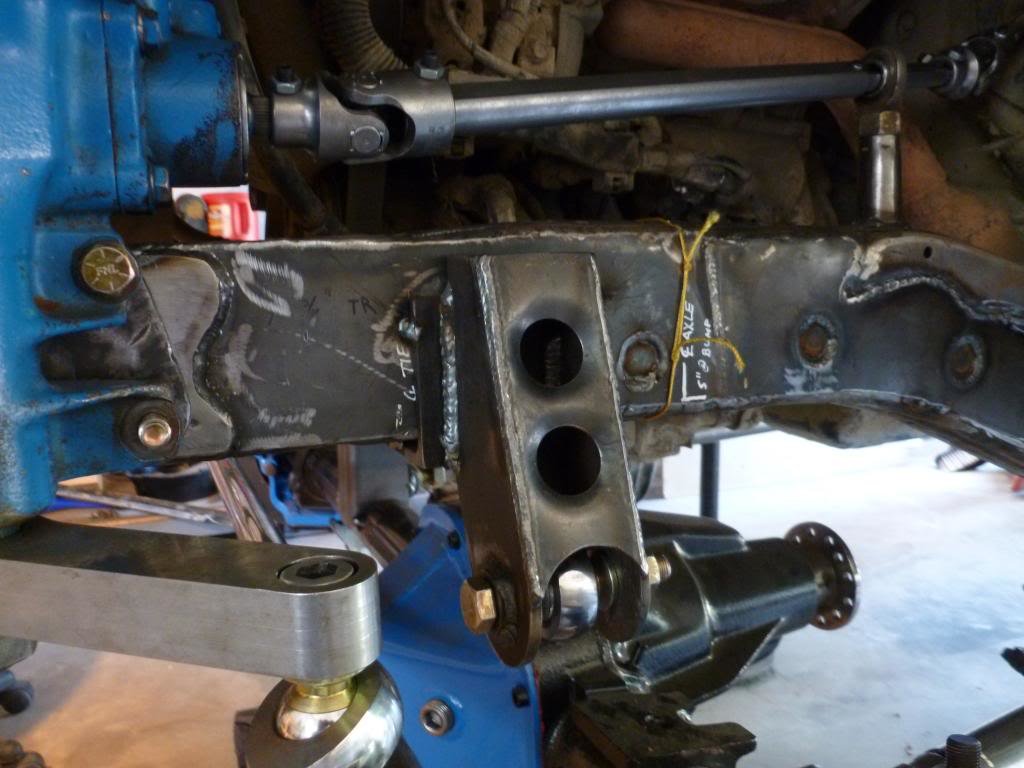

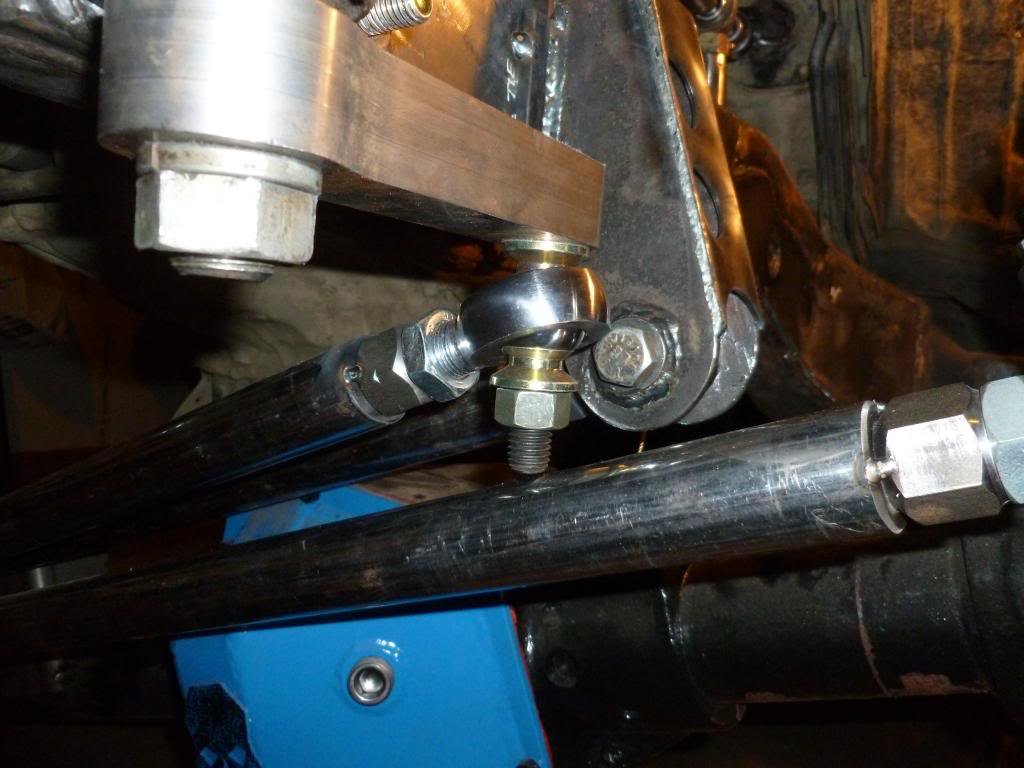

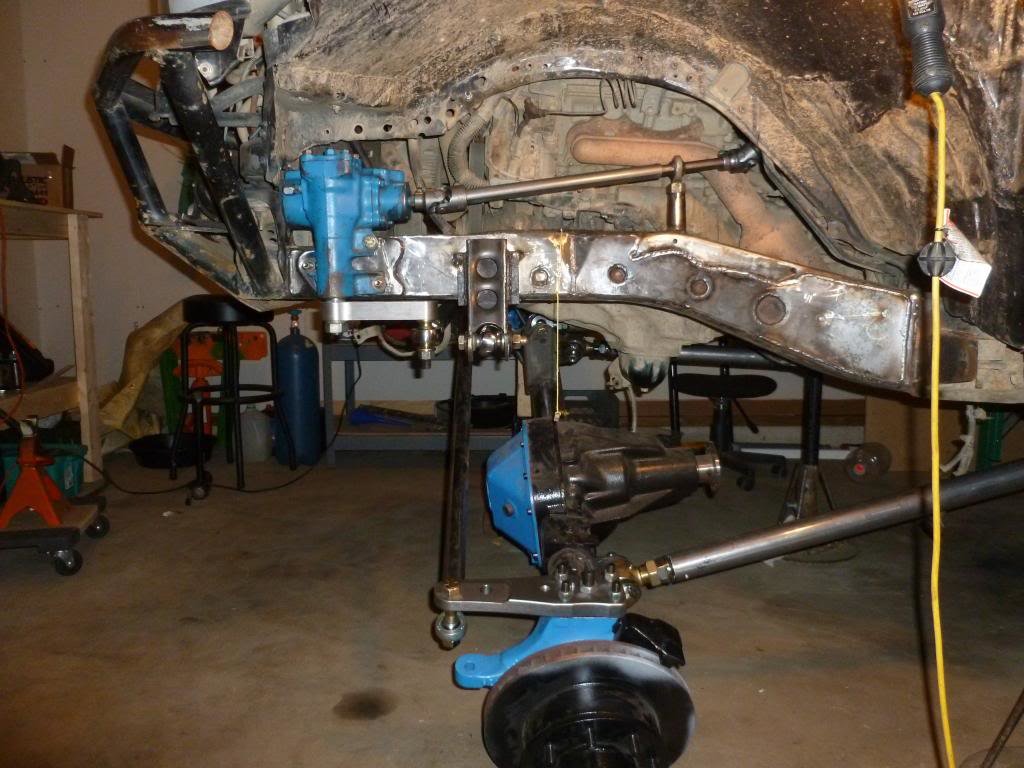

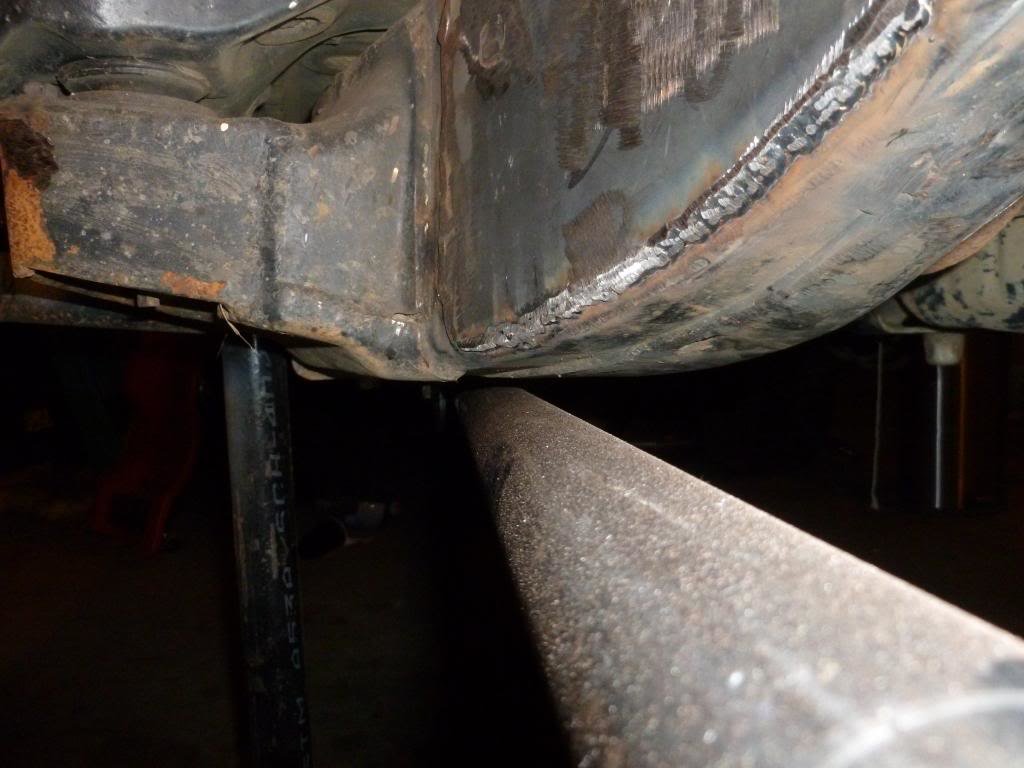

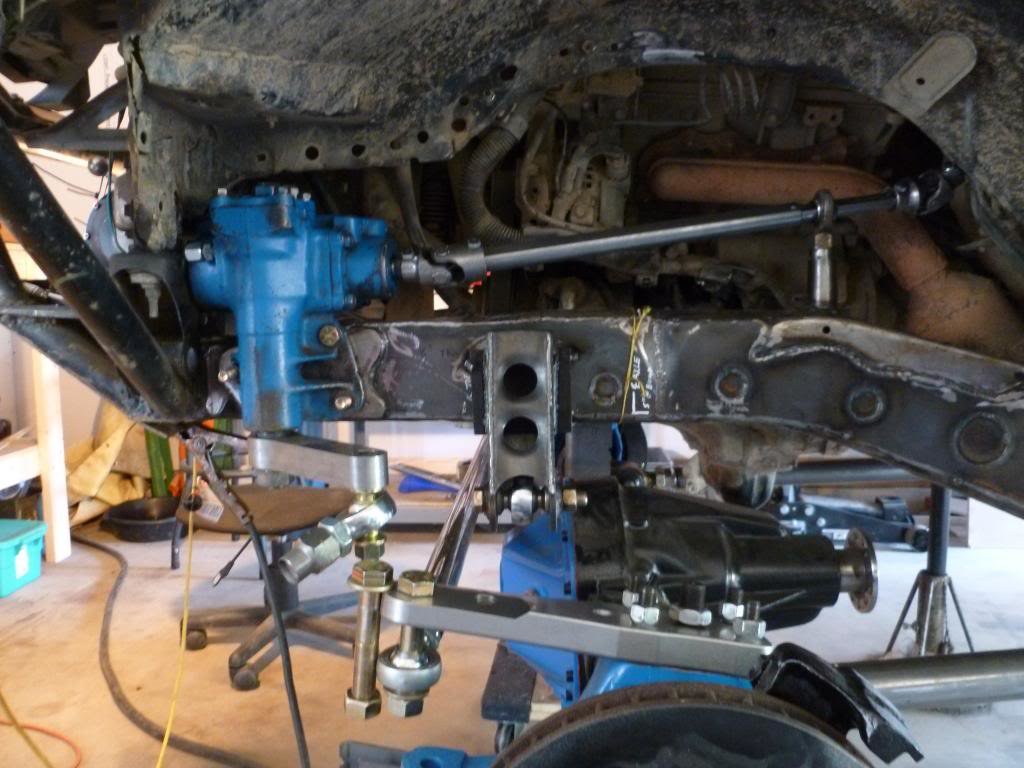

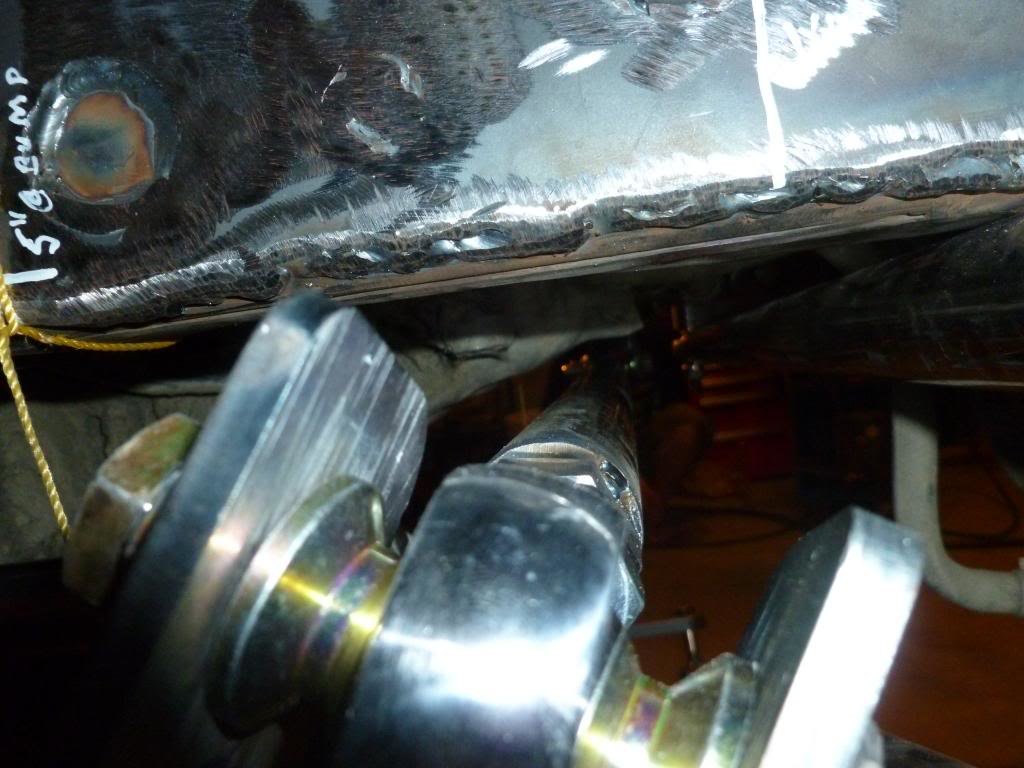

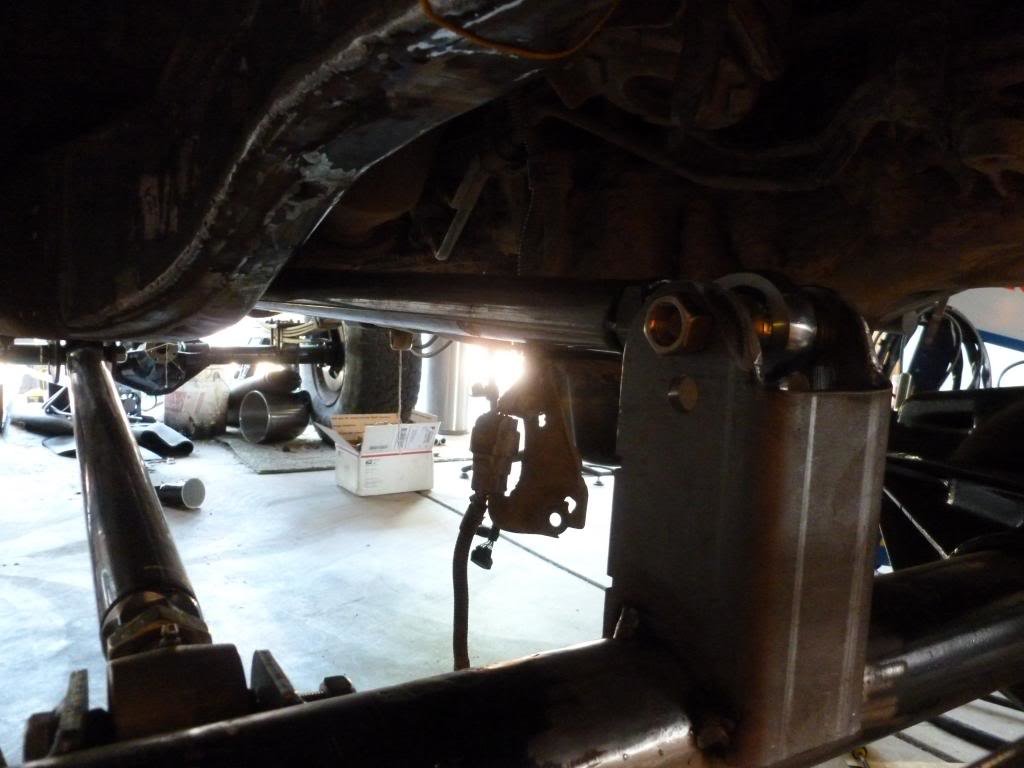

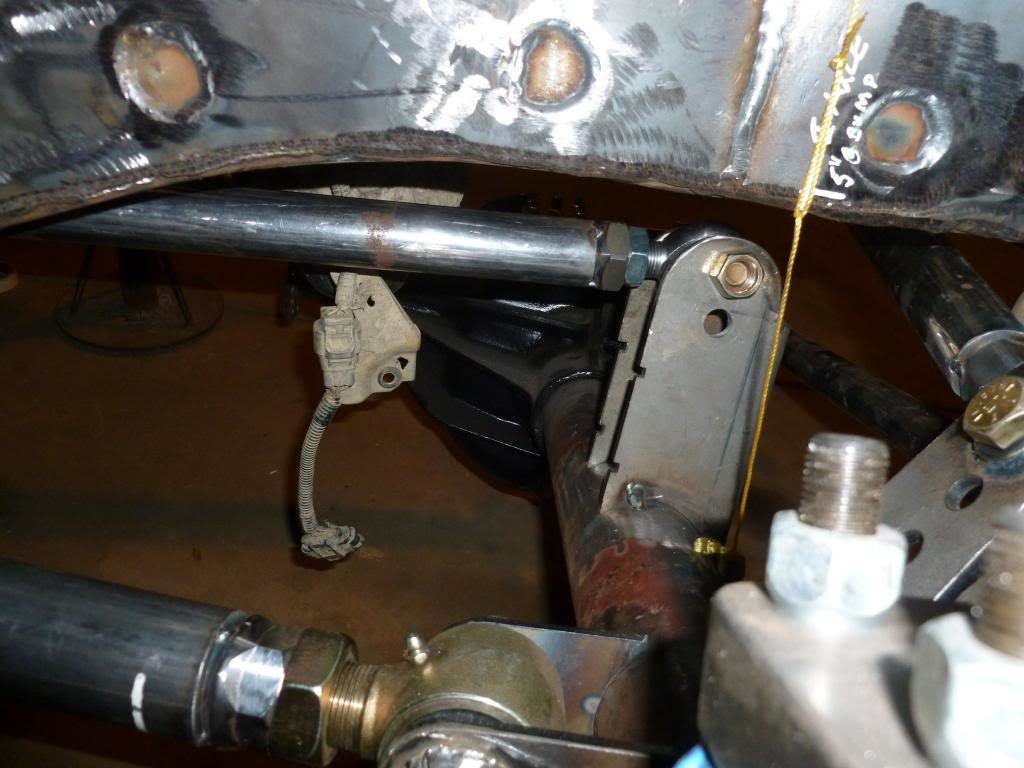

    Mock-up on the frame:

    [​IMG]

    [​IMG]

    [​IMG]

  3. Jul 15, 2013 at 11:36 AM
    #583
    Spoonman

    Spoonman Granite Guru

    Joined:
    Sep 11, 2011
    Member:
    #63328
    Messages:
    7,819
    Gender:
    Male
    First Name:
    Jamie
    Calgary
    Vehicle:
    2006 Campster Mobile
    My truck is MAGIC
  4. Jul 15, 2013 at 11:37 AM
    #584
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,906
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R

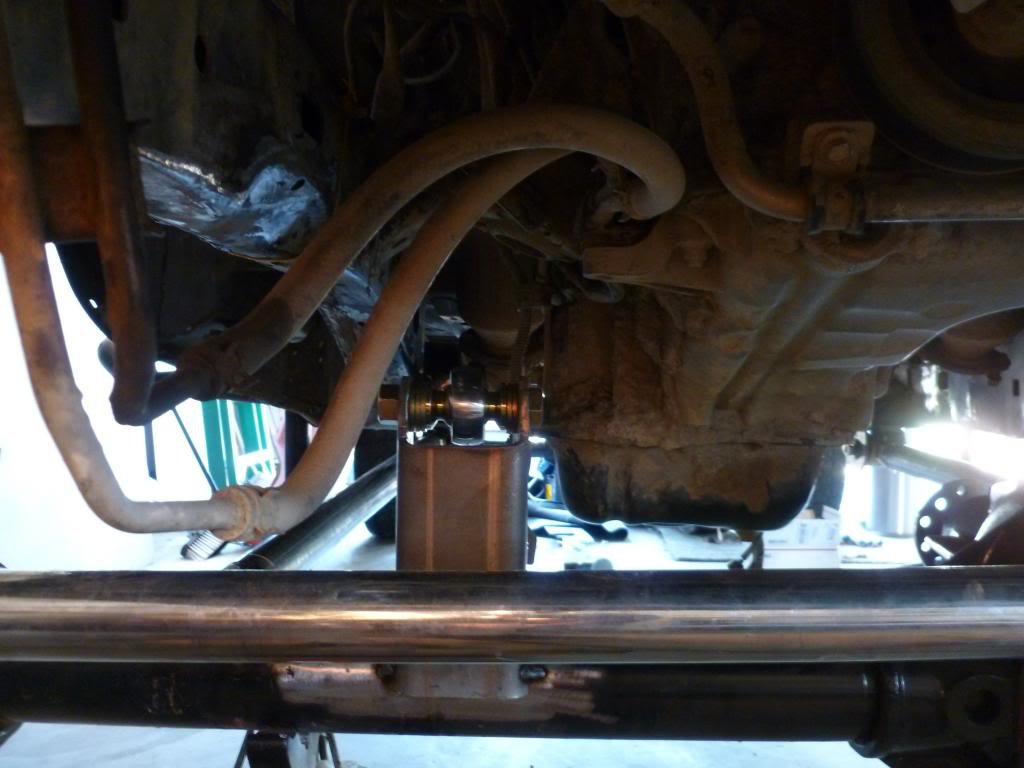

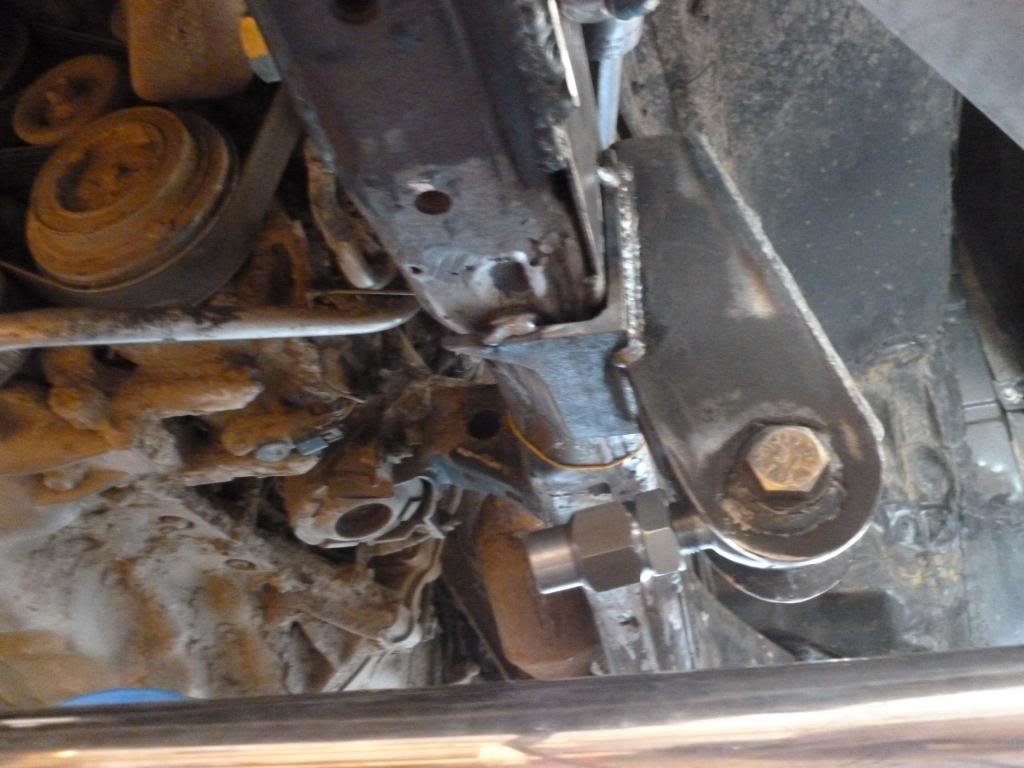

    The next step was easy...since the frame is symmetrical I cut apart my templates to make just the outrigger and gusset for the lower link mount:

    [​IMG]

    [​IMG]

    Clipped the corner off the lower bracket to finish it off a little more:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Still need to add weld washers to this one and some plug weld holes in the frameplates but otherwise its done too.

    Passenger side bracket is 13 pieces and drivers side is 11 pieces :eek:

    These will get disassembled after cycling the suspension, and then fully welded upon reassembly. :cool:

  5. Jul 15, 2013 at 11:59 AM
    #585
    Spoonman

    Spoonman Granite Guru

    Joined:
    Sep 11, 2011
    Member:
    #63328
    Messages:
    7,819
    Gender:
    Male
    First Name:
    Jamie
    Calgary
    Vehicle:
    2006 Campster Mobile
    My truck is MAGIC
    Valid question: are you going to cage this?

    I kinda wanna cage mine.

  6. Jul 15, 2013 at 12:05 PM
    #586
    SconnieHailer

    SconnieHailer PutterClutch

    Joined:
    Aug 26, 2012
    Member:
    #85590
    Messages:
    6,795
    Gender:
    Male
    First Name:
    Marc
    Lander, Wyoming
    Vehicle:
    2012 TRD Off Road Double Cab V6 6Speed
    Nice puzzle piece work Mark!

  7. Jul 15, 2013 at 12:22 PM
    #587
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,906
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Eventually its getting an Exo that will tie into the bed. For now I at least have a rollbar which is leaps and bounds ahead of having nothing so its not high on my priorities...

  8. Jul 21, 2013 at 12:46 PM
    #588
    Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,431
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D44/Ford 9"
    SAS.. Need I say more.
    Mark, your photos are all broken right now!! Bandwidth issue!!

    Oh and......









































    [​IMG]

    :popcorn:

  9. Jul 21, 2013 at 12:49 PM
    #589
    CanisLupus

    CanisLupus Previously "MGMTacoFF"

    Joined:
    May 17, 2011
    Member:
    #56826
    Messages:
    4,561
    Gender:
    Male
    First Name:
    Matt
    Northern Virginia
    Vehicle:
    2011 DCSB 4WD
    :redxfall:

    I think your Photobucket is overloaded, no pics are showing up.

    Matt

  10. Jul 21, 2013 at 12:52 PM
    #590
    Slodgetto

    Slodgetto Über Posre

    Joined:
    Jan 18, 2011
    Member:
    #49483
    Messages:
    9,327
    First Name:
    Silas
    Vehicle:
    Dirty Terc
    Scratches, dents, and junkyard parts.
  11. Jul 21, 2013 at 12:53 PM
    #591
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,765
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    FUUUUUUCCCKKK

  12. Jul 21, 2013 at 1:00 PM
    #592
    Spoonman

    Spoonman Granite Guru

    Joined:
    Sep 11, 2011
    Member:
    #63328
    Messages:
    7,819
    Gender:
    Male
    First Name:
    Jamie
    Calgary
    Vehicle:
    2006 Campster Mobile
    My truck is MAGIC
    OH GOOD LORD

  13. Jul 22, 2013 at 5:48 AM
    #593
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,906
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Is there any way to fix this issue without paying? another free account or another provider?

  14. Jul 22, 2013 at 5:51 AM
    #594
    HomerTaco

    HomerTaco That "grill guy" Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    26,907
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    07' DCSB cut to pieces...
    Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad / Safari Snorkel / Illuminated 4x4 switch / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust Dump / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift
    Damn Photobucket cockblocking truck porn. :rant:

  15. Jul 22, 2013 at 5:54 AM
    #595
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,906
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    I have the camera hooked up and ready to upload!!@

  16. Jul 22, 2013 at 6:13 AM
    #596
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,793
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    11' TRD Sport Alpine White
    i think you should just read my build thread ......
    Second free account.....

  17. Jul 22, 2013 at 6:16 AM
    #597
    no mods

    no mods Well-Known Member

    Joined:
    Feb 21, 2009
    Member:
    #13884
    Messages:
    730
    Gender:
    Male
    cincinnati
    Some stickers
    [​IMG]Pay the 1.99 for tapatalk full app and u can upload everything to their server

  18. Jul 22, 2013 at 6:24 AM
    #598
    no mods

    no mods Well-Known Member

    Joined:
    Feb 21, 2009
    Member:
    #13884
    Messages:
    730
    Gender:
    Male
    cincinnati
    Some stickers
  19. Jul 22, 2013 at 6:37 AM
    #599
    Spoonman

    Spoonman Granite Guru

    Joined:
    Sep 11, 2011
    Member:
    #63328
    Messages:
    7,819
    Gender:
    Male
    First Name:
    Jamie
    Calgary
    Vehicle:
    2006 Campster Mobile
    My truck is MAGIC
    Imageshack.us its free. I've got lots of pics and they haven't asked me to pay. Choose to sign in or not.

  20. Jul 22, 2013 at 6:48 AM
    #600
    ruggedT

    ruggedT The Sticker Guy Vendor

    Joined:
    Jun 24, 2011
    Member:
    #58788
    Messages:
    2,898
    Gender:
    Male
    Midlothian, Va
    Vehicle:
    2013 Ford F150
    Icon, 34's, skids, ect
    x2 on picasa
