2005 Tacoma 63" Spring Swap

Discussion in 'Suspension' started by NwiTACO, Jan 23, 2012.

  1. Jan 23, 2012 at 1:41 PM
    #1
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,907
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    OK finally getting around to a write up. My AP 3" springs had been shot for a while so my truck was started to get a bro lean going on so it was time for some springs.
    Plenty of info on 63" springs here:
    http://www.pirate4x4.com/forum/showthread.php?t=20665
    Only problem is that no one has put these under a late model Tacoma (05+) yet...until now :D

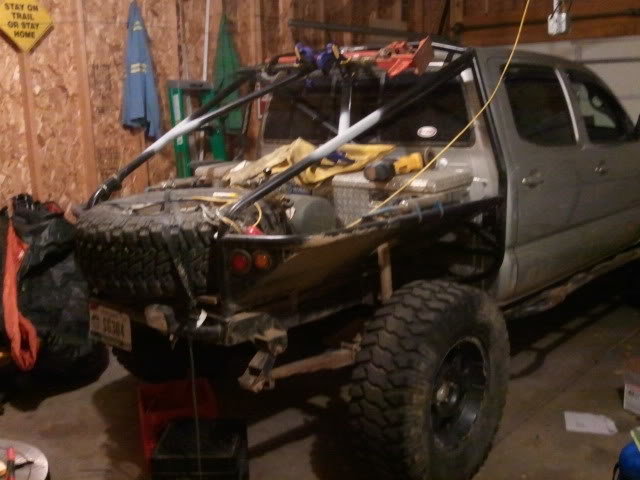

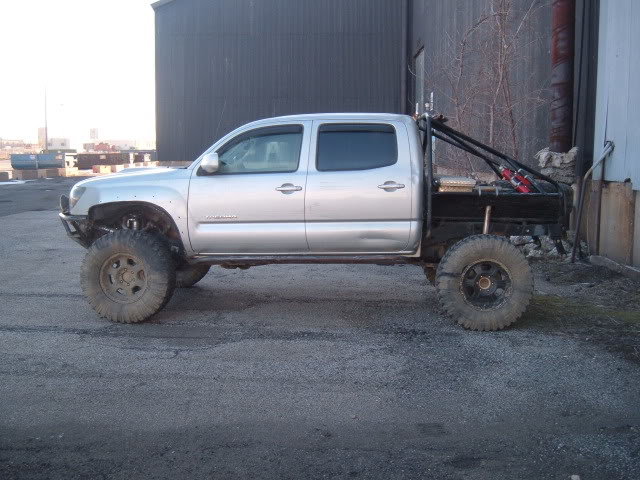

    Before Pic (3" AP spring + 1" XJ Shackles + ATO shackle flip):
    [​IMG]

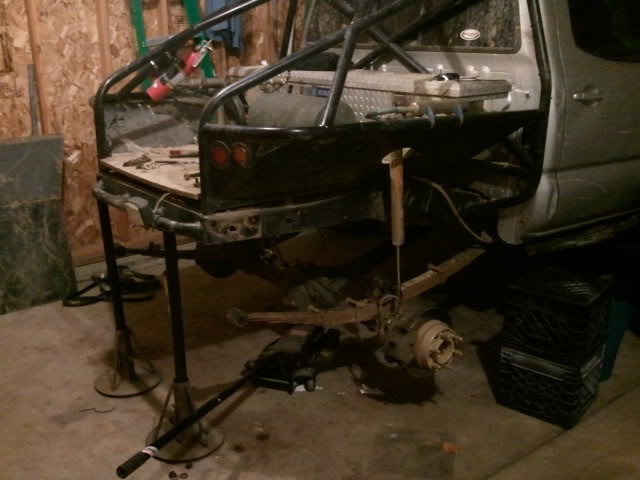

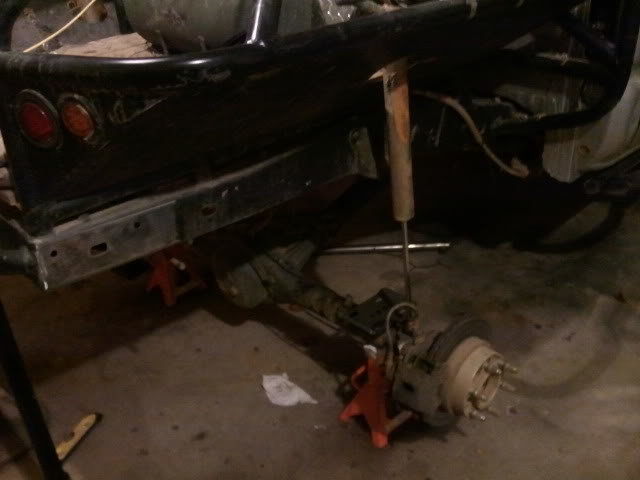

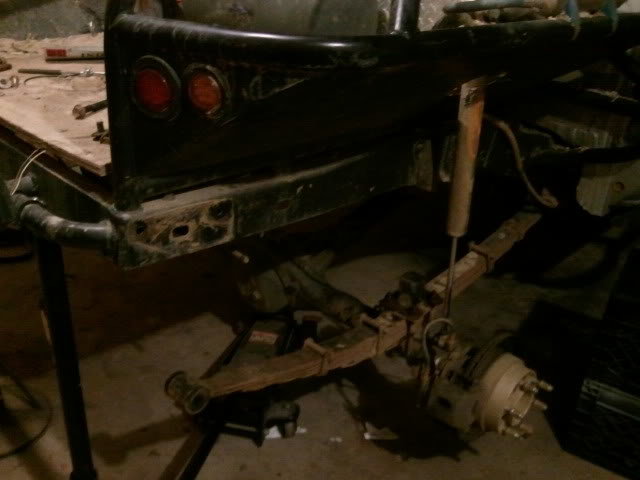

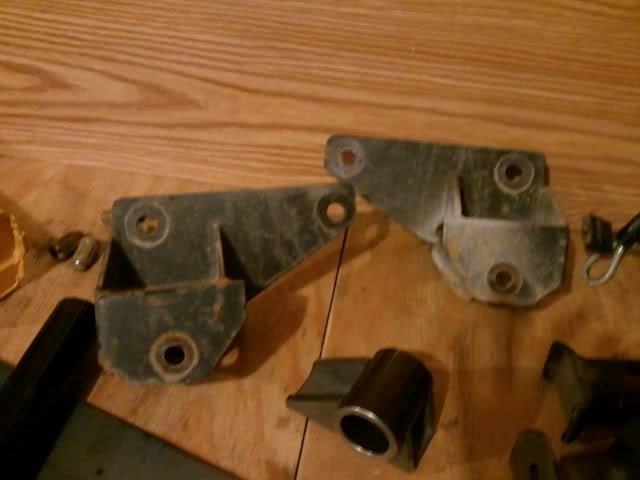

    First removed old ATO shackle flip (SOLD already so please don't ask):
    [​IMG]
    [​IMG]
    [​IMG]
    Welded up my new brackets (Spring Hangers are Ballistic, Shackle Hangers are RuffStuff):
    [​IMG]
    [​IMG]

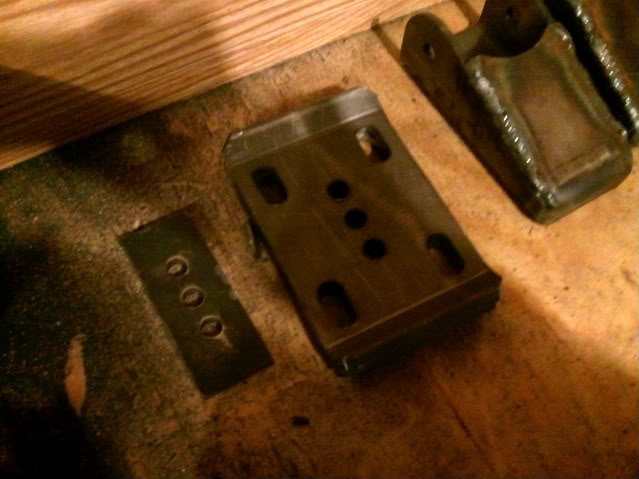

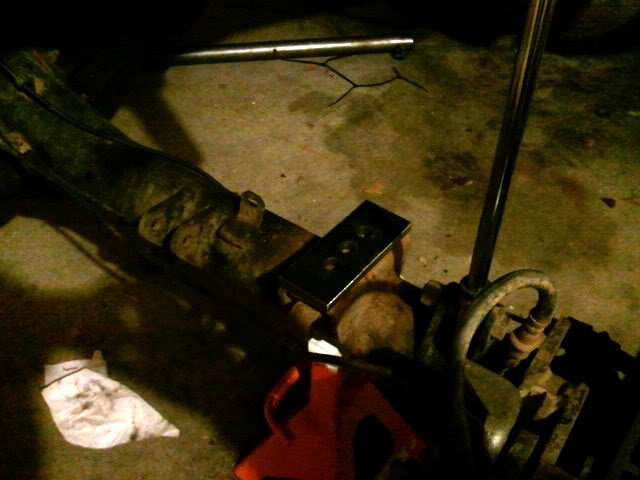

    Made Axle relocation plates to weld on perches to work with my RuffStuff U-bolt plates:
    [​IMG]
    [​IMG]

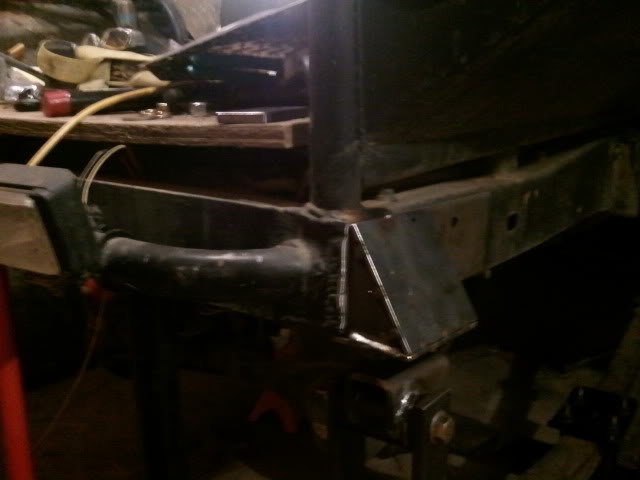

    If you have a late model taco you know the frame tapers back quite a bit so an outrigger was needed to land the shackle hanger on:
    [​IMG]

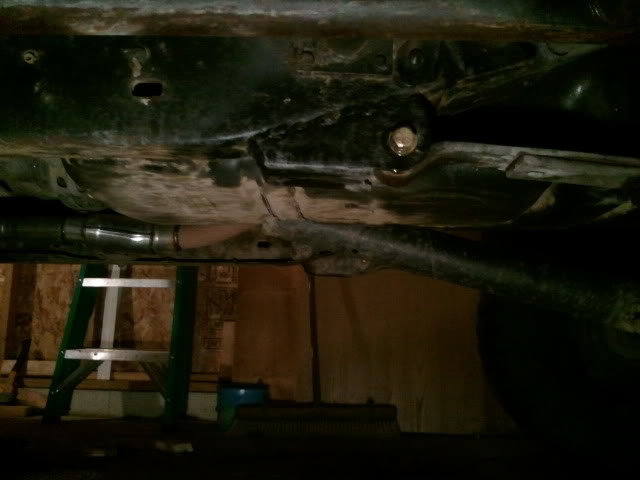

    Heres where I stopped the pics for some reason... measured the new springs eye to eye and compared with my old springs. I determined I need to move the front hanger 4.75" forward to leave the axle in the same spot. [Actually its more like 5.25" to stay stock location but I wanted a shorter wheelbase so I am happy]
    To do this I made some pieces of 1" barstock with holes 4.75" apart. I whittled what I needed away of my stock spring hanger so I could swing these pieces of barstock forward to locate the new front hanger. Located the both front hanger this way. Positioned the springs and bolted up the ubolts. Front hangers are damn near frenched into the frame since they landed right where the frame angles upward.
    [​IMG]
    Made some shackle from 3/8" x 2" barstock (6" c/c) and mocked up the shackle hanger.
    [​IMG]
    Once I determined its position I tacked it in place and cycled the suspension. Everything seemed great so I welded everything up.

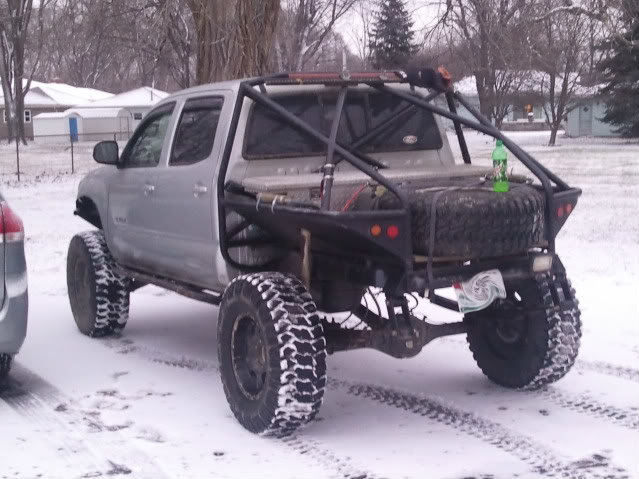

    Shackle angle at ride height:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    I know I have no bumpstops, that is why I left the OL leaf in for now. It will be coming out and traction bar added along with airbumps.
    Spring Review:
    Very happy with the end result. This spring rate seems perfect for the weight of my truck. They ride so smooth bc of the long spring, but I havent noticed the addittional length hanging up yet or dragging on an obstacle. Axle wrap is extremely low (OL still in) and no traction bar is required. Easily cycles the 14" of travel my rear shocks allow.
    Feel free to ask questions if you need measurements/etc.

  2. Jan 23, 2012 at 8:20 PM
    #2
    BAMFTACO

    BAMFTACO Pabst Blue Ribbon on ice

    Joined:
    Feb 3, 2010
    Member:
    #30639
    Messages:
    9,707
    Gender:
    Male
    First Name:
    JUAN
    Malibu, CA
    Vehicle:
    Taco
    Lift- stock suspension with light racing uppers,tc coil bucket gusset, timbern bumps ,defined extended shackles with shackle brace. Armor- custom tube bumper, kr fab rear bumper,trail gear wiy 78 in sliders Performance-intake manifold spacer, vibrant resonator Random stuff- kenwood head unit,b&m t shifter, hood bug deflector.
    Dam you have a sweet truck that's the setup I want

  3. Jan 23, 2012 at 8:22 PM
    #3
    theduck911

    theduck911 Max's Canadian Twin

    Joined:
    Oct 28, 2010
    Member:
    #45374
    Messages:
    4,274
    Gender:
    Male
    First Name:
    Max
    Northwestern Ontario, Canada
    Vehicle:
    Locked and Geared!
    Looks good Mark :thumbsup:

    Now go flex those bad boys :D

  4. Jan 24, 2012 at 6:45 AM
    #4
    Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,434
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D44/Ford 9"
    SAS.. Need I say more.
    He has already wheeled twice since the install lol :D

  5. Jan 24, 2012 at 6:58 AM
    #5
    Dark Knight

    Dark Knight East Bound and Down

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,550
    Gender:
    Male
    First Name:
    Jeff
    SE Tennessee
    Vehicle:
    Trail Limo
    Skyjacker Platinum Coilovers w/ 16" 750# King springs, Skyjacker rear leafs, FJ TRD SE wheels, 285/75/16 MTZ's, Piaa 520 Smr Driving Lights, Yakima Rack, Bestop Canopy, TRD Exhaust, TRD CAI, Kenwood DNX5120 Navi, Fog Light Mod, Driving Light Mod, BHLM, Scanguage II on Blendmount, TC uca's, ARB Heavy Duty air compressor, ARB Rear Locker, Shrockworks Rock Sliders, ARB Front Bumper, Relentless Fab Rear Bumper w/ custom bed protection, WARN M8000
  6. Jan 24, 2012 at 9:39 AM
    #6
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,907
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    It could all be yours for the right price :D

  7. Jan 24, 2012 at 11:30 AM
    #7
    BAMFTACO

    BAMFTACO Pabst Blue Ribbon on ice

    Joined:
    Feb 3, 2010
    Member:
    #30639
    Messages:
    9,707
    Gender:
    Male
    First Name:
    JUAN
    Malibu, CA
    Vehicle:
    Taco
    Lift- stock suspension with light racing uppers,tc coil bucket gusset, timbern bumps ,defined extended shackles with shackle brace. Armor- custom tube bumper, kr fab rear bumper,trail gear wiy 78 in sliders Performance-intake manifold spacer, vibrant resonator Random stuff- kenwood head unit,b&m t shifter, hood bug deflector.
    If I had the money

  8. Mar 19, 2012 at 6:22 AM
    #8
    Oury

    Oury Texas Taco

    Joined:
    Sep 13, 2010
    Member:
    #43204
    Messages:
    1,346
    Gender:
    Male
    First Name:
    Oury
    Austin, Tx
    Vehicle:
    07 TRD Offroad
    stuff and more stuff
    looks good! Im debating on what springs I should use. I installed the ATO Flip Kit I bought from you and had too trim my fenders due to the gain in up travel I was getting.

  9. Aug 15, 2013 at 10:12 AM
    #9
    Pdugan6

    Pdugan6 Well-Known Member

    Joined:
    Aug 11, 2013
    Member:
    #110271
    Messages:
    858
    Gender:
    Male
    First Name:
    Patrick
    Santa Clara California
    Vehicle:
    2011 Tacoma 4x4
    31570 R17 procomp mt2 on procomp alloy wheels trimmed fenders 2" out of rear 3" out of front Rear suspension:63"chevy springs mounted with ruff stuff chevy swap kit, 12" bilsteins ,All pro U-bolt flipkit extended brake lines and abs sensor tab Front suspension: pro comp 3" coil over lift Snugtop Snug Pro camper shell ATO high clearance bumper
    I'm prepping to get my 05+ 63 swap underway. I have a few questions:

    - what do you have for your IFS lift
    -are you running 35's
    -Can your truck carry a heavy load with this setup

  10. Aug 15, 2013 at 10:14 AM
    #10
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,907
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    I had All-Pro long Travel. Now I have the SAC.

    Ran 35's and then tubbed fro 37's.

    Don't carry much besides my stuff and my spare.

  11. Aug 15, 2013 at 10:15 AM
    #11
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    15,621
    Gender:
    Male
    He's SAC, no IFS.

  12. Oct 24, 2013 at 2:09 PM
    #12
    Evokid03

    Evokid03 Well-Known Member

    Joined:
    Jul 18, 2011
    Member:
    #60127
    Messages:
    196
    Gender:
    Male
    Indiana
    Vehicle:
    07 SR5 Tacoma 4x4
    STOCKIE
    back from the dead

  13. May 7, 2014 at 8:18 PM
    #13
    Tufftacoma06

    Tufftacoma06 New Member

    Joined:
    May 7, 2014
    Member:
    #129357
    Messages:
    1
    Gender:
    Male
    First Name:
    Tyson
    Columbus
    Vehicle:
    2006 Tacoma base 4x4 manual
    First off, sorry for bringing a post back again! This is the only post I've found for the 63" +05 swap. I'm planning on doing this swap for my 2006 single cab 4x4 tacoma. I have two questions. Could you possibly help me out with the dimensions for the rear shackle hangar? It appears to be at the very back of the frame, but your rig is just a little off of stock lol. Also, what is the purpose of the axle relocation plates/perches? Thank you for any help!

  14. May 8, 2014 at 5:27 AM
    #14
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,907
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    First the axle relocation plates are so I can move the axle 1/2" forward or back since they provide alternate holes for the leaf spring centering pin to engage in.

    As for dimensions, I will try to get some from a reference point on the frame. Basically once you locate the front, you put the leaf in and set your shackle angle at ride height to determine the shackle hanger location.
