**2005+ Tacoma Double Cab Complete Audio Install Tutorial**

Discussion in 'Audio & Video' started by Mr Marv, Oct 11, 2008.

  1. Mar 30, 2012 at 12:33 AM
    #121
    Raney08

    Raney08 Member

    Joined:
    Sep 22, 2009
    Member:
    #23131
    Messages:
    8
    Gender:
    Male
    Arkansas
    Vehicle:
    SR5 TRD
    AVN-6620 HU, Kappa one, Kappa four, two arc audio 10's, kicker 6.5 components rear, polk momo 6 x 9's in front.
    Thanks for the help Marv!!! These arc audio 10's in the enclosure you built sound better than I could have imagined!!!

  2. Mar 30, 2012 at 9:15 AM
    #122
    Mr Marv

    Mr Marv [OP] Well-Known Member Vendor

    Joined:
    Mar 6, 2007
    Member:
    #1009
    Messages:
    822
    Gender:
    Male
    First Name:
    Marv
    Monterey Bay California
    You're welcome Mr Raney/everyone else and THANK YOU all for allowing me to be of service to you! :) I'm going to be installing another Tacoma system soon and will try to update some pictures I missed in this one.

  3. Mar 30, 2012 at 7:35 PM
    #123
    Link7787

    Link7787 Active Member

    Joined:
    Mar 23, 2012
    Member:
    #75435
    Messages:
    37
    Gender:
    Male
    North Alabama
    Vehicle:
    10 Prerunner Pyrite
    Just finished installing Bxt Mat and Ensolite to the rear wall of my DCSB. Thx to mr marv for the inspiration and Rick at RaamAudio for material. I'll try to post pics tomorrow morning.

  4. May 23, 2012 at 7:55 PM
    #124
    tango down

    tango down Policy Ninja

    Joined:
    Oct 17, 2011
    Member:
    #65363
    Messages:
    575
    Gender:
    Male
    First Name:
    jeff
    peoples republik of IL
    Vehicle:
    12 Taco DCSB TRD Off Road
    LED interior, rail mounted ammo cans
    So are Mobile Authority speakers any good?





    I kid, I kid.

    But seriously, thanks MrMarv for taking the time to share your passion and talent with us.

    I am using your threads as a "handbook" to getting a decent system. I'll be calling you soon for a box order or plans for a box and using RaamAudio for deadening material.

    Thanks!!

  5. Aug 4, 2012 at 11:04 AM
    #125
    cypress1

    cypress1 New Member

    Joined:
    Aug 3, 2012
    Member:
    #84032
    Messages:
    1
    Gender:
    Male
    New Mexico
    Vehicle:
    TRD OFF ROAD
    3in coil spacers, 275-70/R 16 BFG Allterrain, American Racing 16 in rims.
    Thanks for the all the help Marv... Eric

  6. Aug 4, 2012 at 11:13 AM
    #126
    Mr Marv

    Mr Marv [OP] Well-Known Member Vendor

    Joined:
    Mar 6, 2007
    Member:
    #1009
    Messages:
    822
    Gender:
    Male
    First Name:
    Marv
    Monterey Bay California
    You're welcome Eric! :)

  7. Sep 5, 2012 at 1:46 PM
    #127
    DRM9

    DRM9 Member

    Joined:
    Dec 9, 2010
    Member:
    #47440
    Messages:
    10
    Gender:
    Male
    RI
    Vehicle:
    08 Tacoma Access TRD
    Hi Marv, just wanted to say thanks for the speaker baffles and installed this past weekend (armed with your notes too!). Couple points:

    1. Krylon'd with black exterior; I can see what you say about the plastics as your seal plus my Krylon should cover everything!

    2. toughest part was running wires thru the door boot....that took the most time all else was easy.

    3. I ended up taking the passenger seat out; much easier with crossover placements and wire running.

    4. Strike the door boots; wiring the Infinity tweeters was the toughest part....my German Shepherds hair is beefier than the "tool" Infinity gave to wire the tweeter! Luckily the smallest eye glass straight edge was just small enough to do the trick.

    TX again for your baffles and more importantly the wisdom behind it all; the deadening makes a HUGE difference and the tap test plus no holes makes for a much better cabin.

    David

  8. Sep 11, 2012 at 8:01 AM
    #128
    nguyent200

    nguyent200 New Member

    Joined:
    Sep 11, 2012
    Member:
    #86689
    Messages:
    3
    Gender:
    Male
    jackson
    Vehicle:
    x-renner
    working on it!!!
    That looks very Awersome!!! great work..

  9. Sep 28, 2012 at 12:27 PM
    #129
    T1no33

    T1no33 Well-Known Member

    Joined:
    Aug 24, 2012
    Member:
    #85466
    Messages:
    351
    Gender:
    Male
    First Name:
    Chris
    Spring Hill, Fl
    Vehicle:
    2012 PreRunner V6 SR5
    - Partial Badge Removal & Dipped - Removed Mud Flaps - Blacked out Emblem - Blacked out Chrome Surrounding Grill - Salex Center Console Organizer - AntennaX 13" - Tinted Front Windshield - Derped Tacoma Emblems - Bridgestone 265/70/16 tires - Tuff AT Wheels - 3 and 1 spacer block lift (mistake big time) - Black Rear Bumper - Aries Bull Bar w/light rig
    Does anyone know if I can connect my amp and sub to the stock radio in my 2012 Taco? On a budget for now so I'm using stuff from prior vehicle.

  10. Sep 28, 2012 at 1:25 PM
    #130
    tango down

    tango down Policy Ninja

    Joined:
    Oct 17, 2011
    Member:
    #65363
    Messages:
    575
    Gender:
    Male
    First Name:
    jeff
    peoples republik of IL
    Vehicle:
    12 Taco DCSB TRD Off Road
    LED interior, rail mounted ammo cans
    T1no33,

    Probably not. The OEM H/U does not have RCA out connections needed to bring the signal to the amp. You can get a Digital Signal Processor or a line out converter, but you are probably better off getting a new head unit.

  11. Sep 28, 2012 at 2:00 PM
    #131
    WheelinJ91

    WheelinJ91 Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68322
    Messages:
    321
    Gender:
    Male
    First Name:
    John
    Edmonton,AB
    Vehicle:
    2012 TRD DCSB
    Airaid Intake, MBRP Exhaust, Toytec OME 3" lift w/AAL, Flip-kit, LR UCA's, Weathertech Floor mats, hood and window deflectors.
    Is there any H/U out there that will allow me to connect the stock XM shark fin to it or can it be used for say sirius ? and with that i would also like to keep my steering wheel controls and the bluetooth speaker.... this may not all be available but if anyone knows of one that would be sweet.

  12. Sep 28, 2012 at 6:35 PM
    #132
    JoeSchmuck

    JoeSchmuck Well-Known Member

    Joined:
    May 19, 2009
    Member:
    #17443
    Messages:
    267
    Gender:
    Male
    First Name:
    Joe
    Virginia
    Vehicle:
    09 PreRunner SR5 2x4 O.R., Timberline Green
    NASTA Black 3" Nerf Bars, Pop & Lock, Access LE Rollup Cover, Alpine PDX-5 Amp, Image Dynamics CS-6/CX-6 & 10" Sub (using stock Head Unit)
    Sure you can, why the hell would someone say you couldn't is beyond me.

    I added a Pioneer PDX5 5 channel amp to my factory HU. You either need an amp that accepts speaker level inputs or you need an adapter (like what I used) which changes the speaker level outputs of your HU to line level values. Search this forum for my name and I have posted some info about how to do it. Also in that info was which pin on the HU controlled remote power on, not the power antenna signal. Lets face it, if you're listening to a CD or Aux input, the antenna wouldn't be up so that is a deal breaker. You could simply wire your amp to come on with your truck but you could end up hearing an electrical whine if your HU is turned off.

    The catch about using the HU is it doesn't output a flat response curve, meaning it's bass and treble are turned up when the volume is low and then tapers off closer to flat the higher the volume setting is. Mine is closer to flat at ~25 or so volume setting and it can be irritating if you're a perfectionist at which point you would want a new HU.

    My recommendation is to retain your factory HU, install your amp and speakers. See if you like it. You can always swap out the HU later if you don't like it.

    By the way, the PDX5 amp is awesome! You would need a speaker level to line level adapter if you were thinking about that amp, but it's so small and fits under your seat with room to spare.

    Good luck.

  13. Sep 29, 2012 at 4:57 AM
    #133
    T1no33

    T1no33 Well-Known Member

    Joined:
    Aug 24, 2012
    Member:
    #85466
    Messages:
    351
    Gender:
    Male
    First Name:
    Chris
    Spring Hill, Fl
    Vehicle:
    2012 PreRunner V6 SR5
    - Partial Badge Removal & Dipped - Removed Mud Flaps - Blacked out Emblem - Blacked out Chrome Surrounding Grill - Salex Center Console Organizer - AntennaX 13" - Tinted Front Windshield - Derped Tacoma Emblems - Bridgestone 265/70/16 tires - Tuff AT Wheels - 3 and 1 spacer block lift (mistake big time) - Black Rear Bumper - Aries Bull Bar w/light rig
    Big thanks to JoeSchmuck!!!

  14. Oct 9, 2012 at 3:24 PM
    #134
    Endurozw

    Endurozw War Damn Eagle!

    Joined:
    May 12, 2009
    Member:
    #17122
    Messages:
    216
    Gender:
    Male
    First Name:
    Zach
    Birmingham, Alabama
    Vehicle:
    09 PreRunner DC SR5 w/ tow package
    Fold-a-cover G4 - Wranger Duratrac 265/75/16 Audio Upgrades: Pioneer AVH-P4200DVD / JL Audio HD600/4 amp / Hybrid Audio 6.5 Clarus up front / Arc Audio 10 in subwoofer
    In case anyone is on the fence about this....I've been running the HAT components up front / Arc sub in the back for almost a year and a half now and it's still as amazing as when I installed it. Can't beat the price / the box Mr. Marv builds / or the help he gives while you're doing the install (as I probably blew his phone up since it was my first install). Can't say enough good things about the setup and the only downside is that my rear speakers just sound sad now....wish I had replaced them while I had all the door panels off.

  15. Jan 17, 2013 at 5:17 PM
    #135
    RubberDucky

    RubberDucky Well-Known Member

    Joined:
    Jun 12, 2012
    Member:
    #80576
    Messages:
    47
    Gender:
    Male
    First Name:
    Dillon
    North Pole, AK
    Vehicle:
    2010 Sport SR5 LB
    Stereo install.
    Seeing this amazing install is making me want a new battery with dual posts and those extremely nice terminals... :/

  16. Jan 24, 2013 at 6:43 PM
    #136
    fejus

    fejus Active Member

    Joined:
    Nov 8, 2012
    Member:
    #90716
    Messages:
    33
    Gender:
    Male
    First Name:
    Paul
    Flower Mound TX
    Vehicle:
    2010 Pementaco. TRD Sport
    Hello!

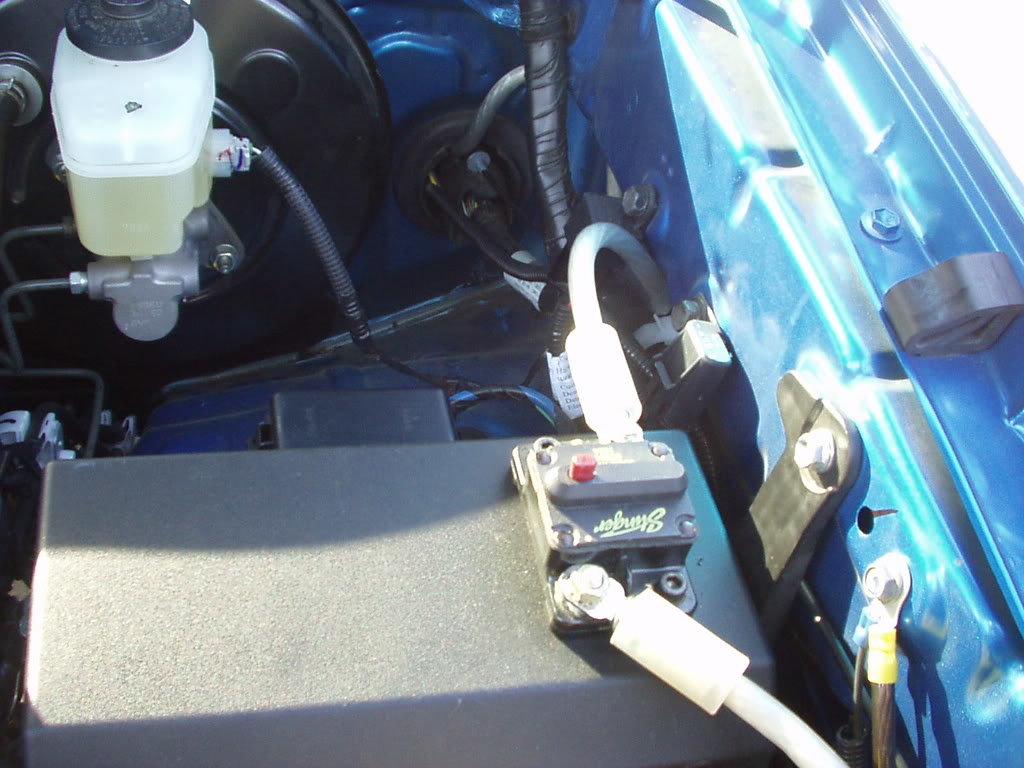

    in this pic

    [​IMG]

    is that a Fuse block with a reset button? Kinda like a GFI outlet?

    Thanks Marv! Just got your mounts today! :D

    -Paul

  17. Jan 24, 2013 at 7:16 PM
    #137
    Mr Marv

    Mr Marv [OP] Well-Known Member Vendor

    Joined:
    Mar 6, 2007
    Member:
    #1009
    Messages:
    822
    Gender:
    Male
    First Name:
    Marv
    Monterey Bay California
    You're welcome and thank you! That is a circuit breaker with a reset button and yes it is kinda like the 12v version of a GFCI outlet. :)

  18. Jan 24, 2013 at 7:18 PM
    #138
    ItalynStylion

    ItalynStylion Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,657
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    I have one of those too. It's a great addition in my opinion. That way when you're working on stuff you can kill power to the system at the touch of a button. Or when you flood your truck you can kill power so you don't fry $2,000 worth of audio gear...

  19. Jan 28, 2013 at 8:19 AM
    #139
    fejus

    fejus Active Member

    Joined:
    Nov 8, 2012
    Member:
    #90716
    Messages:
    33
    Gender:
    Male
    First Name:
    Paul
    Flower Mound TX
    Vehicle:
    2010 Pementaco. TRD Sport
    Just got done wrapping up my install using this thread! Thanks again Mr Marv!

    I took a pic of the install through the door boot that you referenced on the first page Ill try to get a couple of pics up so folks will be able to see what you were talking about ...

    Surprisingly getting the wires through that boot was MUCH easier then I was thinking it was going to be! I found taking the whole boot off both sides of the doors was the "Straw" that made it easier :)

    Ill get the pics posted tonight :)

  20. Jan 28, 2013 at 2:20 PM
    #140
    Bridgeman

    Bridgeman TRD burglar

    Joined:
    Oct 17, 2011
    Member:
    #65327
    Messages:
    124
    Gender:
    Male
    First Name:
    Tyler
    Chesapeake, Va
    Vehicle:
    2006 TRD Sport 4x4 Speedway Blue
