2005 Tacoma Rear Shock Replacement

Discussion in '2nd Gen. Tacomas (2005-2015)' started by CuyTaco, Jun 3, 2024.

  1. Jun 3, 2024 at 1:10 PM
    #1
    CuyTaco

    CuyTaco [OP] New Member

    Joined:
    Jun 3, 2024
    Member:
    #450873
    Messages:
    3
    Gender:
    Male
    First Name:
    AC
    Vehicle:
    2005 Toyota Tacoma TRD Off-Road
    I just recently bought a 2005 Tacoma TRD Off-Road 2WD with a 3" lift on it.
    I need to replace the rear shocks and would like to know if there is a special one needed or if the OEM ones will work? I'm new here so all your advise will be greatly appreciated.

    Thanks

  2. Jun 3, 2024 at 3:16 PM
    #2
    BigCountry762x39

    BigCountry762x39 Well-Known Member

    Joined:
    Dec 13, 2022
    Member:
    #413129
    Messages:
    1,876
    Gender:
    Male
    First Name:
    TL
    PNW, Oregon!
    Vehicle:
    2009 Tacoma, with the cool white paint peel
    Arb Deluxe bull bar Front Bumper Ironman4x4 12k winch synth line AFE Intake OME 2.75in Dakar Leaf springs (R) Fox 2.0 bypass shocks (R) Bilstein 6112 (F) 33's on KMC wheels off road lighting comfort mods Redrock HD roof rack Retevis rt95 Radio Slotted Rotors and HD pads
    get something that is made for a 3inch lift. because the shocks stock should fit but will basically act like a limiter and could casue more issues. ive put a set of the Toyota Bilstein on a set of 2.75 in rear springs and they were super close to maxed out

  3. Jun 3, 2024 at 7:17 PM
    #3
    Hook78

    Hook78 Well-Known Member

    Joined:
    Dec 3, 2017
    Member:
    #237571
    Messages:
    6,880
    Gender:
    Male
    Eastern NC
    Vehicle:
    2015 DCSB TRD OR
    Bilstein 6112/5160 Icon RXT
    What shocks are currently installed?

  4. Jun 3, 2024 at 7:19 PM
    #4
    Clearwater Bill

    Clearwater Bill Never answer an anonymous letter

    Joined:
    Oct 11, 2014
    Member:
    #140097
    Messages:
    24,740
    Gender:
    Male
    First Name:
    Billy
    Largo Florida
    Vehicle:
    '13 5 lug AC w/convenience package
    A few OE parts from fancy trucks
    The rear has a 3" block?

  5. Jun 4, 2024 at 6:51 AM
    #5
    CuyTaco

    CuyTaco [OP] New Member

    Joined:
    Jun 3, 2024
    Member:
    #450873
    Messages:
    3
    Gender:
    Male
    First Name:
    AC
    Vehicle:
    2005 Toyota Tacoma TRD Off-Road

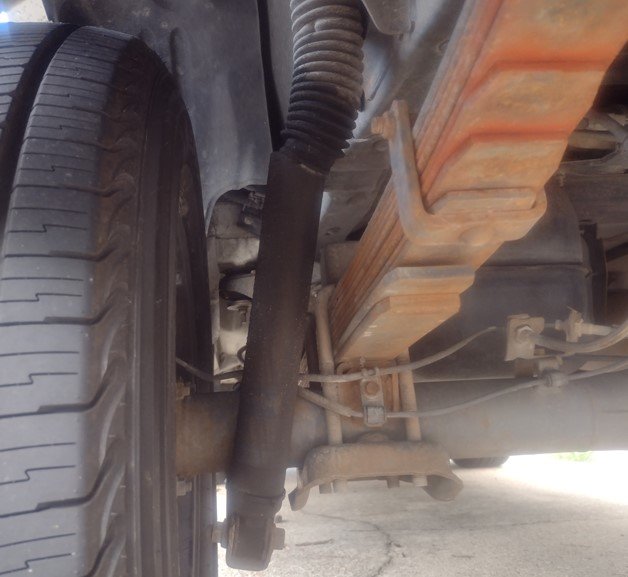

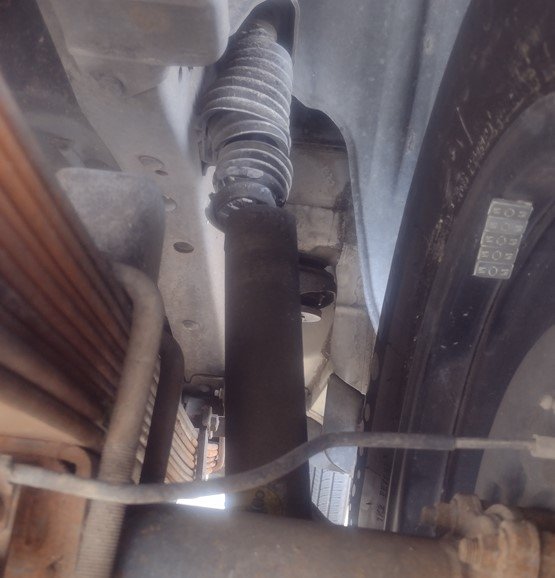

    Bilstein 186728 is about all I can read.



  6. Jun 4, 2024 at 7:00 AM
    #6
    Hook78

    Hook78 Well-Known Member

    Joined:
    Dec 3, 2017
    Member:
    #237571
    Messages:
    6,880
    Gender:
    Male
    Eastern NC
    Vehicle:
    2015 DCSB TRD OR
    Bilstein 6112/5160 Icon RXT
    Believe that’s a 5100. Also looks like your lift is via leaf pack not blocks.

  7. Jun 4, 2024 at 7:06 AM
    #7
    BORNWILDGUY

    BORNWILDGUY Well-Known Member

    Joined:
    Apr 30, 2012
    Member:
    #77942
    Messages:
    2,812
    Gender:
    Male
    First Name:
    Rich
    Florida
    Vehicle:
    2020 TACOMA TRD SPORT DCLB LIFTED W KDMAX-PRO XT TUNE
    FULLY LOADED WITH THE TECH PACKAGE, LEATHER, JBL SYSTEM W UPGRADED JBL SPEAKERS IN AL DOORS AND SUB, LED HEADLIGHTS, MOONROOF, EXTANG FULL TILT COVER, NFAB SIDE STEPS, OEM ROOF RACK, TRD PRO TAILS, COLOR MATCHED TRD PRO GRILL WITH WHITE RAPTOR LIGHTS, 15% TINT ALL THE WAY AROUND, TINTED WINDSHIELD 50%, BILSTEIN 6112'S W 650# SPRINGS AND 1/4 SPACER, ICON LEAF SPRINGS W 5125 REAR SHOCKS, WELD LEDGE 6 WHEELS 18 X 9 -12 W 275/65R18 TOYO AT III LOAD C TIRES
    BE5-B110-T5

  8. Jun 4, 2024 at 7:07 AM
    #8
    CuyTaco

    CuyTaco [OP] New Member

    Joined:
    Jun 3, 2024
    Member:
    #450873
    Messages:
    3
    Gender:
    Male
    First Name:
    AC
    Vehicle:
    2005 Toyota Tacoma TRD Off-Road
    So is that a standard shock?

  9. Jun 4, 2024 at 7:08 AM
    #9
    BORNWILDGUY

    BORNWILDGUY Well-Known Member

    Joined:
    Apr 30, 2012
    Member:
    #77942
    Messages:
    2,812
    Gender:
    Male
    First Name:
    Rich
    Florida
    Vehicle:
    2020 TACOMA TRD SPORT DCLB LIFTED W KDMAX-PRO XT TUNE
    FULLY LOADED WITH THE TECH PACKAGE, LEATHER, JBL SYSTEM W UPGRADED JBL SPEAKERS IN AL DOORS AND SUB, LED HEADLIGHTS, MOONROOF, EXTANG FULL TILT COVER, NFAB SIDE STEPS, OEM ROOF RACK, TRD PRO TAILS, COLOR MATCHED TRD PRO GRILL WITH WHITE RAPTOR LIGHTS, 15% TINT ALL THE WAY AROUND, TINTED WINDSHIELD 50%, BILSTEIN 6112'S W 650# SPRINGS AND 1/4 SPACER, ICON LEAF SPRINGS W 5125 REAR SHOCKS, WELD LEDGE 6 WHEELS 18 X 9 -12 W 275/65R18 TOYO AT III LOAD C TIRES
    Bilstein 5100 designed for 3-4" lift

  10. Jun 4, 2024 at 7:09 AM
    #10
    Hook78

    Hook78 Well-Known Member

    Joined:
    Dec 3, 2017
    Member:
    #237571
    Messages:
    6,880
    Gender:
    Male
    Eastern NC
    Vehicle:
    2015 DCSB TRD OR
    Bilstein 6112/5160 Icon RXT
    It’s not the stock shock, it’s an upgrade although not a high end upgrade, that is compatible with lifts. I don’t know how much lift a 5100 rear is compatible with, someone will chime in.

  11. Jun 4, 2024 at 7:47 AM
    #11
    ridefreak

    ridefreak Well-Known Member

    Joined:
    Oct 27, 2018
    Member:
    #270747
    Messages:
    1,190
    Gender:
    Male
    NM
    Vehicle:
    2006 DCSB TRD
    minor tweaks
    That's quite the leaf pack, 8/2 as far as I can tell, you need heavy duty leafs to carry around the heavy duty leafs.
