2006 2.7l 5 Speed Oil Leak (Passenger Side)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by chefweil, Jul 1, 2023.

  1. Jul 1, 2023 at 5:46 PM
    #1
    chefweil

    chefweil [OP] New Member

    Joined:
    Jul 1, 2023
    Member:
    #428007
    Messages:
    3
    Vehicle:
    2006 2.7 Tacoma 5 Speed
    Hey y'all,
    Long time user, first time poster. I have an oil leak that has been going on for a few years. It never drips, and I lose about a quart every 2-4k miles.

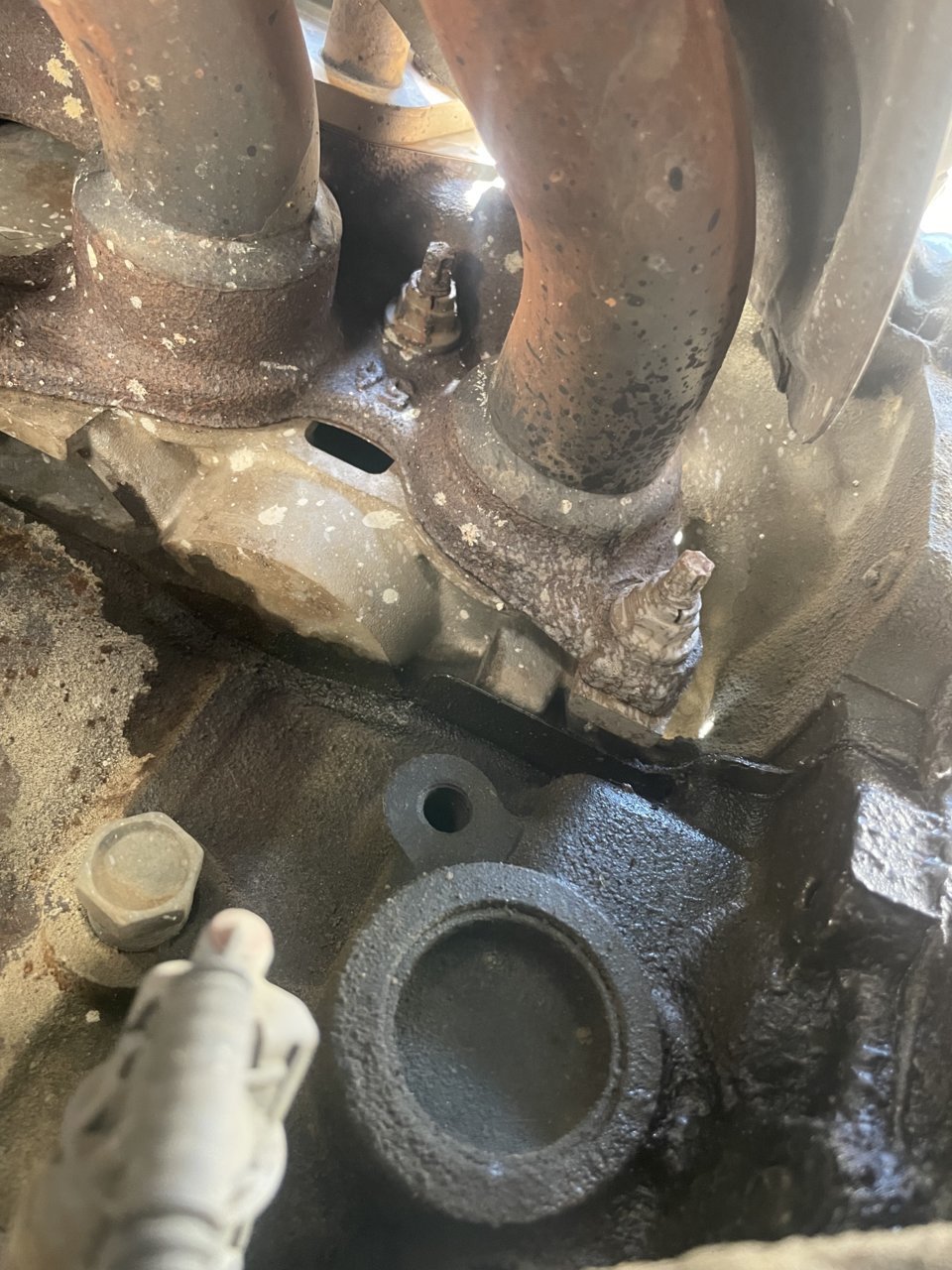

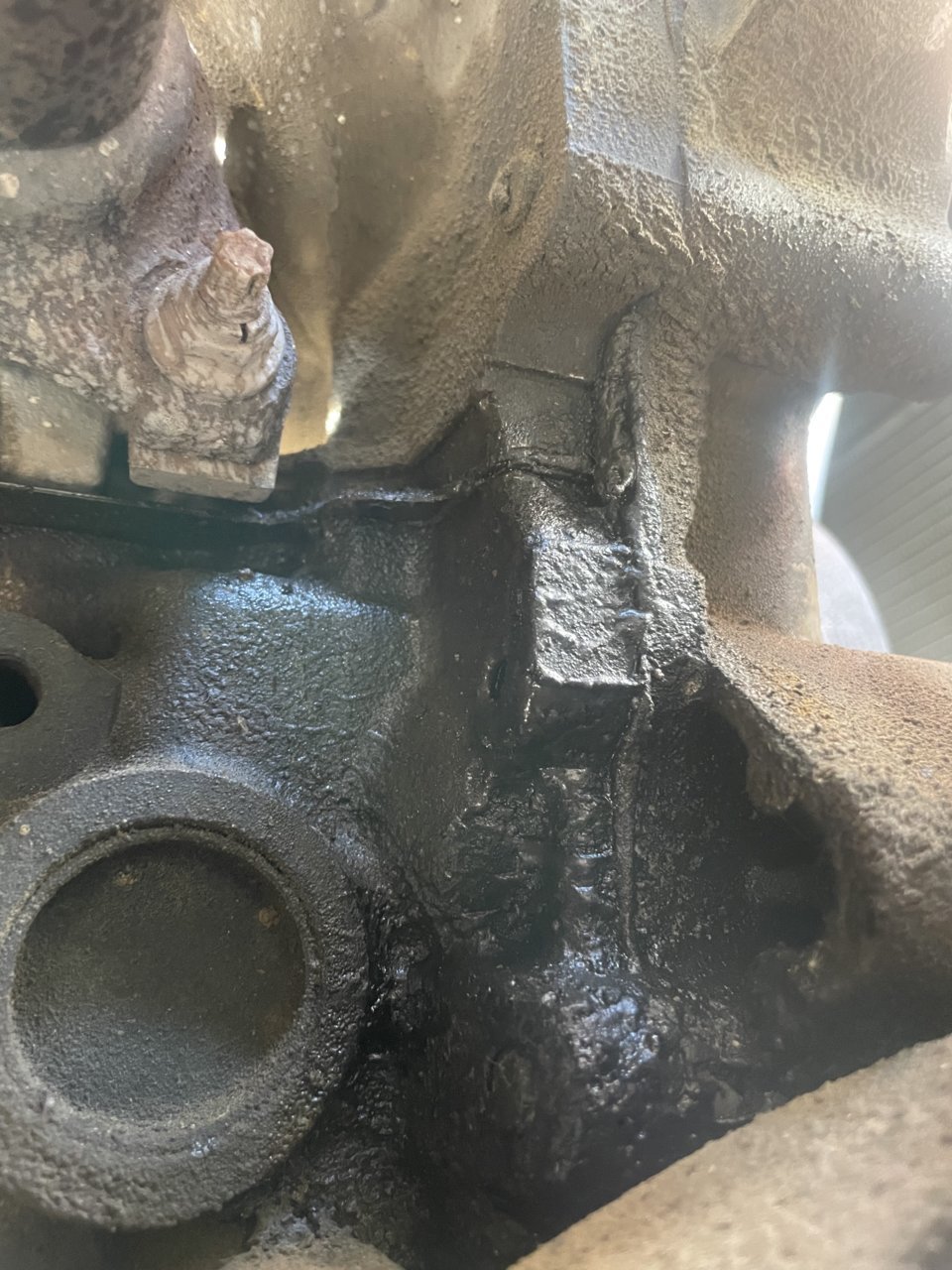

    Today I decided to take a closer look... Does anyone have a sense if this is leaking from the head gasket or the triple point between the timing cover, head and block?

    Since it doesn't seem to be a pressurized leak, I'm hoping its coming from the timing cover side of things. I have cleaned the area today and I will put it all back together and drive it around and see what happens. Thank you all for the help I received from these forums over the years!


  2. Jul 2, 2023 at 7:49 PM
    #2
    shmn

    shmn Well-Known Member

    Joined:
    Aug 2, 2022
    Member:
    #402702
    Messages:
    196
    Pacific NW
    Vehicle:
    2007 Tacoma 2.7L 5sp

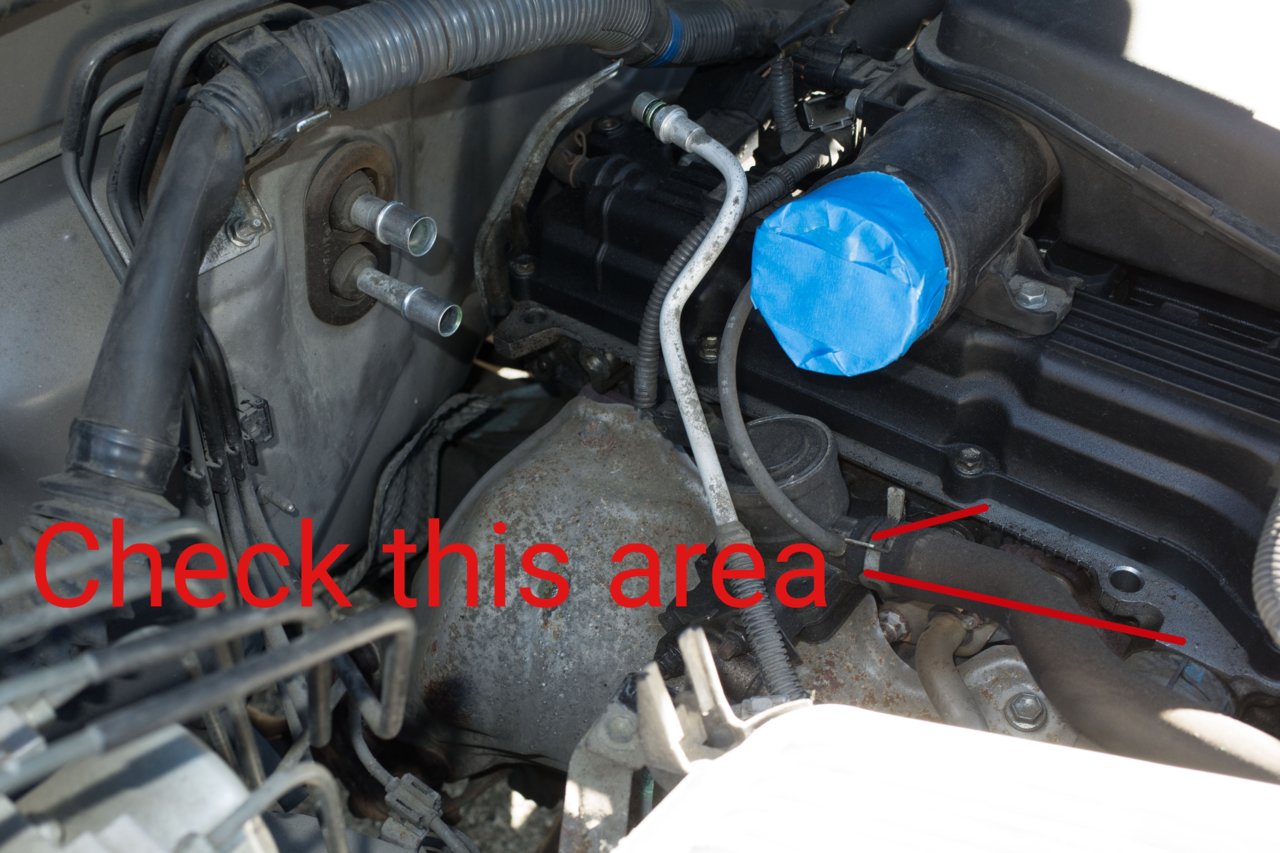

    I'd start with valve cover gasket since it's cheap and easy and right above this area. Then clean up oil see if it returns. Could also be the front cover but that's a big job. Stay with simple stuff first. Photos of valve cover on passenger side would help.

  3. Jul 2, 2023 at 7:58 PM
    #3
    shmn

    shmn Well-Known Member

    Joined:
    Aug 2, 2022
    Member:
    #402702
    Messages:
    196
    Pacific NW
    Vehicle:
    2007 Tacoma 2.7L 5sp
  4. Jul 3, 2023 at 6:22 AM
    #4
    Clearwater Bill

    Clearwater Bill Never answer an anonymous letter

    Joined:
    Oct 11, 2014
    Member:
    #140097
    Messages:
    24,516
    Gender:
    Male
    First Name:
    Billy
    Largo Florida
    Vehicle:
    '13 5 lug AC w/convenience package
    A few OE parts from fancy trucks
    A qt every 2-4k and no drips says you have internal issues of some type as well as the pictured weapage.

    Miles on truck? Known maintenance history?
