2006 Taco Gauges Just Went Blank

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Cnguyen520, Aug 2, 2016.

  1. Aug 2, 2016 at 2:10 PM
    #1
    Cnguyen520

    Cnguyen520 [OP] Member

    Joined:
    Mar 7, 2015
    Member:
    #150376
    Messages:
    6
    Gender:
    Male
    First Name:
    Chuong
    Houston, TX
    Vehicle:
    Pre Runner V6
    very new to the forums, i have searched and googled plenty but found nothing. as i was driving i noticed my gauges were all going crazy and finally it shut off.

    2006 taco pre runner v6

    NOT working
    - tach, speedo, odometer, gas, temp gauges, and cluster lights

    WORKing
    - tpms light, transmission lights P, R, N, D etc, signals, hazards, climate control lights, radio, clock, dome lights, windows, head lights, high beams, reverse lights, brake lights

    truck runs fine, but none of the gauges work.

    i checked a few fuses, none seem to be popped. but i am thinking about just replacing them anyway. any thoughts, advice, opinions, trouble shooting would be appreciated thank you.

  2. Aug 2, 2016 at 2:11 PM
    #2
    snowboard704

    snowboard704 Well-Known Member

    Joined:
    Jan 5, 2016
    Member:
    #174104
    Messages:
    2,699
    Gender:
    Male
    First Name:
    Austin
    Jurupa Valley, CA
    Vehicle:
    03' 4x4 Tacoma
    Check Build thread
    Welcome to TW

    Sandman614 likes this.
  3. Aug 2, 2016 at 2:12 PM
    #3
    Cnguyen520

    Cnguyen520 [OP] Member

    Joined:
    Mar 7, 2015
    Member:
    #150376
    Messages:
    6
    Gender:
    Male
    First Name:
    Chuong
    Houston, TX
    Vehicle:
    Pre Runner V6
  4. Aug 2, 2016 at 2:12 PM
    #4
    Sandman614

    Sandman614 Ex-Snarky TWSS elf, Travis #hotsavannahdotcom

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    36,050
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    How about your fan? Try IGN 1 NO. 2 fuse

  5. Aug 2, 2016 at 2:13 PM
    #5
    Cnguyen520

    Cnguyen520 [OP] Member

    Joined:
    Mar 7, 2015
    Member:
    #150376
    Messages:
    6
    Gender:
    Male
    First Name:
    Chuong
    Houston, TX
    Vehicle:
    Pre Runner V6

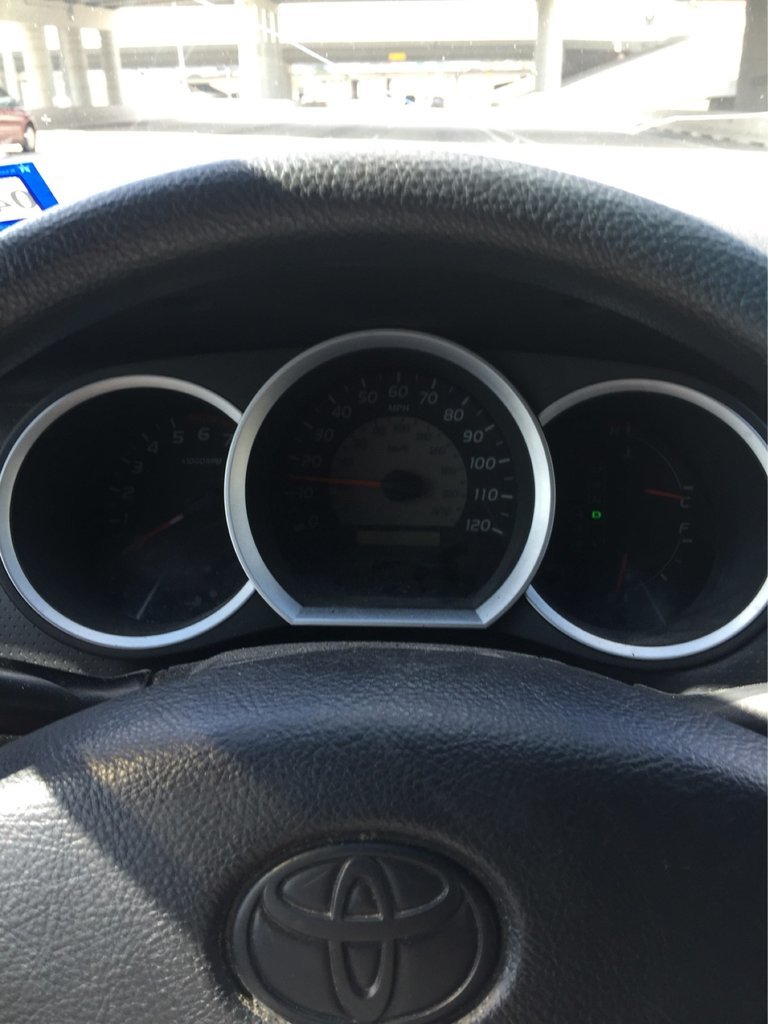

    this is a pic of what im seeing while driving.

  6. Aug 2, 2016 at 2:16 PM
    #6
    cj13058

    cj13058 Well-Known Member

    Joined:
    Dec 22, 2015
    Member:
    #172878
    Messages:
    436
    Gender:
    Male
    Oregon
    Vehicle:
    2024 Tacoma TRD Off-Road Premium iForceMax Bronze Oxide
    2024 Tacoma TRD Off Road Premium iForceMax Bronze Oxide - AluCab Contour canopy 2005 Tacoma TRD Off Road DCSB Radiant Red - ARB 3'' lift, ARE canopy, 265/75/16 All Terrain KO2, after market stereo, ECGS differential bushing, ARB Deluxe front Bumper, Warn M8000 winch, custom winch control box install, FrontRunner Slimline canopy rack,
    No lights but the needles move? The speedo is above 0 mph in the picture. In case you haven't tried (and it's a new-to-you-taco) there is a dial to the left of the steering wheel below the turn signal arm. You roll it up and down to dim or brighten dash lights. Maybe you rolled it down to off by mistake. Hope that's all it is...electrical problems suck!

    EDIT....nevermind I see the other gauges not working. Sorry, I got nothing then. good luck

  7. Aug 2, 2016 at 2:17 PM
    #7
    Cnguyen520

    Cnguyen520 [OP] Member

    Joined:
    Mar 7, 2015
    Member:
    #150376
    Messages:
    6
    Gender:
    Male
    First Name:
    Chuong
    Houston, TX
    Vehicle:
    Pre Runner V6
    currently at work, but i have a list of fuses i am going to change out.

  8. Aug 2, 2016 at 2:18 PM
    #8
    Cnguyen520

    Cnguyen520 [OP] Member

    Joined:
    Mar 7, 2015
    Member:
    #150376
    Messages:
    6
    Gender:
    Male
    First Name:
    Chuong
    Houston, TX
    Vehicle:
    Pre Runner V6
    no lights, needles on all gauges do not move, the needle is stuck at 15 mph

  9. Aug 2, 2016 at 2:18 PM
    #9
    Sandman614

    Sandman614 Ex-Snarky TWSS elf, Travis #hotsavannahdotcom

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    36,050
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Combination Meter (Gages) wiring diagram

    IG1 fuse


    Attached Files:

  10. Aug 2, 2016 at 3:16 PM
    #10
    Maggot61

    Maggot61 Well-Known Member

    Joined:
    Aug 2, 2016
    Member:
    #193571
    Messages:
    2,295
    Gender:
    Male
    First Name:
    Jose
    Sky Valley, CA
    Vehicle:
    2005 Tacoma Prerunner 4.0L
    "If I'm gonna die, I'm gonna die historic on the fury road!"
    sub'd

    Long time lurker and finally decided to join the TW crew after seeing this thread. I've had the same issue for over 2 years now but has been intermittent and cannot figure this thing out!

  11. Aug 2, 2016 at 4:12 PM
    #11
    Maggot61

    Maggot61 Well-Known Member

    Joined:
    Aug 2, 2016
    Member:
    #193571
    Messages:
    2,295
    Gender:
    Male
    First Name:
    Jose
    Sky Valley, CA
    Vehicle:
    2005 Tacoma Prerunner 4.0L
    "If I'm gonna die, I'm gonna die historic on the fury road!"
    Hey OP, is this the first time this has happened to you?

  12. Aug 2, 2016 at 6:56 PM
    #12
    Cnguyen520

    Cnguyen520 [OP] Member

    Joined:
    Mar 7, 2015
    Member:
    #150376
    Messages:
    6
    Gender:
    Male
    First Name:
    Chuong
    Houston, TX
    Vehicle:
    Pre Runner V6
    As I was driving home from work today lights on gauges lit up but that is all.

    Got home now everything is off again.

    Changed out and checked many fuses but nothing seemed to work. Even unplugged the gauge cluster it's self , nothing, unplugged battery nothing.

    Changed the IG1 fuse under the dash as stated above, nothing.

    Yes this is the first time this has happened to me.
