2006 Tacoma camshaft position sensor

Discussion in '2nd Gen. Tacomas (2005-2015)' started by chrisvu, Feb 3, 2023.

  1. Feb 3, 2023 at 5:21 PM
    #1
    chrisvu

    chrisvu [OP] New Member

    Joined:
    Feb 3, 2023
    Member:
    #417082
    Messages:
    2
    Gender:
    Male

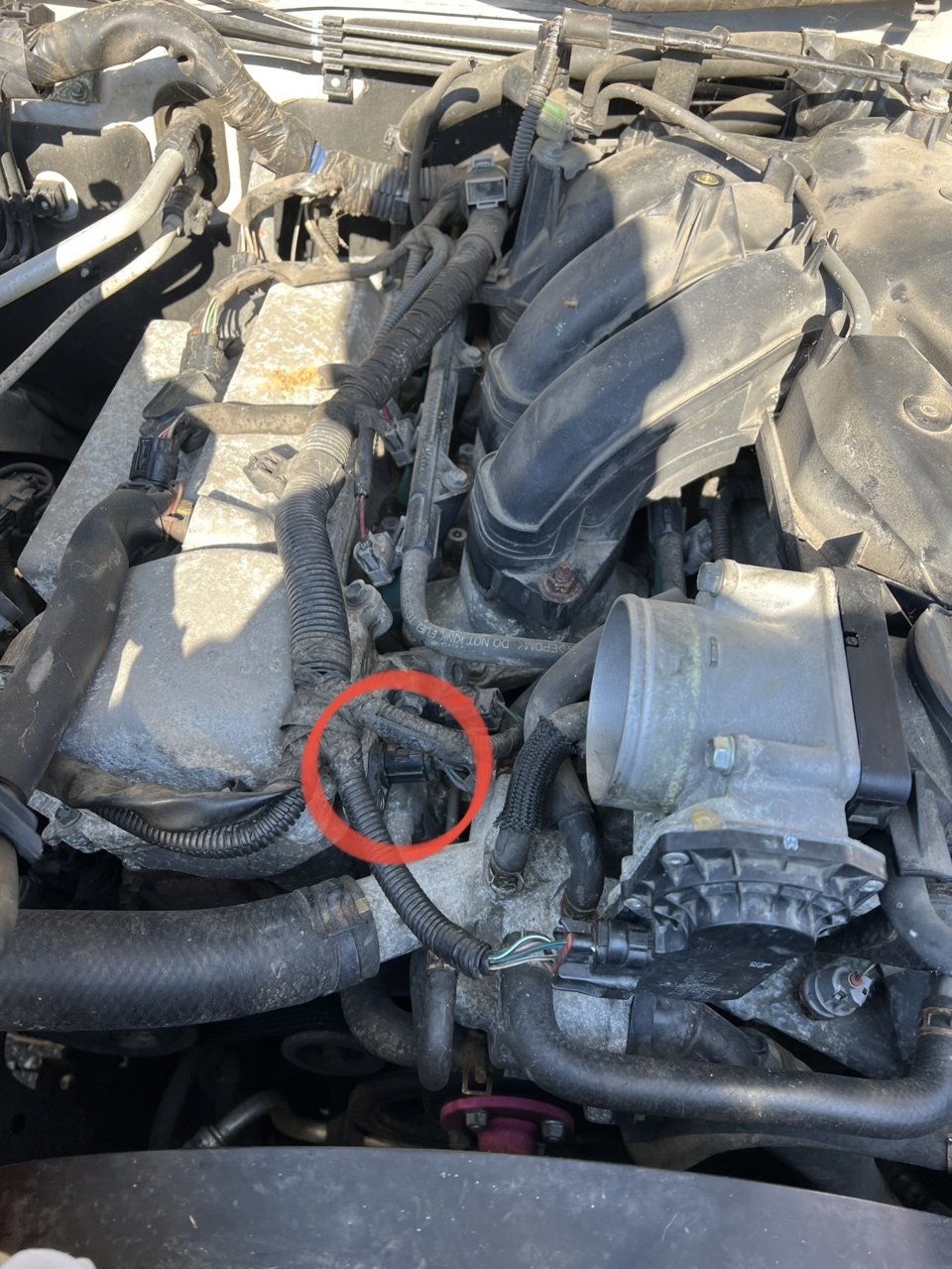

    I broke the mounting bolt while I removing it. How do I remove the rest of the bolt? Where can I find the replacement bolt? Thanks all


  2. Feb 3, 2023 at 9:14 PM
    #2
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    20,898
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Pull the cam sensor out.
    The bolt doesn’t thread into the sensor.
    And HOPE there is some bolt still sticking out.

    If not, that’s going to be a tough job to remove.
    You may need a right angle drill and go slow.

    As for bolt size?
    I’m not sure.

    If the head was 12mm it was probably a m8x1.25
    If the head was 10mm it was probably an m6x1.0
    As for length, you can can stick a small pick down the hole and measure.
    Then buy 1/8” to 1/4” smaller in length.

    chrisvu[OP] likes this.
