2006 Tacoma front bearing knuckle assembly rwd

Hi All

My 2006 Base 5-Lug has been a challenge.
The front bearings don't seem to be like anything I found in threads or online.
The axle bolt is a 36mm and comes off the back.(engine side)

1) Hopefully someone has been here and knows part numbers or places to order.
The hub modules from Rockauto don't fit, as there are no four bolt setup on the hub.

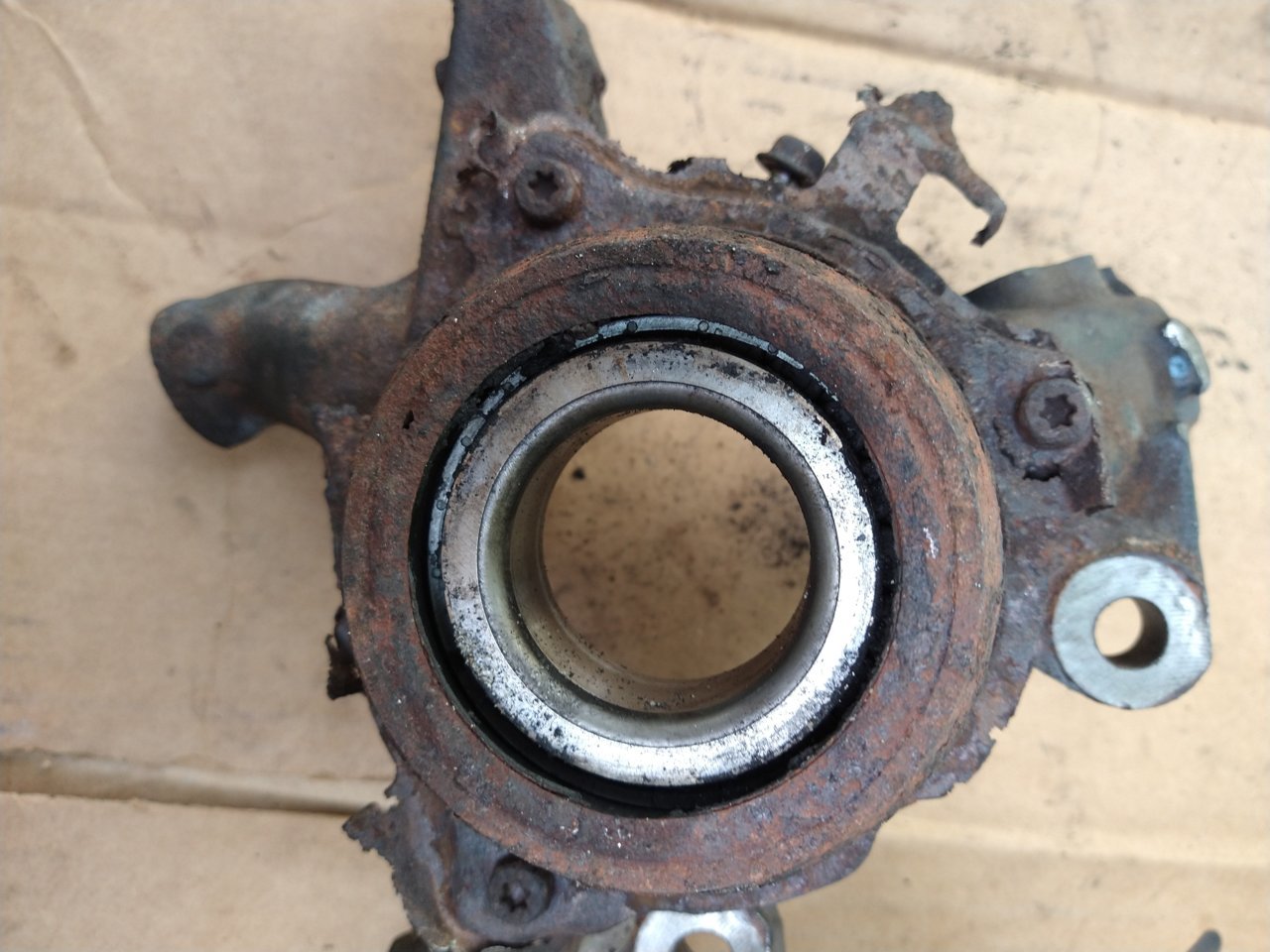

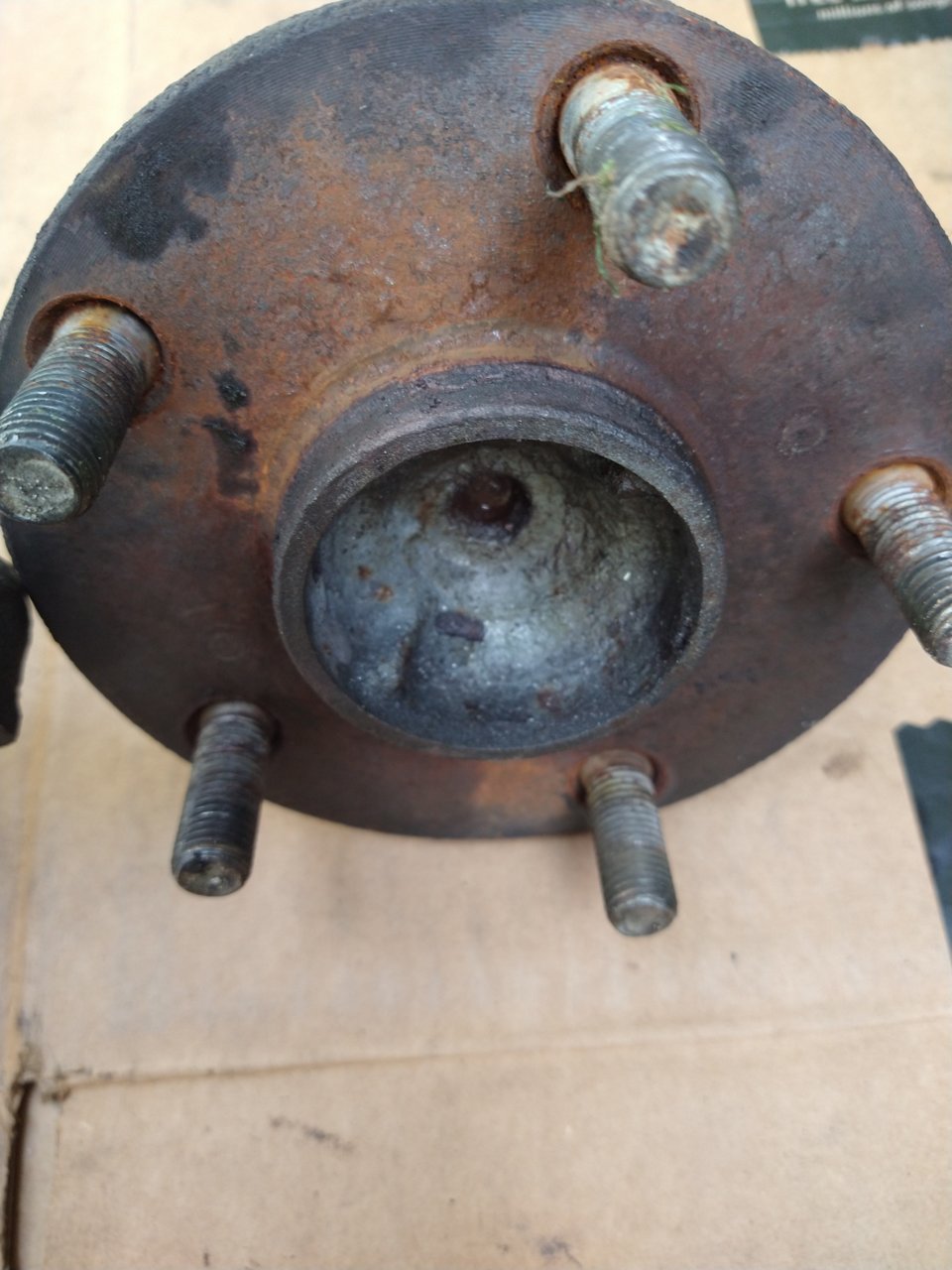

2) Can't figure how a bearing even gets in this, pressed what you see) so I would consider a built knuckle with bearings.
There are lots of corolla knuckles with bearings, but likely don't fit.

Everywhere online and in forms I have looked do not address this tacoma setup

Thanks in advance for any help



It’s a pain in the aśś on the 5 lug trucks.

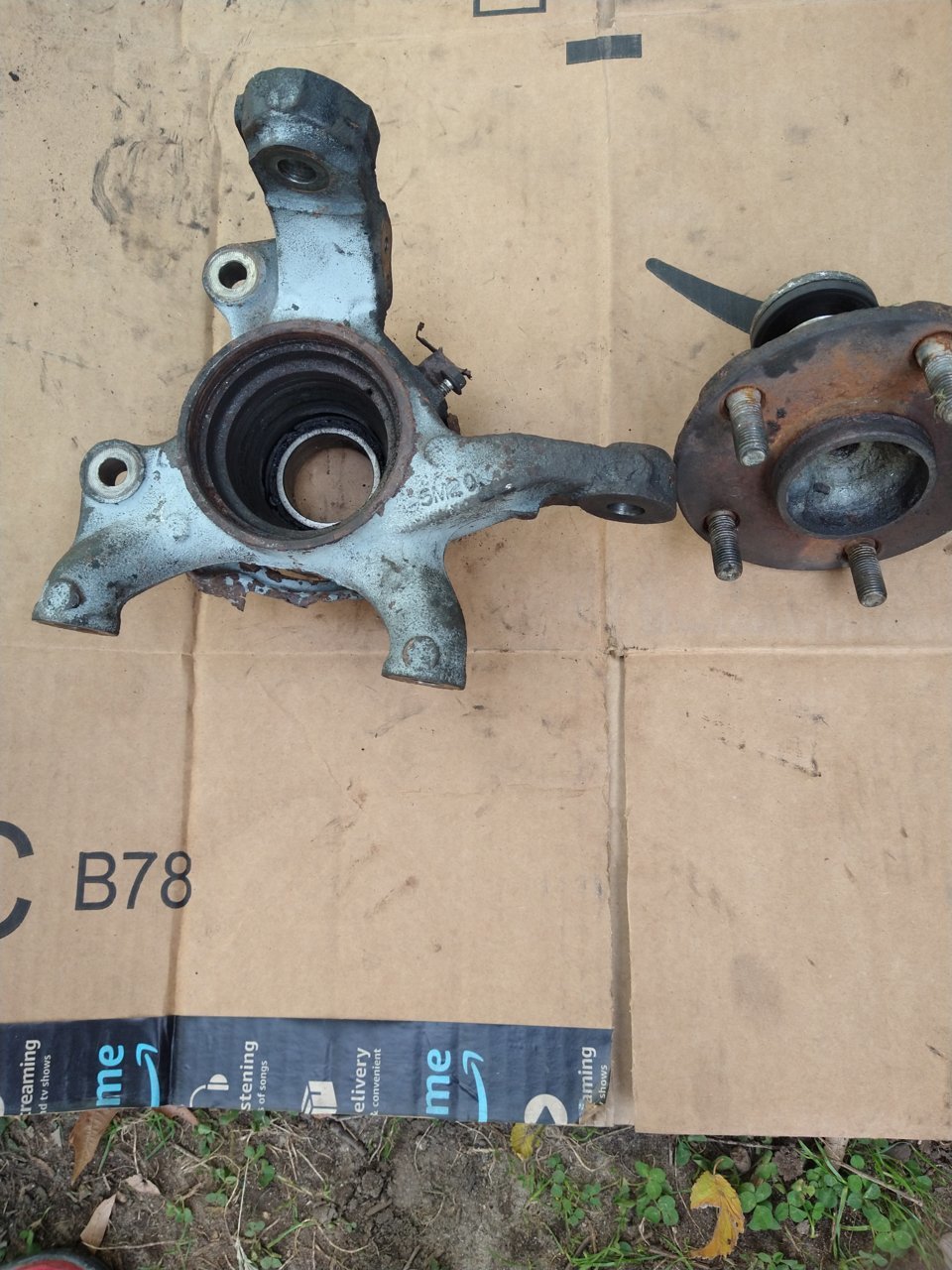

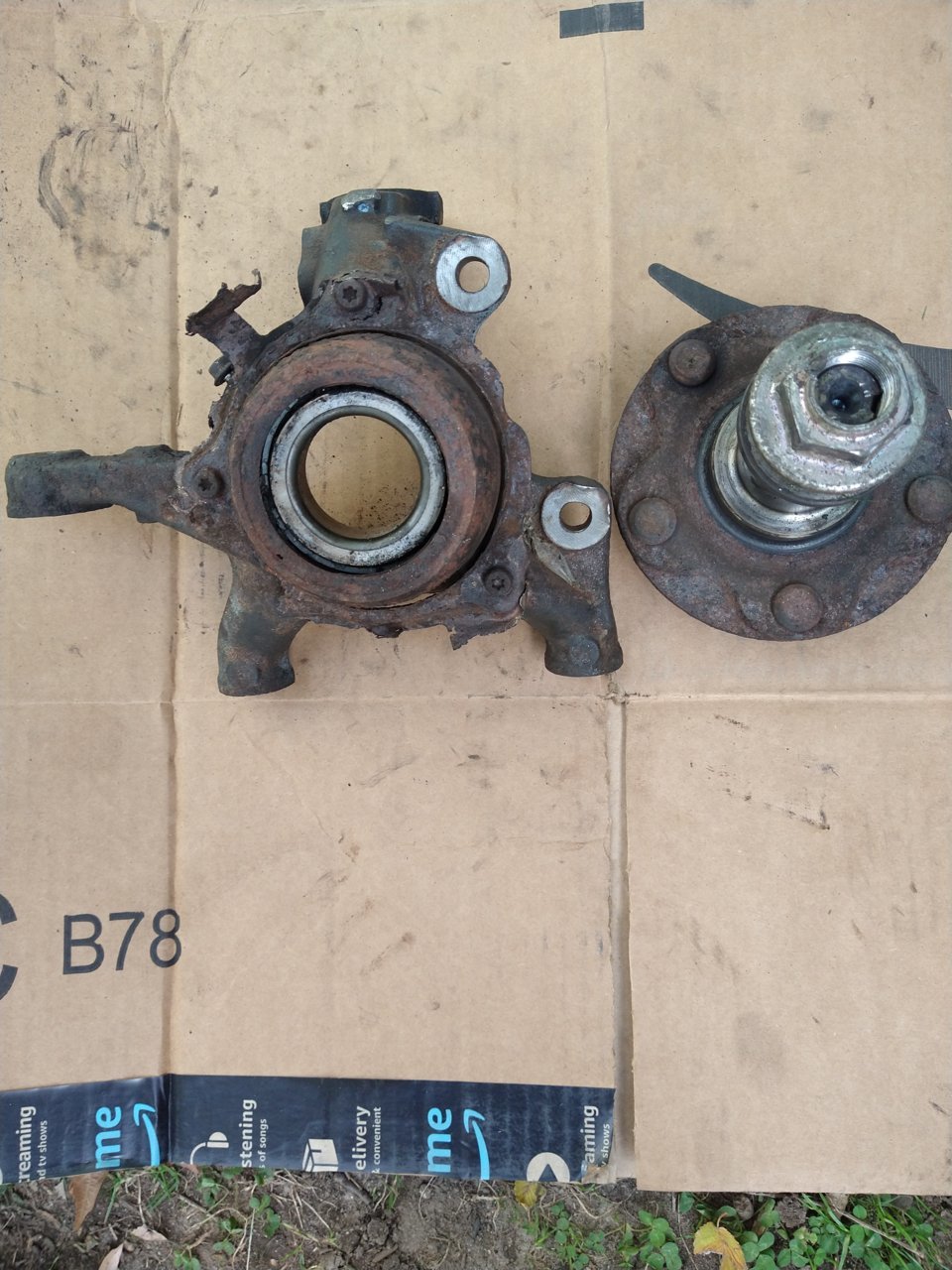

The whole knuckle comes out and then taken to a press.

See post #4
https://www.tacomaworld.com/threads/wheel-bearing-replacement.735669/

You can thank @Dm93



Thanks, but what I need are parts and where to get them. Even at Advance Auto, its not 100 PERCENT.
Just don't wanna get the wrong parts again.

So parts links, vendors, part numbers will totally help at this point

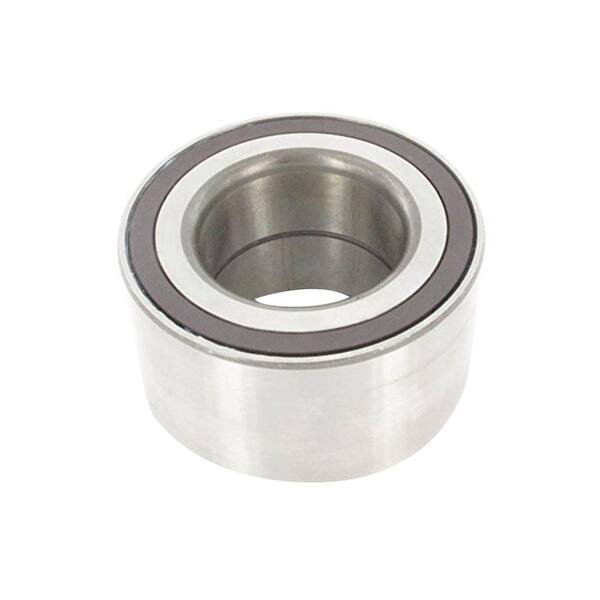

The bearing looks like this, Rock Auto has them. I'd go with SKF, National, or Timken.
https://www.rockauto.com/en/catalog...,1433241,brake+&+wheel+hub,wheel+bearing,1672



Post #10 here?

https://www.tacomaworld.com/threads/bearing-hub-change.698014/



Ordered FW24 and seal, need to figure out this $25 snap ring (90521-A000) cross p/n. Not sure I need it, but shall see.(not at Rock Auto)



You shouldn't have to replace the snap ring but make sure you remove it before attempting to press the bearing out and reinstall it after the new bearing is installed but before you press the hub back in.



Since I am not sure, I got it here.
https://www.ebay.com/itm/332695604408
