2006 Tacoma Solenoid D

Can someone on here whose better at googling and finding toyota part help me locate the OEM/AEM part number for the pressure control solenoid d? I think im leaking fluid from the output seal, tried to remove the shaft and saw that the seal was in backwards. Reinstall the shaft and the cel poped up. Im having high rev slow shift. Been filling up with valvoline max life every couple days. Also getting jerk/lunges when i make a complete stop



https://www.tacomaworld.com/threads...th-pics-for-second-gen-4-liter-trucks.289913/

Whats your mileage ?
Is your truck 4x4 or 2 wheel drive ?
what shaft did you try to remove ?
Are you sure your internal transmission harness is good ?


http://www.customtacos.com/tech.old...06toyrm/06toypdf/06rmsrc/rm2006ta/0270028.pdf



~147, 2wd, driveshaft to check the output seal. Im not sure how to check the internal harness. How do i do that.



There is a technical service bulletin regarding your rear output shaft seal .
https://www.tacomaworld.com/threads/new-tsb.45728/

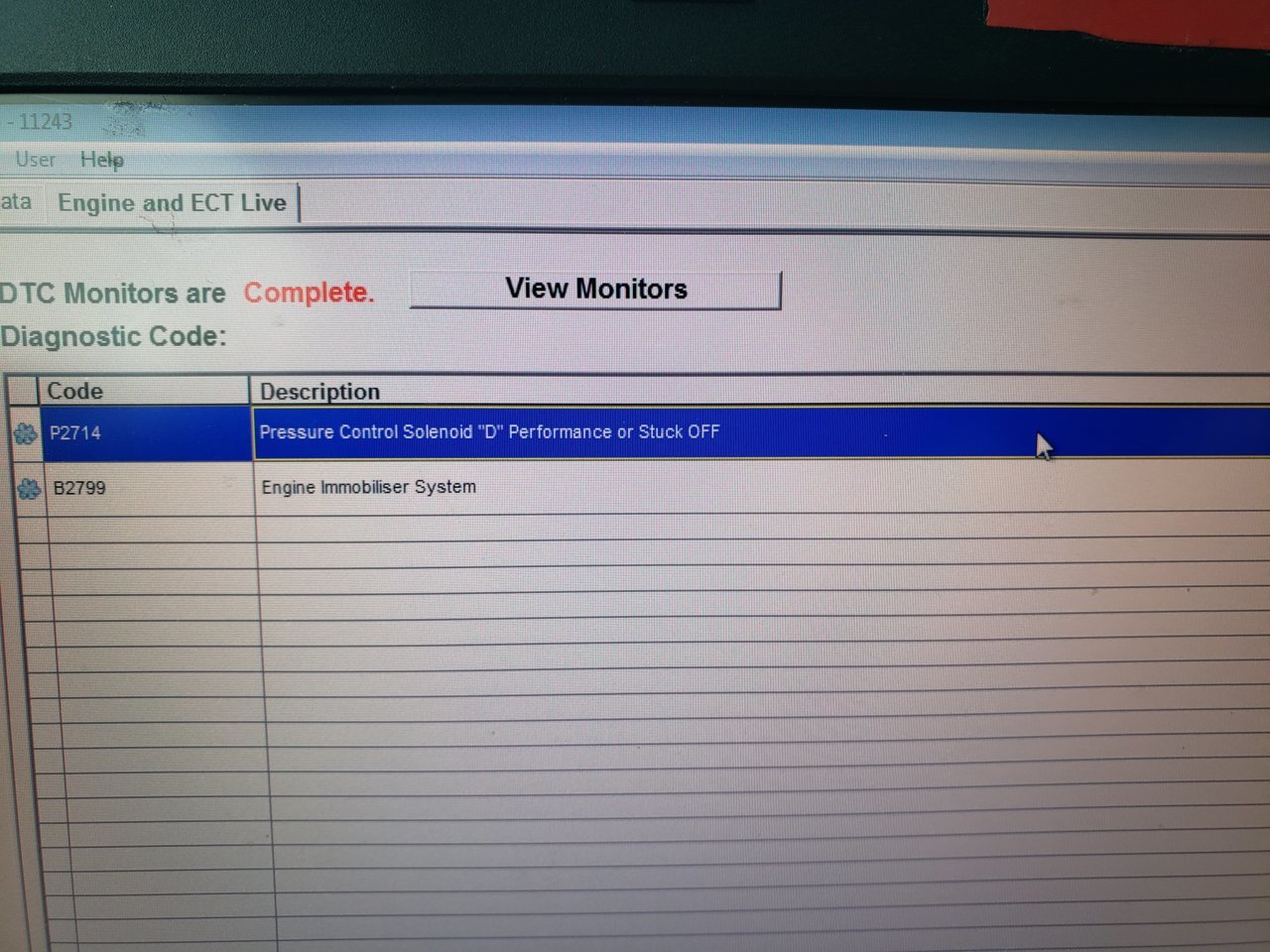

If your transmission is leaking bad , there may be more issues causing the leak than just the seal . If your transmission gets too low on fluid , the pressure control solenoid " Code 2714 " will trip

Are you filling your transmission up with fluid properly ? It can be tricky
https://www.tacomaworld.com/threads/how-to-drain-refill-automatic-transmission.63851/



Yes, I found your links to be very helpful. Will report back after this weekend hopefully.



Installed the correct output seal nd the leaking stopped. Still having issue with jerking a full stop and high reving on first gear. Will do another drain and fill. Will do a complete tuneup at 150k



http://bluegrasstoday.com/wp-content/uploads/2012/07/a750e_shudder.pdf



@gearcruncher

Do you know why 35290-50010 was replaced with 35290-34010
