2008 Tacoma. Heater box drain??

Discussion in '2nd Gen. Tacomas (2005-2015)' started by IbeamsFTW, Nov 21, 2015.

  1. Nov 21, 2015 at 8:56 AM
    #1
    IbeamsFTW

    IbeamsFTW [OP] Well-Known Member

    Joined:
    Aug 17, 2013
    Member:
    #110654
    Messages:
    102
    Gender:
    Male

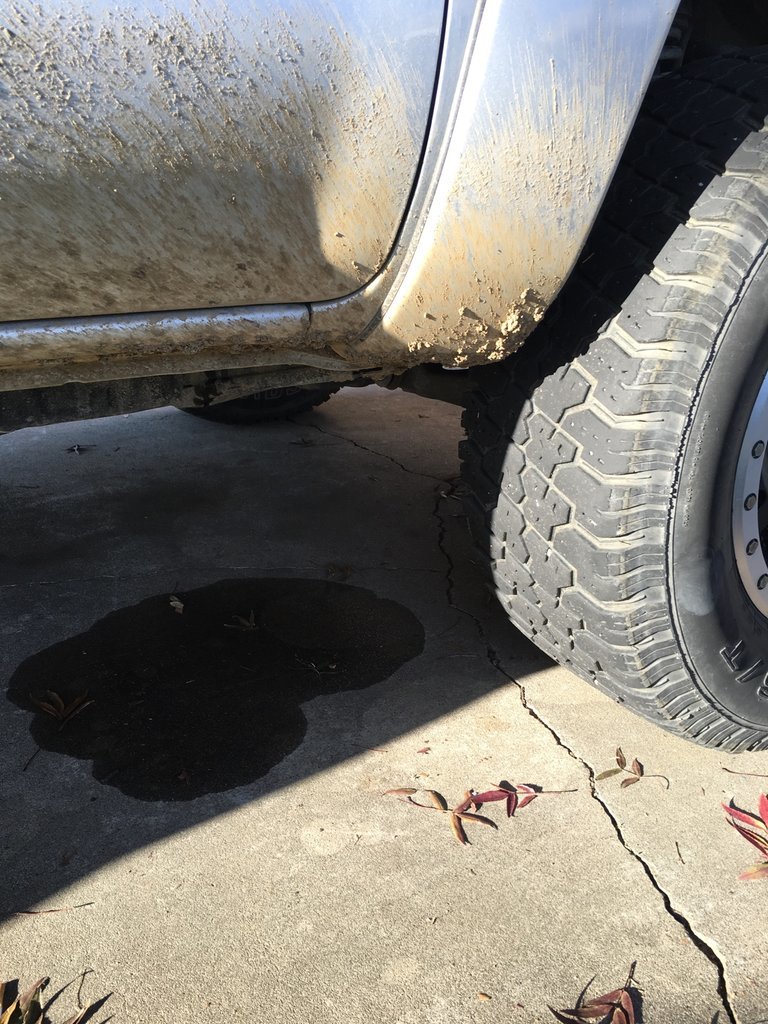

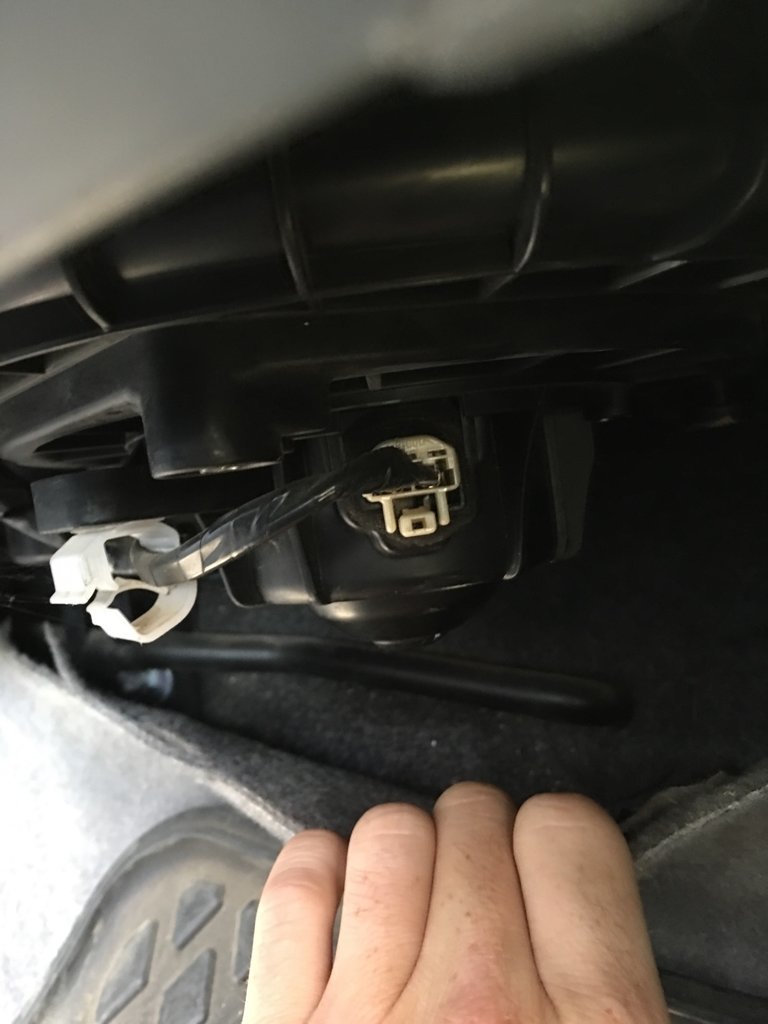

    So I've recently noticed the vent tube from my heater box, pictured here:
    Has been leaking a significant amount of water. I would generally assume a cracked heater core would be the cause of this, but it doesn't look or taste like coolant. And my coolant level seems fine. (Neither the A/C nor the defroster have been on, and the a/c compressor is not running) which would lead me to believe that this isn't condensation from the a/c. Maybe this is normal for this time of year, but I didn't notice it last year, or with any other vehicles I've had.

  2. Nov 21, 2015 at 1:27 PM
    #2
    File IFR

    File IFR "... Intercepting The Localizer"

    Joined:
    Mar 4, 2012
    Member:
    #74145
    Messages:
    4,497
    Gender:
    Male
    First Name:
    Mike
    Central MA
    Vehicle:
    2012 MGM 4X4 DC-LB TRD Sport
    You say you're AC or Defrost is not on, but it has to be on (maybe a broken switch?).... Unplug the AC fuse and monitor the underside again, it should be dry after that.

  3. Nov 21, 2015 at 2:06 PM
    #3
    IbeamsFTW

    IbeamsFTW [OP] Well-Known Member

    Joined:
    Aug 17, 2013
    Member:
    #110654
    Messages:
    102
    Gender:
    Male
    A/c compressor isn't running. And I I could be wrong but I believe, generally speaking, the majority of condensation comes of of the accumulator when the a/c is running. Or at least something mounted under the hood, not inside the heater box. Once again I could be mistaken with this.

  4. Nov 21, 2015 at 2:13 PM
    #4
    1rooster

    1rooster TACOMA31750

    Joined:
    Jun 14, 2010
    Member:
    #38925
    Messages:
    982
    Gender:
    Male
    Georgia
    Vehicle:
    2007 Tundra crewmax
    5100's ALL WAY AROUND, 885X COILS, DRIVER SIDE LEAN SPACER, ICON PROGRESSIVE AAL W/O OVERLOAD, 265/75/16 KENDA KLEVER M/T. 1 1/4 SPIDERTRAC WHEEL SPACERS, GEN 1 TRD COLD AIR INTAKE, STOCK MUFFLER WITH CHOPPED TURNDOWN, 5% TINT OVER FACTORY, DEBADGED, TOYOTA RUBBER BED MAT, WEATHERTECH MATS,UWS TOOLBOX, UNDERCOVER SE, LOCKER MOD, REAR BUMPER, PIONEER DOUBLE DIN WITH PARKING BREAK OVER RIDE, CUSTOM OIL CATCH CAN, FULL LED INTERIOR, ARB BUMPER REPLACEMENT. COVERKING SEAT COVERS. MORIMOTO H1 MINI COVERSION WITH MINI GATLIN GUN SHROUDS AND 5000K MORIMOTO BULBS. TRAILER PLUG RELOCTED TO BUMPER. 20 INCH LED LIGHTBAR MOUNTED BEHIND CUSTOM PAINTED GRILL. STUBBY ATNENNA
    I'd say if it ain't sweet to taste and ain't pink then it ain't coolant. I'd try and collect a bit in a container to verify color

  5. Nov 21, 2015 at 2:14 PM
    #5
    File IFR

    File IFR "... Intercepting The Localizer"

    Joined:
    Mar 4, 2012
    Member:
    #74145
    Messages:
    4,497
    Gender:
    Male
    First Name:
    Mike
    Central MA
    Vehicle:
    2012 MGM 4X4 DC-LB TRD Sport
    The wet spot is directly below the condensate tube from the evaporator. If you say the wetness is not antifreeze, then it has to be water.... ie, your AC is on.

  6. Nov 21, 2015 at 2:32 PM
    #6
    IbeamsFTW

    IbeamsFTW [OP] Well-Known Member

    Joined:
    Aug 17, 2013
    Member:
    #110654
    Messages:
    102
    Gender:
    Male
    Ok, I will check by pulling the fuse, like stated above. Thanks for the input.

  7. Nov 21, 2015 at 3:27 PM
    #7
    12TRDTacoma

    12TRDTacoma Powered by Ford, GM, VW, and Mercedes

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    16,671
    Gender:
    Male
    First Name:
    Rob
    Concordia
    Vehicle:
    12 TRD Sport DCLB 4x4 Supercharged
    Boosted
    If I am correct, I believe that when the defrost runs, it automatically turns the AC on and shuts off recirc mode.

    If there is water coming from your drip tube when you are running the defrost then you are fine.

    In your case where you are not running either it could be a case of condensation, but since that puddle is rather large, I suspect you may either have a clog in your drain tube or something weird. As a previous poster said grab some kind of tub or bottle and collect a sample to confirm if it is water or coolant. The results will give you the answer you are looking for.

  8. Nov 21, 2015 at 3:49 PM
    #8
    Clearwater Bill

    Clearwater Bill Never answer an anonymous letter

    Joined:
    Oct 11, 2014
    Member:
    #140097
    Messages:
    24,592
    Gender:
    Male
    First Name:
    Billy
    Largo Florida
    Vehicle:
    '13 5 lug AC w/convenience package
    A few OE parts from fancy trucks
    When the AC runs the majority of condensation is on the evaporator, in the box under the dash. The heater core itself should never leak or condense anything. Condensation is caused by warmer moist air in contact with a cold surface.

    The 'box' you refer to also intakes outside air via the cowl vent. It's fairly common for rainwater to enter that and exit via the condensate tube.

    Also, a clogged condensate tube (leaves, needles, etc that have worked in via the cowl) can restrict drainage, and allow any trapped water to dribble out over time instead of just flowing out as it should .

  9. Nov 21, 2015 at 4:42 PM
    #9
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    6,791
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    If the core is leaking your window will fog over the AC comes on, on defrost like it or not it does not matter if the rec. is on or off.

  10. Nov 21, 2015 at 5:45 PM
    #10
    IbeamsFTW

    IbeamsFTW [OP] Well-Known Member

    Joined:
    Aug 17, 2013
    Member:
    #110654
    Messages:
    102
    Gender:
    Male
    Nice. good info guys, I'll look more into it this week. I park under trees at home with both leaves and needles. So that very may well be it.
