2011 Rear Suspension Noise

Discussion in '2nd Gen. Tacomas (2005-2015)' started by prairieboy, Jun 17, 2015.

  1. Jun 17, 2015 at 1:16 PM
    #1
    prairieboy

    prairieboy [OP] Active Member

    Joined:
    Jun 17, 2015
    Member:
    #157590
    Messages:
    25
    Gender:
    Male
    Vehicle:
    2011 DBL Cab Tacoma TRD
    I've introduced myself in the new members area that I am new to Toyota's and to trucks in general. I've had trucks in the past, but never a Tacoma and for the last decade or so have been driving SUV's with AWD capabilities.

    Anyway, I recently got my 2011 Tacoma double cab LB TRD and I really like the truck - but one thing that keeps bothering me is the rear suspension noise that I keep hearing when driving around on our poorly paved streets. Aside from having a heavy rubber mat in the back, I'm not carrying any cargo - but to me, whenever I go over some dips in the road like shallow potholes, the truck sounds like something is loose or rattling in the back end. It sounds like a toolbox full of wrenches that someone shook upside down.

    Is this just normal for a truck or is it because some sort of TSB that I am missing out on. If it's normal, is there anyway aside from carrying a bunch of sandbags to keep the back from sounding like it's going to shake itself loose?

  2. Jun 17, 2015 at 2:23 PM
    #2
    Yoda's TRD

    Yoda's TRD Well-Known Member

    Joined:
    May 31, 2015
    Member:
    #156427
    Messages:
    484
    Gender:
    Male
    First Name:
    David
    Haslett, MI
    Vehicle:
    2025 TRD Sport Hybrid
    is the spare securely in there ?

    could be something that easy ....

  3. Jun 17, 2015 at 2:33 PM
    #3
    HAVVOKK

    HAVVOKK Well-Known Member

    Joined:
    Apr 1, 2015
    Member:
    #152280
    Messages:
    9,075
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2014 DGAF Long Bed
    Fucking look it up
    Sounds like it's the spare tire chain is rattling around down there mine does it to its abnoxious

    kyleTRDtaco12 likes this.
  4. Jun 17, 2015 at 2:47 PM
    #4
    08TacoTrD

    08TacoTrD Well-Known Member

    Joined:
    Oct 30, 2008
    Member:
    #10385
    Messages:
    1,598
    Gender:
    Male
    Vehicle:
    08 TRD Offroad
    5100's and 883 OME Coils TRD Exhaust Deaver 1.5" AAL Rear Differential Breather Extension, 4WD Light, Tailgate Pipe clamp, Fog lights on while High Beams on, Carrier Bearing flip
    My truck rattles but just to check, take the covers off the cubby holes in the bed and drive around and see if it makes a difference. Also do you have a hitch with a drawbar in it? Sometimes those things rattle like crazy.

  5. Jun 17, 2015 at 2:56 PM
    #5
    T4RFTMFW

    T4RFTMFW Well-Known Member

    Joined:
    Jul 23, 2014
    Member:
    #134525
    Messages:
    69,757
    Could be your hitch jostling in the receiver as well, if you have them.

  6. Jun 17, 2015 at 3:01 PM
    #6
    T Fades

    T Fades Well-Known Member

    Joined:
    Aug 17, 2011
    Member:
    #61862
    Messages:
    2,776
    Gender:
    Male
    Simi Valley, CA
    Vehicle:
    '11 PreRunner V6 2wd DCLB
    Satoshi, debadged, rear view mirror bracket, tail gate hose clamps, trimmed mud flaps.
    ^ probably this. My '11 makes (probably) the same noise. At the end of the spare tire chain, on the outside facing the ground, is a cylindrical piece that rattles.

  7. Jun 17, 2015 at 3:06 PM
    #7
    prairieboy

    prairieboy [OP] Active Member

    Joined:
    Jun 17, 2015
    Member:
    #157590
    Messages:
    25
    Gender:
    Male
    Vehicle:
    2011 DBL Cab Tacoma TRD
    Thanks for all the quick replies. I checked the spare tire and chain and its all good as well as no hitch reciever. I guess the noise is not really a rattle (cause that makes it sound like something smaller), but rather a metal on metal. Its almost like when the tire takes that quick second to "drop" into the hole and it makes that banging noise.

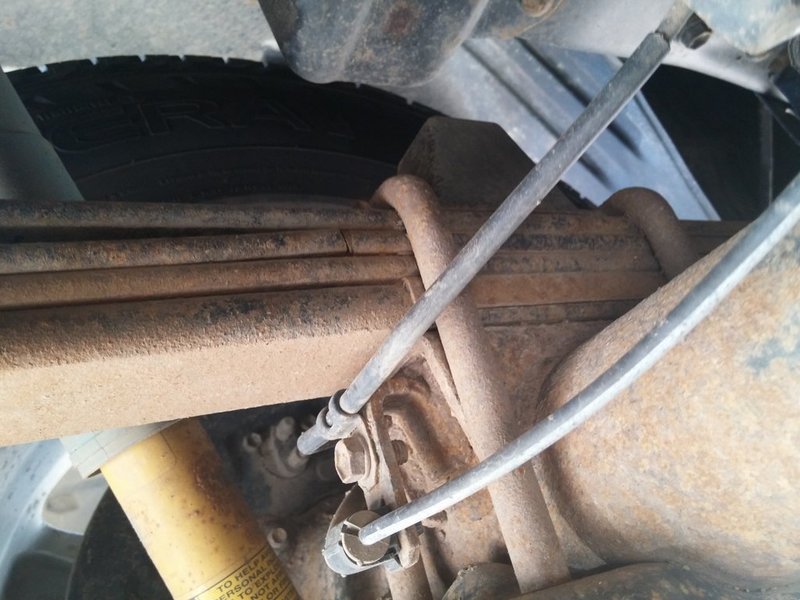

    One thing I did notice as I crawled under the truck was a potential suspect - although it sounds a though it is coming from the passenger side rather than drivers side. But here's a pic of my drivers side rear leaf spring. Is it cracked - I think so, but I could be wrong. Does any of the TSBs cover this and if not, are they hard to replace?rear leaf.jpg

  8. Jun 17, 2015 at 3:24 PM
    #8
    08TacoTrD

    08TacoTrD Well-Known Member

    Joined:
    Oct 30, 2008
    Member:
    #10385
    Messages:
    1,598
    Gender:
    Male
    Vehicle:
    08 TRD Offroad
    5100's and 883 OME Coils TRD Exhaust Deaver 1.5" AAL Rear Differential Breather Extension, 4WD Light, Tailgate Pipe clamp, Fog lights on while High Beams on, Carrier Bearing flip
    That's it. It's cracked. Welcome to the club.

    1slowvq37 likes this.
  9. Jun 17, 2015 at 3:27 PM
    #9
    prairieboy

    prairieboy [OP] Active Member

    Joined:
    Jun 17, 2015
    Member:
    #157590
    Messages:
    25
    Gender:
    Male
    Vehicle:
    2011 DBL Cab Tacoma TRD
    Sooooooo, would that be the cause of the noise or would there be something else.

    Also, what's the next step? Is there a TSB for this or a warranty recall - or is this one coming out of my pocket?

  10. Jun 17, 2015 at 3:34 PM
    #10
    08TacoTrD

    08TacoTrD Well-Known Member

    Joined:
    Oct 30, 2008
    Member:
    #10385
    Messages:
    1,598
    Gender:
    Male
    Vehicle:
    08 TRD Offroad
    5100's and 883 OME Coils TRD Exhaust Deaver 1.5" AAL Rear Differential Breather Extension, 4WD Light, Tailgate Pipe clamp, Fog lights on while High Beams on, Carrier Bearing flip
    Mine rattled pretty bad before I noticed it. Some have contacted the dealer and got new springs. I went to a private shop and got a new leaf and added another leaf to the pack.

  11. Jun 17, 2015 at 3:36 PM
    #11
    prairieboy

    prairieboy [OP] Active Member

    Joined:
    Jun 17, 2015
    Member:
    #157590
    Messages:
    25
    Gender:
    Male
    Vehicle:
    2011 DBL Cab Tacoma TRD
    so what does the AAL do? And did you just replace the broken leaf?

  12. Jun 17, 2015 at 3:44 PM
    #12
    iseeredandyellow

    iseeredandyellow I wanna go fast!

    Joined:
    Apr 12, 2014
    Member:
    #127501
    Messages:
    587
    Gender:
    Male
    First Name:
    Jeff
    San Diego
    Vehicle:
    10 DCSB 4wd OR Speedway Blue
    Toyota will replace it. Take it to the dealership. And if your headlights are fogged up or the DRLs are melted get some new lights too:thumbsup:

  13. Jun 17, 2015 at 3:56 PM
    #13
    clc clc

    clc clc Well-Known Member

    Joined:
    Oct 9, 2012
    Member:
    #88658
    Messages:
    1,102
    Gender:
    Male
    PA
    Vehicle:
    2012 4x4 reg cab tacoma/2020 subaru crosstrek
    Is it a "clacking" noise? I have a 2012 and my leafs will clack together on rough roads. Jump up and down on the rear of the truck and watch the springs. I'll bet that's what it is.

  14. Jun 18, 2015 at 2:20 PM
    #14
    prairieboy

    prairieboy [OP] Active Member

    Joined:
    Jun 17, 2015
    Member:
    #157590
    Messages:
    25
    Gender:
    Male
    Vehicle:
    2011 DBL Cab Tacoma TRD
    So I take my Tacoma to the dealer this morning and they confirmed that its broken. I asked them about the TSB and/or warranty recall. They just called me back and said that they spoke with Toyota Warranty Claims and Toyota has not "officially" put a recall notice out for my 2011 "yet", and that I could go ahead and get the work done by someone else and then get reimbursed. they also said that the US was different that Canada - probably cause there are way more of you Tacoma owners in the south :).

    Toyota also said it was 1000 a side to do :eek:.

    Geez, Rainbow Toyota in Saskatchewan really dropped the ball when they sold me a CPO. The techs didn't even see it broken.

    Soooo, what are my aftermarket options. I've read that aftermarkets will adjust the factory ride height - so now that means a level in the front and does that also mean a change in shocks/struts because of the extra length?

    Oy oy oy. 2 weeks into a new to me Tacoma and I'm not so sure I made the right choice :(

  15. Jun 18, 2015 at 2:29 PM
    #15
    HAVVOKK

    HAVVOKK Well-Known Member

    Joined:
    Apr 1, 2015
    Member:
    #152280
    Messages:
    9,075
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2014 DGAF Long Bed
    Fucking look it up
    You'll be alright drop 500 bux for new 5100s and replace leafs with aftermarket raise you 2 to 3 inches and you'll love it

  16. Jun 18, 2015 at 2:31 PM
    #16
    HAVVOKK

    HAVVOKK Well-Known Member

    Joined:
    Apr 1, 2015
    Member:
    #152280
    Messages:
    9,075
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2014 DGAF Long Bed
    Fucking look it up
    Tacos are notorious for this don't be mad just have to make suspension upgrades faster then you might have wanted to :plane:

  17. Jun 19, 2015 at 2:49 AM
    #17
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,268
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    I would imply the safety factor of the recall due to it punching a hole in the gasoline tank. Also mention that it would come back to haunt them if the gas tank gets punctured and causes a fire due to a safety issue with manufacturing...
