2011 Tacoma TRD

I have a 2011 Tacoma TRD. Just returned from a trip and minutes later it would no longer shift out of park without depressing the shift override, the AC stopped working and the backup camera also stopped working. Seems like something electrical. All fuses look good.
Any advice would be greatly appreciated. New to owning a Tacoma.



If your at home try disconnecting the negative battery cable and let it sit for awhile. After 15 minutes or so connect the cable back up and see if it's still acting up. Any check engine light?



Press the brake pedal. See if the brake lights work.
Report back to us and we will go from there.



Yes The check engine light has now come on, anti slip light has come on, and to top it off Toyota just repaired the passenger airbag sensors and those also have come back on. Cannot seem to win. Ill try the battery connection now.



TNshooter, the break lights are out, turn signals are out.



I know you said the fuses looks good.
But are you sure the 10 IG1 fuse is good.
It is common between everything you have reported this far.

If it is good, you’re likely going to need to know what the code is making the check engine light come on. It’s possible the Park Neutral Safety Switch is going bad. You might unplug it and see if it looks corroded or damaged. But I’m going to guess this isn’t the real source of the problem.

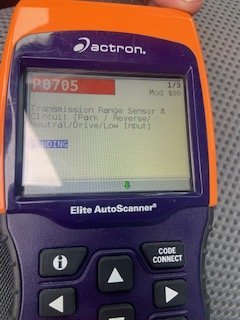

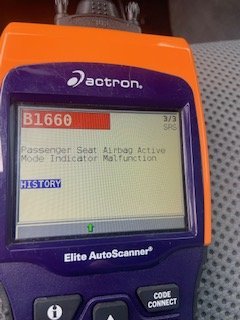

Thanks TNshooter. I tried disconnecting the negative from the battery and after re connecting it the check engine light and the anti slip light have turned off. I still have the passenger airbag light which is exactly what the Toyota Dealership just repaired this past Thursday. Driving lights and break lights work but no turn signals, AC or rear view Camera. the codes I get are pictured here.



I’d take back to Toyota. The SRS should be on them to fix.
The P0705 might not be their fault. But they should look at it.
Maybe they will fix it. If not, at least you’ll know what it is.



I would check the connector on the neutral safety switch and clean it if it's corroded. If there is no corrosion then it could be a bad switch, harness or module.



TnShooter You actually nailed it. I kept looking and found there are two 10 fuses that are labeled as IG1. I pulled that second one and replaced it. The airbag light amd all others went off, turn signals came back, and AC started working again and was able to shift out of park. Thank you so much for your time and help!



If this happens again, you’ll need to find out what is causing it.
I’d start with the connector on the Park Neutral Safety Switch.
It has been known to have corrosion on it and cause issues.


https://www.tacomaworld.com/threads/2005-tacoma-p0705-code.696026/
