2011 TRD Supercharge Build

I'm a long time reader and have learned so much from TacomaWorld, thought I should finally post some photos of my ongoing build. I bought a used 2011 TRD Sport with manual transmission and about 90,000 miles on it 2 1/2 years ago. Have been busy building it out and like so many on here has been a learning process and lot of work.

Some of the work I've done myself but living in busy city of NYC without a garage and on street parking, its difficult to get out into the street and work on it. Have been lucky to find crew at The Custom Shop in Astoria Queens. They've taken a great deal of time and care in building out truck. Part of a great community there and they run trips out to NJ Pine Barrens as well as overlanding in North East. Some Tacomas in shop, FJ60's, other cruisers and a lot of built Jeeps, always fun to talk to other guys about what they're doing.

Would love to know thoughts on build, any questions for others starting down similar road or just general comments. I'm not much for posting things and horrible about writing back emails so will try to respond if any comments and if none, will just keep on working. I'll post more images of build later, and will look for some videos I have.

Started with stock 2011 TRD Sport, Manual Transmission, chose because of bigger wheels and larger rear diff would accommodate ARB locker. Also liked fake hood scoop.

Wheels, Suspension, Gears
New 275/70/17 BFG KO2's
Method Race 17" Titanium Vex Wheels
Icon 2.5 Coil Overs in front with Remote Reservoir and 2.0 in Rear with Remote Reservoirs
Icon bumpstops on rear & RXT leaf spring Package with all springs added
Timbren Bumpstops in front
Icon Tubular Upper Control Arms w/ Delta Joints (replaced uniballs)
Total Chaos Competition Lower Control Arms
(Planning to reinforce stock spindles w/ total chaos weld on gussets)
Front brakes upgraded to Wilwood 17" big brake kit for Tacoma
Rear brakes converted to disc brakes w/ Stop Tech brake conversion kit from SOS performance
New stainless brake lines from Total Chaos
ARB rear air-locker
Re-gear to 4.11 with Nitro Gears (need to drive on highways and dirt so didn't go that low)

Armor
Pelfreybilt front Alu. Plate Bumper with Center Hoop and Rear Bumper (Black)
Baja Designs 30" Amber Light bar front
Baja Designs Squadron Pro round Amber fog lights
Baja Designs Squadron Pro reversing lights
Pelfreybilt Alu. front skid plate, mid, and protection for gas tank
Pelfreybilt rock sliders with plate

Engine
1GFRE Mangnusson supercharger w/ Billydog Tuner and tuning
Replaced existing fan with Flex-a-lite electric fan for Tacoma and thermostat
New AFE dry-CAI
Safari snorkel connected to CAI
URD competition plate and clutch
ARB twin compressor
Optima Yellow Battery with Pelfreybilt cage
Black 2 1/2" Cat-back AFE Exhaust
URD short-throw shifter upgrade

Interior
Switchpro for lighting and fan control, compressor, and locker
Weathertech floor mats
New Wood TEQ shifter knob
New metal pedals
Upgrade to Pioneer AVX head unit
Connected to rear back-up camera, & new pioneer front facing camera with switch

Bed
Total Chaos bed stiffeners
Leer Cap (came with truck)
Painted interior of cap with bedliner
Yakima aero bars mounted to top of cap
Bedmat in bed
Hi-lift jack with bed rail mounts (need to find out from where)
Trax with bed rail mount
2 Rotopax water cans with bedrail mounts
LED light strips mounted under bed rails with switch connected to tailgate
Locking rear tailgate handle with backup camera integrated
Warn shackles front and rear
Recovery gear (won't list out)

Misc.
Light conversion existing lights, new Morimoto LED projectors with Morimoto white Halos
Black out back of lights
Wrap on top of lights for lids
Wrapped Toyota Emblems
Replaced other emblems with black-out style
Removed TRD logos from side of bed
New wipers
Replaced gas cap that stopped closing
Redline Hood Struts
Replaced cables on tailgate
Sprayed frame to protect against rust

Coming Up!!!
Moving the ARB compressor to bed so less dust and insulated more from cold
Installing new pump for gas line
Replacing Pelfreybilt front bumper with hybrid C4 bumper with extra baja lights
Would like to replace master cylinder and clutch cylinder to improve braking

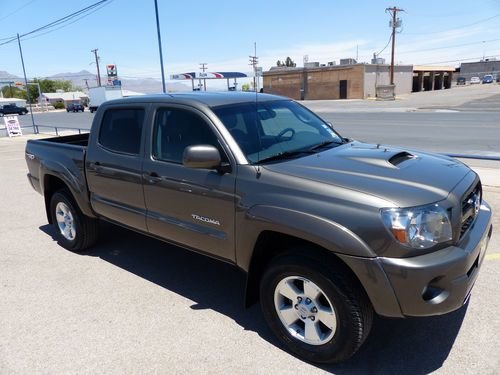

Started off stock, looking pretty (not many good images of it from before, had to dig to find photo)

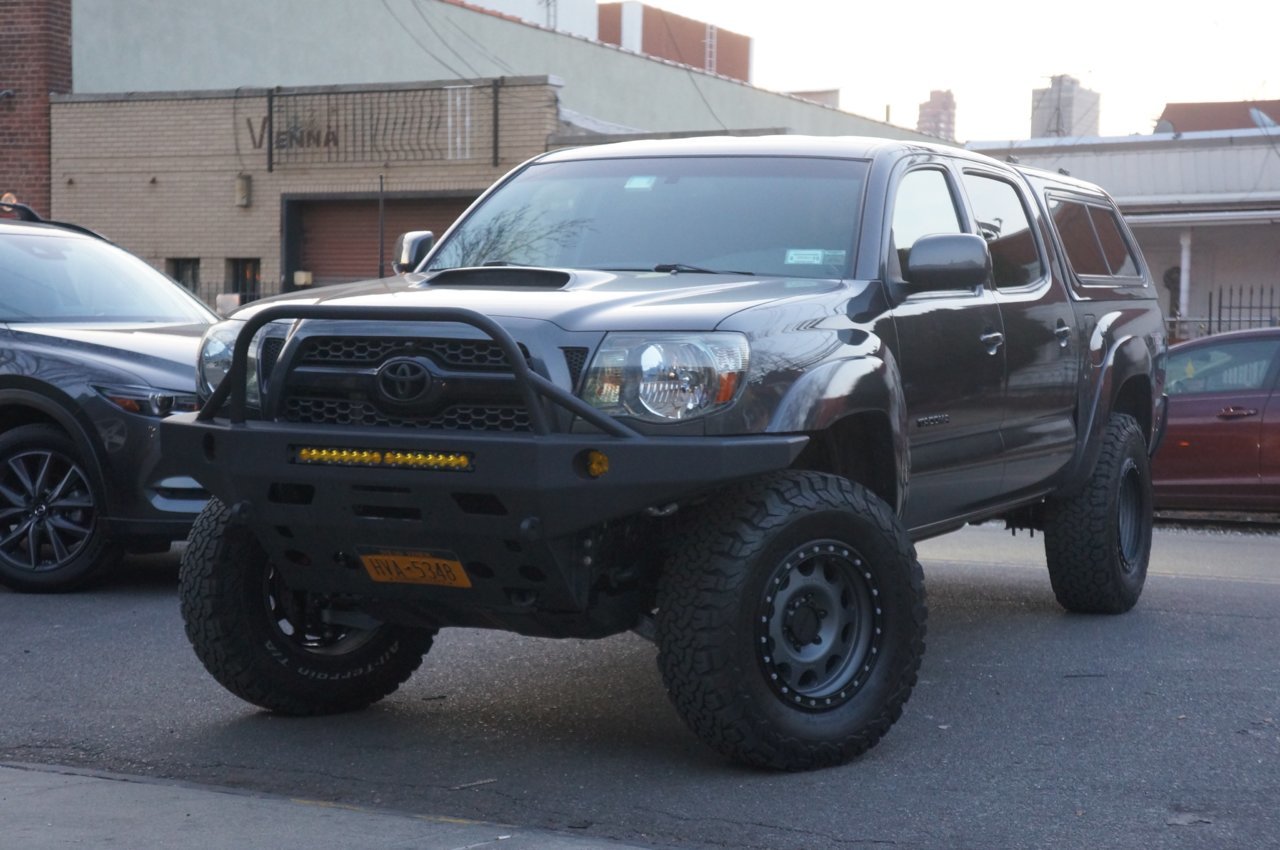

Later on in build after tires, suspension lift,

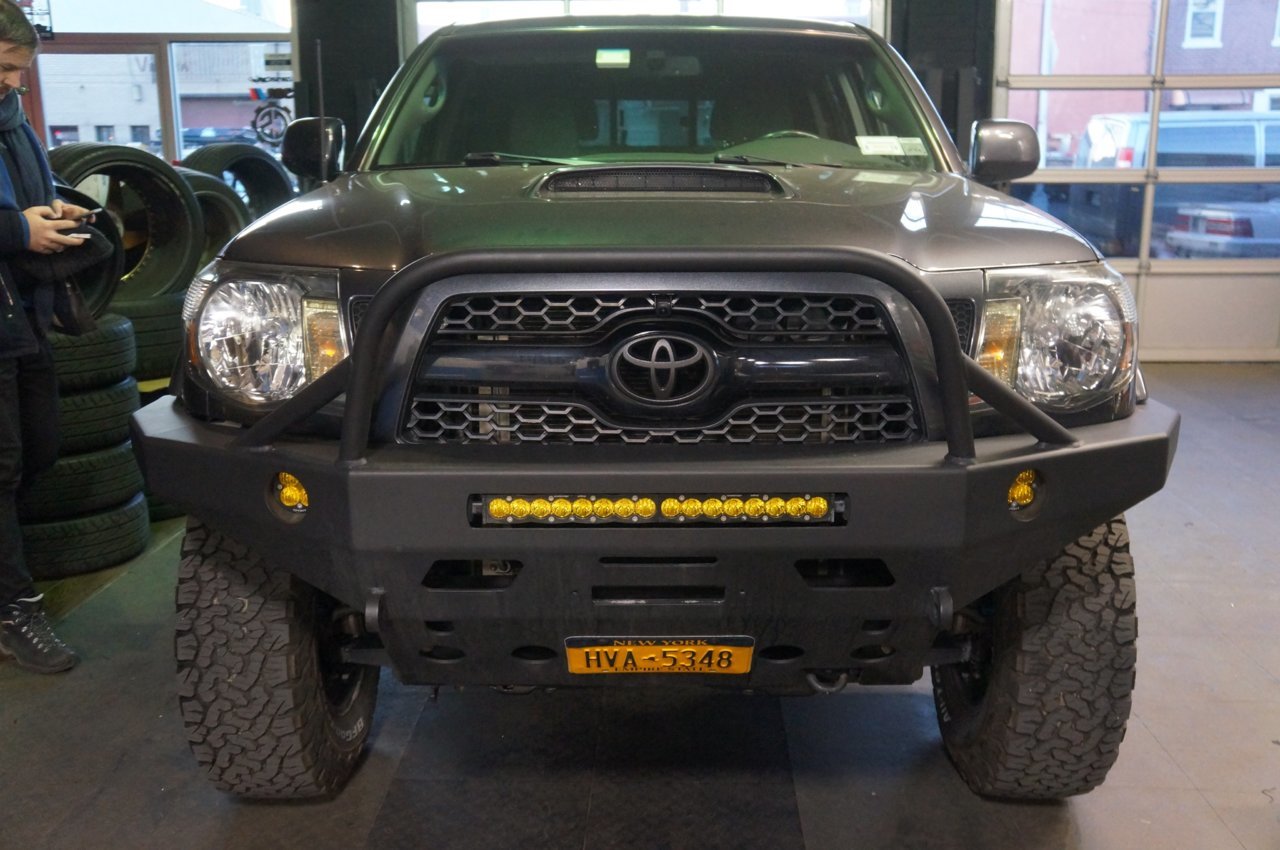

Getting Ready for new lights and the Supercharger!!!

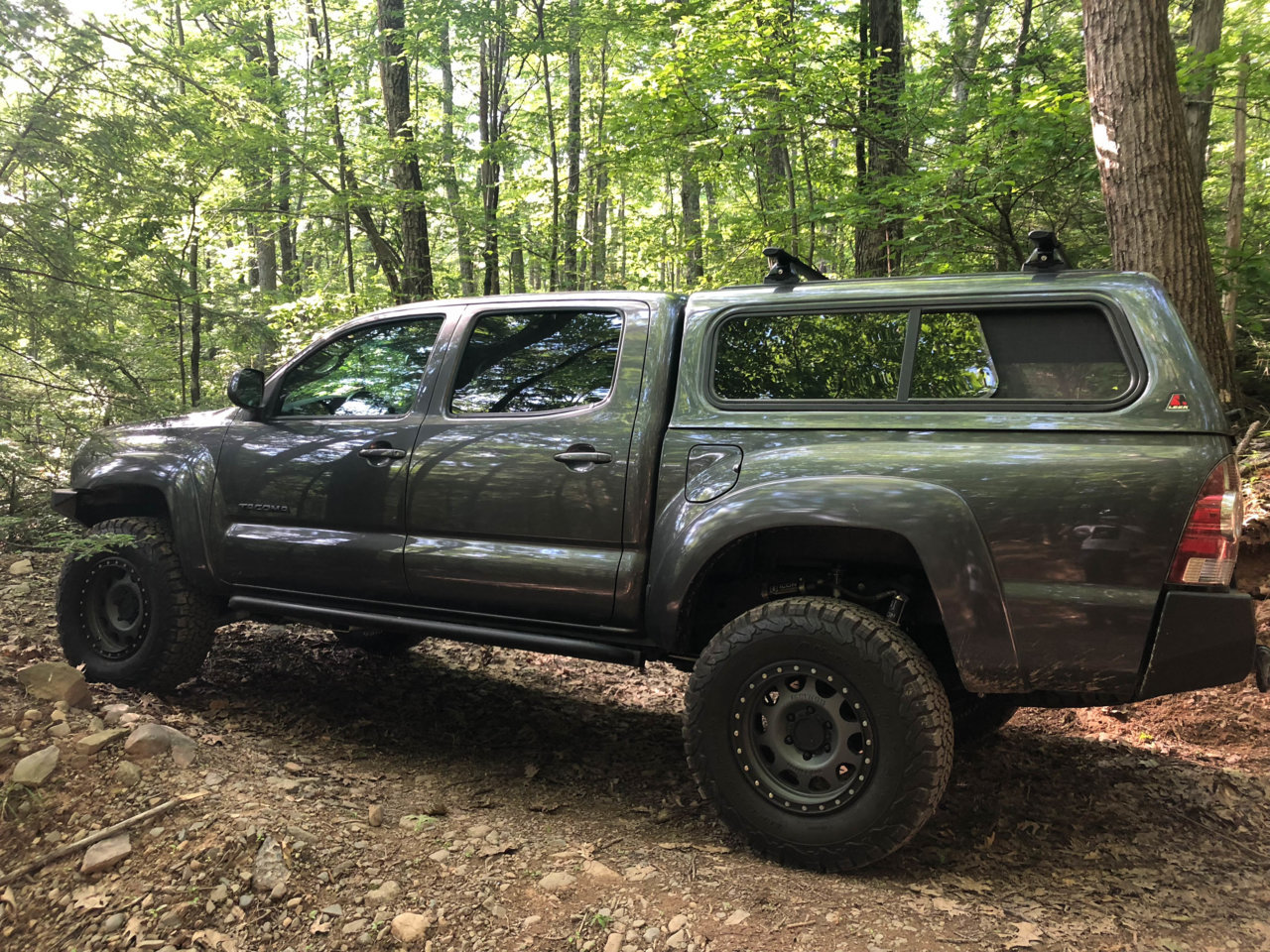

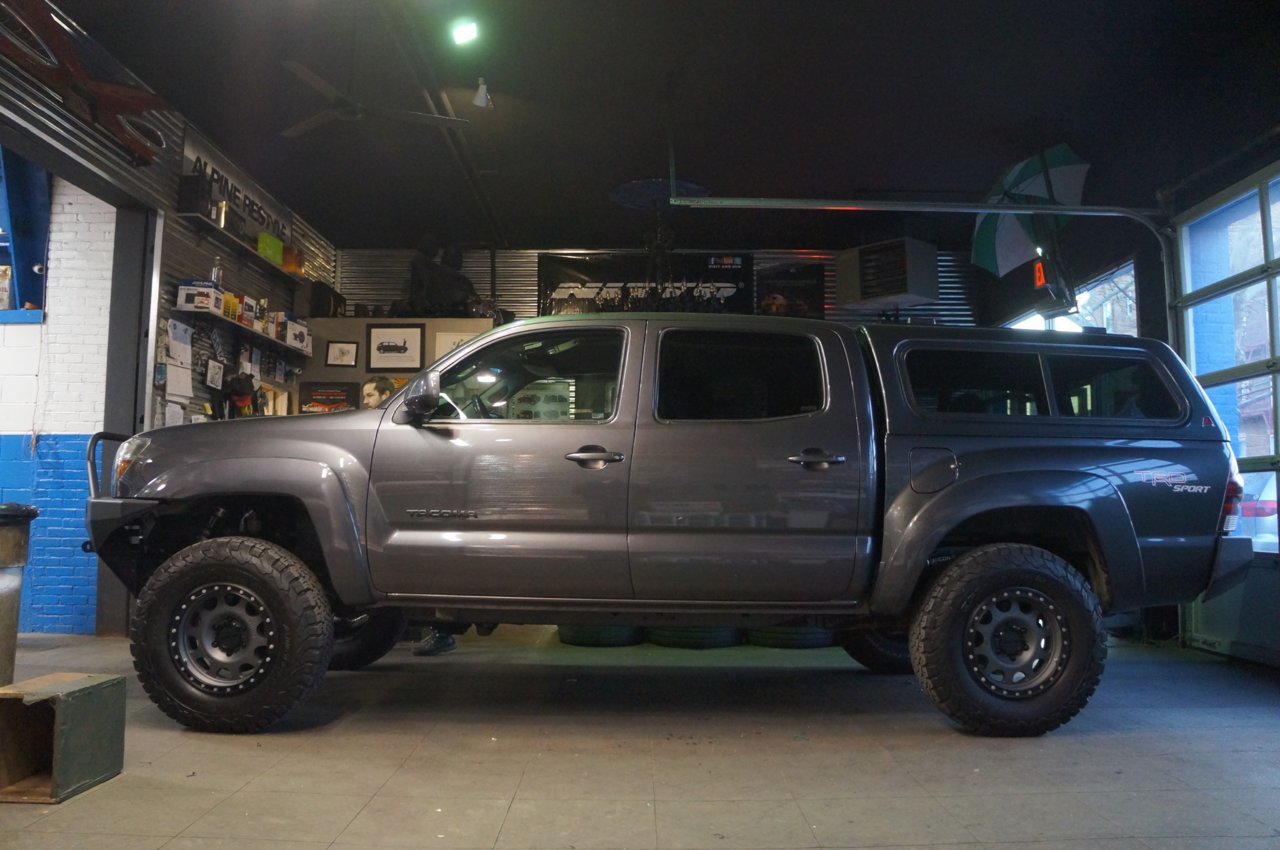

High front low back, later fixed with leaf spring pack

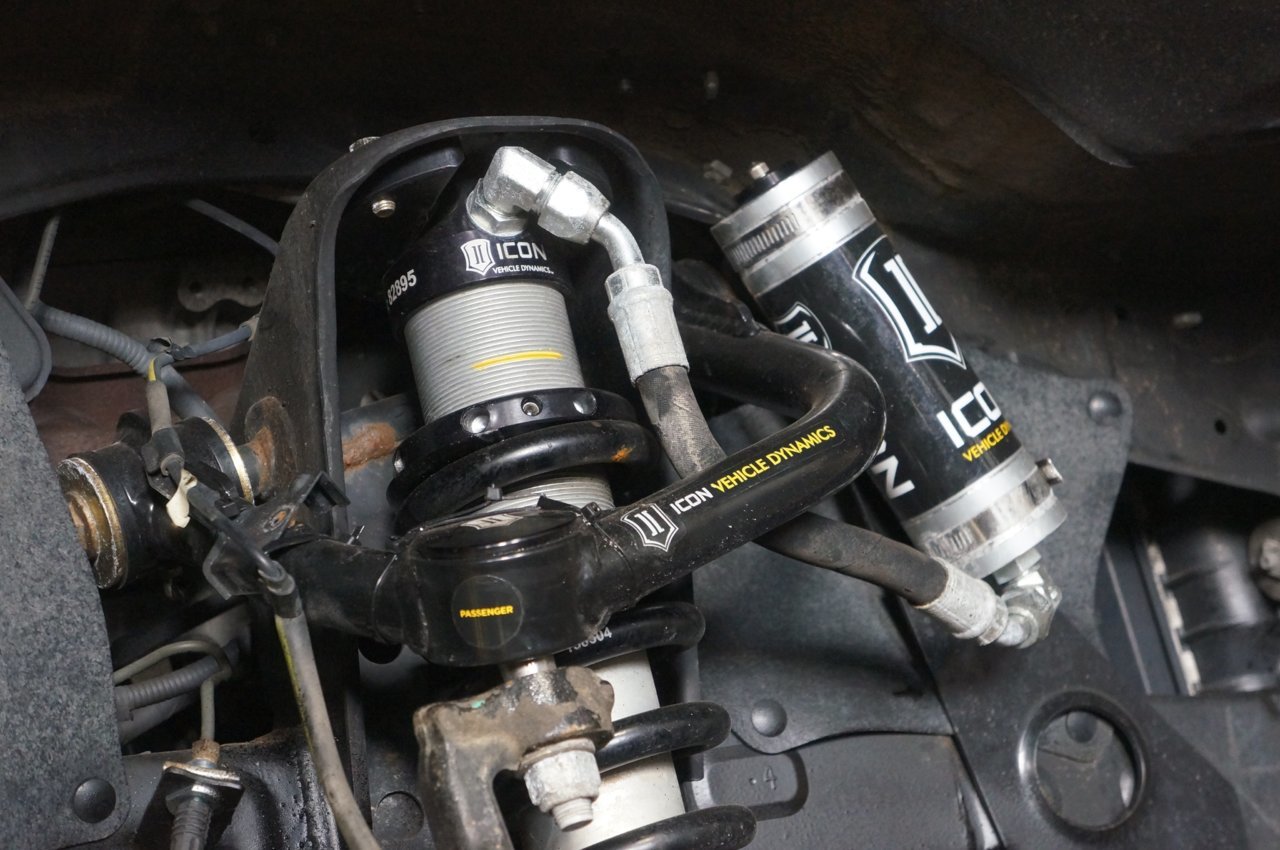

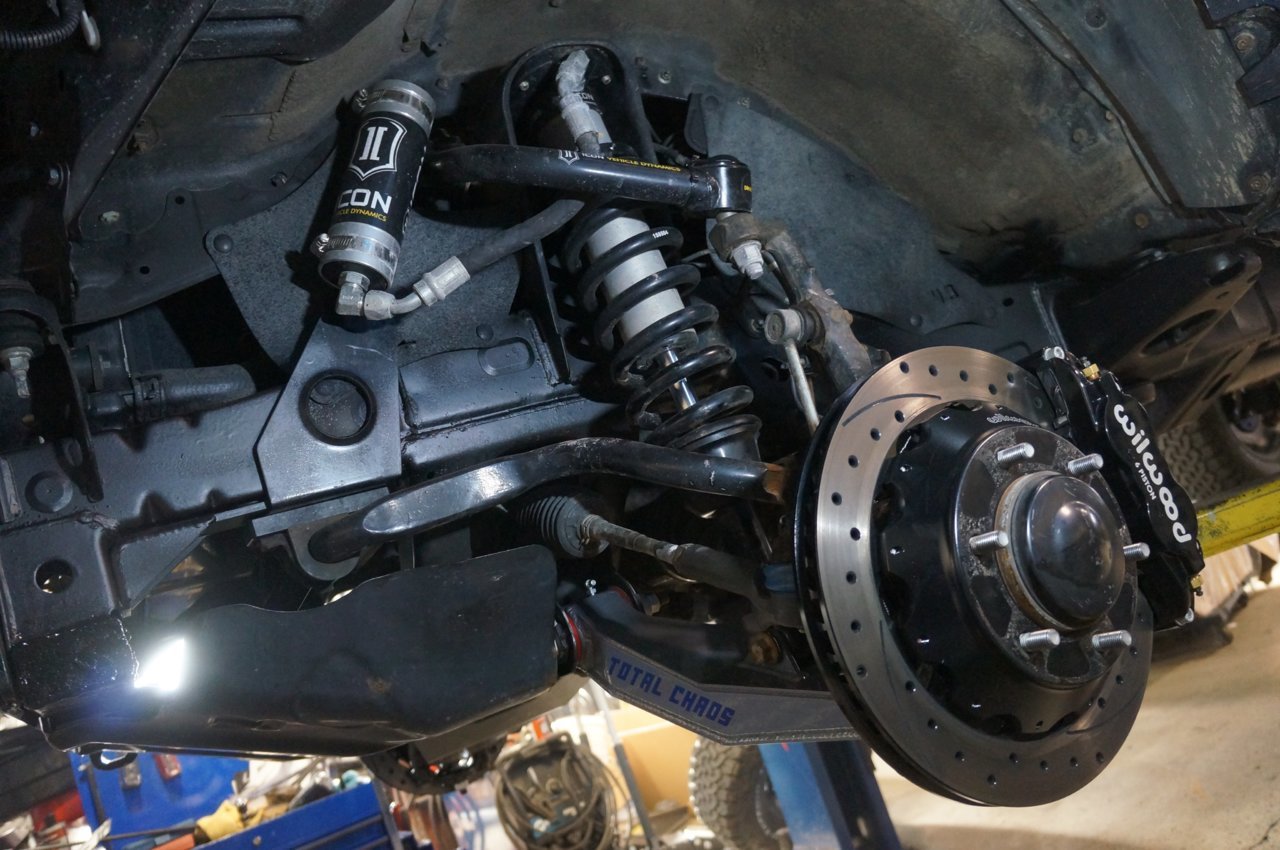

Icon, tubular UCA with 2.5 Coil over, didn't get more expensive adjustable valve

Wilwood big brake conversion with total Chaos LCAs

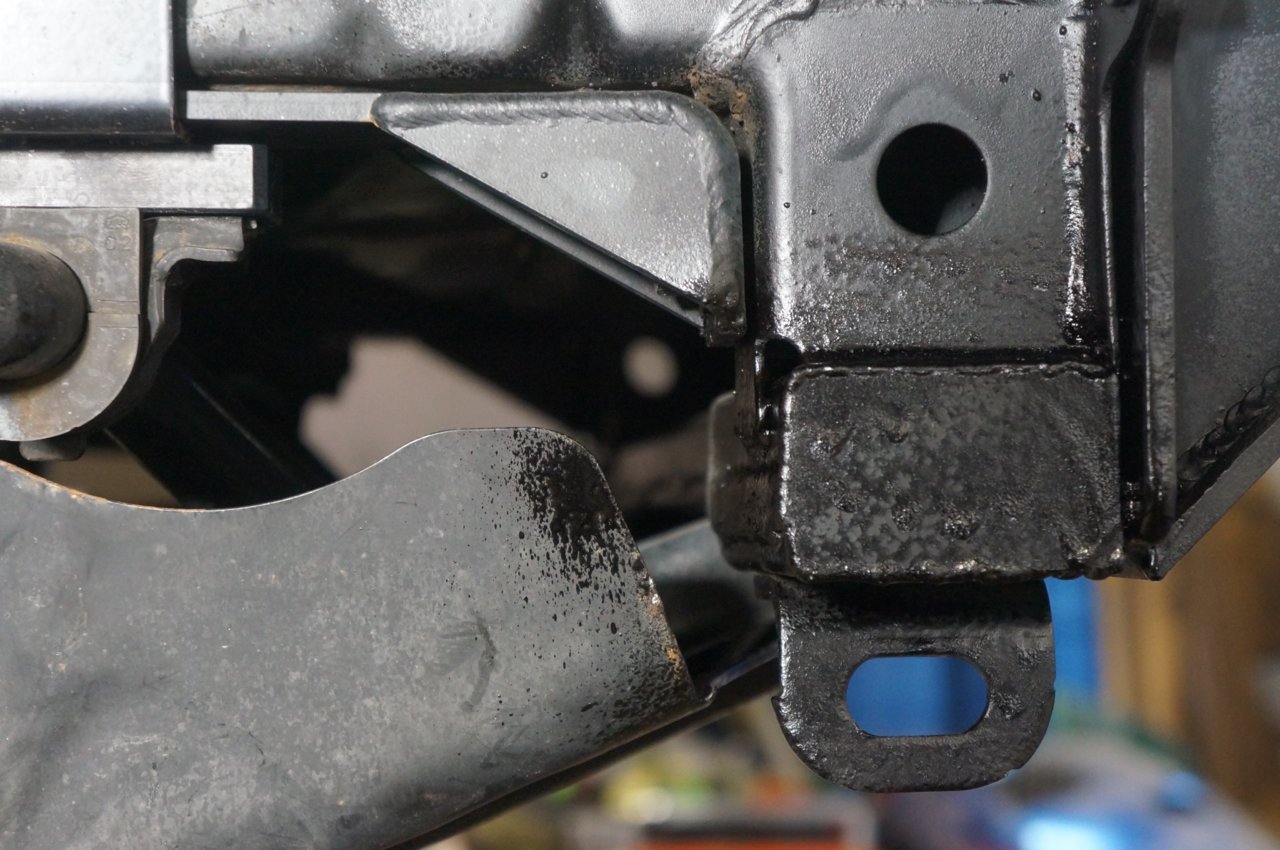

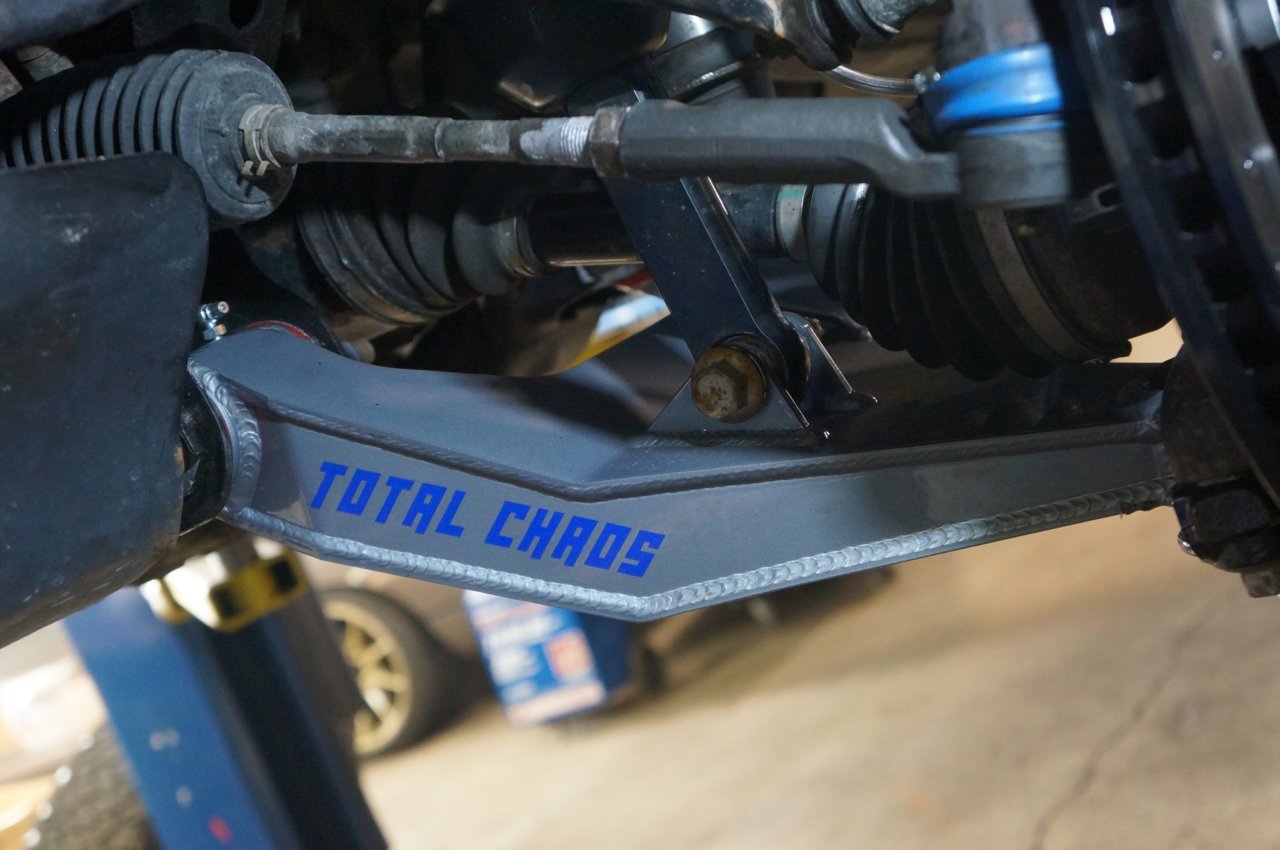

Up close and new bushings

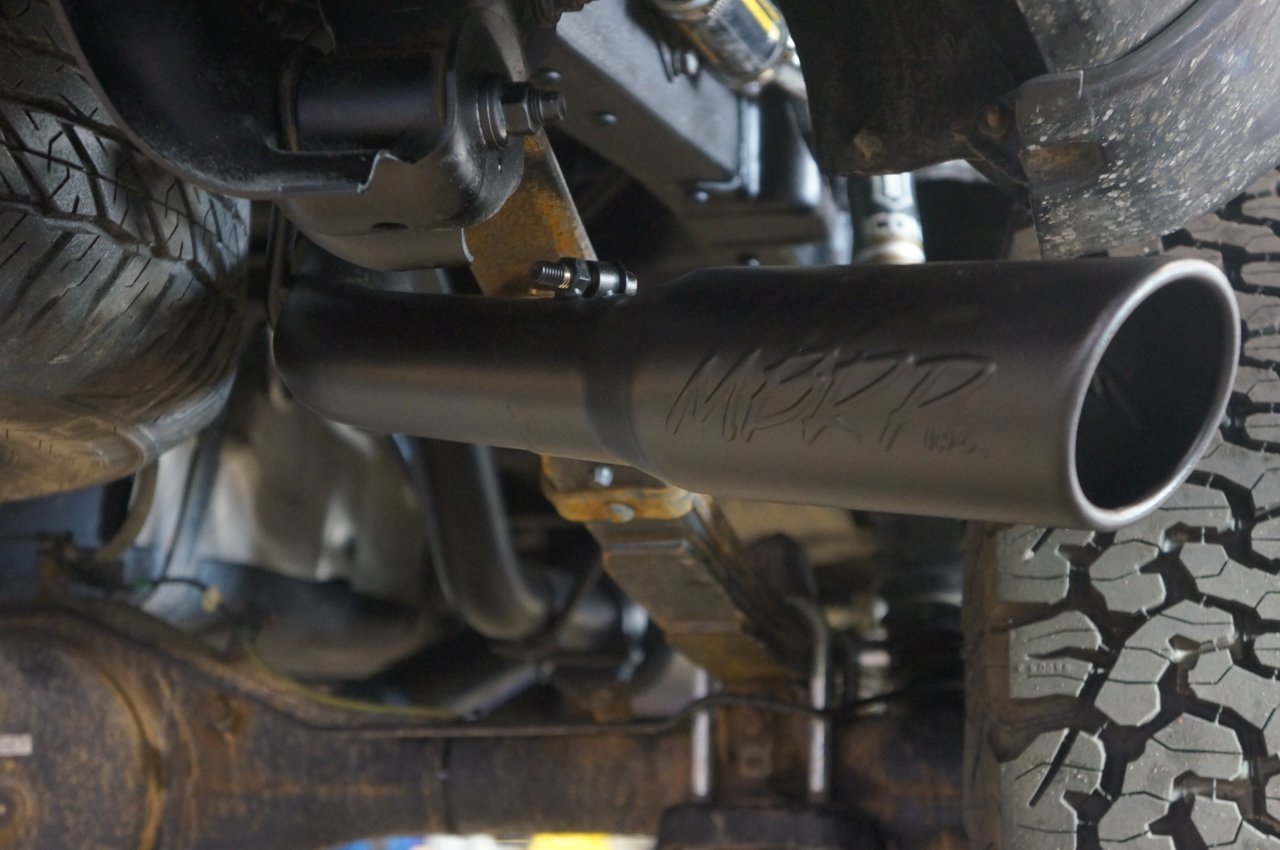

MBRP exhaust (no longer looks like this thanks to driving on dirt and salty NorthEast roads)

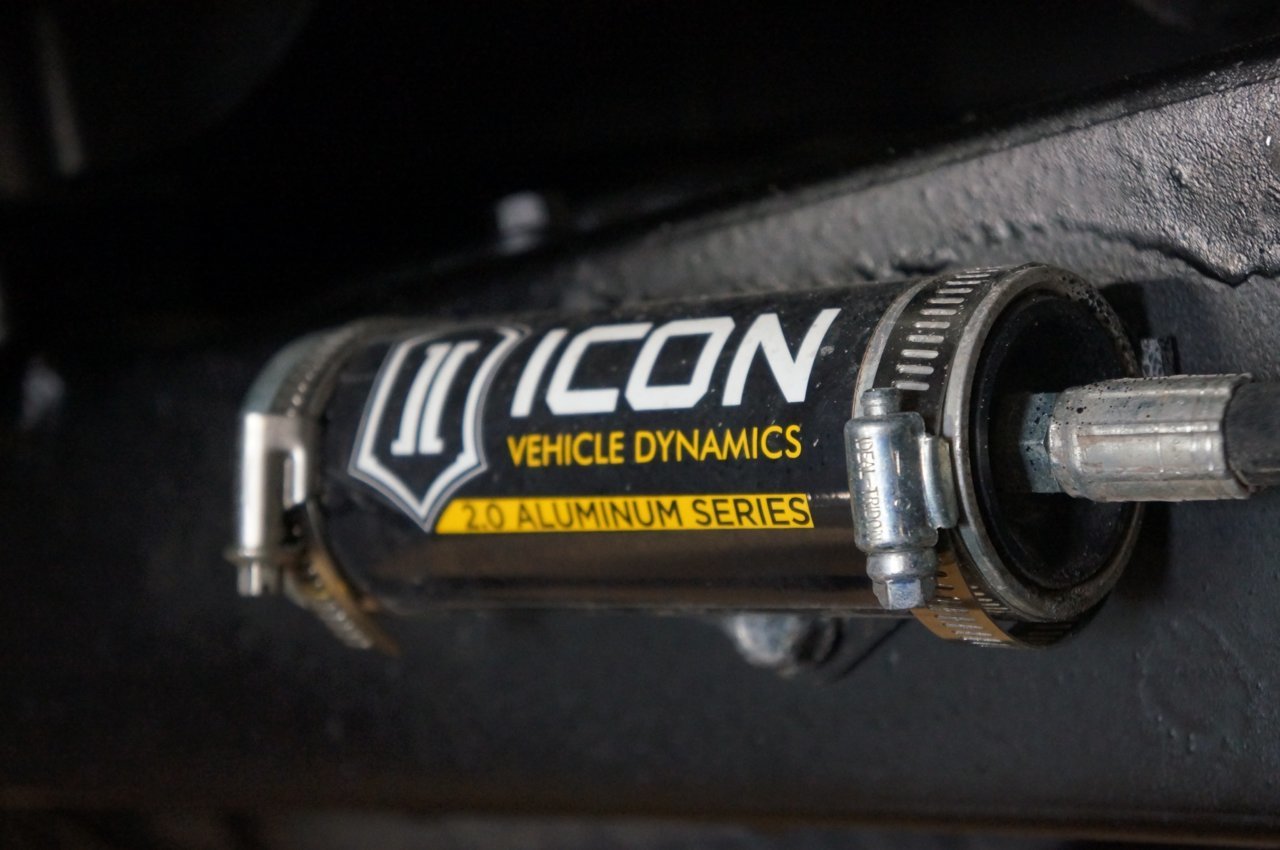

Rear Icon 2.0 with reservoirs


Method Street with galvanized beadlock look

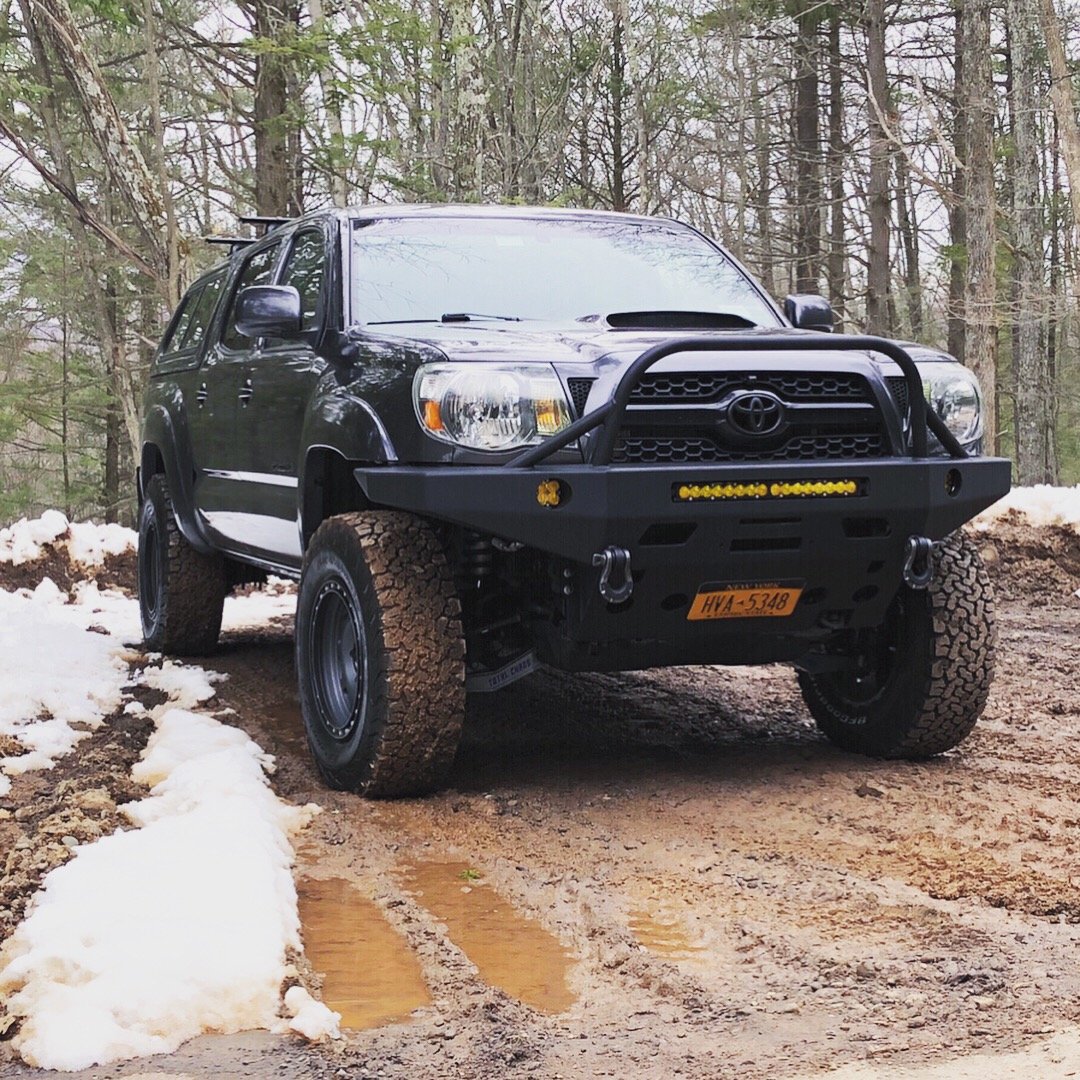

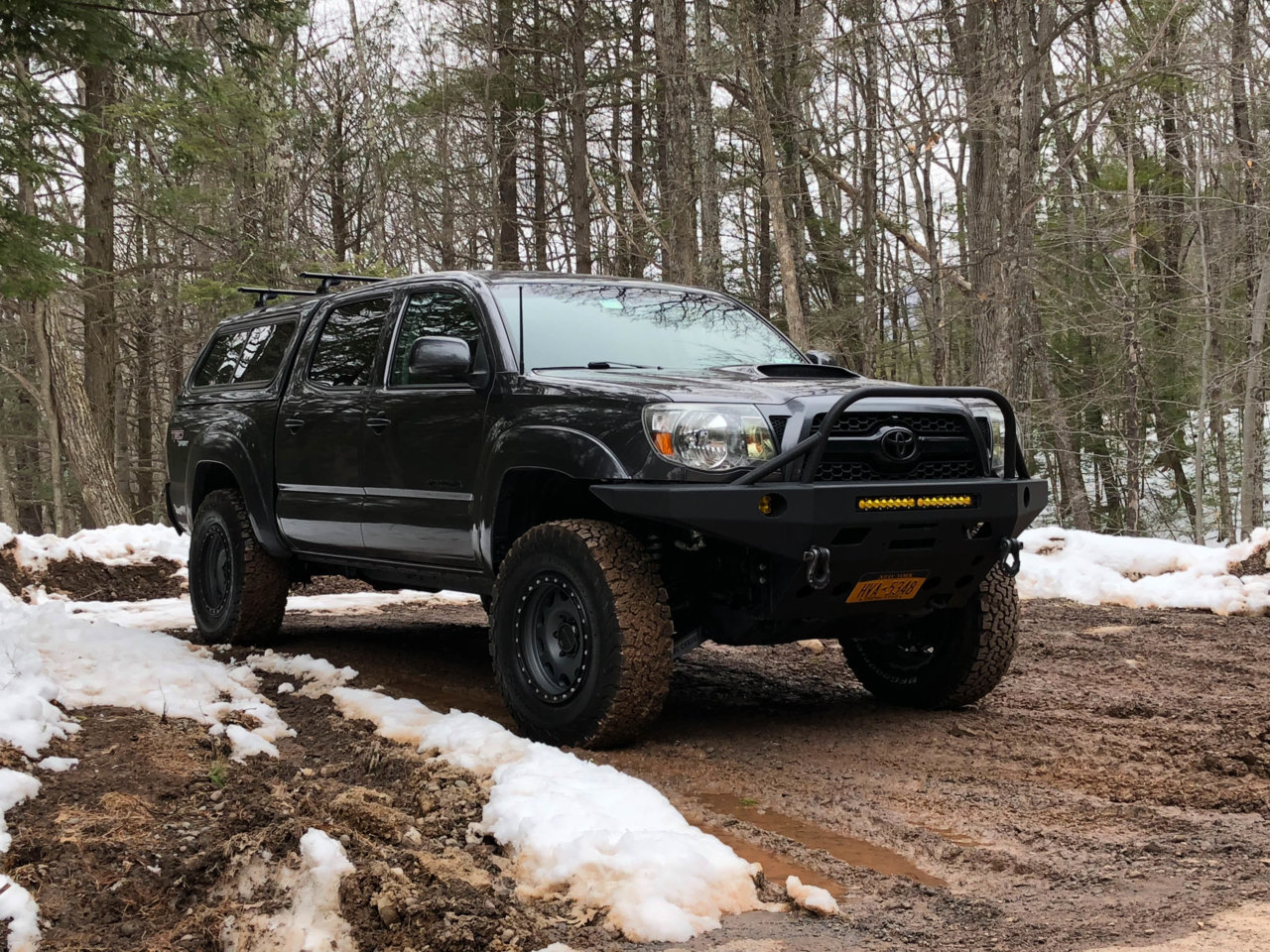

In its natural habitat
