2011 Tundra - High Clearance Bumper Build

Discussion in 'Trail Toys' started by SMKYTXN, Sep 10, 2018.

  1. Sep 10, 2018 at 8:10 AM
    #1
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

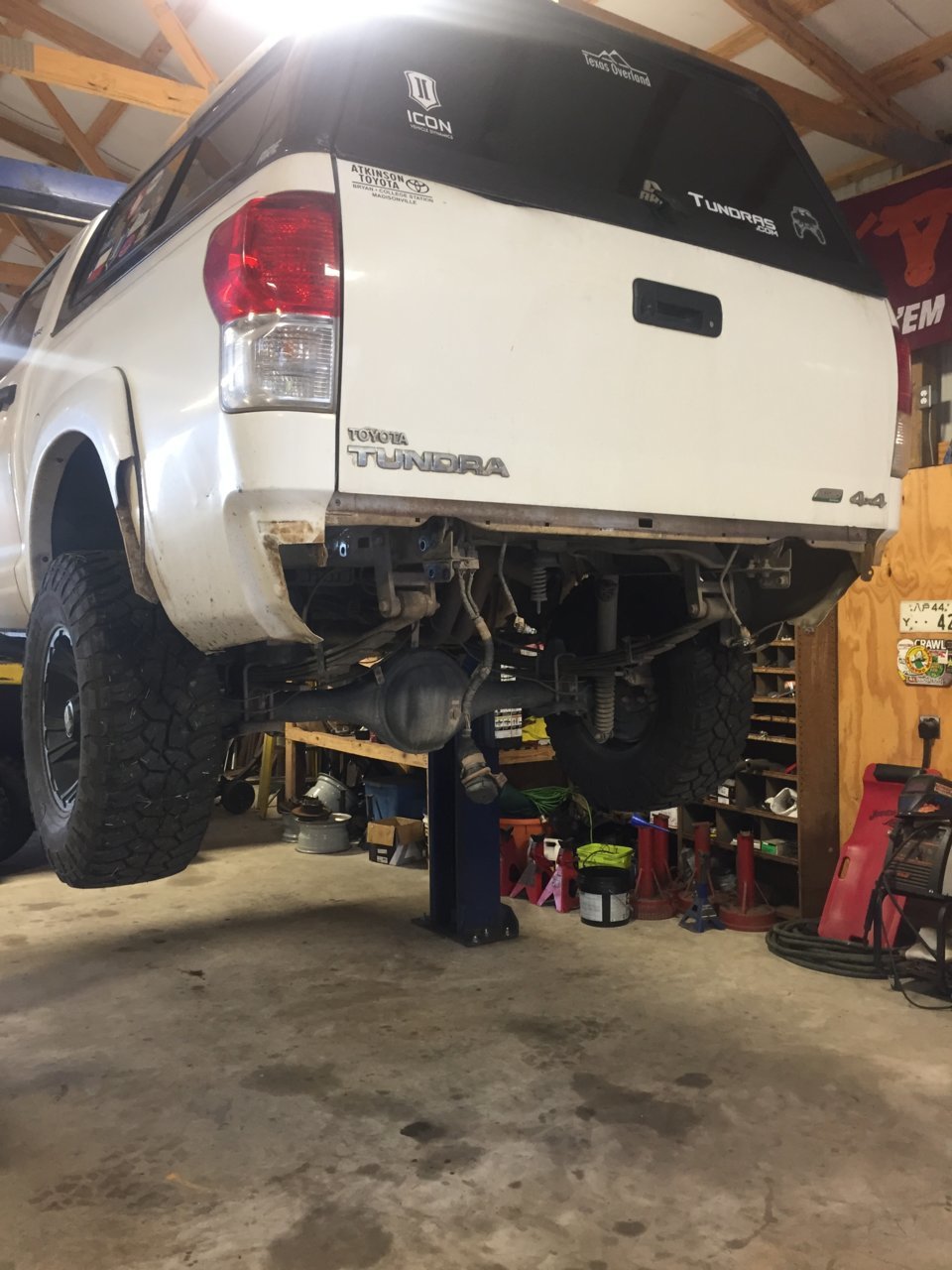

    Mark brought down his 2011 Tundra for a new high clearance bumper yesterday. He had a few suggestions as to how it should look and what all he wanted incorporated.

    Here's what we came up with.

    - Main bumper structure - 6"x2"x3/16" rectangular tube
    - 2" receiver
    - Baja Designs flush mount LED's
    - Recovery points integrated into the frame mounts
    - Frame tie ins for the "wings"

    At the end of the day he'll be gaining about 10" of rear ground clearance. First thing first is to get the frame plates built.


    Baja Designs, inesshell and smw62891 like this.
  2. Sep 28, 2018 at 7:43 AM
    #2
    Enfield1

    Enfield1 Well-Known Member

    Joined:
    Mar 30, 2018
    Member:
    #248923
    Messages:
    444
    Gender:
    Male
    First Name:
    Brad
    Bryan, Tx
    Vehicle:
    '18 White DCSB OR 4wd auto
    Interested to see how it turns out.

  3. Sep 28, 2018 at 2:05 PM
    #3
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

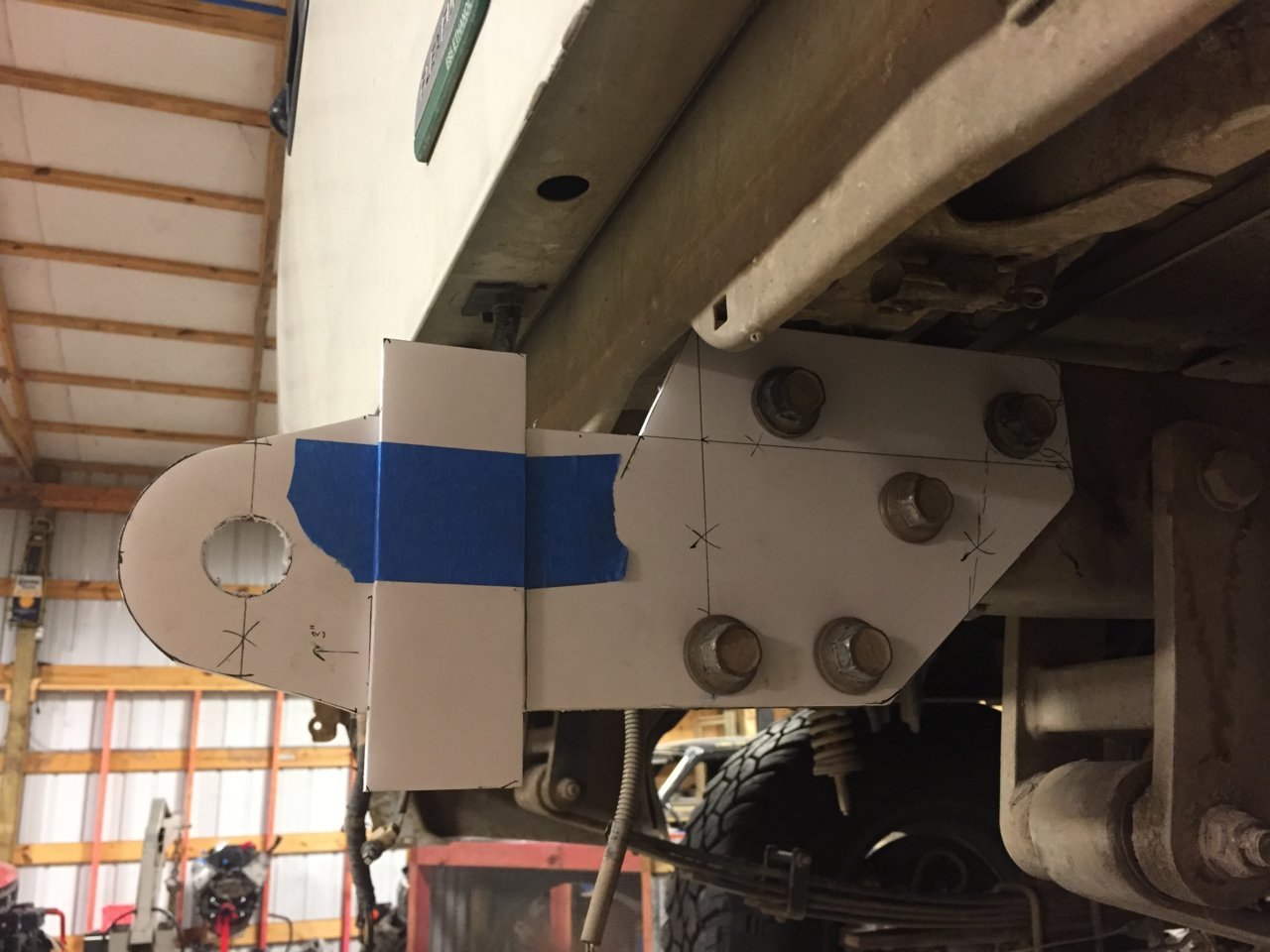

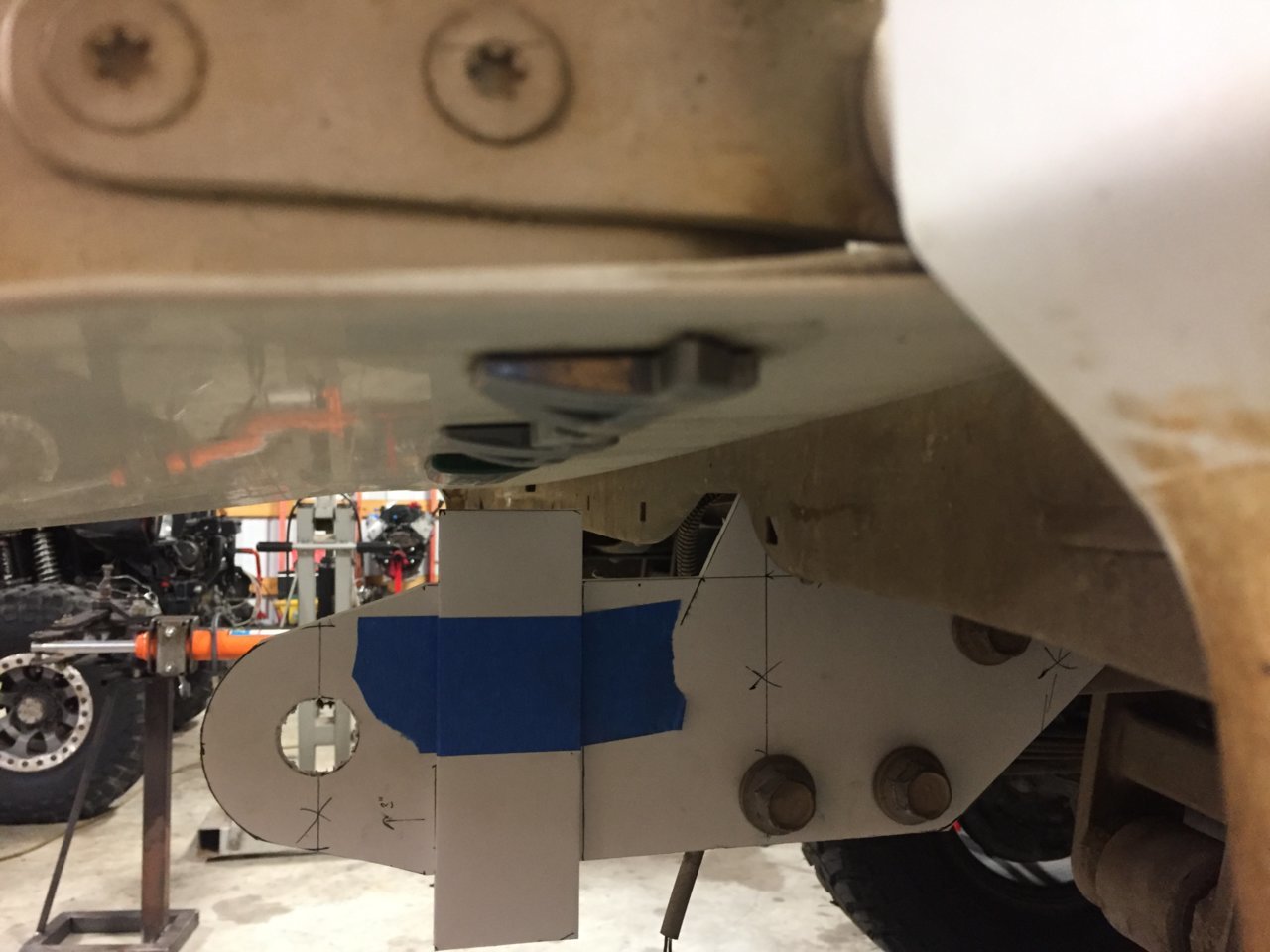

    Here's my favorite way to figure out a bracket. Foam core is stiff enough to hold it shape while also being easy to cut.

    2018-09-10 20.50.52.jpg

    Plenty of clearance between the bumper and the tailgate.

    2018-09-10 20.52.00.jpg

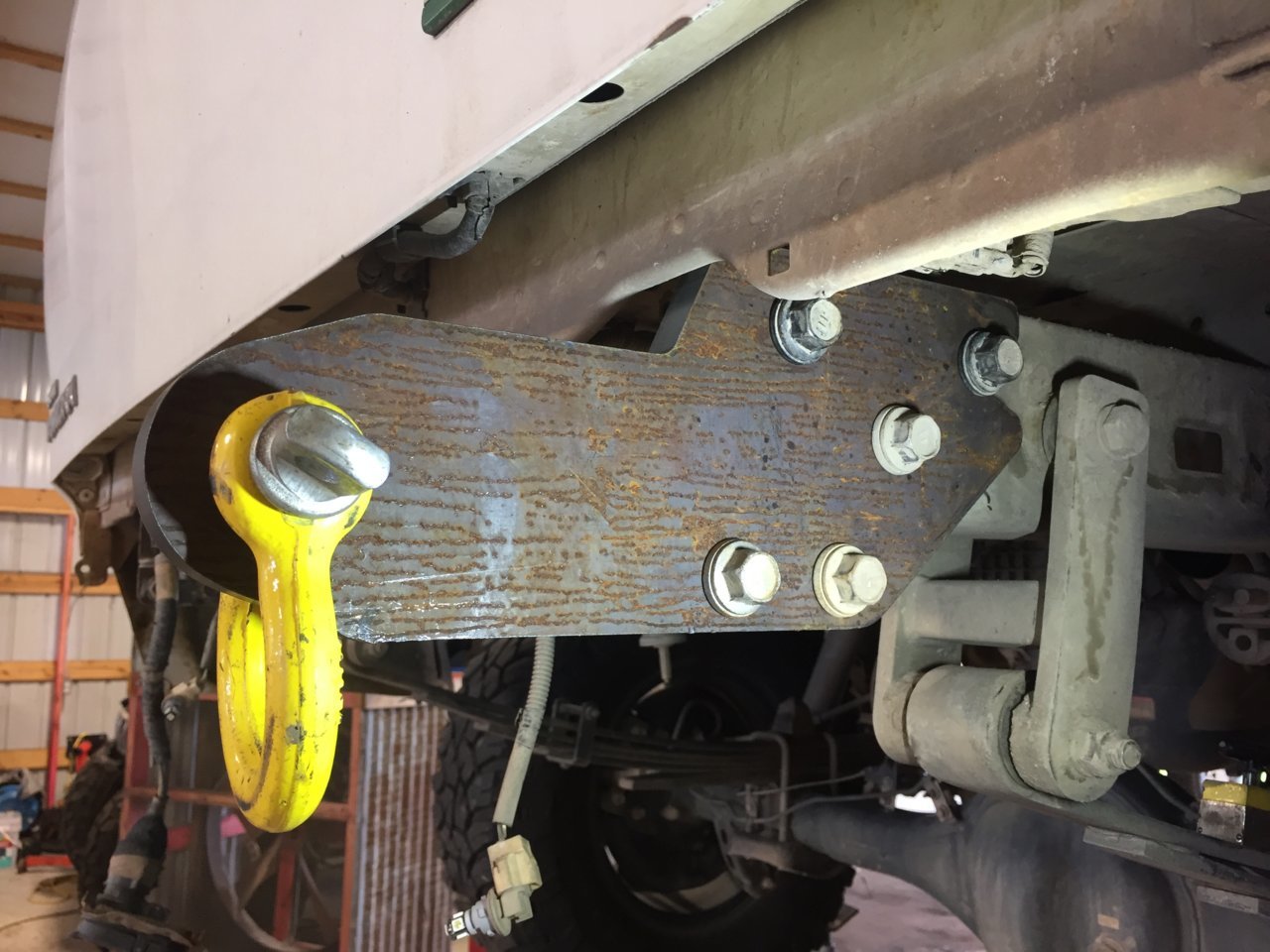

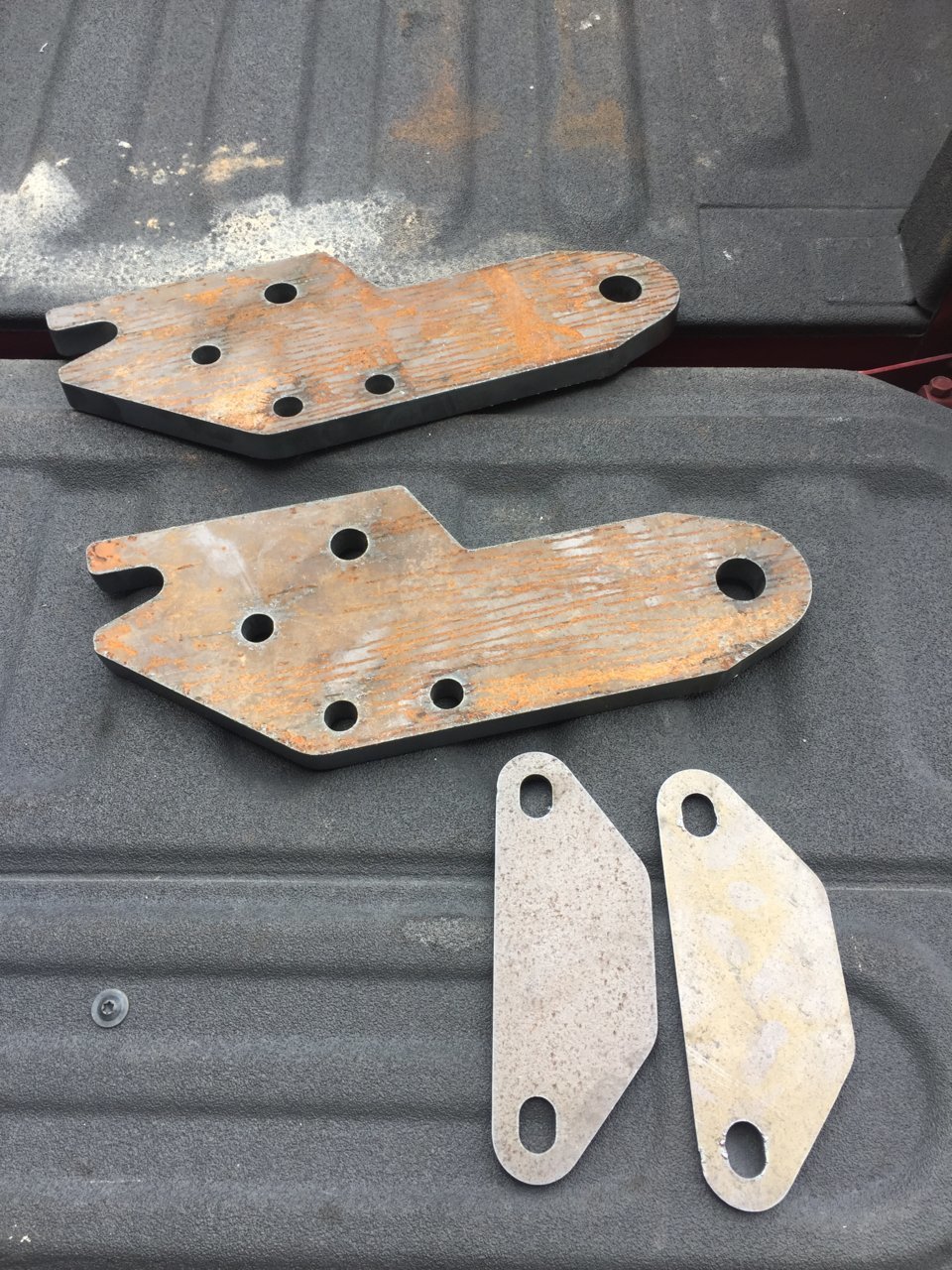

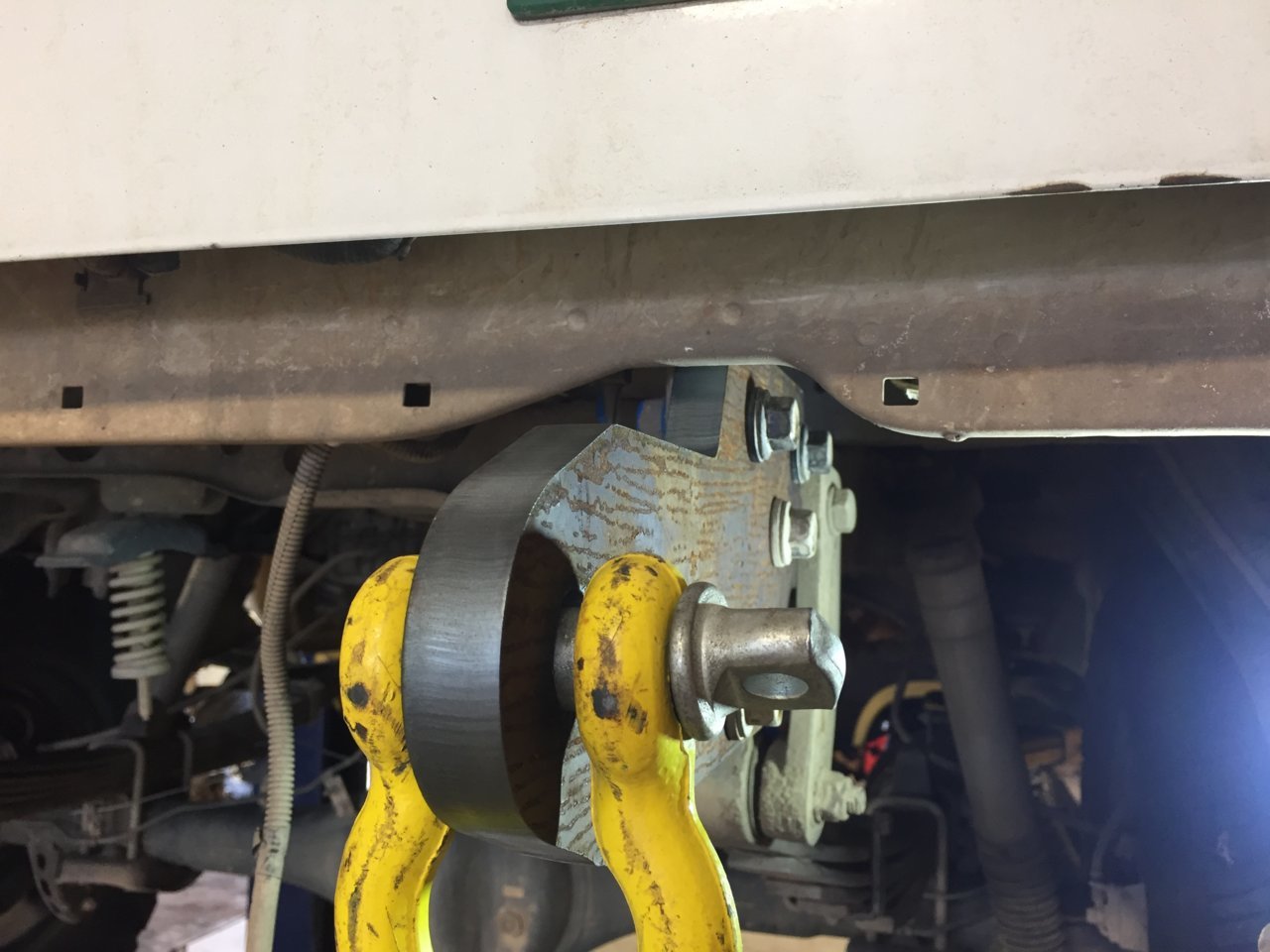

    I might have gone a bit overkill with the 3/4" plate though. :D

    2018-09-11 11.40.32.jpg
    2018-09-11 15.00.53.jpg
    2018-09-11 15.00.36.jpg

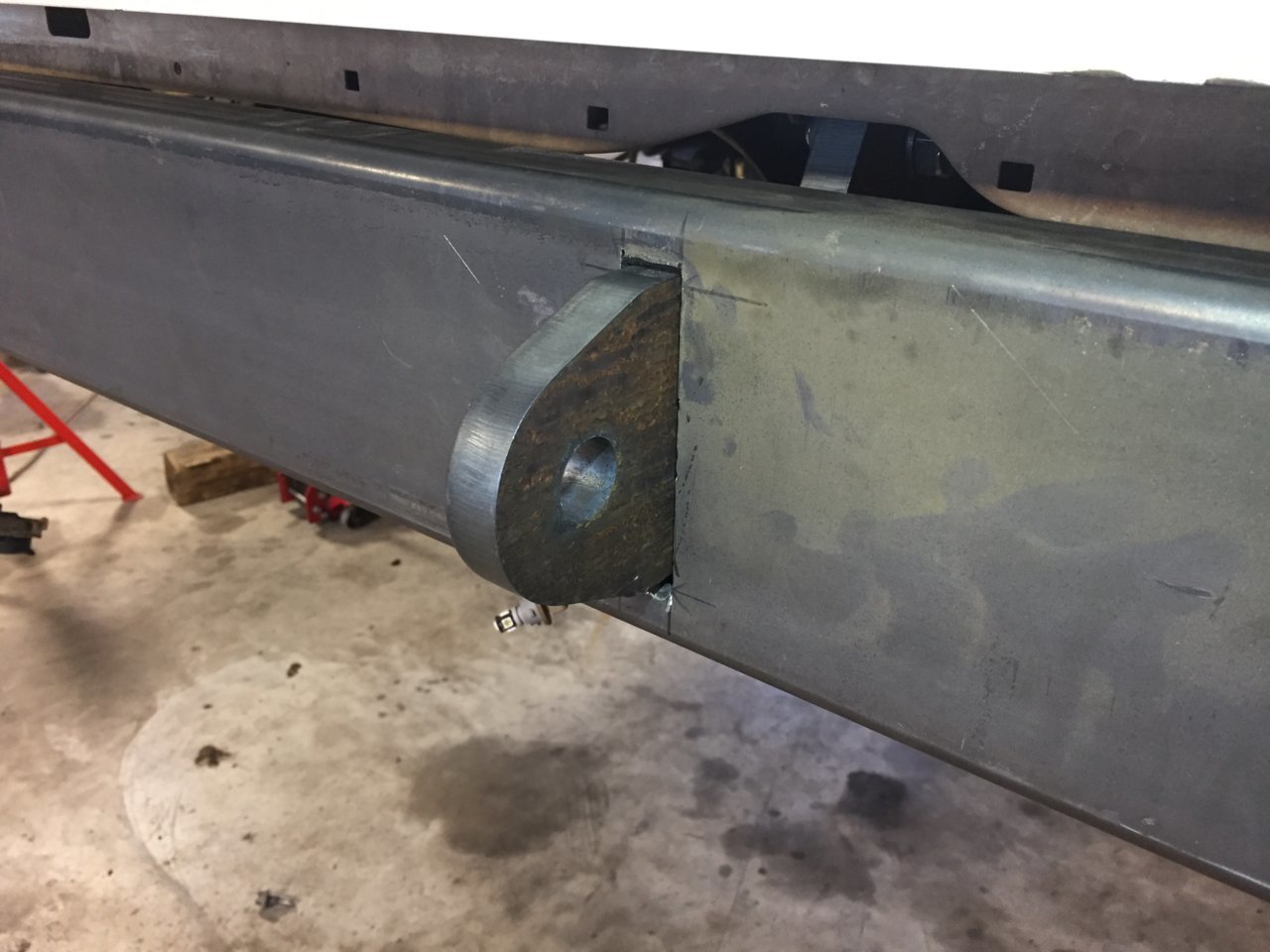

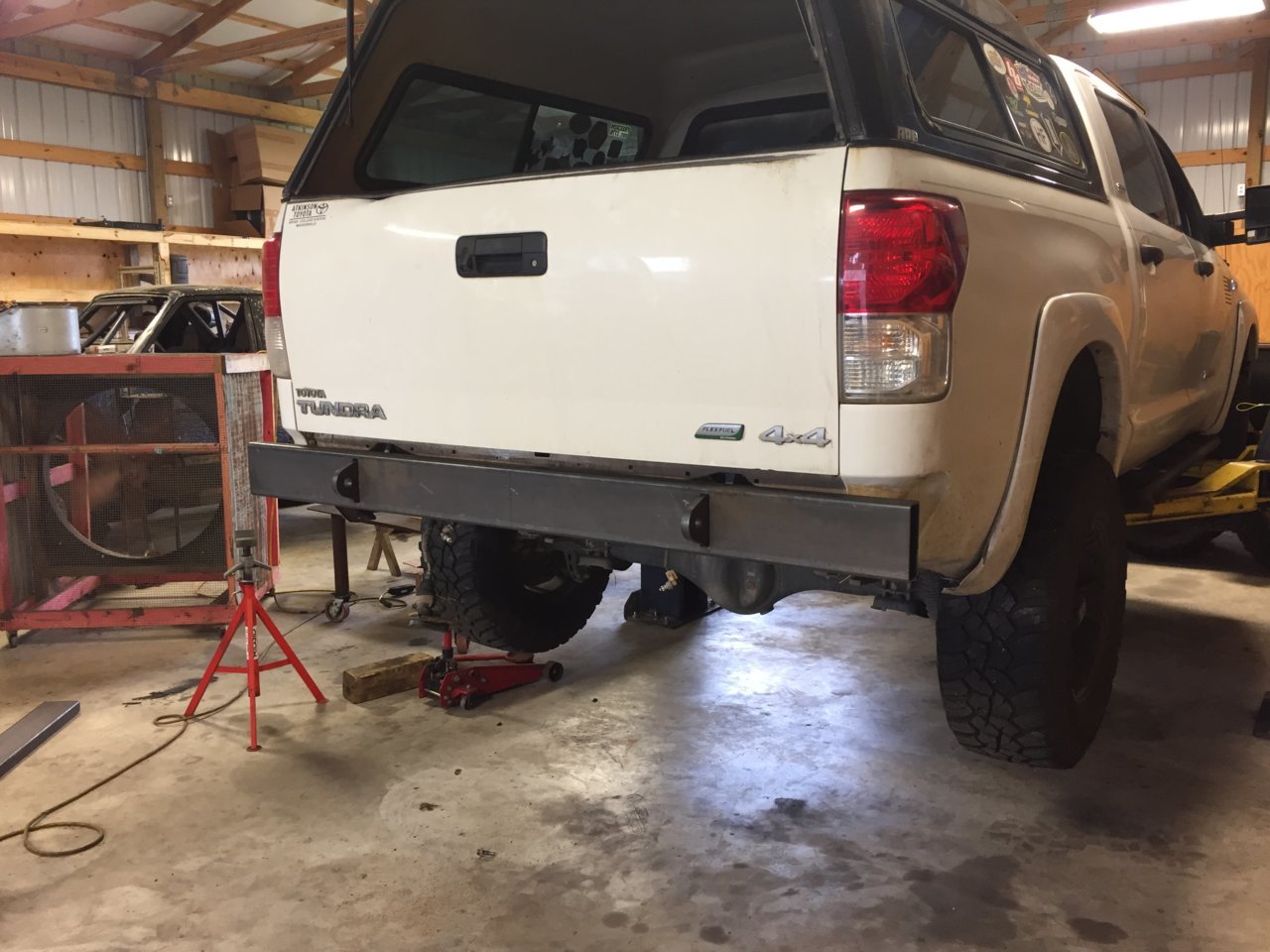

    The main tube is 6"x2"x3/16" wall.

    2018-09-11 18.11.20.jpg
    2018-09-11 18.11.36.jpg

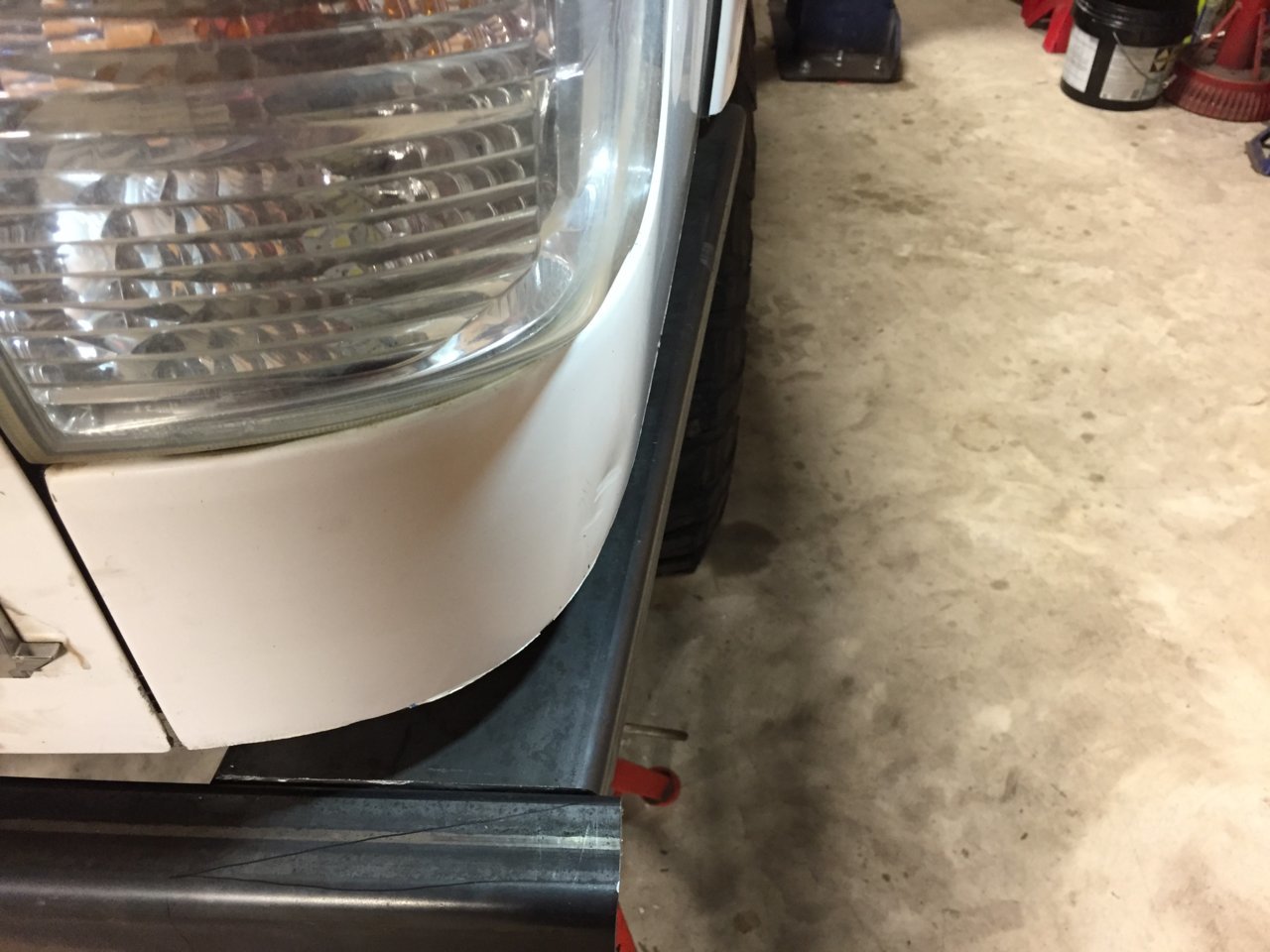

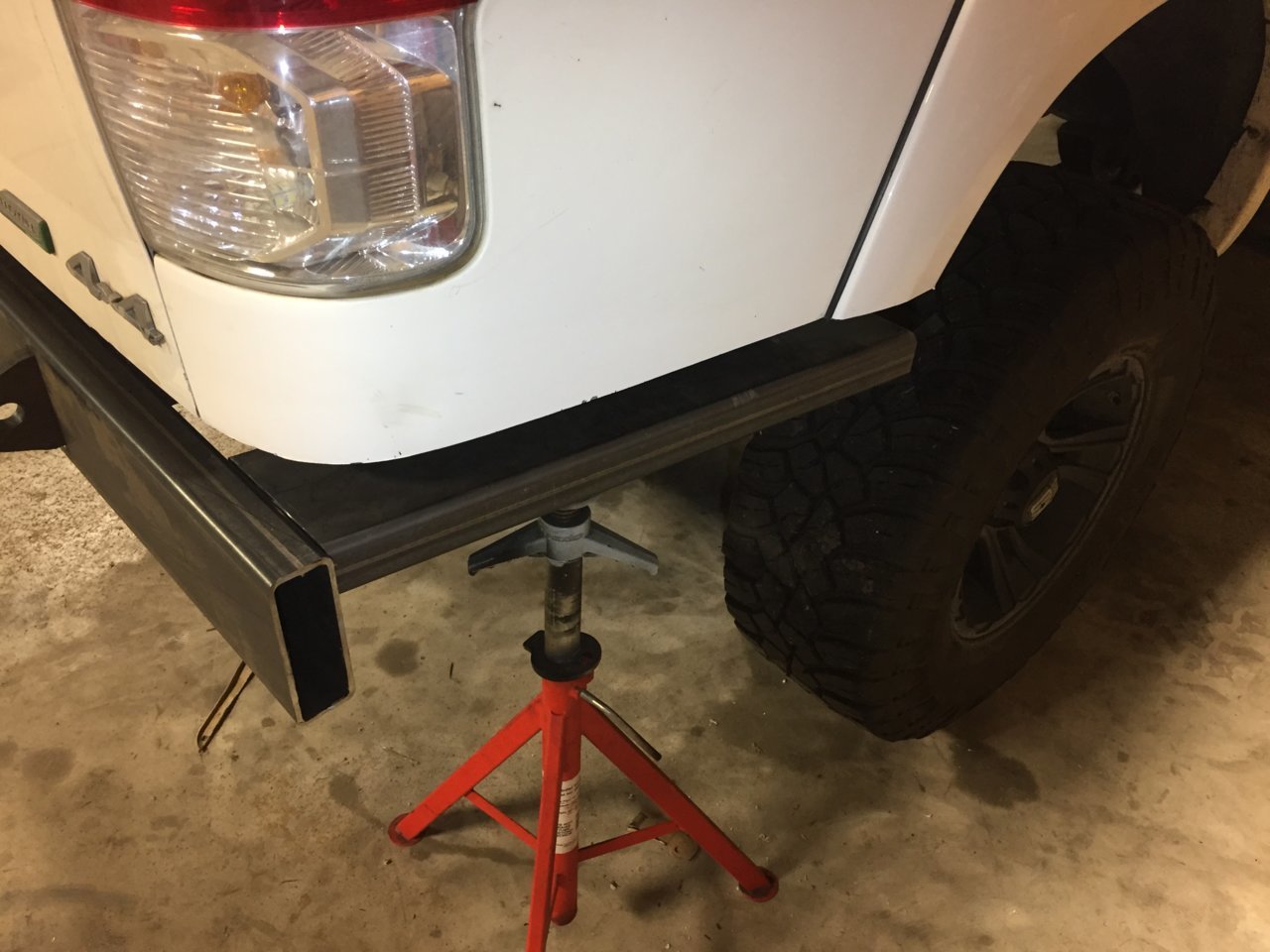

    The wings will also be made using the rectangular tube.

    2018-09-11 20.46.16.jpg
    2018-09-11 20.46.30.jpg

    EatSleepTacos likes this.
  4. Sep 28, 2018 at 2:11 PM
    #4
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

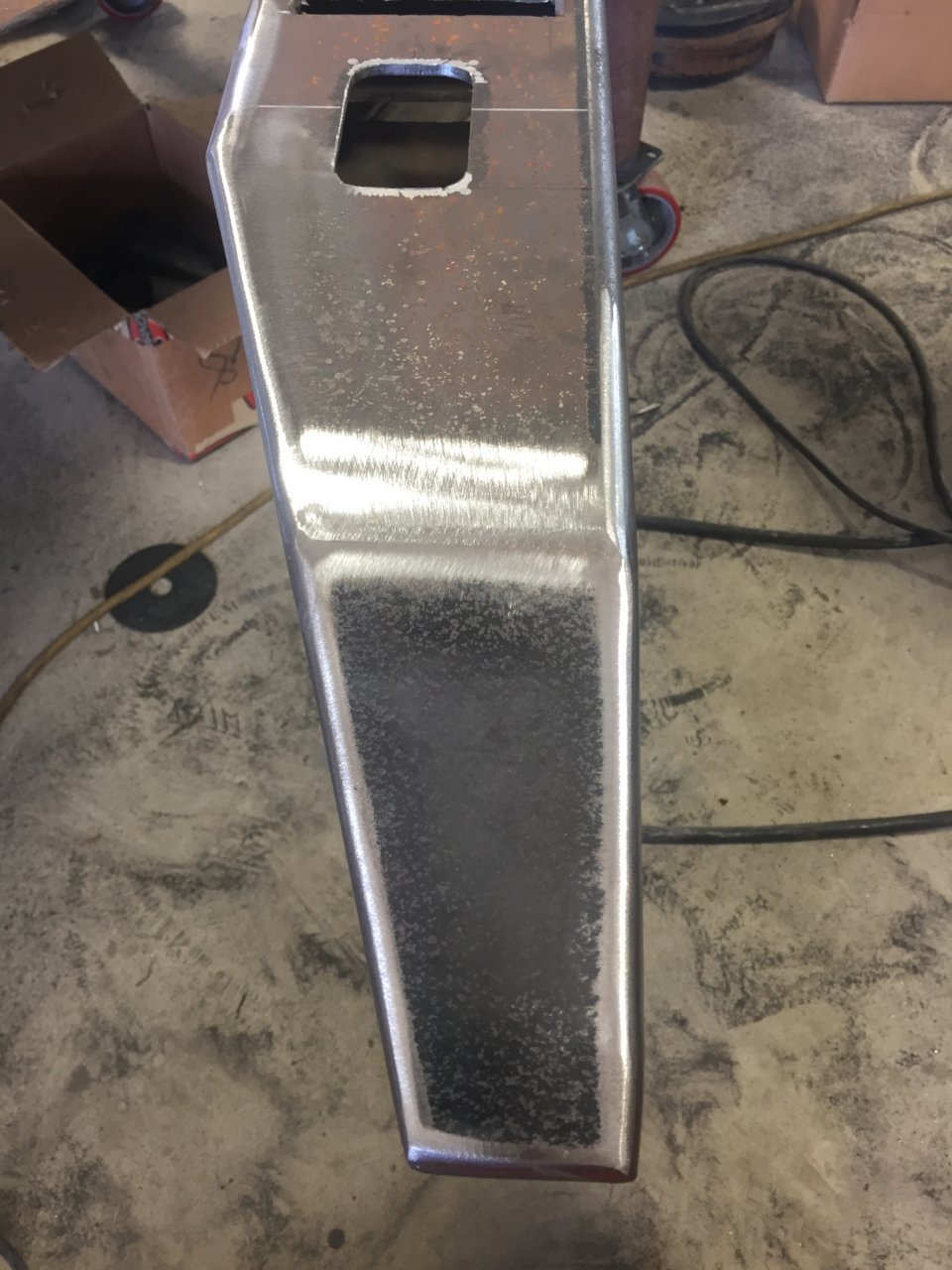

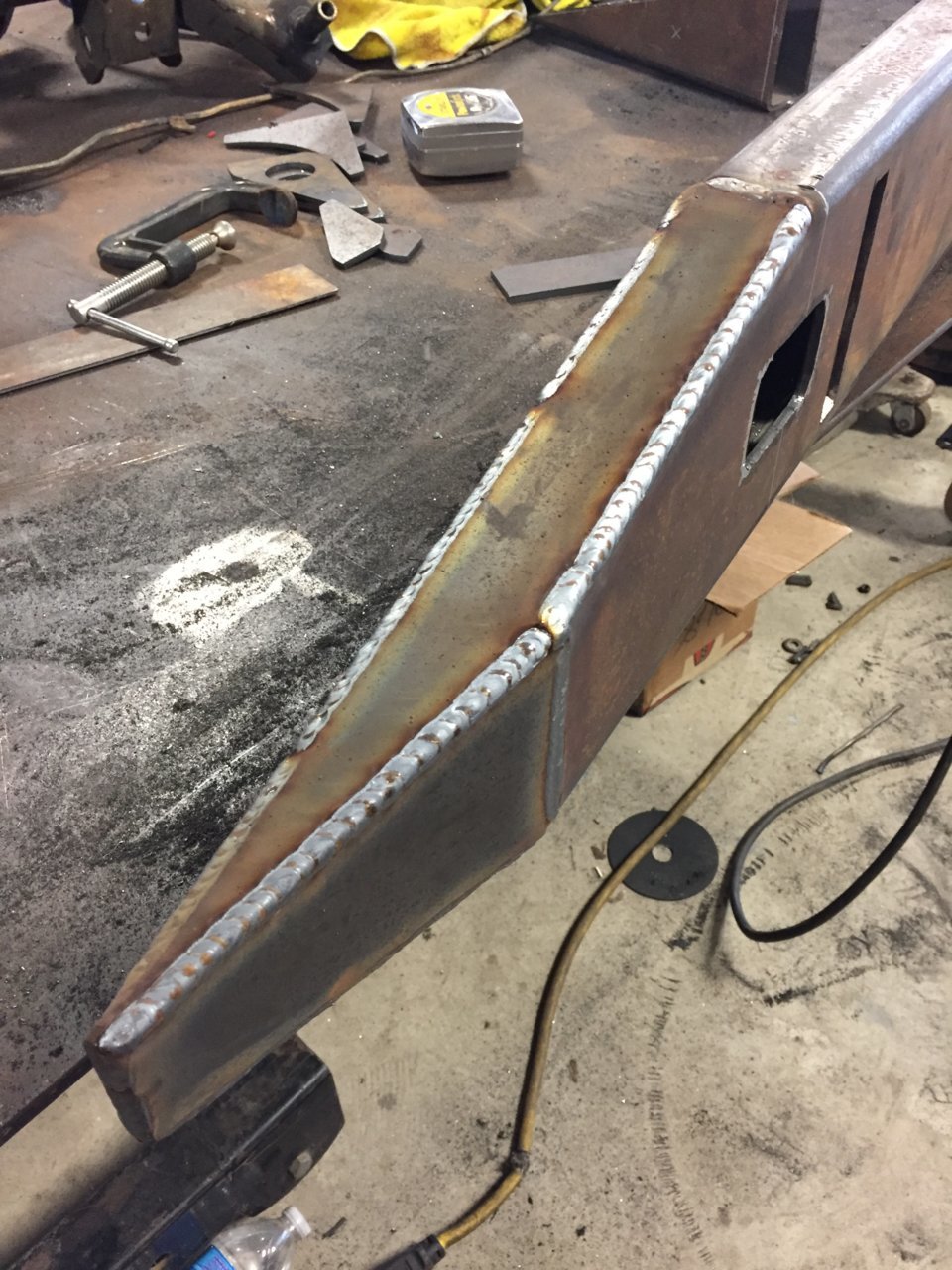

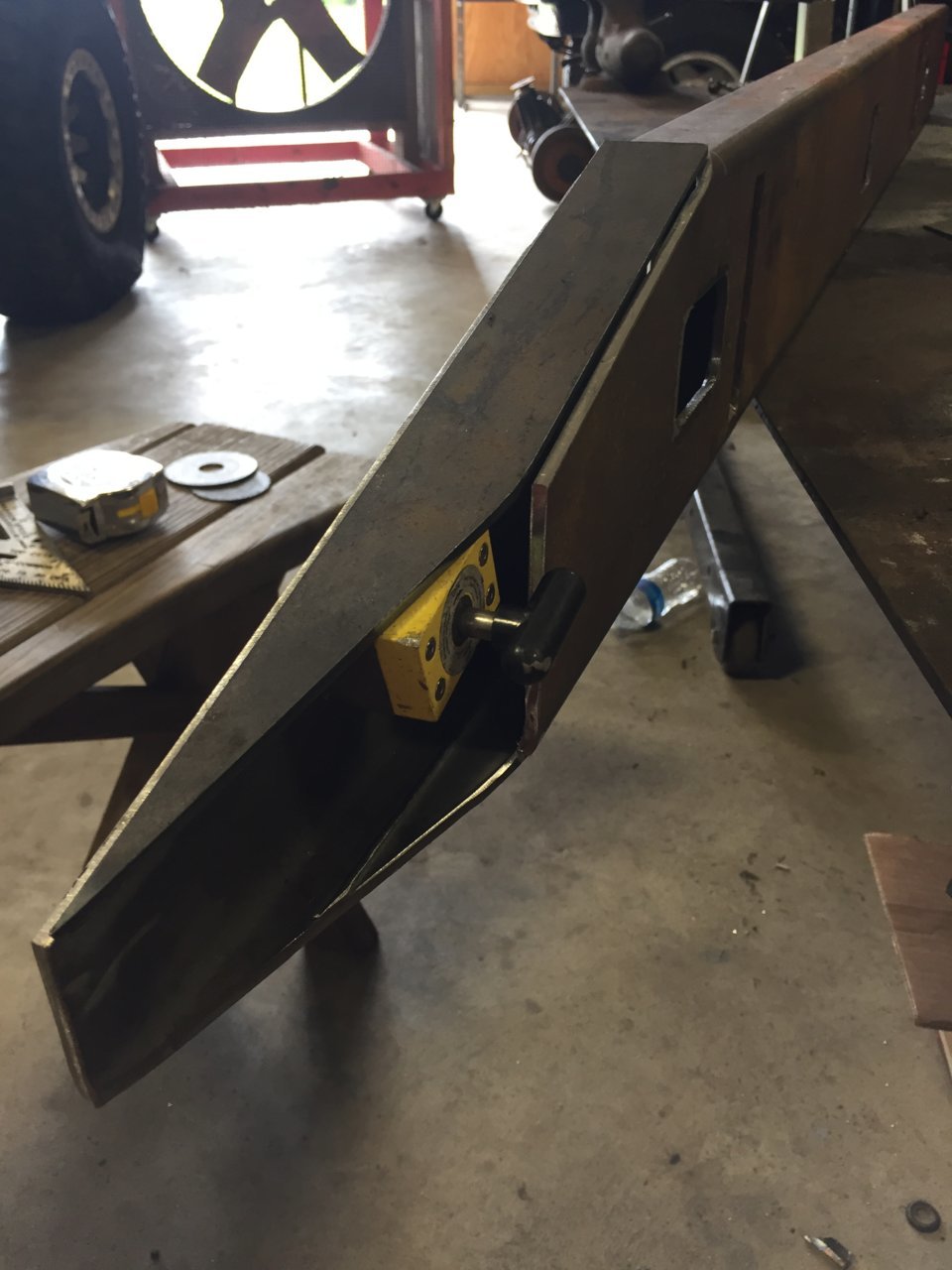

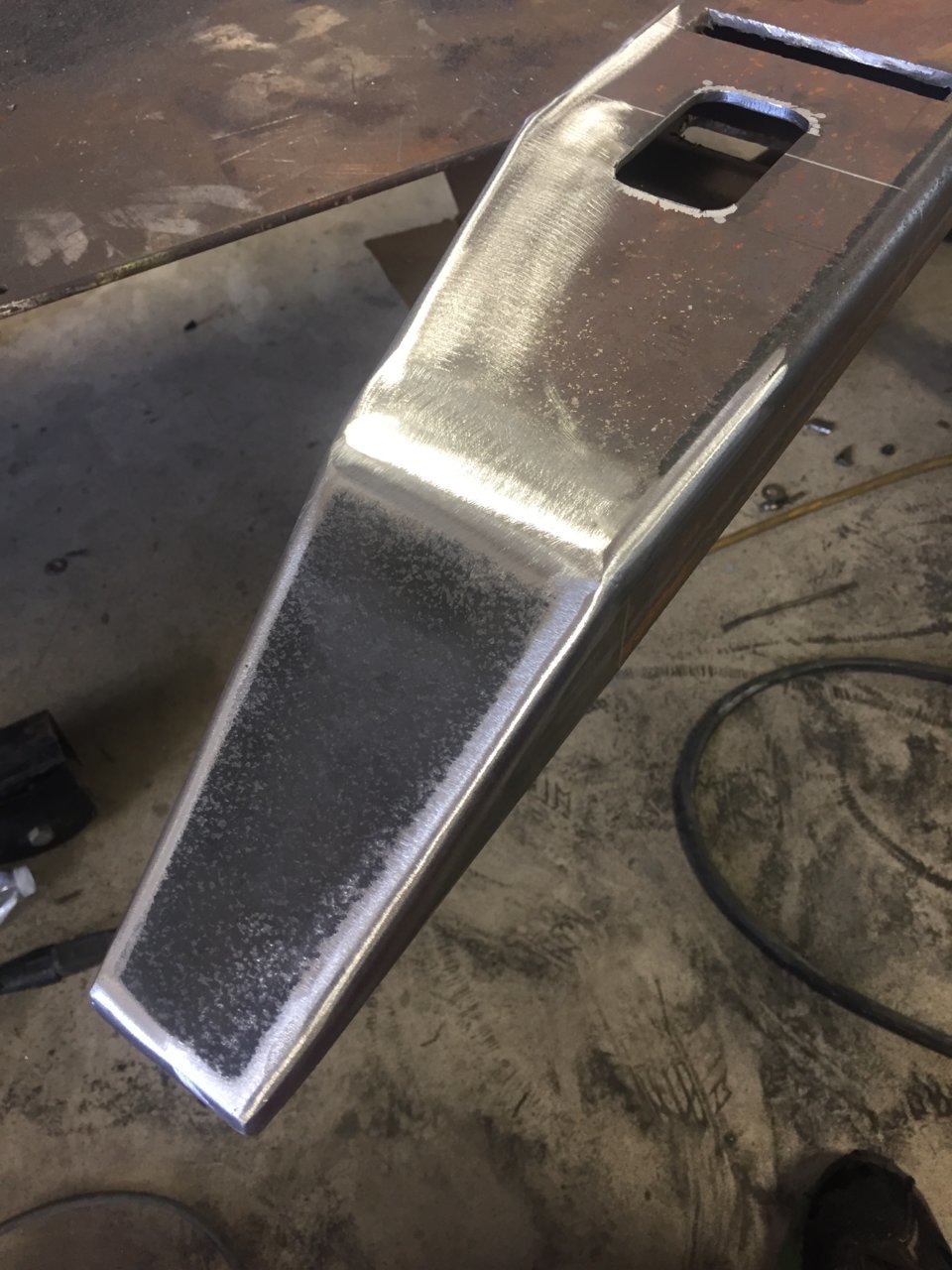

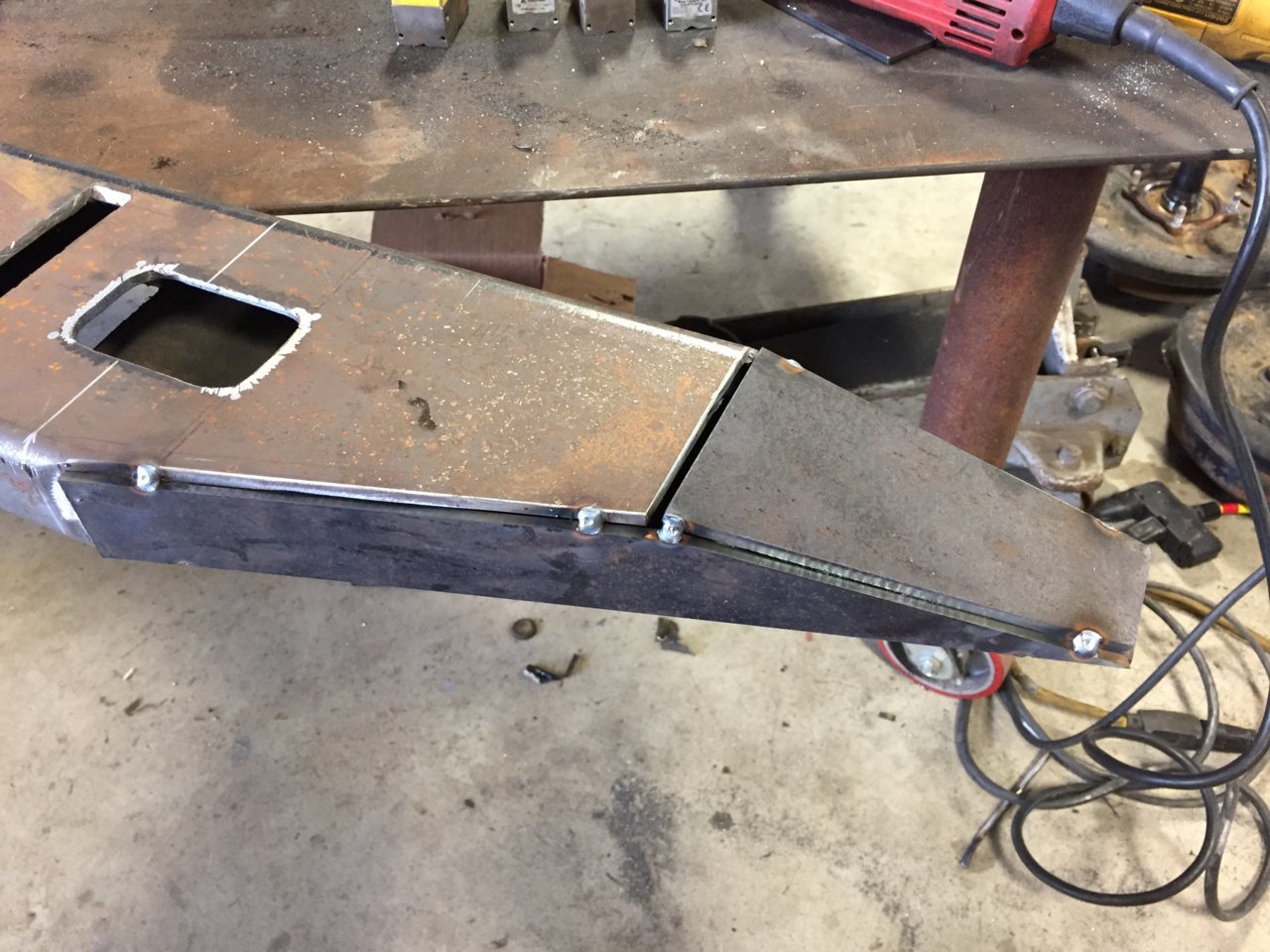

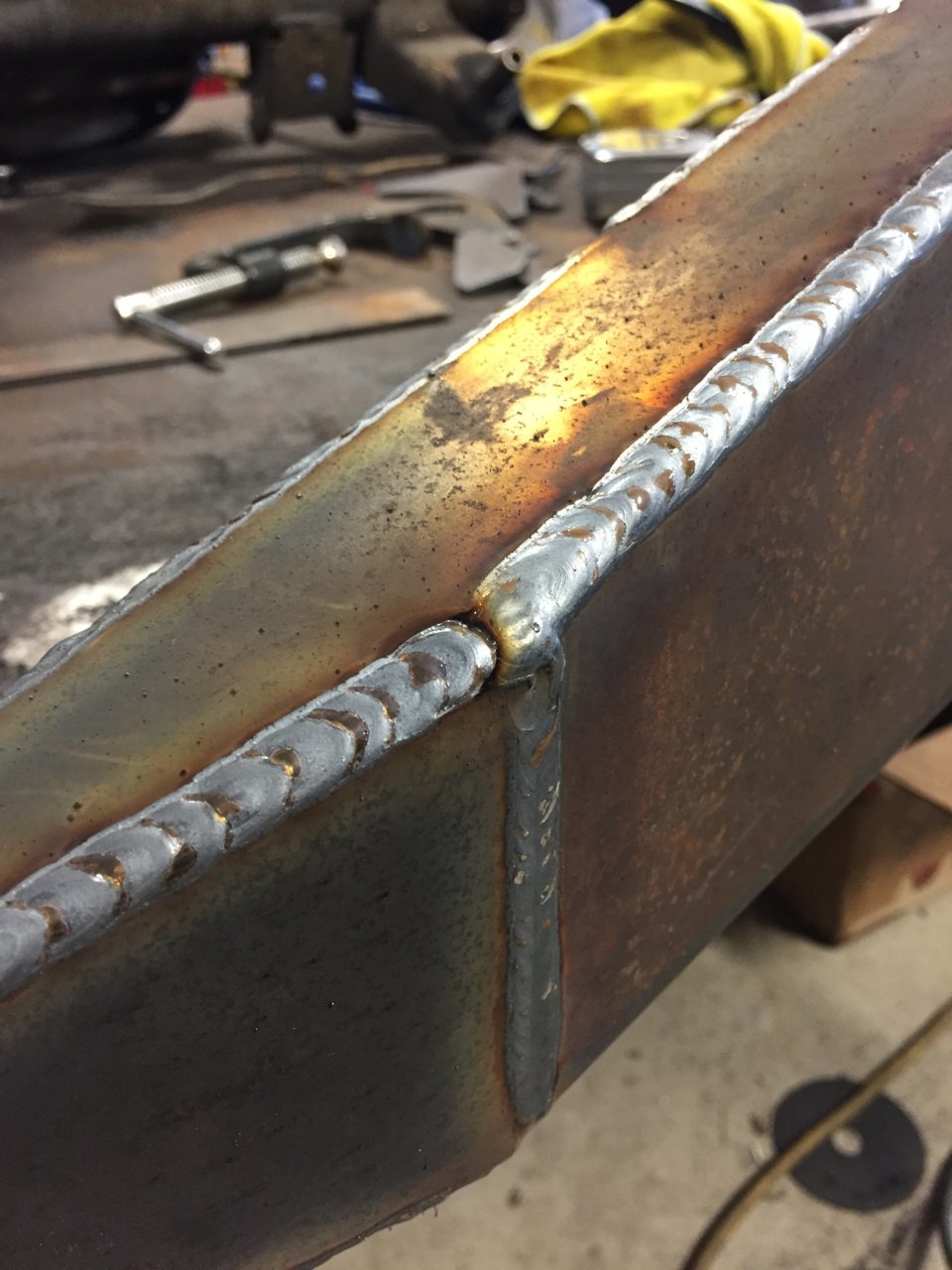

    It pains me to blend nice welds, but this isn't the place for exposed welds. Also note the holes for the @Baja Designs flush mount lights.

    2018-09-26 11.34.10.jpg 2018-09-26 11.55.04.jpg 2018-09-26 13.49.11.jpg 2018-09-26 13.49.17.jpg 2018-09-26 14.12.37.jpg 2018-09-26 14.12.45.jpg

    Jmack69 likes this.
  5. Sep 28, 2018 at 2:14 PM
    #5
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

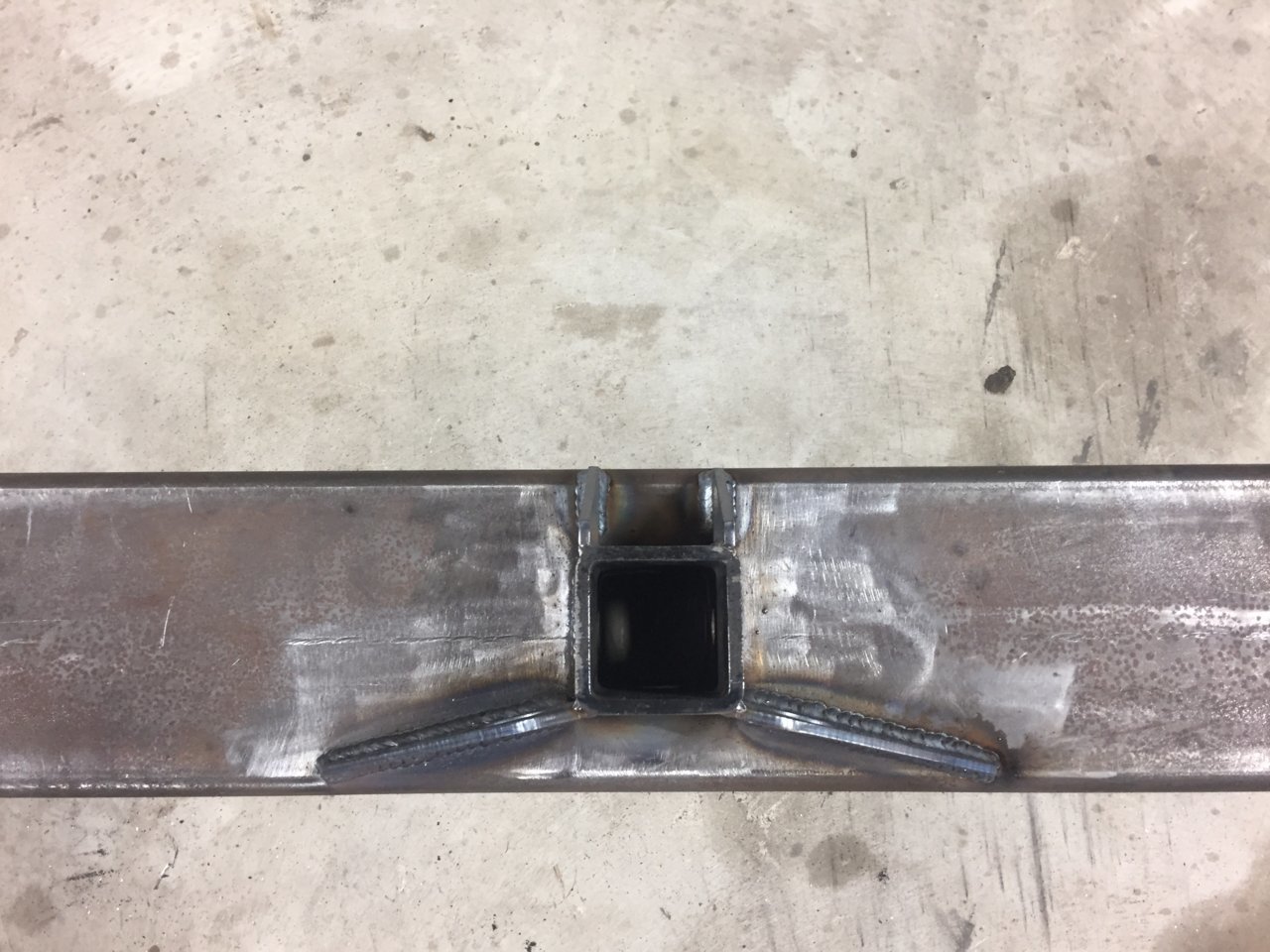

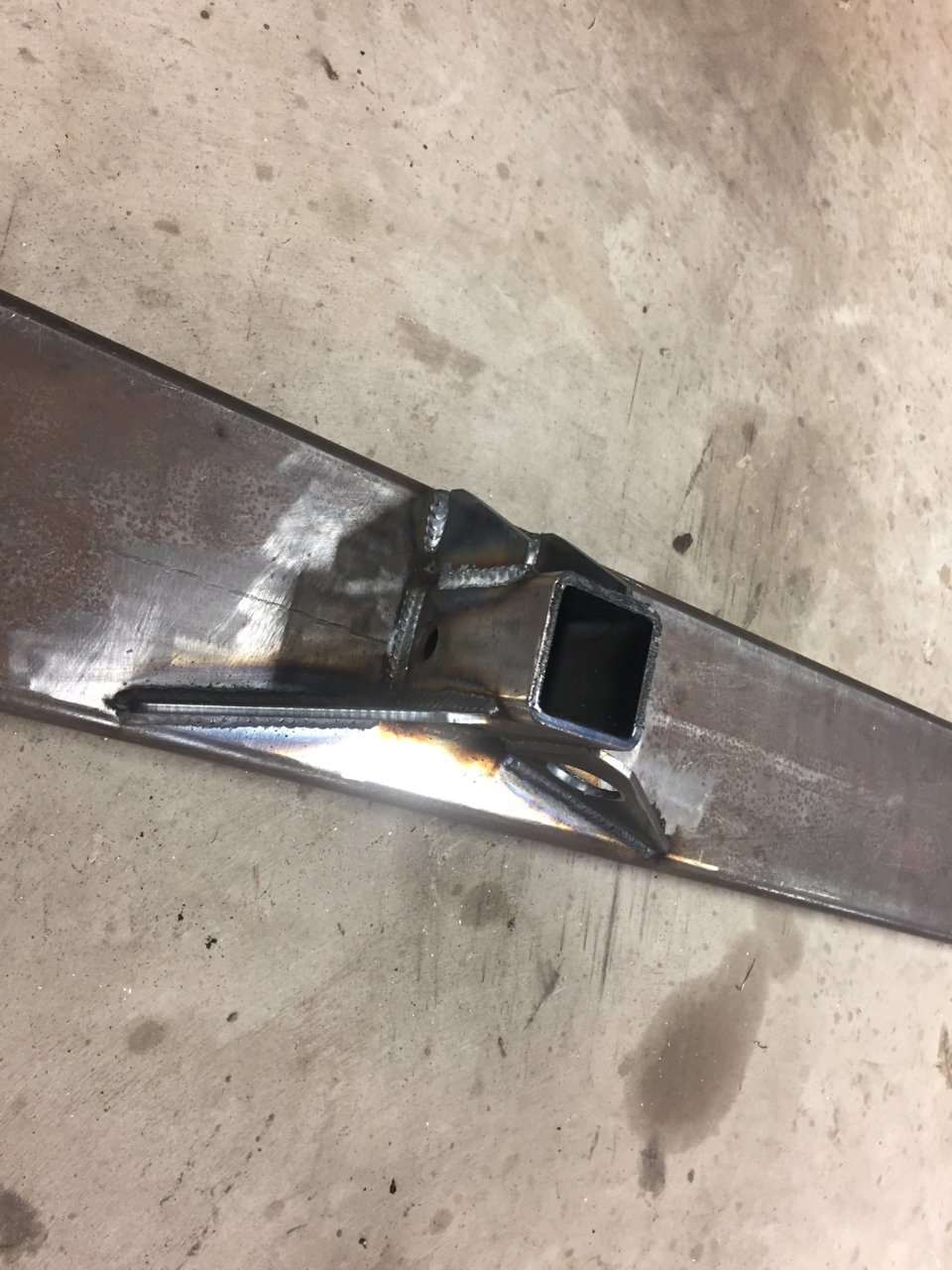

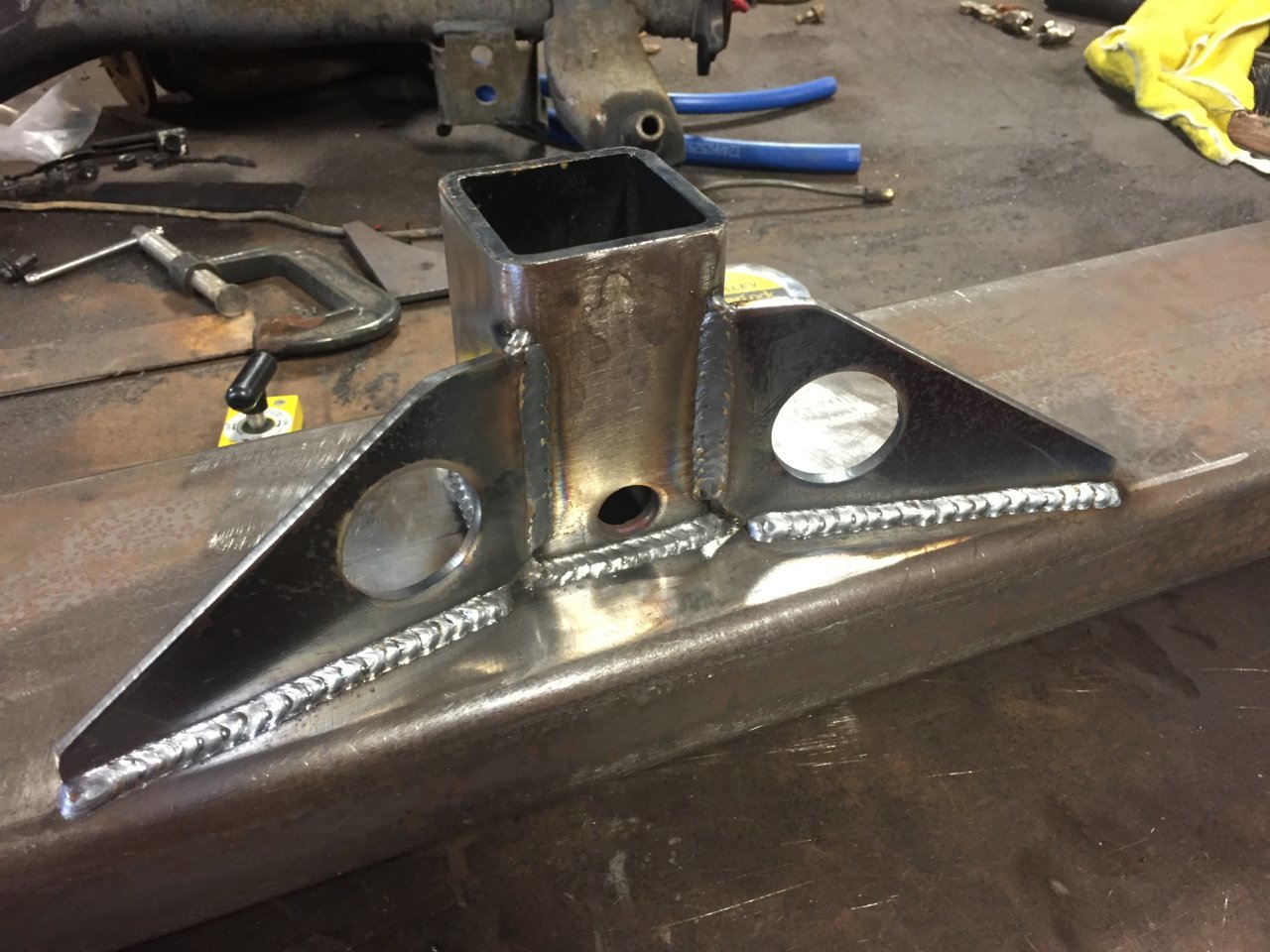

    I prefer a hidden hitch as opposed to one that hangs down to get hung up on obstacles. The pin hole and hook mounts are behind the face of the bumper and well out of the way. The power plug will also be tucked up behind the bumper.

    2018-09-26 17.40.22.jpg 2018-09-26 18.17.53.jpg 2018-09-26 18.22.29.jpg 2018-09-26 18.22.37.jpg 2018-09-26 18.22.44.jpg

  6. Sep 28, 2018 at 2:16 PM
    #6
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

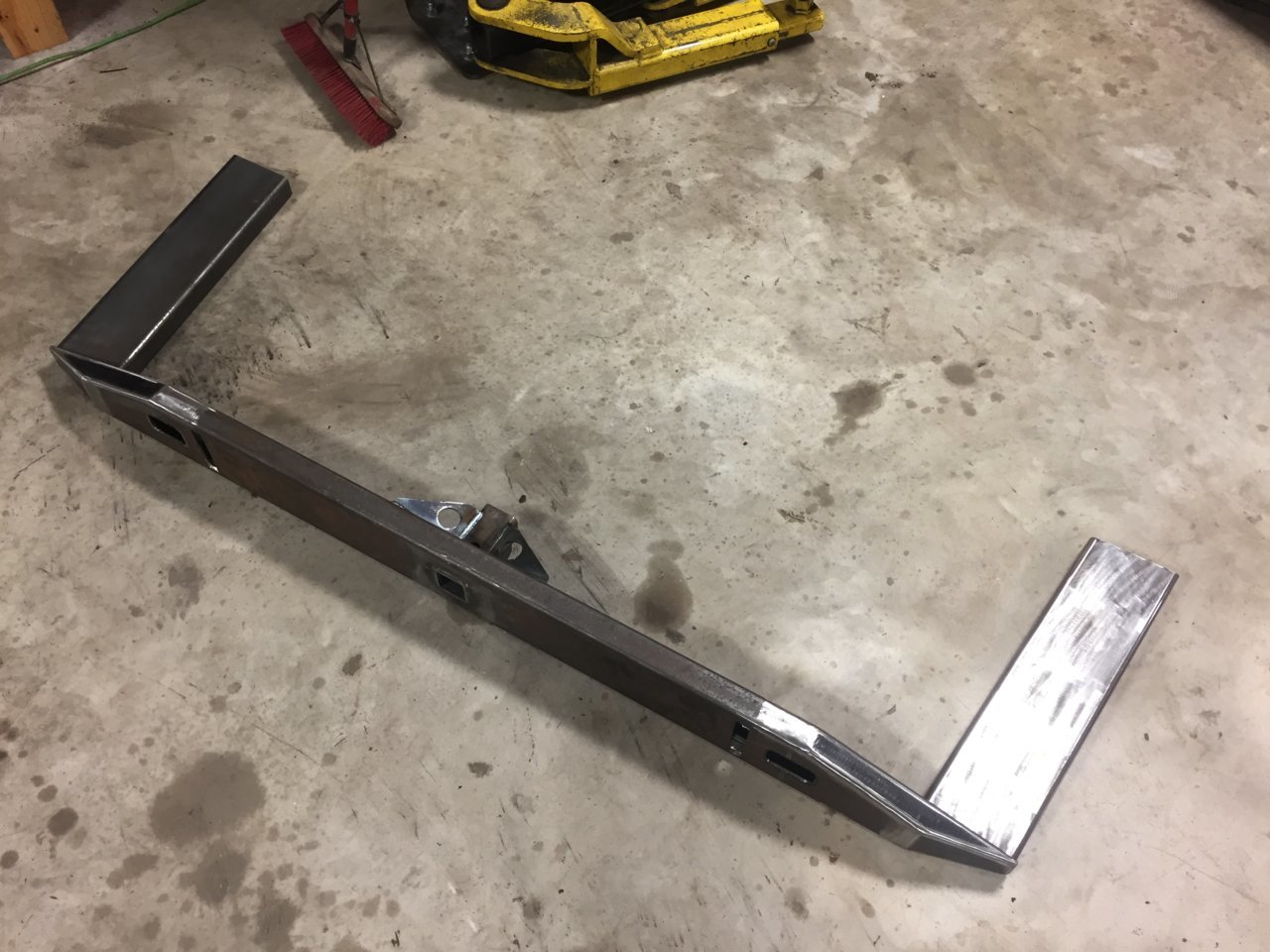

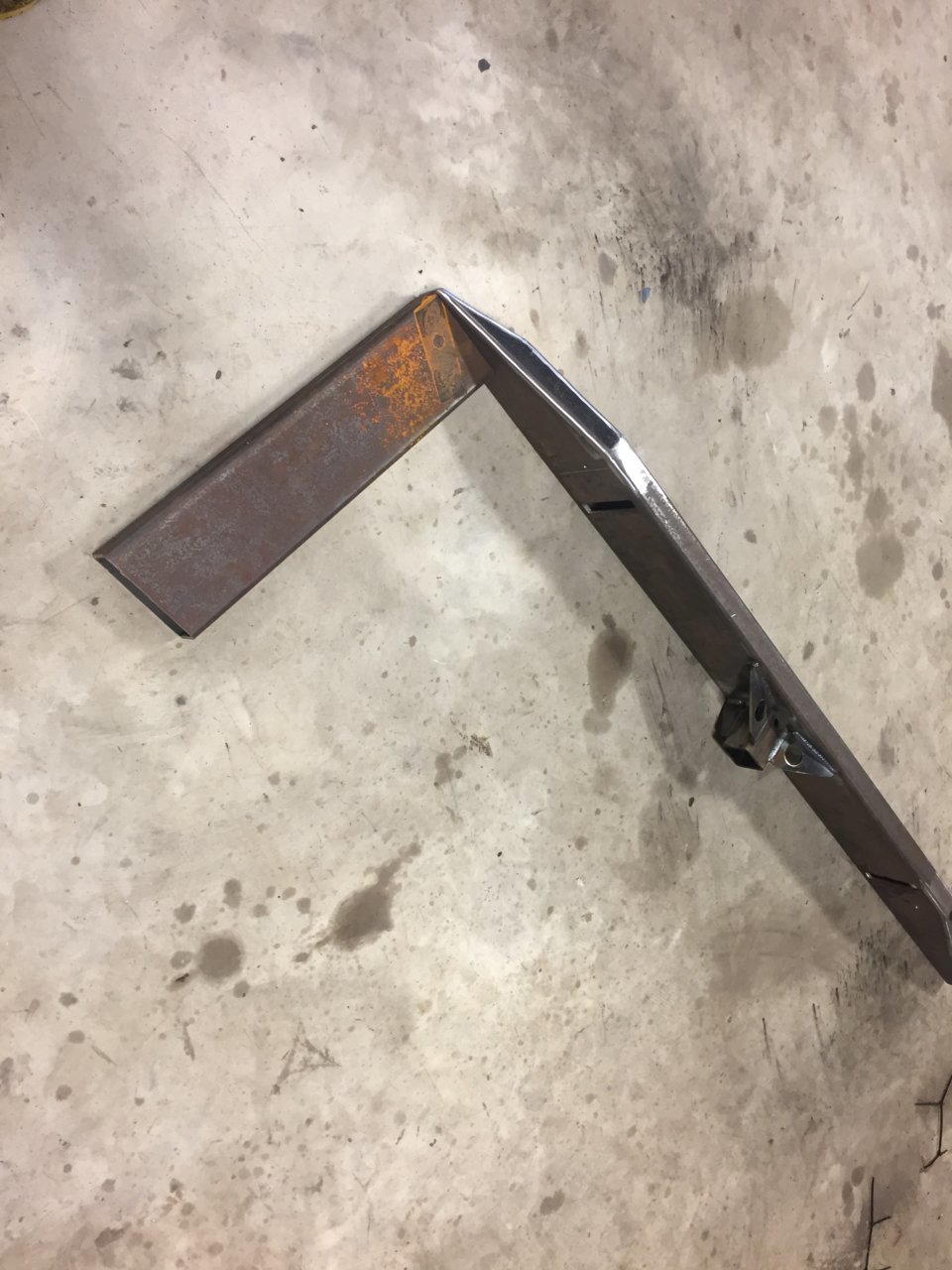

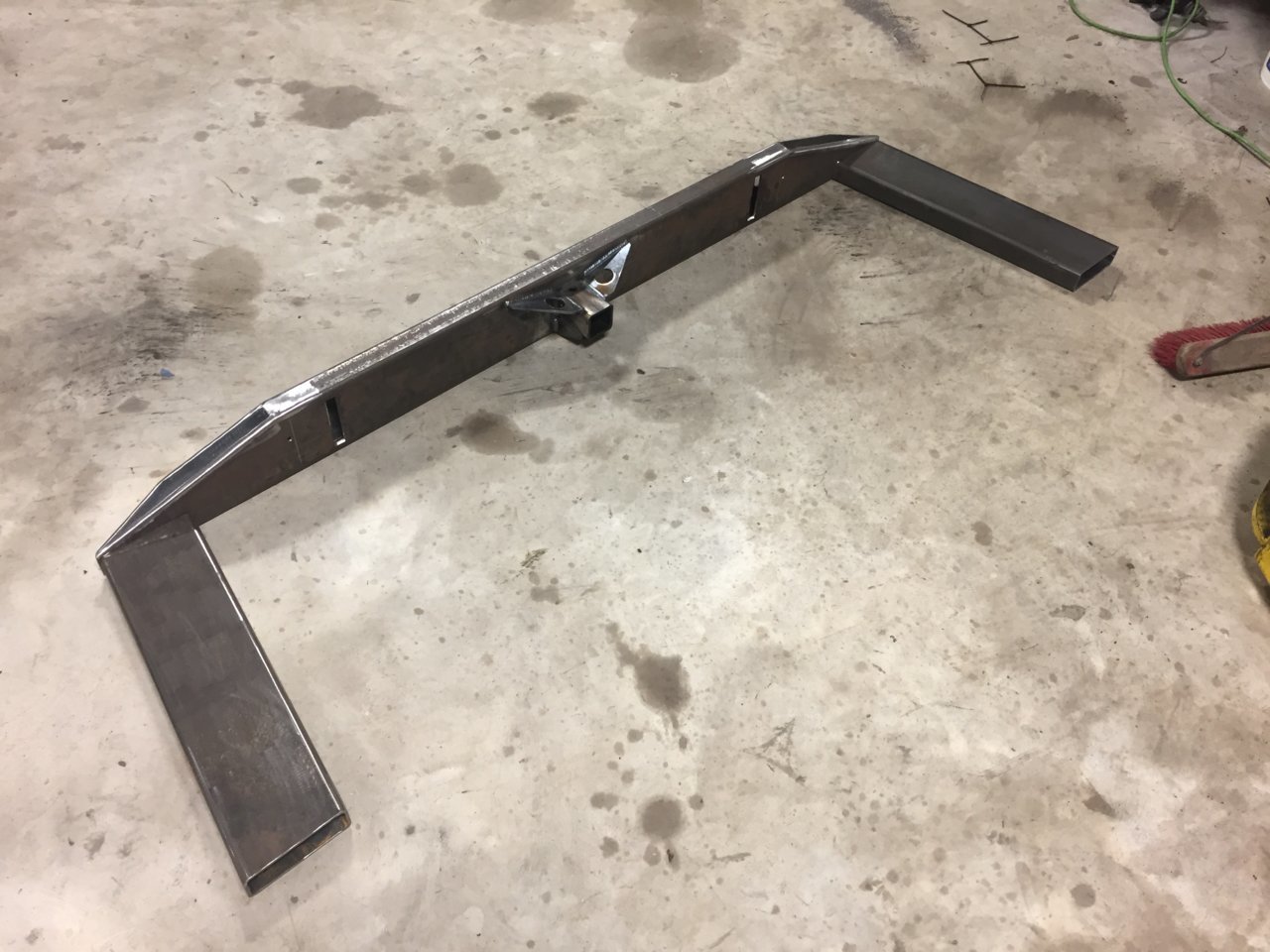

    Time to start on the high clearance wings.

    2018-09-26 18.24.46.jpg 2018-09-26 19.30.38.jpg 2018-09-26 19.30.46.jpg

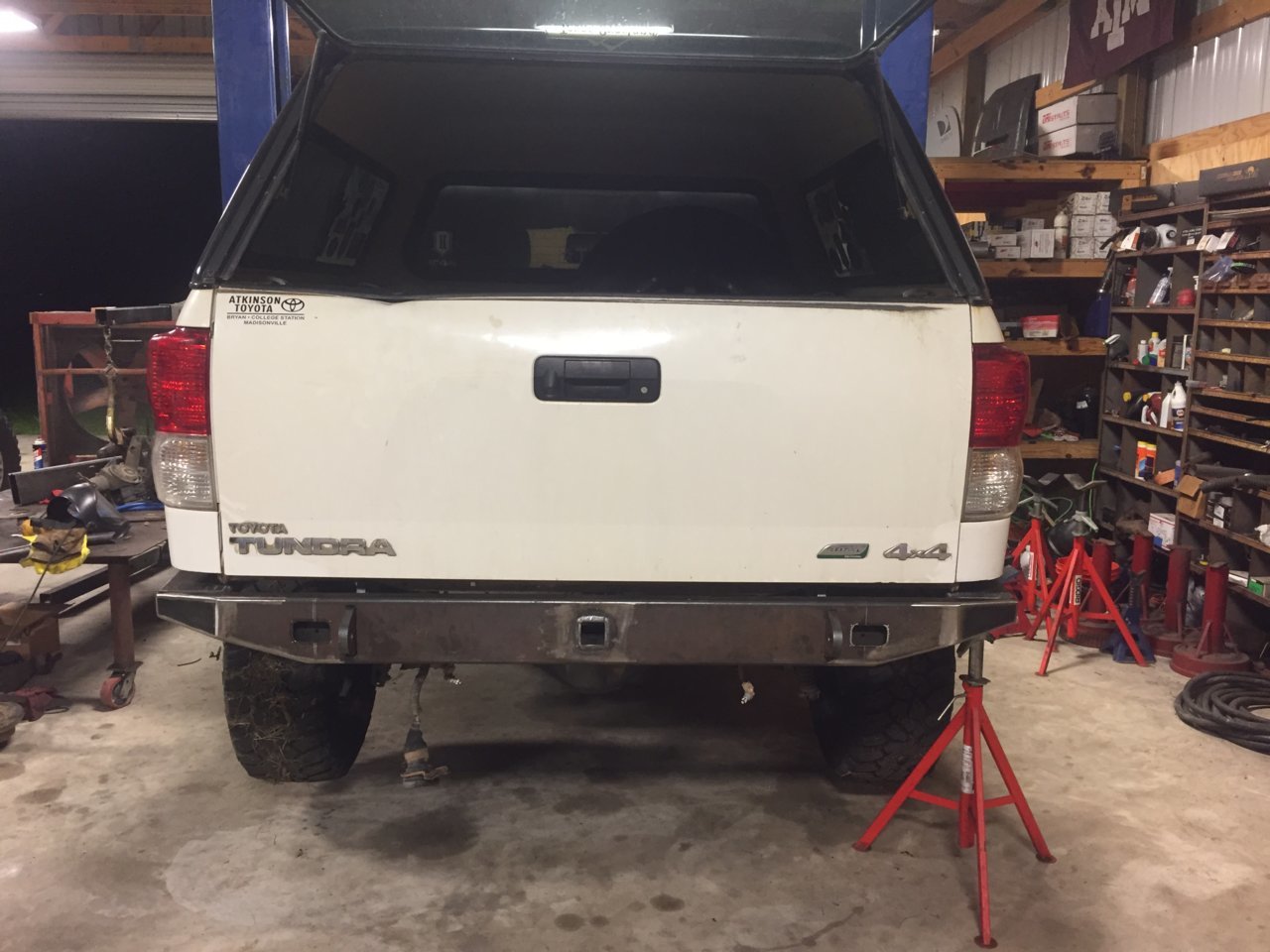

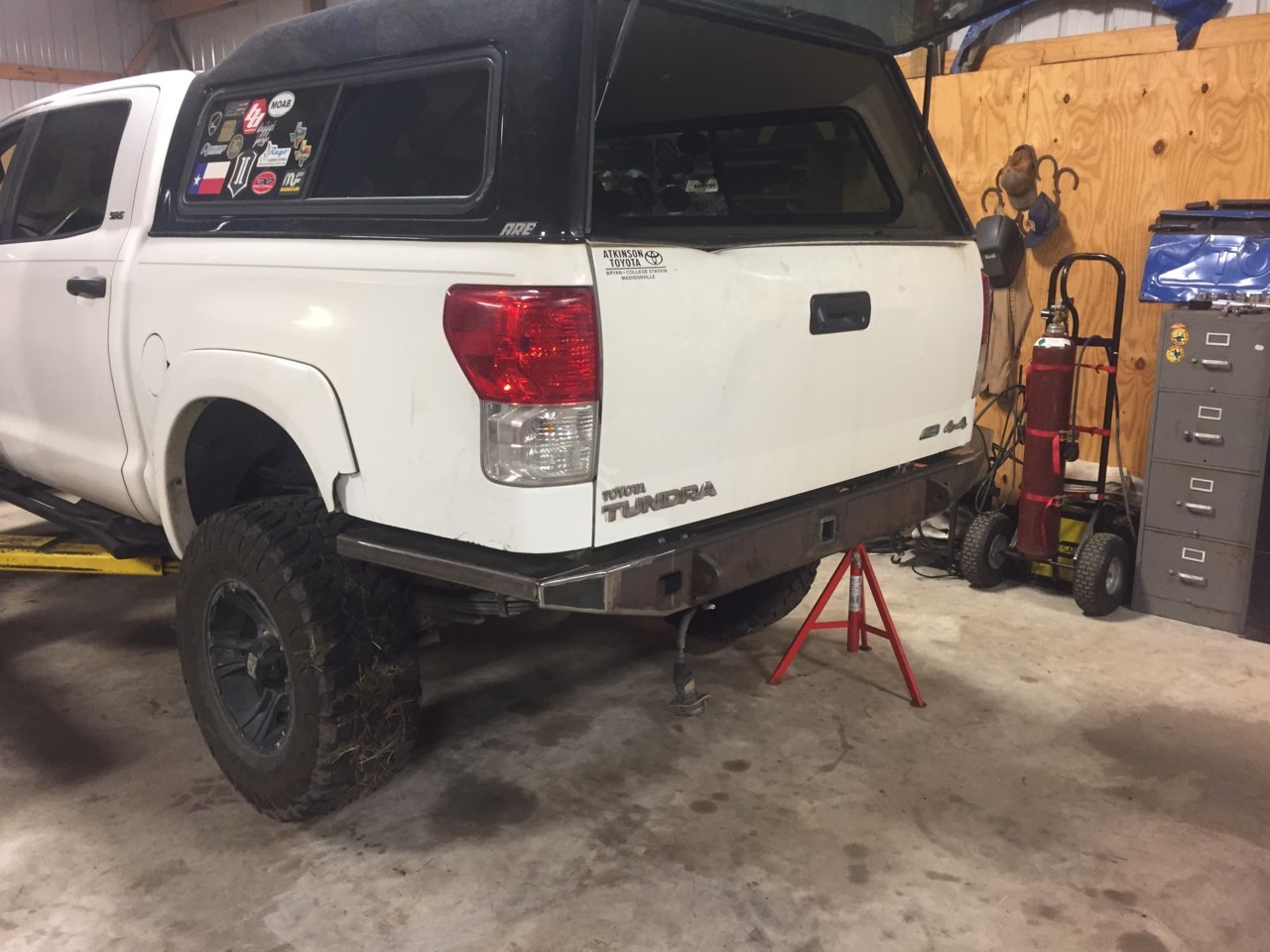

    I tacked the wings on and threw her onto the truck to see how things were fitting. We're getting closer.

    2018-09-26 20.25.24.jpg 2018-09-26 20.25.40.jpg

    Jmack69 likes this.
  7. Sep 28, 2018 at 2:18 PM
    #7
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
  8. Sep 28, 2018 at 2:19 PM
    #8
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

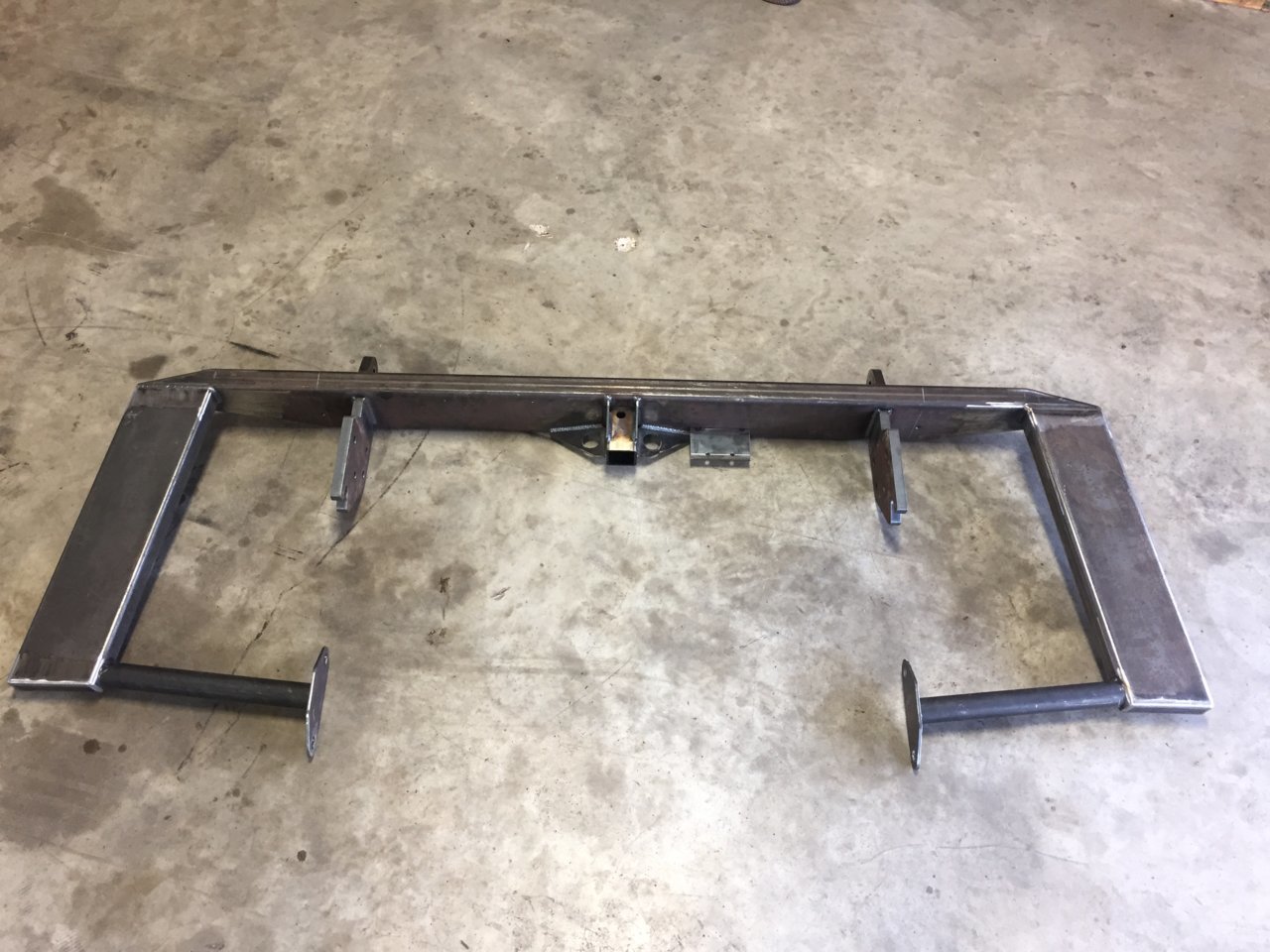

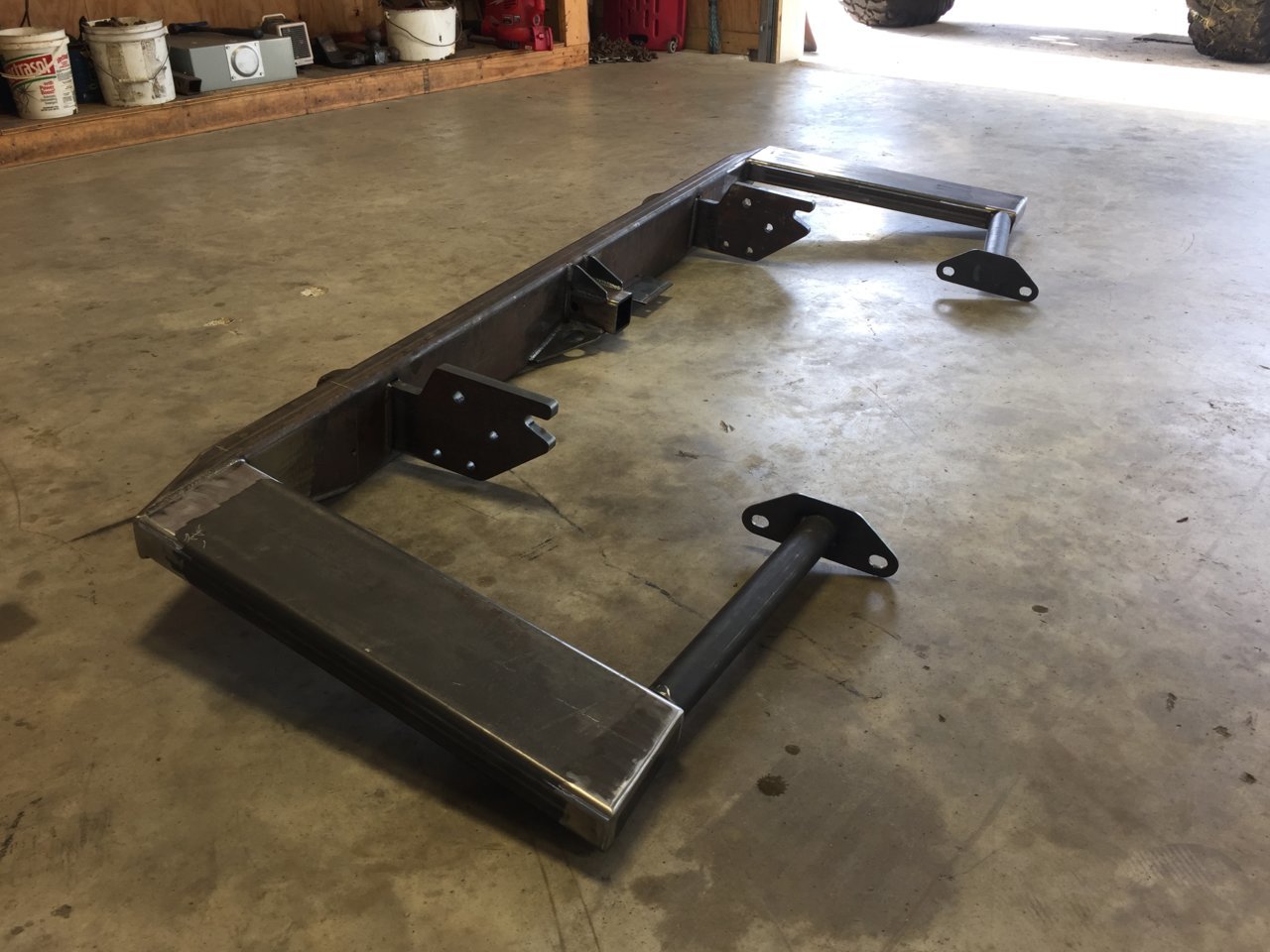

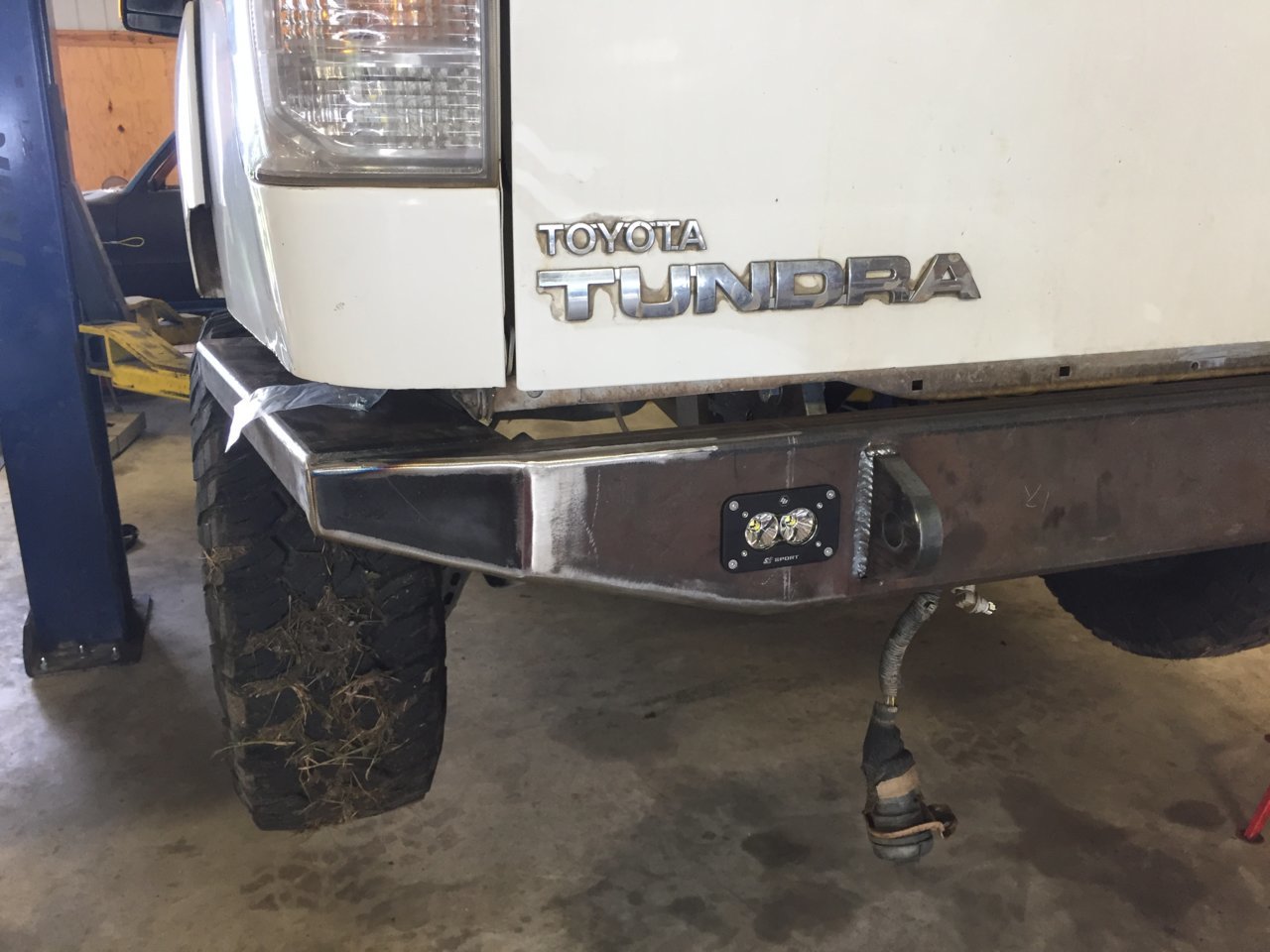

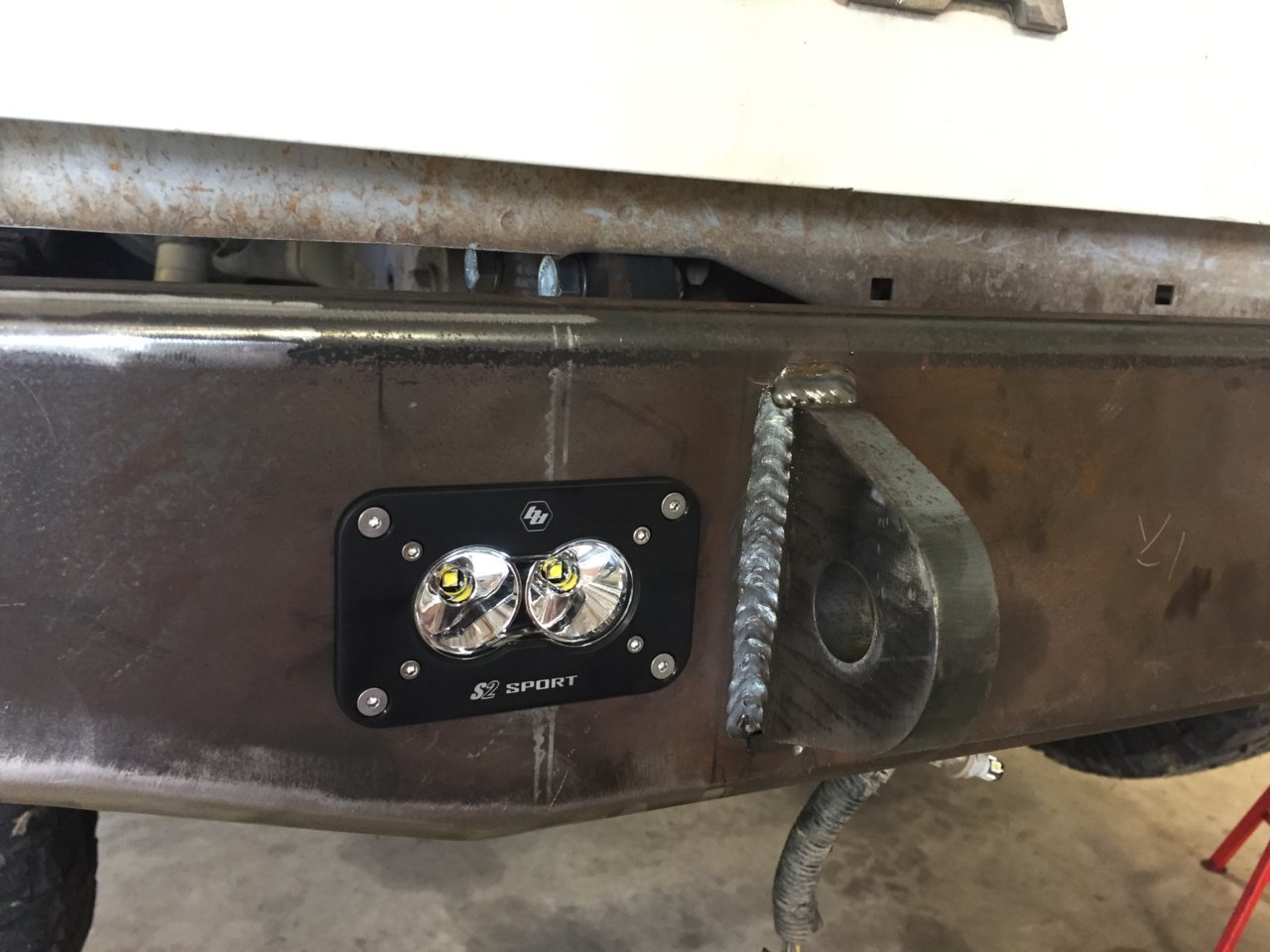

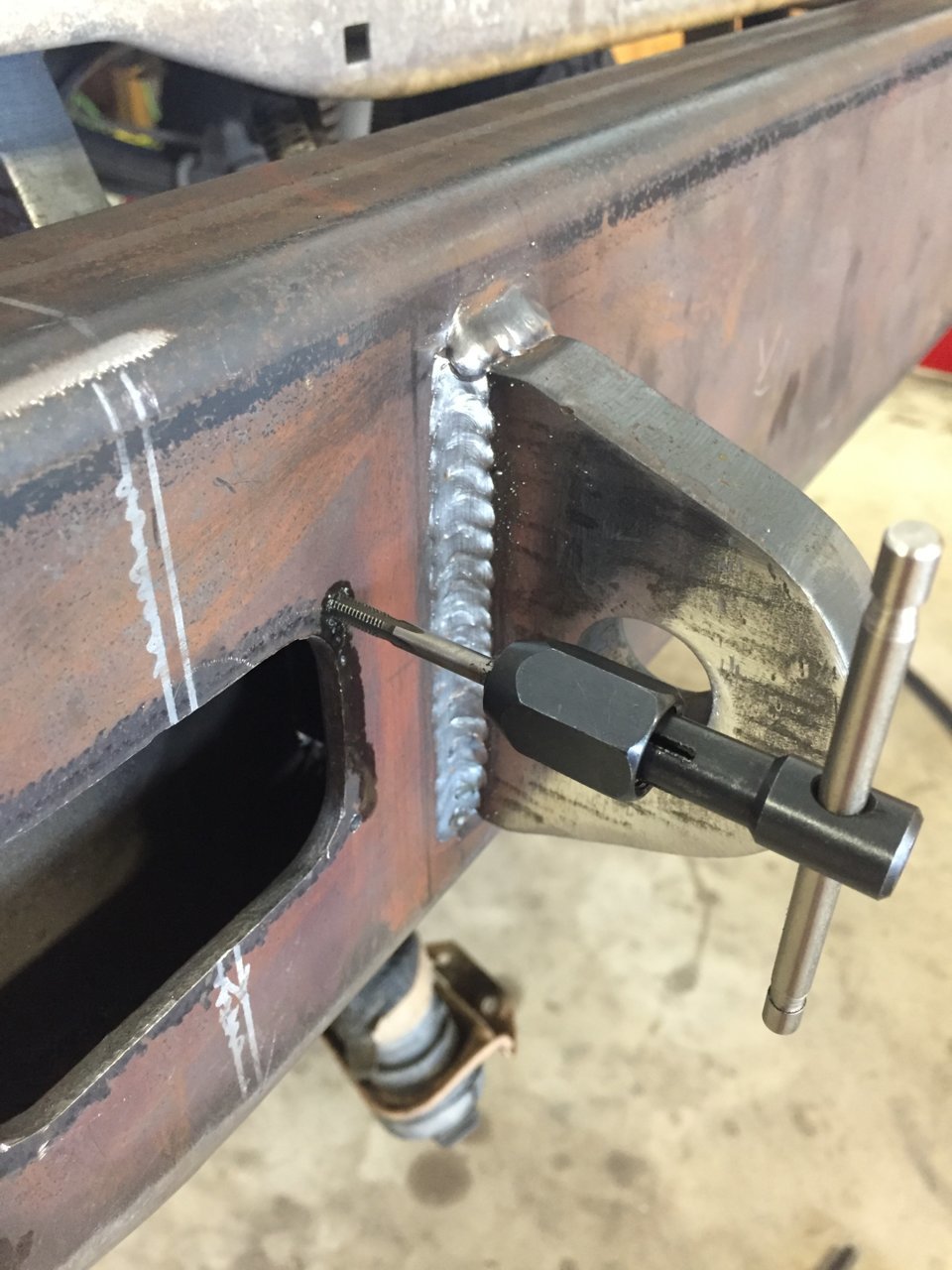

    The bumper is nearly finished. I have to wrap up a few welds and put some paint on her.

    2018-09-27 17.37.04-1.jpg 2018-09-27 17.36.22.jpg

  9. Sep 28, 2018 at 2:47 PM
    #9
    Enfield1

    Enfield1 Well-Known Member

    Joined:
    Mar 30, 2018
    Member:
    #248923
    Messages:
    444
    Gender:
    Male
    First Name:
    Brad
    Bryan, Tx
    Vehicle:
    '18 White DCSB OR 4wd auto
    No bottle opener or high-lift jacking points? :facepalm:


    Haha, looks good man. I'll get to see it in person when he gets it back.

  10. Sep 28, 2018 at 2:54 PM
    #10
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    Just slide the hilift under the bumper, and if he can't pop a bottle open somewhere on the bumper then he needs to reevaluate things a bit. :rofl:

    I'll be starting on the front bumper next week. That should be a fun one.

  11. Sep 28, 2018 at 3:00 PM
    #11
    Baja Designs

    Baja Designs The Scientist of Lighting Vendor

    Joined:
    Jan 8, 2015
    Member:
    #145889
    Messages:
    2,880
    Gender:
    Male
    San Marcos, CA
    Looks great!

    Nice to see someone ditching the low-hanging factory tow hitch. I'd rock something like this on my Tundra

    Baja Designs
    www.bajadesigns.com

    SMKYTXN[OP] likes this.
  12. Sep 28, 2018 at 4:21 PM
    #12
    Enfield1

    Enfield1 Well-Known Member

    Joined:
    Mar 30, 2018
    Member:
    #248923
    Messages:
    444
    Gender:
    Male
    First Name:
    Brad
    Bryan, Tx
    Vehicle:
    '18 White DCSB OR 4wd auto

    I didn't realize he was getting the front done as well. It's gonna look good!

    SMKYTXN[QUOTED][OP] likes this.
  13. Oct 3, 2018 at 3:24 PM
    #13
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

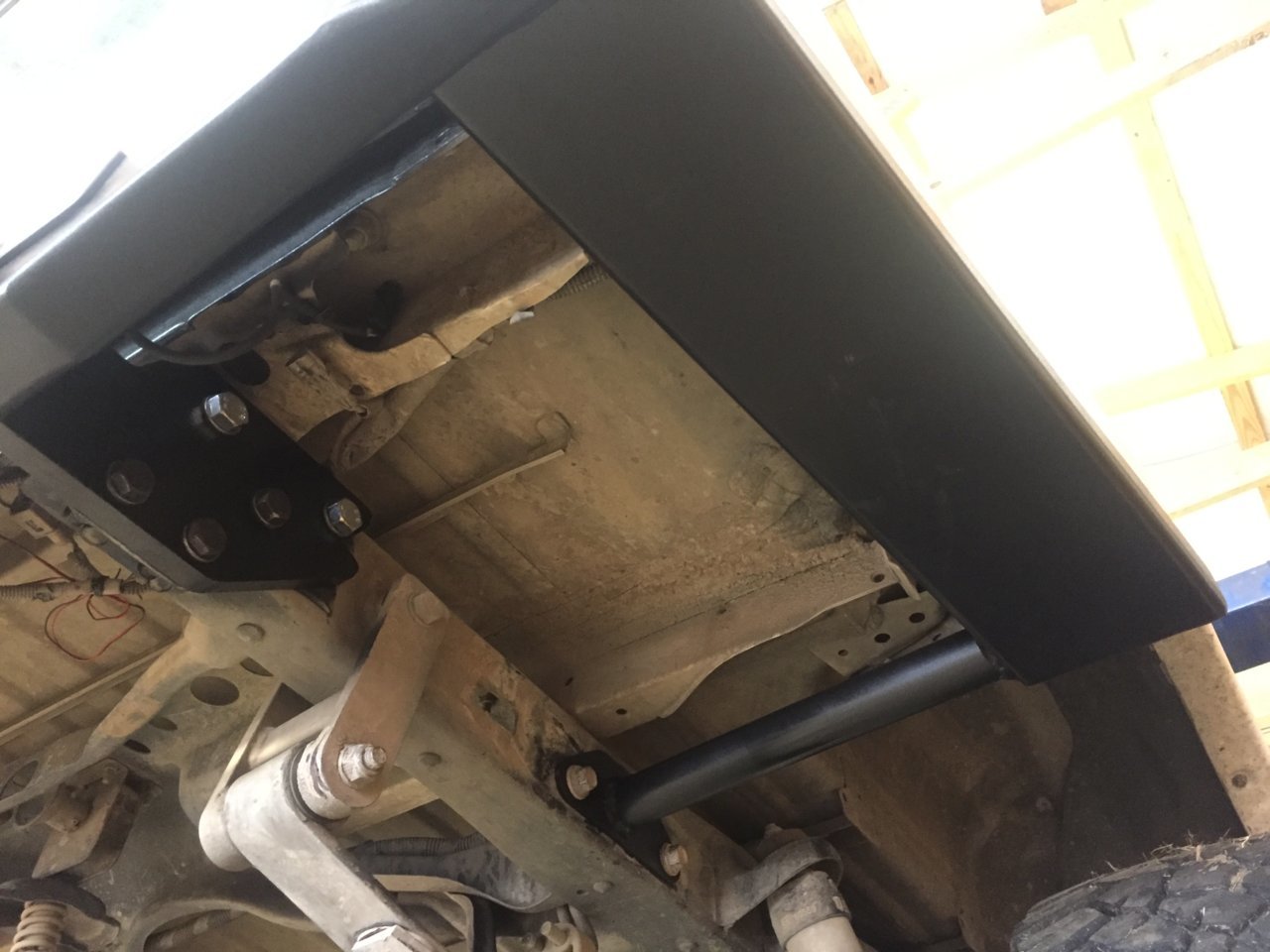

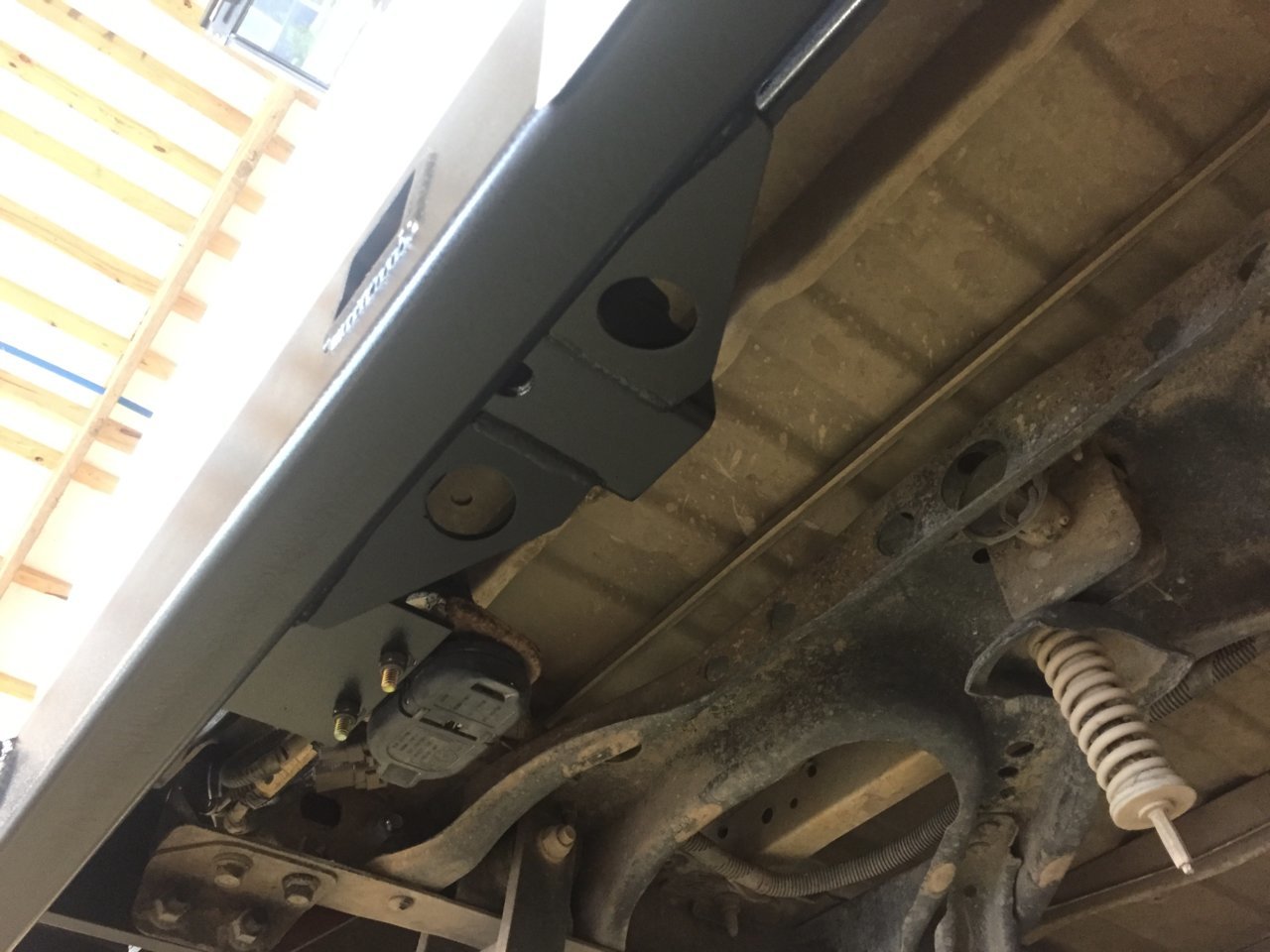

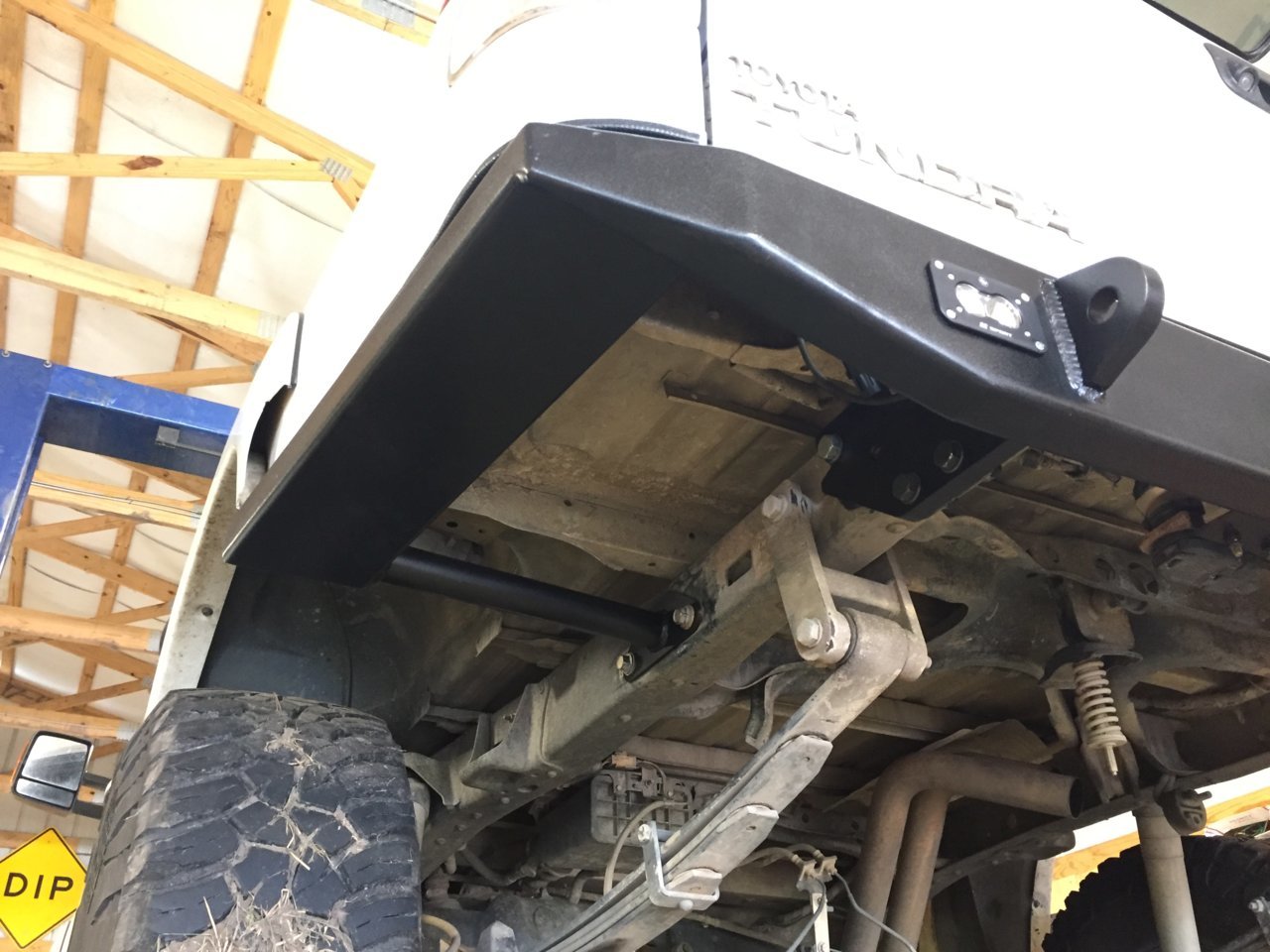

    The rear bumper is painted and installed. I needed to free up my jackstands for the front bumper mock-up, so it seemed like a good idea to put her on. What do you guys think?

    FA91372E-1597-42FE-B1DB-BD578065B534.jpg FEFA72AE-7517-4242-BD4A-9CC76A76BB27.jpg 17E99A31-A506-4992-9122-E9F125247A9C.jpg 5741E063-E617-4A1F-8197-04001ADDF9D9.jpg

  14. Oct 3, 2018 at 5:05 PM
    #14
    Enfield1

    Enfield1 Well-Known Member

    Joined:
    Mar 30, 2018
    Member:
    #248923
    Messages:
    444
    Gender:
    Male
    First Name:
    Brad
    Bryan, Tx
    Vehicle:
    '18 White DCSB OR 4wd auto
    Turned out great man!

    SMKYTXN[OP] likes this.
  15. Oct 10, 2018 at 8:10 PM
    #15
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

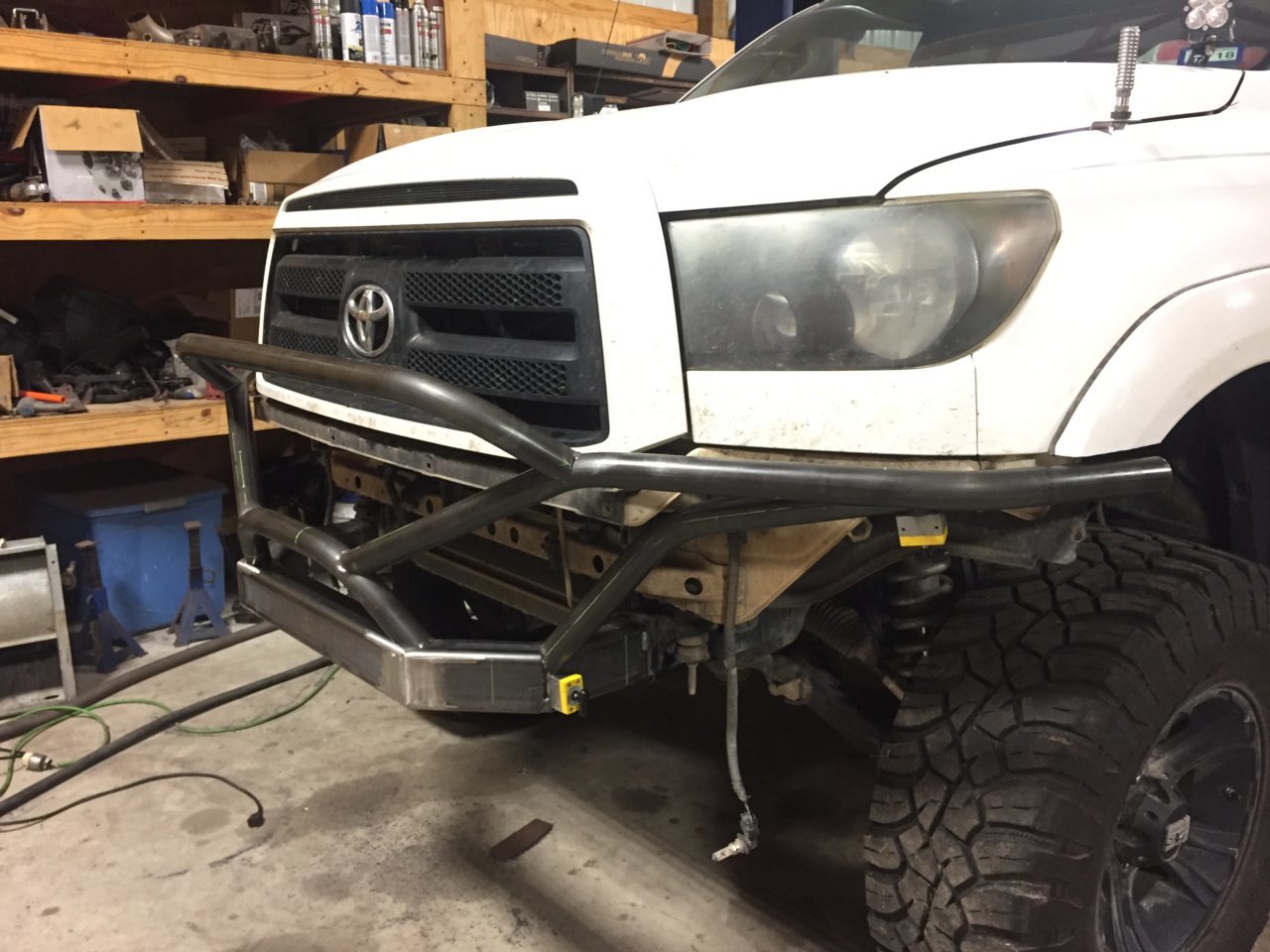

    The front bumper is coming along. I’m waiting on a few plasma cut pieces before I can wrap her up.


  16. Oct 14, 2018 at 7:01 PM
    #16
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

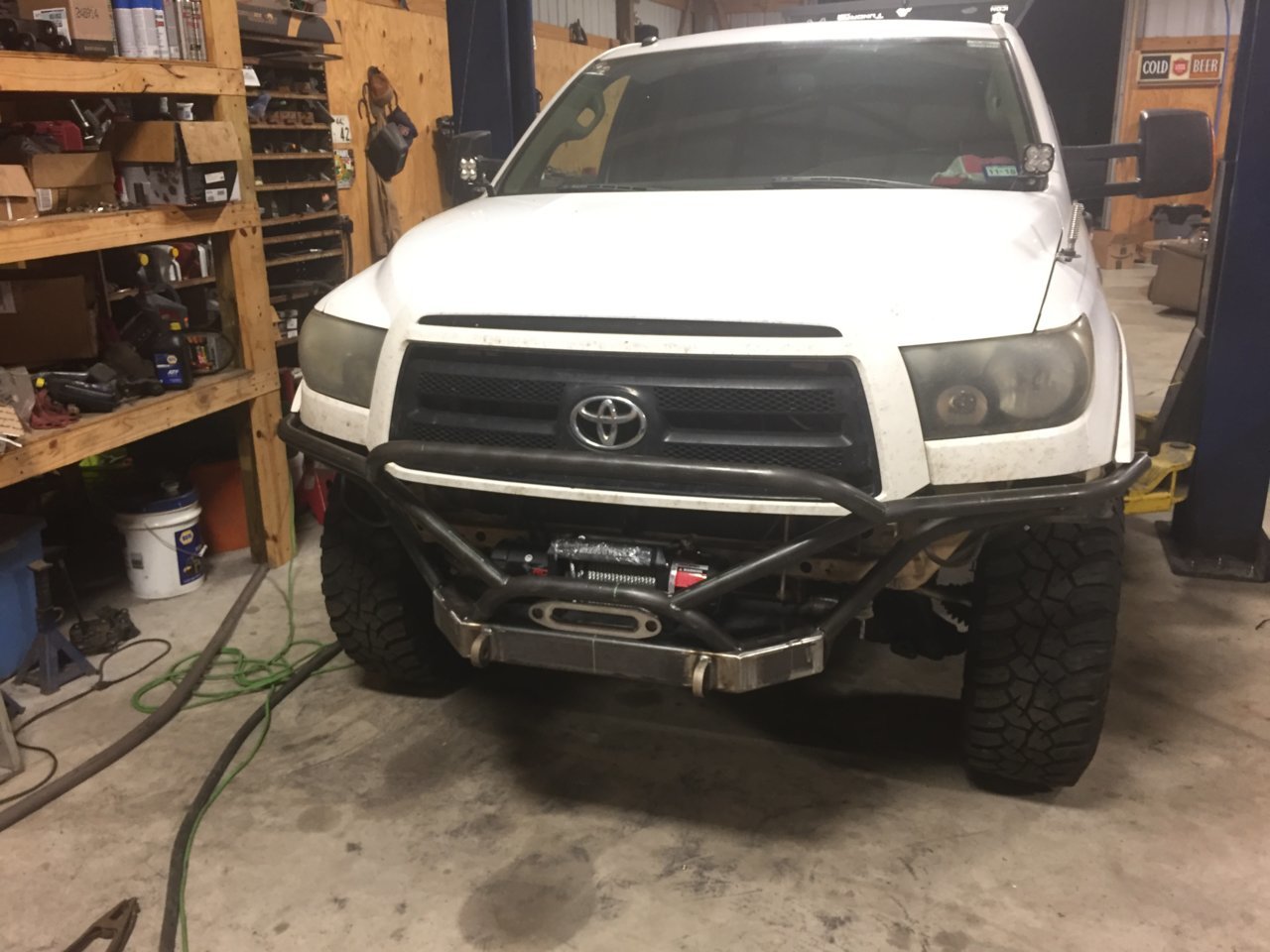

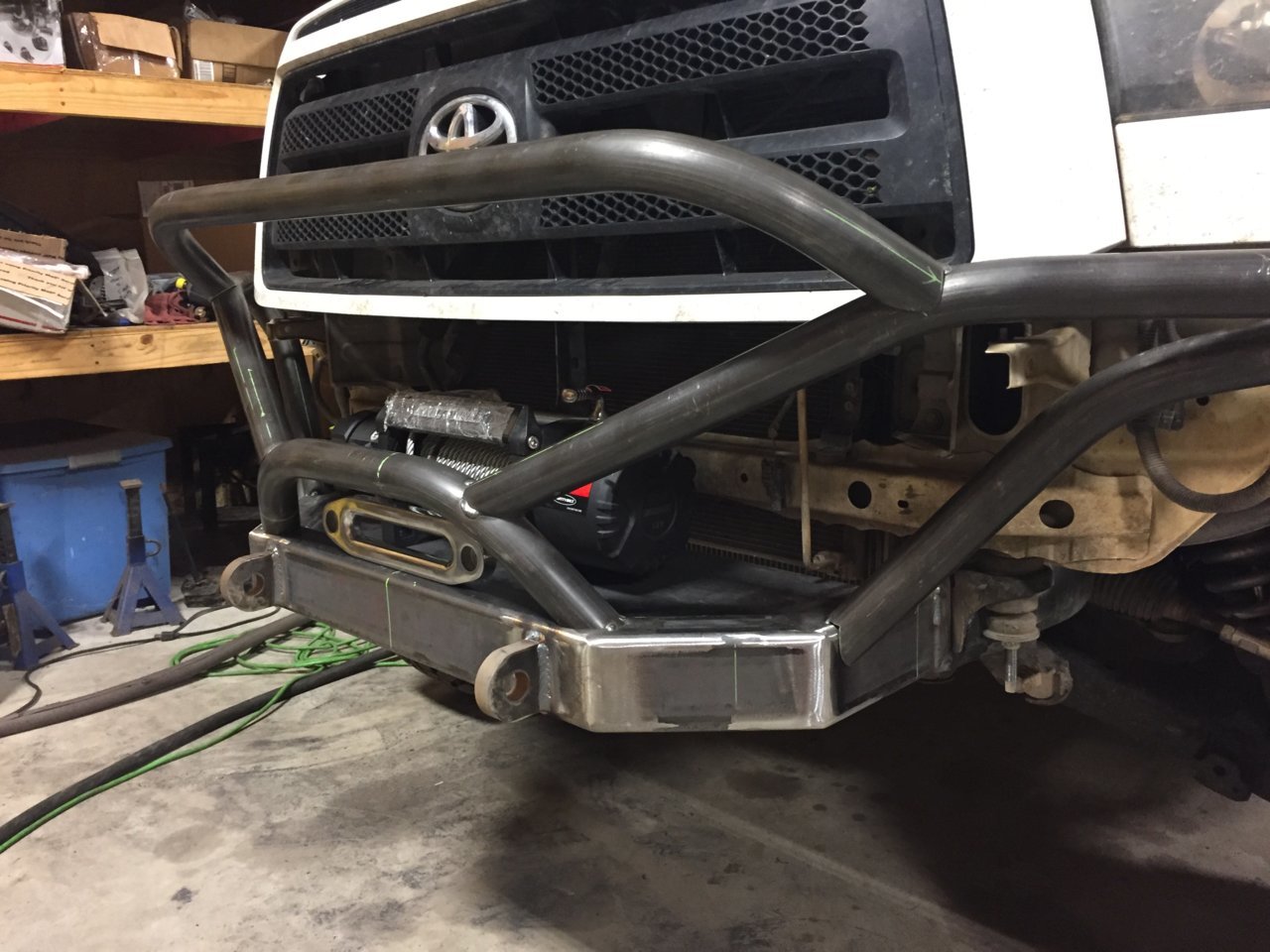

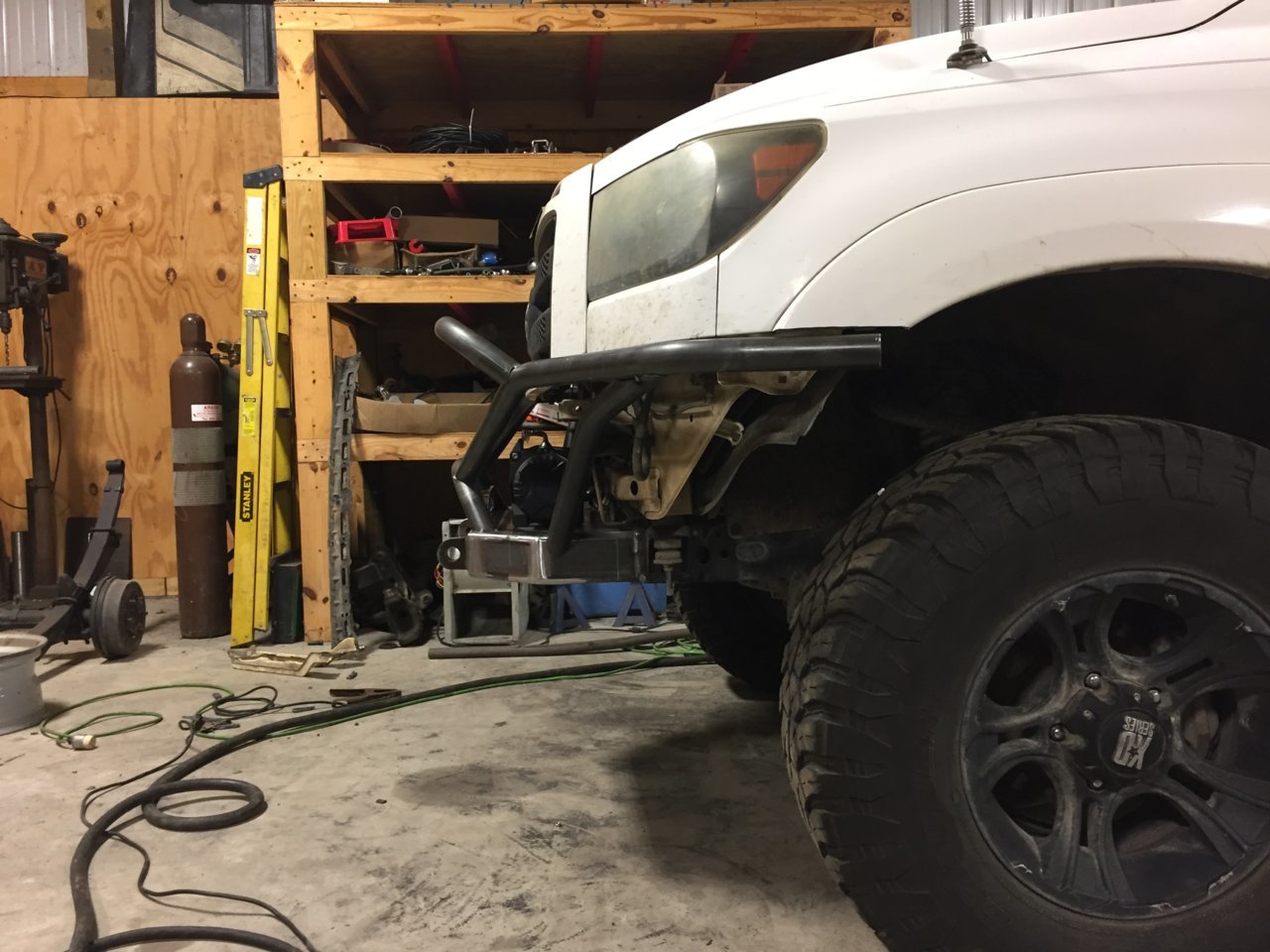

    Final welding will be done tomorrow and then it’ll be time for a coat of paint.

    6963675F-35EF-48EA-B8FC-C44815EAE9B5.jpg 78A3B2FC-FB04-4DCE-A0FD-87526982AD4A.jpg B9AEFA44-E335-4AF3-BD99-F395D4B89057.jpg

    Enfield1 likes this.
  17. Oct 16, 2018 at 8:48 PM
    #17
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

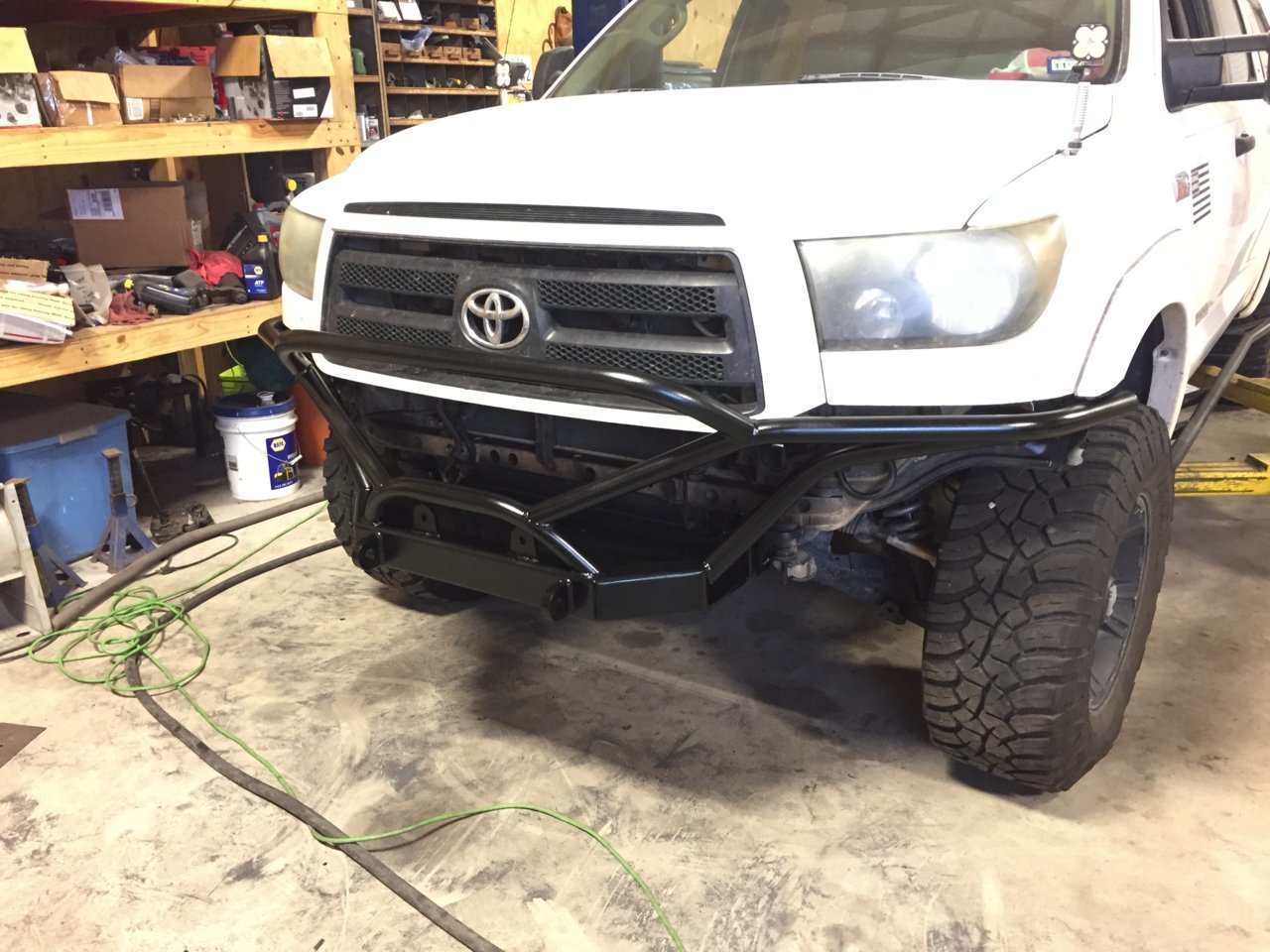

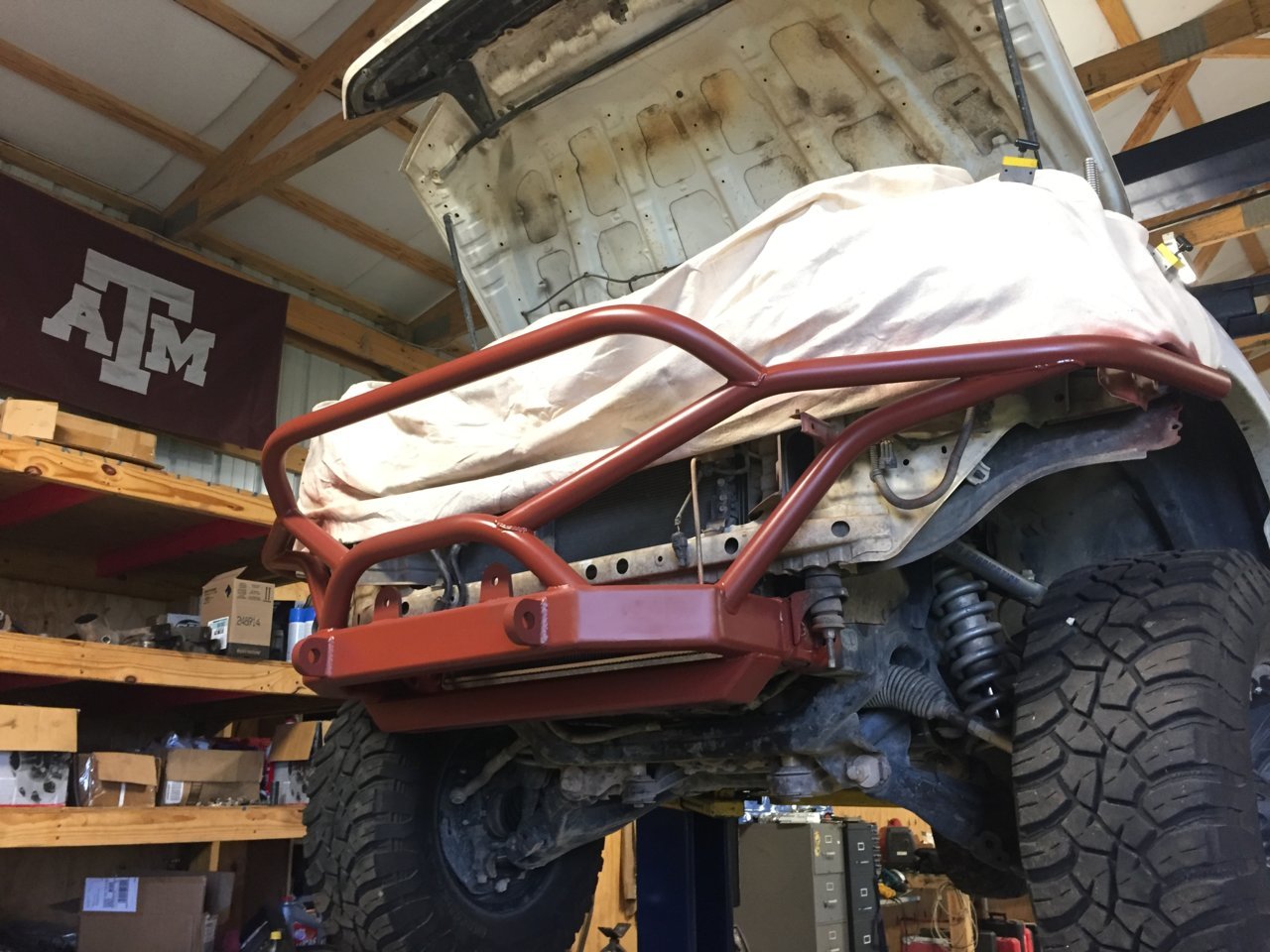

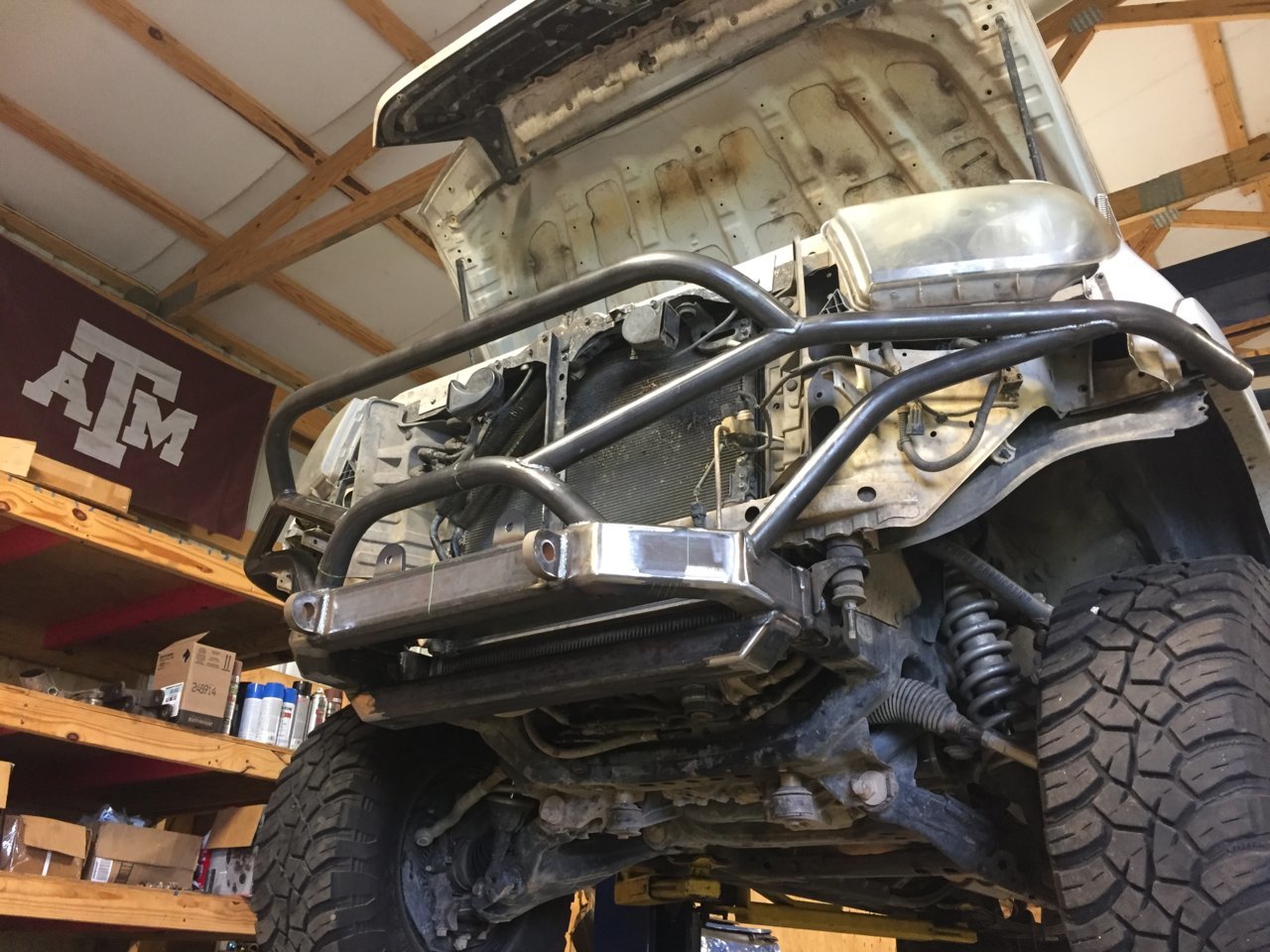

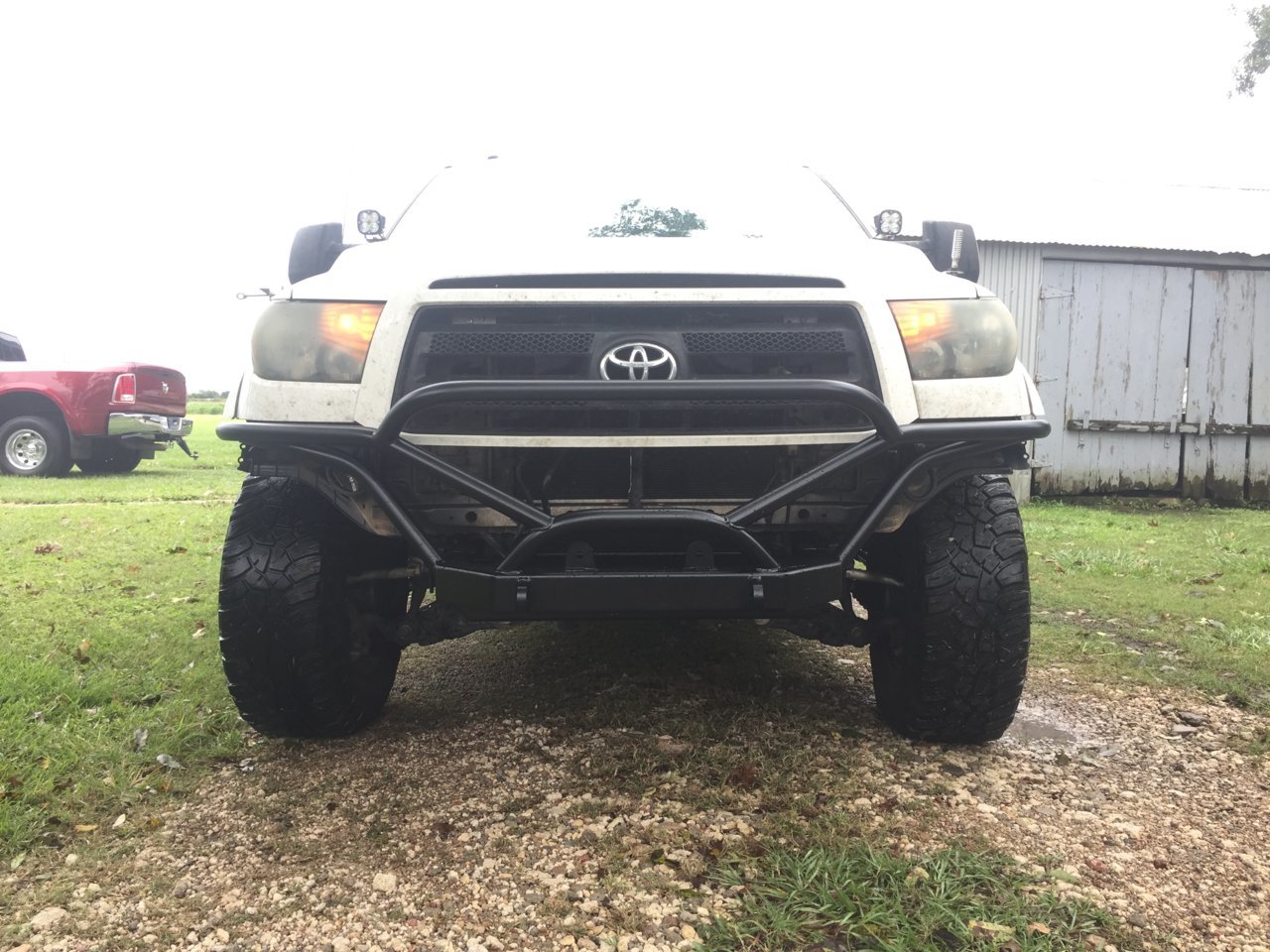

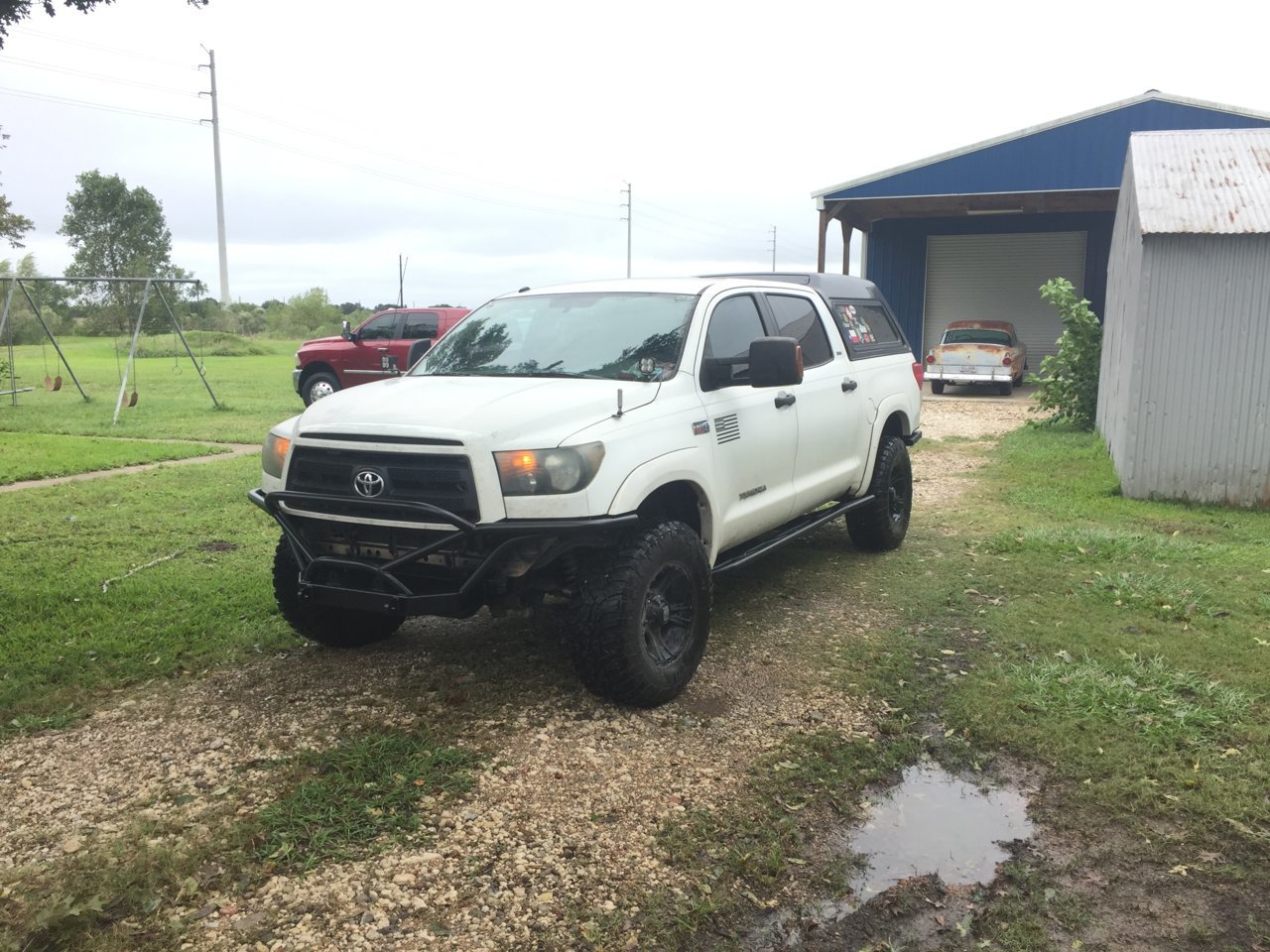

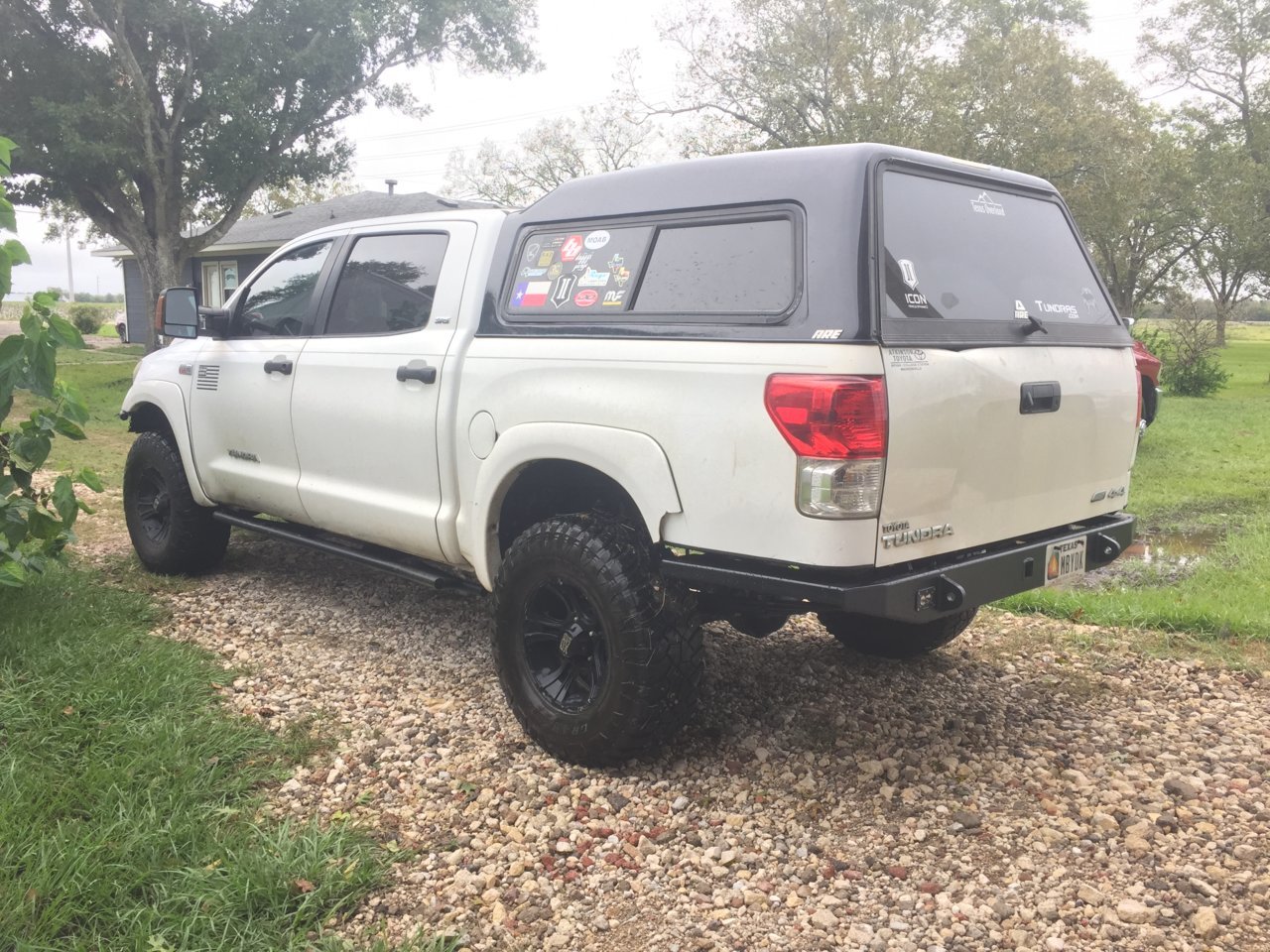

    I wrapped up the Tundra yesterday and my customer picked her up this evening. I'm pretty happy with how she turned out. So who's next?

    2018-10-15 14.55.30.jpg 2018-10-15 17.01.39.jpg 2018-10-15 15.32.25.jpg 2018-10-16 12.29.49.jpg 2018-10-16 12.31.32 HDR.jpg 2018-10-16 12.29.28.jpg 2018-10-16 12.29.29 HDR.jpg

    Jmack69 likes this.
  18. Nov 28, 2018 at 10:48 AM
    #18
    TexasTacoma713

    TexasTacoma713 Well-Known Member

    Joined:
    Oct 19, 2015
    Member:
    #167065
    Messages:
    1,536
    Vehicle:
    2024 OR
    Could you pm me the cost of something like this and turn around for a 3rd gen?
