2012-2015 Tacoma DRL with Integrated Push Switch Harness

Discussion in '2nd Gen. Tacomas (2005-2015)' started by CleanYota, Apr 10, 2020.

  1. Jul 13, 2021 at 10:09 PM
    #81
    2015ToyotaTacoma4x4

    2015ToyotaTacoma4x4 Active Member

    Joined:
    Jul 11, 2021
    Member:
    #371042
    Messages:
    28
    Gender:
    Male
    Vehicle:
    2015 Toyota Tacoma TRD OFF-ROAD
    with this setting these lights are on with engine ON and parking brake OFF in neutral without holding the brake.


  2. Jul 13, 2021 at 10:10 PM
    #82
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,200
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Green wire on the turn. The turn bulb is a dual filament type. One High (TURN & DRL) one low (Parking/Tail)
    For the side marker, disconnect it and tape it up so the elements don't mess with it.
    Do this before you leave. You risk a summons from your local Police.

  3. Jul 13, 2021 at 10:11 PM
    #83
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,200
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Is this now, after removing 1M and placing the junction block?

  4. Jul 13, 2021 at 10:13 PM
    #84
    2015ToyotaTacoma4x4

    2015ToyotaTacoma4x4 Active Member

    Joined:
    Jul 11, 2021
    Member:
    #371042
    Messages:
    28
    Gender:
    Male
    Vehicle:
    2015 Toyota Tacoma TRD OFF-ROAD
    and with this setting these lights are onIMG_3020.jpgIMG_3021.jpgIMG_3022.jpg

  5. Jul 13, 2021 at 10:14 PM
    #85
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,200
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    That is as it should be.

  6. Jul 13, 2021 at 10:14 PM
    #86
    2015ToyotaTacoma4x4

    2015ToyotaTacoma4x4 Active Member

    Joined:
    Jul 11, 2021
    Member:
    #371042
    Messages:
    28
    Gender:
    Male
    Vehicle:
    2015 Toyota Tacoma TRD OFF-ROAD
    hahahah yes i will make sure i don't do this here :)

  7. Jul 13, 2021 at 10:16 PM
    #87
    2015ToyotaTacoma4x4

    2015ToyotaTacoma4x4 Active Member

    Joined:
    Jul 11, 2021
    Member:
    #371042
    Messages:
    28
    Gender:
    Male
    Vehicle:
    2015 Toyota Tacoma TRD OFF-ROAD
    no i removed the junction block and just put it back the way it was, but even with the block it didn't make a difference

  8. Jul 13, 2021 at 10:19 PM
    #88
    2015ToyotaTacoma4x4

    2015ToyotaTacoma4x4 Active Member

    Joined:
    Jul 11, 2021
    Member:
    #371042
    Messages:
    28
    Gender:
    Male
    Vehicle:
    2015 Toyota Tacoma TRD OFF-ROAD

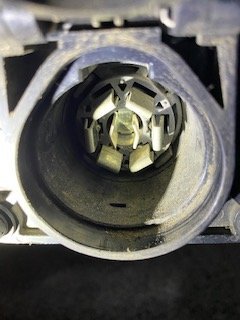

    ok so cut the green on the turn and tape it. and for the corner just cut and tape.

    perfect :) i don't know how to thank you, really thank you very much

  9. Jul 13, 2021 at 10:20 PM
    #89
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,200
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    For the corner, no need to cut. Remove the connector, tape the exposed ends (connector side and side marker side)

    2015ToyotaTacoma4x4 likes this.
  10. Jul 13, 2021 at 10:22 PM
    #90
    2015ToyotaTacoma4x4

    2015ToyotaTacoma4x4 Active Member

    Joined:
    Jul 11, 2021
    Member:
    #371042
    Messages:
    28
    Gender:
    Male
    Vehicle:
    2015 Toyota Tacoma TRD OFF-ROAD
    oh yes i will do that even better, didn't thought of that makes sense

  11. Jul 13, 2021 at 10:23 PM
    #91
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,200
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

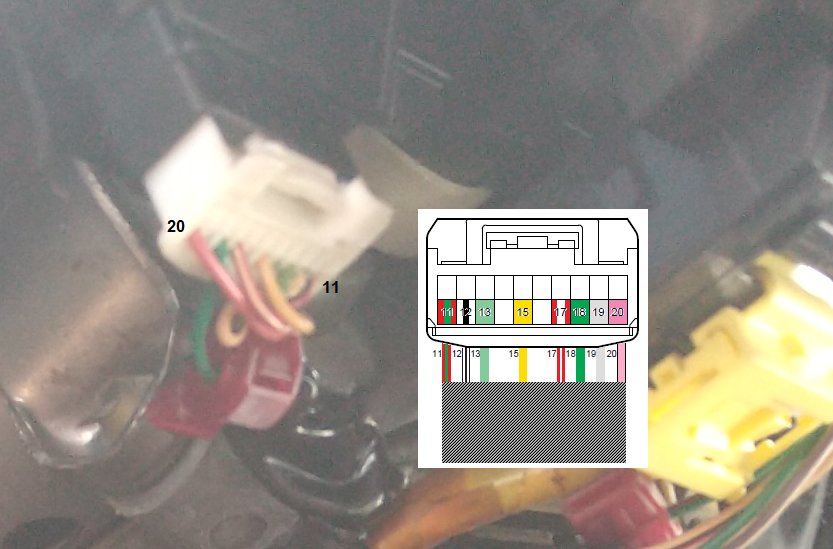

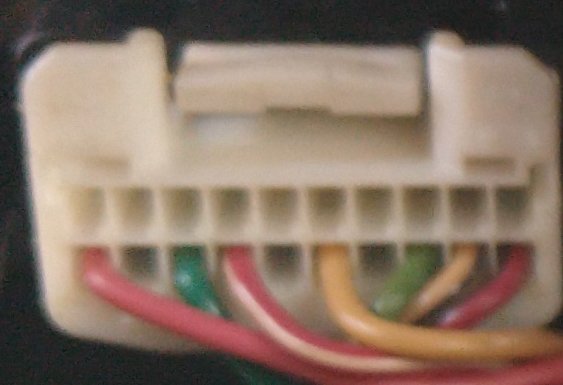

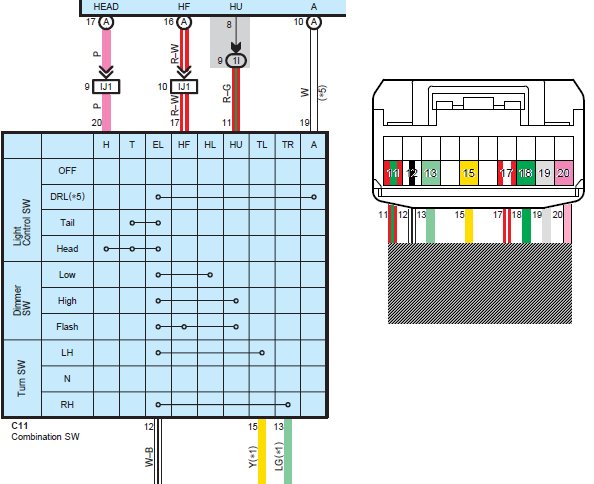

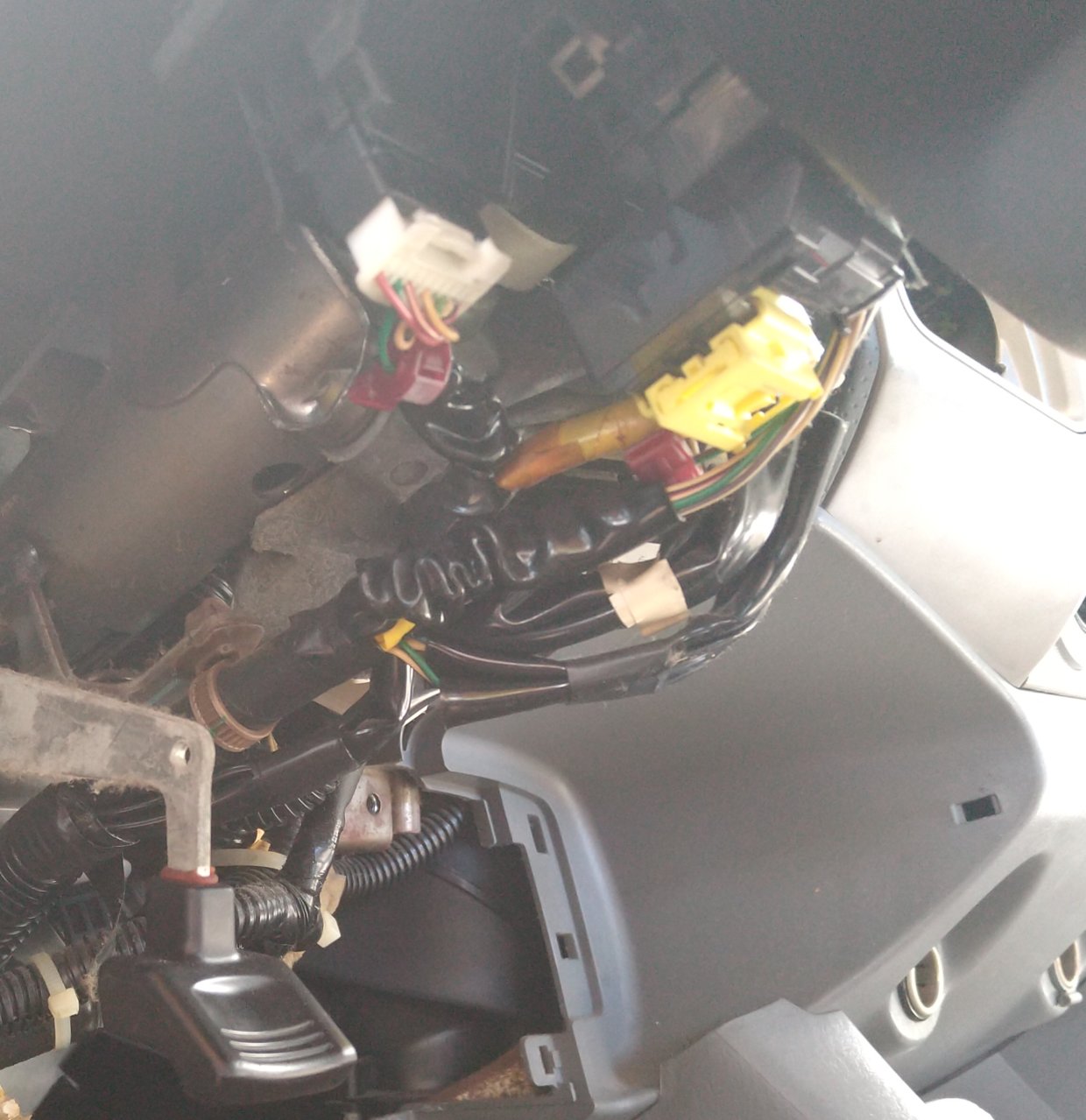

    For the DRL feature, cut white wire on position 19 of C11 (and tape ends). That's the connector under the steering wheel going to the light switch.

  12. Jul 13, 2021 at 10:25 PM
    #92
    2015ToyotaTacoma4x4

    2015ToyotaTacoma4x4 Active Member

    Joined:
    Jul 11, 2021
    Member:
    #371042
    Messages:
    28
    Gender:
    Male
    Vehicle:
    2015 Toyota Tacoma TRD OFF-ROAD
    so i can just cut this under the dashboard to disable the the DRLs ambers?

  13. Jul 13, 2021 at 10:26 PM
    #93
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,200
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    It's the remaining wire to activate the feature.
    Mine does not have the wire.

  14. Jul 13, 2021 at 10:28 PM
    #94
    2015ToyotaTacoma4x4

    2015ToyotaTacoma4x4 Active Member

    Joined:
    Jul 11, 2021
    Member:
    #371042
    Messages:
    28
    Gender:
    Male
    Vehicle:
    2015 Toyota Tacoma TRD OFF-ROAD
    ah so i just cut them there to disable the amber light in front?

  15. Jul 13, 2021 at 10:29 PM
    #95
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,200
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Them...no. Just the white wire on position 19. DRL select.

    2015ToyotaTacoma4x4 likes this.
  16. Jul 13, 2021 at 10:35 PM
    #96
    2015ToyotaTacoma4x4

    2015ToyotaTacoma4x4 Active Member

    Joined:
    Jul 11, 2021
    Member:
    #371042
    Messages:
    28
    Gender:
    Male
    Vehicle:
    2015 Toyota Tacoma TRD OFF-ROAD

    okay just the white one here on C11

    ok so now since i have the best expert on the internet i have one last question :)) you know you give someone a small finger and they take the whole arm :p (joke) but i have one more big question.

    in germany i need to install a red rear fog light 21W light its like a brake light, with a dashboard switch. my question is, where would i be able to get power for the light/switch only when the ignition is on?

  17. Jul 13, 2021 at 10:40 PM
    #97
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,200
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Does the Tacoma have a 7 pin towing connector?
    When is it required to be ON?

  18. Jul 13, 2021 at 10:46 PM
    #98
    2015ToyotaTacoma4x4

    2015ToyotaTacoma4x4 Active Member

    Joined:
    Jul 11, 2021
    Member:
    #371042
    Messages:
    28
    Gender:
    Male
    Vehicle:
    2015 Toyota Tacoma TRD OFF-ROAD
    its only on when its foggy and i need to have a foglight switch that has an indicator light. in germany you can only use front fog lights when its very foggy or its a ticket and the rear needs one for the safety

  19. Jul 13, 2021 at 10:47 PM
    #99
    2015ToyotaTacoma4x4

    2015ToyotaTacoma4x4 Active Member

    Joined:
    Jul 11, 2021
    Member:
    #371042
    Messages:
    28
    Gender:
    Male
    Vehicle:
    2015 Toyota Tacoma TRD OFF-ROAD
    hm i don't know but ill check never really use the tow hitch. ill make a picture

  20. Jul 13, 2021 at 10:52 PM
    #100
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    8,200
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    You could use the fuse that powers the Back up lamps (reverse) with an add-a-fuse. Then snake the wire to the switch, then under the carpet out the bottom of the driver's seat plug to the frame, to the rear location.

    Last edited: Jul 13, 2021
    2015ToyotaTacoma4x4 likes this.
