2012 - 2015 Tacoma Faux Pro Grille.(CLOSED). Available On Website

Discussion in 'Automotive Group Buys' started by CaliRaisedLed, Apr 27, 2018.

  1. May 16, 2018 at 2:54 PM
    #701
    JayRolla

    JayRolla Well-Known Member

    Joined:
    Mar 30, 2017
    Member:
    #214833
    Messages:
    1,855
    Gender:
    Male
    First Name:
    Jason
    Colorado Springs
    Vehicle:
    Wife's 2012 DCSB Tacoma Sr5
    Trd stickers for 10whp
    Hell no. I'm in the same boat.

  2. May 16, 2018 at 3:32 PM
    #702
    cdex8357

    cdex8357 Well-Known Member

    Joined:
    Apr 7, 2018
    Member:
    #249677
    Messages:
    163
    Gender:
    Male
    First Name:
    charles
    Vehicle:
    2013 tacoma
    pro comp 3' lift

    So is this to color match paint existing surround or new color match surround

  3. May 16, 2018 at 3:34 PM
    #703
    12tacop

    12tacop Well-Known Member

    Joined:
    Dec 5, 2017
    Member:
    #237697
    Messages:
    270
    Vehicle:
    2012 DCSB SR5 Barc Red 4x4
    She didn't give me a pass to spend 200 on the grille!

    JayRolla likes this.
  4. May 16, 2018 at 3:51 PM
    #704
    JayRolla

    JayRolla Well-Known Member

    Joined:
    Mar 30, 2017
    Member:
    #214833
    Messages:
    1,855
    Gender:
    Male
    First Name:
    Jason
    Colorado Springs
    Vehicle:
    Wife's 2012 DCSB Tacoma Sr5
    Trd stickers for 10whp
    Dealers sell color matched surround for around $200 to replace the chrome. Cleaner look like the trd pro and sport has.

  5. May 16, 2018 at 3:52 PM
    #705
    JayRolla

    JayRolla Well-Known Member

    Joined:
    Mar 30, 2017
    Member:
    #214833
    Messages:
    1,855
    Gender:
    Male
    First Name:
    Jason
    Colorado Springs
    Vehicle:
    Wife's 2012 DCSB Tacoma Sr5
    Trd stickers for 10whp
    Damn. This is wife's rig so maybe she will let me get it.

  6. May 16, 2018 at 3:53 PM
    #706
    12tacop

    12tacop Well-Known Member

    Joined:
    Dec 5, 2017
    Member:
    #237697
    Messages:
    270
    Vehicle:
    2012 DCSB SR5 Barc Red 4x4
    Yeah just tell her you did it for the children. LOL

    JayRolla likes this.
  7. May 16, 2018 at 4:31 PM
    #707
    stlntaco

    stlntaco Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153855
    Messages:
    1,540
    Gender:
    Male
    First Name:
    Jake
    California
    ̿̿ ̿'̿'\̵͇̿̿\з= ( ▀ ͜͞ʖ▀) =ε/̵͇̿̿/’̿’̿ ̿ ̿̿
    Just got mine. Everything looks good but the outside screws are definitely too short.

    HellaNasty likes this.
  8. May 16, 2018 at 4:45 PM
    #708
    cdex8357

    cdex8357 Well-Known Member

    Joined:
    Apr 7, 2018
    Member:
    #249677
    Messages:
    163
    Gender:
    Male
    First Name:
    charles
    Vehicle:
    2013 tacoma
    pro comp 3' lift
    We need to start a new thread for this.

    TegoTaco, 12tacop and dome like this.
  9. May 16, 2018 at 6:04 PM
    #709
    Lefkos

    Lefkos Well-Known Member

    Joined:
    Jan 3, 2014
    Member:
    #119826
    Messages:
    283
    Gender:
    Male
    First Name:
    Winston
    Las Vegas
    Vehicle:
    PreRunner
  10. May 16, 2018 at 6:33 PM
    #710
    dome

    dome Well-Known Member

    Joined:
    Jan 18, 2018
    Member:
    #241664
    Messages:
    286
    Gender:
    Male
    First Name:
    Joel
    Bay Area
    Vehicle:
    2015 TRD OR DCSB 4x4
    Here's the unboxing and subsequent install... (for reference, the before and after photos are spaced exactly 30 minutes apart according to the EXIF data from the photos so the install was probably ~20 min, taking time to snap pictures)

    Yup, it's a box.
    [​IMG]

    First look inside
    [​IMG]

    "TOYOTA" badge section comes bagged separately, neat.
    [​IMG]

    Looks like there are some small imperfections on the paint of the letters on mine, not a huge deal -- but this might seem pretty indicative that the paint might not do well after some abuse from road debris. Whatevs it's a small area of paint and a Chinese knock-off, all things considered, expectations are met.

    (bottom of the 'O')
    [​IMG]

    (top right of 'A')
    [​IMG]

    (some scratches on the bottom of the 'T')
    [​IMG]

    You also get some screws for the TOYOTA section...
    [​IMG]

    You'll probably find like me and several others that 4 of these should be longer and as a result do not really thread in...
    [​IMG]

    Moving on...

    I wonder if there's a light bar that might fit into that mid section in lieu of the TOYOTA letters...
    [​IMG]

    Backside...
    [​IMG]

    "Assembled"...
    [​IMG]

    Screws on the back... the outer ones are the ones that should be longer. For me at least, the bottom ones wouldn't even thread at all and just popped out if I put even just a teensy amount of pressure to pull the letter logo assembly off there.
    [​IMG]



    Installation

    You'll need at least a 10mm socket driver, a flat head screwdriver, T20 torx driver, and you'll also find some needle nose pliers handy for the weather stripping.

    Remove the top 10mm bolts and outer plastic fasters.
    [​IMG]

    Nothing fancy for those fasteners, just stick a flat head in there and pop the middle up.
    [​IMG]

    Here's what it should look like, then you can just pull the whole thing out.
    [​IMG]

    Do yourself a favor and move the top part of the grille up and off of the area where the 10mm bolts fasten it for the rest of the removal.
    [​IMG]

    It's really tough to see here, but if you look just underneath the headlight assembly where the headlight and grille meet, there's a clip you need to release. You can just push these out from behind the grille towards the front of the truck. There's one on each outer bottom corner of the grille, and a few in the middle.
    [​IMG]

    Here it is off... take note of those bottom clips so you know where to push to get it off. Also note the T20 torx screws, take those out, there were like 12 of them?
    [​IMG]

    There are two types of clips/tabs you're going to deal with. These are the easier ones.
    [​IMG]

    These clips/tabs will probably be the biggest pain in your butt, but be patient and you shouldn't end up breaking any... Unless you're doing this in the cold, then you might break some brittle plastic. It was probably like 65F when I was out doing it and nothing broke, be careful.
    [​IMG]

    I started with the bottom middle and worked my way around the edge.
    [​IMG]

    Here's the trick I used on the stubborn tabs, just shove your flat head in there and gently pry the inner tab and outer tab apart. Note that only ONE side of the inner tab is actually doing anything so only bother with that side.
    [​IMG]

    Don't forget to transfer the weather stripping over too. Here's where the pliers come into play. Again, be gentle and take your time. There's also some foam tape on the stock grille, but I'm just going to put some new foam tape on the new grille later instead of trying to reuse that old stuff. It's also worth noting here that two of the holes for the weather stripping in the new grille insert were just a tad bit too small for the stripping fasteners and as a result required a LOT of pressure to shove them in. These two holes are the ones where you need to access the fasteners from the FRONT of the grille, the giant gaping plastic area where the 10mm's go.
    [​IMG]

    Here you can see the difference in the thickness of the plastic in the new faux grille... notice the gap in the "tooth" for tab and that it's not even touching the new inner plastic of the faux grille. This was not the case with the stock grille, but hey Chinese knock-off, thems the haps.
    [​IMG]

    Before
    [​IMG]

    After (yes, the new grille also caused my truck to teleport)
    [​IMG]

    [​IMG]

    Last edited: May 16, 2018
  11. May 16, 2018 at 6:35 PM
    #711
    pwmullen3

    pwmullen3 Active Member

    Joined:
    Aug 17, 2017
    Member:
    #227078
    Messages:
    37
    Gender:
    Male
    First Name:
    Pat
    757
    Vehicle:
    2009 Tacoma DCSB TRD Off-Road
    NEWB

    AMAZING.

  12. May 16, 2018 at 7:18 PM
    #712
    2ndGenOffRoad

    2ndGenOffRoad Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #227968
    Messages:
    49
    Gender:
    Male
    Los Angeles, CA
    Vehicle:
    '14 SBDC OffRoad 4x4
    Schmell Fab Sliders
    Looks good!

  13. May 16, 2018 at 7:29 PM
    #713
    2ndGenOffRoad

    2ndGenOffRoad Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #227968
    Messages:
    49
    Gender:
    Male
    Los Angeles, CA
    Vehicle:
    '14 SBDC OffRoad 4x4
    Schmell Fab Sliders
    Here's a quick before and after picture. May give you guys an idea of how much a color match surround makes a difference.


    J'sBeasTRD likes this.
  14. May 16, 2018 at 8:04 PM
    #714
    surfandturf

    surfandturf Well-Known Member

    Joined:
    May 7, 2014
    Member:
    #129333
    Messages:
    699
    Gender:
    Male
    CT
    Vehicle:
    2014 TRD DCLB
    Looks great, did you do the hood wrap yourself or buy a precut?

  15. May 16, 2018 at 8:08 PM
    #715
    J'sBeasTRD

    J'sBeasTRD Well-Known Member

    Joined:
    Jul 20, 2015
    Member:
    #159922
    Messages:
    254
    Gender:
    Male
    Central Coast Cali
    Vehicle:
    15TACOMATRDOR 4X4DCSB6SPD...

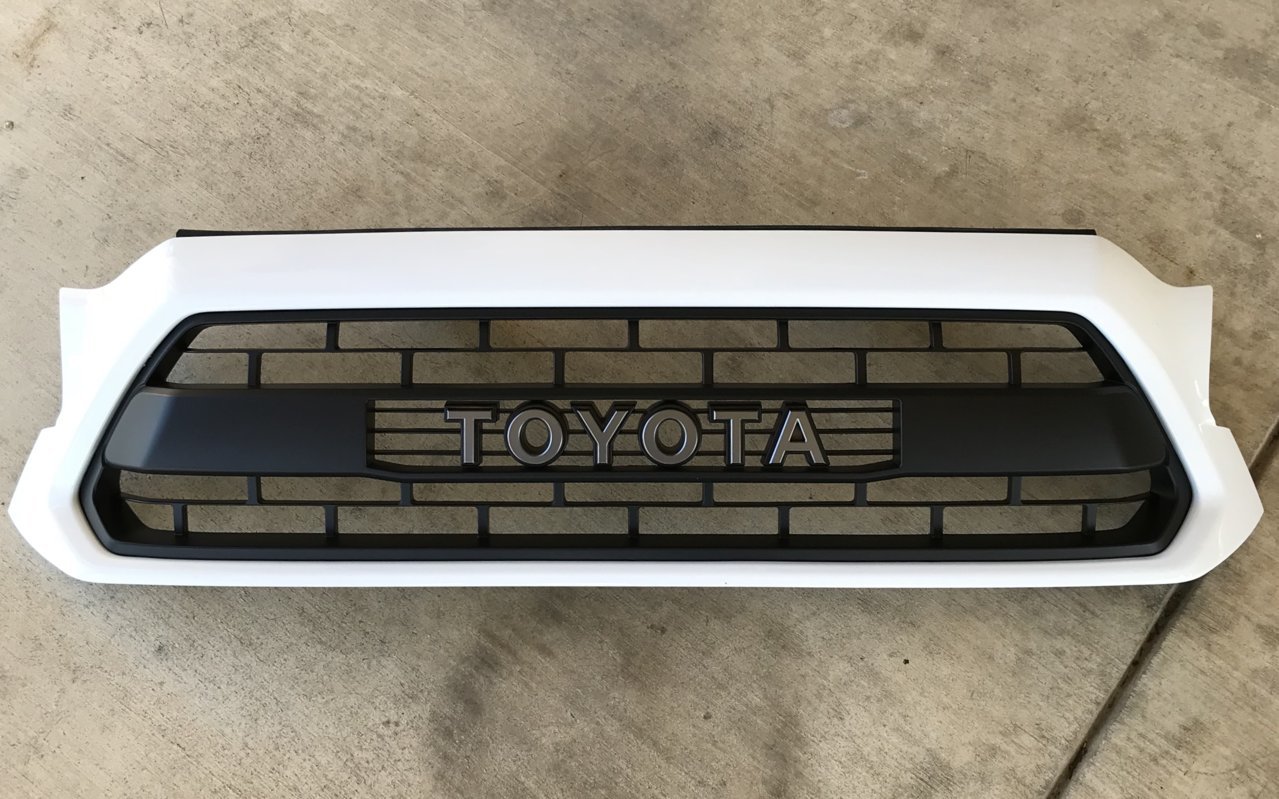

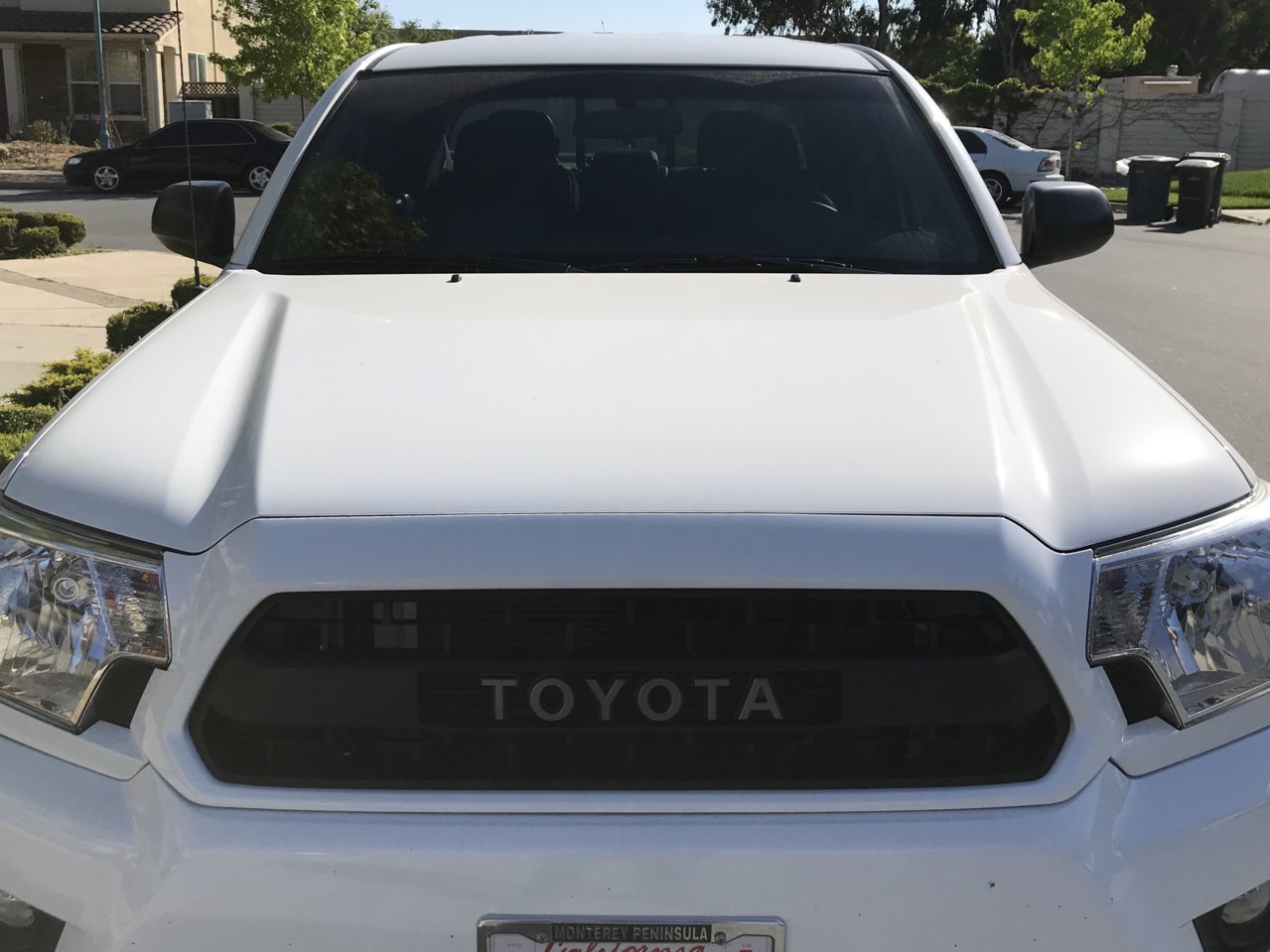

    Turned out great!12027E04-D74C-4AB5-BD1C-79DA8515E533.jpg FBA607C8-A250-4785-9D3B-00B7A911AB1B.jpg

    2ndGenOffRoad likes this.
  16. May 16, 2018 at 8:09 PM
    #716
    2ndGenOffRoad

    2ndGenOffRoad Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #227968
    Messages:
    49
    Gender:
    Male
    Los Angeles, CA
    Vehicle:
    '14 SBDC OffRoad 4x4
    Schmell Fab Sliders
    Thanks! Got it done at a local body shop. It's a "custom" wrap. AKA Expensive sticker.

    Last edited: May 16, 2018
  17. May 17, 2018 at 7:20 AM
    #717
    TegoTaco

    TegoTaco Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198555
    Messages:
    2,333
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    2013 Super White Tacoma DCLB TRD SPORT
    You should paint your valence black.

  18. May 17, 2018 at 7:25 AM
    #718
    JayRolla

    JayRolla Well-Known Member

    Joined:
    Mar 30, 2017
    Member:
    #214833
    Messages:
    1,855
    Gender:
    Male
    First Name:
    Jason
    Colorado Springs
    Vehicle:
    Wife's 2012 DCSB Tacoma Sr5
    Trd stickers for 10whp
    Imo that makes it look cheap. Also grille gets lost in all the black .

    You want to paint match or leave chrome.

  19. May 17, 2018 at 7:30 AM
    #719
    Boyk1182

    Boyk1182 Well-Known Member

    Joined:
    Oct 15, 2017
    Member:
    #233074
    Messages:
    1,403
    Gender:
    Male
    Fort Collins, CO
    Vehicle:
    2014 Toyota Tacoma 4x4
    Definitely a subjective thing, I can't stand the chrome, anything would be better to me.

  20. May 17, 2018 at 7:36 AM
    #720
    dome

    dome Well-Known Member

    Joined:
    Jan 18, 2018
    Member:
    #241664
    Messages:
    286
    Gender:
    Male
    First Name:
    Joel
    Bay Area
    Vehicle:
    2015 TRD OR DCSB 4x4
    I plan to color match the surround, but that's a later thing.
