@2012 - 2015 Tacoma Faux Pro Grille.(CLOSED). Available On Website

yote · May 17, 2018

White lightning boosted said: ↑

Yeah man! Looks great. I need more than 30 minutes. I hope it doesn't need dremel work to fit my airfilter. Original did.
Click to expand...

Boy that'd add some suspense to the somewhat "plug and play" TRD Pro Grill mod

JayRolla · May 17, 2018

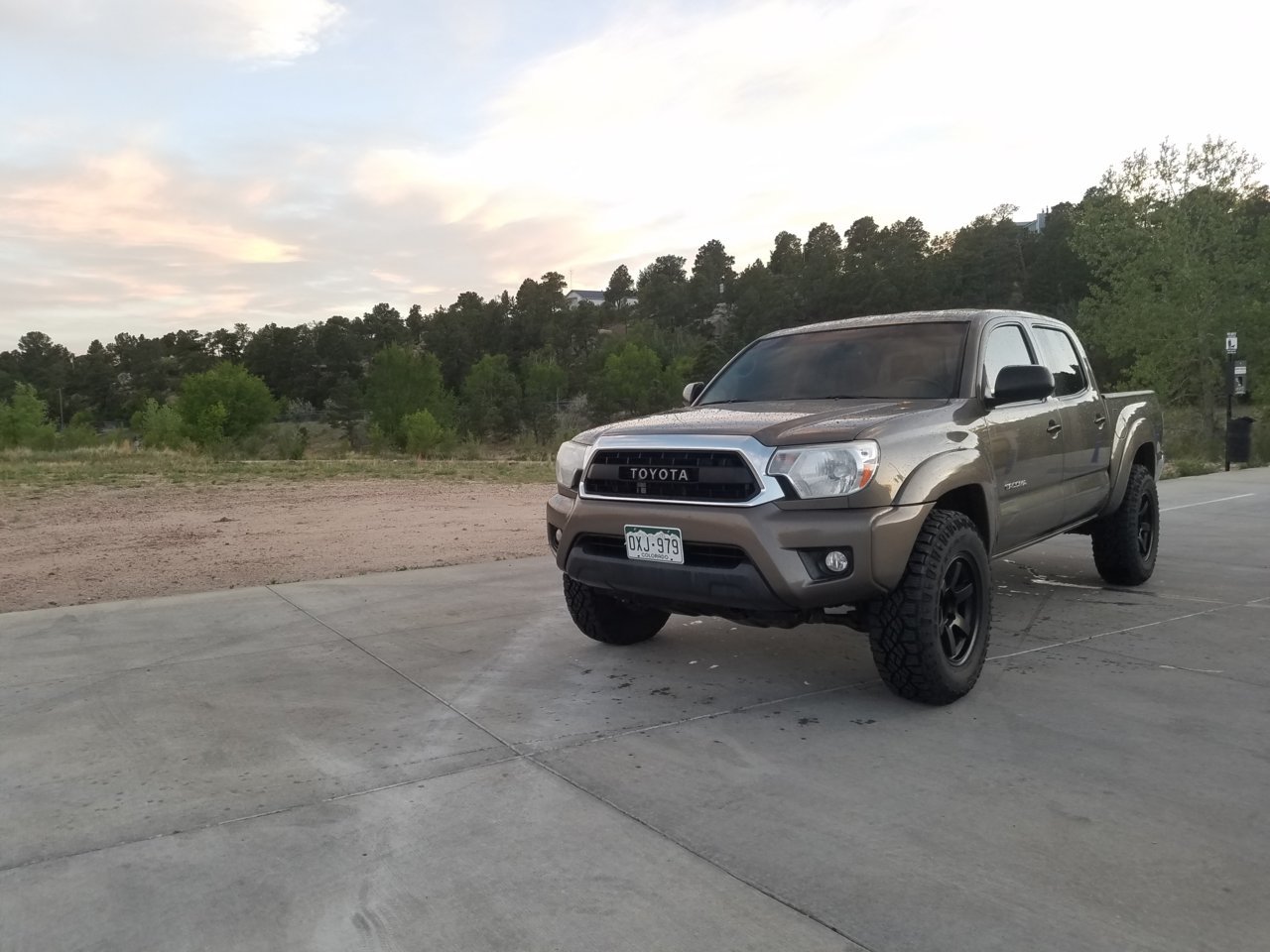

Had to give her a quick wash.

mcgov303 · May 17, 2018

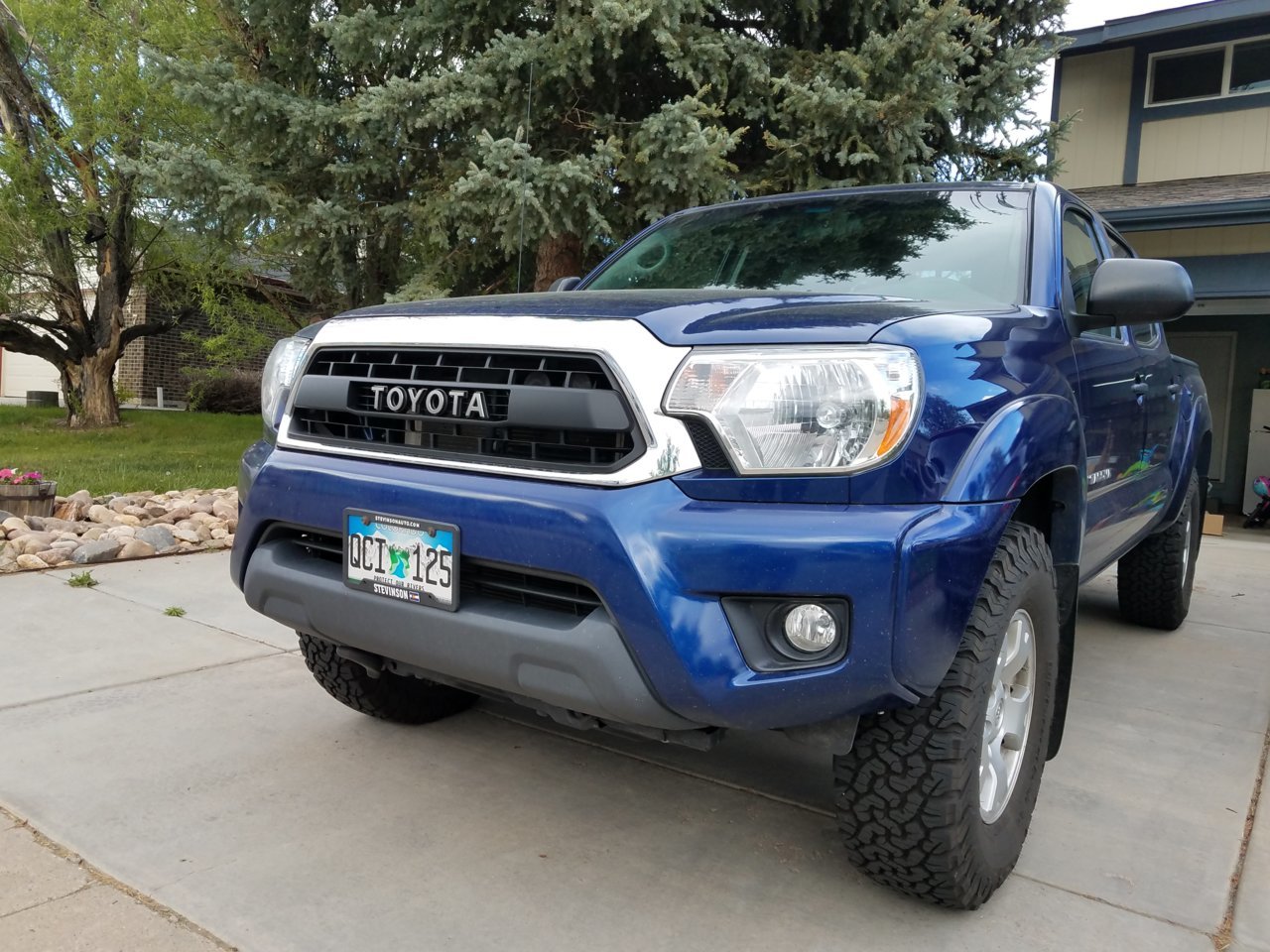

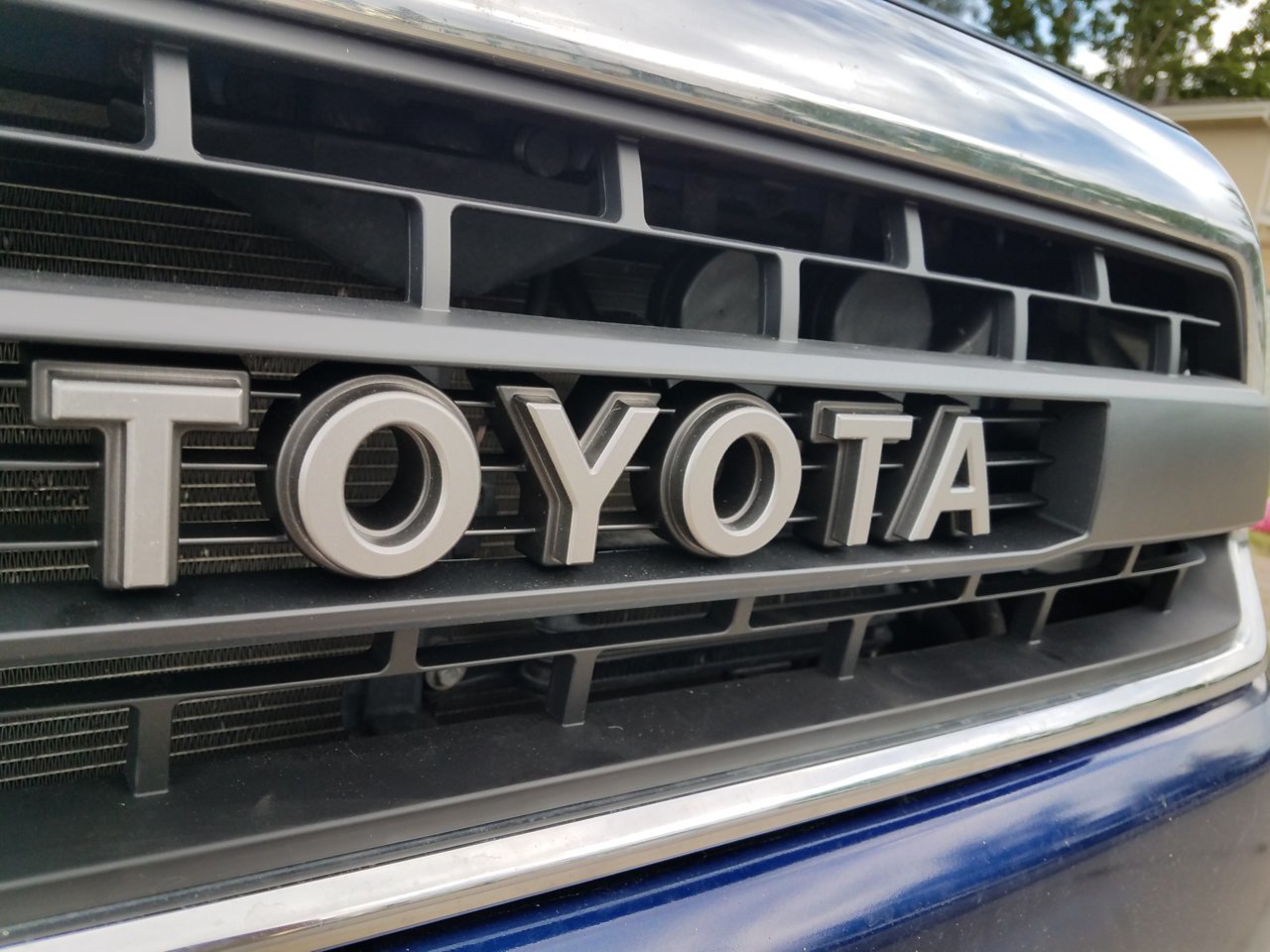

Got mine on. Still unsure about the chrome but it's not awful. No scratches to speak of on any of my letters.

JayRolla · May 17, 2018

L

mcgov303 said: ↑

Got mine on. Still unsure about the chrome but it's not awful. No scratches to speak of on any of my letters.

Click to expand...

Looks good!! I think your color would highly benefit from a paint matched surround but still looks great.

apoteker · May 17, 2018

got mine in the mail today... wont bother with pics... looks like everyone else's

Stanky taco · May 17, 2018

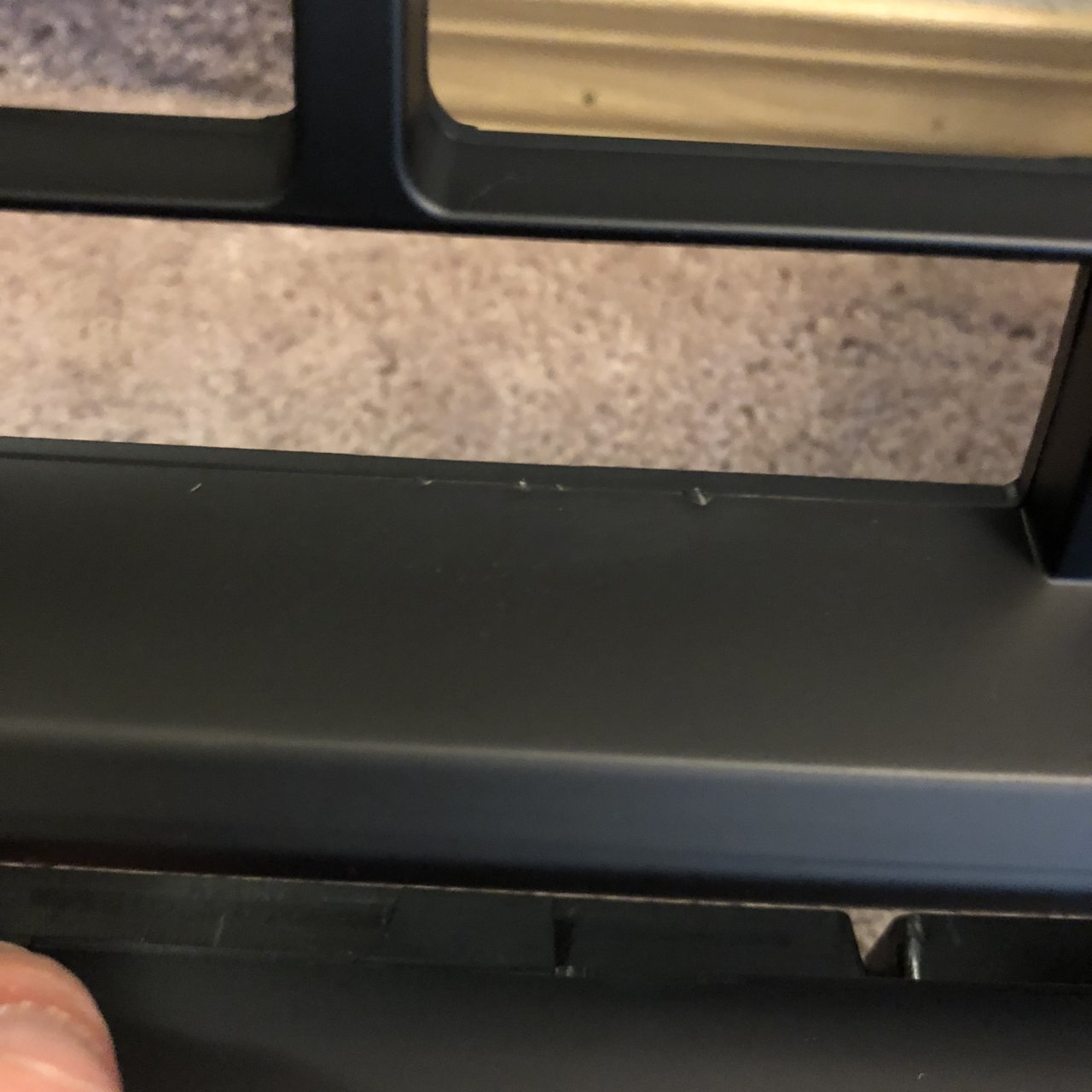

Did any of you guys have this? Bumps From plastic weld?

mcgov303 · May 17, 2018

JayRolla said: ↑

L

Looks good!! I think your color would highly benefit from a paint matched surround but still looks great.
Click to expand...

Thank you. Chrome or painted the pro style def looks way better than the oval t. I'll probably end up getting the painted one but I've also got a leer topper on order so I'll have to wait on it for a bit

White lightning boosted · May 17, 2018

Stanky taco said: ↑

Did any of you guys have this? Bumps From plastic weld?

Click to expand...

Yes.

AJH387 · May 17, 2018

Looks good, guys. Still would like a possible answer to what size screws can work for the ones that don't fit.

Also, can't believe most of you aren't fans of the chrome surround. I think it looks rad. I'm keeping mine that way. Matches the rear bumper, looks kinda old-school rugged...I dunno lol.

BradsTaco · May 17, 2018

AJH387 said: ↑

Looks good, guys. Still would like a possible answer to what size screws can work for the ones that don't fit.

Also, can't believe most of you aren't fans of the chrome surround. I think it looks rad. I'm keeping mine that way. Matches the rear bumper, looks kinda old-school rugged...I dunno lol.
Click to expand...

@CaliRaisedLed any answer for the size of screw that’s needed

White lightning boosted · May 17, 2018

I would just take it to a hardware store and get a few a bit longer. Or trim it with a razor knife like I did.

CaliRaisedLed · May 17, 2018

Kbuds2000 said: ↑

@CaliRaisedLed any answer for the size of screw that’s needed
Click to expand...

We are looking into the issue tomorrow morning and will updated OP

YellowThunder48 · May 17, 2018

Any updates on the installation video @CaliRaisedLed?

88nitro305 · May 18, 2018

Mine is out for delivery!! 3 days early!

mcgov303 · May 18, 2018

dome said: ↑

Here's the unboxing and subsequent install... (for reference, the before and after photos are spaced exactly 30 minutes apart according to the EXIF data from the photos so the install was probably ~20 min, taking time to snap pictures)

Yup, it's a box.

First look inside

"TOYOTA" badge section comes bagged separately, neat.

Looks like there are some small imperfections on the paint of the letters on mine, not a huge deal -- but this might seem pretty indicative that the paint might not do well after some abuse from road debris. Whatevs it's a small area of paint and a Chinese knock-off, all things considered, expectations are met.

(bottom of the 'O')

(top right of 'A')

(some scratches on the bottom of the 'T')

You also get some screws for the TOYOTA section...

You'll probably find like me and several others that 4 of these should be longer and as a result do not really thread in...

Moving on...

I wonder if there's a light bar that might fit into that mid section in lieu of the TOYOTA letters...

Backside...

"Assembled"...

Screws on the back... the outer ones are the ones that should be longer. For me at least, the bottom ones wouldn't even thread at all and just popped out if I put even just a teensy amount of pressure to pull the letter logo assembly off there.

Installation

You'll need at least a 10mm socket driver, a flat head screwdriver, T20 torx driver, and you'll also find some needle nose pliers handy for the weather stripping.

Remove the top 10mm bolts and outer plastic fasters.

Nothing fancy for those fasteners, just stick a flat head in there and pop the middle up.

Here's what it should look like, then you can just pull the whole thing out.

Do yourself a favor and move the top part of the grille up and off of the area where the 10mm bolts fasten it for the rest of the removal.

It's really tough to see here, but if you look just underneath the headlight assembly where the headlight and grille meet, there's a clip you need to release. You can just push these out from behind the grille towards the front of the truck. There's one on each outer bottom corner of the grille, and a few in the middle.

Here it is off... take note of those bottom clips so you know where to push to get it off. Also note the T20 torx screws, take those out, there were like 12 of them?

There are two types of clips/tabs you're going to deal with. These are the easier ones.

These clips/tabs will probably be the biggest pain in your butt, but be patient and you shouldn't end up breaking any... Unless you're doing this in the cold, then you might break some brittle plastic. It was probably like 65F when I was out doing it and nothing broke, be careful.

I started with the bottom middle and worked my way around the edge.

Here's the trick I used on the stubborn tabs, just shove your flat head in there and gently pry the inner tab and outer tab apart. Note that only ONE side of the inner tab is actually doing anything so only bother with that side.

Don't forget to transfer the weather stripping over too. Here's where the pliers come into play. Again, be gentle and take your time. There's also some foam tape on the stock grille, but I'm just going to put some new foam tape on the new grille later instead of trying to reuse that old stuff. It's also worth noting here that two of the holes for the weather stripping in the new grille insert were just a tad bit too small for the stripping fasteners and as a result required a LOT of pressure to shove them in. These two holes are the ones where you need to access the fasteners from the FRONT of the grille, the giant gaping plastic area where the 10mm's go.

Here you can see the difference in the thickness of the plastic in the new faux grille... notice the gap in the "tooth" for tab and that it's not even touching the new inner plastic of the faux grille. This was not the case with the stock grille, but hey Chinese knock-off, thems the haps.

Before

After (yes, the new grille also caused my truck to teleport)

Click to expand...

YellowThunder48 said: ↑

Any updates on the installation video @CaliRaisedLed?
Click to expand...

Just follow @dome 's step by step. If you still need a video after that then I don't know what to say

JayRolla · May 18, 2018

mcgov303 said: ↑

Just follow @dome 's step by step. If you still need a video after that then I don't know what to say
Click to expand...

Agreed. Those steps are all you need. I literally did it in under an hour after work last night.

geekhouse23 · May 18, 2018

Scheduled for delivery today.

Made sure to pick up my wife's favorite breakfast this morning and while I was out, I filled up her car with gas (receipts to prove it).

I BETTER GET MY GRILLE TODAY UPS MAN!!!!

More on this developing story later..

mcgov303 · May 18, 2018

JayRolla said: ↑

Agreed. Those steps are all you need. I literally did it in under an hour after work last night.
Click to expand...

I spent more time looking for my needle nose pliers than anything else.

FourBanger99 · May 18, 2018

Gets to Florida today

12tacop · May 18, 2018

Got the old grille out of the truck and starting with the clips, what a pain. New one is on the truck for delivery today.
