2012 Bed liner bin lock install *with pics*

Discussion in '2nd Gen. Tacomas (2005-2015)' started by nevenelestate, Dec 20, 2011.

  1. Dec 20, 2011 at 4:16 AM
    #1
    nevenelestate

    nevenelestate [OP] Well-Known Member

    Joined:
    Dec 10, 2011
    Member:
    #68497
    Messages:
    161
    Gender:
    Male
    First Name:
    Andrew
    Southern MD
    Vehicle:
    12 Tacoma V6 4X4 SR5
    Stock
    I bought two lock sets from the local hardware store, making sure that the numbers on the keys, matched in both sets, allowing me to use one key to open both bins.

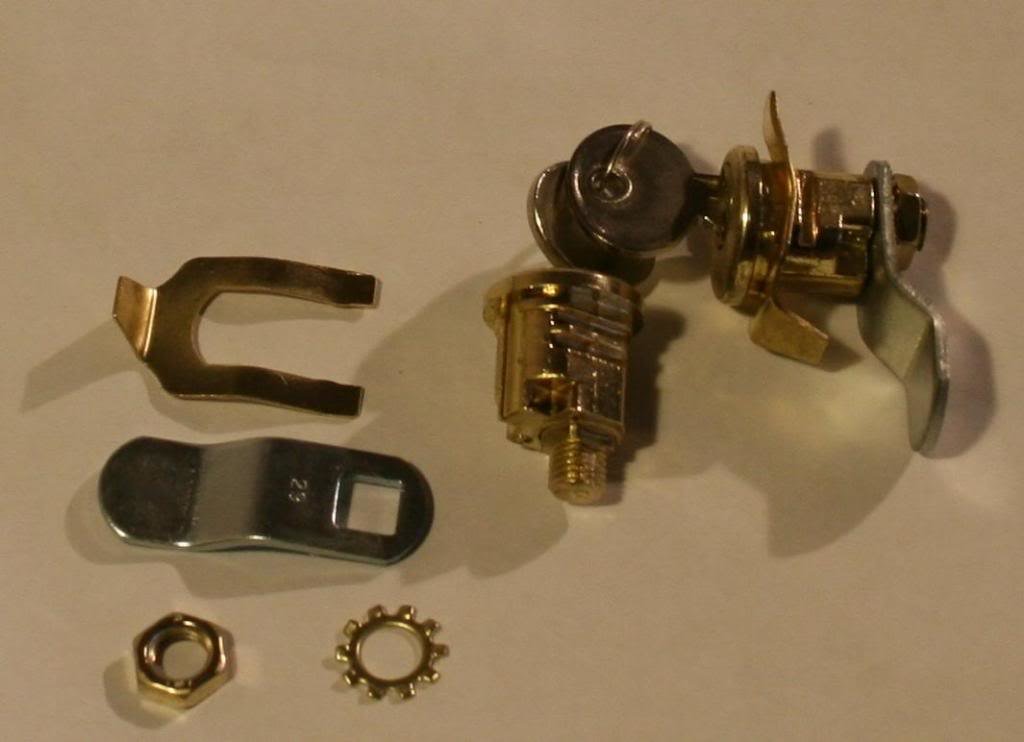

    Lock set
    [​IMG]

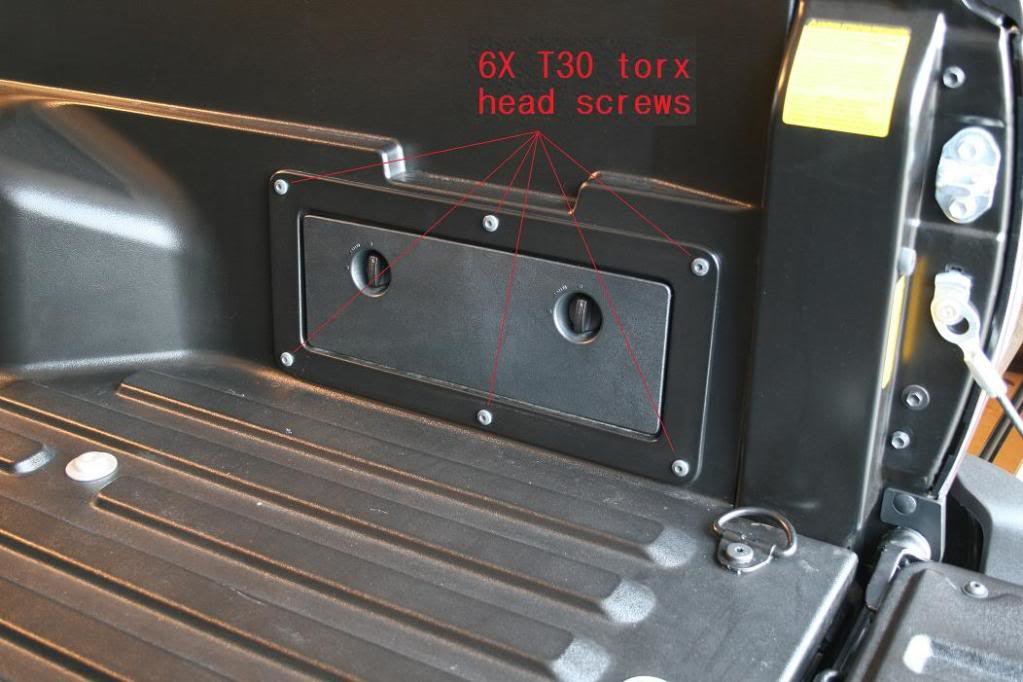

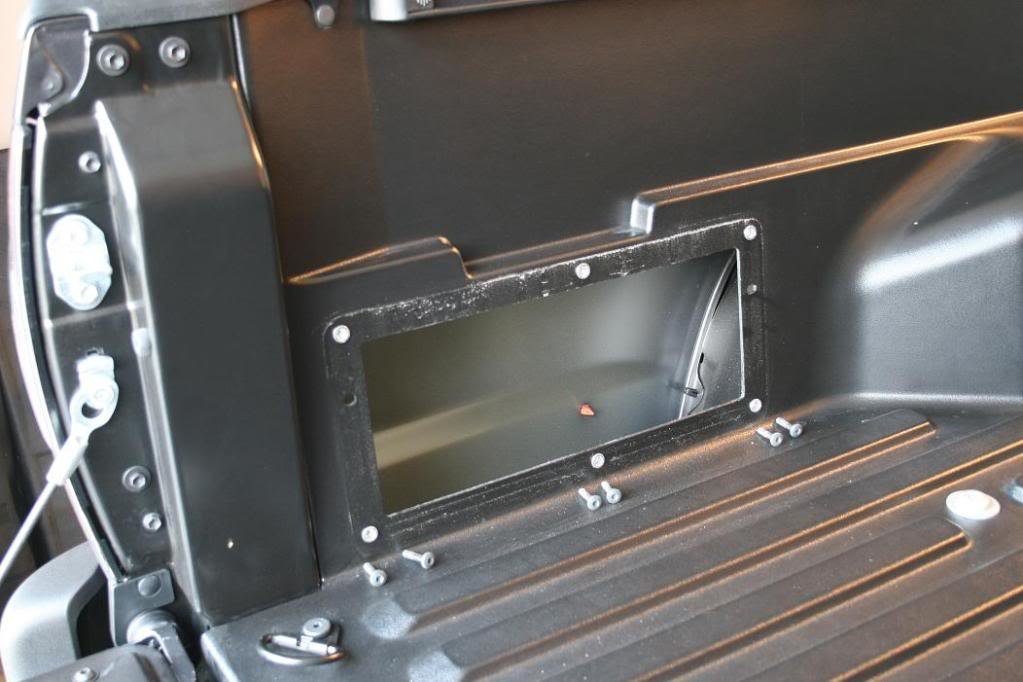

    Start by removing the 6x T30 torx head screws to remove the bin

    [​IMG]

    [​IMG]

    **NOTE: All measurements will be dependent on the specific lock you get, however I suggest drilling the hole lower than I did to accommodate the locking arm better, the first bin got a larger hole than necessary due to lack of foresight**

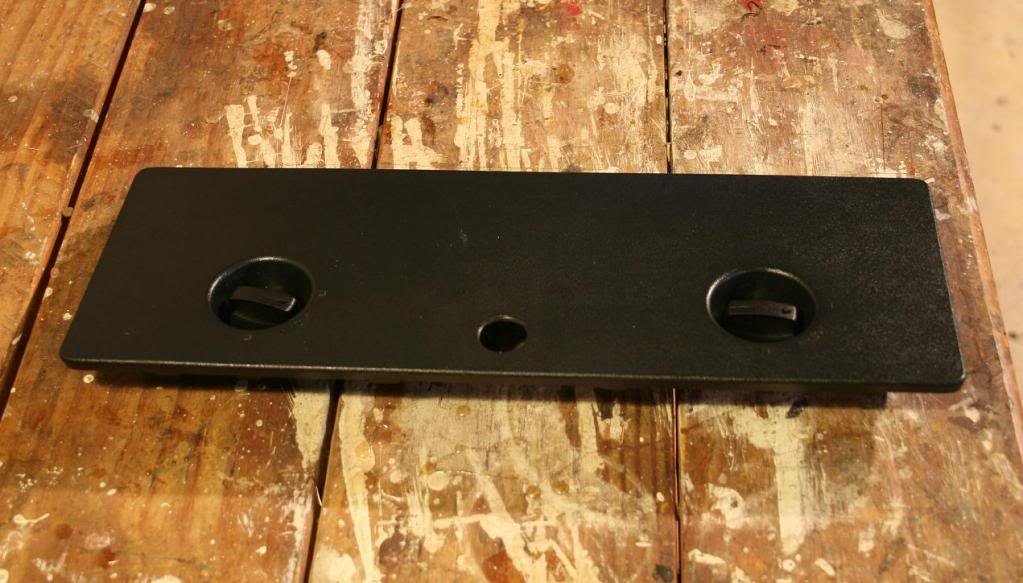

    Drill a hole the size of the lock shaft, I used blue painters tape to make it easier to mark the spot to drill and attempt to protect the plastic while drilling
    [​IMG]

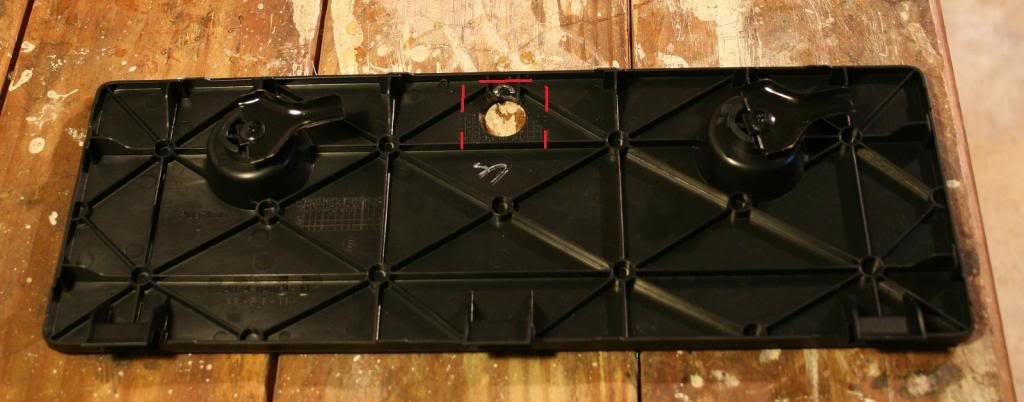

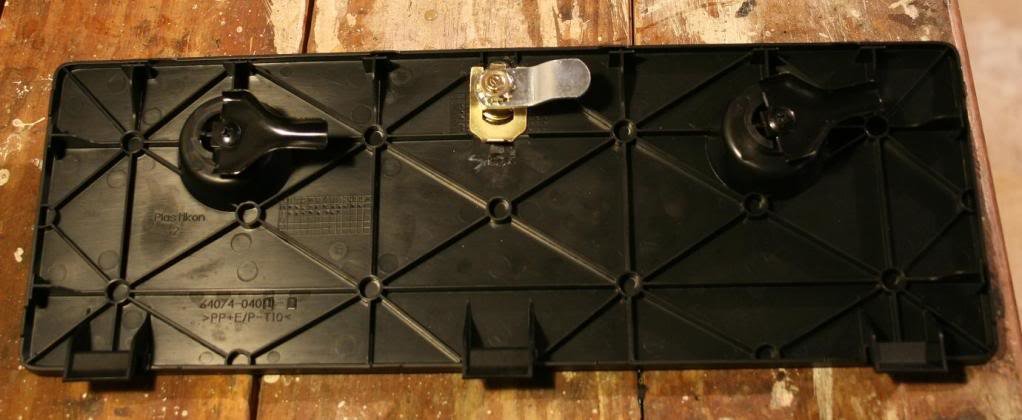

    the ribbing on the back needs to be cut where the red marks are and remove the walls inside that area to accommodate the spring clip that hold lock into place(completed in second pic)


    [​IMG]

    [​IMG]

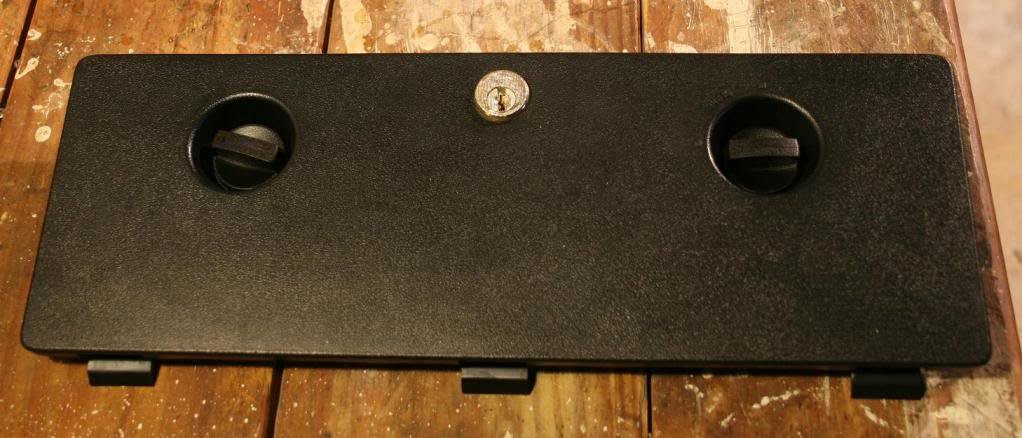

    lock installed from front side, you’re half way there! (well a quarter of the way if you include both bins)

    [​IMG]

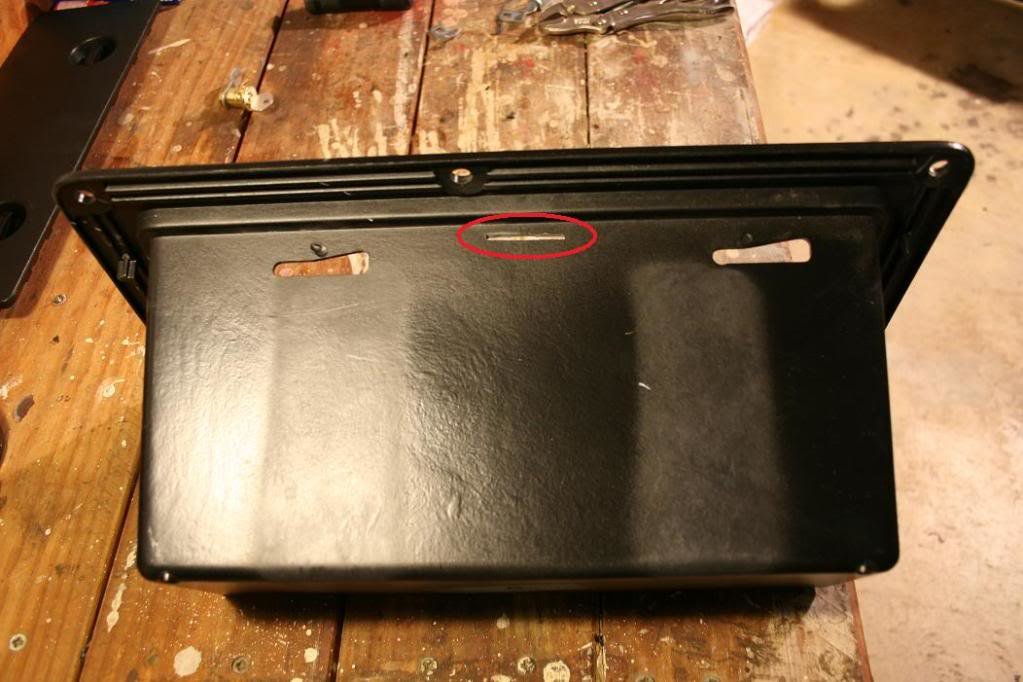

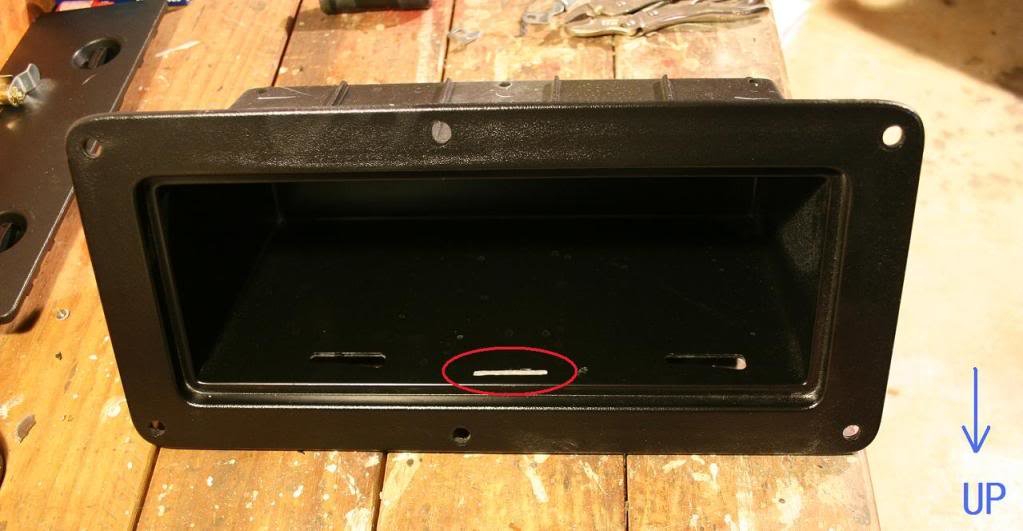

    Next you need to measure out, again varies by lock and arm used, and cut a slot in the bin(top side) for the locking arm to slide into. This took some guestimation on the first bin and lessons learned made the second easier, good news is that this hole will be in the ceiling of the box and not really vissible
    [​IMG]

    [​IMG]

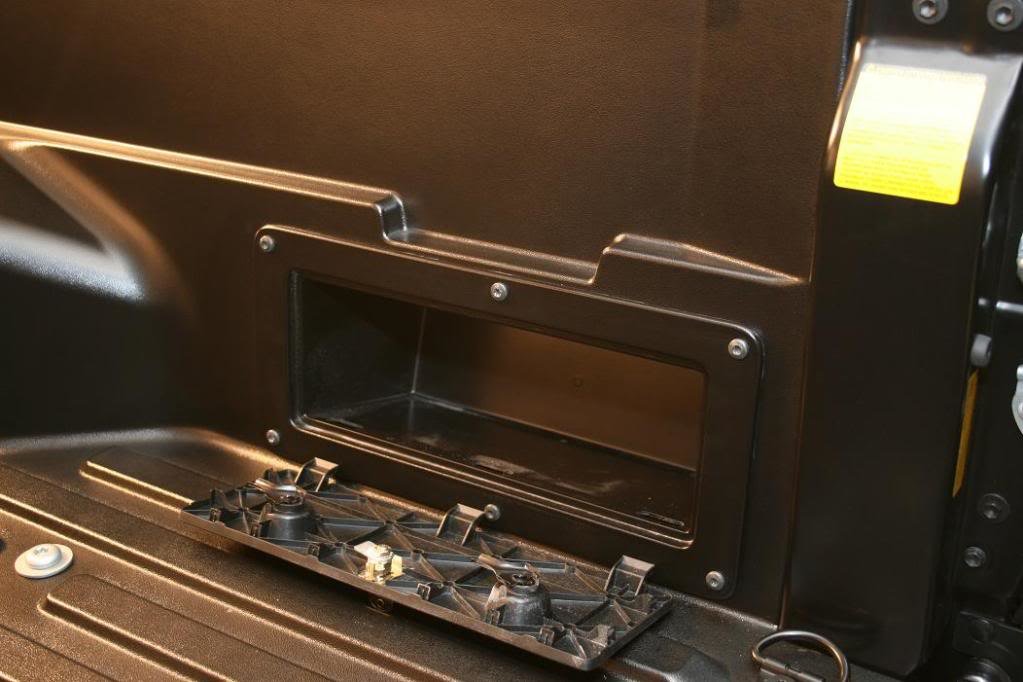

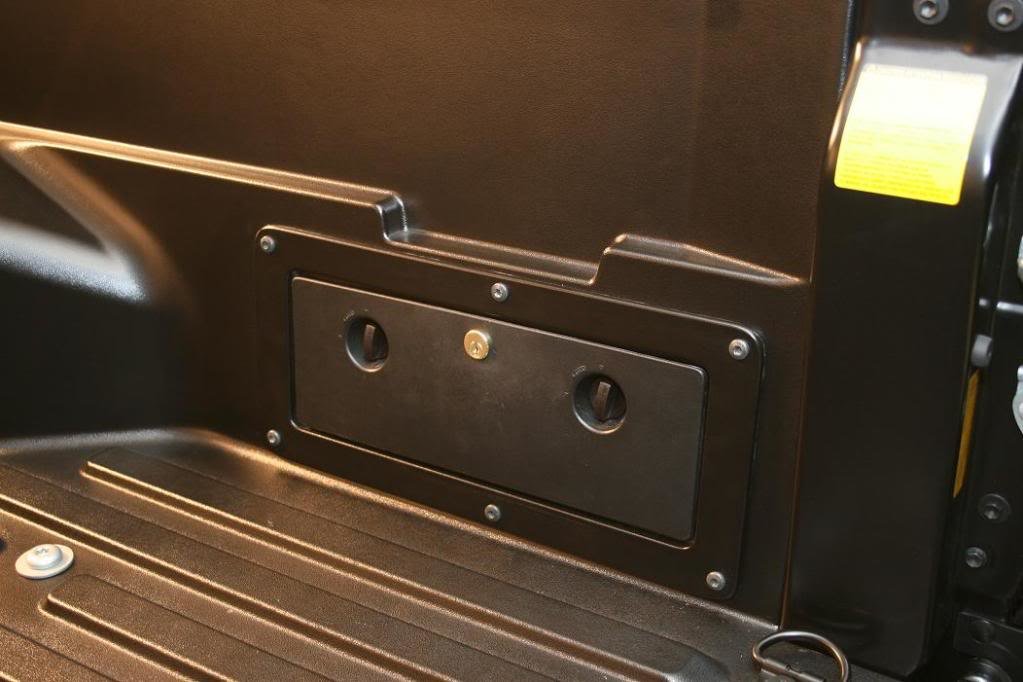

    Now reinstall the 6 screws and the bin is back in the liner and you can store items, cargo straps for me, in there without worrying if they will be there when needed
    [​IMG]

    [​IMG]



    Also by using the same key sets for both locks you will now have plenty of spare keys

  2. Dec 20, 2011 at 5:44 AM
    #2
    Fiolo

    Fiolo Senior member

    Joined:
    Sep 10, 2011
    Member:
    #63227
    Messages:
    4,235
    Gender:
    Male
    Vehicle:
    98 Regular cab lifted 4wd
    Lost track many mods ago
    Nice job

  3. Dec 20, 2011 at 6:04 AM
    #3
    ZachMX

    ZachMX Well-Known Member

    Joined:
    Oct 12, 2011
    Member:
    #65113
    Messages:
    4,777
    Gender:
    Male
    Vehicle:
    00 AC, 08 DCSB, 11 AC,15 DCLB, 16 DCLB,17 DCSB
    Been done before, also a combination lock version as well.

  4. Dec 20, 2011 at 6:16 AM
    #4
    nevenelestate

    nevenelestate [OP] Well-Known Member

    Joined:
    Dec 10, 2011
    Member:
    #68497
    Messages:
    161
    Gender:
    Male
    First Name:
    Andrew
    Southern MD
    Vehicle:
    12 Tacoma V6 4X4 SR5
    Stock
    cool, just thought i would share

  5. Dec 20, 2011 at 7:59 AM
    #5
    RainDodger

    RainDodger YGWYPF

    Joined:
    Nov 23, 2009
    Member:
    #26412
    Messages:
    363
    Gender:
    Male
    Great Northwest
    Vehicle:
    '09 Black, TRD Sport
    None yet! It's new!
    Nicely done, but I'd just use a torx screwdriver instead of a key... and take the whole box if I really wanted it.

  6. Dec 20, 2011 at 8:58 AM
    #6
    nevenelestate

    nevenelestate [OP] Well-Known Member

    Joined:
    Dec 10, 2011
    Member:
    #68497
    Messages:
    161
    Gender:
    Male
    First Name:
    Andrew
    Southern MD
    Vehicle:
    12 Tacoma V6 4X4 SR5
    Stock
    true, but if they are gonna do that much work to get some cargo straps oh well haha

  7. Dec 20, 2011 at 9:03 AM
    #7
    eewoz

    eewoz Member

    Joined:
    Oct 15, 2011
    Member:
    #65234
    Messages:
    15
    Gender:
    Male
    First Name:
    Ed
    Buffalo, NY
    Vehicle:
    2011 4x4
    Nice job. Thanks for sharing.

  8. Dec 20, 2011 at 11:30 AM
    #8
    ZachMX

    ZachMX Well-Known Member

    Joined:
    Oct 12, 2011
    Member:
    #65113
    Messages:
    4,777
    Gender:
    Male
    Vehicle:
    00 AC, 08 DCSB, 11 AC,15 DCLB, 16 DCLB,17 DCSB
    Yours is slightly different, sorry, was at work and grumpy for some reason. Nice write up.
