2012 BHLM and Retros

Discussion in '2nd Gen. Tacomas' started by Commanderwiggin, Dec 22, 2011.

  1. Dec 23, 2011 at 4:34 AM
    #21
    VirginiaBound

    VirginiaBound Whyareyoureadingthis?

    Joined:
    Jun 22, 2009
    Member:
    #18755
    Messages:
    7,211
    Gender:
    Male
    First Name:
    Sam I am, green eggs and ham
    North of Maine, South of Spain
    Oh my :drool:

  2. Dec 23, 2011 at 5:02 AM
    #22
    booboy

    booboy Well-Known Member

    Joined:
    Aug 13, 2010
    Member:
    #41642
    Messages:
    316
    Gender:
    Male
    PaCiFiC nOrThWeSt
    Vehicle:
    2010 TrD SpOrT 4x4
    I like! Looks good, brotha!

  3. Dec 23, 2011 at 7:29 AM
    #23
    shweller

    shweller Well-Known Member

    Joined:
    Feb 19, 2011
    Member:
    #51456
    Messages:
    690
    Gender:
    Male
    Corona
    Vehicle:
    2010 Tacoma TRD Sport SB 4x4
    PoP 'N' Lock Satoshi Grill (Did it Myself) DSM UCA's (Desert Products) FXR 1.1 w/Gatling Gun Shrouds Phillips 85122 Method Racing Wheels HID Hella 500's behind Satoshi grill Fog Light Anytime Illuminated 4x4 Switch Ultragauge PIAA 510"s King Coilovers w/resi's Rear TSB Leaf Packs All Pro Sliders Bolt on sliders 255/75 R17 BF Goodrich Mudders Spidertrax wheel spacers Neoprene arm rests Weathertechs Wet Okoles w/TRD Allpro Ofrroad Apex bumper and IFS skid plate
    IMO, take off the alignment ring and adjust the horizontal yourself with a pair of channel locks. They are there to help but you don’t really need them. I had one twist on me when I went to go tighten so I just took it off. Maybe you received the incorrect alignment ring but I doubt it Morimotos should be a direct bolt in plug and play for H4. Hope this helps. You won’t have to take the lens off to take the ring off either...

  4. Dec 23, 2011 at 7:43 AM
    #24
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,071
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    They look like they both just need to be rotated a little bit. The mini's are not perfect you still have to play with them a bit on the ones that I have done I left the clear lense off and put them on the truck so you can check the horizontal alighnment of the cut off. If they are a little off you can slightly rotate them by hand to get them level.

  5. Dec 23, 2011 at 10:09 AM
    #25
    Commanderwiggin

    Commanderwiggin [OP] Well-Known Member

    Joined:
    Nov 21, 2011
    Member:
    #67438
    Messages:
    356
    Gender:
    Male
    Calgary
    Vehicle:
    12 Tacoma D/C 4x4 TRD Sport 6MT Supercharged
    I'm going to try to find some time to adjust it today...just curious what I should be targetting for headlight aim/height adjustment and such? IE...truck 25ft away from wall...cutoff height?

  6. Dec 23, 2011 at 10:12 AM
    #26
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    13,041
    Gender:
    Male
    First Name:
    Colton
    MT recently relocated to Willmar, MN
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    TRD Cold Air Intake, rear cat delete with Aero Turbine 2525, Maglite mount mod, white LED's all around, white gauges w/blue needles, Tinted Tails, Morimoto 32" XBAR LED Bar, Truxedo Lo-Pro QT Tonneau, Pioneer AVIC X-920 BT touchscreen, FX-R Retrofit, LR UCAs, OME 3" Lift w/ Dakar leafs, DTLT Headers, Walbro 255 fuel pump, TRD S/C, Hankook Dynapro ATM tires
    Whoa! I used the rings and mine looks nothing like that!!!???

    Use this link for how to aim them properly

  7. Dec 23, 2011 at 10:13 AM
    #27
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,903
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    that is just plain terrible!! arent those supposed to be pretty much PNP? one always needs to check the alignment when doing a retro, but i thought those things are closer than that when installed initially?!

  8. Dec 23, 2011 at 10:16 AM
    #28
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,071
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    First off you want to get your cutoff level then you want to aim the in at 25'. You should have a 2.1" to 2.5" drop form the height of the midddle of your projector to the cut off on the wall. You cant use this link as a guide.

    http://www.hidplanet.com/forums/showthread.php?10848-HOW-TO-aim-HID-headlights

  9. Dec 23, 2011 at 10:26 AM
    #29
    Commanderwiggin

    Commanderwiggin [OP] Well-Known Member

    Joined:
    Nov 21, 2011
    Member:
    #67438
    Messages:
    356
    Gender:
    Male
    Calgary
    Vehicle:
    12 Tacoma D/C 4x4 TRD Sport 6MT Supercharged
    Thanks!

    Supposed to be plug and play...dunno if the 2012 housings are different but the alignment notch is perfectly at 12 O Clock or 0 Degrees which is where it needs to be for horizontal alignment. :mad:

    Yes I will get the cutoff level before alignment...just wanted to take care of the aim after. Thx for the link.

  10. Dec 23, 2011 at 10:39 AM
    #30
    Commanderwiggin

    Commanderwiggin [OP] Well-Known Member

    Joined:
    Nov 21, 2011
    Member:
    #67438
    Messages:
    356
    Gender:
    Male
    Calgary
    Vehicle:
    12 Tacoma D/C 4x4 TRD Sport 6MT Supercharged
    Ummm...they're orange?

  11. Dec 23, 2011 at 10:40 AM
    #31
    shweller

    shweller Well-Known Member

    Joined:
    Feb 19, 2011
    Member:
    #51456
    Messages:
    690
    Gender:
    Male
    Corona
    Vehicle:
    2010 Tacoma TRD Sport SB 4x4
    PoP 'N' Lock Satoshi Grill (Did it Myself) DSM UCA's (Desert Products) FXR 1.1 w/Gatling Gun Shrouds Phillips 85122 Method Racing Wheels HID Hella 500's behind Satoshi grill Fog Light Anytime Illuminated 4x4 Switch Ultragauge PIAA 510"s King Coilovers w/resi's Rear TSB Leaf Packs All Pro Sliders Bolt on sliders 255/75 R17 BF Goodrich Mudders Spidertrax wheel spacers Neoprene arm rests Weathertechs Wet Okoles w/TRD Allpro Ofrroad Apex bumper and IFS skid plate
    x2 those are nice!

  12. Dec 23, 2011 at 11:30 AM
    #32
    Appljaxx

    Appljaxx He said "Member," ahuh huh

    Joined:
    Nov 9, 2011
    Member:
    #66732
    Messages:
    607
    Gender:
    Male
    First Name:
    Jeremy
    Albuquerque, NM
    Vehicle:
    '12 4x4 DCSB
    OME Nitrocharger front, 5/8 front spacer, 885s, OME N182s rear, dakar leafs, Diff Drop, TRD exhaust, Blackout emblems, 20% tint, Hi-Jack bed mounted, Dwreck sliders on order :)
    If you black out the reflector, won't it affect the amount of illumination?

    Nice looking 2012.

  13. Dec 23, 2011 at 11:37 AM
    #33
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    13,041
    Gender:
    Male
    First Name:
    Colton
    MT recently relocated to Willmar, MN
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    TRD Cold Air Intake, rear cat delete with Aero Turbine 2525, Maglite mount mod, white LED's all around, white gauges w/blue needles, Tinted Tails, Morimoto 32" XBAR LED Bar, Truxedo Lo-Pro QT Tonneau, Pioneer AVIC X-920 BT touchscreen, FX-R Retrofit, LR UCAs, OME 3" Lift w/ Dakar leafs, DTLT Headers, Walbro 255 fuel pump, TRD S/C, Hankook Dynapro ATM tires
    No. All of the light on the road is put out by the projector. This type of setup doesn't need a bowl to reflect off of in order to aim its light.

  14. Dec 23, 2011 at 1:00 PM
    #34
    Commanderwiggin

    Commanderwiggin [OP] Well-Known Member

    Joined:
    Nov 21, 2011
    Member:
    #67438
    Messages:
    356
    Gender:
    Male
    Calgary
    Vehicle:
    12 Tacoma D/C 4x4 TRD Sport 6MT Supercharged
    2012's don't fit the Mini D2S kits without modification...confirmed

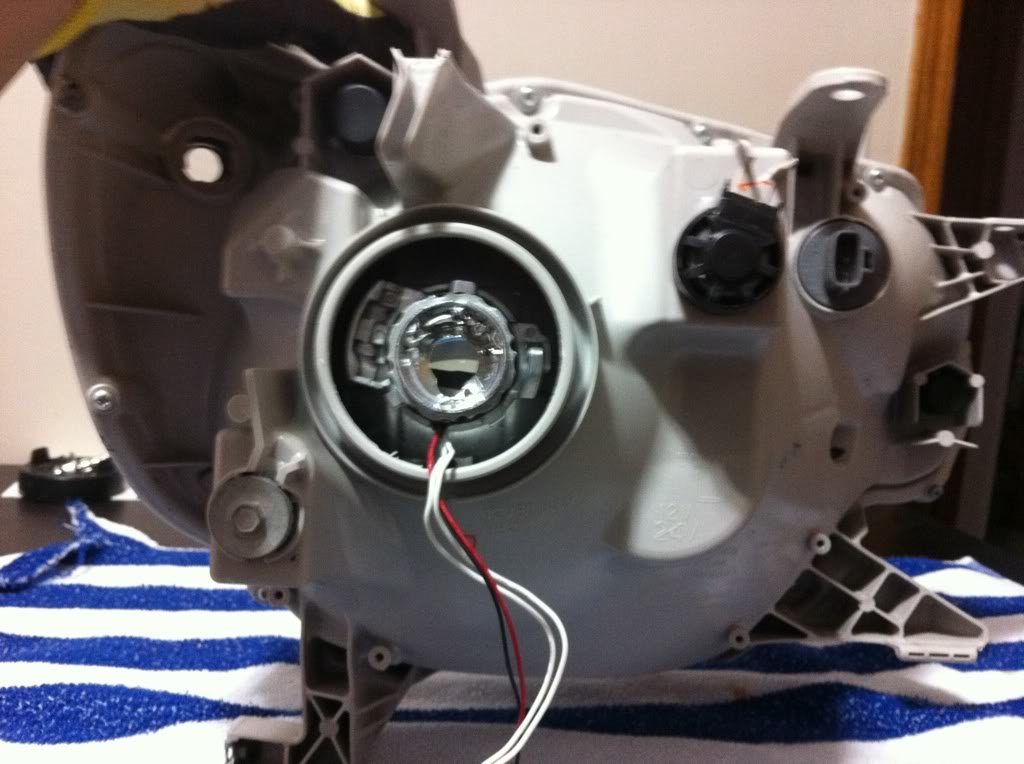

    [​IMG]

  15. Dec 24, 2011 at 2:31 AM
    #35
    Commanderwiggin

    Commanderwiggin [OP] Well-Known Member

    Joined:
    Nov 21, 2011
    Member:
    #67438
    Messages:
    356
    Gender:
    Male
    Calgary
    Vehicle:
    12 Tacoma D/C 4x4 TRD Sport 6MT Supercharged
    So after many frustrations including a massive mishap with some epoxy glue and a broken notch on my bulb (will need to be replaced)...we have success!!

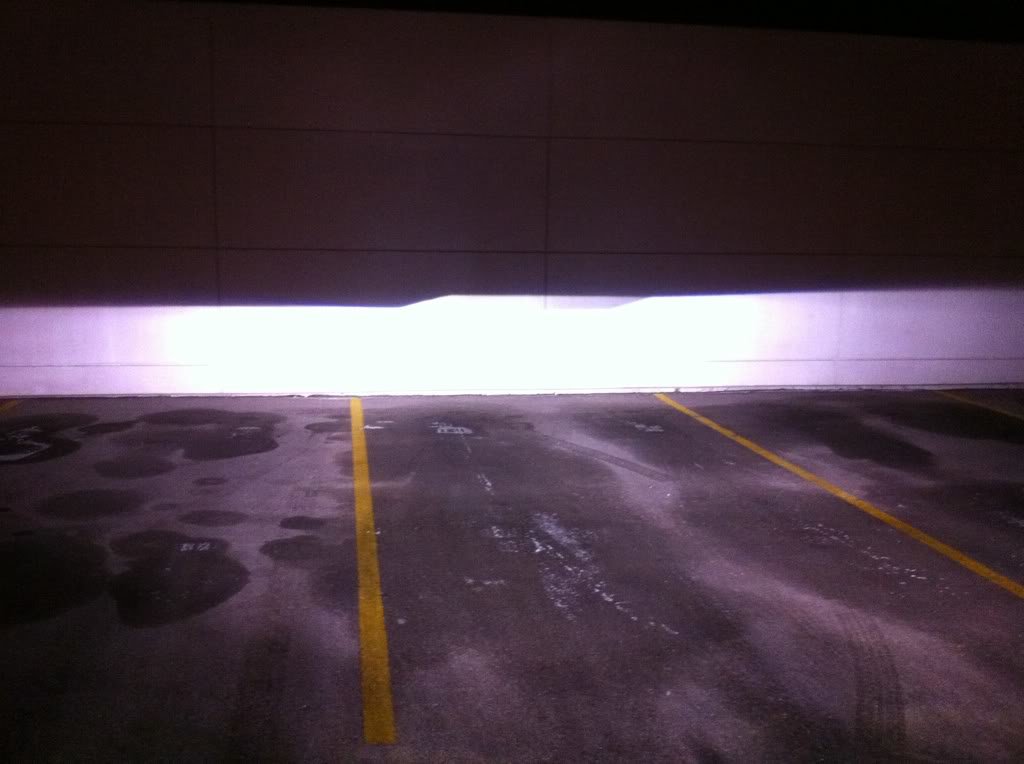

    Lows:
    [​IMG]

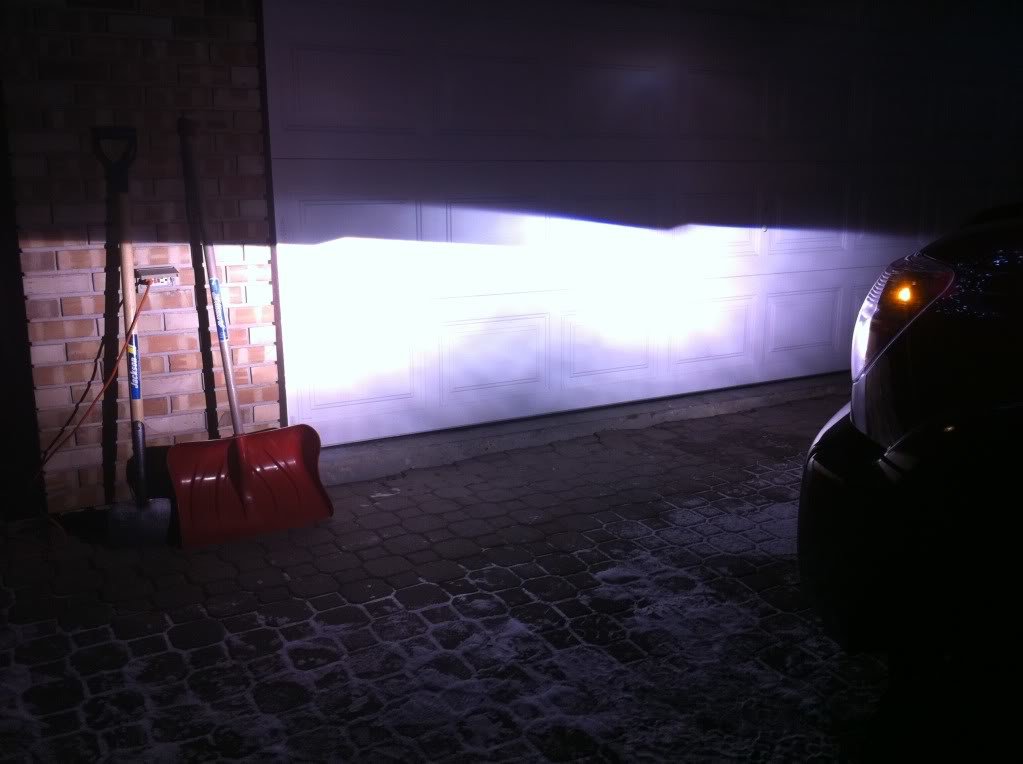

    Lows Again:
    [​IMG]

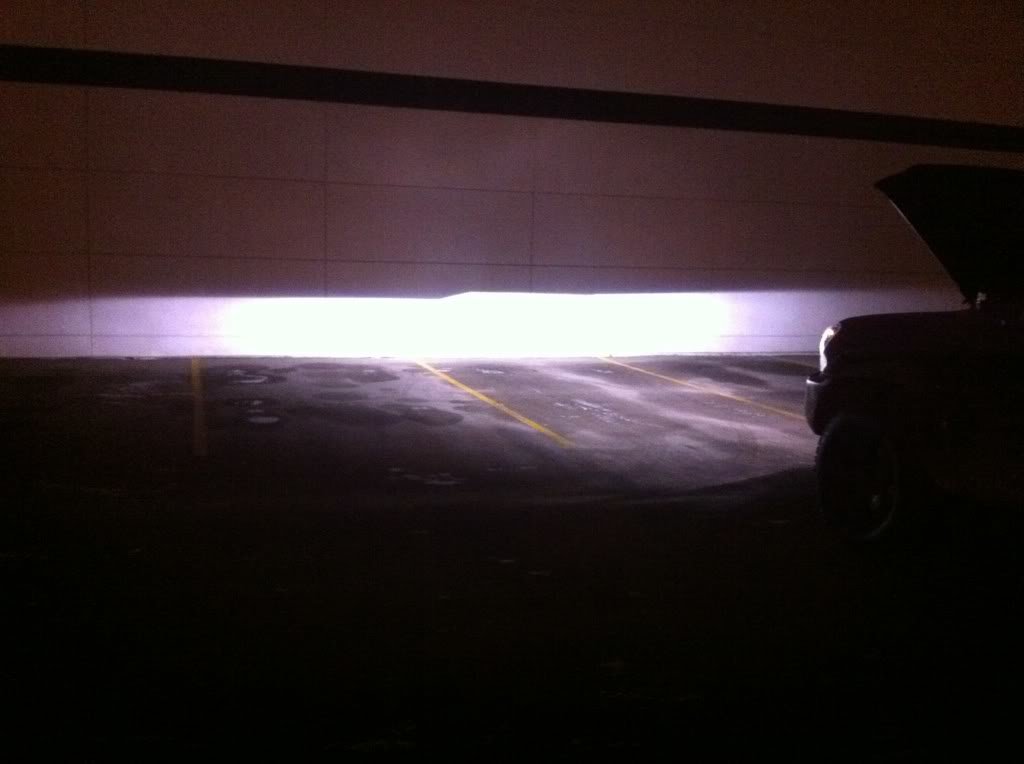

    Highs:
    [​IMG]

  16. Dec 24, 2011 at 2:33 AM
    #36
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    13,041
    Gender:
    Male
    First Name:
    Colton
    MT recently relocated to Willmar, MN
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    TRD Cold Air Intake, rear cat delete with Aero Turbine 2525, Maglite mount mod, white LED's all around, white gauges w/blue needles, Tinted Tails, Morimoto 32" XBAR LED Bar, Truxedo Lo-Pro QT Tonneau, Pioneer AVIC X-920 BT touchscreen, FX-R Retrofit, LR UCAs, OME 3" Lift w/ Dakar leafs, DTLT Headers, Walbro 255 fuel pump, TRD S/C, Hankook Dynapro ATM tires
    Much better! We need to have a talk eventually about what you did to accomplish the task lol. Nice work

  17. Dec 24, 2011 at 2:45 AM
    #37
    Commanderwiggin

    Commanderwiggin [OP] Well-Known Member

    Joined:
    Nov 21, 2011
    Member:
    #67438
    Messages:
    356
    Gender:
    Male
    Calgary
    Vehicle:
    12 Tacoma D/C 4x4 TRD Sport 6MT Supercharged
    I ended up shaving the housing where the adapter plate fits into and allowed it some play so I could dial the horizonal alignment in...made note of it and then used some heavy duty epoxy to lock it in place...I know the next time this comes off it will be getting an FXR Setup. The glue makes it permanent...not ideal but I ran out of time and needed a solution.

  18. Dec 24, 2011 at 6:50 AM
    #38
    05 X-Runner

    05 X-Runner Murdered X

    Joined:
    Apr 10, 2008
    Member:
    #5880
    Messages:
    2,751
    Gender:
    Male
    First Name:
    Brett
    Napa, Nor-Cal. Whine Country U.S.A
    Vehicle:
    BSP 05 X-Runner, 07 TRD Sport Super White
    HVM C/F X-Runner badge 1 of 6 made,P/C'ed black rims,Blacked out Billet Grill,BLHM,HID's,Tinted tail covers, Fog light mod,BFLM,C2C Black eyelids,,C2C 1.75" Front drop 2" rear,C2C Hoodstruts,URD Shortshifter,URD T-CAI.Custom Coupe shiftball, NST Manifold Spacer.. 07 TRD Sport Super White,De-badged,White headlight Mod,Fog light mod,White tail light mod,C2C white eyelids, C2C hood struts
    Awesome job truck looks great...:headbang:

  19. Dec 24, 2011 at 8:00 AM
    #39
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,071
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    Nice work glad you got it fixed.

  20. Dec 24, 2011 at 8:00 AM
    #40
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,071
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    Nice work glad you got it fixed.
