2012 Mirror into 2009+ Truck, wiring in TEMP/Homelink

Discussion in '2nd Gen. Tacomas (2005-2015)' started by BlackSeven, Feb 17, 2012.

  1. Feb 17, 2012 at 7:54 PM
    #1
    BlackSeven

    BlackSeven [OP] Grab your helmet, this shits about to get retarded

    Joined:
    Jan 29, 2012
    Member:
    #71733
    Messages:
    468
    Gender:
    Male
    First Name:
    Mike
    Maryland
    Vehicle:
    '10 Reg Cab 4x4
    Toytec Ultimate Lift kit, Toytec Rear AAL, 4.88 Gears, ARB Rear locker, Doug Thorley header, Volant Cold Air Intake, Demello Offroad front high clearance bumper, ARB On board Air compressor, BLHM, Wet Okoles, 2011 Color matched grill, Weathertech mats, 4x Innovations Sliders, ATO Engine Skid plate, ATO High lift bed mounts.
    Whats covered in this guide:
    Running Homelink and Temp output to the 2012 Mirror in the 2009+ trucks.

    What's not covered:
    How to install the mirror itself. This is covered in other places on the forum. I'm also not going to go over the wiring diagram itself or how to disassemble your truck. These will be the pinouts only. The wiring diagrams can be difficult to read and it's my goal not to confuse you.

    Parts Needed:
    For Reg cab only:
    1x Pin kit for connector A-14 P/N 82998-12870 + Press Sleeve (Crimp) 8299-12020
    For all trucks:
    2x Pin kit for connector I8 82998-24290 + Press sleeve 8299-12020
    (these are used to get a wire into the connector, their use is pretty straight forward, you crimp in your wire and insert it into the blank pin where specified)
    Some Automotive thin gauge stranded wire available at any autoparts store. You'll need about 10 feet for Regular cab trucks. Much less for V6 trucks.
    Various taps/crimp connectors.

    In 05-08 trucks, the temp sender will not work, at least I haven't found a way to make it work. It's a two wire resistor type temp sensor meaning you have two wire inputs (+/-) that need to be connected to the temp display.

    2009+ Trucks looks for a temp on a single wire in pin 12 of connector I8, this connector is found in the headliner of all 2009+ trucks (reg cab, dbl, access). This is the connector you'll plug into your new mirror to get your 2012 mirror working with the back up camera.

    The only problem is the 2009, 2010 and 2011 are missing this circuit from I8. These circuits exist in the v6 trucks in plug A28 Pin 5 that plugs in to your overhead console to display temp. This circuit is completely missing from the regular cab trucks. FEAR NOT MORTALS FOR I HAVE A SOLUTION FOR ALL OF YOU!

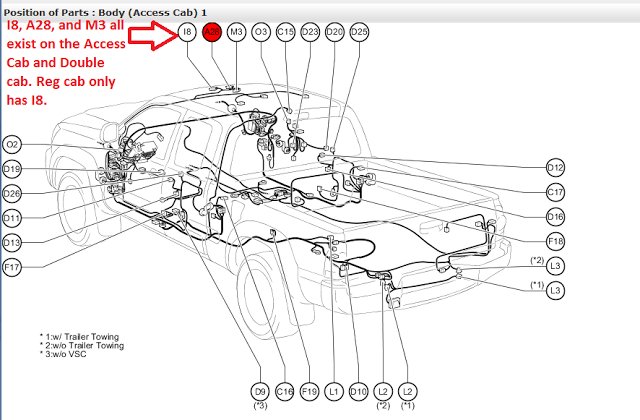

    On the V6 trucks you simply tap into the wire that runs to your overhead console temp display(Pin 5, connector A 28) and run it down to pin 12 of your I8 Connector. Very simple.
    [​IMG]
    [​IMG]

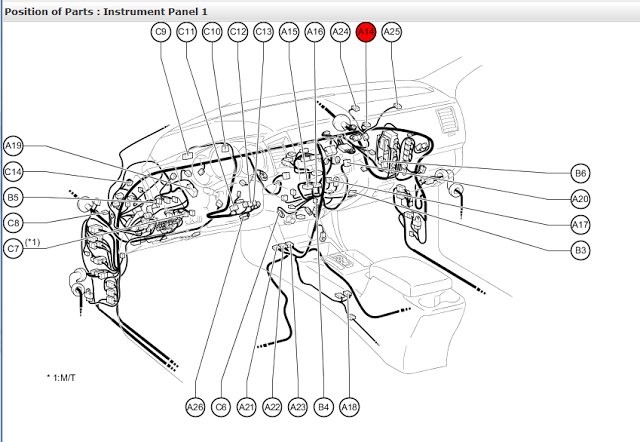

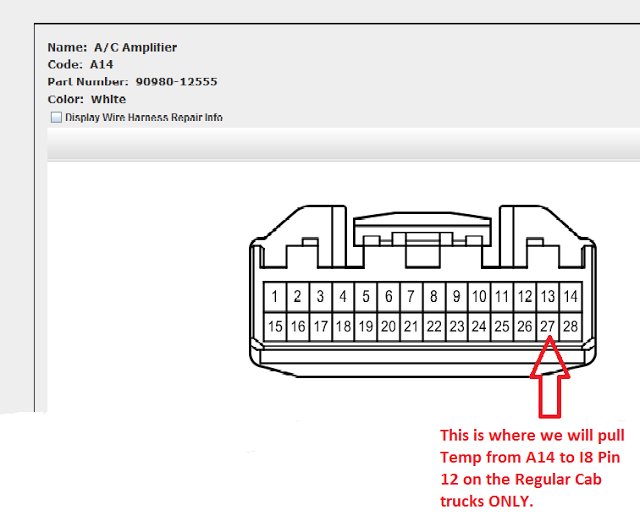

    For the Regular cabbers like myself, we'll need to get a little more involved. You can get the temp signal from Pin 27 of Connector A-14 at the A/C Amplifier. The bad news, is this connector is up under the dash. You'll need to run this wire through the dash to the pillar and up into the headliner to get it over to pin 12 on connector I8.
    [​IMG]
    [​IMG]

    To get homelink to work you need to run 12v+ Constant to Pin 8 of the I8 Connector, I'll leave it up to you where you want to get this from. I recommend the cabin light, that way if you need to open your garage without the key in the ignition you can. You may choose to run this to ignition powered source so if someone breaks into your truck they can't get into your house without the key.
    [​IMG]

    Hope this helps. Let me know if you have any specific questions about the modification. I figure if it's there, it should be fully functional. If you somehow manage to destroy or fry your truck, that's your problem. I'm assuming you have some basic automotive electrical skills. :)

    DistortedAxis likes this.
  2. Feb 17, 2012 at 8:00 PM
    #2
    Fractured

    Fractured FPS-a-holic

    Joined:
    Dec 23, 2011
    Member:
    #69293
    Messages:
    824
    Gender:
    Male
    First Name:
    Corey
    NOR*Cal
    Vehicle:
    2012 MGM DCSB 4x4
    TRD wheels, TRD cat back exhaust, ScanGauge 2, Debadged, Avid sliders, UWS bed box w/automatic LED light, Led Interior/Reverse/Lic. Plate lights, Yellow Fogs, Flyzeye Light, Color matched grill, Rearview mirror relocate bracket, Power Sliding rear window, Plasti-dipped bumper/"T" emblem
    Great guide!

  3. Feb 17, 2012 at 8:20 PM
    #3
    dexterdog

    dexterdog My pee parts itch

    Joined:
    Jul 12, 2009
    Member:
    #19571
    Messages:
    4,272
    Gender:
    Male
    Oly WA
    Vehicle:
    2012 F150
    subbed.

  4. Feb 17, 2012 at 9:29 PM
    #4
    Bobbb

    Bobbb "Rumors of Bob, but never Bob. It is Bob, right?"

    Joined:
    Sep 14, 2011
    Member:
    #63498
    Messages:
    1,211
    Gender:
    Male
    First Name:
    Bob
    Bob
    Vehicle:
    Bob
    Tundra TRD/OR
    Nice write-up! Even after 6 months of driving this truck, I still find myself looking at the mirror to see what the outside temp is since that's how my last vehicle ('04 Wrangler) had it. This mod is definitely on my list.

  5. Feb 19, 2012 at 9:17 PM
    #5
    BlackSeven

    BlackSeven [OP] Grab your helmet, this shits about to get retarded

    Joined:
    Jan 29, 2012
    Member:
    #71733
    Messages:
    468
    Gender:
    Male
    First Name:
    Mike
    Maryland
    Vehicle:
    '10 Reg Cab 4x4
    Toytec Ultimate Lift kit, Toytec Rear AAL, 4.88 Gears, ARB Rear locker, Doug Thorley header, Volant Cold Air Intake, Demello Offroad front high clearance bumper, ARB On board Air compressor, BLHM, Wet Okoles, 2011 Color matched grill, Weathertech mats, 4x Innovations Sliders, ATO Engine Skid plate, ATO High lift bed mounts.
    Also, if you're looking for the cover that covers the wire from the mirror to the headliner, the part number is 87818-04010, shouldn't run you more then 8 dollars, if you pay more they're ripping you off!

  6. Mar 26, 2012 at 9:34 AM
    #6
    DelTaco

    DelTaco Well-Known Member

    Joined:
    Jun 6, 2011
    Member:
    #57838
    Messages:
    221
    Gender:
    Male
    DELAWHERE
    Vehicle:
    '16 TRD Sport DCSB
    To get Homelink to work with the ignition "on" can i just tap into the thick green wire in the I8 connector and bridge it to pin 8? If that makes sense..

  7. Apr 6, 2012 at 10:29 AM
    #7
    Tunngavik

    Tunngavik Well-Known Member

    Joined:
    Oct 14, 2009
    Member:
    #24328
    Messages:
    1,964
    Gender:
    Male
    Alberta, Canada
    Vehicle:
    2010 Access Cab SR5 4x4 5 speed 2.7l
    Fog lights with OEM switch - Heated mirrors with OEM style switch - Cab sound deadening - Lighted 4x4 switch - URD short shifter - Rear backup camera - 2012 rear view mirror (compass, outdoor temperature and backup video mirror) - Heated seats - 2014 Tacoma stereo install - Bluetooth with OEM steering wheel controls, Access roll-up tonneau cover
    Blackseven, many thanks for posting this as I have been wanting to try this for some time.

    One quick question, is the A-14 connector tough to find and identify? Any quick tips?

  8. Apr 6, 2012 at 11:17 AM
    #8
    BlackSeven

    BlackSeven [OP] Grab your helmet, this shits about to get retarded

    Joined:
    Jan 29, 2012
    Member:
    #71733
    Messages:
    468
    Gender:
    Male
    First Name:
    Mike
    Maryland
    Vehicle:
    '10 Reg Cab 4x4
    Toytec Ultimate Lift kit, Toytec Rear AAL, 4.88 Gears, ARB Rear locker, Doug Thorley header, Volant Cold Air Intake, Demello Offroad front high clearance bumper, ARB On board Air compressor, BLHM, Wet Okoles, 2011 Color matched grill, Weathertech mats, 4x Innovations Sliders, ATO Engine Skid plate, ATO High lift bed mounts.
    Pull off your glove box and look up under there, there will be a black box with a connector plugged into it, That should be A-14.

  9. Apr 6, 2012 at 12:40 PM
    #9
    Tunngavik

    Tunngavik Well-Known Member

    Joined:
    Oct 14, 2009
    Member:
    #24328
    Messages:
    1,964
    Gender:
    Male
    Alberta, Canada
    Vehicle:
    2010 Access Cab SR5 4x4 5 speed 2.7l
    Fog lights with OEM switch - Heated mirrors with OEM style switch - Cab sound deadening - Lighted 4x4 switch - URD short shifter - Rear backup camera - 2012 rear view mirror (compass, outdoor temperature and backup video mirror) - Heated seats - 2014 Tacoma stereo install - Bluetooth with OEM steering wheel controls, Access roll-up tonneau cover
    Many thanks Mike - I look forward to ordering the parts and getting this done!

  10. May 26, 2012 at 4:30 PM
    #10
    Tunngavik

    Tunngavik Well-Known Member

    Joined:
    Oct 14, 2009
    Member:
    #24328
    Messages:
    1,964
    Gender:
    Male
    Alberta, Canada
    Vehicle:
    2010 Access Cab SR5 4x4 5 speed 2.7l
    Fog lights with OEM switch - Heated mirrors with OEM style switch - Cab sound deadening - Lighted 4x4 switch - URD short shifter - Rear backup camera - 2012 rear view mirror (compass, outdoor temperature and backup video mirror) - Heated seats - 2014 Tacoma stereo install - Bluetooth with OEM steering wheel controls, Access roll-up tonneau cover
    I just tried this mod on my 2010 4cyl access cab and it didn't work (at least the temperature does not read out and there are only 2 bars where the temp should be displayed). The compass and backup display does work.

    To confirm, you use 2 terminal repair wires (Part #'s 82998-24290, 82998-12870), connect these to pin 27 on A-14 and pin 12 on I-8 and then run a thin gauge wire between the 2 connections.

    For pin 27 on A-14 is there any other existing wires in the connector? It's really tough to determine the pin #'s on the connector - the one I used was free but had wires on either side.

    Any advice you can give?

  11. Jun 2, 2012 at 7:37 PM
    #11
    maxpower29

    maxpower29 Well-Known Member

    Joined:
    Mar 7, 2011
    Member:
    #52525
    Messages:
    6,644
    Gender:
    Male
    First Name:
    Jordan
    Nova Scotia, Canada
    Vehicle:
    2011 Tacoma 4x4 2.7 5 speed SWB
    All season mats, 2nd filter delete, DT header, Jardine cat-back, URD shifter, Bilstein 5100's all around at .85 front with Eibachs + .25 passenger/.5 drivers spacers and 1.5 AAL, 0w20 synthetic, Scanguage II, extra D rings, OEM backup camera+Mirror, bed mat, Extang Solid Fold, Popnlock 5300, Pro Comp 7089's 4.5bs 285/70/17 Revo 2s, De-badged
    bump for an answer

  12. Jun 2, 2012 at 8:17 PM
    #12
    BlackSeven

    BlackSeven [OP] Grab your helmet, this shits about to get retarded

    Joined:
    Jan 29, 2012
    Member:
    #71733
    Messages:
    468
    Gender:
    Male
    First Name:
    Mike
    Maryland
    Vehicle:
    '10 Reg Cab 4x4
    Toytec Ultimate Lift kit, Toytec Rear AAL, 4.88 Gears, ARB Rear locker, Doug Thorley header, Volant Cold Air Intake, Demello Offroad front high clearance bumper, ARB On board Air compressor, BLHM, Wet Okoles, 2011 Color matched grill, Weathertech mats, 4x Innovations Sliders, ATO Engine Skid plate, ATO High lift bed mounts.
    Sorry we were talking via pm. I tried using a 2012 temp sender to see if I could solve the problem. Thats not the solution. They're the same part. I need an oscilloscope to really find the problem ... And correct it. I think its a difference between what the ac amplifier is putting out and what the mirror is looking for signal wise. If I had a 2012 wiring manual I could probably come up with a solution. I only have the 2009 manual.

  13. Jun 2, 2012 at 8:29 PM
    #13
    maxpower29

    maxpower29 Well-Known Member

    Joined:
    Mar 7, 2011
    Member:
    #52525
    Messages:
    6,644
    Gender:
    Male
    First Name:
    Jordan
    Nova Scotia, Canada
    Vehicle:
    2011 Tacoma 4x4 2.7 5 speed SWB
    All season mats, 2nd filter delete, DT header, Jardine cat-back, URD shifter, Bilstein 5100's all around at .85 front with Eibachs + .25 passenger/.5 drivers spacers and 1.5 AAL, 0w20 synthetic, Scanguage II, extra D rings, OEM backup camera+Mirror, bed mat, Extang Solid Fold, Popnlock 5300, Pro Comp 7089's 4.5bs 285/70/17 Revo 2s, De-badged
    sounds good. I know im in no rush but i would like to know what comes of it whenever you figue it out

  14. Jun 4, 2012 at 8:31 AM
    #14
    Tunngavik

    Tunngavik Well-Known Member

    Joined:
    Oct 14, 2009
    Member:
    #24328
    Messages:
    1,964
    Gender:
    Male
    Alberta, Canada
    Vehicle:
    2010 Access Cab SR5 4x4 5 speed 2.7l
    Fog lights with OEM switch - Heated mirrors with OEM style switch - Cab sound deadening - Lighted 4x4 switch - URD short shifter - Rear backup camera - 2012 rear view mirror (compass, outdoor temperature and backup video mirror) - Heated seats - 2014 Tacoma stereo install - Bluetooth with OEM steering wheel controls, Access roll-up tonneau cover
    How much does the wiring manual cost? Can you buy portions/sections of it? Please let me know as I'm really interested in finding out if getting the temperature to work is possible.

  15. Jun 4, 2012 at 10:21 AM
    #15
    BlackSeven

    BlackSeven [OP] Grab your helmet, this shits about to get retarded

    Joined:
    Jan 29, 2012
    Member:
    #71733
    Messages:
    468
    Gender:
    Male
    First Name:
    Mike
    Maryland
    Vehicle:
    '10 Reg Cab 4x4
    Toytec Ultimate Lift kit, Toytec Rear AAL, 4.88 Gears, ARB Rear locker, Doug Thorley header, Volant Cold Air Intake, Demello Offroad front high clearance bumper, ARB On board Air compressor, BLHM, Wet Okoles, 2011 Color matched grill, Weathertech mats, 4x Innovations Sliders, ATO Engine Skid plate, ATO High lift bed mounts.
    Normally it would be here: http://www.helminc.com/helm/search_service_owner.asp?Style=helm&class_2=TOY

    But I don't even see the 2012 listed yet.

    The 2009 manual I have I got lucky and picked it up on ebay for about 40 dollars. Alternatively the techinfo.toyota.com site will give you access for 15 bucks for 48 hours. It has the information, but I've extremely frustrated using this site as I can't save anything if I need to reference it again later. So I refuse to use it at this point. They may feel their information is invaluable, but I paid alot of money for my truck. I feel that this information should be free to owners.

  16. Jun 6, 2012 at 7:41 AM
    #16
    Tunngavik

    Tunngavik Well-Known Member

    Joined:
    Oct 14, 2009
    Member:
    #24328
    Messages:
    1,964
    Gender:
    Male
    Alberta, Canada
    Vehicle:
    2010 Access Cab SR5 4x4 5 speed 2.7l
    Fog lights with OEM switch - Heated mirrors with OEM style switch - Cab sound deadening - Lighted 4x4 switch - URD short shifter - Rear backup camera - 2012 rear view mirror (compass, outdoor temperature and backup video mirror) - Heated seats - 2014 Tacoma stereo install - Bluetooth with OEM steering wheel controls, Access roll-up tonneau cover
    When the 2012 diagrams do come out, and you feel confident that you would be able to figure out how to get the temperature readout to work, then I would be willing to throw in a few bucks for the diagrams.


  17. Aug 24, 2012 at 8:03 PM
    #17
    B737

    B737 Throbbing Member

    Joined:
    Aug 1, 2012
    Member:
    #83903
    Messages:
    1,481
    Gender:
    Male
    First Name:
    Kevin
    Jersey Shore
    Vehicle:
    2015 Tundra Double Cab Limited
    stock
    i cant seem to locate the:
    "Press sleeve 8299-12020" on Champion, can someone point me to this part?

  18. Aug 24, 2012 at 8:15 PM
    #18
    jassco

    jassco Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20568
    Messages:
    558
    Gender:
    Male
    Boston
    Vehicle:
    2010 Access Cab 2.7L SR5 5spd, 4x4
    5100 set to .85 w/ rear TSB, 2012 Rear-view Mirror, Grillecraft, Team Trails FJ Wheels, TPMS canister, Rear headrest delete, Rear console delete, Valley Hitch, Frame undercoat, $2.99 Tailgate hose clamp lock, Avid light bar, 4x4 lighted switch ala Biceman.
    I am having more issue with the mirror's harness trying to figure out what the 12 wires are for. I need the pins for connector I8 detailed. I don't see them.


    Attached Files:

  19. Aug 25, 2012 at 7:16 AM
    #19
    jassco

    jassco Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20568
    Messages:
    558
    Gender:
    Male
    Boston
    Vehicle:
    2010 Access Cab 2.7L SR5 5spd, 4x4
    5100 set to .85 w/ rear TSB, 2012 Rear-view Mirror, Grillecraft, Team Trails FJ Wheels, TPMS canister, Rear headrest delete, Rear console delete, Valley Hitch, Frame undercoat, $2.99 Tailgate hose clamp lock, Avid light bar, 4x4 lighted switch ala Biceman.
    There are 9 wires used in the 2012 I8 connector on the truck. There are 12 pins in the mirror harness which all go into the mirror and are filled. This leaves 3 unused wires. The wires in the mirror harness unused are as follows:

    Pin #4: Orange
    Pin#5: Red
    Pin#10: Purple

    Now to figure out what what the mirror wold use these for as the truck doesn't seem to output to them as factory configured. I wish gentex had pinouts for these mirrors on their site.

  20. Aug 25, 2012 at 7:32 AM
    #20
    Canes58

    Canes58 Well-Known Member

    Joined:
    Apr 5, 2012
    Member:
    #76337
    Messages:
    486
    Gender:
    Male
    Pensacola
    Vehicle:
    09 RC 4x 5spd
    magnaflow - k&n - fact alum wheels - back up mirror - intermit wipers - JVC 800 w/focal 165's - oem fogs - 5100's fr & rear.
    I cut a Target pill bottle (plastic) in half (or more) and painted it black until I found the cover. I think I paid like $13. or so.
