2012 tacoma headlight install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by trooper12, Feb 29, 2012.

  1. Feb 29, 2012 at 8:31 PM
    #1
    trooper12

    trooper12 [OP] Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73480
    Messages:
    206
    Gender:
    Male
    First Name:
    Spencer
    Trabuco Canyon, CA
    Vehicle:
    2012 SR5 PreRunner
    maxtrac 4" lift spindles, wheelers 1.5" 3 leaf pack. nothin special...
    Fog Lights!! not headlights... I don't know how to change it, any help with this would be much appreciated

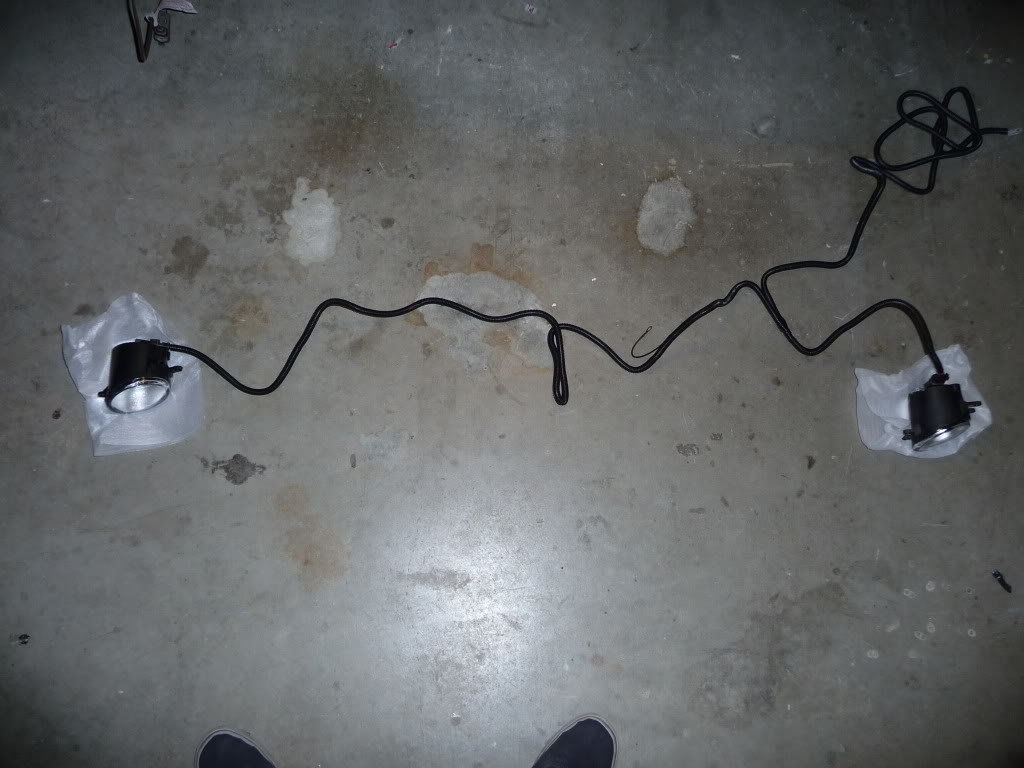

    Install of fog lights on a 2012 2.7L prerunner

    I bought this kit off of eBay http://www.ebay.com/itm/40022503339...tem=&sspagename=ADME:L:OU:MOTORS:1123&vxp=mtr

    The install went very easy, took about 45 min. except i dropped one light, which shattered into pieces :mad: but theres nothing that super glue can't fix, right?? I ordered another light, and its on the way. but i installed the lights anyway.

    I diddnt use the wiring that came with the kit, i used a 30amp relay that i had and some wiring connectors.

    sorry for the big pictures, don't want to spend the time to make them smaller.


    [​IMG]

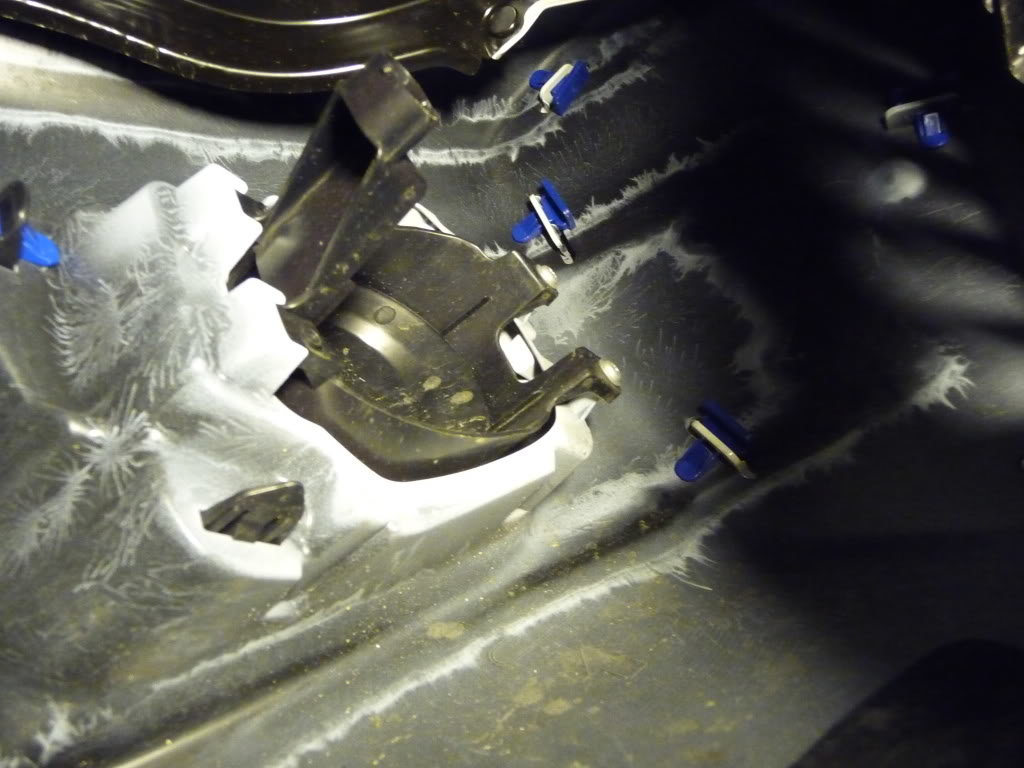

    First, you need to get the plastic covers off. it helps if you turn the wheel all the way out you can get all the way in the wheel well.

    [​IMG]

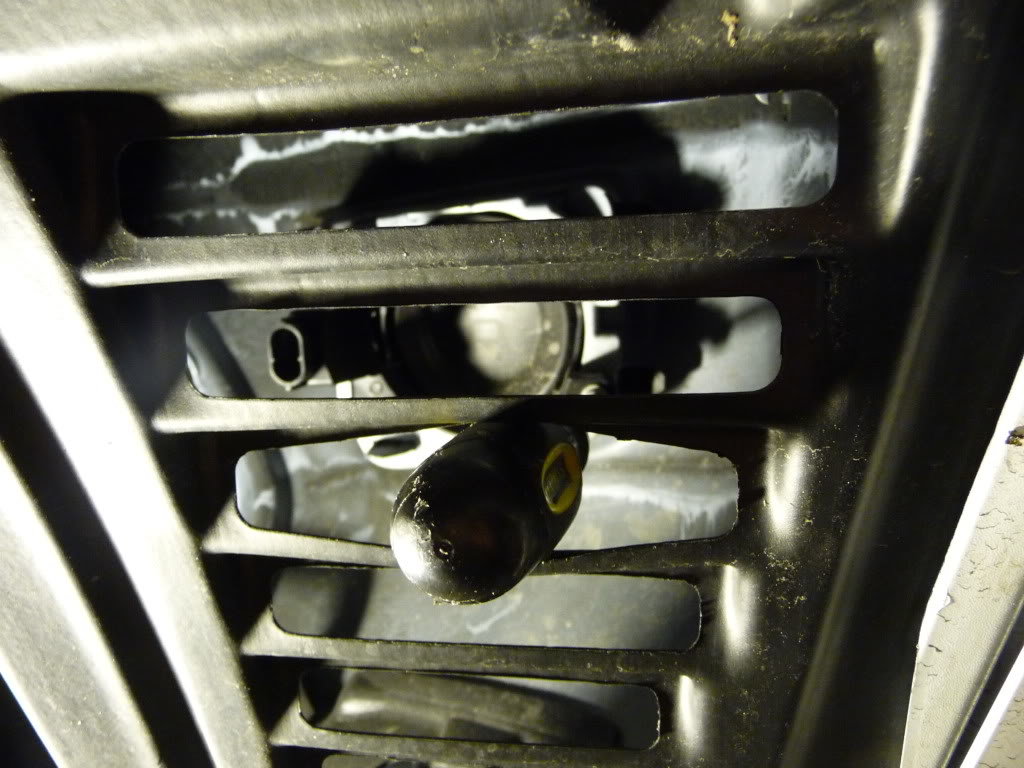

    on the passenger side you can get the screwdriver through the vents to unscrew the screws. but on the drivers side you need a short screwdriver to get at the bolts.

    [​IMG]
    [​IMG]

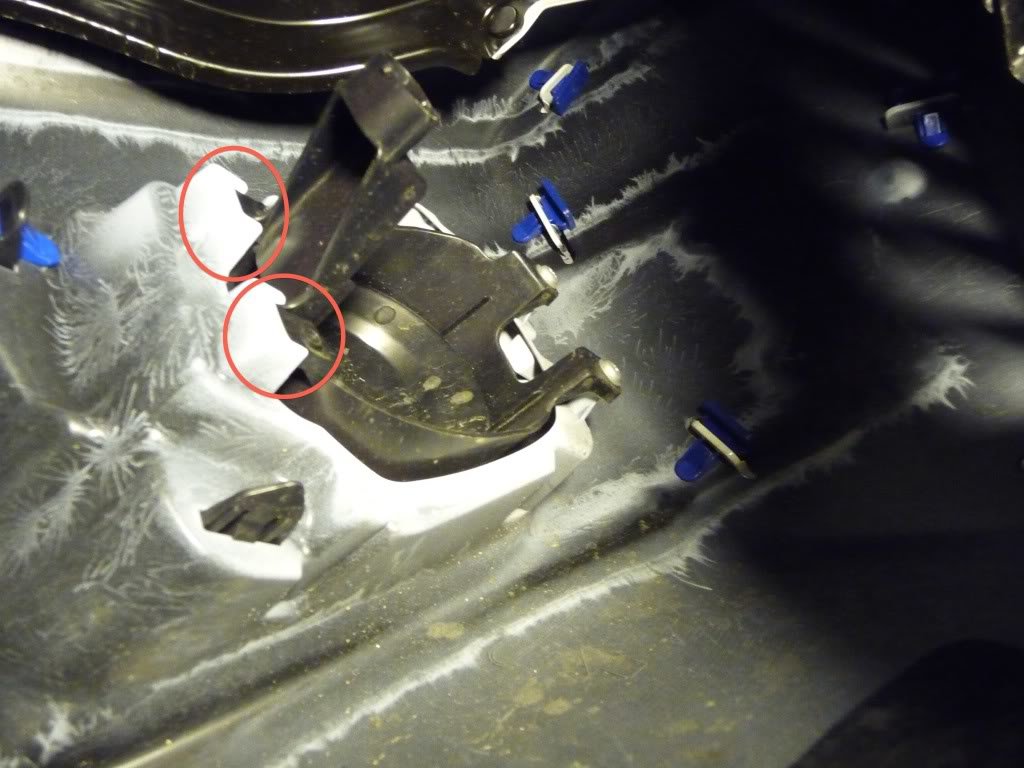

    when i put in the lights, the tabs would not fit in the slots the side opposite of the screws. so i had to cut the tabs, which made the light fit flush.

    [​IMG]

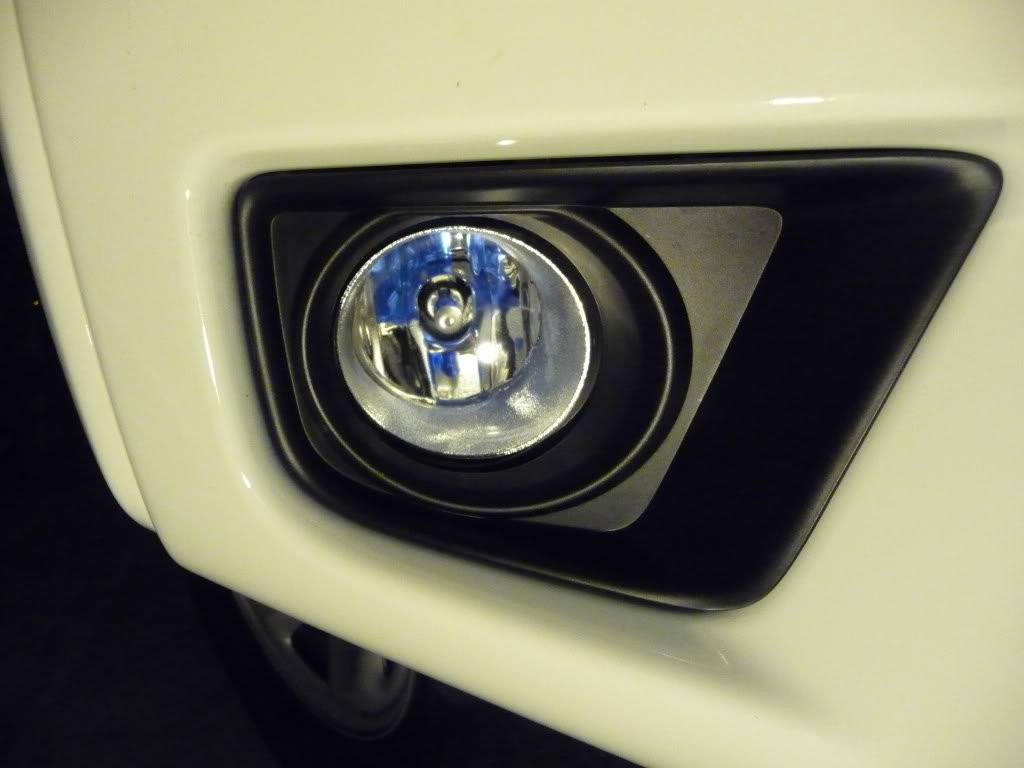

    it looks like a prefect fit!! :D


    Ok, now for the wiring.
    i diddnt want to have a switch in the car, so i used a relay with the headlights.


    [​IMG]

    I put the wire to the low beam, so the fog's turn off when the high beams are on, i wanna keep it legal. The low beam wire is the yellow and red wire.


    [​IMG]

    and after that just wire up the relay and mount it


    [​IMG]

    [​IMG]

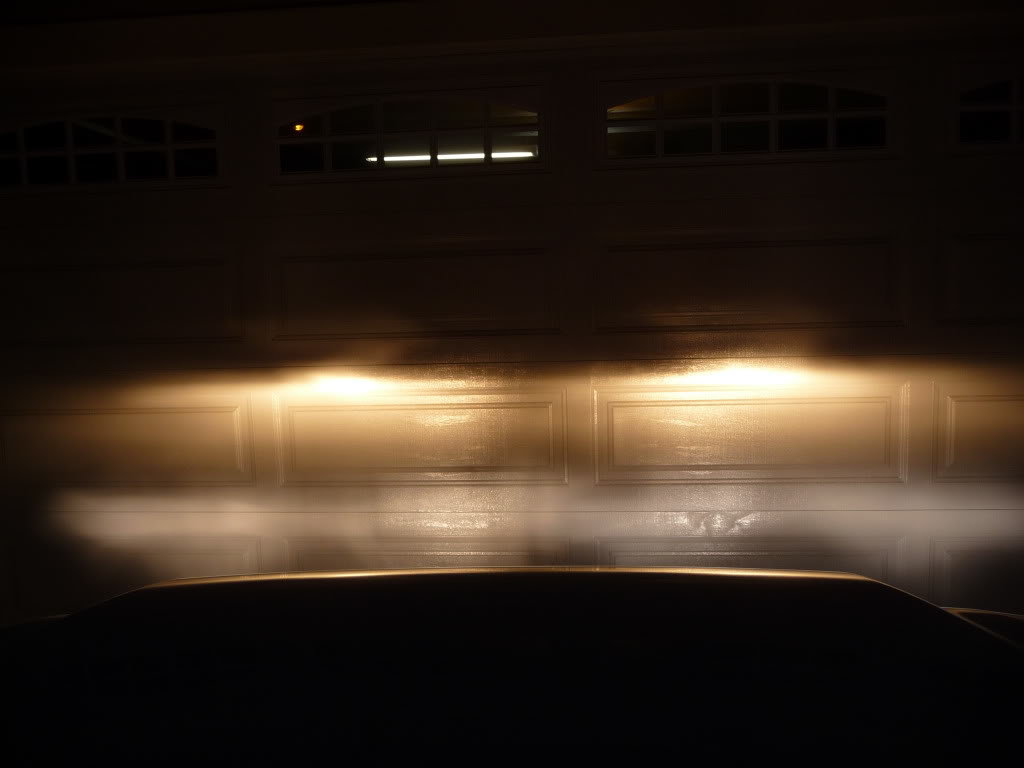

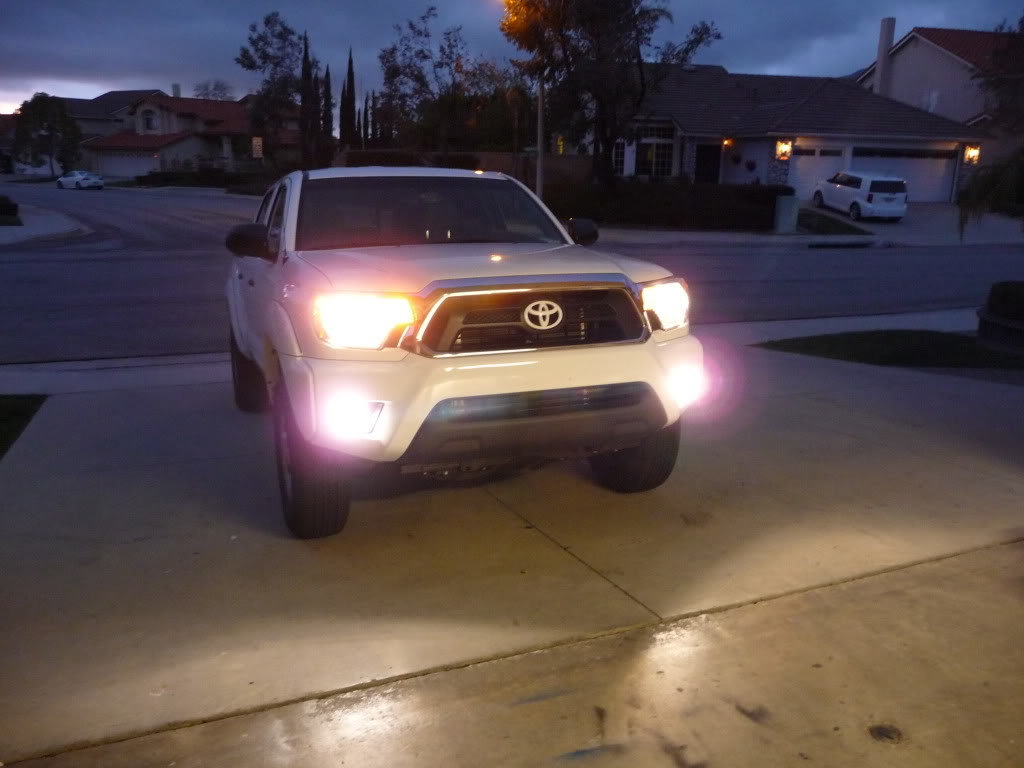

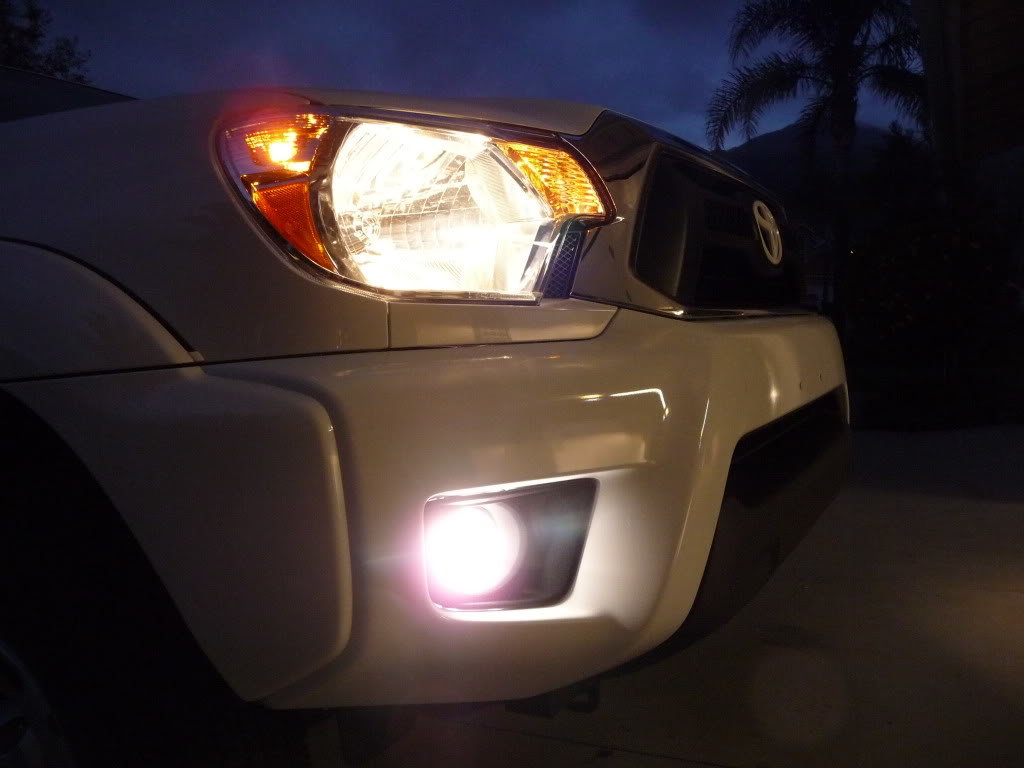

    Heres the finished product!! :cool:



    [​IMG]


    [​IMG]

    i tried to do a very clean install, the harness blends right in


    [​IMG]

    [​IMG]

    [​IMG]



    [​IMG]
    [​IMG]

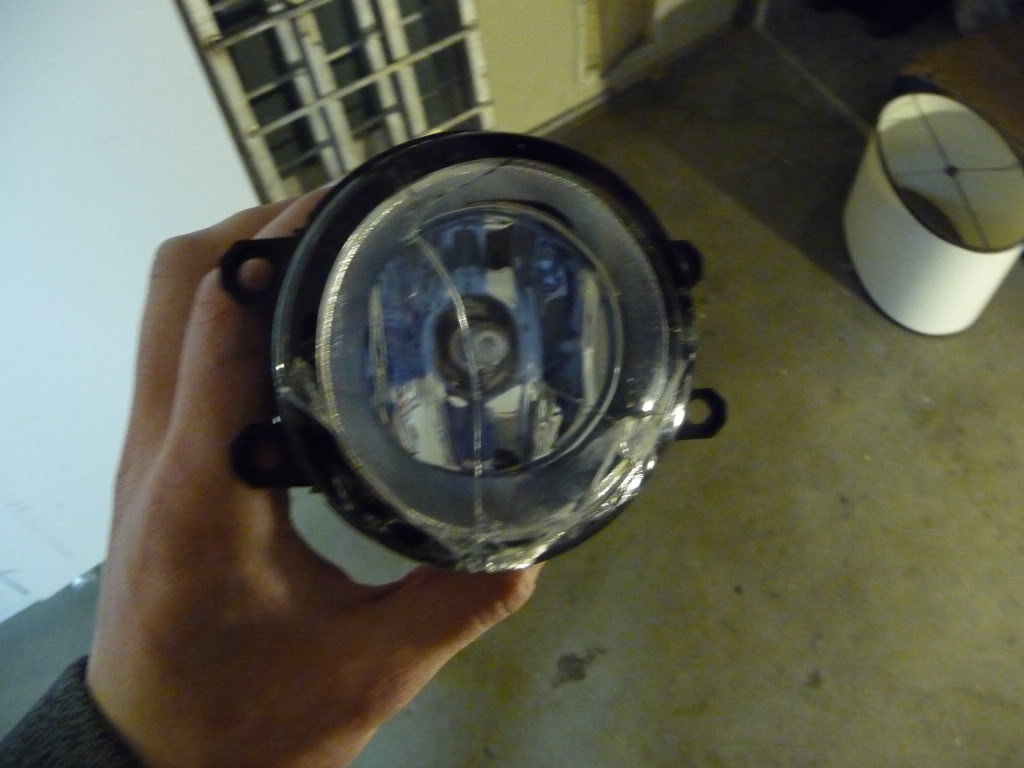

    broken light :mad::frusty:

  2. Feb 29, 2012 at 8:33 PM
    #2
    Tacofornia

    Tacofornia Chris

    Joined:
    Feb 2, 2009
    Member:
    #13227
    Messages:
    644
    Gender:
    Male
    HB, CA
    Vehicle:
    '12 DCSB 5-lug
    Xrunner wheels, splash guards removed
  3. Feb 29, 2012 at 8:36 PM
    #3
    Banger4

    Banger4 Well-Known Member

    Joined:
    Jan 7, 2012
    Member:
    #70182
    Messages:
    51
    Gender:
    Male
    First Name:
    Sean
    AR (Razorback Country)
    Vehicle:
    Reg Cab 4x4
    Supertop, 245/75/16 Goodyear Wrangler Authority A/T's, and Husky Floor Mats.
    Looks great! I noticed that the link shows the application for a late model Camry? Either way, if it worked out with no problems and looks stock, I'm in.

  4. Feb 29, 2012 at 8:39 PM
    #4
    trooper12

    trooper12 [OP] Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73480
    Messages:
    206
    Gender:
    Male
    First Name:
    Spencer
    Trabuco Canyon, CA
    Vehicle:
    2012 SR5 PreRunner
    maxtrac 4" lift spindles, wheelers 1.5" 3 leaf pack. nothin special...
    yea there was no problems, same part numbers. they were just cheaper for some reason.

    and if you were wondering why the lights have a blue tint is because they have the stupid blue coated bulbs in them

  5. Feb 29, 2012 at 8:40 PM
    #5
    trooper12

    trooper12 [OP] Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73480
    Messages:
    206
    Gender:
    Male
    First Name:
    Spencer
    Trabuco Canyon, CA
    Vehicle:
    2012 SR5 PreRunner
    maxtrac 4" lift spindles, wheelers 1.5" 3 leaf pack. nothin special...
    and does anybody know how to change the name of the thread?? some how it says headlights instead of fog lights

  6. Feb 29, 2012 at 8:43 PM
    #6
    Banger4

    Banger4 Well-Known Member

    Joined:
    Jan 7, 2012
    Member:
    #70182
    Messages:
    51
    Gender:
    Male
    First Name:
    Sean
    AR (Razorback Country)
    Vehicle:
    Reg Cab 4x4
    Supertop, 245/75/16 Goodyear Wrangler Authority A/T's, and Husky Floor Mats.
    Sorry,I have no idea how to change the name of a thread. Thanks for the information. I'm going to go ahead and order 'em! I like how you wired them into your low beams, much better than f'n with your dash and all!

  7. Feb 29, 2012 at 8:47 PM
    #7
    trooper12

    trooper12 [OP] Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73480
    Messages:
    206
    Gender:
    Male
    First Name:
    Spencer
    Trabuco Canyon, CA
    Vehicle:
    2012 SR5 PreRunner
    maxtrac 4" lift spindles, wheelers 1.5" 3 leaf pack. nothin special...
    thats exactly why i did it, i diddnt want to mess up any of the rubber grommets in the firewall. did it on my last truck, every time i hit a mud pit water/mud would come in

  8. Feb 29, 2012 at 9:15 PM
    #8
    Banger4

    Banger4 Well-Known Member

    Joined:
    Jan 7, 2012
    Member:
    #70182
    Messages:
    51
    Gender:
    Male
    First Name:
    Sean
    AR (Razorback Country)
    Vehicle:
    Reg Cab 4x4
    Supertop, 245/75/16 Goodyear Wrangler Authority A/T's, and Husky Floor Mats.
    Just ordered them! I looked at the Bling-Lights, but the mounting brackets don't look correct and another member on this board said they didn't work. Anyhow, thanks for the information and step by step instructions, including the pictures!

  9. Mar 1, 2012 at 10:10 PM
    #9
    trooper12

    trooper12 [OP] Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73480
    Messages:
    206
    Gender:
    Male
    First Name:
    Spencer
    Trabuco Canyon, CA
    Vehicle:
    2012 SR5 PreRunner
    maxtrac 4" lift spindles, wheelers 1.5" 3 leaf pack. nothin special...
    I was asked for a full write up on how to wire this up.

    So here you guys go.

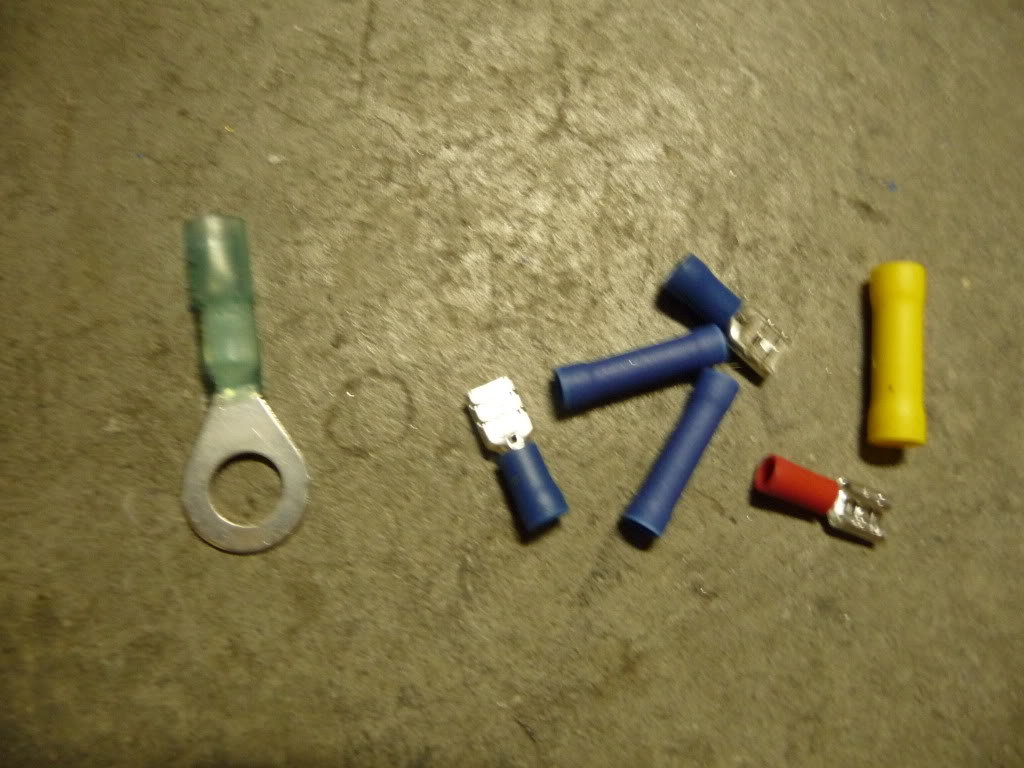

    the wiring is pretty basic and you should also get some wiring connectors, they make life a lot easier.

    [​IMG]



    First thing is that i did use some/most of the wiring in the kit. i just did not use the relay or switch in the kit.

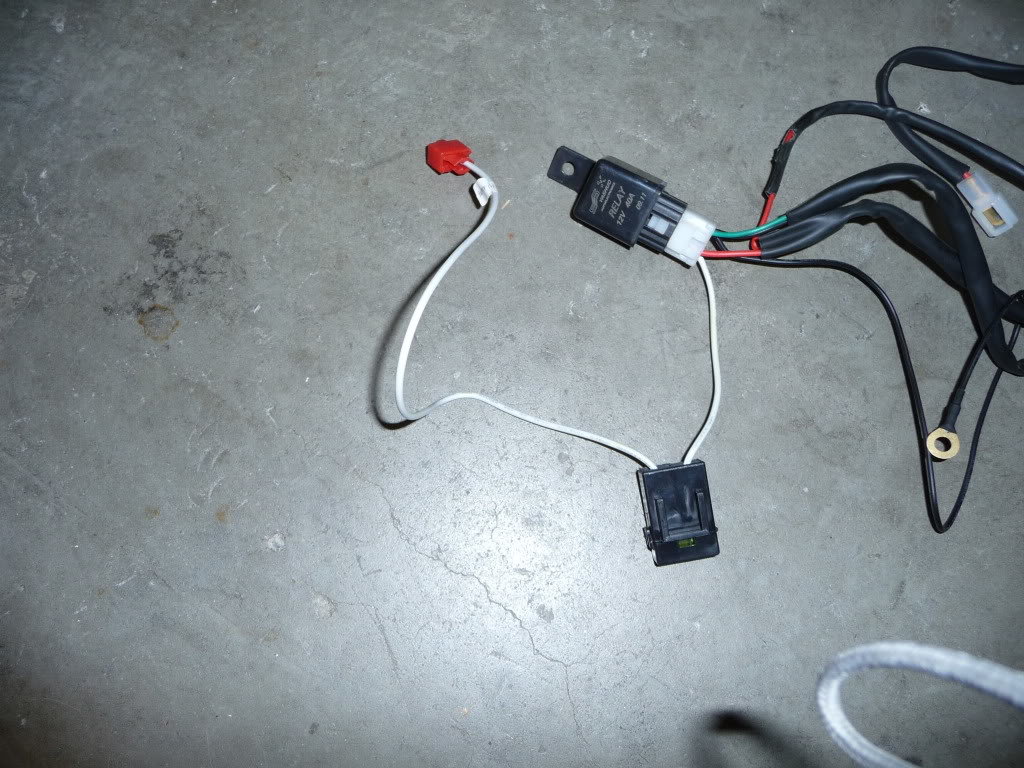

    The wiring for the lights I used.

    [​IMG]

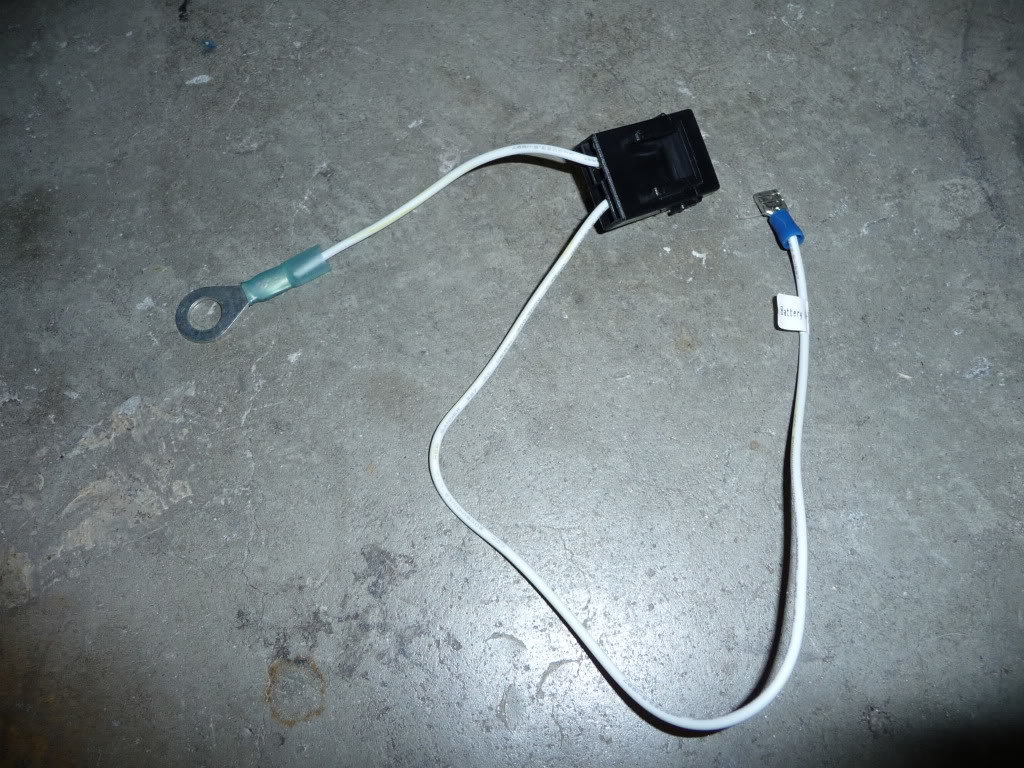

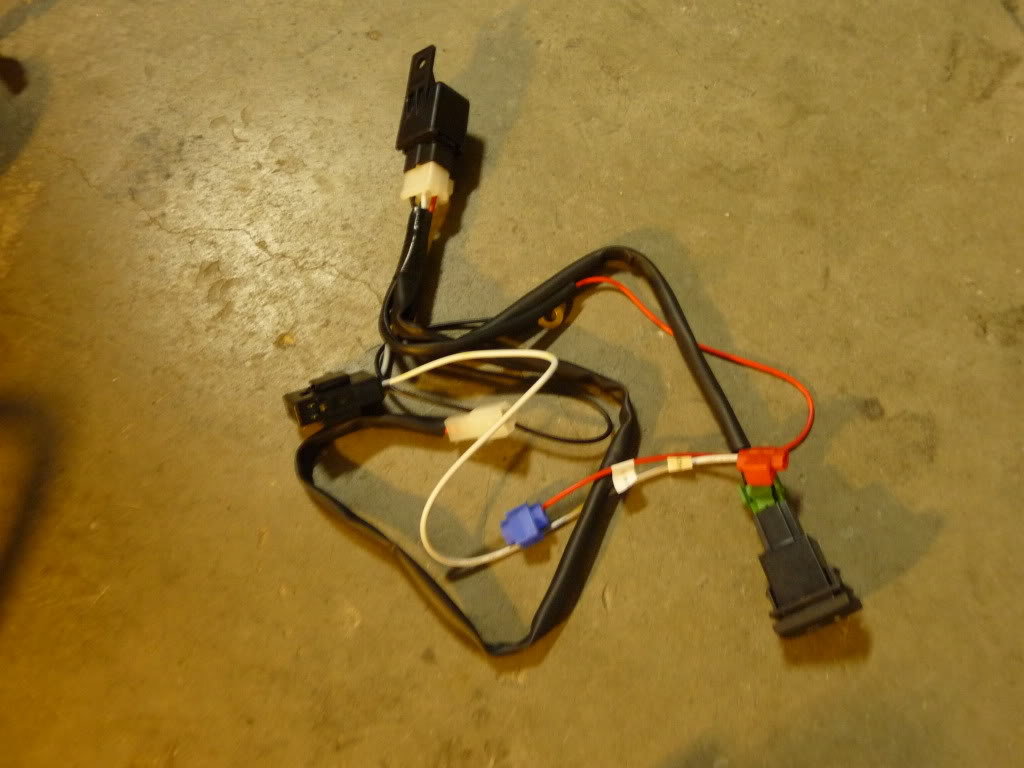

    The relay and switch for the lights, i did not use

    [​IMG]

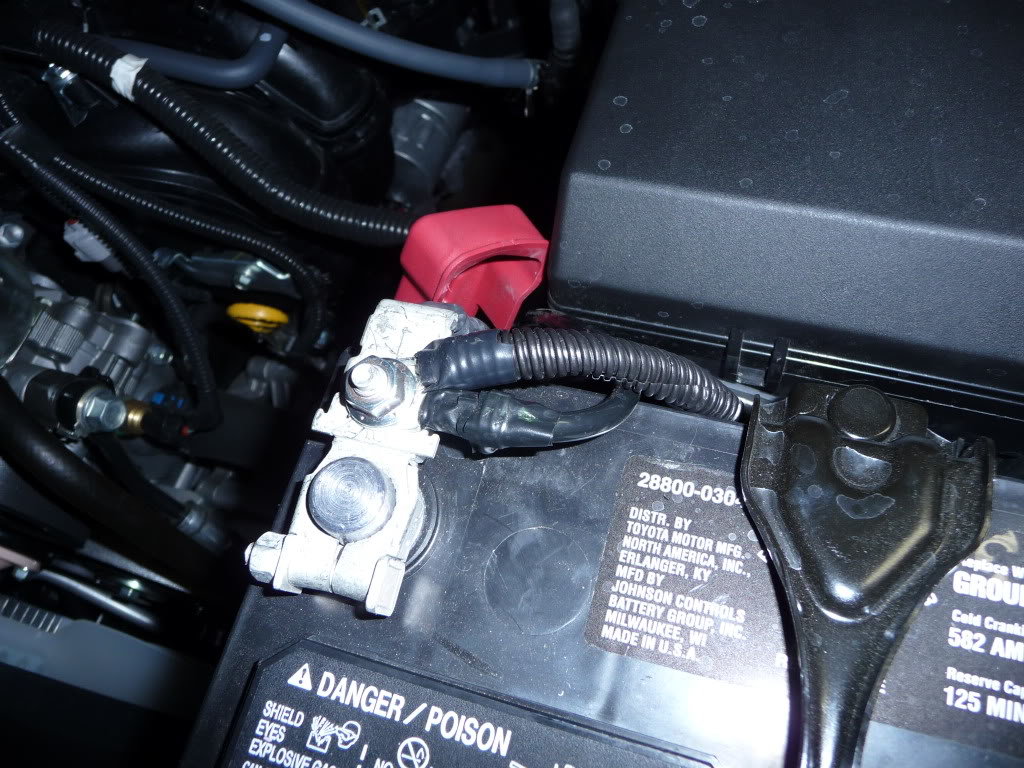

    From the relay/switch assembly, cut out the fuse and connect a battery terminal to it and a female connector.

    [​IMG]
    [​IMG]

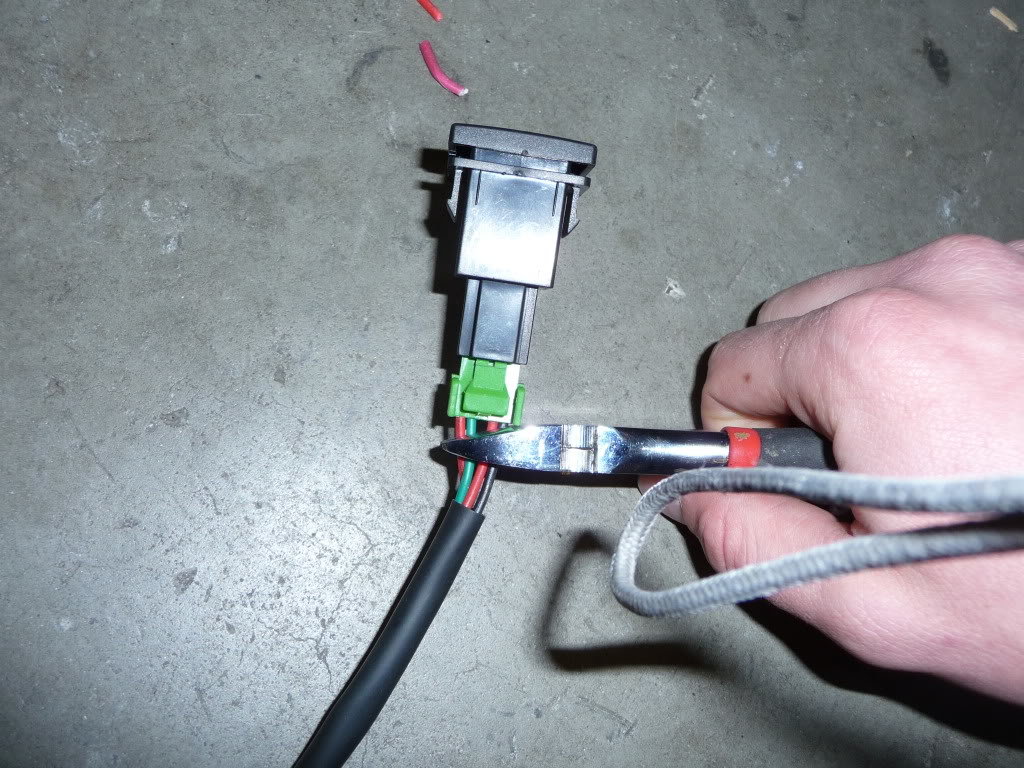

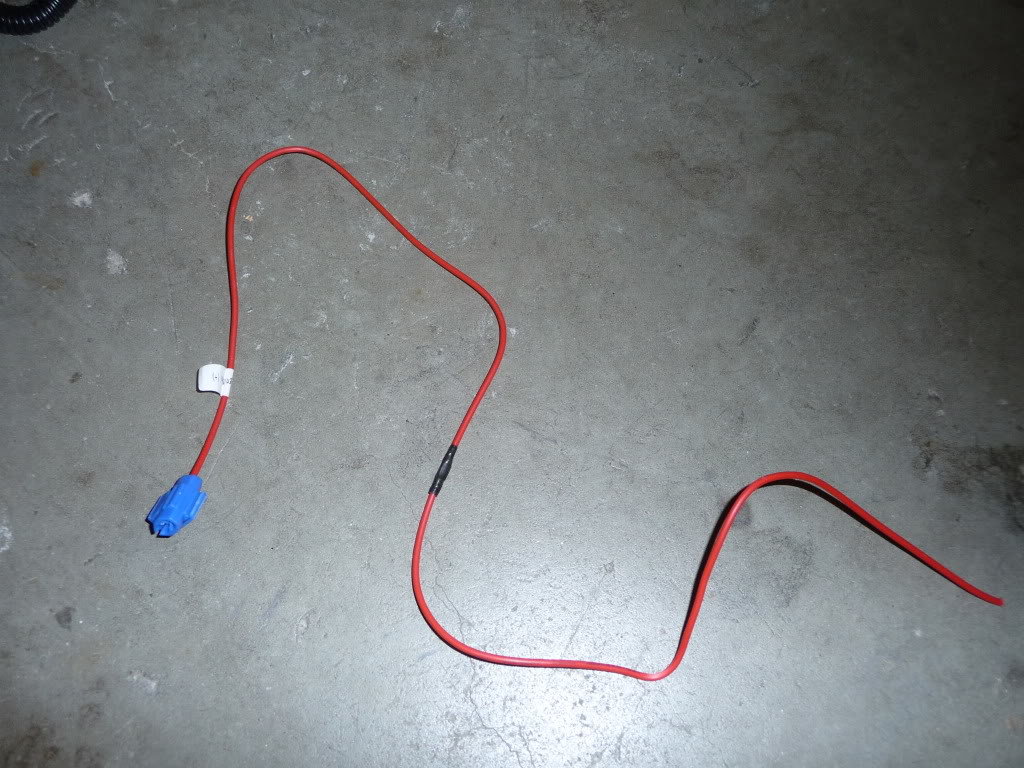

    Then after that, cut all the wires that connect to the switch.

    [​IMG]

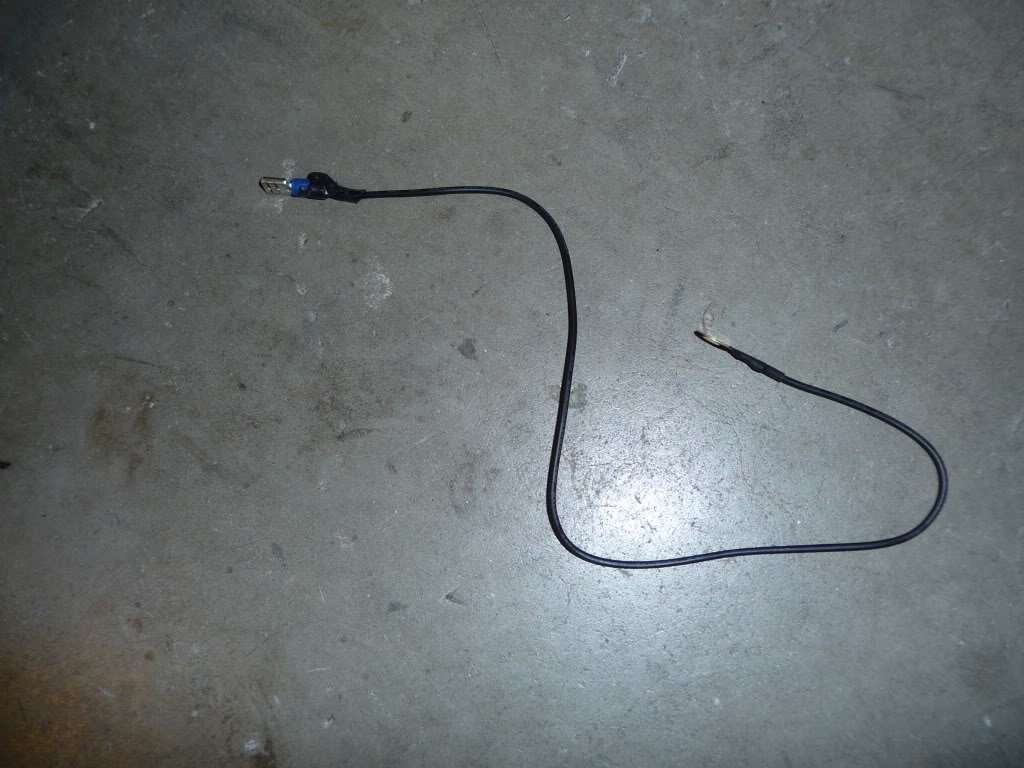

    Then pull out the wire that says "ignition" on it. then cut off the part of the wire that branches out.

    [​IMG]
    [​IMG]


    Next, cut off the ground wire from the relay. and attach a female connector to the end.

    [​IMG]
    [​IMG]

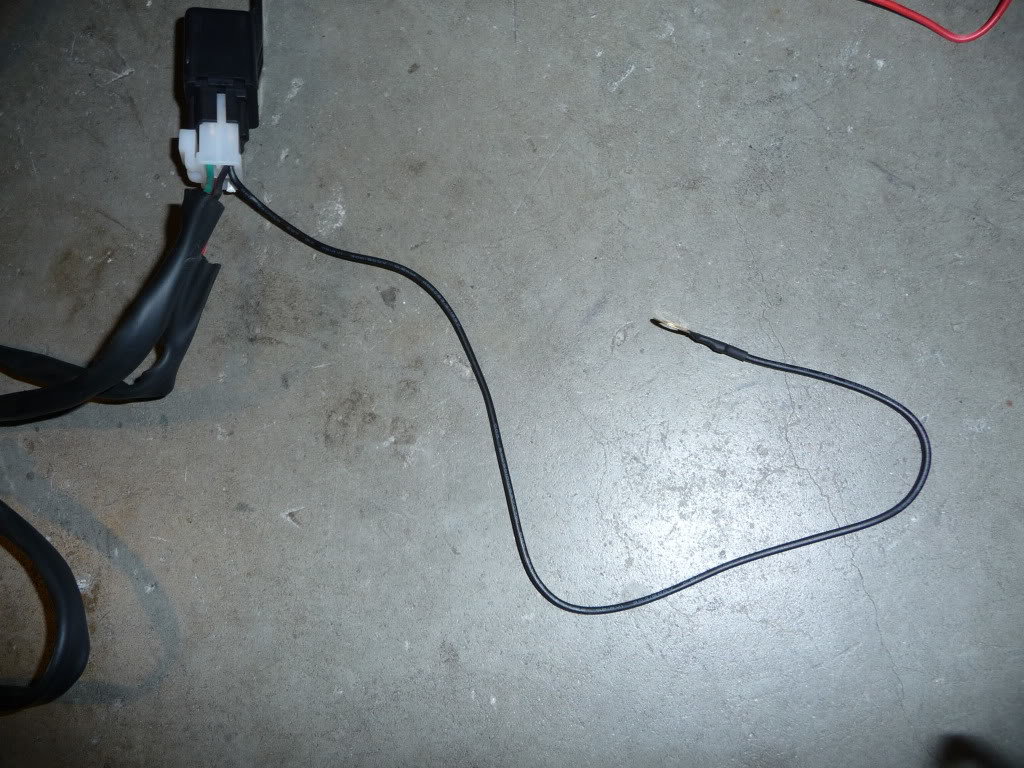

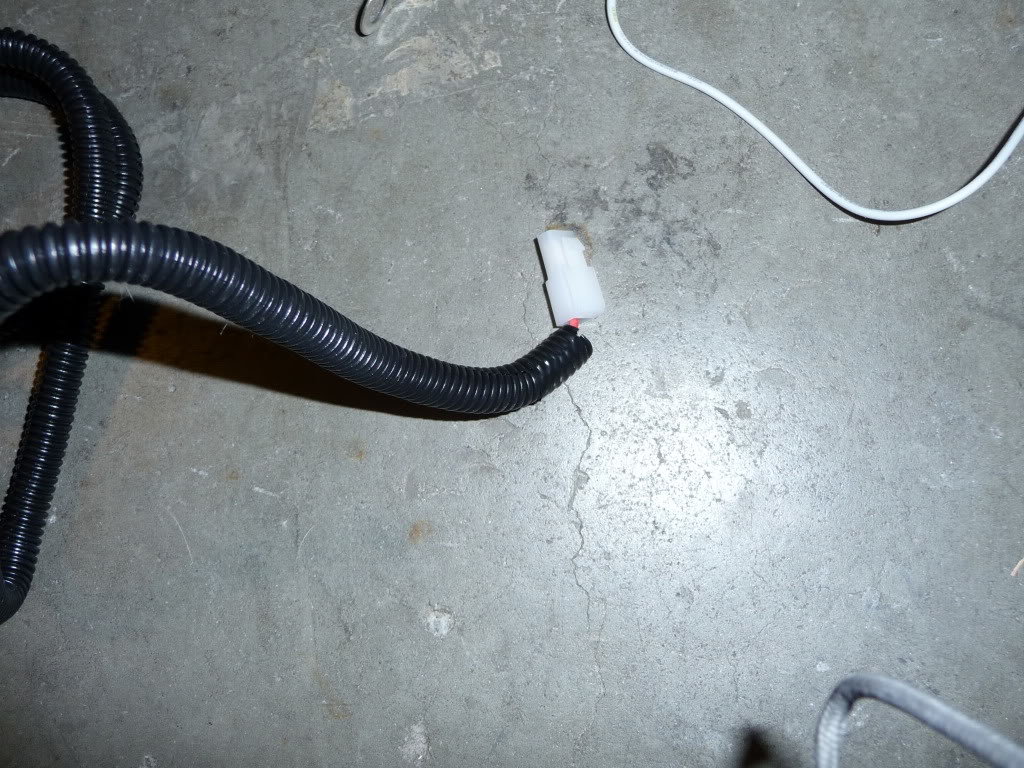

    The power wire to the fog lights, has a white connector, cut the wire and put a female connector on the end. You will have to cut the wire shorter, depending on where you put the relay. you can use the extra wiring to add to the fuse, because the wires are short.

    [​IMG]

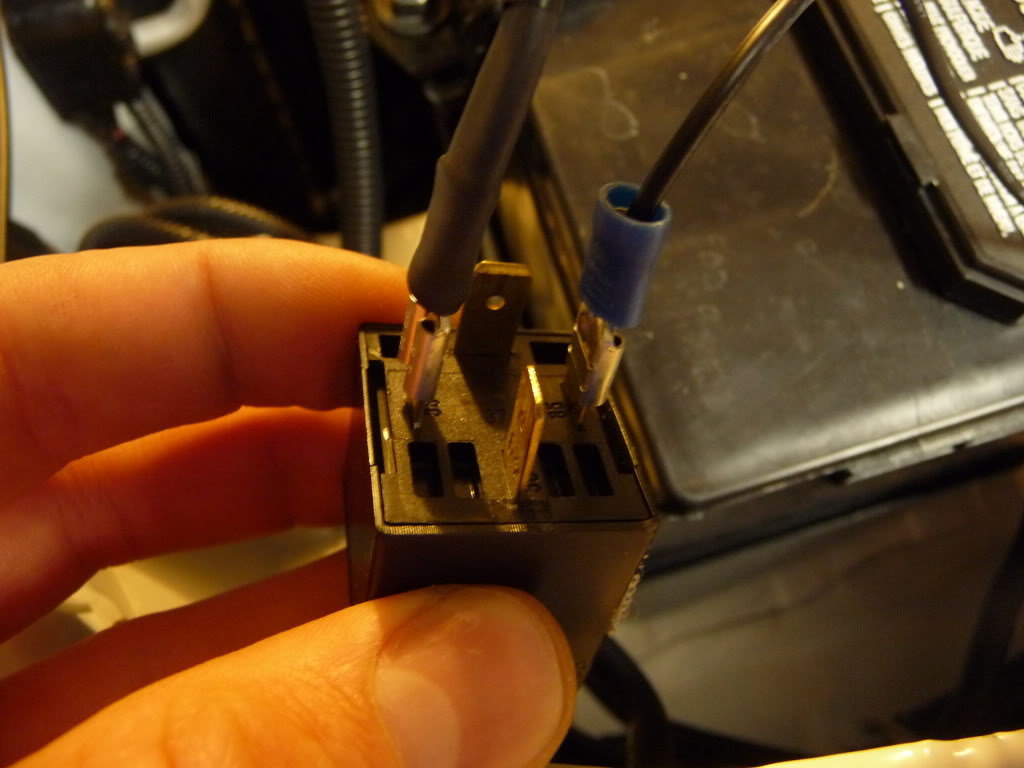

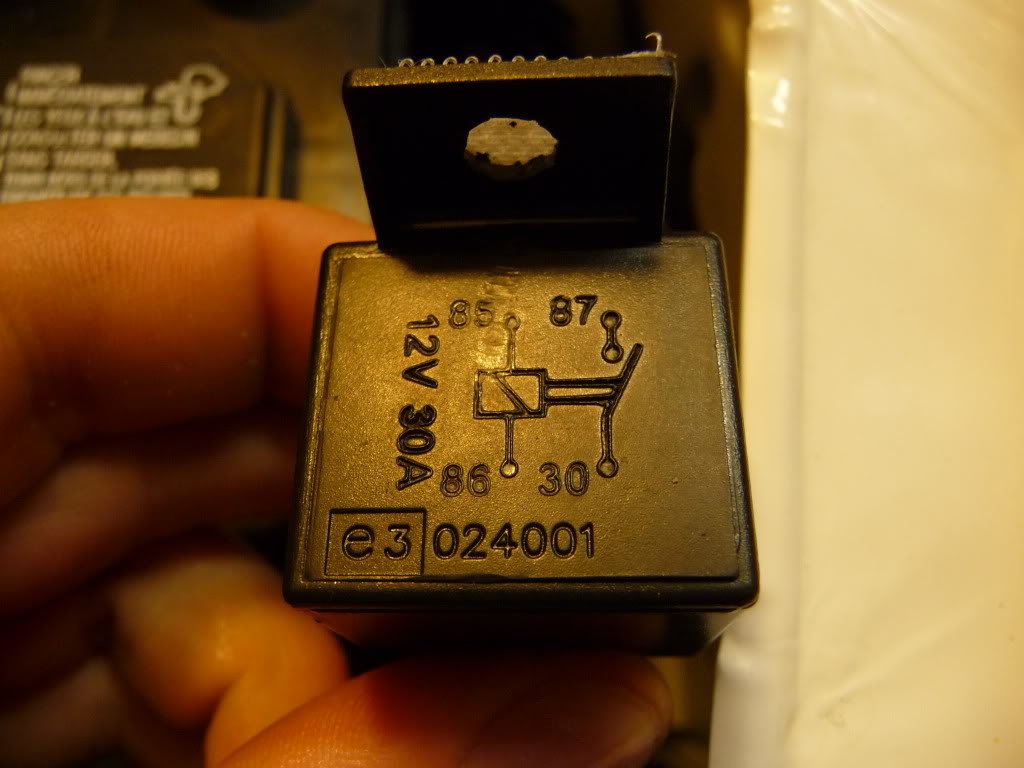

    This is the relay i used, most relays will look like this, and will have the same numbering.

    [​IMG]


    85- power from headlight low beam / ground
    86- ground / power from headlight low beam

    85 and 86 can be switched. does not matter.


    87- fused power from battery / power to lights
    30- power to lights / fused power from battery

    87 and 30 can be switched .

    DO NOT PUT 85 TO 87 OR 30
    AND DO NOT PUT 86 TO 87 OR 30

    this will short out the circuit and you will blow the fuse in the fog lights or the fuse for your headlights.




    Now, to get the power from the headlight to the relay.

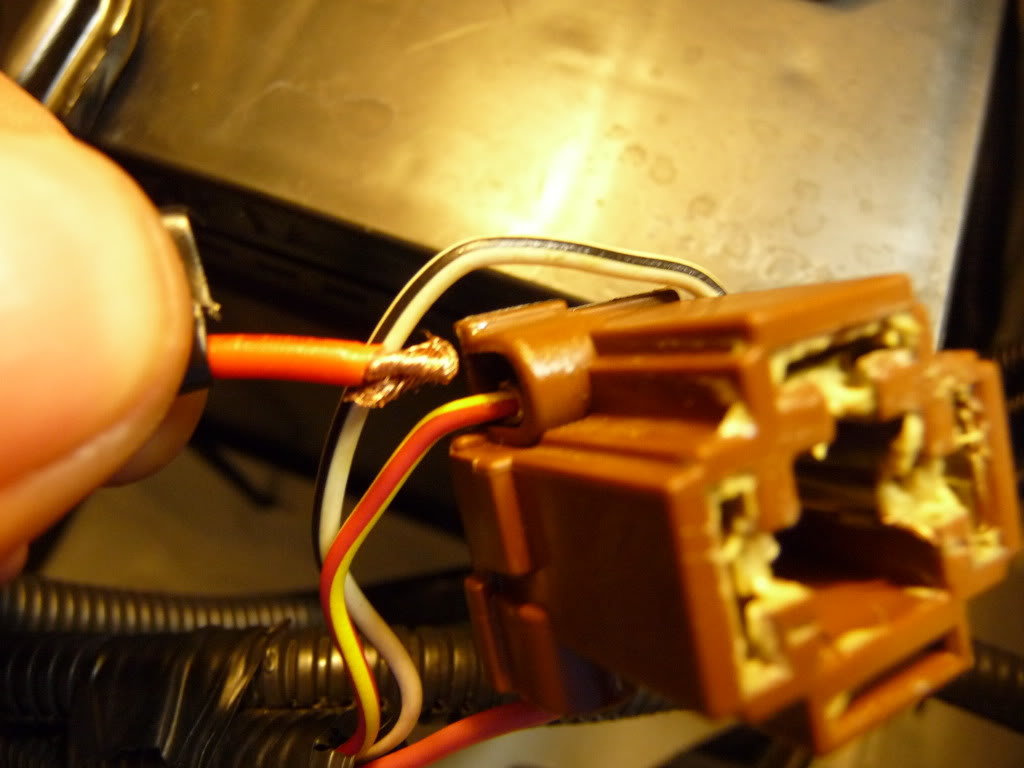

    remember the "ignition" wire. cut the blue wire tap thing off and strip the wire.

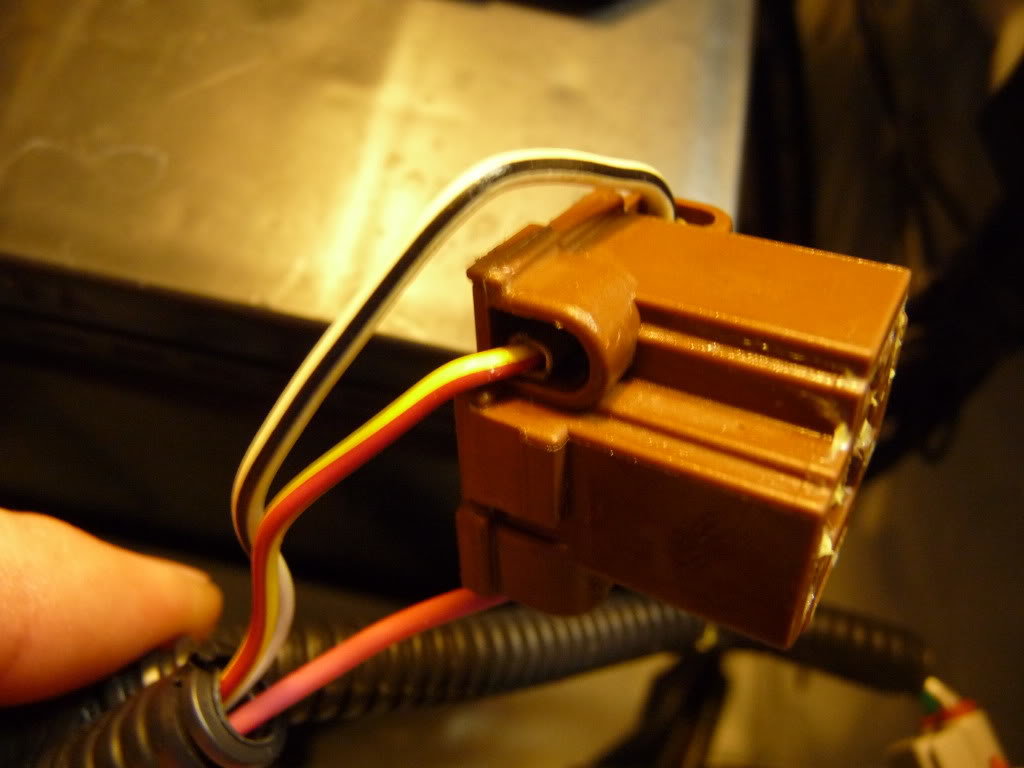

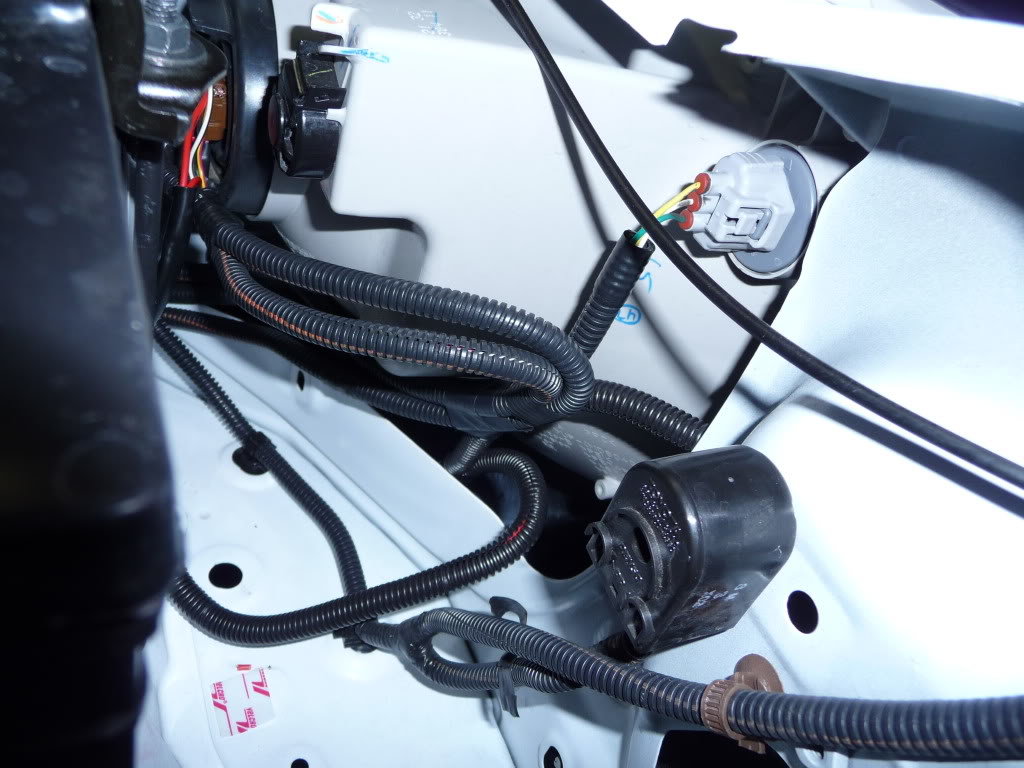

    Disconnect the connector to the driver side headlight, it will be hard to pull off, but it comes off.

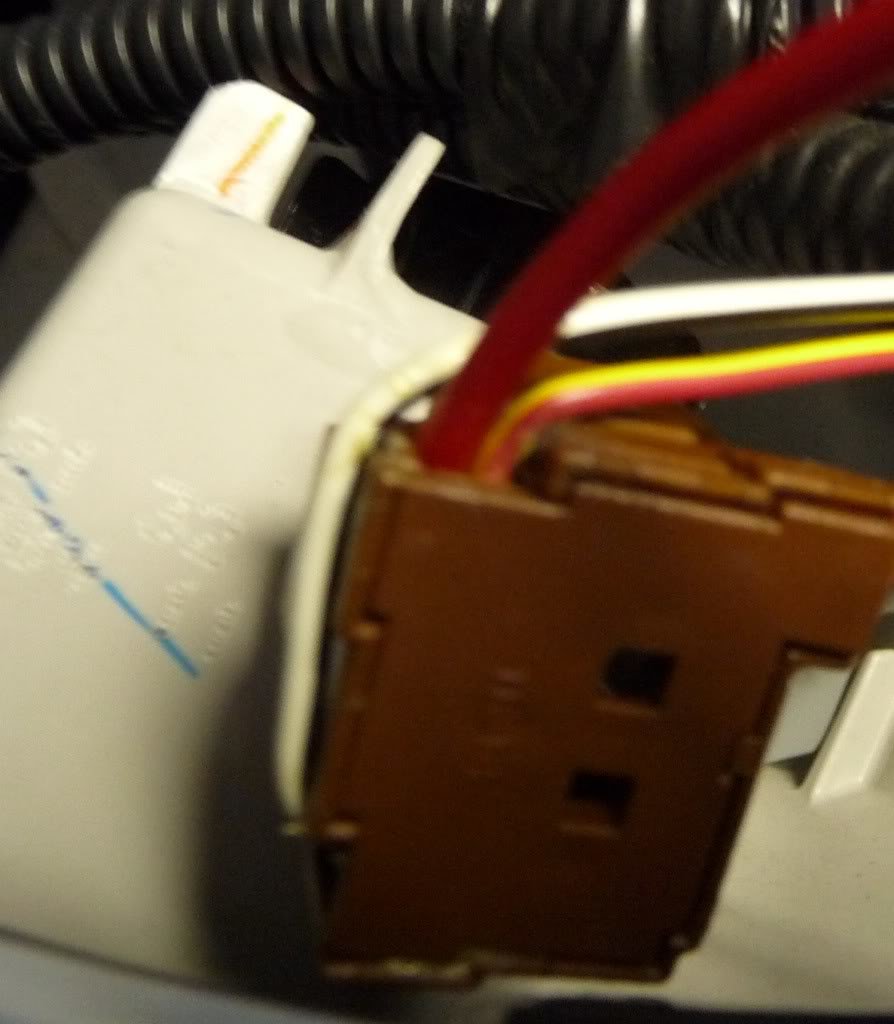

    Find the yellow and red wire.

    [​IMG]

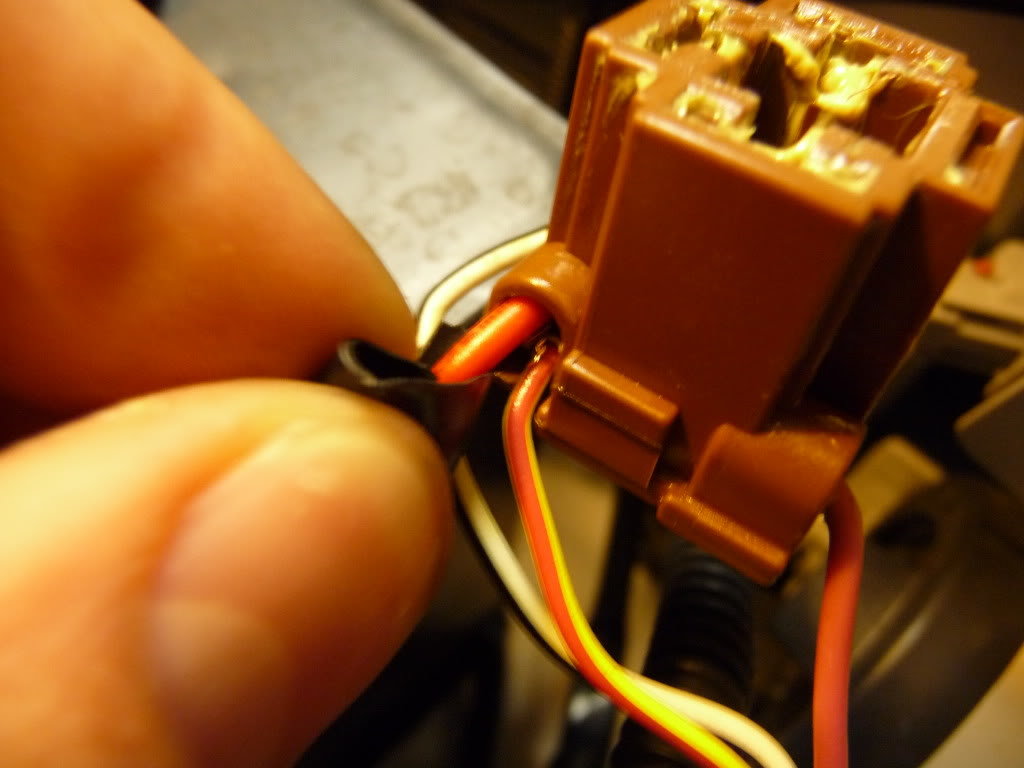

    Get the "ignition" wire and shove it into the hole, make sire there is contact with the wires.

    [​IMG]
    [​IMG]



    now for wiring the relay.


    connect the ground to 85 or 86

    [​IMG]


    connect the wire from the headlight to 85 or 86

    [​IMG]

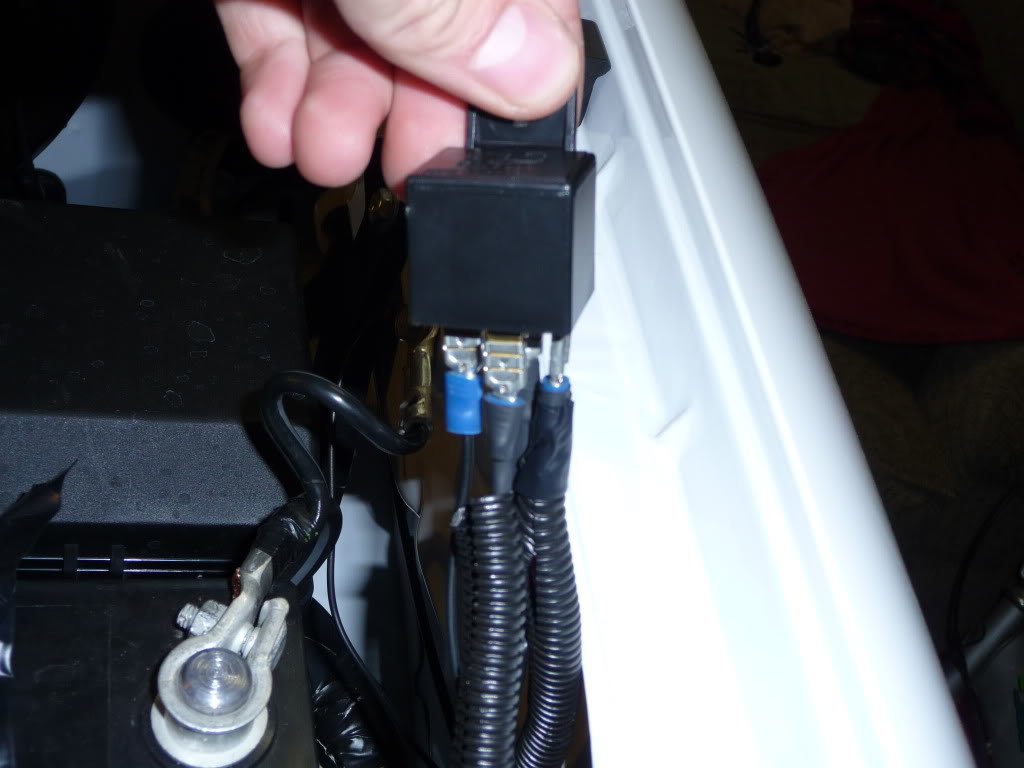

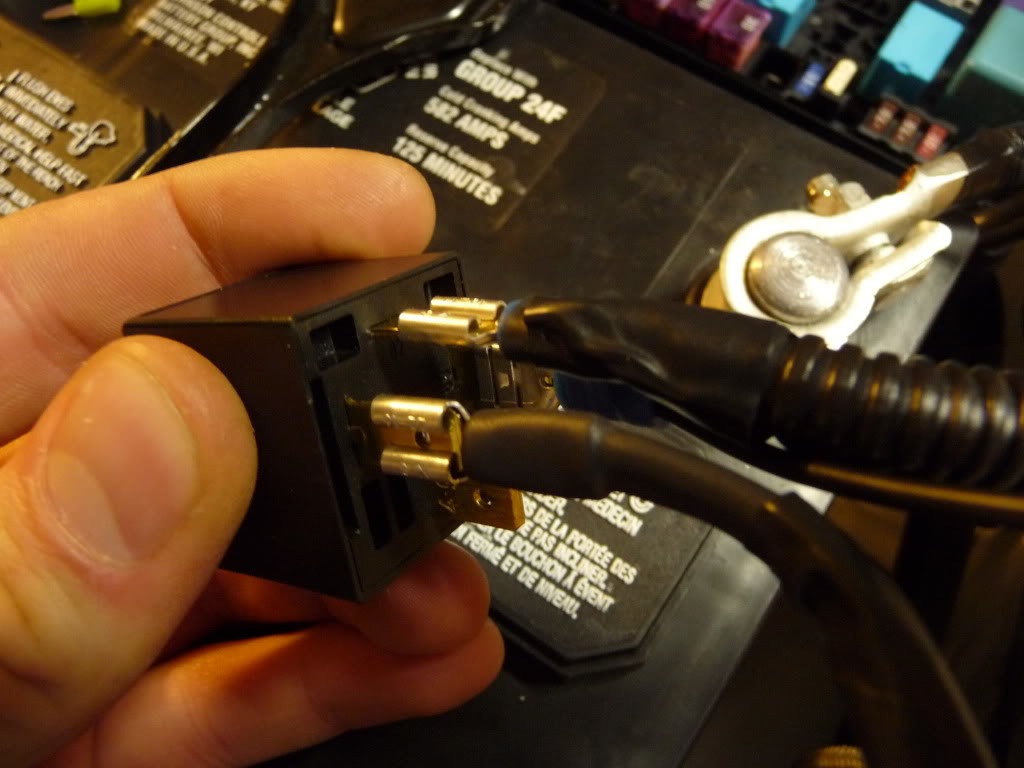

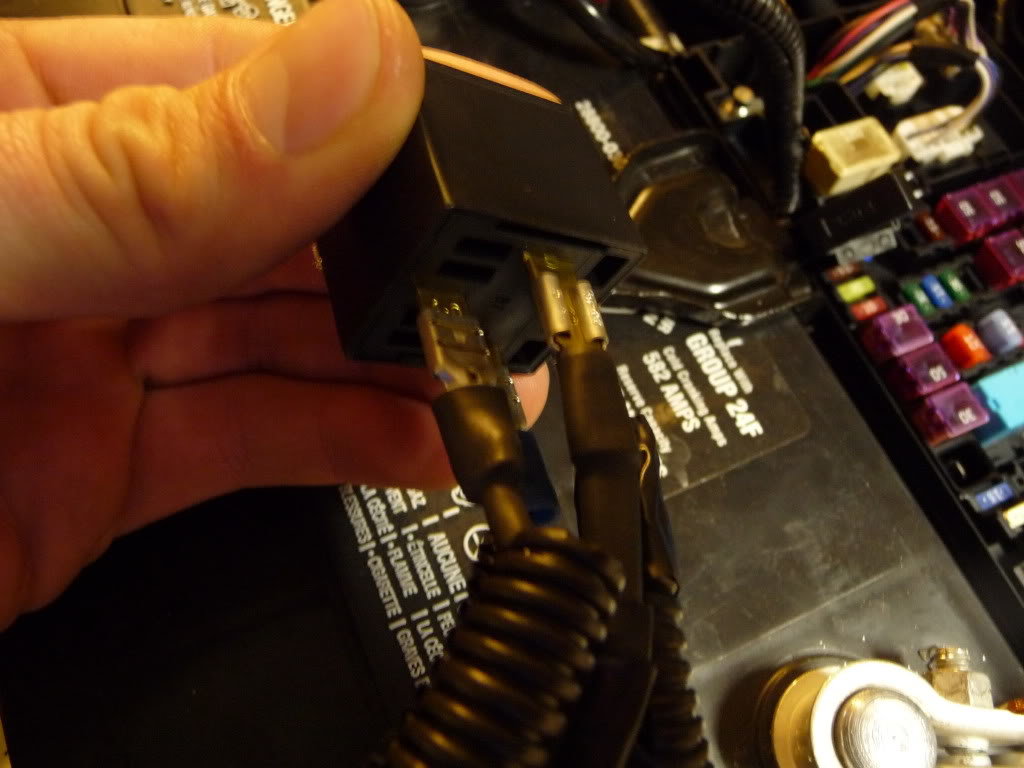

    connect the fused power from the battery to 87 or 30

    [​IMG]

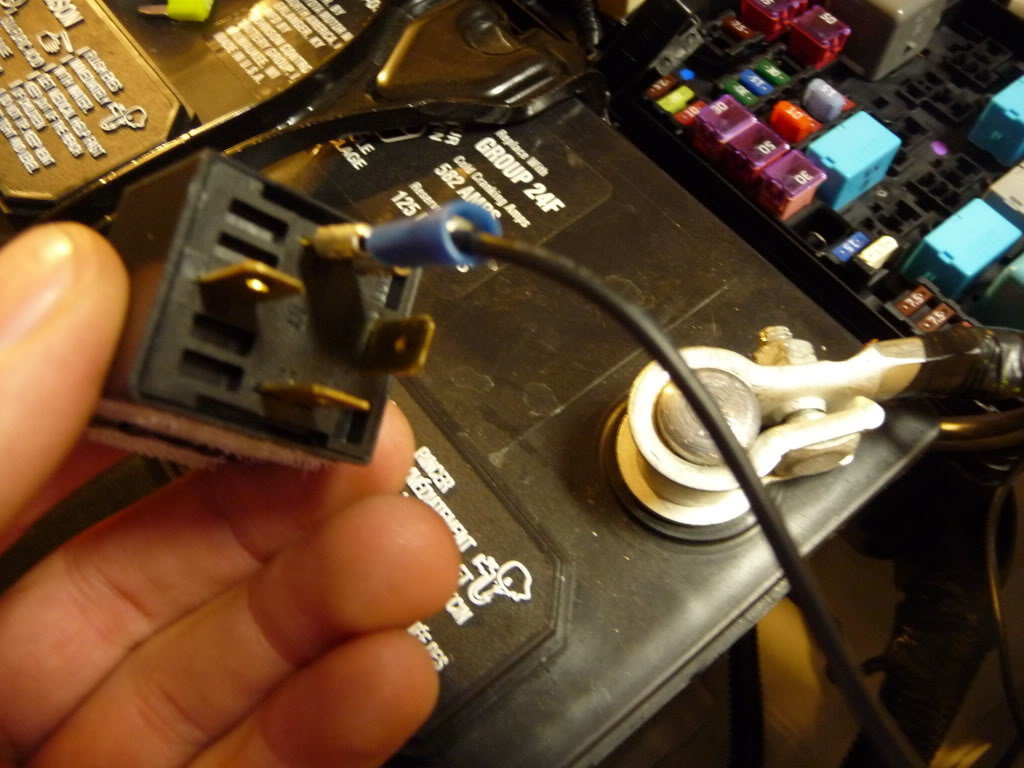

    and finally connect the wire to the for lights to 87 or 30

    [​IMG]


    and the final product will look something like this.

    I used the extra wire loom from cutting the wire shorter, to clean it up and make it look nicer.

    [​IMG]

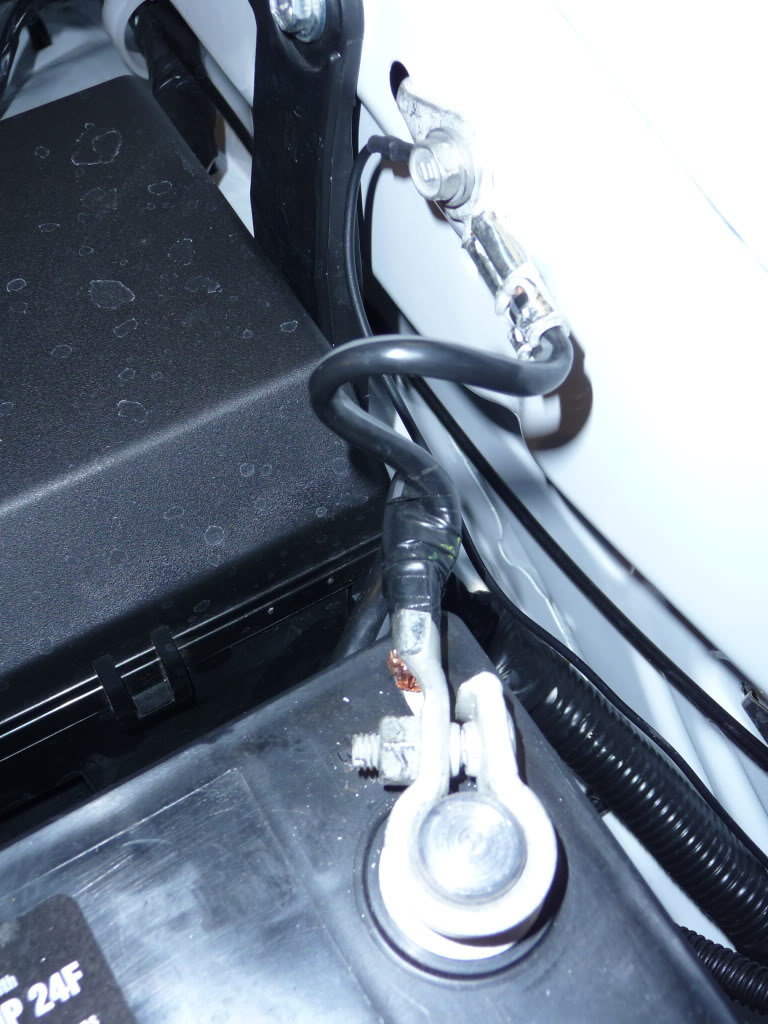

    this is the ground i used for the relay.

    [​IMG]



    the ground for the lights, i put it on the radiator bracket.

    [​IMG]

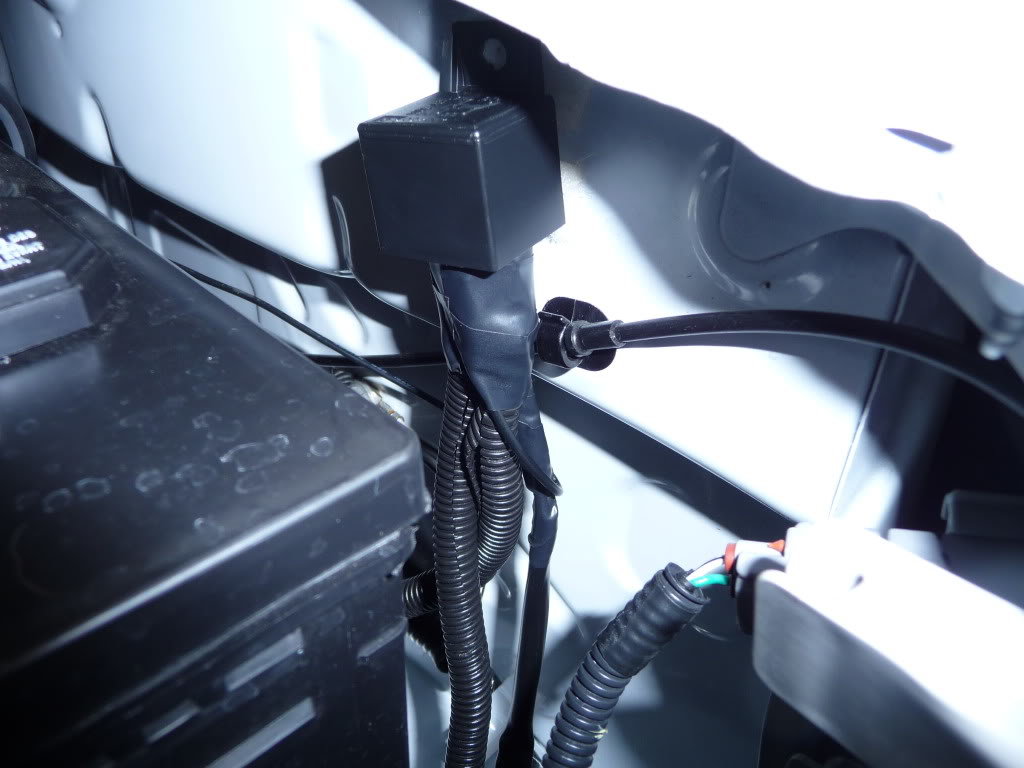

    after everything is all wired up, and checked if it works. i taped up the relay to protect the wiring.

    [​IMG]

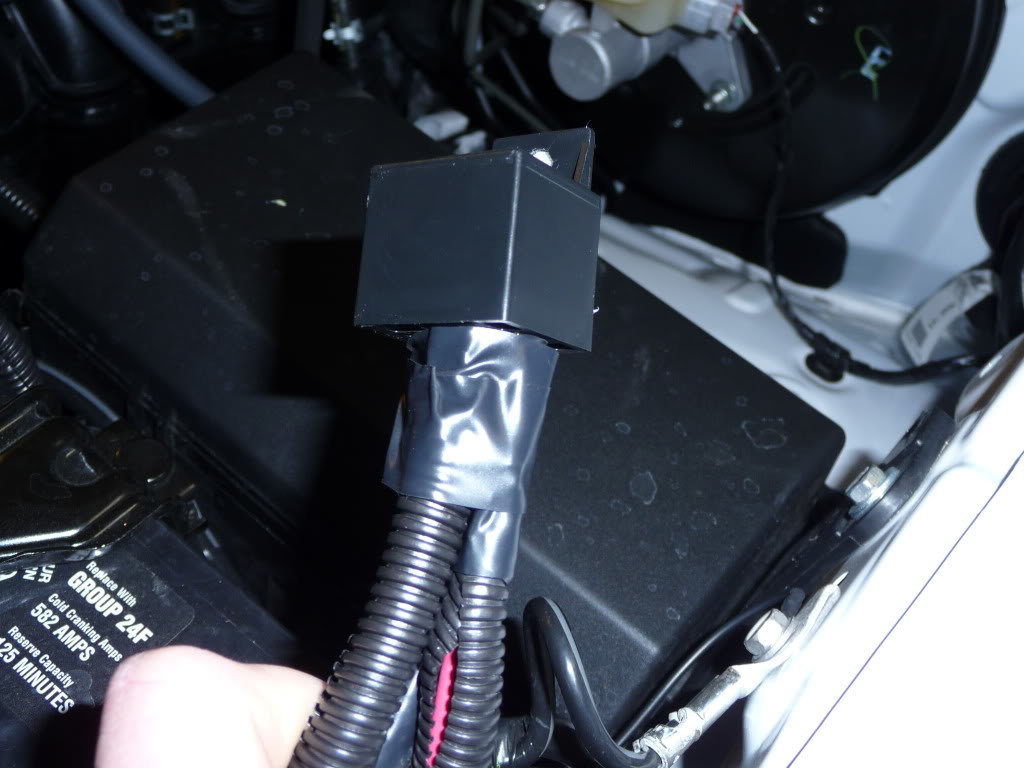

    and mounted with velcro
