2013 Access Cab Sub Retrofit

Discussion in 'Audio & Video' started by hacklerjason, Mar 18, 2013.

  1. Mar 18, 2013 at 4:55 AM
    #1
    hacklerjason

    hacklerjason [OP] Well-Known Member

    Joined:
    Feb 9, 2013
    Member:
    #97108
    Messages:
    66
    Gender:
    Male
    First Name:
    Jason
    Waikele, HI
    Vehicle:
    Lowered Base SR5
    Sittin Sic 1.75" Coils StreeTacos Beefed Blocks 3" Tapered and Offset QA1 16 Position Adjustable Shocks Flowmaster Series 40 Original Muffler

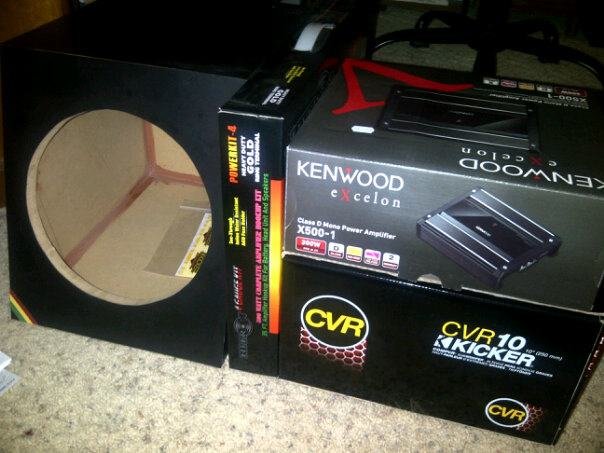

    I really wish i would have taken photos before, during and after... but i only have a few photos...

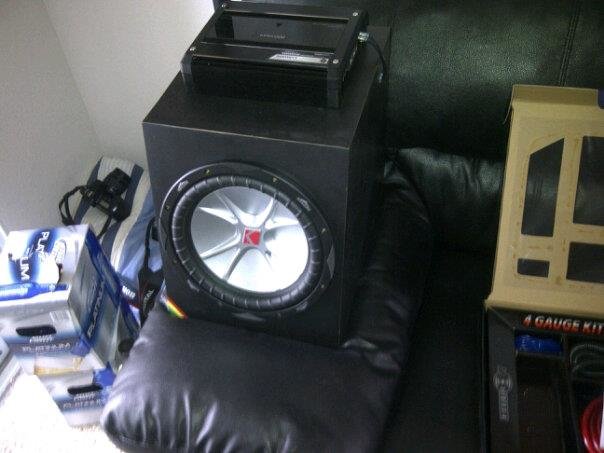

    i have one of the pile of goodies pre assembly

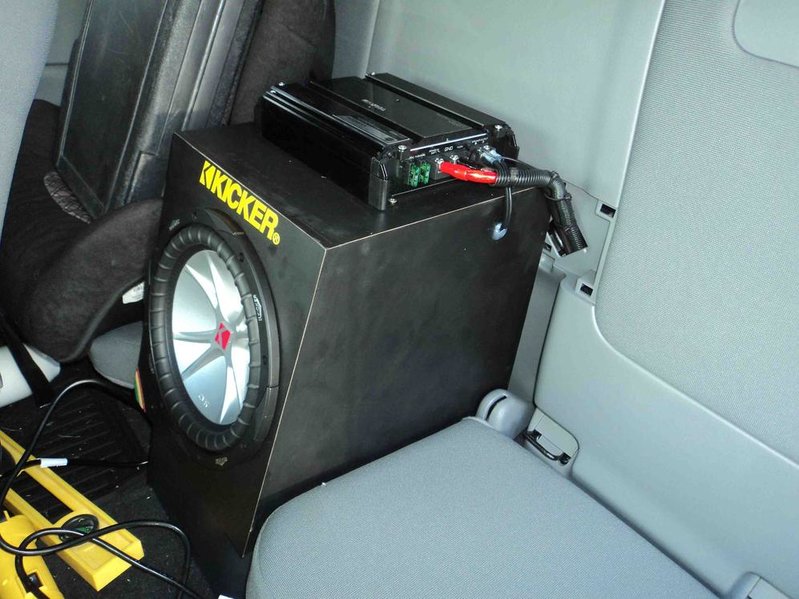

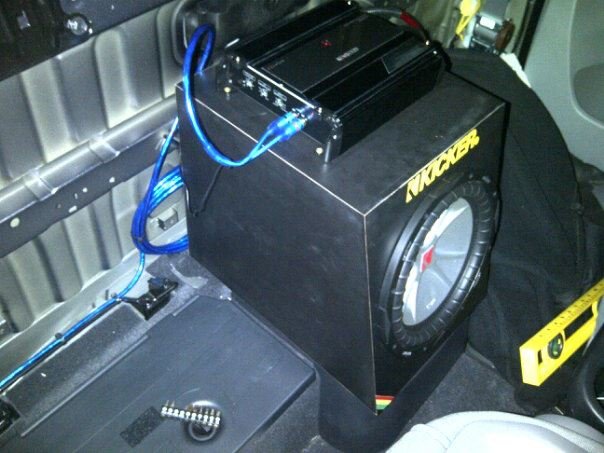

    i have two of the assembly
    one of the work in progress

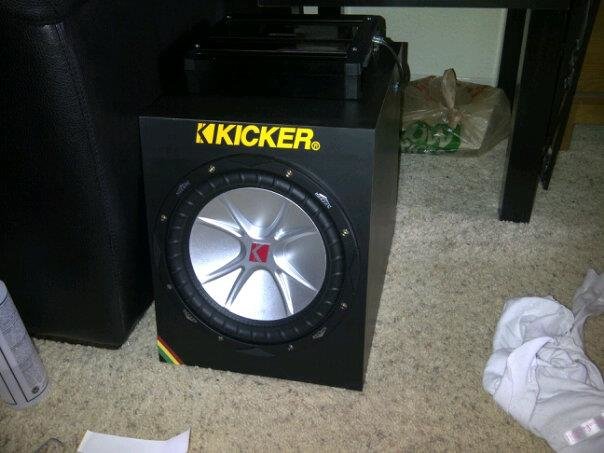

    and the grande final of the completion is coming... it was 0130 when i finally got finished. i started at about 1400 with it in mind that i am driving home a finished project regardless what time it is. anyway, didnt get the "after" photo yet...
    the plans for the box are up for grabs if anybody wants them... i will have to sign them in the pdf youll get as they are my plans i drew out, pm for plans... i didnt build the box, i mapped it out and took it to the cabinet shop my mom works at and one of the homies there made it... 50 buck it cost me materials+labor. interior space is 0.78ft^3. 3/4" mdf was used and wilsonart laminate to make it stiffer as well as skip on the typical felt to have it match the interior plastics.

    Head Unit: OEM Panasonic 6.1" Touchscreen via High-Low
    Amp: Kenwood eXcelon x500-1
    Box: Custom 0.78ft^3 Sealed
    Sub: Kicker 07CVR104 Coils in Parallel 2 ohm load


    Last edited: Mar 18, 2013
  2. Mar 18, 2013 at 10:00 AM
    #2
    FFRNDAN

    FFRNDAN Well-Known Member

    Joined:
    Dec 30, 2009
    Member:
    #28408
    Messages:
    147
    Gender:
    Male
    First Name:
    Dan
    Edinburg, Oh
    Vehicle:
    09 Acess Cab 4x4 MGM
    :popcorn: Waiting for final pics, I hope the panel on the back wall goes back on? I would love a copy of the plans if you don't mind sharing

  3. Mar 18, 2013 at 12:54 PM
    #3
    hacklerjason

    hacklerjason [OP] Well-Known Member

    Joined:
    Feb 9, 2013
    Member:
    #97108
    Messages:
    66
    Gender:
    Male
    First Name:
    Jason
    Waikele, HI
    Vehicle:
    Lowered Base SR5
    Sittin Sic 1.75" Coils StreeTacos Beefed Blocks 3" Tapered and Offset QA1 16 Position Adjustable Shocks Flowmaster Series 40 Original Muffler

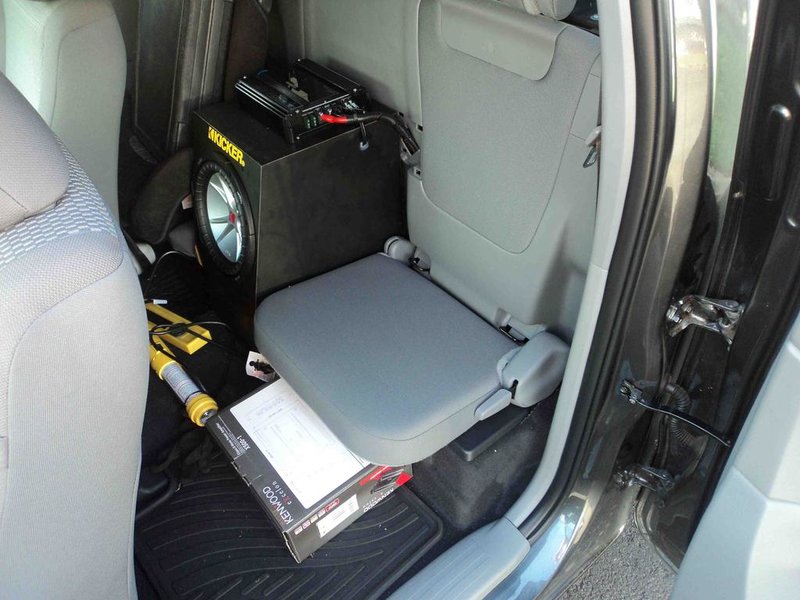

    i took some photos this morning


  4. Mar 18, 2013 at 1:07 PM
    #4
    hacklerjason

    hacklerjason [OP] Well-Known Member

    Joined:
    Feb 9, 2013
    Member:
    #97108
    Messages:
    66
    Gender:
    Male
    First Name:
    Jason
    Waikele, HI
    Vehicle:
    Lowered Base SR5
    Sittin Sic 1.75" Coils StreeTacos Beefed Blocks 3" Tapered and Offset QA1 16 Position Adjustable Shocks Flowmaster Series 40 Original Muffler

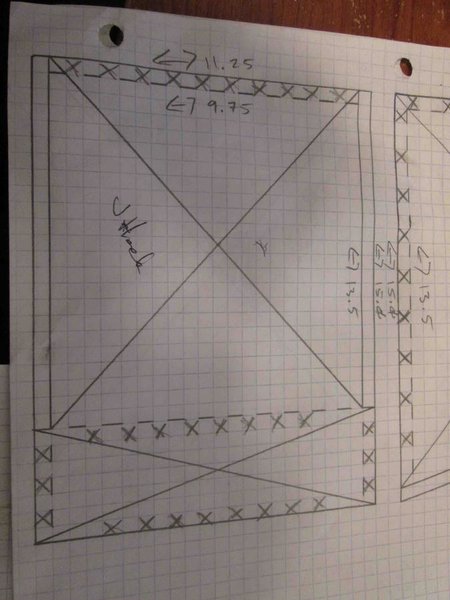

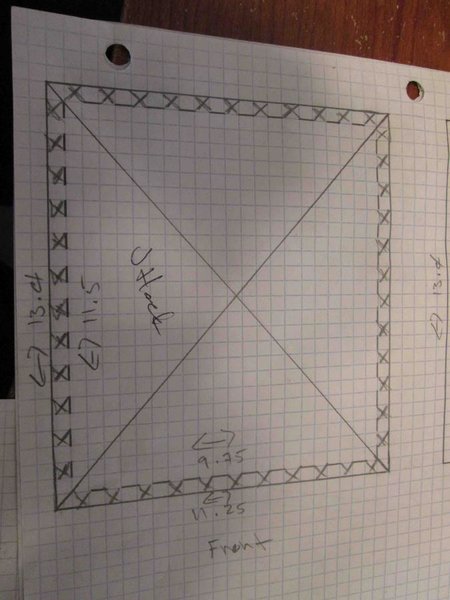

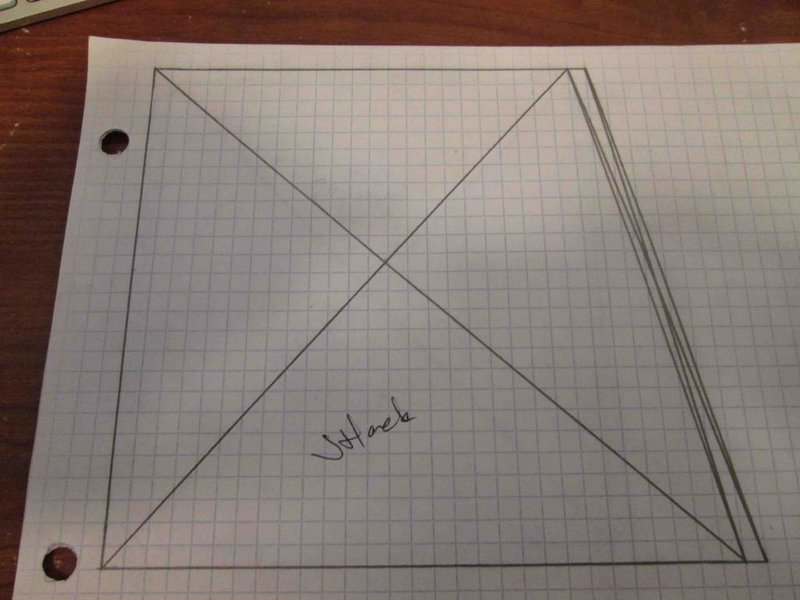

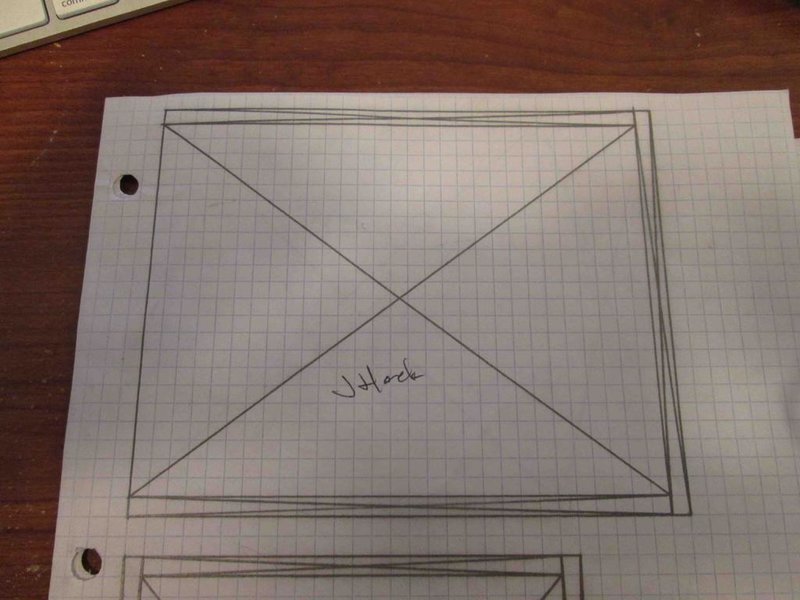

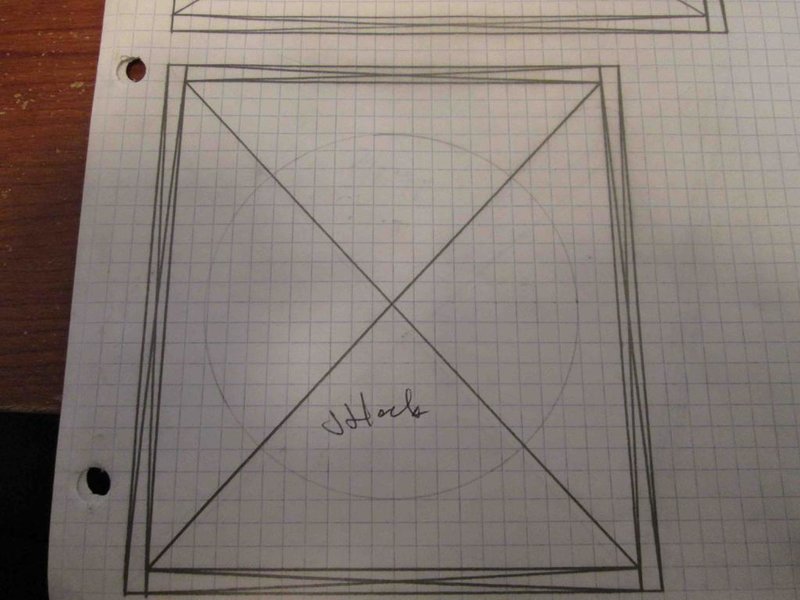

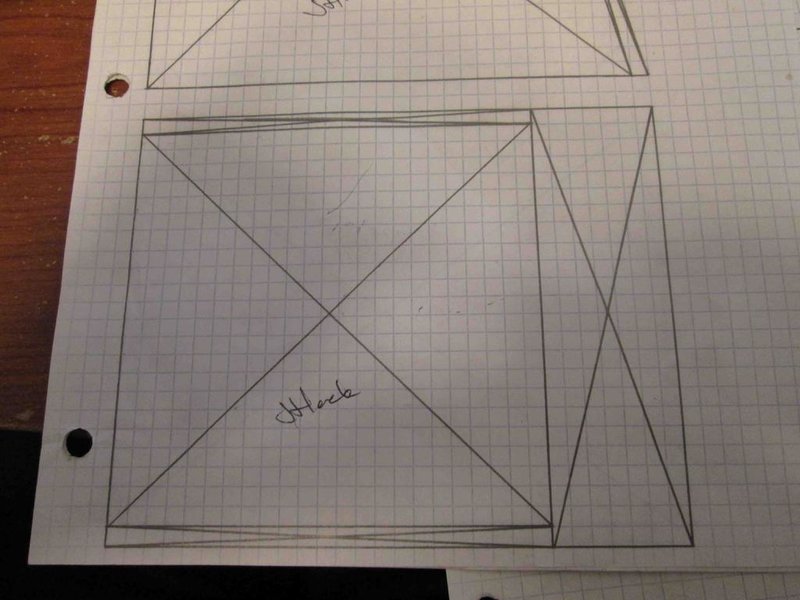

    Plans are coming, i have to peel them to digits... right now its on a piece of graph paper and i dont have a scanner :p

  5. Mar 18, 2013 at 1:25 PM
    #5
    hacklerjason

    hacklerjason [OP] Well-Known Member

    Joined:
    Feb 9, 2013
    Member:
    #97108
    Messages:
    66
    Gender:
    Male
    First Name:
    Jason
    Waikele, HI
    Vehicle:
    Lowered Base SR5
    Sittin Sic 1.75" Coils StreeTacos Beefed Blocks 3" Tapered and Offset QA1 16 Position Adjustable Shocks Flowmaster Series 40 Original Muffler
    i may also design a version 1.1 to have the shade of black match closer and round the bottom corners with a file to match the curve and line of the lower tray... i also need to come up with something crafty to keep it from sliding. when it slams the box shakes all around. im thinking a strap but i dont wanna kill the look.

  6. Mar 19, 2013 at 12:11 AM
    #6
    hacklerjason

    hacklerjason [OP] Well-Known Member

    Joined:
    Feb 9, 2013
    Member:
    #97108
    Messages:
    66
    Gender:
    Male
    First Name:
    Jason
    Waikele, HI
    Vehicle:
    Lowered Base SR5
    Sittin Sic 1.75" Coils StreeTacos Beefed Blocks 3" Tapered and Offset QA1 16 Position Adjustable Shocks Flowmaster Series 40 Original Muffler
    what do you think of taking a formed block of mdf shaped to fit in the pocket of the tray? thinking about affixing a block as such to the bottom of the box to keep it from sliding around which it does do... when im parked and pushing about 50% capacity and the whole box starts vibrating around. i do like the sound, havent had a sealed box in a long time and technology wasnt back then what it is now. back on topic, trying to figure out a solution for the box sliding... i tried staps... the problem is that the hooks dont fit the angled ancor points with the box so close... it marks up the laminate. and i kind of dont want to kill the look with straps anyway unless they were yellow with kicker stiched in it ;-)

  7. Mar 19, 2013 at 12:35 AM
    #7
    hacklerjason

    hacklerjason [OP] Well-Known Member

    Joined:
    Feb 9, 2013
    Member:
    #97108
    Messages:
    66
    Gender:
    Male
    First Name:
    Jason
    Waikele, HI
    Vehicle:
    Lowered Base SR5
    Sittin Sic 1.75" Coils StreeTacos Beefed Blocks 3" Tapered and Offset QA1 16 Position Adjustable Shocks Flowmaster Series 40 Original Muffler

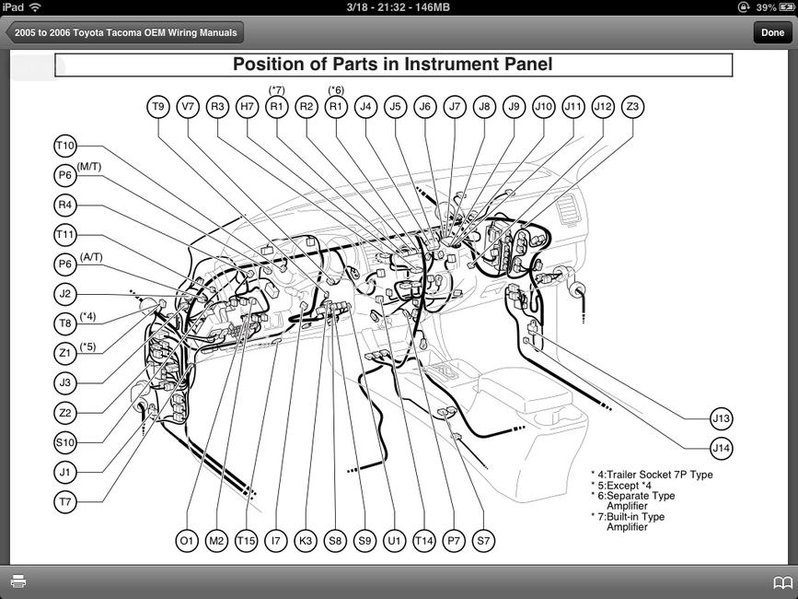

    here is the best diagnostic tool ive ever had at my side... proved very useful during install... needed some pinouts for the acc wire to the deck and two rear speaker outs to put the high to low converter


    Last edited: Mar 19, 2013
  8. Mar 19, 2013 at 1:32 PM
    #8
    SlowComa666

    SlowComa666 Well-Known Member

    Joined:
    Nov 3, 2012
    Member:
    #90408
    Messages:
    148
    Gender:
    Male
    does it actually mount to the floor?

    if not, that is a nice easy to steal setup!

  9. Mar 19, 2013 at 1:37 PM
    #9
    Seabass

    Seabass I need to go return some videotapes...

    Joined:
    Apr 2, 2010
    Member:
    #34455
    Messages:
    5,097
    Gender:
    Male
    First Name:
    Adam
    AZ
    Vehicle:
    '06 Sport 4x4
    <insert thief bait here>
    That would be my worry. Too visible to prying eyes that want to bust a window and have an easy grab-n-go setup. Hope you bolted down the box before putting that speaker in.

  10. Mar 19, 2013 at 6:49 PM
    #10
    hacklerjason

    hacklerjason [OP] Well-Known Member

    Joined:
    Feb 9, 2013
    Member:
    #97108
    Messages:
    66
    Gender:
    Male
    First Name:
    Jason
    Waikele, HI
    Vehicle:
    Lowered Base SR5
    Sittin Sic 1.75" Coils StreeTacos Beefed Blocks 3" Tapered and Offset QA1 16 Position Adjustable Shocks Flowmaster Series 40 Original Muffler
    yea i need to do that asap... it would also solve the problem of it sliding around... im thinking something long the lines of brackets from the bottom sides of the box to the plastic tray and im up for ideas...

  11. Mar 20, 2013 at 9:31 PM
    #11
    FFRNDAN

    FFRNDAN Well-Known Member

    Joined:
    Dec 30, 2009
    Member:
    #28408
    Messages:
    147
    Gender:
    Male
    First Name:
    Dan
    Edinburg, Oh
    Vehicle:
    09 Acess Cab 4x4 MGM
    Isn't there a mounting plate for the rear center console under there still? I'm planning on building something like this at some point, and planned on using that mount to hold the box. Drill holes in the bottom of your box and run bolts down into the mount, then install your sub itself, solid as a rock.

    PM sent.

  12. Mar 21, 2013 at 4:28 PM
    #12
    hacklerjason

    hacklerjason [OP] Well-Known Member

    Joined:
    Feb 9, 2013
    Member:
    #97108
    Messages:
    66
    Gender:
    Male
    First Name:
    Jason
    Waikele, HI
    Vehicle:
    Lowered Base SR5
    Sittin Sic 1.75" Coils StreeTacos Beefed Blocks 3" Tapered and Offset QA1 16 Position Adjustable Shocks Flowmaster Series 40 Original Muffler

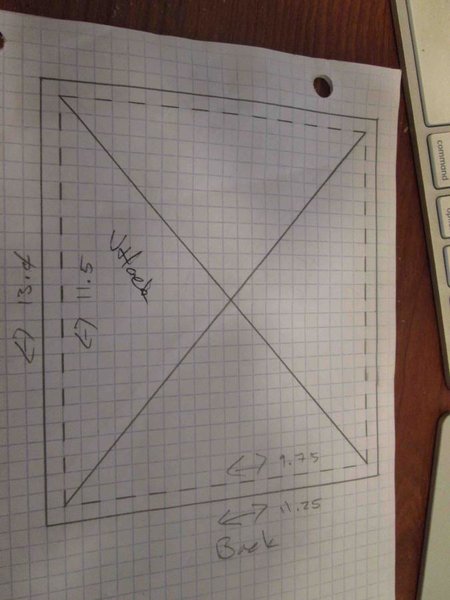

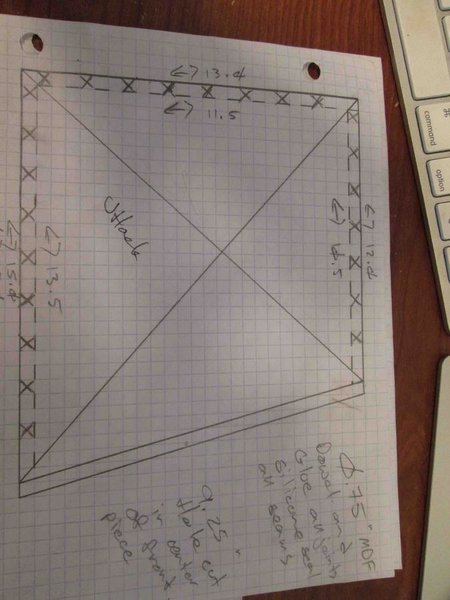

    please note, i did not deal with the angles because i was taking it to a cabinet shop that can deal with that... one set of drawings to match panels and cuts... i didnt scan them either, ffrndan recommended taking photos so here they are


    Last edited: Mar 21, 2013
  13. Mar 21, 2013 at 4:38 PM
    #13
    hacklerjason

    hacklerjason [OP] Well-Known Member

    Joined:
    Feb 9, 2013
    Member:
    #97108
    Messages:
    66
    Gender:
    Male
    First Name:
    Jason
    Waikele, HI
    Vehicle:
    Lowered Base SR5
    Sittin Sic 1.75" Coils StreeTacos Beefed Blocks 3" Tapered and Offset QA1 16 Position Adjustable Shocks Flowmaster Series 40 Original Muffler
  14. Mar 21, 2013 at 4:43 PM
    #14
    hacklerjason

    hacklerjason [OP] Well-Known Member

    Joined:
    Feb 9, 2013
    Member:
    #97108
    Messages:
    66
    Gender:
    Male
    First Name:
    Jason
    Waikele, HI
    Vehicle:
    Lowered Base SR5
    Sittin Sic 1.75" Coils StreeTacos Beefed Blocks 3" Tapered and Offset QA1 16 Position Adjustable Shocks Flowmaster Series 40 Original Muffler
    i think i may draw another to make a double 10... i have found the point when the single 10 peaks it performance and wont push any harder. i am likely going to make go up to the top height of the back wall... i am likely going to fill that little pocket behind the box as it sits now... and i am likely going to gobble up that plastic tray... gotta put a few things on paper the make a mock up before i put any drawings up of this one

  15. Mar 21, 2013 at 5:41 PM
    #15
    hacklerjason

    hacklerjason [OP] Well-Known Member

    Joined:
    Feb 9, 2013
    Member:
    #97108
    Messages:
    66
    Gender:
    Male
    First Name:
    Jason
    Waikele, HI
    Vehicle:
    Lowered Base SR5
    Sittin Sic 1.75" Coils StreeTacos Beefed Blocks 3" Tapered and Offset QA1 16 Position Adjustable Shocks Flowmaster Series 40 Original Muffler
    i dont mind so much the "industrial" look with the turnbuckles... i actually think some stainless will look nice with the black finish

  16. Mar 23, 2013 at 1:42 PM
    #16
    hacklerjason

    hacklerjason [OP] Well-Known Member

    Joined:
    Feb 9, 2013
    Member:
    #97108
    Messages:
    66
    Gender:
    Male
    First Name:
    Jason
    Waikele, HI
    Vehicle:
    Lowered Base SR5
    Sittin Sic 1.75" Coils StreeTacos Beefed Blocks 3" Tapered and Offset QA1 16 Position Adjustable Shocks Flowmaster Series 40 Original Muffler
    no ideas anybody?

  17. Mar 25, 2013 at 10:40 AM
    #17
    00boozy

    00boozy Member

    Joined:
    Feb 7, 2013
    Member:
    #97002
    Messages:
    15
    Gender:
    Male
    anaheim,ca
    Vehicle:
    2012 toyota tacoma
    [​IMG]
    this is what i build instead of going with the stealth box from jl. and then i put the amp under the seat so u dont see alot of wires

  18. Mar 25, 2013 at 9:08 PM
    #18
    hacklerjason

    hacklerjason [OP] Well-Known Member

    Joined:
    Feb 9, 2013
    Member:
    #97108
    Messages:
    66
    Gender:
    Male
    First Name:
    Jason
    Waikele, HI
    Vehicle:
    Lowered Base SR5
    Sittin Sic 1.75" Coils StreeTacos Beefed Blocks 3" Tapered and Offset QA1 16 Position Adjustable Shocks Flowmaster Series 40 Original Muffler
    that is pretty damn clean but too small and im no good and glass... i hate fiber! always around that stuff at work and i dont even have to touch it... just be around it and my body itches the whole night! thats an 8 inch? i may need to redesign mine to accomodate 2 10's because the single isnt going to cut it for long


  19. Mar 25, 2013 at 9:12 PM
    #19
    hacklerjason

    hacklerjason [OP] Well-Known Member

    Joined:
    Feb 9, 2013
    Member:
    #97108
    Messages:
    66
    Gender:
    Male
    First Name:
    Jason
    Waikele, HI
    Vehicle:
    Lowered Base SR5
    Sittin Sic 1.75" Coils StreeTacos Beefed Blocks 3" Tapered and Offset QA1 16 Position Adjustable Shocks Flowmaster Series 40 Original Muffler
    you got any other pictures of that setup? perhaps any that havent been upped to facebook? how about some raw ones from a camera? perhaps the box itself?

  20. Mar 26, 2013 at 9:09 AM
    #20
    00boozy

    00boozy Member

    Joined:
    Feb 7, 2013
    Member:
    #97002
    Messages:
    15
    Gender:
    Male
    anaheim,ca
    Vehicle:
    2012 toyota tacoma
    i got it off of face book becaue when i take the pic from my computer its to large of a file.but yea ill post some more of the box being built... yes its an 8w3.
