2013 Bluetooth touchscreen install in my 06

Discussion in '2nd Gen. Tacomas (2005-2015)' started by ajw1986, Jan 26, 2014.

  1. Jan 26, 2014 at 8:46 AM
    #1
    ajw1986

    ajw1986 [OP] Well-Known Member

    Joined:
    Aug 2, 2013
    Member:
    #109619
    Messages:
    501
    Gender:
    Male
    First Name:
    Andrew
    Pitt Meadows, B.C.
    Vehicle:
    06 Money Pit
    After the much awaited arrival of my truck last friday i couldn't wait to start modding again. This is one of the easiest DIY mods imo, i couldn't be happier with the results! This head unit with the bluetooth music streaming made my aftermarket speakers 10x better.

    I couldn't have done it without the help of these good people:

    Danmcw45 - for giving me a good deal on the head unit to begin with
    adio - for providing part numbers and adapters i would need, extremely helpful (all the parts pictures came from him!
    chetweewax - for explaining and providing pictures for the bluebooth mic install in the overhead console

    I figured i would compile the information i got from everyone so it will make your life a little bit easier if you decide to do it!

    Parts needed:
    Head unit (obviously :rolleyes:)

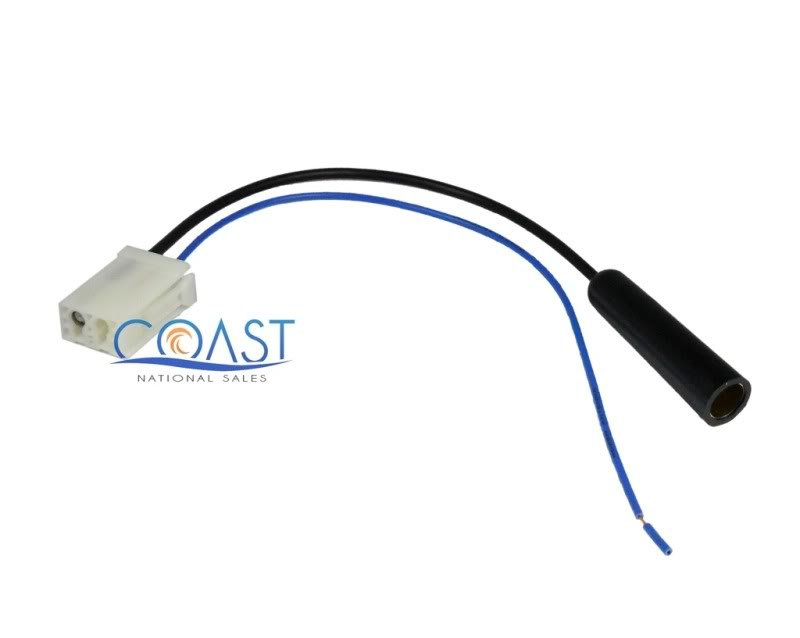

    Antenna adapater: http://www.crutchfield.ca/Toyota_Lex.../12040lx21.htm (even if it says it won't work your tacoma, it will!
    [​IMG]

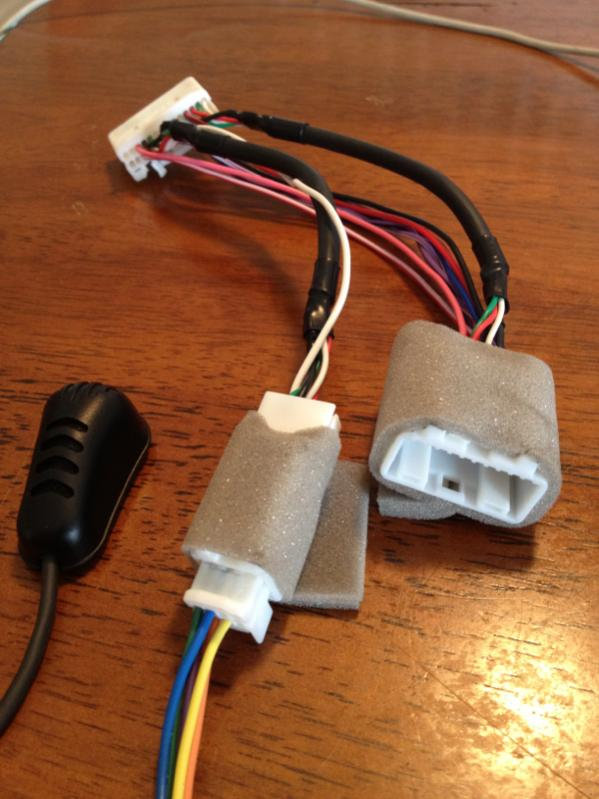

    28 pin harness - PT546-00120-CH
    [​IMG]

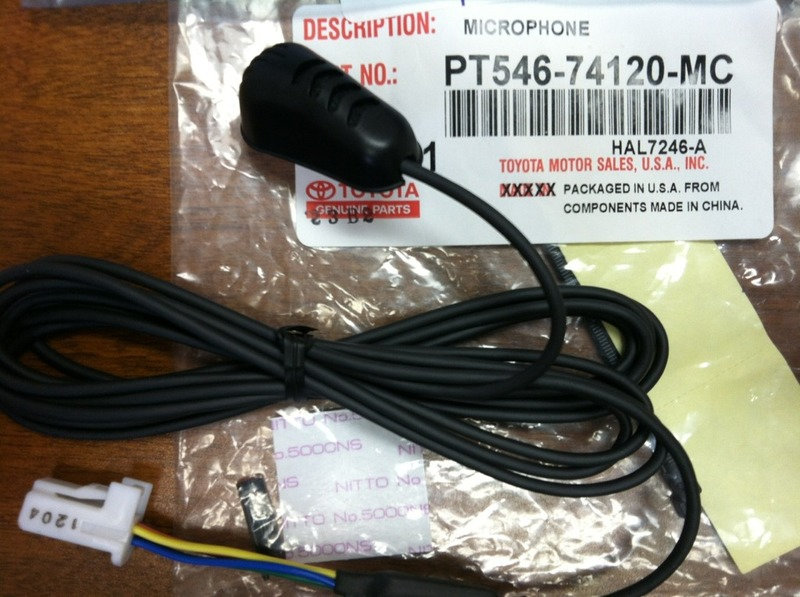

    Mic that plugs into that 28 pin conversion harness for bluetooth to work
    [​IMG]

    Tools needed:
    Beer (important one)
    Flathead screwdriver
    Ratchet with 10mm socket (mounting bolts) and 8mm socket (bracket bolts)
    Dremel (will be used later when i run my bluetooth mic to my overhead console, i just ran it under the ac controls temporarily until i can get my extension from radio shack online)

    I was gonna do a full DIY topic but i didn't have time to take many pictures, this was the end result!

    [​IMG]

    [​IMG]

  2. Jan 26, 2014 at 9:30 AM
    #2
    Blackpearl2007

    Blackpearl2007 Active Member

    Joined:
    Jan 17, 2014
    Member:
    #120888
    Messages:
    34
    Gender:
    Male
    Southeast
    Vehicle:
    2013 4x4 TRD Off Road
    Thank you. Is this also navigation? Can you also add navigation through a similar process?

  3. Jan 26, 2014 at 9:58 AM
    #3
    ajw1986

    ajw1986 [OP] Well-Known Member

    Joined:
    Aug 2, 2013
    Member:
    #109619
    Messages:
    501
    Gender:
    Male
    First Name:
    Andrew
    Pitt Meadows, B.C.
    Vehicle:
    06 Money Pit
    Not too sure on the nav units, I didn't bother with one since I use my cell for GPS anyways, the directions still come through my speakers. The steering wheel controls work for volume and changing songs, didn't expect to be able to change songs on the steering wheel!

  4. Feb 2, 2014 at 10:11 PM
    #4
    Sigi

    Sigi Well-Known Member

    Joined:
    Nov 12, 2010
    Member:
    #46097
    Messages:
    1,167
    Gender:
    Male
    First Name:
    Sigi
    Sfv ca
    Vehicle:
    06 tacoma 4x4 trd offroad
    Don you know if this unit will fit a 2006 with jbl? Thanks

  5. Feb 3, 2014 at 3:55 AM
    #5
    Jimsc

    Jimsc Well-Known Member

    Joined:
    Jul 19, 2010
    Member:
    #40413
    Messages:
    292
    Gender:
    Male
    First Name:
    Jim
    Greenville, SC
    Vehicle:
    10 PreRunner Double Cab
    Aries Nerf Bars, Cargo Seperator
    What are the new features of this head unit over the previous one?

  6. Feb 3, 2014 at 7:15 AM
    #6
    T09COMA

    T09COMA Member

    Joined:
    Sep 11, 2013
    Member:
    #112307
    Messages:
    8
    Gender:
    Male
    First Name:
    justin
    nc
    Vehicle:
    09 Trd Sport SR5
    Did the radio hook right up to the factory pigtails I have a 09 wanting to do this

  7. Feb 3, 2014 at 10:08 AM
    #7
    adio

    adio Do. Or do not. There is no try. -Master Yoda

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    1,919
    Gender:
    Male
    EWA BEACH, HI
    Vehicle:
    2015 INFERNO TRD PRO
    Bought, not built:-P
    Power and speaker plugs will hook right up to the HU. If you want to just keep it simple and don't want to deal with the whole fancy BT and stuff, then all you need is the antenna adapter. If any local radio is broadcasting in HD you'll catch it.

  8. Feb 3, 2014 at 10:28 AM
    #8
    Gregman

    Gregman Well-Known Member

    Joined:
    Jan 11, 2010
    Member:
    #29166
    Messages:
    542
    Gender:
    Male
    Freddy Beach, NB
    Vehicle:
    05 DC LB 4x4 SR5

    Kind of looks like its possible:
    http://www.youtube.com/watch?v=gx9AXGfXjLI

  9. Feb 3, 2014 at 1:55 PM
    #9
    chadwhitt

    chadwhitt Active Member

    Joined:
    May 3, 2013
    Member:
    #103398
    Messages:
    35
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    07 DCSB SR5 Tacoma
    Custom Grill
    This has been something I have been looking for... does anyone know if there is any changes in the head unit wiring from 2006 to 2007? If not I am for sure doing this to my taco..

    Thanks for the great write up! :D

  10. Feb 3, 2014 at 3:36 PM
    #10
    steveo27

    steveo27 Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    1,189
    Gender:
    Male
    First Name:
    Steveo
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    Bilstein 5100s, Top plate spacer, Wheeler's add a leaf, Spidertrax, Duratracs, Blue Sea fuseblock, Bestop Supertop, LED light bar, ect
    Neat. I eventually want to do this with my '11.

    Does new the radio fit 100% in older bezel? Ive seen some pictures of them not fitting very well and this keeps deterring me from spending the money on this....

  11. Feb 4, 2014 at 6:02 AM
    #11
    ajw1986

    ajw1986 [OP] Well-Known Member

    Joined:
    Aug 2, 2013
    Member:
    #109619
    Messages:
    501
    Gender:
    Male
    First Name:
    Andrew
    Pitt Meadows, B.C.
    Vehicle:
    06 Money Pit
    Its the same, you would only need the antenna adapter unless you want to use the bluetooth, then you need the harness and bluetooth mic as well.

    It fit in good, the only gap is under the head unit and you cant see it unless you are looking underneath it. Ill take a couple more pics in the light after work today

  12. Feb 4, 2014 at 6:32 AM
    #12
    Coloturfguy

    Coloturfguy Active Member

    Joined:
    Jan 3, 2014
    Member:
    #119763
    Messages:
    44
    Gender:
    Male
    First Name:
    Jeff
    Castle Rock Colorado
    Vehicle:
    06 TRD Sport DCSB Silver Streak
    Plastidip Wheels Leer Topper TBD Suspension upgrade BHLM Grillgraft mx series grill-black Plastidip some badges Remove some badges Ultraguage CIA
    what is the part number of your HU

  13. Feb 4, 2014 at 7:57 AM
    #13
    steveo27

    steveo27 Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    1,189
    Gender:
    Male
    First Name:
    Steveo
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    Bilstein 5100s, Top plate spacer, Wheeler's add a leaf, Spidertrax, Duratracs, Blue Sea fuseblock, Bestop Supertop, LED light bar, ect
    Awesome. I'd love to see some detailed pictures.

    I wonder if you could swap the 12+ dash bezel over to make it fit 100%?

  14. Feb 4, 2014 at 8:04 AM
    #14
    ramonortiz55

    ramonortiz55 Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    3,761
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    I have a headunit for sale if anyone is interested!

    :D

  15. Feb 4, 2014 at 8:05 AM
    #15
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,838
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    You can. There's many threads now on different radio swaps between the newer models and the older.
    I have a 14 entune plus with navi non jbl in my 08 ;)

  16. Feb 4, 2014 at 8:56 AM
    #16
    steveo27

    steveo27 Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    1,189
    Gender:
    Male
    First Name:
    Steveo
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    Bilstein 5100s, Top plate spacer, Wheeler's add a leaf, Spidertrax, Duratracs, Blue Sea fuseblock, Bestop Supertop, LED light bar, ect
    ive been researching alot and reading your thread. working on collecting all the info I can.

    I want to do the same swap - non JBL w/ Entunes and nav in my '11 :thumbup:

  17. Feb 4, 2014 at 1:40 PM
    #17
    tonytsai0429

    tonytsai0429 Well-Known Member

    Joined:
    Sep 9, 2013
    Member:
    #112196
    Messages:
    59
    Gender:
    Male
    SoCal
    Vehicle:
    black stallion
  18. Feb 4, 2014 at 2:53 PM
    #18
    Pat C

    Pat C Member

    Joined:
    Oct 7, 2010
    Member:
    #44345
    Messages:
    24
    Gender:
    Male
    First Name:
    Patrick
    CT
    Vehicle:
    2011 Tacoma TRD sport
    Where did u get the head unit?

  19. Feb 4, 2014 at 5:17 PM
    #19
    Sigi

    Sigi Well-Known Member

    Joined:
    Nov 12, 2010
    Member:
    #46097
    Messages:
    1,167
    Gender:
    Male
    First Name:
    Sigi
    Sfv ca
    Vehicle:
    06 tacoma 4x4 trd offroad
    Anyone??

  20. Feb 4, 2014 at 5:32 PM
    #20
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,838
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    Jbls are a bit easier with the jbl entune unit but still need to rewire some things to make your amp work correctly with your radio

    Hit up dibble9012 he did the swap into his 09 jbl with a 2012-13 jbl touchscreen system
