2013 Engine compartment fuse box fuse orientation: load / draw

Discussion in '2nd Gen. Tacomas (2005-2015)' started by CPalmer, Nov 4, 2017.

  1. Nov 4, 2017 at 7:40 AM
    #1
    CPalmer

    CPalmer [OP] Cruising the Outer Rim...

    Joined:
    Jan 2, 2014
    Member:
    #119696
    Messages:
    36
    Gender:
    Male
    NW Florida
    Vehicle:
    13' TRD Sport 4x4

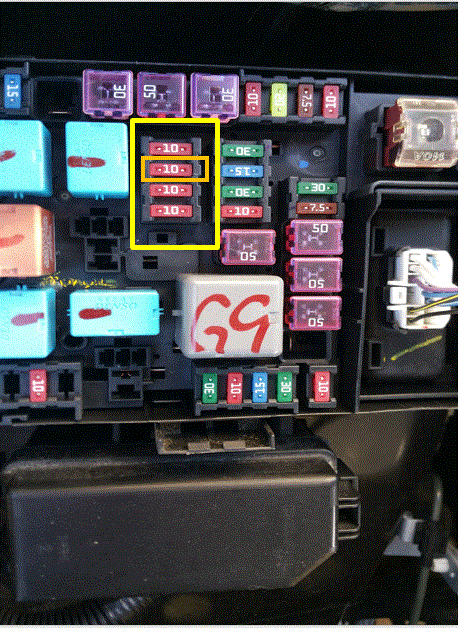

    I'm in the process of installing the LED under headlight driving lights and was checking out the fuses in the engine compartment fuse box. I'm pretty sure that I removed and replaced one of the 10 amp fuses within the large outlined box in the picture and it might have been the fuse with the smaller outlined box. However, the fuse might be backwards now with the load/draw reversed. The fuse schematic does not show the orientation of the fuses and I looked at some images online that show several different orientations of the fuses. Any thoughts on the correct orientation here?

    Thanks


  2. Nov 4, 2017 at 8:25 AM
    #2
    ChesterT

    ChesterT Active Member

    Joined:
    Aug 22, 2016
    Member:
    #195269
    Messages:
    30
    Gender:
    Male
    Rochester, NY
    Vehicle:
    2015 DCSB
    Fairly sure you are not supposed to ask a fuse about its orientation in a public forum. Just accept the fuse and move on.

  3. Nov 4, 2017 at 2:00 PM
    #3
    CPalmer

    CPalmer [OP] Cruising the Outer Rim...

    Joined:
    Jan 2, 2014
    Member:
    #119696
    Messages:
    36
    Gender:
    Male
    NW Florida
    Vehicle:
    13' TRD Sport 4x4
    Seriously?

  4. Nov 5, 2017 at 1:41 AM
    #4
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,203
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5

    It doesn't make any difference which way the fuse goes in. They are not directional.

  5. Nov 5, 2017 at 5:17 AM
    #5
    CPalmer

    CPalmer [OP] Cruising the Outer Rim...

    Joined:
    Jan 2, 2014
    Member:
    #119696
    Messages:
    36
    Gender:
    Male
    NW Florida
    Vehicle:
    13' TRD Sport 4x4
    Thanks for the help Jimmyh! I really appreciate the forum help but some of the responses from certain members leave you wondering why they even respond in the first place.

  6. Nov 5, 2017 at 8:48 PM
    #6
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,203
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    My advice would be to ignore them.
