2013, horn not working

Discussion in '2nd Gen. Tacomas (2005-2015)' started by AdamF88, Aug 28, 2020.

  1. Aug 28, 2020 at 1:11 PM
    #1
    AdamF88

    AdamF88 [OP] Member

    Joined:
    Aug 28, 2020
    Member:
    #339070
    Messages:
    5
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2013 Tacoma XSP-X
    I'm hoping someone can help me out. The horn in my 2013 Tacoma XSP-X isn't working. I have changed out the fuse, and I don't have any other issues with the controls on the stearing wheel, so hopefully it's not an issue with the clock spring. Does any one have any suggestions?

  2. Aug 28, 2020 at 1:13 PM
    #2
    MadRussian

    MadRussian Well-Known Member

    Joined:
    May 23, 2018
    Member:
    #254362
    Messages:
    391
    Gender:
    Male
    Metrowest MA
    Vehicle:
    2010 TRD OR AC
    Did you check the relay also?

  3. Aug 28, 2020 at 1:15 PM
    #3
    AdamF88

    AdamF88 [OP] Member

    Joined:
    Aug 28, 2020
    Member:
    #339070
    Messages:
    5
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2013 Tacoma XSP-X
    I will have to check that

  4. Aug 28, 2020 at 1:18 PM
    #4
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,489
    Start the engine. Hold the horn button down and turn the steering wheel in each direction. If at some point it blows, you need a new clock spring. Toyota calls it a spiral cable.

    whatstcp, Jimmyh and TnShooter like this.
  5. Aug 28, 2020 at 1:18 PM
    #5
    MadRussian

    MadRussian Well-Known Member

    Joined:
    May 23, 2018
    Member:
    #254362
    Messages:
    391
    Gender:
    Male
    Metrowest MA
    Vehicle:
    2010 TRD OR AC

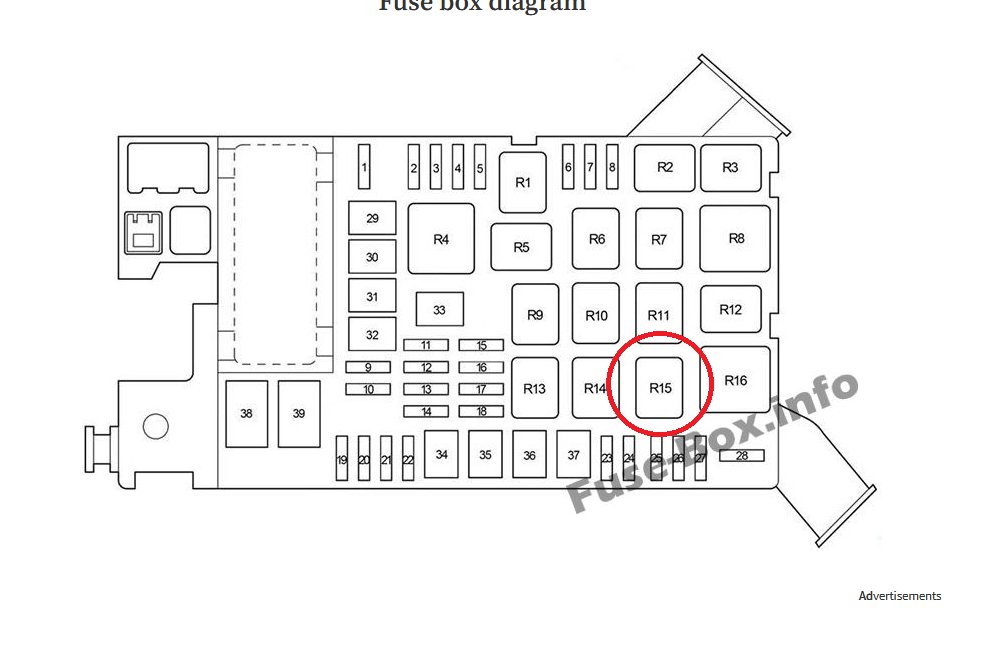

    Pretty sure it's this one.


  6. Aug 29, 2020 at 9:32 PM
    #6
    ijonahtacoma

    ijonahtacoma Well-Known Member

    Joined:
    Oct 8, 2017
    Member:
    #232407
    Messages:
    64
    Gender:
    Male
    First Name:
    Jonah
    Vehicle:
    2005 Black Tacoma with the turtle shell
    Seriously I'm just learning how to work on this thing.
    Probably the clock spring. Easy easy easy fix. You can even get one for $10 on Ebay... not that I recommend that, but it’s an option.

    This site contains affiliate links for which the site may be compensated.
    #6
  7. Sep 4, 2020 at 8:00 AM
    #7
    AdamF88

    AdamF88 [OP] Member

    Joined:
    Aug 28, 2020
    Member:
    #339070
    Messages:
    5
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2013 Tacoma XSP-X
    I have chaged the relay, and when I turn the wheel and press on the horn there is still nothing. The airbag light is not on, which leads me to think that the clock spring is good, and and horns work when I use the key fob to lock and unlock the doors. Any suggestions ?

  8. Sep 4, 2020 at 9:20 AM
    #8
    fixnfly

    fixnfly Well-Known Member

    Joined:
    Oct 1, 2011
    Member:
    #64450
    Messages:
    751
    Gender:
    Male
    First Name:
    Mike
    S.W.PA
    Vehicle:
    05 Access cab 4.0 4WD
    I remember reading a bumper sticker that said "horn broke, watch for finger"
    Sorry I'm no help.

  9. Sep 4, 2020 at 9:29 AM
    #9
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,489
    There are several circuits in the clock spring. Any 1 or all of them can break.

    By your logic, the truck doesn’t go flop, flop, flop when I drive, so the spare tire must not be flat.

  10. Sep 4, 2020 at 11:56 AM
    #10
    ijonahtacoma

    ijonahtacoma Well-Known Member

    Joined:
    Oct 8, 2017
    Member:
    #232407
    Messages:
    64
    Gender:
    Male
    First Name:
    Jonah
    Vehicle:
    2005 Black Tacoma with the turtle shell
    Seriously I'm just learning how to work on this thing.
    My airbag light wasn’t on and my horn still worked but my cruise control was out. When you use your FOB a different circuit is communicating with the horn. Your horn isn’t broken. Your clock spring is... in my opinion.

    TnShooter likes this.
  11. Sep 11, 2020 at 9:13 AM
    #11
    AdamF88

    AdamF88 [OP] Member

    Joined:
    Aug 28, 2020
    Member:
    #339070
    Messages:
    5
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2013 Tacoma XSP-X
    Ok, thank you everyone.

    Muddinfun likes this.
  12. Sep 11, 2020 at 12:07 PM
    #12
    AdamF88

    AdamF88 [OP] Member

    Joined:
    Aug 28, 2020
    Member:
    #339070
    Messages:
    5
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2013 Tacoma XSP-X
    I just changed the clock spring and that fixed the issue.

    Muddinfun likes this.
