2013 Interior Upgrade Woes

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Odiferous, Mar 30, 2019.

  1. Mar 30, 2019 at 6:56 AM
    #1
    Odiferous

    Odiferous [OP] Active Member

    Joined:
    Mar 3, 2019
    Member:
    #285170
    Messages:
    27
    Vehicle:
    2013 Access Cab Base I4

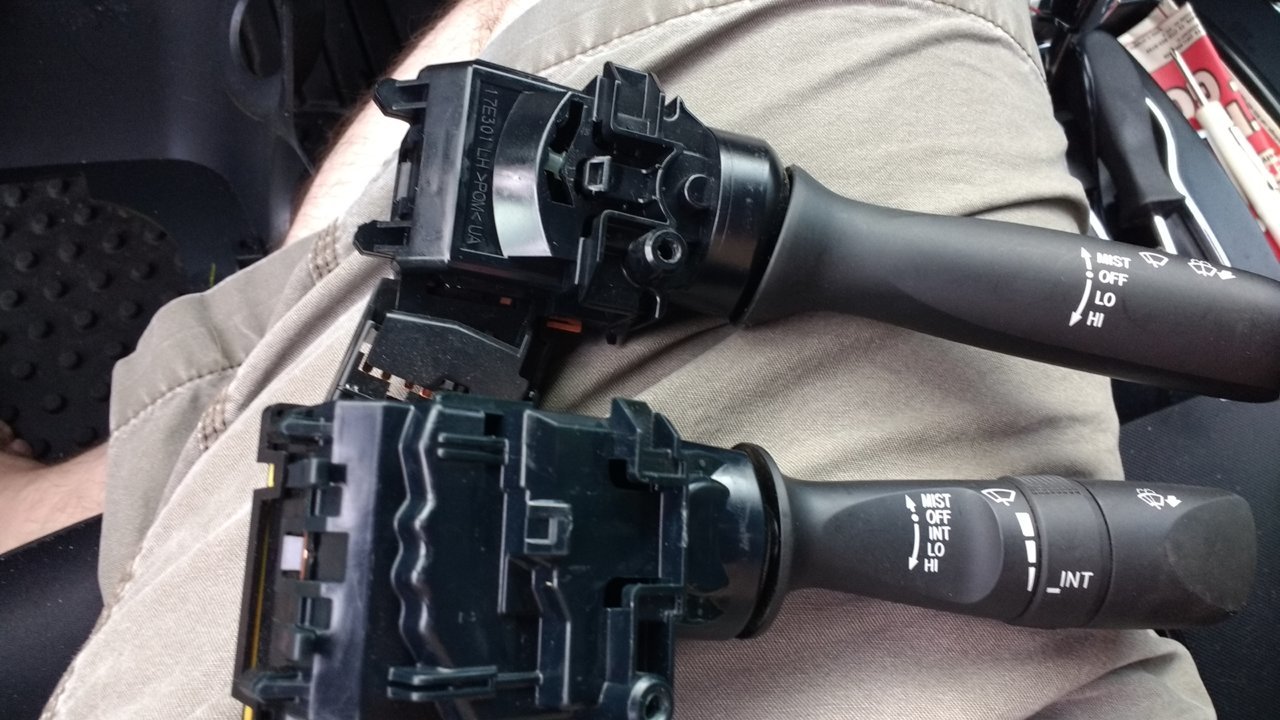

    So I'm all excited to install the intermittent wiper stalk (bought used off ebay), new spiral cable (cheapie off ebay), and steering wheel controls (from a TW member, which I carefully plasti-dipped black last night) this morning. I get everything apart, and the wiper switch won't fit. Careful inspection reveals that they're very close, but not quite compatible. Strike one:


    The spiral cable goes in without a hitch, and as I'm re-plugging everything in, I realize I've hit strike two:

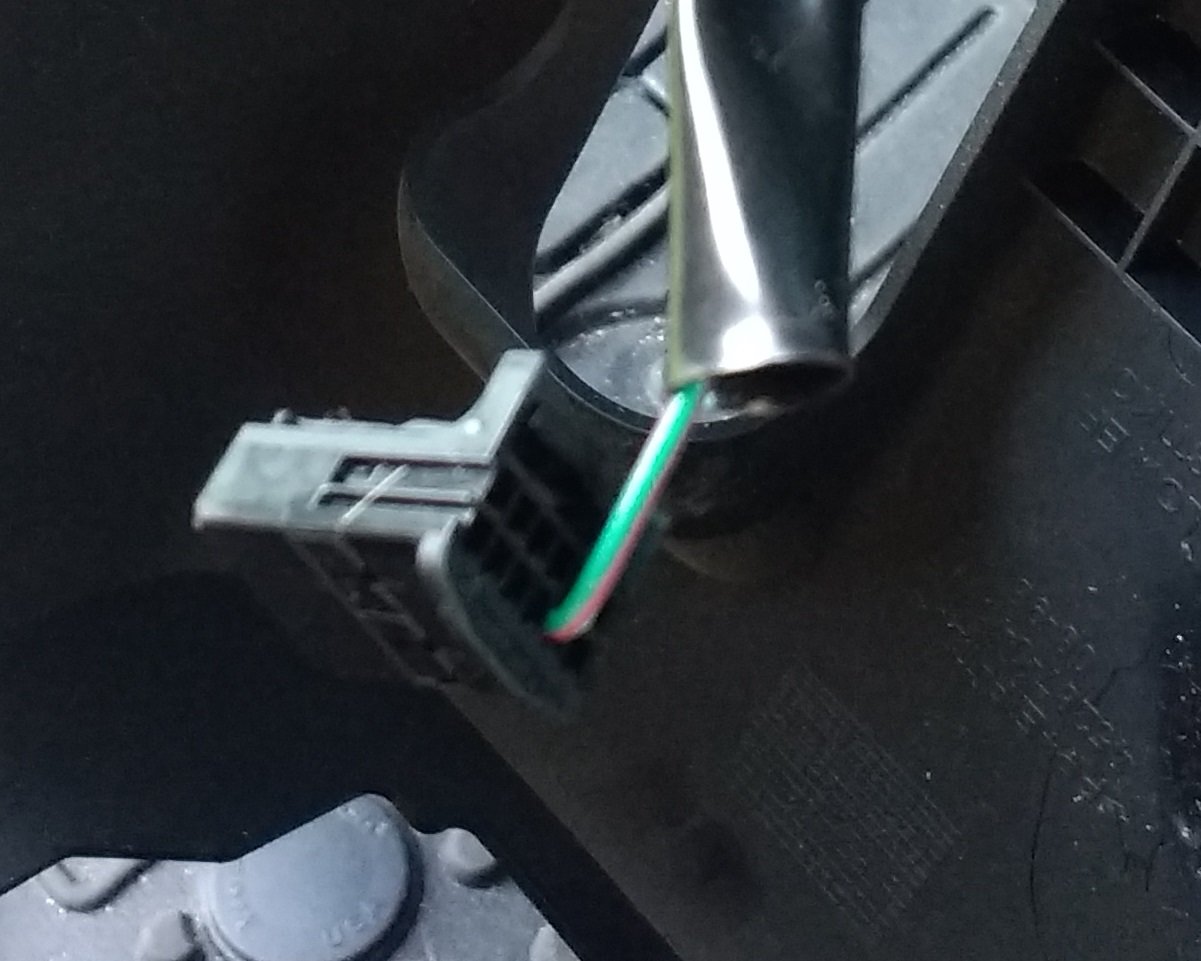

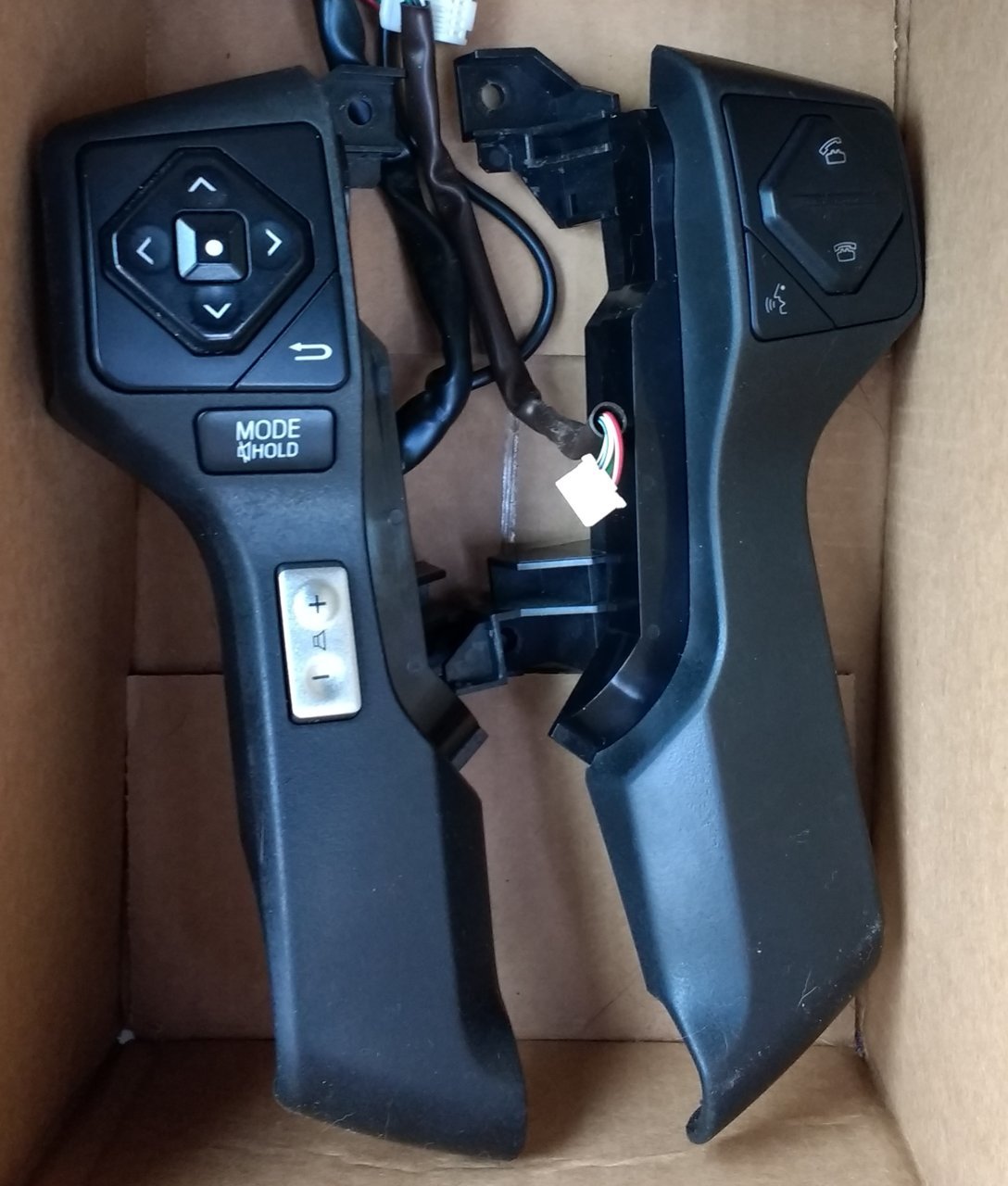

    The control harness only has one wire. Everything I'd found online to this point led me to believe that this would not be the case. Anyone have a lead on where I can get the harness I need to connect the spiral cable to the head unit? This is the control set I have:


    This site contains affiliate links for which the site may be compensated.
    #1
  2. Mar 30, 2019 at 2:50 PM
    #2
    Odiferous

    Odiferous [OP] Active Member

    Joined:
    Mar 3, 2019
    Member:
    #285170
    Messages:
    27
    Vehicle:
    2013 Access Cab Base I4
    I've been pretty unsuccessful finding this harness anywhere, and it's looking like I'm going to have to make it up myself. Working on getting some pins ordered and I guess a spool of 22 awg stranded.

    I'd love to hear someone tell me there's an easier way!

  3. Apr 15, 2019 at 11:11 AM
    #3
    Odiferous

    Odiferous [OP] Active Member

    Joined:
    Mar 3, 2019
    Member:
    #285170
    Messages:
    27
    Vehicle:
    2013 Access Cab Base I4
    That was a bit more work than I wanted to sign on for, but I got the wires run for both cruise and the steering controls, and it's working great. The controls I have were listed as 2013 take-offs, but I think they're actually 2014 controls. I ran all four wires, but the left/right and back buttons don't seem to do anything.

    I still need to get the right wiper stalk; anyone have suggestions on how to make sure I get the right one this time?

  4. Apr 15, 2019 at 11:52 AM
    #4
    op9nf

    op9nf Well-Known Member

    Joined:
    Apr 22, 2018
    Member:
    #251356
    Messages:
    373
    Gender:
    Male
    First Name:
    Nilo
    Bothell,Washington
    Vehicle:
    2013 Tacoma TRD DCLB 4X4
    Bilstein 5100’s With OME 288. 2inch blocks with freedom off-road extended shocks.
    I believe you’ve got a 2016 and up Tacoma wiper stalk.

  5. Apr 15, 2019 at 11:55 AM
    #5
    op9nf

    op9nf Well-Known Member

    Joined:
    Apr 22, 2018
    Member:
    #251356
    Messages:
    373
    Gender:
    Male
    First Name:
    Nilo
    Bothell,Washington
    Vehicle:
    2013 Tacoma TRD DCLB 4X4
    Bilstein 5100’s With OME 288. 2inch blocks with freedom off-road extended shocks.
    I think the 2013 Camry and Corolla are the same fit.
