2013 Tacoma Base Cruise Control help?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Arky, Jan 17, 2022.

  1. Jan 17, 2022 at 2:40 AM
    #1
    Arky

    Arky [OP] New Member

    Joined:
    Jan 17, 2022
    Member:
    #387532
    Messages:
    2
    Gender:
    Male
    Vehicle:
    2013 Base 4x4 Auto 2.7 Reg Cab
    I am adding cruise to my 2013 Tacoma Base 4x4 Auto 2.7. I have the cruise switch installed, with ground, and my truck is not pre wired for cruise. I’m wondering where do I go from here ? I see multiple videos, but they say each model is different as to where to hook up to ECU, and I haven’t found my specific model. I’m understanding there needs to be 2 wires ran in addition to the cruise switch. Thanks for any help.

    Hardscrabble likes this.
  2. Jan 17, 2022 at 3:33 AM
    #2
    super_white

    super_white Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    8,251
    Gender:
    Male
    First Name:
    Harry
    Connecticut
    Vehicle:
    2012 Tacoma 4X4

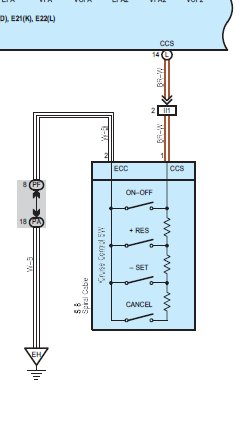

    Seeing that you have an automatic, only two wires are needed from your spiral cable (cruise switch), ground and the wire to the ECM which is brown/white and it goes to pin 14 of ECM connector E22.

    cruise ECM.jpg

    Last edited: Jan 17, 2022
  3. Jan 17, 2022 at 3:58 AM
    #3
    Hardscrabble

    Hardscrabble Well-Known Member

    Joined:
    Feb 9, 2011
    Member:
    #50838
    Messages:
    3,384
    Gender:
    Male
    First Name:
    Scott
    McDonough, GA
    Vehicle:
    ‘20 Sport M/T AC 4WD & '15 TRDOR DCSB 4WD
    A little of this and a little of that.
    Welcome to TW Arky!

    What @HAVOC said is perfect, and the diagrams are very helpful.

    I also have a 2013 Regular cab 4WD automatic transmission and I added a Rostra cruise kit. Here’s a PDF instruction file.
    https://www.rostra.com/manuals/250-1836_Form5188F.pdf

    It’s pretty straightforward, and it’s nice having cruise control.

    MSN88longbed and Arky[OP] like this.
  4. Jan 18, 2022 at 4:19 AM
    #4
    Arky

    Arky [OP] New Member

    Joined:
    Jan 17, 2022
    Member:
    #387532
    Messages:
    2
    Gender:
    Male
    Vehicle:
    2013 Base 4x4 Auto 2.7 Reg Cab
    Thanks to you all. Much appreciated!
