2013 Tacoma ECU Pin E22 Wire Color Help!

Hi,

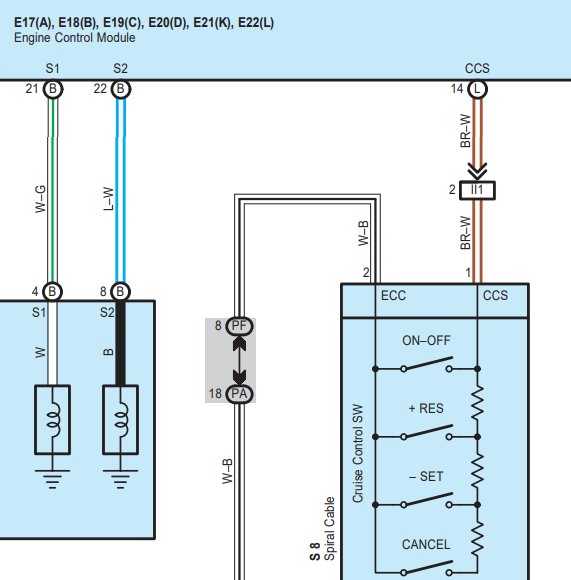

I was mucking around installing a cruise control on my 2013 2TR-FE 4 cylinder base Tacoma and somehow unplugged a wire from the E22 plug. Does anyone have a color wire diagram for that plug, or know where the light green wire would go? I know that the wire for the cruise control goes into pin 14 but not where a plain light green wire goes. Im looking on Alldata but cannot find a digram of the all the wires that go into that plug.

Any help would be greatly appreciated as I'd like to go to work tomorrow



I’ll work on it to night for you.
We, @Dm93 , have the pin outs for 05-10 but never have gotten around to doing the 11-15 trucks.



Are you sure it is light green?
Does it happen to have a black strip on it?
Light Green/Black?



No black or white stripe. Just green.

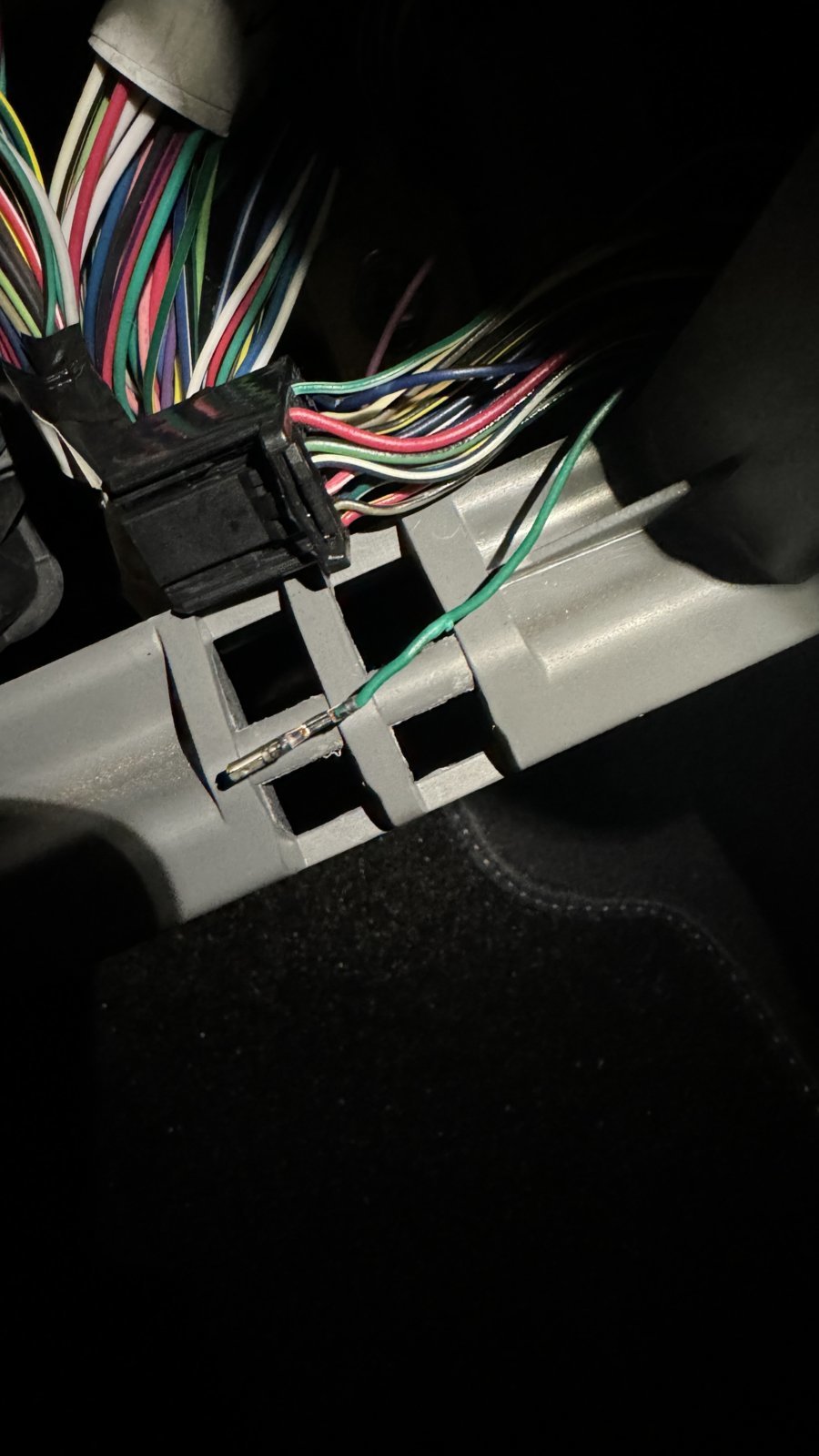

Here is a bad picture of the e22 plug and wire.

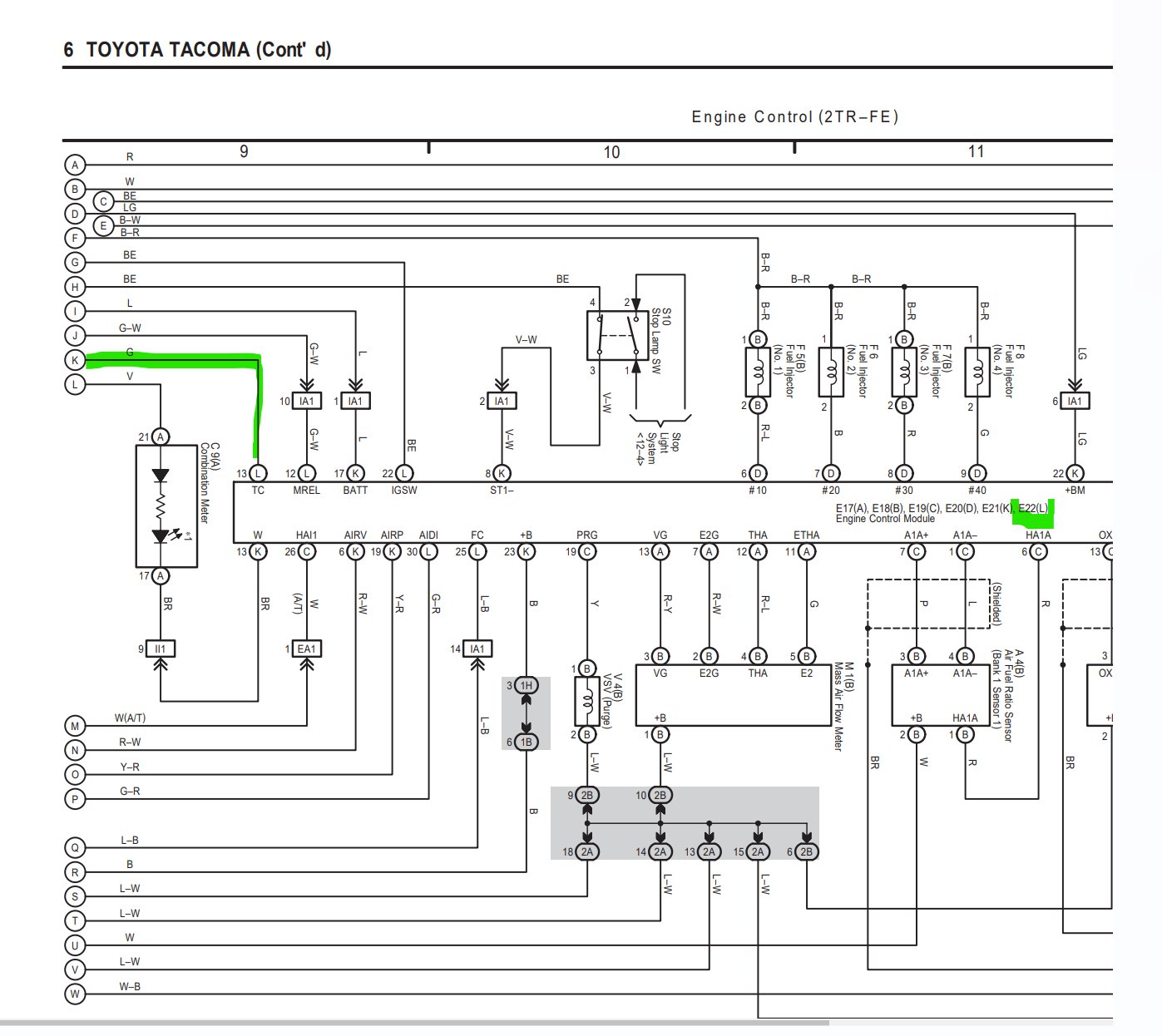

Maybe green and not light green.my best guess for s traction control wire that goes in pin 13.



Unplug it and see if pin 13 has a wire to it



That’s it. It looks like it was the TC green wire pin 13. TnShooter you are my hero! Everything works, no flashing lights, no smoke or fire…and hopefully lesson learned. Be gentle



Well that was for all the junction and harness joining connectors, module pinouts are in service info although it's easier to just look at the wiring diagram when it comes to module pinouts alot of the time.
Anyway looks like you have things sorted here



Which plug is E22 pin 14



Sorry for the "not so good" pic.

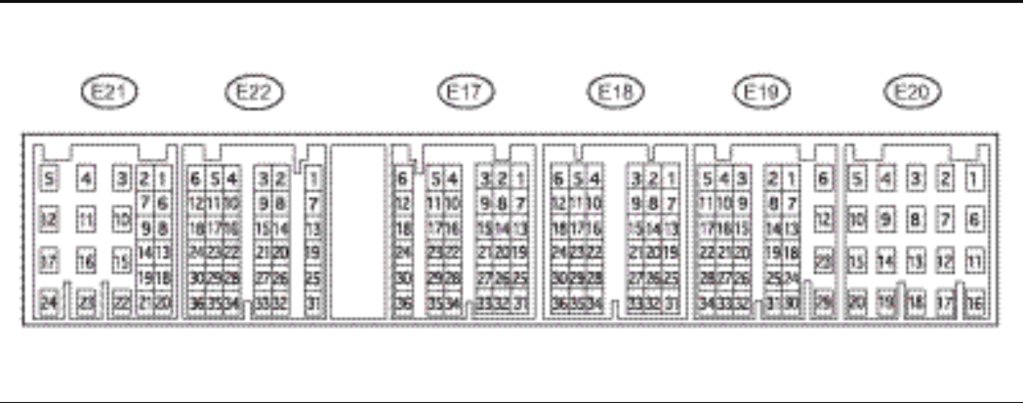

E22 is plugged into the ECU.



Thank you

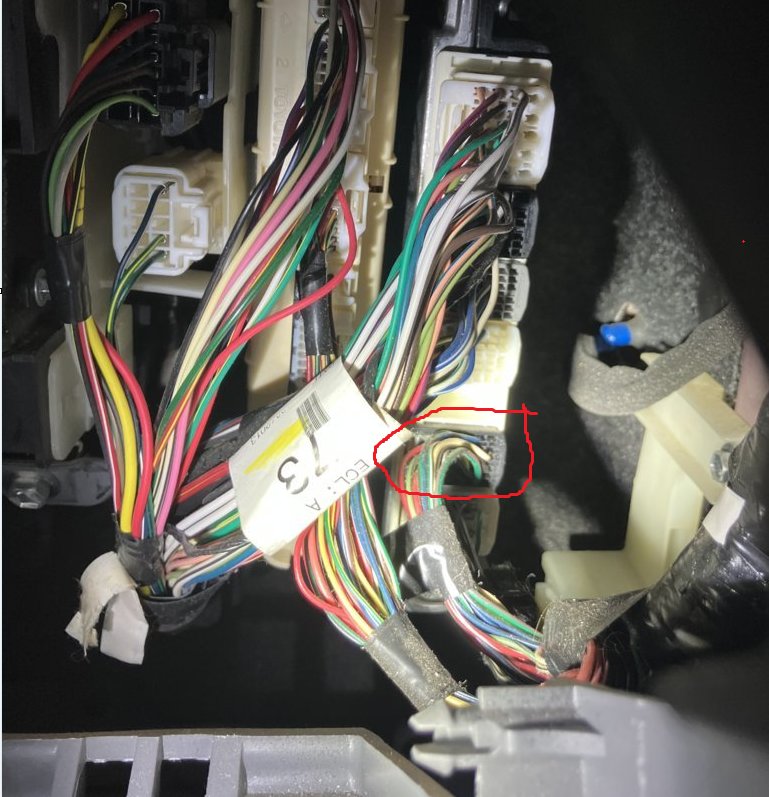

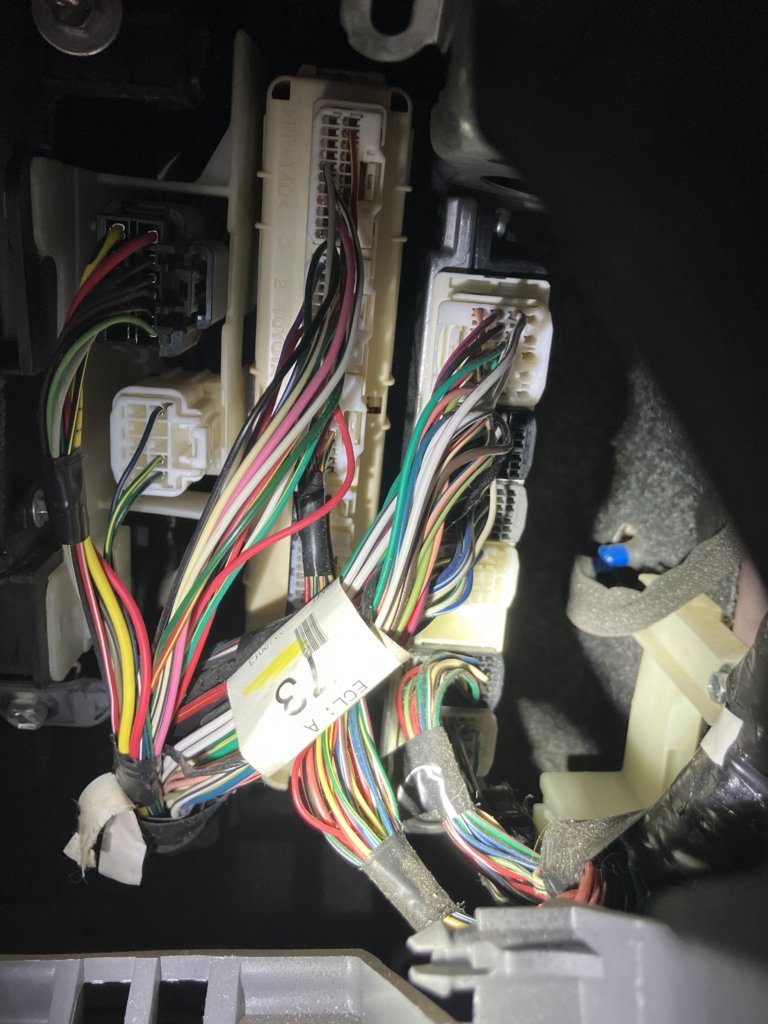

Can you tell me which one it is ? In this picture?



Is that where cruise wire plugs in ?

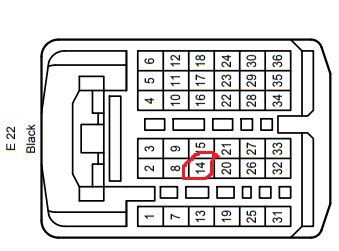

Yea should be Pin 14.



Thank you so much.

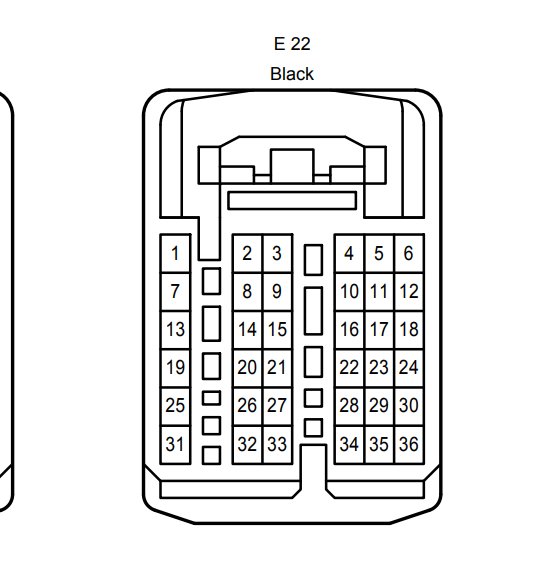

Are there numbers on the plug ?



There should be a number on each corner of the connector corresponding to the number of the corner pin but no each pin isn't numbered, you have to count.



Thank you
