2013 Tacoma fog lights not working

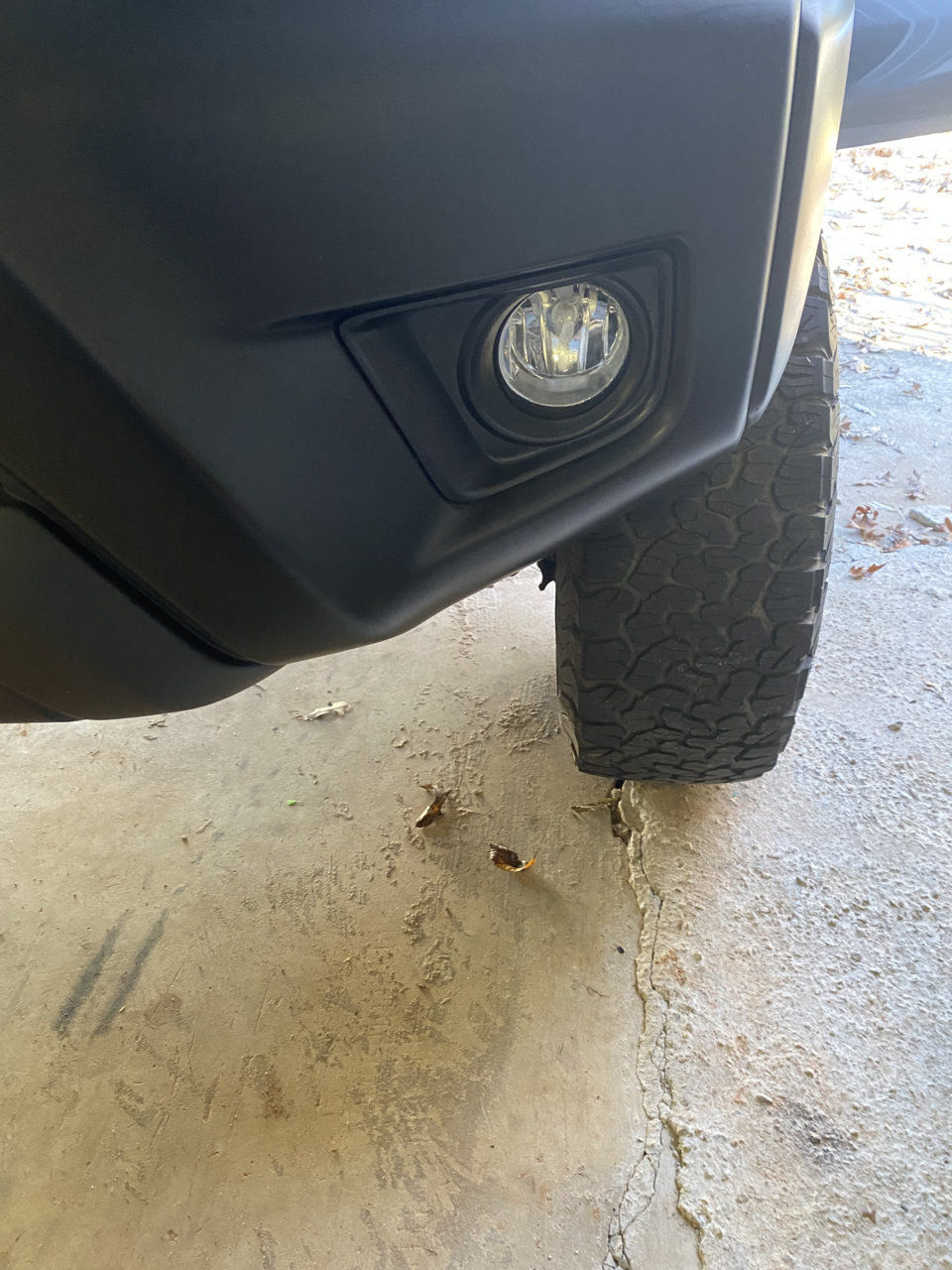

Okay guys this might be a long shot but I just purchased a 2013 Tacoma base model regular cab. I noticed that the fog lights were not working so I changed the bulbs and still nothing so I go the fuse box and nothing I've checked voltage at the socket and it's showing nothing traced wires and still nothing. (When you push switch in cab the green light come on.)I'm hoping somebody had had this issue before.



My 2014 has a different switch, and yours being a base model, I don't think they came with fogs. So I'm thinking someone added them and there's probably a wire incorrect somewhere

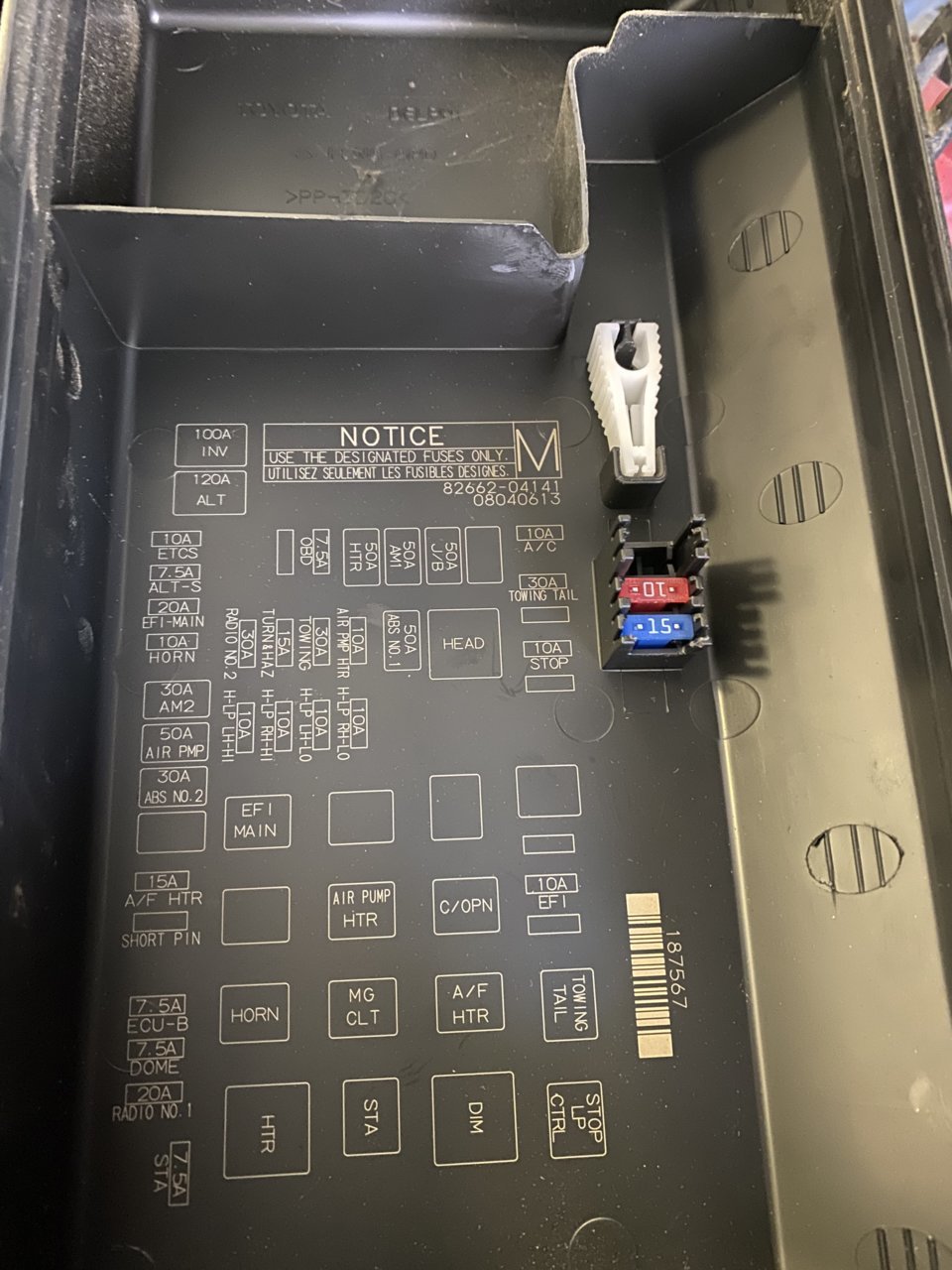

It's just strange because I can't find a fuse or relay anywhere

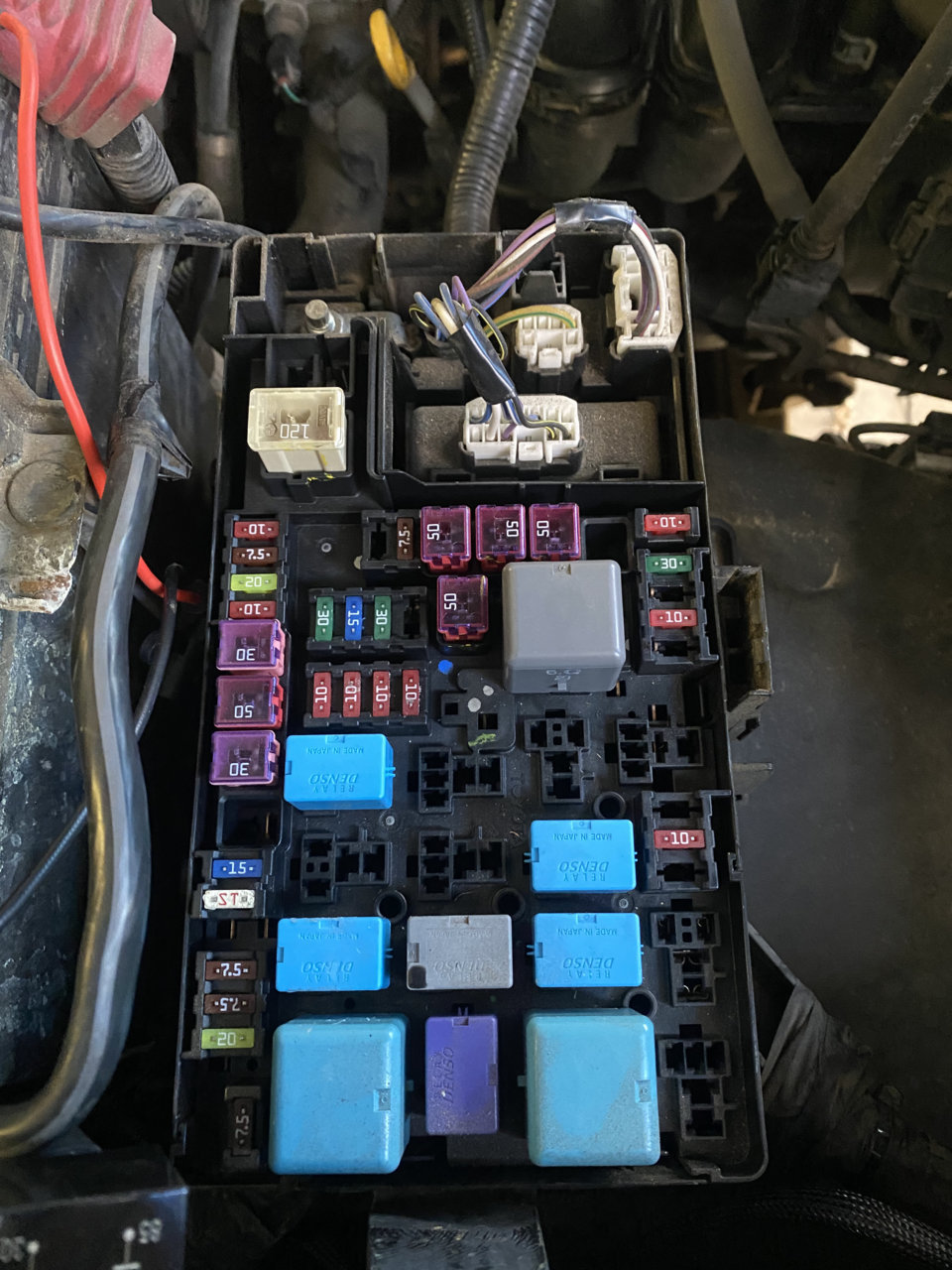

In trucks with them OEM, there's a secondary fuse box next to the big one

This post showing the fog anytime mod, the blue relay is the fog relay
https://www.tacomaworld.com/threads/2012-foglight-anytime-mod.186818/#post-4041572

Which confirms to me it was added after the fact. Take the dash panel apart and chase the wires, figure out what they tapped. It might have been something strange. When I did my anytime mod I accidentally used the AC fuse which meant they only worked when the AC was on



Yea I don't have that little repay box



You have the headlights on low beam, correct?

With OE wiring this is the only way they work



Yes

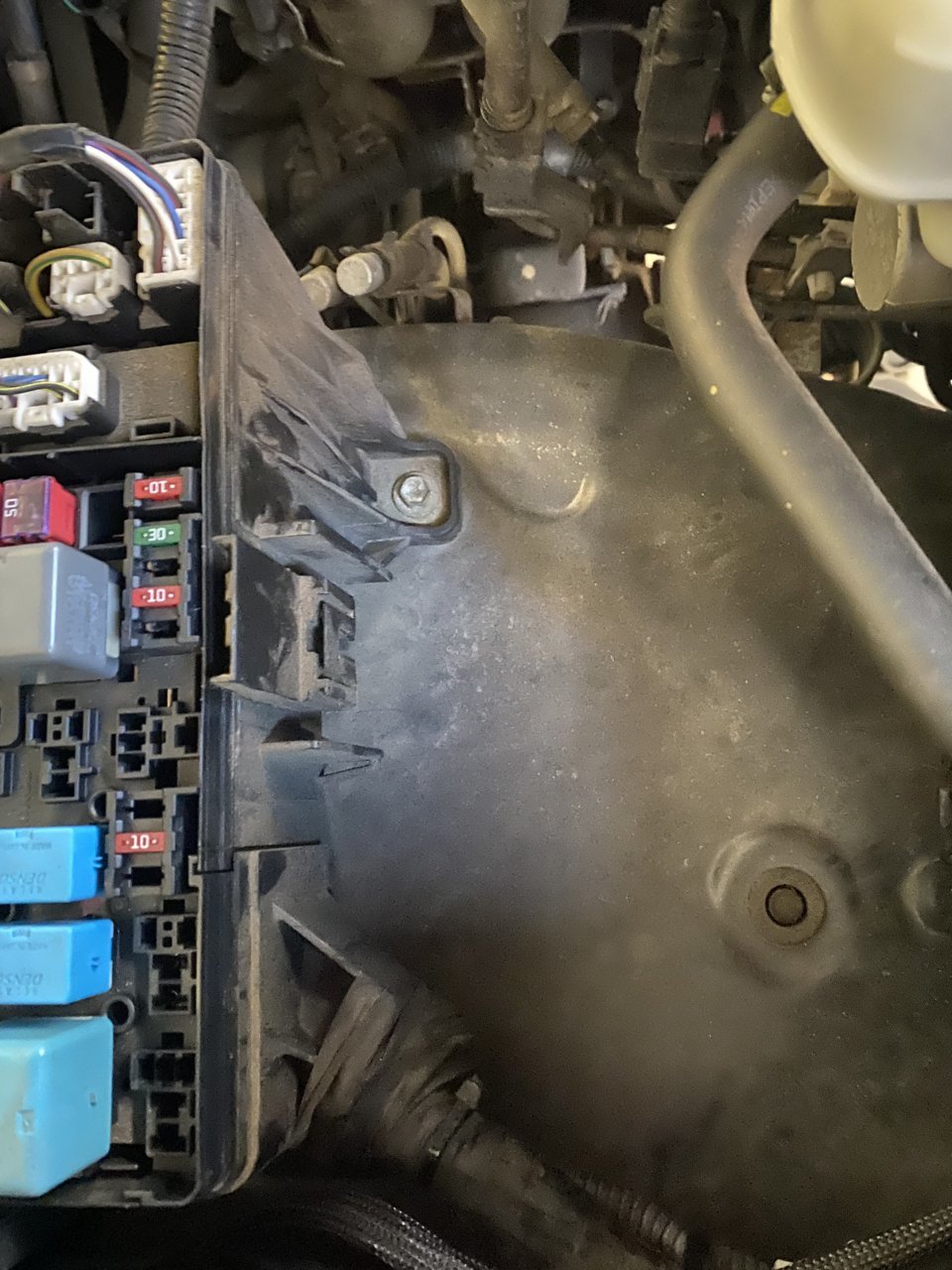

On some years this was where the fog relay was



Yea there's nothing to plug into there might just have to take it to Toyota

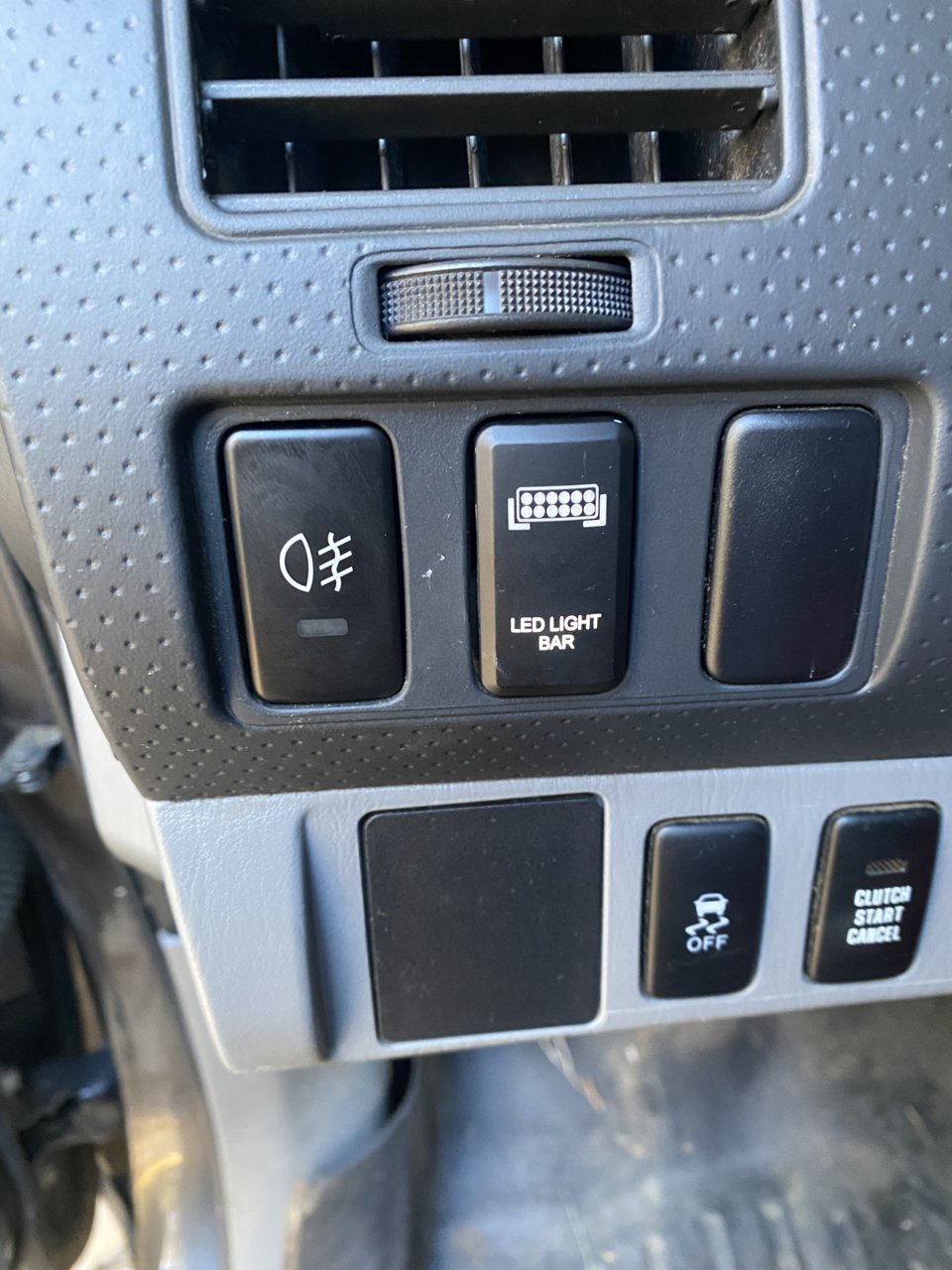

I agree. Someone has added them or been into it before. The switch is also upside down. Which makes no difference.

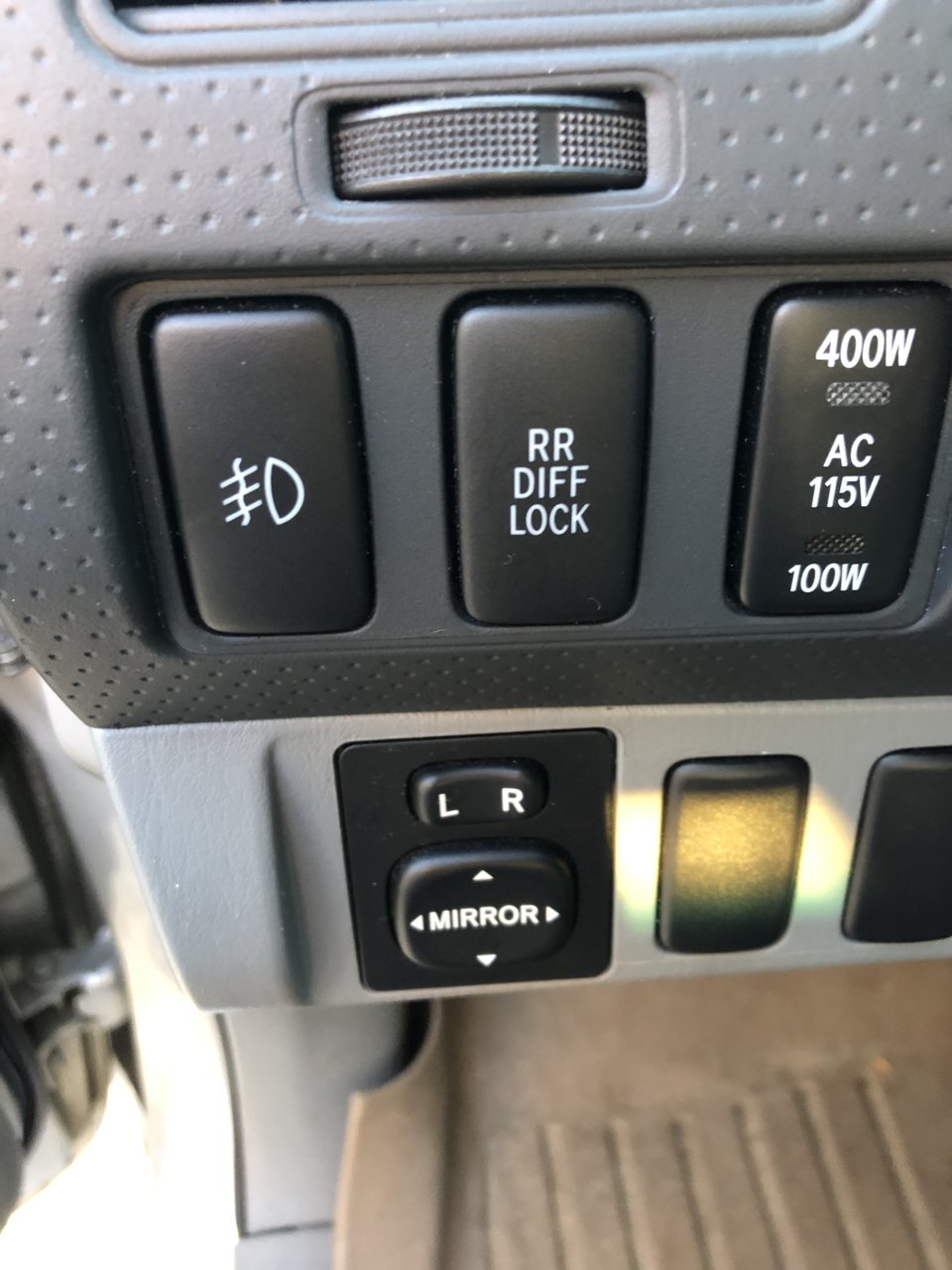

Here is my OE Switch.



Your fog light button in from the 4runner/fj
Someone definitely added that and probably removed something when it was sold. Someone was selling a kit to add that button so it lights up when on. I would pop that switch out. Very easy to do take out change cubby and reach up and pop it out. There may be a wire thats not hooked up



For the price you'd have to pay a dealer to correct the problem you could likely buy a set of Diode Dynamics and have real usable foglights with an easy wiring job.

@memario1214 can set you up.
