2013 Toyota Tacoma Bilstein 5100 W/ ICON AAL and 1.5" Leveling Kit?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by tigerhappy, Jul 28, 2021.

  1. Jul 28, 2021 at 11:06 PM
    #1
    tigerhappy

    tigerhappy [OP] 2013 Toyota Tacoma TRD Off-Road Manual Trans

    Joined:
    Jul 28, 2021
    Member:
    #372542
    Messages:
    17
    First Name:
    Ray
    Vehicle:
    2013 Toyota Tacoma TRD Off-Road Access Cab and Standard transmission
    AirLift rear airbag suspension. Bilstein 5100 w/ AAL from Icon. URD throw-out bearing.
    Hi Tacoma World,

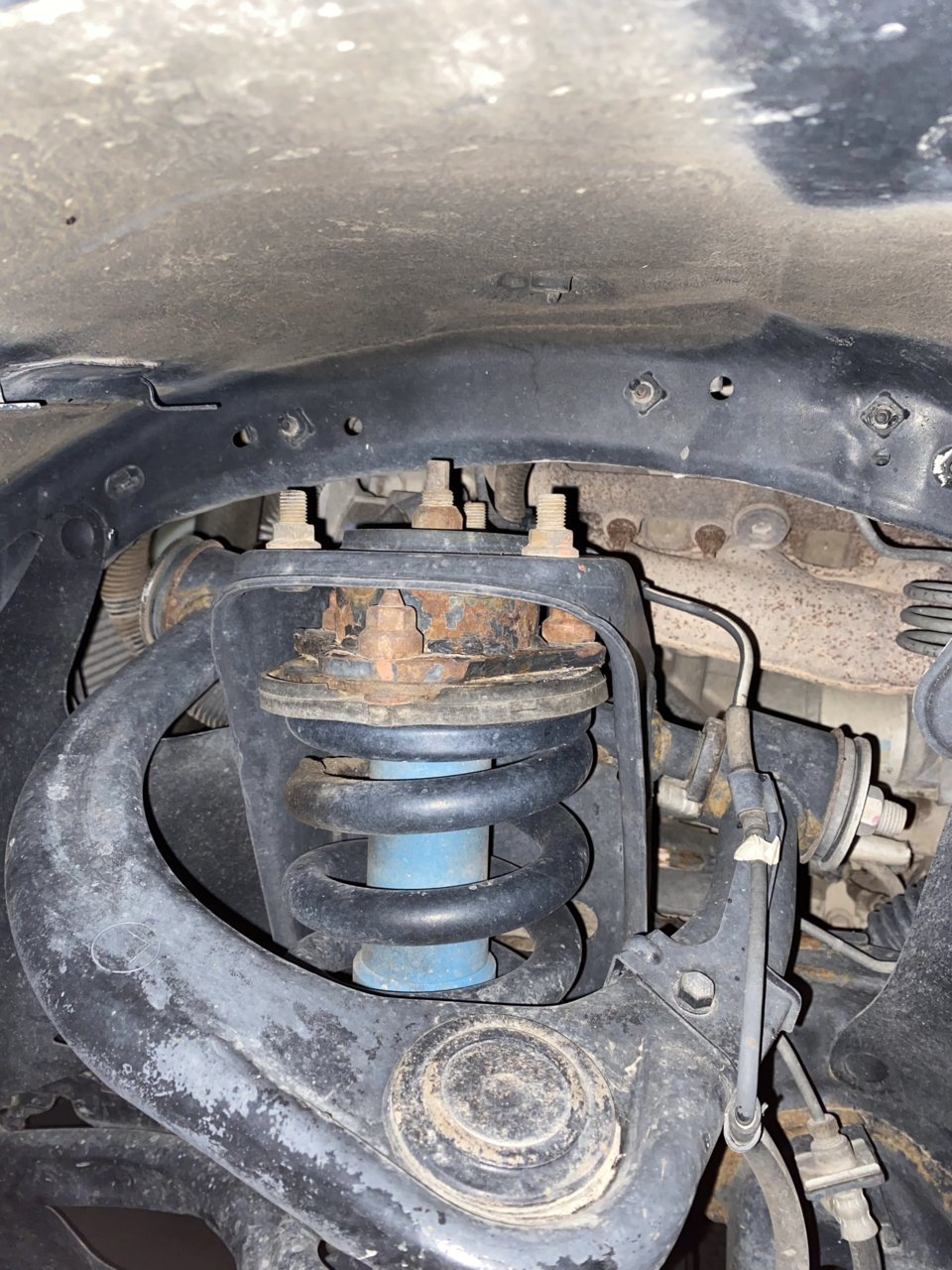

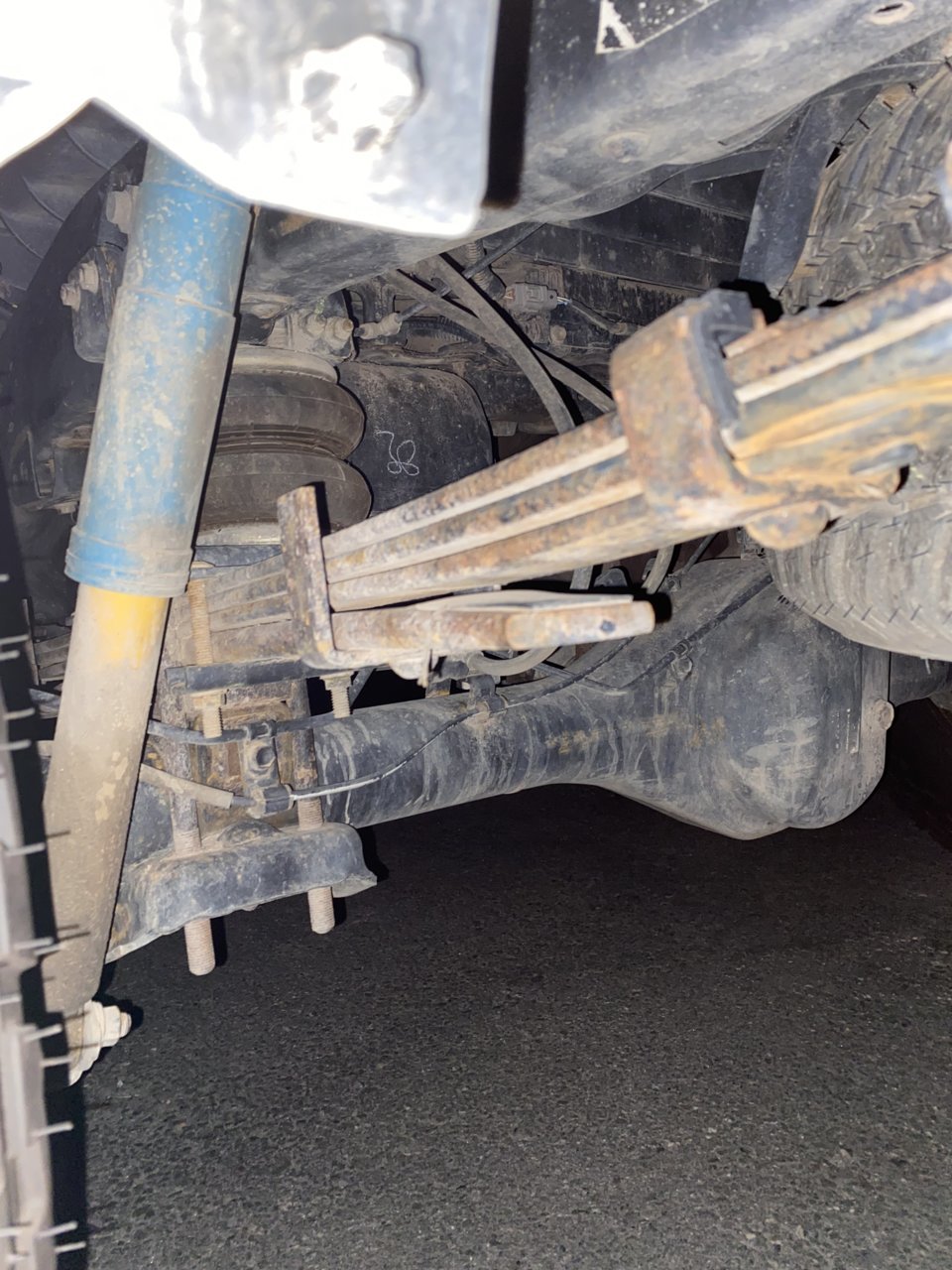

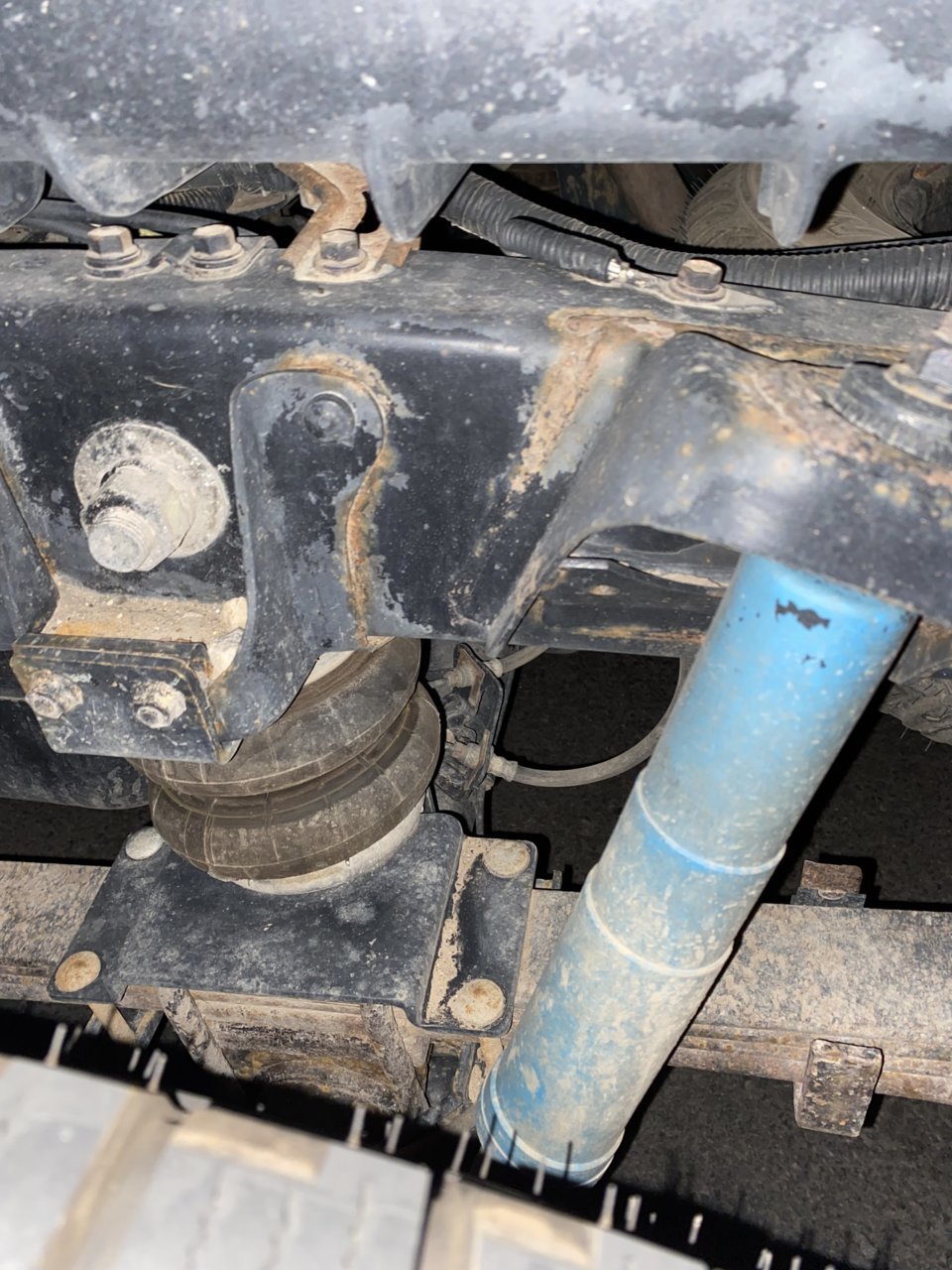

    I ride a 2013 Toyota Tacoma access cab and I recently purchased some bilstein 5100's for front and rear with the ICON add a leaf in the back. I plan on keeping the factory springs and maybe running the top rung on the bilsteins for maximum ride height but I'm worried that may be a bad idea considering I already have a 1.5" leveling kit installed. I added some photos of the current suspension

    I also have an AirLift airbag suspension installed which I currently rarely use due to the fact that I am not running a rooftop tent just yet. With all this considered, what is the highest rung I could rest the spring loader on my bilstein 5100's without risking heavy wear and tear on suspension?



  2. Jul 28, 2021 at 11:16 PM
    #2
    Eastkat808

    Eastkat808 Well-Known Member

    Joined:
    Nov 21, 2020
    Member:
    #347371
    Messages:
    356
    Gender:
    Male
    First Name:
    Esket
    Vehicle:
    2012 DCLB 4x4 sr5
    bilstein 5100 cranked up
    Ditch the leveling kit, just use the bilsteins and you’ll be golden, I recommend buying new top hats, hate to pair all that worn rubber with your shinny new bilsteins

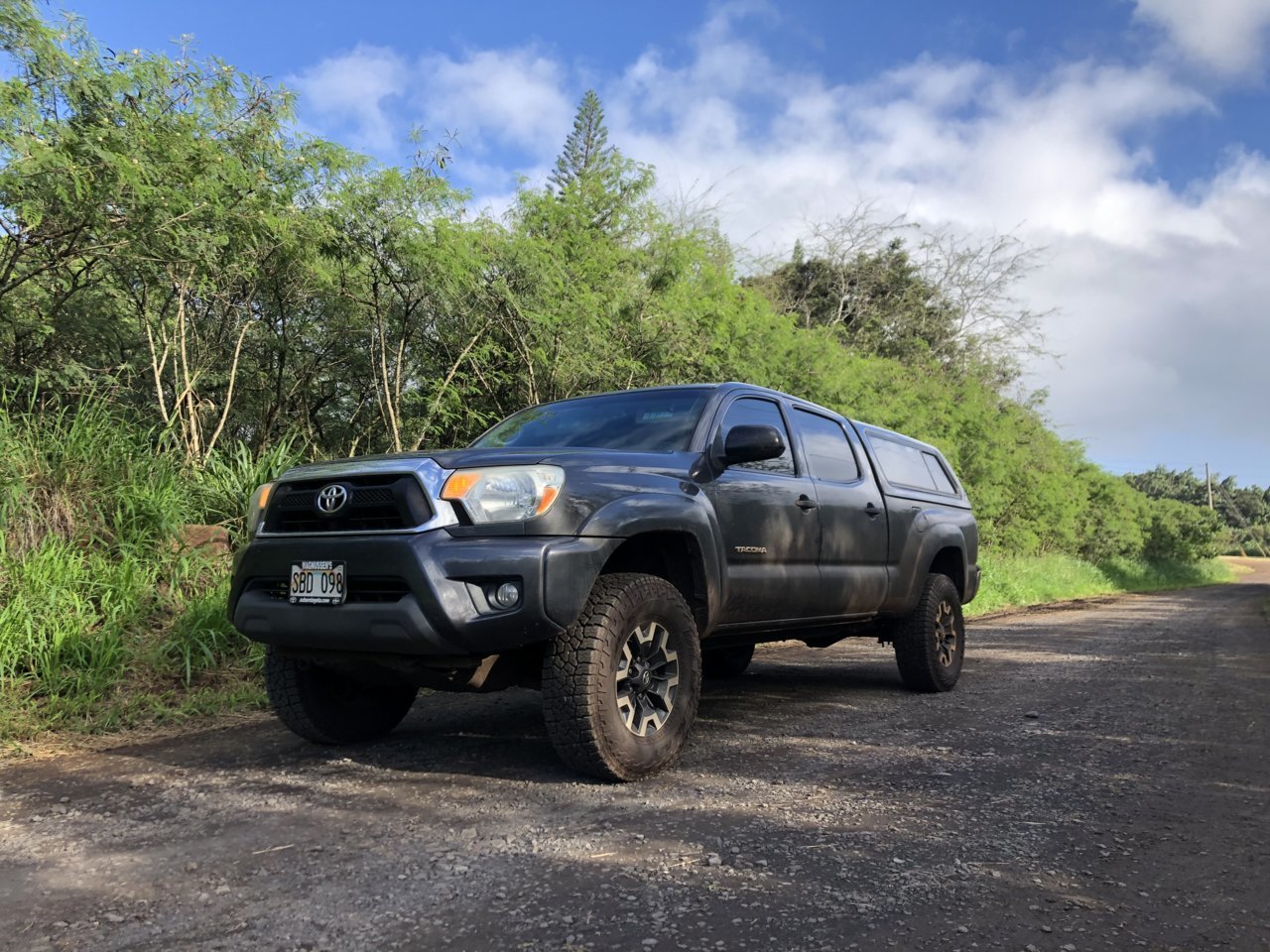

    when I had my 5100s installed I was at the 4th ring and it was perfect, as long as you’re a v6 you should expect to see that 2.5 2.75in lift in the front492BC44F-FE74-4685-91E6-A8774065F4E9.jpg

    Last edited: Jul 28, 2021
    tigerhappy[OP] likes this.
  3. Jul 28, 2021 at 11:25 PM
    #3
    tigerhappy

    tigerhappy [OP] 2013 Toyota Tacoma TRD Off-Road Manual Trans

    Joined:
    Jul 28, 2021
    Member:
    #372542
    Messages:
    17
    First Name:
    Ray
    Vehicle:
    2013 Toyota Tacoma TRD Off-Road Access Cab and Standard transmission
    AirLift rear airbag suspension. Bilstein 5100 w/ AAL from Icon. URD throw-out bearing.
    Good to know, I was also wondering about possible options for new UCA's? they are quite expensy so I was gonna without them but I'm running 285/75/16 and nothing currently rubs because im also running 1.25' spacers from spider trax as well. but I still wonder what is recommended. Do I need new UCA's?

  4. Jul 28, 2021 at 11:29 PM
    #4
    Eastkat808

    Eastkat808 Well-Known Member

    Joined:
    Nov 21, 2020
    Member:
    #347371
    Messages:
    356
    Gender:
    Male
    First Name:
    Esket
    Vehicle:
    2012 DCLB 4x4 sr5
    bilstein 5100 cranked up
    Lots of guys go with SPC as they are adjustable to suit many different needs, I believe I last saw them for around $670, I personally run dobinsons UCA with a set 3° of caster so far they’ve been great. Some guys here run JBA control arms I know I’ve seen some posts on it those are on the cheaper side about $460

    I ran with stock control arms for awhile but my alignment numbers always suffered because of the stock UCA. so buy once cry once they were worth it

    285s and no rubbing?? Can I see some pics of your truck, you don’t have a cab mount chop or anything? Do you off-road any?

  5. Jul 29, 2021 at 8:42 AM
    #5
    tigerhappy

    tigerhappy [OP] 2013 Toyota Tacoma TRD Off-Road Manual Trans

    Joined:
    Jul 28, 2021
    Member:
    #372542
    Messages:
    17
    First Name:
    Ray
    Vehicle:
    2013 Toyota Tacoma TRD Off-Road Access Cab and Standard transmission
    AirLift rear airbag suspension. Bilstein 5100 w/ AAL from Icon. URD throw-out bearing.

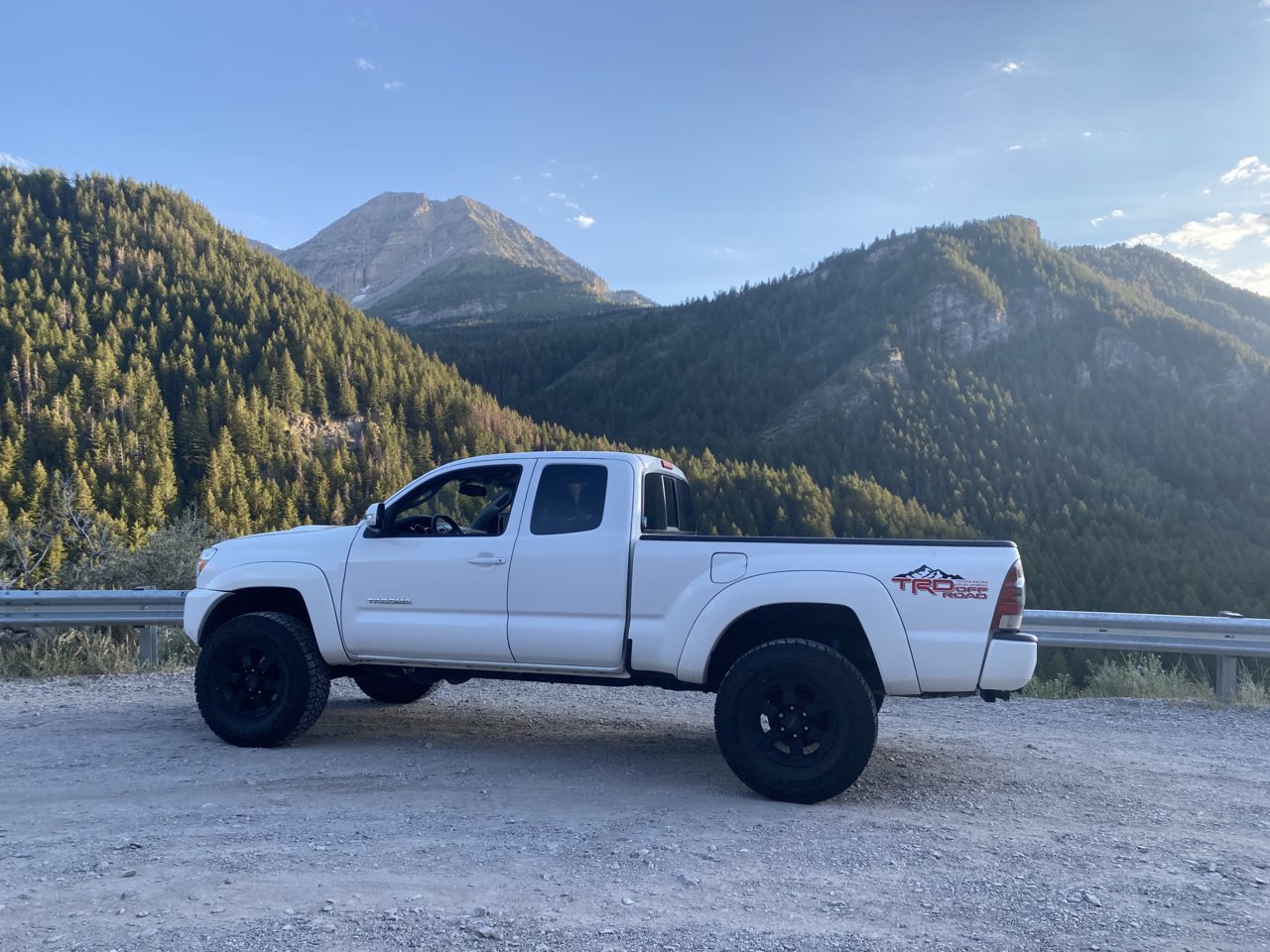

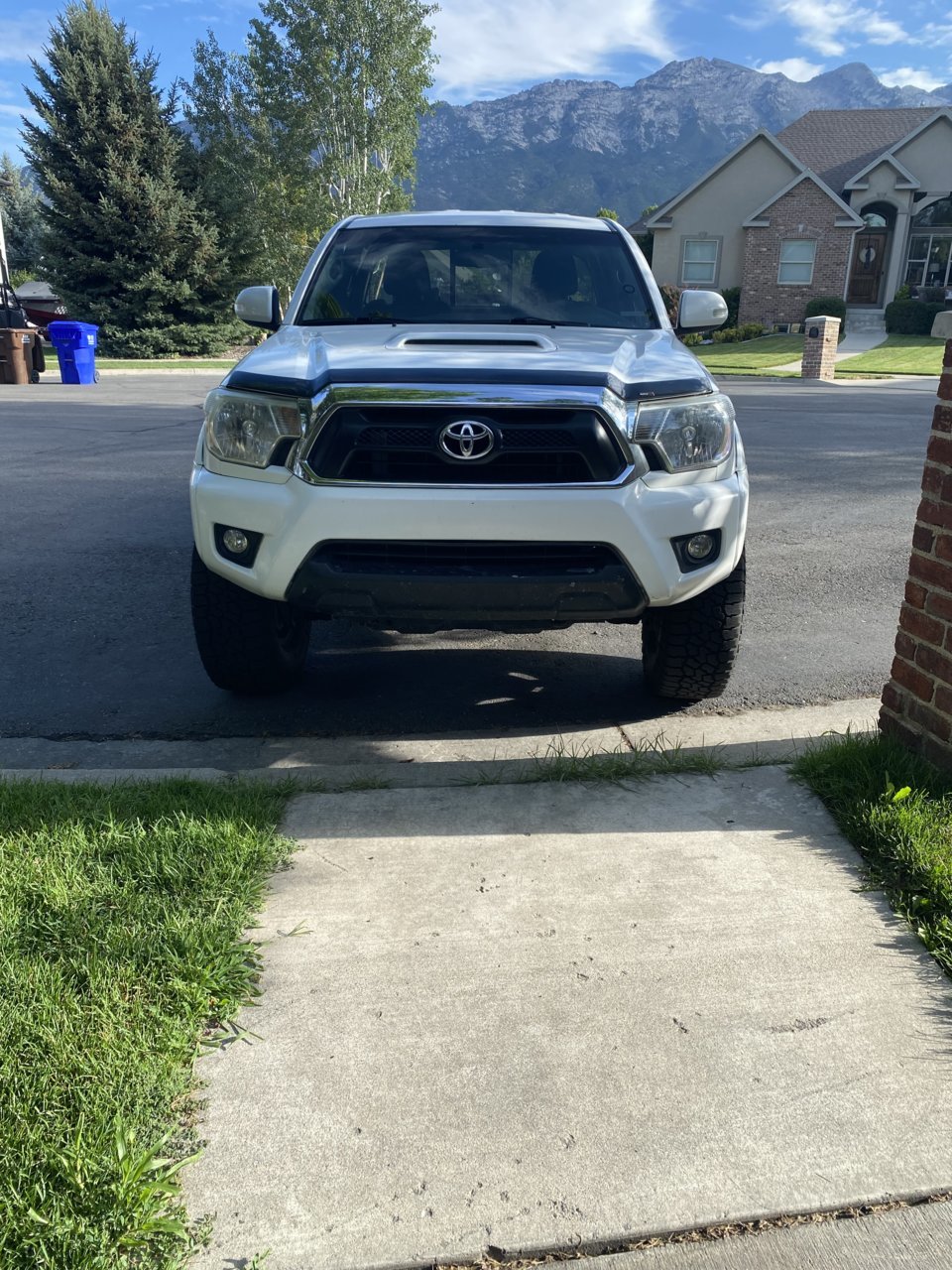

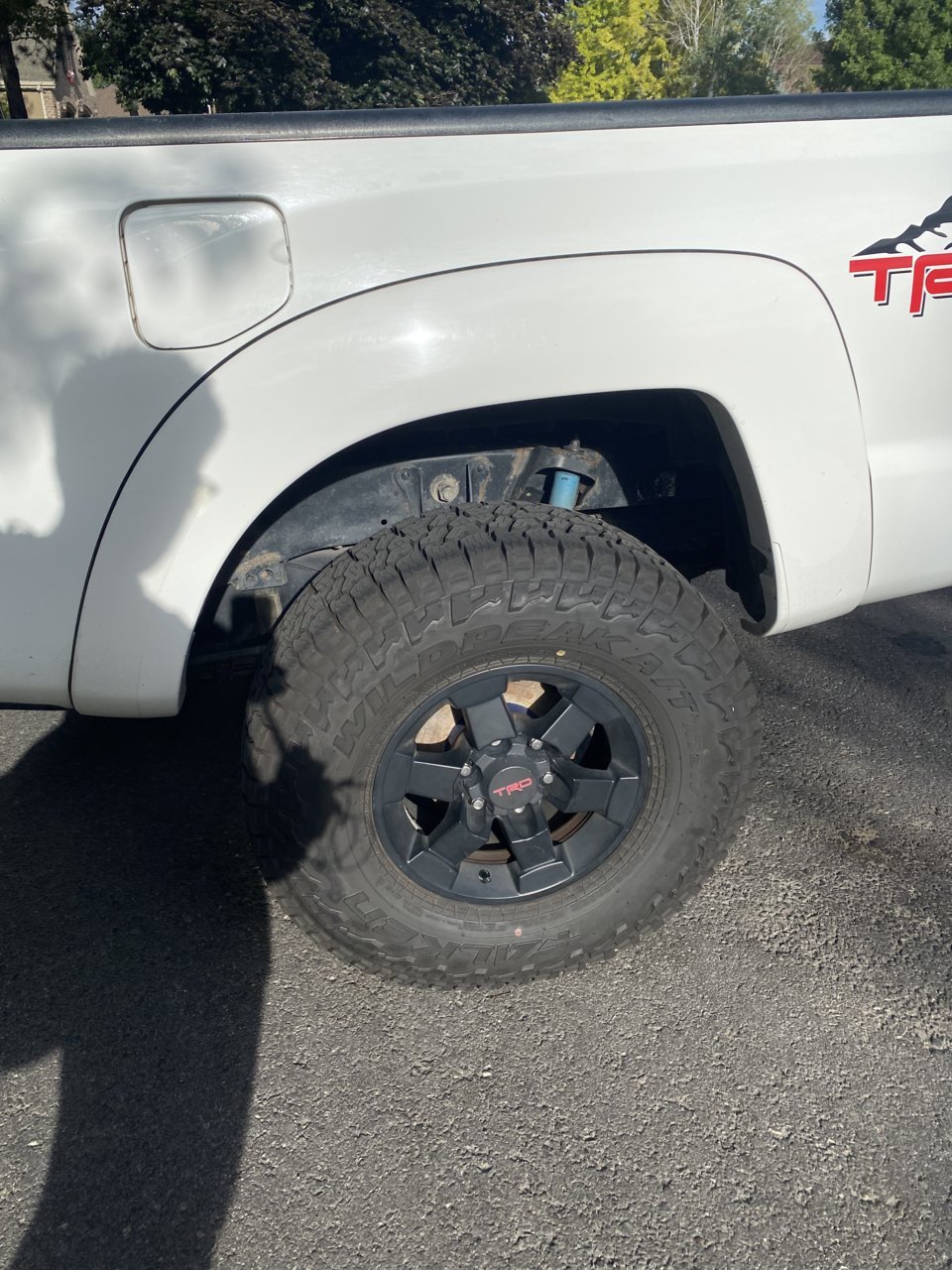

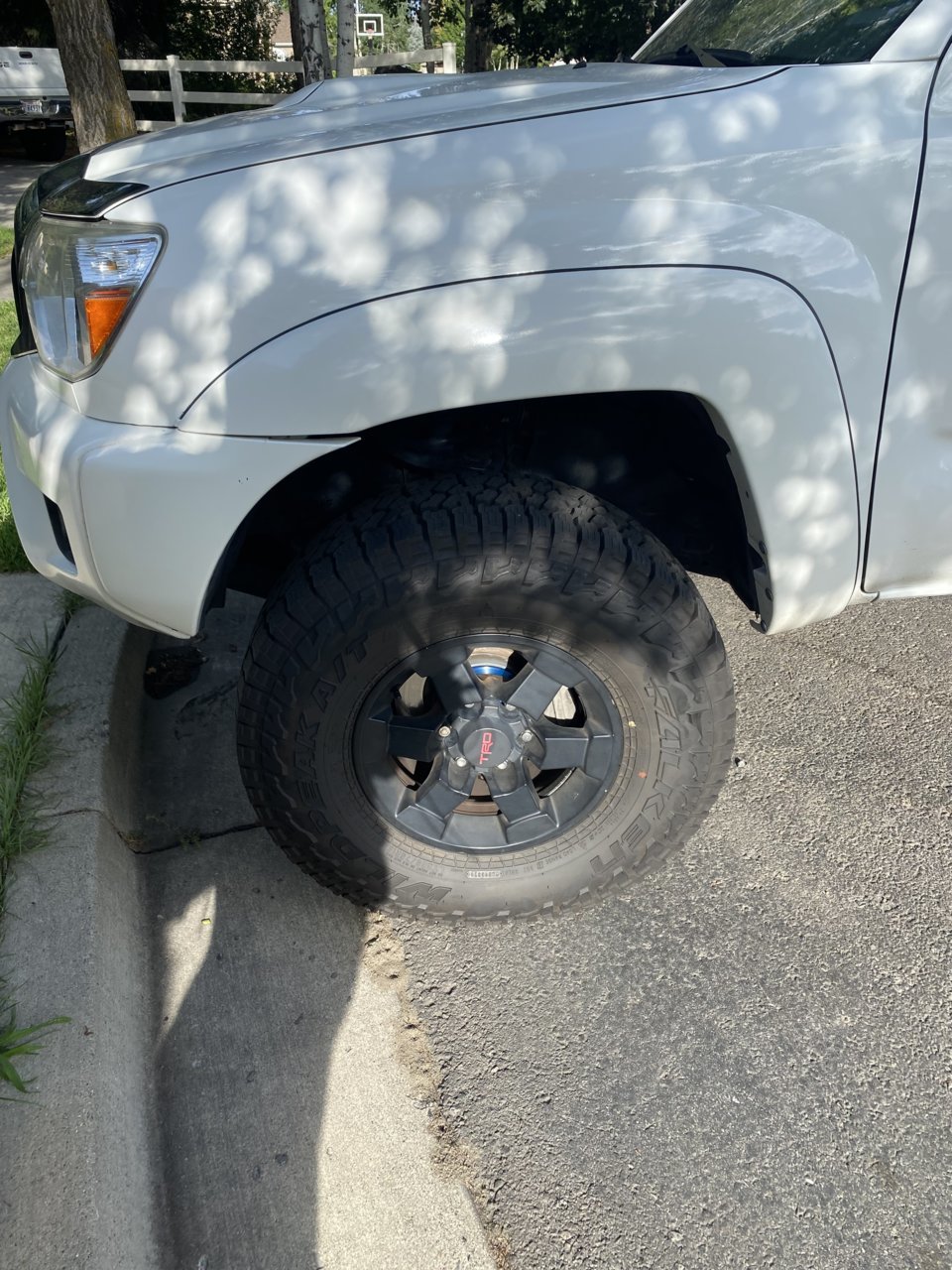

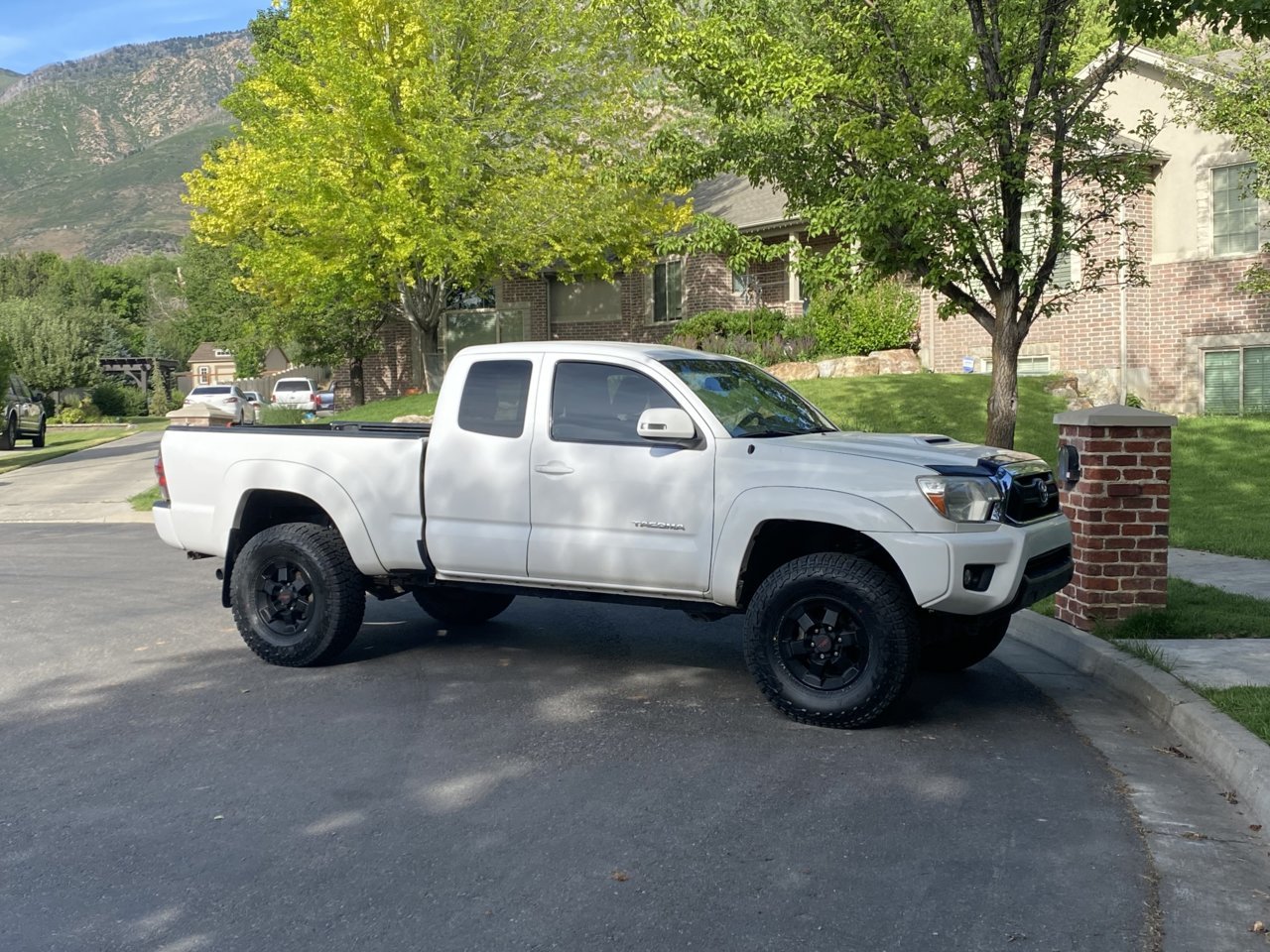

    yes, no rubbing. Im not sure what a cab mount chop means? And yes I overland and off-road plenty. Here are a few pics.


    Eastkat808 likes this.
  6. Jul 29, 2021 at 8:43 AM
    #6
    tigerhappy

    tigerhappy [OP] 2013 Toyota Tacoma TRD Off-Road Manual Trans

    Joined:
    Jul 28, 2021
    Member:
    #372542
    Messages:
    17
    First Name:
    Ray
    Vehicle:
    2013 Toyota Tacoma TRD Off-Road Access Cab and Standard transmission
    AirLift rear airbag suspension. Bilstein 5100 w/ AAL from Icon. URD throw-out bearing.
    Don't forget I'm also running 1.25" spider trax spacers

    Eastkat808 likes this.
  7. Jul 29, 2021 at 9:03 AM
    #7
    Eastkat808

    Eastkat808 Well-Known Member

    Joined:
    Nov 21, 2020
    Member:
    #347371
    Messages:
    356
    Gender:
    Male
    First Name:
    Esket
    Vehicle:
    2012 DCLB 4x4 sr5
    bilstein 5100 cranked up
    Are you going to be installing yourself?

    and damn looks good, which year wheels are those I been wanting to go up to 285s but I know there’s going to be trimming involved

  8. Jul 29, 2021 at 9:25 AM
    #8
    tigerhappy

    tigerhappy [OP] 2013 Toyota Tacoma TRD Off-Road Manual Trans

    Joined:
    Jul 28, 2021
    Member:
    #372542
    Messages:
    17
    First Name:
    Ray
    Vehicle:
    2013 Toyota Tacoma TRD Off-Road Access Cab and Standard transmission
    AirLift rear airbag suspension. Bilstein 5100 w/ AAL from Icon. URD throw-out bearing.
    Thanks! your Tacoma looks really clean too. These wheels are off of an FJ TRD, I have the 5th wheel but haven't figured how I want to mount it yet. I didn't need to trim fortunately, the wheel spacers helped as well.

    Yes, I'll be installing it myself. I'm also installing a new clutch disc assembly and clutch plate with URD throw-out bearing upgrade. Lots to do!

  9. Jul 29, 2021 at 9:32 AM
    #9
    Eastkat808

    Eastkat808 Well-Known Member

    Joined:
    Nov 21, 2020
    Member:
    #347371
    Messages:
    356
    Gender:
    Male
    First Name:
    Esket
    Vehicle:
    2012 DCLB 4x4 sr5
    bilstein 5100 cranked up
    https://youtu.be/5E6u7dC7EHg

    https://youtu.be/jo0FJSi-KYs

    Not sure if you know how already but here’s a method on how to install the struts without a spring compressor, by far my favorite method makes things so much easier as the spring compressors you rent from and auto parts store are just difficult

    tigerhappy[OP] likes this.
