2013 wired for turn signal mirrors?

Hello TW!

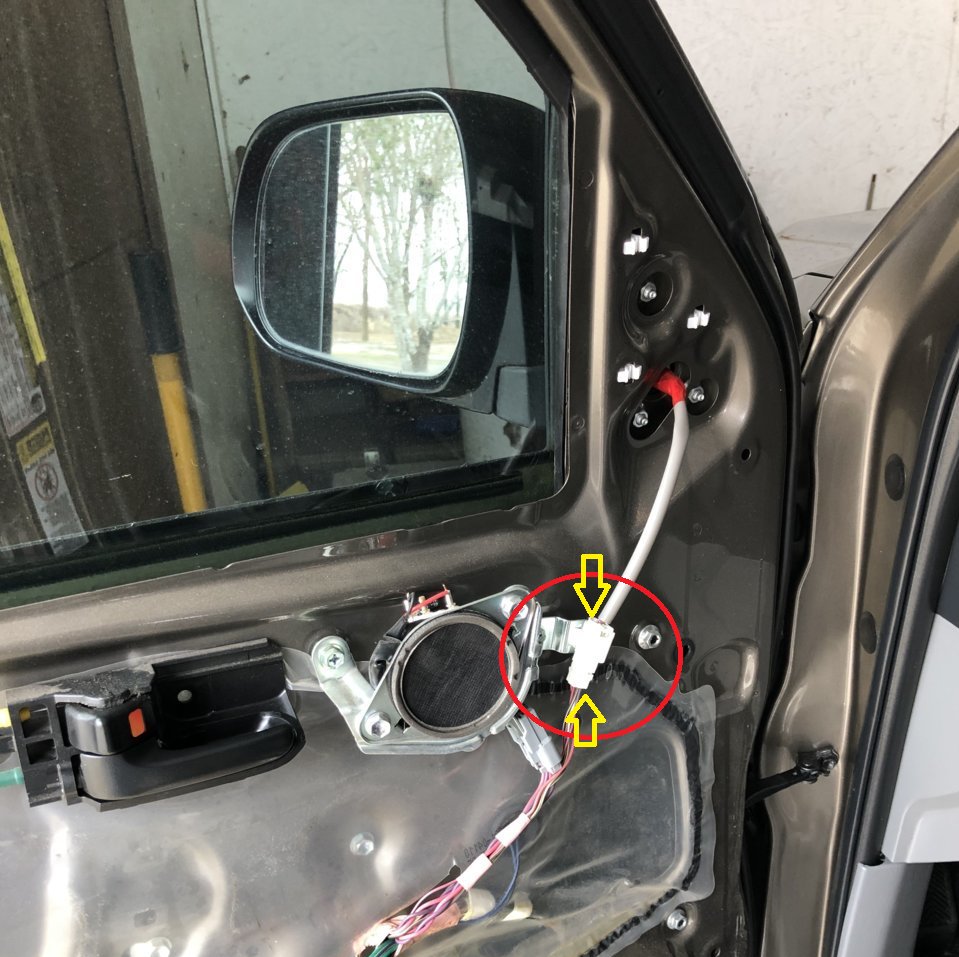

Been wanting to upgrade my basic mirrors off my SR5 to the color matched sport ones with the turn signal indicator on it.. so took off the door panel right quick. Does this look like it’s wired for the turn signals? Or would i have to wire them myself?



From your pic, it looks like all five wires are coming from the clip in your door.
You’d have to pull off the kick panel to see if the wires are in the clip coming from door into cab.



How many wires are in the connector that the mirror plugs into? I can't count them in the pic.



Closer look here in order to assist ya...



Oh that helps infinitesimally...



Did you ever get any help? I just installed some on my 2013 off road. I was under the impression that they were wired for them and All I’d have to do is plug them in. But they don’t signal.

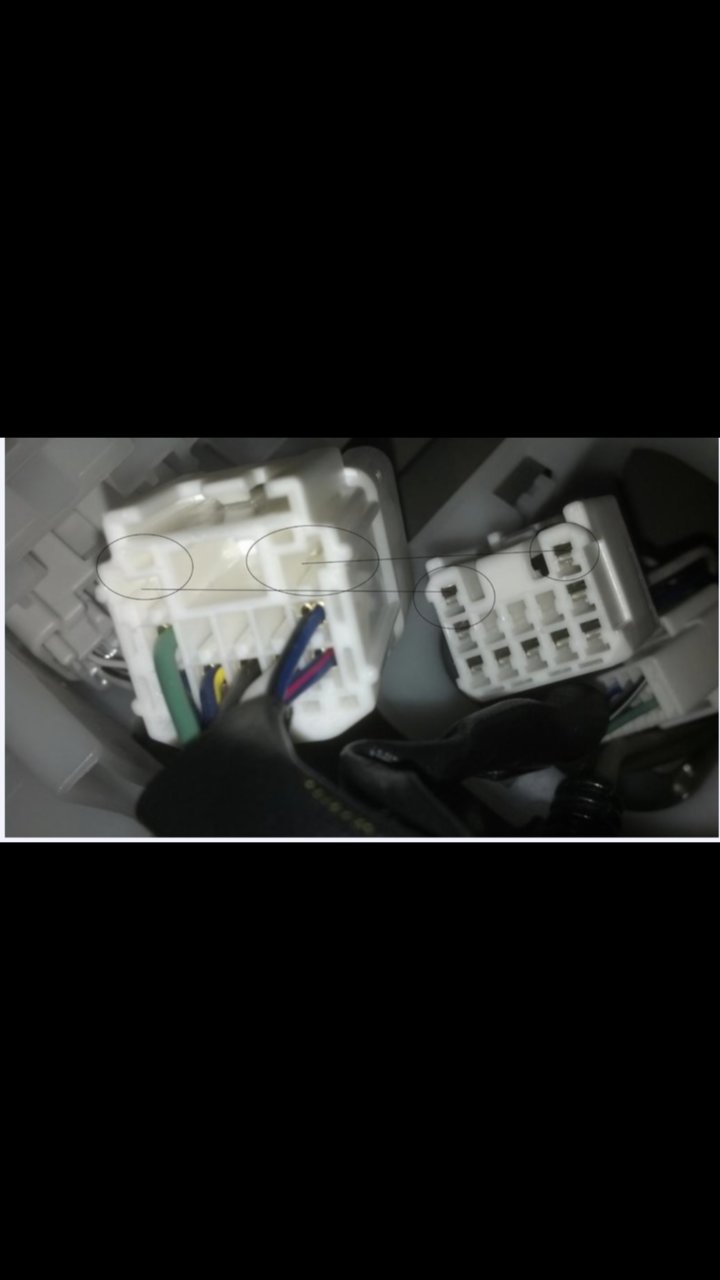

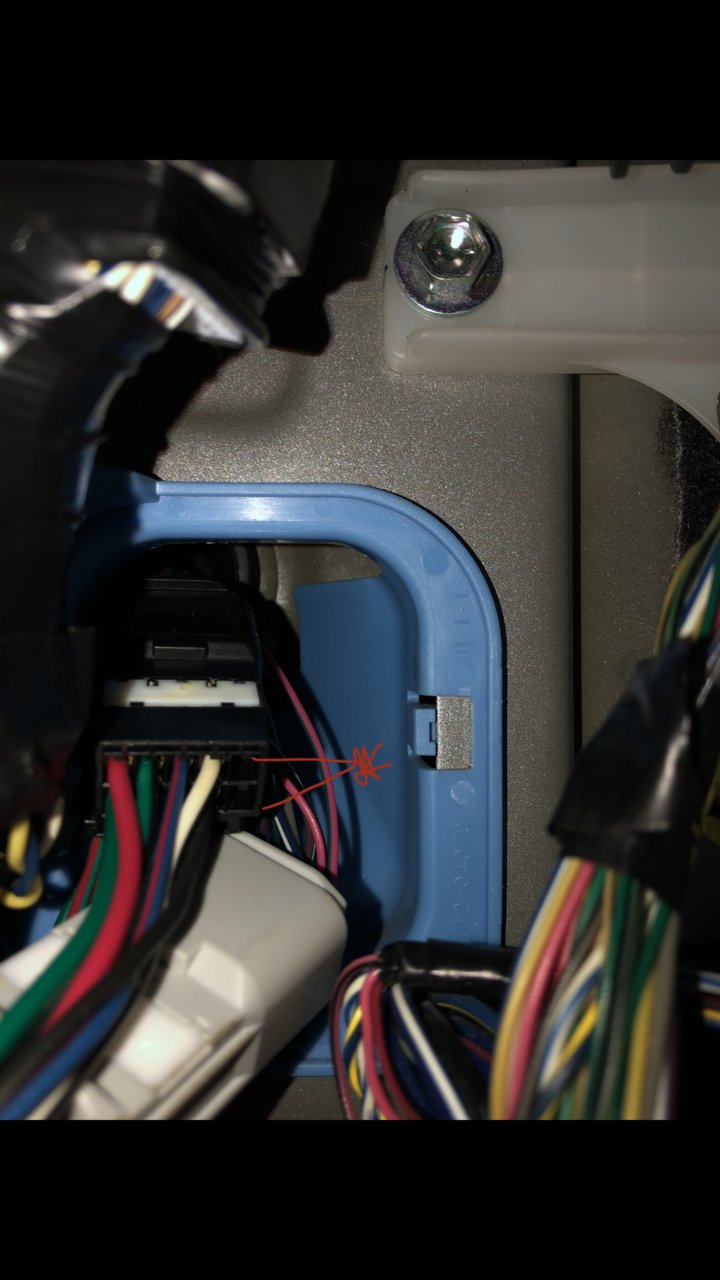

You have to give them signal. There are clips behind both kick panels. The wires run from the doors, down to these clips behind the kick panels. The issue is the wires ‘end’ at the clip. First pic is drivers side, second is passenger
I’m not good at searching threads here, but there is a thread on this somewhere.



I saw this thread but I thought it was for a 2008 Tacoma. I tried searching but no luck on the exact issue. But I’ll give these pics a reference and try it out. If this is the issue, how do I connect them?



Here's my diy, hope it helps

https://www.tacomaworld.com/threads/diy-side-mirror-turn-signal.668265/



https://www.tacomaworld.com/threads/blinker-mirror-how-to-w-pics-diagram-schematic.436569/



Any idea which repair terminals they are?
