2014 Navigation Unit in 2013

Discussion in 'Audio & Video' started by yogster, Nov 22, 2013.

  1. metal4130

    metal4130 Well-Known Member

    Joined:
    Nov 10, 2013
    Member:
    #116263
    Messages:
    64
    Gender:
    Male
    First Name:
    Eric
    Central IL
    Vehicle:
    13 DCSB PreRunner
    Yes, I have all the part numbers and will post them as soon as the parts get here and I know they are correct :)

  2. metal4130

    metal4130 Well-Known Member

    Joined:
    Nov 10, 2013
    Member:
    #116263
    Messages:
    64
    Gender:
    Male
    First Name:
    Eric
    Central IL
    Vehicle:
    13 DCSB PreRunner
    Just called Camelback and the steering wheel controls got pushed back to a Feb 17th delivery date. :(

  3. fbconvert

    fbconvert It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    358
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    I know nothing beats the factory look, but in case you don't have the cash but want the function I'm pretty sure you can just make you're buttons like I did a few years back when I converted my 05 jbl to an 09 with bluetooth. With the help of TIS you can reverse engineer the required resistance for each switch.

    Here is a link the the write up I did.

    http://www.tacomaworld.com/forum/au...09-jbl-head-unit-w-bluetooth-2005-tacoma.html

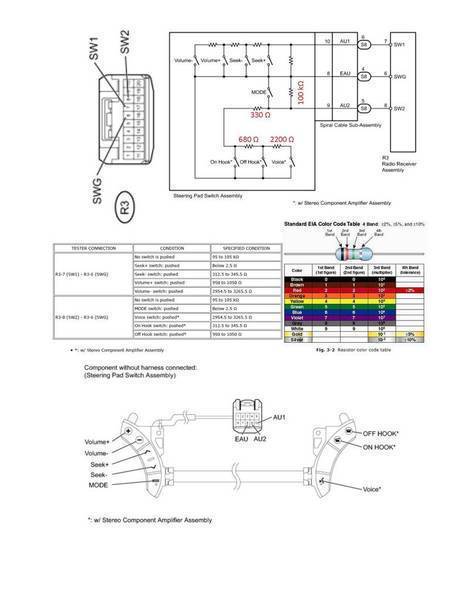

    here is the cheat sheet I made.
    [​IMG]

    I wouldn't be surprised if the resister values are the same.

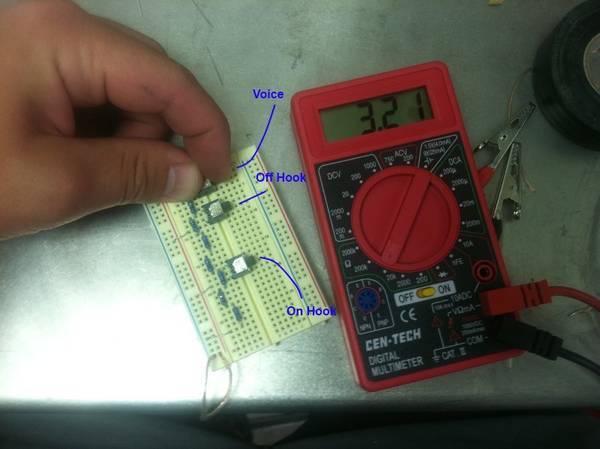

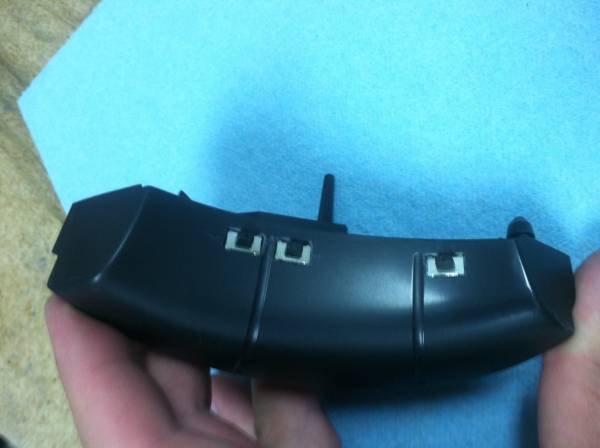

    here is a picture of the home made buttons. I think these buttons were free samples from TE.com... I was still in college and every cent counted lol.

    [​IMG]
    [​IMG]

  4. yogster

    yogster [OP] merkwürdigliebe

    Joined:
    Sep 4, 2013
    Member:
    #111814
    Messages:
    114
    Gender:
    Male
    First Name:
    Tom
    Massachusetts
    Vehicle:
    13 Black DCLB SR5
    DCLB Black 4WD Illumination dial from 4runner, Flyzeyes LED. Hardwire GPS and Valentine1 with BlendMount mirror mount, TRD shift knob, tube steps, swapped out for signal lamp mirrors. Garmin Eco-Route HD for Bluetooth ODBII Diagnostics, 2014 Entune Plus w Navigation, Leer 100XL dome light wired to dome circuit, pop&lock tailgate and cap locks.
    I have all the wiring diagrams I can forward or post here. But... they are on my home PC, so later tonight.

  5. yogster

    yogster [OP] merkwürdigliebe

    Joined:
    Sep 4, 2013
    Member:
    #111814
    Messages:
    114
    Gender:
    Male
    First Name:
    Tom
    Massachusetts
    Vehicle:
    13 Black DCLB SR5
    DCLB Black 4WD Illumination dial from 4runner, Flyzeyes LED. Hardwire GPS and Valentine1 with BlendMount mirror mount, TRD shift knob, tube steps, swapped out for signal lamp mirrors. Garmin Eco-Route HD for Bluetooth ODBII Diagnostics, 2014 Entune Plus w Navigation, Leer 100XL dome light wired to dome circuit, pop&lock tailgate and cap locks.
    Note:

    For 2012 and 2013 (and I believe earlier years), the steering wheel and controls on the Tacoma are the same as the 4Runner. Except.... from one parts site $286 for Tacoma controls, $170 for 4Runner. Don't know about the 2014, as those part numbers are not online. This is true of many parts that are the same across model lines - they are in a different pricing structure...

  6. fbconvert

    fbconvert It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    358
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    I don't remember what year the 4runner changed to the newer style steering wheel like the 2012+ tacomas (I know it was before the 2012 Tacoma did) but it was interesting because you can buy just the right hand switches with the connection cable for the 4runner with the older style steering wheel but they only sold both switches as a set for the Tacoma, even though they were essentially the same thing, I know some people just bought the 4runner right hand side and installed it in their Tacoma. I realize no one probably cares but it was just something odd I noticed when I was trying to get switches for my truck.

  7. yogster

    yogster [OP] merkwürdigliebe

    Joined:
    Sep 4, 2013
    Member:
    #111814
    Messages:
    114
    Gender:
    Male
    First Name:
    Tom
    Massachusetts
    Vehicle:
    13 Black DCLB SR5
    DCLB Black 4WD Illumination dial from 4runner, Flyzeyes LED. Hardwire GPS and Valentine1 with BlendMount mirror mount, TRD shift knob, tube steps, swapped out for signal lamp mirrors. Garmin Eco-Route HD for Bluetooth ODBII Diagnostics, 2014 Entune Plus w Navigation, Leer 100XL dome light wired to dome circuit, pop&lock tailgate and cap locks.
    I noticed that too, when perusing the various parts sites. With the newer style both left and right are joined by one cable, that the connects to the spiral cable

  8. robotninjasrule

    robotninjasrule Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106819
    Messages:
    182
    Gender:
    Male
    First Name:
    peter
    edmonton alberta
    Vehicle:
    2013 trd sport
    Did you end up getting the right controls? I tried to order them at the local dealer and he could not tell the 3 part numbers apart. If I understood right you are ordering the 2013 jbl controls with the voice button?

  9. metal4130

    metal4130 Well-Known Member

    Joined:
    Nov 10, 2013
    Member:
    #116263
    Messages:
    64
    Gender:
    Male
    First Name:
    Eric
    Central IL
    Vehicle:
    13 DCSB PreRunner
    I got my steering wheel controls today. I didn't want to post the part number because the price seemed too low to be what I needed. Turns out I was wrong and the 2014 steering wheel controls are $96.61 from Camelback Toyota. I would recommend ordering parts from these guys as they really know what they are talking about. Its gonna be a few more days before I can get them installed but I'll report back with some step by step pictures.

    http://partsfactory.camelbacktoyota.com/oem-part/oem-toyota/switch-assy-steerin/8425004040b0?search_str=84250-04040-B0


  10. robotninjasrule

    robotninjasrule Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106819
    Messages:
    182
    Gender:
    Male
    First Name:
    peter
    edmonton alberta
    Vehicle:
    2013 trd sport
    Dam! Exactly what I am looking for. Do you know if they ship to Canada?

  11. metal4130

    metal4130 Well-Known Member

    Joined:
    Nov 10, 2013
    Member:
    #116263
    Messages:
    64
    Gender:
    Male
    First Name:
    Eric
    Central IL
    Vehicle:
    13 DCSB PreRunner
    I'm sure they would!

  12. robotninjasrule

    robotninjasrule Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106819
    Messages:
    182
    Gender:
    Male
    First Name:
    peter
    edmonton alberta
    Vehicle:
    2013 trd sport
    Meh no go on the shipping, going to try the dealership tomrrow. If not i have to pay the insane 52 dollar shipping cost from Oemtoyotascionparts.com price. I love doing the OEM mods!

  13. InducedComa

    InducedComa Well-Known Member

    Joined:
    Dec 13, 2013
    Member:
    #118522
    Messages:
    71
    Gender:
    Male
    First Name:
    Paul
    Northern VA
    Vehicle:
    13 TRD Sport DCLB
    OME Nitrocharger shocks, 885x Springs with Toytec 3/4 inch spacer, LR UCA's, DAKAR Leaf Springs, Line-X'd Avid Offroad Step Bars, Pop-N-Lock Power Tailgate Lock, Truxedo TruXport Roll-Up Tonneau
    I just wonder if you will need to change the wiring harness that runs from the steering wheel controls all the way to the stereo. Or are you going to just add a wire to go from the 2 wire spiral to the 3 wire spiral?

  14. TacoRaider

    TacoRaider Member

    Joined:
    Nov 27, 2013
    Member:
    #117428
    Messages:
    8
    Gender:
    Male
    First Name:
    Ben
    Vehicle:
    13 PreRunner
    Hey Yogster

    Do you know if the 2013 basic (non jbl) head unit has the voice control functionality built in? In other words, is lacking the voice control button on the steering wheel the only thing preventing this feature from being available to everyone?

    thanks in advance

  15. tacotacoburrito

    tacotacoburrito Well-Known Member

    Joined:
    May 22, 2013
    Member:
    #104694
    Messages:
    62
    Gender:
    Male
    Sweet! You didn't happen to get the PN for the wiring harness did you?

  16. sr5vic

    sr5vic Remember?

    Joined:
    Jan 6, 2013
    Member:
    #94619
    Messages:
    427
    Gender:
    Male
    First Name:
    Bret
    Victoria BC
    Vehicle:
    '13 Access Cab SR5 4x4
    265/75/16 Duratracs, 16" Konig Countersteer Offroads, 1" Bora Wheel Spacers, Bilstein 5100's, Total Chaos UCA's, OME 884's, Wheelers's Offroad 2" AAL, Wheeler's 10mm Enhancer Kit, Wheeler's Extended Brake Lines, Trail Gear Diff. Breather, TRD Skid Plate, UWS Low Profile Tool Box, Yellow Fog Lights, Ultra Gauge, AVS Step Shields, 2014 Entune Premium Audio Navigation Head Unit, 2014 Steering Wheel Controls, D2S X Beam HID Retrofit with BLHM.
    He didn't buy a harness. We're hoping the stock one works. Lol

    thanks. I'm gunna pull the trigger on those. They look too good. I'm hoping the integrate better with the nav controls.

  17. yogster

    yogster [OP] merkwürdigliebe

    Joined:
    Sep 4, 2013
    Member:
    #111814
    Messages:
    114
    Gender:
    Male
    First Name:
    Tom
    Massachusetts
    Vehicle:
    13 Black DCLB SR5
    DCLB Black 4WD Illumination dial from 4runner, Flyzeyes LED. Hardwire GPS and Valentine1 with BlendMount mirror mount, TRD shift knob, tube steps, swapped out for signal lamp mirrors. Garmin Eco-Route HD for Bluetooth ODBII Diagnostics, 2014 Entune Plus w Navigation, Leer 100XL dome light wired to dome circuit, pop&lock tailgate and cap locks.
    There is no harness required. All of the CONNECTORS are there. There is a 4th steering wheel control wire that runs from the S8 connector on the steering column to the R15 connector on the radio. You would need to route that wire.

    This 4th wire will carry the "Return/enter" and "left/right" button presses.

    None of the other wires/connections are different and all of those button presses should work the same.

    Now, what I do not know - I posted this elsewhere- is the spiral cable. The spiral cable carries the signals from the steering wheel controls to the S8 connector. I'm assuming the spiral cable connects ALL pins, not just the ones in use. There are different spiral cable assemblies. There seems to be two options, one for base truck with just horn, and all others. I'm assuming that the spiral cable has all available connections, used or not. (Did I just say that twice? ) If this is not the case, the spiral cable is about $150, and the job becomes more difficult. Metal4130 will have the answer soon, if not I have one coming in in a few days.

    At any rate, for those of you with a 2013 WITHOUT the voice control button, this set will add that feature - it uses existing wire pairs. This is a "cheap" way to get that feature. The 2013 controls with that feature are upwards of $280.00

    Also, not you do NOT need to wait 30 minutes after disconnecting battery. The RM states wait "90 seconds" before unplugging airbag. Not in this thread, but someone mentioned that elsewhere...

    Last edited: Feb 21, 2014
  18. tacotacoburrito

    tacotacoburrito Well-Known Member

    Joined:
    May 22, 2013
    Member:
    #104694
    Messages:
    62
    Gender:
    Male
    Yes, but the pictures I've seen of the spiral cable only showed 3 wires. That was my concern. I haven't hopped on TIS to compare the 2013 to 2014 diagrams. Since the OEM parts catalog for the 14's isn't up yet I don't have a way to compare PNs from the 2013 and 14. It's nice to know that crashed 2014 4Runners are also possible parts donors though.

    Last edited: Feb 21, 2014
  19. yogster

    yogster [OP] merkwürdigliebe

    Joined:
    Sep 4, 2013
    Member:
    #111814
    Messages:
    114
    Gender:
    Male
    First Name:
    Tom
    Massachusetts
    Vehicle:
    13 Black DCLB SR5
    DCLB Black 4WD Illumination dial from 4runner, Flyzeyes LED. Hardwire GPS and Valentine1 with BlendMount mirror mount, TRD shift knob, tube steps, swapped out for signal lamp mirrors. Garmin Eco-Route HD for Bluetooth ODBII Diagnostics, 2014 Entune Plus w Navigation, Leer 100XL dome light wired to dome circuit, pop&lock tailgate and cap locks.
    The ones I've seen show 12 pins on the S8 connector, and 12 pins on the steering wheel-to-controls connector. What is unknown is if the actual ribbon cable in the assembly contains all 12 connections (actually more than 12 including the other connector for the airbag). We'll know soon enough.:)

  20. tacotacoburrito

    tacotacoburrito Well-Known Member

    Joined:
    May 22, 2013
    Member:
    #104694
    Messages:
    62
    Gender:
    Male
    Yup, pulled the trigger on the switches as well.
