Discussion in 'Audio & Video' started by yogster, Nov 22, 2013.

Page 6 of 17
  1. Feb 25, 2014 at 6:11 PM
    #101
    robotninjasrule

    #101
    robotninjasrule Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106819
    Messages:
    207
    Gender:
    Male
    First Name:
    peter
    edmonton alberta
    Vehicle:
    2013 trd sport
    I ordered 50 of the bigger ones for the heated mirrors and 30 of the smaller ones. I'll let all of you know if they work

    robotninjasrule, Feb 25, 2014
    #101
  2. Feb 25, 2014 at 6:34 PM
    #102
    hoenah808

    #102
    hoenah808 Well-Known Member

    Joined:
    Jan 26, 2014
    Member:
    #121533
    Messages:
    895
    Gender:
    Male
    First Name:
    Trent
    Honolulu, HI
    Vehicle:
    '14 AC sr5 4x4

    pin 11 is 6 volts positive voltage output to feed the camera
    pin 23 is negative output to feed the camera

    pin 12 is positive video signal input
    pin 24 is negative video signal input

    Pin 2 is still the 12v?

    This site contains affiliate links for which the site may be compensated.
    hoenah808, Feb 25, 2014
    #102
  3. Feb 25, 2014 at 6:50 PM
    #103
    Phil5393

    #103
    Phil5393 Well-Known Member

    Joined:
    Nov 29, 2012
    Member:
    #92123
    Messages:
    374
    Gender:
    Male
    First Name:
    Phil
    Long Island, New York
    Vehicle:
    TRD Sport
    Can someone who is gonna do this take a bunch of pictures of the pins and stuff? I've never messed with pins like those so this will be my first time and pictures always help. Thanks

    Phil5393, Feb 25, 2014
    #103
  4. Feb 25, 2014 at 7:26 PM
    #104
    osubeav818

    #104
    osubeav818 Well-Known Member

    Joined:
    Mar 9, 2013
    Member:
    #99339
    Messages:
    124
    Gender:
    Male
    Los Angeles, CA
    Vehicle:
    13 Regular Cab, SuperWhite, Debadged
    Viper 350hv, Bakflip Fibermax, Pop n lock
    Does anyone know if I can add steering wheel controls into my 13 Regular Cab?

    osubeav818, Feb 25, 2014
    #104
  5. Feb 25, 2014 at 8:02 PM
    #105
    metal4130

    #105
    metal4130 Well-Known Member

    Joined:
    Nov 10, 2013
    Member:
    #116263
    Messages:
    69
    Gender:
    Male
    First Name:
    Eric
    Central IL
    Vehicle:
    13 DCSB PreRunner
    This site contains affiliate links for which the site may be compensated.
    metal4130, Feb 25, 2014
    #105
  6. Feb 26, 2014 at 9:06 AM
    #106
    fbconvert

    #106
    fbconvert Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    423
    Gender:
    Male
    First Name:
    Brian
    Seacoast, NH
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    I thought about doing that but I don't know if know if the demand is worth the time especially since toyota already sells the harness (PT546-00120-CH). Never the less I think I found all the part numbers for the male 20 pin and 8 pin connector if you want to compare later. I ordered them a few days ago so they should be here by tomorrow.

    This site contains affiliate links for which the site may be compensated.
    fbconvert, Feb 26, 2014
    #106
  7. Feb 26, 2014 at 10:53 AM
    #107
    smgcon

    #107
    smgcon Well-Known Member

    Joined:
    Aug 20, 2013
    Member:
    #110836
    Messages:
    136
    Gender:
    Male
    First Name:
    Geoff
    Vernon, BC
    Vehicle:
    2013 DBC
    Metal4130. I would happily buy a premade jumper wire with the correct pins. If you wouldn't mind a photo or two of the correct plugs as well that would be great!

    smgcon, Feb 26, 2014
    #107
  8. Feb 26, 2014 at 7:10 PM
    #108
    Danmcw45

    #108
    Danmcw45 Well-Known Member

    Joined:
    Dec 9, 2012
    Member:
    #92771
    Messages:
    67
    Gender:
    Male
    First Name:
    Dan
    Philadelphia
    -TRD supercharger -Truxedo lo-pro qt tonneau -Wet okole front seat covers -17" method fat five wheels -2014 Tacoma entune/nav headunit - black badges - flowmaster dual exit cat-back exhaust, swapped 50 series muffler for a super 40 series muffler for more sound
    yeaa id be into buying one

    Danmcw45, Feb 26, 2014
    #108
  9. Feb 27, 2014 at 6:29 PM
    #109
    tony2018

    #109
    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    5,288
    Gender:
    Male
    Thanks for the diagram, unfortunately I can't make out what goes where but when the time comes to hook this up in my bro's 07 tacoma it will be a big help. Hopefully I can still snag an 2014 model and be able to wire up the navigation. I'm not sure if my bro is interested in anything but its good to have.

    tony2018, Feb 27, 2014
    #109
  10. Feb 27, 2014 at 8:23 PM
    #110
    smgcon

    #110
    smgcon Well-Known Member

    Joined:
    Aug 20, 2013
    Member:
    #110836
    Messages:
    136
    Gender:
    Male
    First Name:
    Geoff
    Vernon, BC
    Vehicle:
    2013 DBC
    How hard is it to remove the 2013 stereo controls? It looks like the silver covers surrounding the stereo controls on the steering wheel pop off giving you access to the screws that secure the airbag and the steering wheel audio controls?

    smgcon, Feb 27, 2014
    #110
  11. Feb 28, 2014 at 4:25 AM
    #111
    Ernyp22

    #111
    Ernyp22 Member

    Joined:
    Feb 8, 2014
    Member:
    #122607
    Messages:
    10
    Gender:
    Male
    First Name:
    Erny
    Winnipeg, Canada
    Vehicle:
    2014 Tacoma TRD
    Roof Rack, Mud Tires, Step Bars, 2x 10"JL w1's
    I have installed an aftermarket HU on my 2014 TRD Tacoma. I am looking for months for someone to share a picture or diagram showing the wires that I need to splice to hard wire the factory camera. Any help would be awesome.

    Ernyp22, Feb 28, 2014
    #111
  12. Feb 28, 2014 at 8:00 AM
    #112
    osubeav818

    #112
    osubeav818 Well-Known Member

    Joined:
    Mar 9, 2013
    Member:
    #99339
    Messages:
    124
    Gender:
    Male
    Los Angeles, CA
    Vehicle:
    13 Regular Cab, SuperWhite, Debadged
    Viper 350hv, Bakflip Fibermax, Pop n lock
    You don't need to splice any wires for the factory camera. You jus plug it into the camera harness in your tailgate and plug in the plug that was in the blank

    osubeav818, Feb 28, 2014
    #112
  13. Feb 28, 2014 at 8:53 AM
    #113
    fbconvert

    #113
    fbconvert Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    423
    Gender:
    Male
    First Name:
    Brian
    Seacoast, NH
    Vehicle:
    2005 Tacoma Double Cab TRD Sport

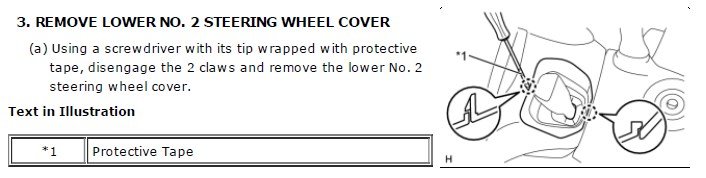

    Not quite... Before you do anything, you should disconnect your battery ground. you are going to be working around the driver airbag so this is just good practice. The OEM Manual say wait at least 90 seconds for the airbag system to shut down once you disconnect the ground.

    then follow these steps.


    Note: you do not need to disconnect the airbag and I recommend you don't, just carefully set it on the steering column, making sure you are not stressing the wires.

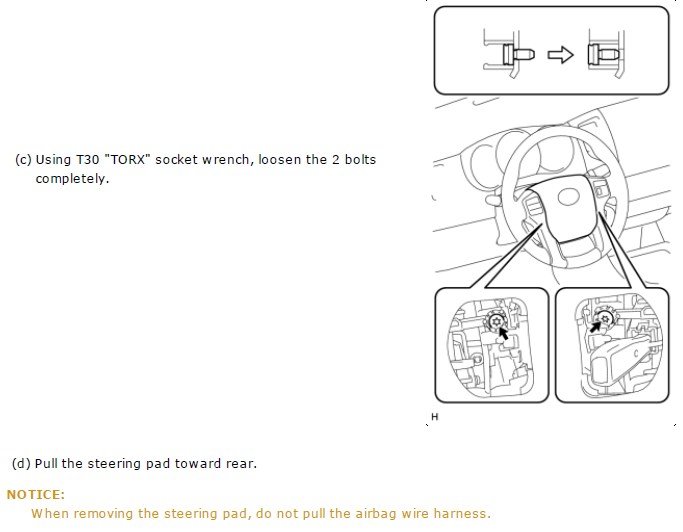

    Once you can move the airbag out of the way you will see four screws that hold each side of the radio controls to the steering wheel (2 screws per side) unplug the radio controls from the spiral cable. On the back of each side I think there are four or five screws that hold each side assembly together.

    Just an FYI the voice switch is part of the radio switch circuit board. There is just no way to access it because of the blank cover. I'm in the process of making it work with my truck. I hope to do a write up with two options on how to wire the voice switch on your steering wheel or on the dash. I can confirm that either will work I just need to work on making it clean looking. Either method has advantages and disadvantages I think.

    fbconvert, Feb 28, 2014
    #113
  14. Feb 28, 2014 at 3:26 PM
    #114
    smgcon

    #114
    smgcon Well-Known Member

    Joined:
    Aug 20, 2013
    Member:
    #110836
    Messages:
    136
    Gender:
    Male
    First Name:
    Geoff
    Vernon, BC
    Vehicle:
    2013 DBC
    Fbconvert. Thank you!

    smgcon, Feb 28, 2014
    #114
  15. Feb 28, 2014 at 7:01 PM
    #115
    tacotacoburrito

    #115
    tacotacoburrito Well-Known Member

    Joined:
    May 22, 2013
    Member:
    #104694
    Messages:
    62
    Gender:
    Male
    If anyone has the 2014 switch pads coming in. Can you please take a picture of the wires that go into the terminal that connects to the spiral cable? The illumination wire seems to be in a different spot on the 2014 controls than on the 2013. The buttons work, but no illumination.

    tacotacoburrito, Feb 28, 2014
    #115
  16. Feb 28, 2014 at 9:26 PM
    #116
    sr5vic

    #116
    sr5vic Buy & Hodl

    Joined:
    Jan 6, 2013
    Member:
    #94619
    Messages:
    827
    Gender:
    Male
    British Columbia
    Vehicle:
    '13 Access Cab SR5 4x4
    295/70/17 Geolander G003 M/T's, 17" Work S1HC's, 1" Bora Wheel Spacers, King 2.5 EXT Coilovers, King 2.5 Tundra Rears, Total Chaos UCA's, Total Chaos LCA's, BruteForce Fab Rear Bumper w/ Tire Carrier, OME Dakar CS047R Leaf Springs w/ D29XL AAL, 'OCTACO' Custom SS Brake Lines, Extended R.Diff Breather, RDI Aluminum Skid Plates, BAJADESIGNS Squadron Sport LED Yellow Fog Lights, BAJADESIGNS Squadron Sport LED Clear Front Spot Lights & Rear Work Lights TRD PRO Grill, TRD PRO Headlights, US Offroad Winch Mount, SmittyBilt X2O 10k Winch, RotoPax 2Gal. Fuel & Water Canisters , VIAIR Constant Duty OBA System, Custom Bussmann RTMR Panel, Total Chaos Bed Stiffeners, StopTech Slotted Rotors, TRD Brake Pads, Off-Grid Engineering Dual Battery System w/ Blue Sea 7622 ML-ACR 500 Relay, Dometic CFX40 w/ slide
    I'm expecting mine on Monday. I'll take a bunch of pics.

    sr5vic, Feb 28, 2014
    #116
  17. Mar 1, 2014 at 12:15 AM
    #117
    osubeav818

    #117
    osubeav818 Well-Known Member

    Joined:
    Mar 9, 2013
    Member:
    #99339
    Messages:
    124
    Gender:
    Male
    Los Angeles, CA
    Vehicle:
    13 Regular Cab, SuperWhite, Debadged
    Viper 350hv, Bakflip Fibermax, Pop n lock
    when you switched out the controls, is there a ribbon cable that you put between the Left and Right controls?

    This site contains affiliate links for which the site may be compensated.
    osubeav818, Mar 1, 2014
    #117
  18. Mar 1, 2014 at 5:26 AM
    #118
    Ernyp22

    #118
    Ernyp22 Member

    Joined:
    Feb 8, 2014
    Member:
    #122607
    Messages:
    10
    Gender:
    Male
    First Name:
    Erny
    Winnipeg, Canada
    Vehicle:
    2014 Tacoma TRD
    Roof Rack, Mud Tires, Step Bars, 2x 10"JL w1's
    At the risk of sounding dumb... I do have the factory camera still in my tail gate, what I just need to connect it to my new deck. And don't know which factory wires belong to the camera (reverse wire, + camera, - camera)

    Ernyp22, Mar 1, 2014
    #118
  19. Mar 1, 2014 at 9:06 AM
    #119
    metal4130

    #119
    metal4130 Well-Known Member

    Joined:
    Nov 10, 2013
    Member:
    #116263
    Messages:
    69
    Gender:
    Male
    First Name:
    Eric
    Central IL
    Vehicle:
    13 DCSB PreRunner
    No.

    metal4130, Mar 1, 2014
    #119
  20. Mar 1, 2014 at 11:04 AM
    #120
    smgcon

    #120
    smgcon Well-Known Member

    Joined:
    Aug 20, 2013
    Member:
    #110836
    Messages:
    136
    Gender:
    Male
    First Name:
    Geoff
    Vernon, BC
    Vehicle:
    2013 DBC
    metal4130. Have you noticed the lack of lighting on the 204 controls in your 2013?

    smgcon, Mar 1, 2014
    #120
