2014 Non JBL w/ navigation retrofit DIY w/ info & part numbers

Discussion in 'Audio & Video' started by steveo27, Mar 3, 2014.

  1. Mar 20, 2014 at 6:36 PM
    #21
    mjs12

    mjs12 Member

    Joined:
    Mar 6, 2014
    Member:
    #124753
    Messages:
    11
    Gender:
    Male
    N.E. Ohio
    Vehicle:
    SR5, 4x4
    I'll probably leave the AUX plug disconnected. I don't use it much and the factory one is there anyway. I was more concerned with getting the USB out of the glove box for a reasonable price.

  2. Mar 23, 2014 at 10:17 PM
    #22
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    1,047
    Gender:
    Male
    First Name:
    Steveo
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    Bilstein 5100s, Top plate spacer, Wheeler's add a leaf, Spidertrax, Duratracs, Blue Sea fuseblock, Bestop Supertop, LED light bar, ect
    Mine should be here tomorrow, then I'll update

    I plan on just removing the OEM one from the dashboard and leaving sit behind the dashboard where I'll plug the new one into. That way, I won't have to cut anything.

  3. Mar 23, 2014 at 10:20 PM
    #23
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,629
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    nice thread sir!!

  4. Mar 23, 2014 at 10:58 PM
    #24
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    1,047
    Gender:
    Male
    First Name:
    Steveo
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    Bilstein 5100s, Top plate spacer, Wheeler's add a leaf, Spidertrax, Duratracs, Blue Sea fuseblock, Bestop Supertop, LED light bar, ect
    Thanks! Couldnt have done it without your help :beer:

  5. Mar 24, 2014 at 10:17 AM
    #25
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    156
    Gender:
    Male
    So the backup camera needs to be wired to a 24 pin plug and not the 28 pin plug?

  6. Mar 24, 2014 at 7:01 PM
    #26
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    1,047
    Gender:
    Male
    First Name:
    Steveo
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    Bilstein 5100s, Top plate spacer, Wheeler's add a leaf, Spidertrax, Duratracs, Blue Sea fuseblock, Bestop Supertop, LED light bar, ect
    From what I understand, yes. I cannot verify this as I have yet to find a pinout of a 2014 radio.

  7. Mar 25, 2014 at 6:26 AM
    #27
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    2,823
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DC Pyrite Mica
    Baby seat mod
    Do you remember how much you got the antenna for? I'm searching and coming up with results in the $268 range :eek:

  8. Mar 25, 2014 at 3:14 PM
    #28
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    1,047
    Gender:
    Male
    First Name:
    Steveo
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    Bilstein 5100s, Top plate spacer, Wheeler's add a leaf, Spidertrax, Duratracs, Blue Sea fuseblock, Bestop Supertop, LED light bar, ect
    PM FLtrucks, he has them way cheaper.

  9. Mar 25, 2014 at 4:11 PM
    #29
    mjs12

    mjs12 Member

    Joined:
    Mar 6, 2014
    Member:
    #124753
    Messages:
    11
    Gender:
    Male
    N.E. Ohio
    Vehicle:
    SR5, 4x4
    Where did you end up installing the GPS antenna? I've seem a few people install it under the dash an a few on the dash. It looks like there's a couple clips on the antenna cable....did you find a place to attach those?

  10. Mar 26, 2014 at 7:33 AM
    #30
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    156
    Gender:
    Male
    Last edited: Mar 26, 2014
  11. Mar 26, 2014 at 7:37 AM
    #31
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    156
    Gender:
    Male
    Since the cable is short its sure to assume that it was mounted right behind/above the head unit.

  12. Mar 26, 2014 at 9:16 AM
    #32
    MudFlap

    MudFlap Well-Known Member

    Joined:
    Jul 13, 2011
    Member:
    #59794
    Messages:
    387
    Gender:
    Male
    First Name:
    Tim
    Memphis (north mississippi)
    Vehicle:
    2012 TRD Off Road
    I am doing my research getting ready to install this 2014 Nav unit and right now my main concern is the XM part.

    I did buy the XM extension box (part # 86180-0e011), I am wondering where this part mounts. I pulled the radio out of my 2012 yesterday and there was no extra things mounted to it, so its got me wondering where the XM module is currently mounted or if its built into my radio. I know I have XM cause its all I ever listen to in my truck. I just dont know anything about it. If the XM extension box that I ordered is supposed to mount to the Nav unit by the bracket, will it still fit my dash? Am I supposed to find my current XM tuner somewhere in my truck and REPLACE it with the new one that I ordered? Can you guys offer any input on this?

  13. Mar 26, 2014 at 10:02 AM
    #33
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    2,823
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DC Pyrite Mica
    Baby seat mod
    Tim,
    Does it mount below the head unit via brackets?

  14. Mar 26, 2014 at 10:13 AM
    #34
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    156
    Gender:
    Male

    Judging by the pictures of what I'm seeing on ebay they all look the same. All you need to do is just plug everything into the new head unit and you should be good to go since you're pre-wired. I would wait on ordering anything since you already have xm radio and see how the new unit plugs up.

  15. Mar 26, 2014 at 11:03 AM
    #35
    MudFlap

    MudFlap Well-Known Member

    Joined:
    Jul 13, 2011
    Member:
    #59794
    Messages:
    387
    Gender:
    Male
    First Name:
    Tim
    Memphis (north mississippi)
    Vehicle:
    2012 TRD Off Road
    There is nothing mounted below my head unit now. This is what my radio looks like. These are just random pics I pulled off a google search but they look exactly like whats mounted in my truck. witch leads me to believe that either my XM tuner is mounted somewhere else in the cab or its built into the head unit itself.



  16. Mar 26, 2014 at 12:28 PM
    #36
    MudFlap

    MudFlap Well-Known Member

    Joined:
    Jul 13, 2011
    Member:
    #59794
    Messages:
    387
    Gender:
    Male
    First Name:
    Tim
    Memphis (north mississippi)
    Vehicle:
    2012 TRD Off Road
    I just went out and pulled my radio again just to get the model number off of it to try to do some google searching on it. I got this pic and googled the model number but I can't find any specs on it to tell if the XM is built into it or not. Maybe somebody here knows how to google better than me......


  17. Mar 26, 2014 at 12:35 PM
    #37
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    156
    Gender:
    Male
    It might be built into the head unit. If you bought the navi headunit I would plug in the antenna to the back and see if xm radio comes on for you.

  18. Mar 26, 2014 at 8:18 PM
    #38
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    1,047
    Gender:
    Male
    First Name:
    Steveo
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    Bilstein 5100s, Top plate spacer, Wheeler's add a leaf, Spidertrax, Duratracs, Blue Sea fuseblock, Bestop Supertop, LED light bar, ect
    UPDATE -

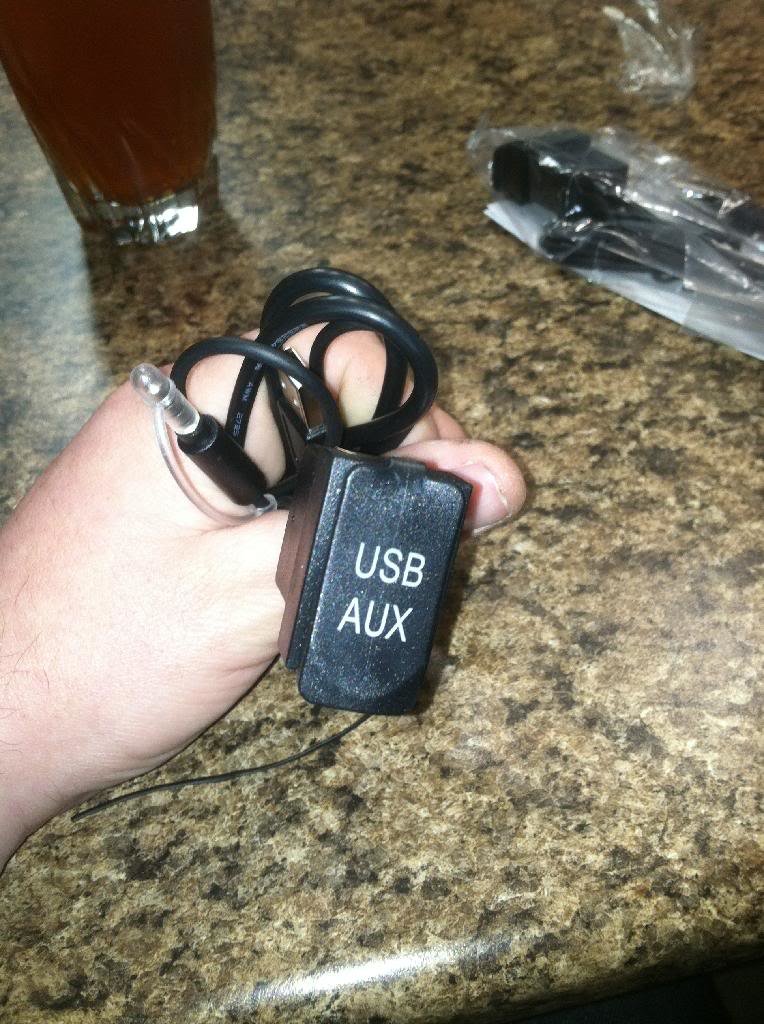

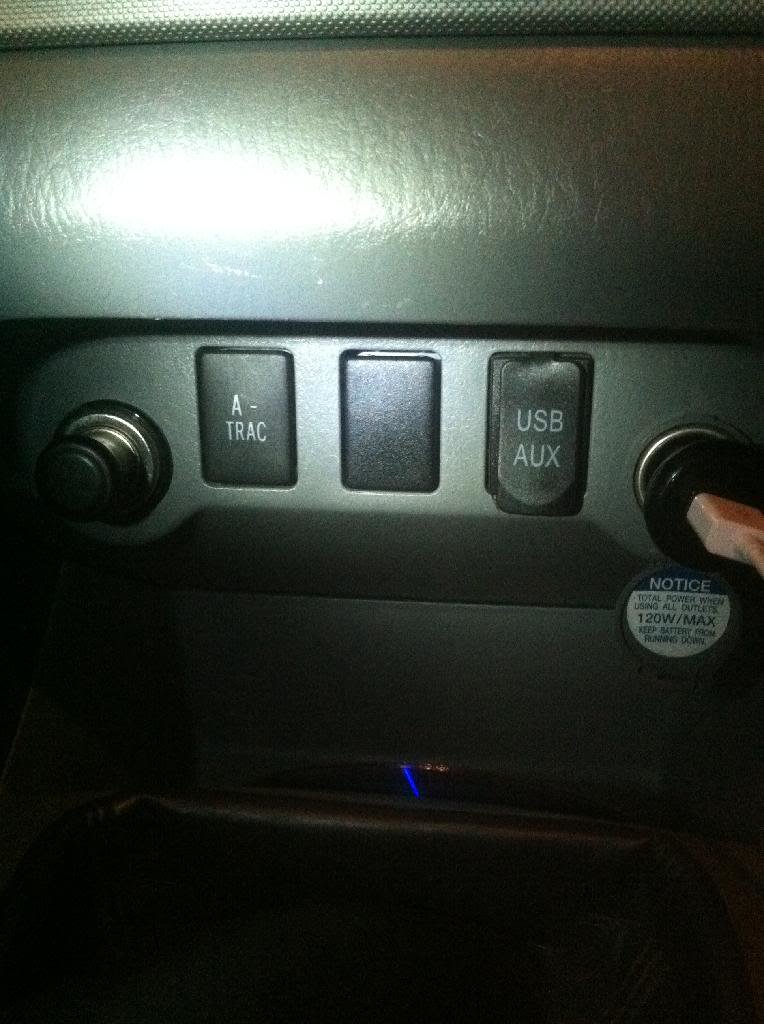

    OEM looking aftermarket USB/AUX plug showed up on monday and I got it installed -

    [​IMG]

    [​IMG]

    I'll update the original post at some point with all the info

    Its just tucked up under the dash

    Awesome. thanks!

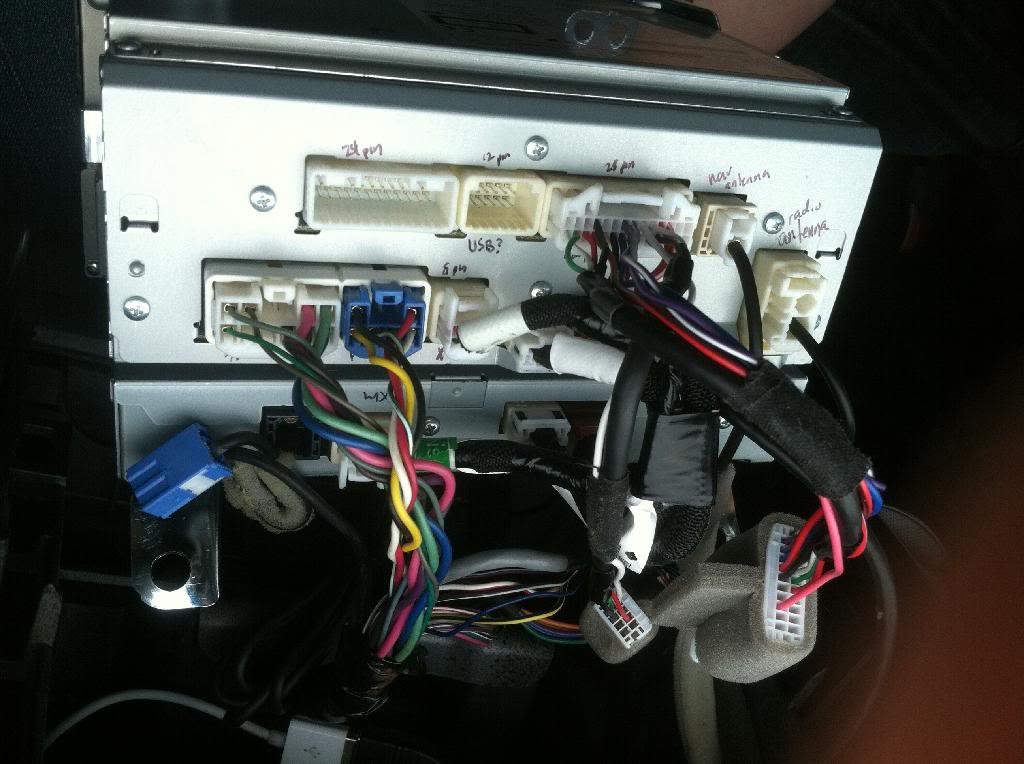

    It mounts below the radio. You can kinda see it here in this picture -

    [​IMG]

    It has the black plug, the 2 white plugs, and the brown plug. It bolts to the side brackets.

  19. Mar 27, 2014 at 6:27 AM
    #39
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    156
    Gender:
    Male
    So you're saying the navi requires that unit to get xm stations? Isn't there a port for the satellite radio on the back of the navi unit?

  20. Mar 27, 2014 at 9:20 AM
    #40
    MudFlap

    MudFlap Well-Known Member

    Joined:
    Jul 13, 2011
    Member:
    #59794
    Messages:
    387
    Gender:
    Male
    First Name:
    Tim
    Memphis (north mississippi)
    Vehicle:
    2012 TRD Off Road

    Tony, MY understanding is that there IS an XM port on the radio. The only thing is the plug is specific to 2014 models and in the external XM box is needed to retrofit into earlier models. I COULD be wrong but this is the way I understand it at the moment.

    My Nav unit is supposed to be delivered today and I cant WAIT to get that thing in there!
