2014 Non JBL w/ navigation retrofit DIY w/ info & part numbers

Discussion in 'Audio & Video' started by steveo27, Mar 3, 2014.

  1. Mar 27, 2014 at 11:03 AM
    #41
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    156
    Gender:
    Male
    If you have the navi unit i say plug the antenna to it and see if you're able to access the xm radio through the screen. If your old radio had it built in I'm sure the navi unit does as well. Judging by the pics on the first page it shows an antenna port for satellite.

    Edit: I was wrong you do need the xm module,.

    Last edited: Mar 28, 2014
  2. Mar 28, 2014 at 11:08 AM
    #42
    MudFlap

    MudFlap Well-Known Member

    Joined:
    Jul 13, 2011
    Member:
    #59794
    Messages:
    387
    Gender:
    Male
    First Name:
    Tim
    Memphis (north mississippi)
    Vehicle:
    2012 TRD Off Road
    Well I got it mostly installed, just waiting on the mail to drop off the 20/28 pin harness. I have been messing with the Nav and programming my XM stations witch makes me think..... I never called XM to swap my subscription over but yet its working anyway :confused:

    Also the nav got my general location fairly quick, problem is the nav map wont move with me. I programmed in my home address and it showed the location on the map but It also sho wed my location like a couple hundred yards away. I have been for a couple 10 min drives to see if it would pick up and catch on but the map stays put. I tried to navigate to a random POI in the list and it tells me to drive to the highlighted route but no matter how I drive it wont GO to the highlighted route. Guess I got more fiddling around to do.

  3. Mar 28, 2014 at 11:50 AM
    #43
    mjs12

    mjs12 Member

    Joined:
    Mar 6, 2014
    Member:
    #124753
    Messages:
    11
    Gender:
    Male
    N.E. Ohio
    Vehicle:
    SR5, 4x4
    I'm not positive...... but I think the 20/28 connector is where the speed wire is. So the Nav may not know your moving until that last connection is made.

  4. Mar 28, 2014 at 2:19 PM
    #44
    MudFlap

    MudFlap Well-Known Member

    Joined:
    Jul 13, 2011
    Member:
    #59794
    Messages:
    387
    Gender:
    Male
    First Name:
    Tim
    Memphis (north mississippi)
    Vehicle:
    2012 TRD Off Road
    Well mail man didnt drop off the harness like I expected :( He did however drop off the antenna adapter..... Whats with the blue wire hanging off it? Am I supposed to ground it somewhere? I called camelback toyota about my harness cause I never got an shipping email about it. Was told that it shipped out yesterday. So its scheduled to be here April 1st, too bad im leaving the country for 2 weeks on March 31st. Anyway, I still got everything cept the steering wheel controls, and bluetooth... I still have my XM so I guess I'll live. :D

    Update on the Nav too...... I had to run an errand a little while ago and the Nav map just POPPED into acting right, found my position and followed me right on down the road. So thats working right too.... Overall, Im a happy camper.

    As soon as I get back from Thailand in the middle of next month im gonna start picking yalls brains to get my USB/Aux working and maybe even get my back up cam in the Nav screen too.

  5. Mar 28, 2014 at 6:43 PM
    #45
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    1,047
    Gender:
    Male
    First Name:
    Steveo
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    Bilstein 5100s, Top plate spacer, Wheeler's add a leaf, Spidertrax, Duratracs, Blue Sea fuseblock, Bestop Supertop, LED light bar, ect
    Yes. speed sensor is in there.

    XM module is separate as stated before.


    Blue wire is a trigger for a power antenna. I depin'd mine.

    USB is easy. info is on the first page. Aux port is plug and play with the 20/28 pin adapter.


    All the info for all this is posted in my first post.

  6. Mar 28, 2014 at 8:23 PM
    #46
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    2,815
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DC Pyrite Mica
    Baby seat mod

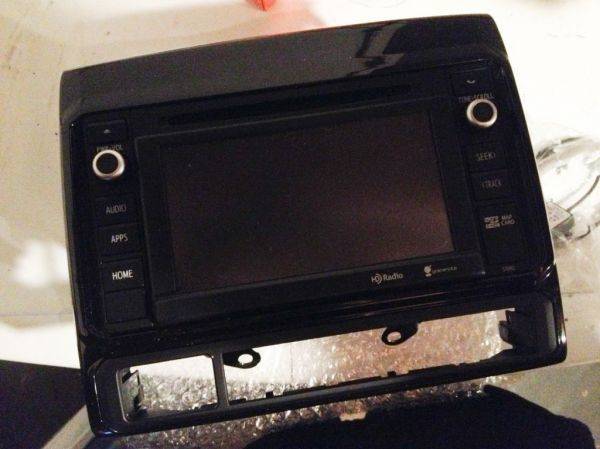

    Just got my Nav today. Came with the Nav antenna

    [​IMG]

    Ordering the harnesses tonight. Hopefully I can find a spare center dash piece to hack up. A 2012+ piece would be perfect.

  7. Mar 29, 2014 at 2:02 PM
    #47
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    2,815
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DC Pyrite Mica
    Baby seat mod
    An update for part numbers...

    Since my radio came with the bezel and I have an 09, my current hazard switch/clock/airbag display will not fit. I checked Camel Back Toyota and they list it for $199 part number: 84332-04100

    I thought about going the 2012+ bezel to match the new radio, but there appears to be 6 different part numbers. This would also mean I would have to find a 4x4 selector switch since my 09 appears to be different so I axed that idea. However, for those of you with a Pre-Runner this can still be done since you don't have to worry about a 4x4 dial. Part numbers on the bezel:
    55412-04070 w/o X-Runner w/SR5 package
    55405-04070 w/o X-Runner w/SR5 package
    55405-04100 w/o X-Runner w/o SR5 package
    55412-04100 w/o X-Runner w/o SR5 package
    55412-04080 w/X-Runner
    55405-04080 w/X-Runner

    I ended up getting an 09 bezel (spare to cut up for the new radio to fit snug) and a 2013 hazard button/clock/airbag display from a salvage yard for $100 total. If you plan to go the salvage yard route make sure you talk to someone on the phone. When I was still trying to find a 2012+ bezel I had a guy on the phone swearing the 07 bezel he had was the same thing and he almost sold it to me. Some salvage yards know something will fit and that's all. I ended up explaining to him how the 05-11 and 2012-14 are different. Saved money there!

    Hope this helps.

  8. Mar 29, 2014 at 2:53 PM
    #48
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,628
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    My 08 clock bezel fit and my 09 bezel fit on the radio...

  9. Mar 29, 2014 at 2:58 PM
    #49
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    1,047
    Gender:
    Male
    First Name:
    Steveo
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    Bilstein 5100s, Top plate spacer, Wheeler's add a leaf, Spidertrax, Duratracs, Blue Sea fuseblock, Bestop Supertop, LED light bar, ect
    :thumbup:

  10. Mar 30, 2014 at 7:52 AM
    #50
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    2,815
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DC Pyrite Mica
    Baby seat mod
    Y'know...I'm just trying to be proactive here and I get shit on! LOL. I'm debating on doing the rewiring of the steering wheel for the BT controls or just leaving it as is.

  11. Mar 30, 2014 at 12:15 PM
    #51
    MudFlap

    MudFlap Well-Known Member

    Joined:
    Jul 13, 2011
    Member:
    #59794
    Messages:
    387
    Gender:
    Male
    First Name:
    Tim
    Memphis (north mississippi)
    Vehicle:
    2012 TRD Off Road

    There was a guy on here on TW a few days ago parting out a 2012.... was selling the steering wheel with controls on for 75 bucks. Hang on Ill see if I can find that for ya.

    Sweet! Only took me about 30 secs to locate it!
    http://www.tacomaworld.com/forum/2nd-gen-tacoma-marketplace/321813-parts-2012-tacoma-prerunner.html

  12. Apr 5, 2014 at 1:49 PM
    #52
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    156
    Gender:
    Male
    I wanna correct one of my posts and say yes you do need the 24pin connnector for the rear view camera, also I posted a link to a diagam and totally mistaken both connectors to be the same when they weren't, my bad.

  13. Apr 5, 2014 at 1:51 PM
    #53
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,628
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    lol i was just saying cuz paying an extra $222 for just the clock portion is a bit some people wont want to pay :p

  14. Apr 7, 2014 at 7:49 PM
    #54
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    2,815
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DC Pyrite Mica
    Baby seat mod
    Oh I know! I jumped the gun on that - but I ended up getting one for just $20 so I guess it's not too bad right? Still waiting on these harnesses to come in. Painting my spare bezel starting this week too. The dremel wasn't too bad after all. Just glad I have a spare (easier to do outside the truck)

  15. Apr 8, 2014 at 7:23 AM
    #55
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    1,047
    Gender:
    Male
    First Name:
    Steveo
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    Bilstein 5100s, Top plate spacer, Wheeler's add a leaf, Spidertrax, Duratracs, Blue Sea fuseblock, Bestop Supertop, LED light bar, ect
    Yep. Trimming it is cake. I used a cutoff wheel on a 4" angle grinder and had it done in no time.

    Im glad this DIY is helping people out

    :beer:

  16. Apr 8, 2014 at 8:02 AM
    #56
    fbconvert

    fbconvert It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    358
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    I used an oscillating multi-tool to trim mine and it was a piece of cake.

    [​IMG]

    I prefer something like this over a dermal or a angle grinder. They're super forgiving and handing to have around the house and harbor freight has them for around $20. But I will say you get what you pay for when it comes to powertools from harbor freight.

  17. Apr 11, 2014 at 11:55 AM
    #57
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    2,815
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DC Pyrite Mica
    Baby seat mod
    Be careful when buying the ebay USB adapter... there are 2 versions for the side of the cord that plugs into the back of the head unit: male and female. You want male... I almost bought the wrong one!

    [​IMG]

  18. Apr 12, 2014 at 4:57 AM
    #58
    manthony67

    manthony67 Member

    Joined:
    Mar 31, 2014
    Member:
    #126614
    Messages:
    13
    Gender:
    Male
    First Name:
    Mike
    Looking for suggestions
    will the 20/28 pin harness adapter part number - PT546-00120-CH you mention in this thread work to connect the 2014 head unit to an 07 wiring Harness? These mod sounds great , I do have the head unit and would like to hook up the blue tooth mic, aux plug etc. But do not want to buy these harnesses if the 07 wiring harness is different than an 2011.

  19. Apr 12, 2014 at 7:06 AM
    #59
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    156
    Gender:
    Male
    Yes, I can confirm this for you.

  20. Apr 13, 2014 at 5:50 PM
    #60
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    1,047
    Gender:
    Male
    First Name:
    Steveo
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    Bilstein 5100s, Top plate spacer, Wheeler's add a leaf, Spidertrax, Duratracs, Blue Sea fuseblock, Bestop Supertop, LED light bar, ect
    I believe all '05-'11 non JBL stuff should be the same.


    UPDATE - My 24 pin plug and pins showed up this weekend. I'll try to sort the camera out this week if I get a chance.


    On a side note, we took a fishing trip up to the mountain this weekend and the GPS worked flawlessly getting around from stream to stream.
