2014 TRD Pro+ 4x4 Double Cab - Rocky Top Edition

1st Mod - OverHead Console Compass / Temperature Addition

The other threads on this do not detail how to add the Compass/Temp to a 2nd Generation when it did not come installed from the factory. Some mention they've done it, but the threads are missing or have confusing critical information on the wiring.

This case the subject is a 2014 TRD 4x4 Double Cab

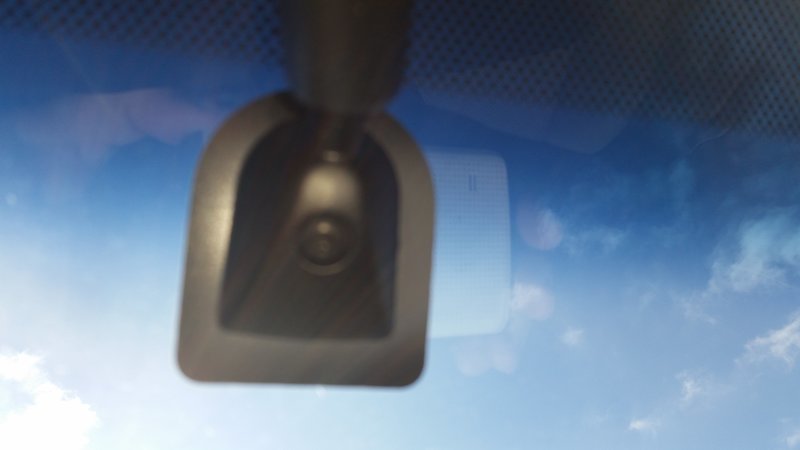

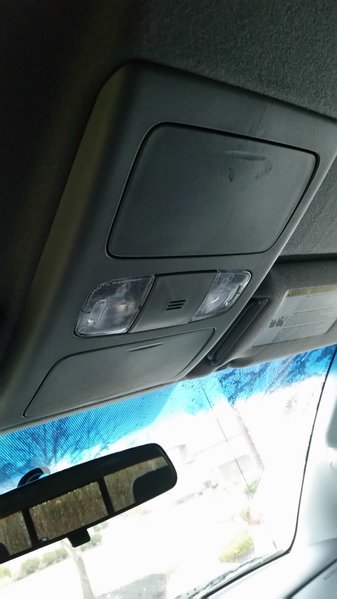

It came with a MIC in between the lights and (2) sunglass holders


I then proceeded to purchase an older unit from eBay that had the holder for the Compass/Temp Unit ($125)


I then purchased the Compass/Temp until from a Toyota Dealer ($97 + $7 shipping)

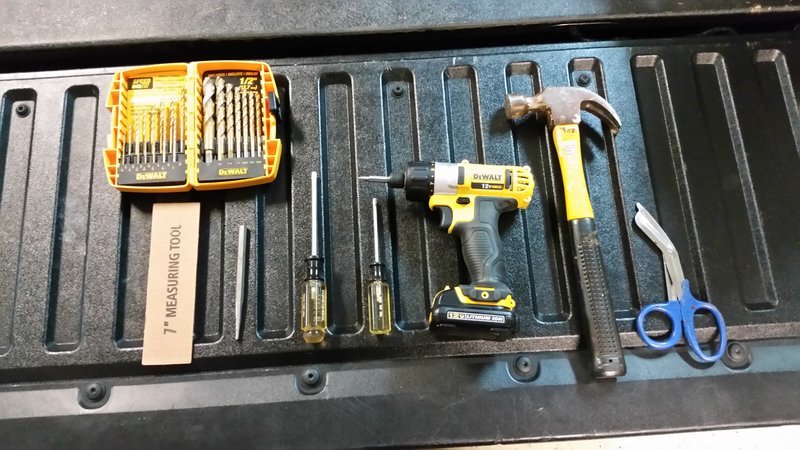

I gathered these tools to perform the surgery


Then proceeded to remove the sunglasses holder from my existing unit. The pivot point and the clasp to open, close the door extend too far for the Compass holder, so I trimmed those. The units are held by what appears to be plastic rivots. I had to break those to remove the light unit and the Glasses holder unit, like wise on the 2005 assembly to remove the Compass holder.

After putting it all together, I now have an assembly that holds a Compass holder, Compass, MIC, lights and one of the original Glasses holders.


I used JB Weld to replace the functionality of the plastic rivots that I broke during the surgery

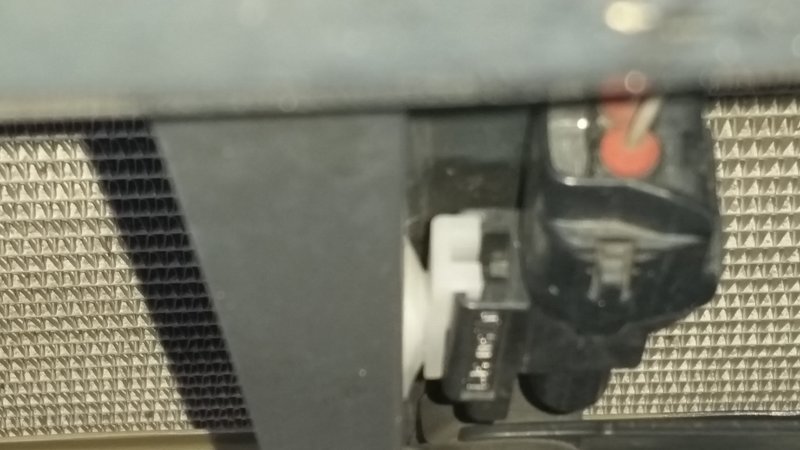

I was lucky enough that my truck already had the ambient sensor


Update:
@adio and @kgarrett11 were kind enough to share the wiring details necessary; see 135. So I'll be doing some more surgery and will update here when done.

Note: The connector on the Compass/Temp Unit is 10P04K-M. Finding a female for this is tuff.

I ordered 5 (minimum) from Eastern Beaver MotorCycle, so if someone needs one, I can send you one for my cost+shipping.

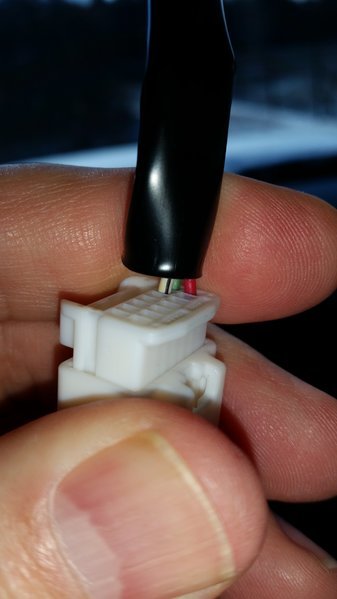

Male Connection, Facing Open End
1 = Lt. Green from AutoDim Connector (Green Wire = Accessory Power)
2 = White/Black from AutoDim Connector (White/Black Wire = Ground)
3 = Violet from VSS
4 = Red from AutoDim Connector (Red Wire = Battery)
5 = TEMP + (Yellow or Violet/White)
6 = TEMP - (Grey)

Overhead AutoDim Mirror Connector



2nd Mod - HomeLink AutoDim Rear View Mirror (GENK40A)

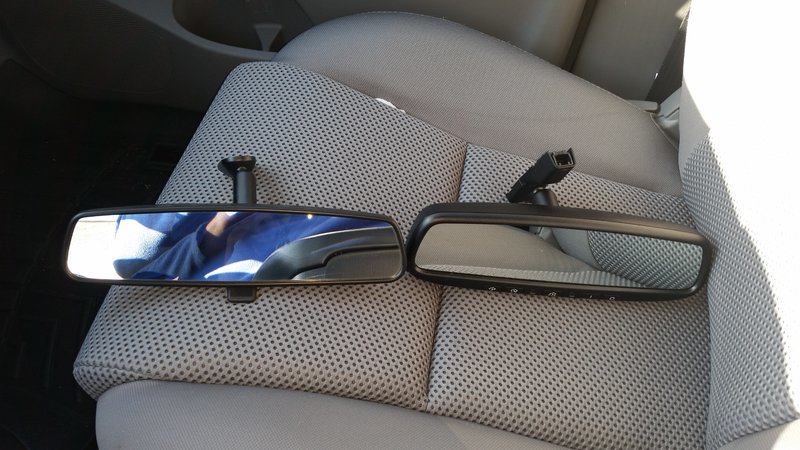

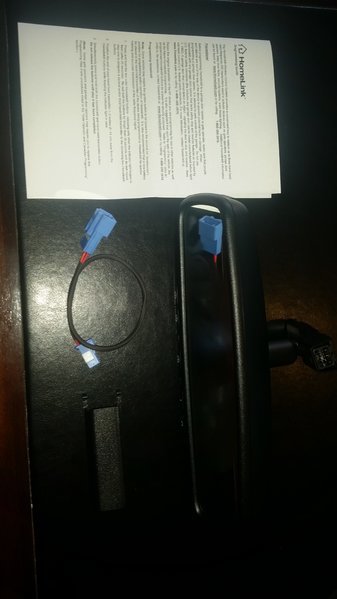

To start with I had a base mirror, I then purchased a HomeLink, Autodim Mirror from eBay (aka Bob's Automotive Mirrors & More LLC) for $170. You can get it cheaper, but Bob has a good reputation, so I went that route

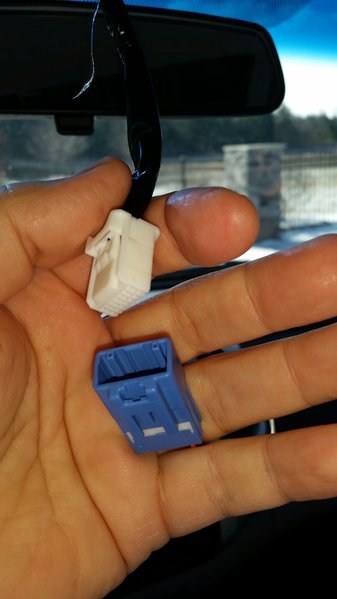

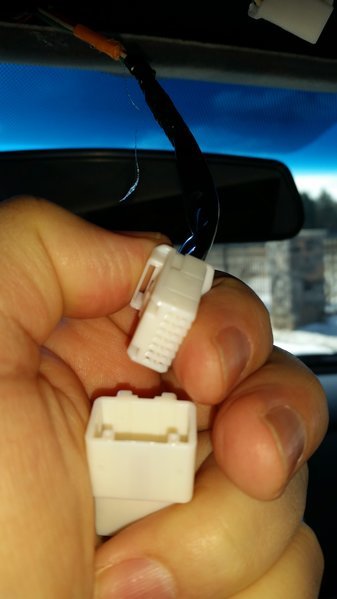

The connection in my overhead had both male and female ends, but the female end is odd shape. Just remove it and discard.


Now remove the one screw holding the mirror in place


And run the wire through the hole already in the overhead

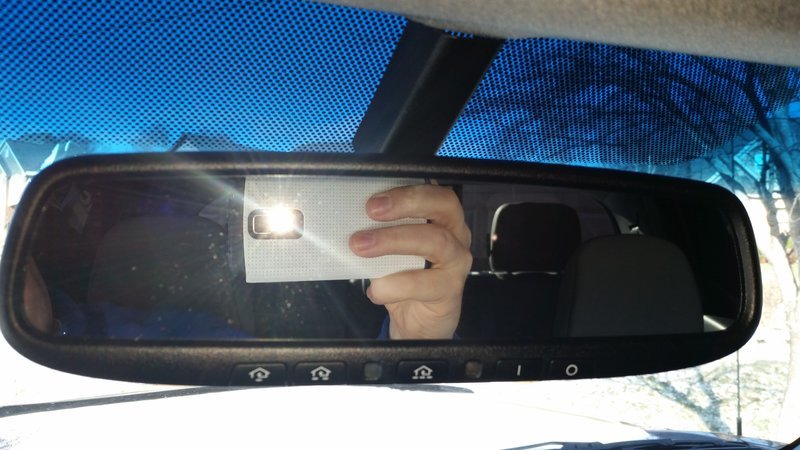

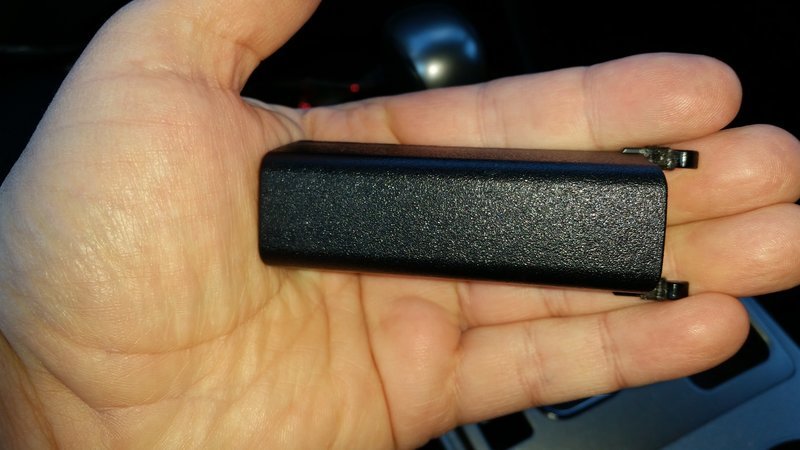

Add the cover to make it clean, program your Homelink with the instructions (Bob's your uncle) and you're done.



3rd Mod - Radio Upgrade

First, get your hands on a 57092, and hope you can find a deal, because people think they are made of gold.

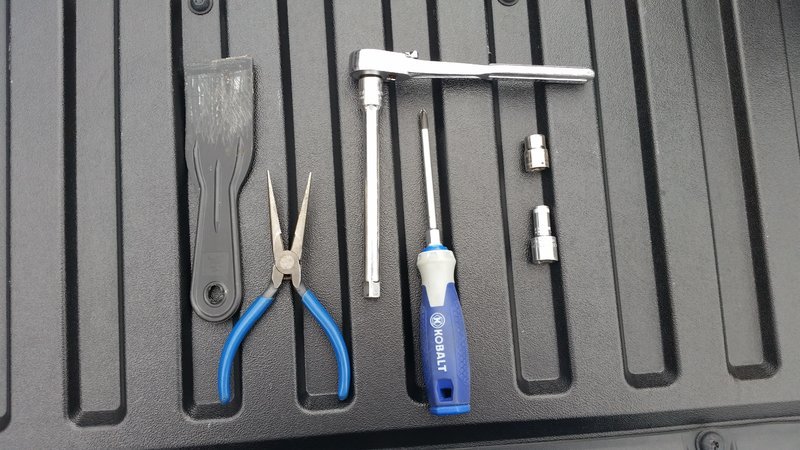

Next, get your tools together

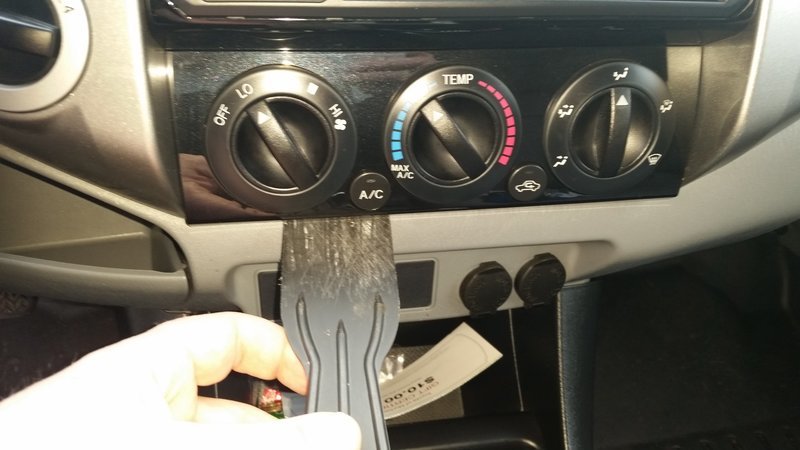

Then remove the Atmosphere controls


Then remove the (4) 10mm bolts

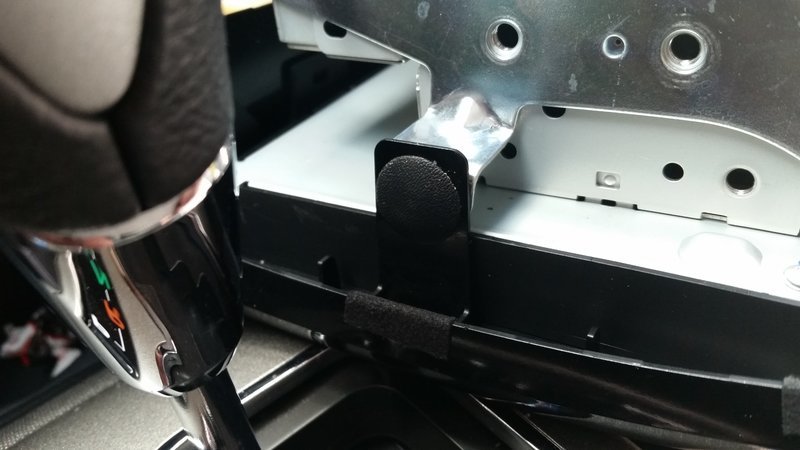

Remove the 4 bolts on each side the bracket, unplug the connectors, and remove those plastic holders on the sides. Best way i found to do that is with a needle nose player.

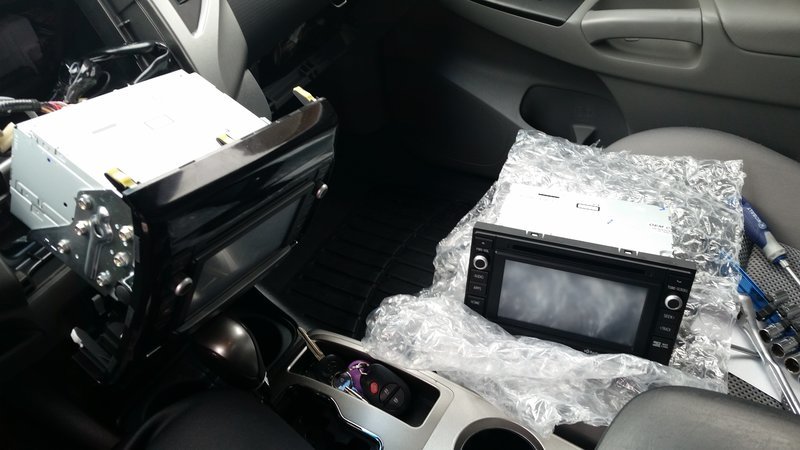

Now reverse and load your startup image


Now you have a Navi Head Unit life is good.



4th Mod - Customize Your Stickers / Badges

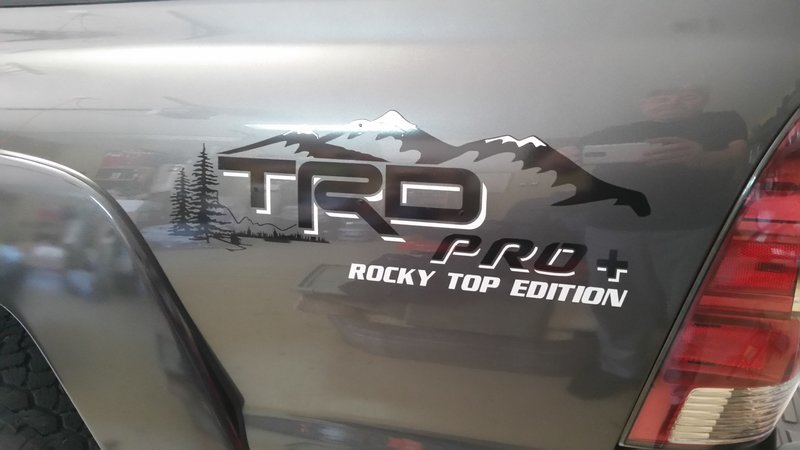

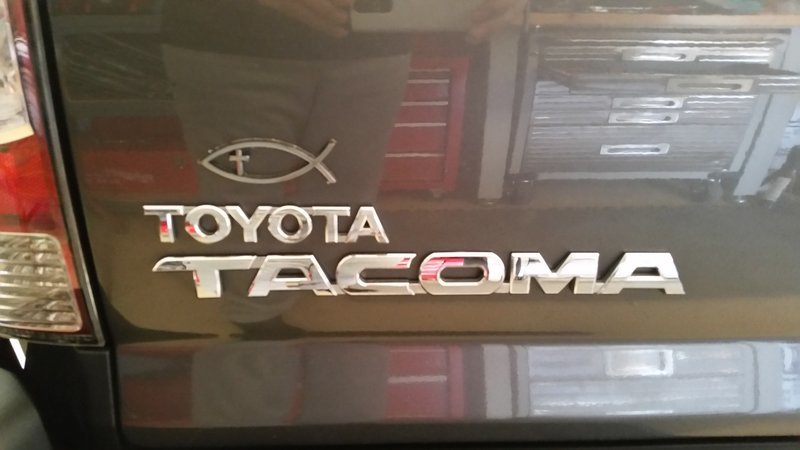

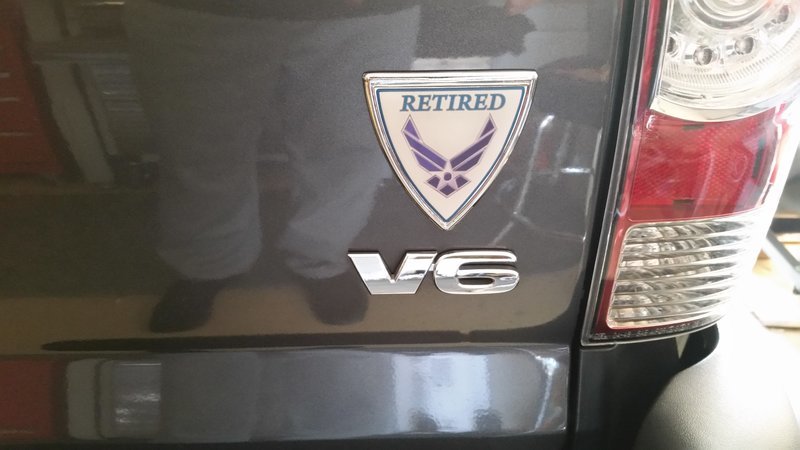

eBay


eBay


Fort Campbell PX


LifeWay


From @CBoy808



5th Mod - Add the Runners

before


after


I really like these. Bought off Amazon here:
https://goo.gl/XUuUvO



6th Mod - Fix the Holes (that those pesky dealers make)

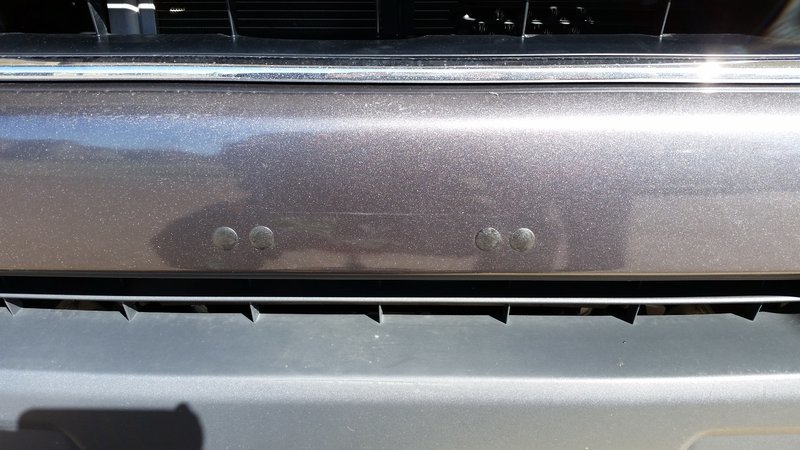

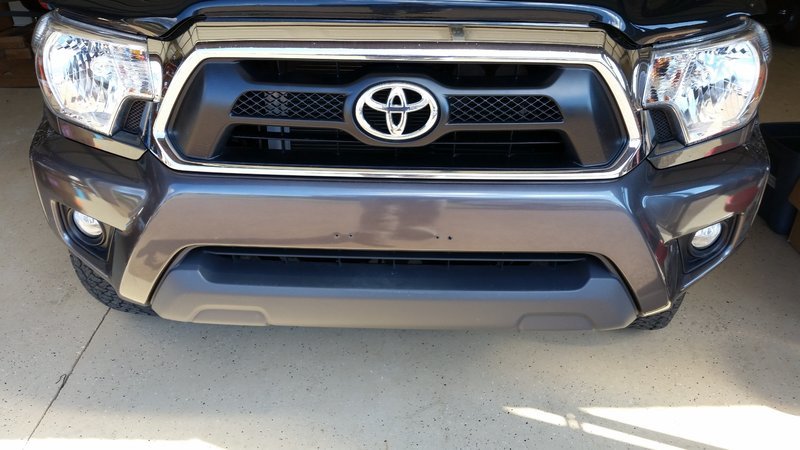

Why, tell me why, dealers screw hole into my bumper to advertise themselves?

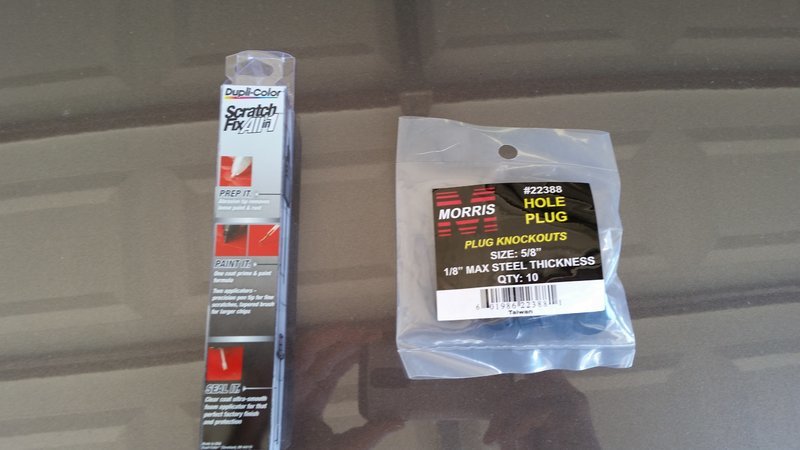

Gather the necessary items

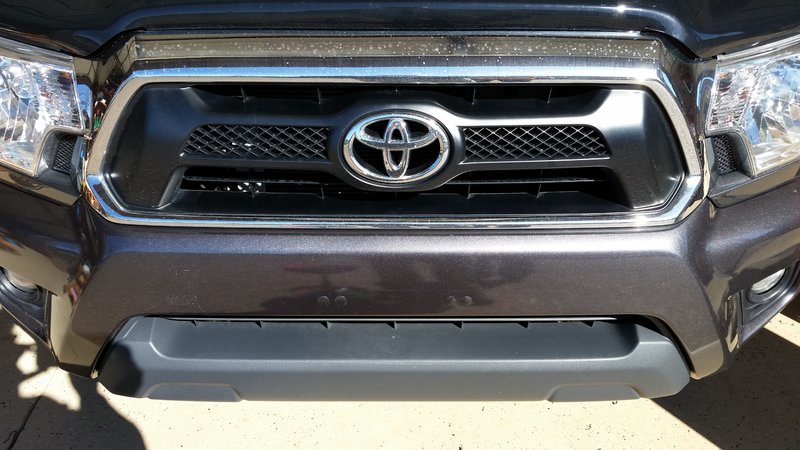

Paint the plugs before inserting to make it easier to get to the edge. Then use a drill to make the perfect size hole. CAREFUL to not go too big.



Nice start!



7th Mod - Add a Bed Extender

Tools you'll need. Notice the highly specialize measuring tool.

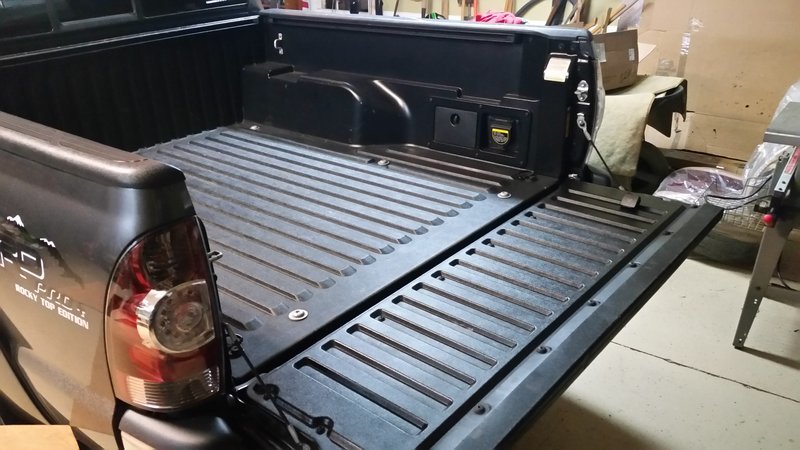

Before:

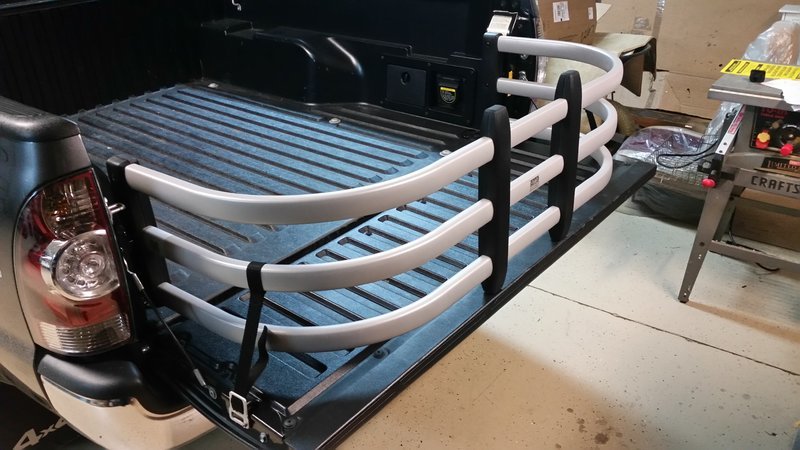

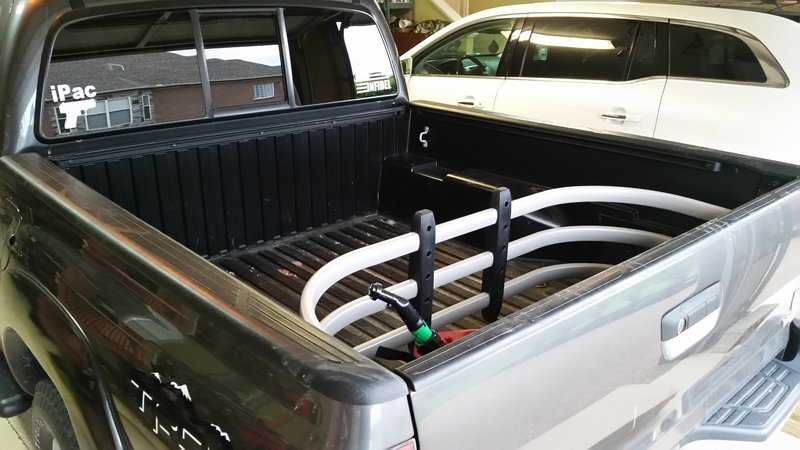

After:

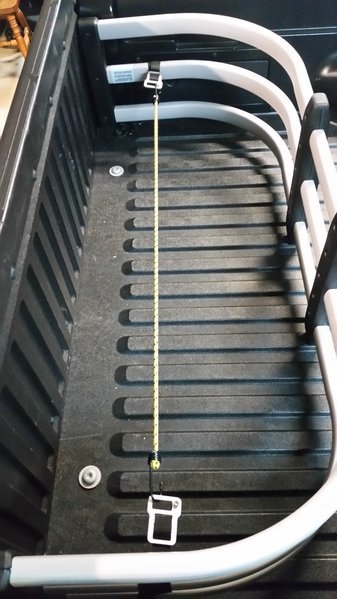

Add a bungee to avoid the secure straps and brackets from dangling:


BTW, AMP+Amazon is running a $50 rebate this month.



8th Mod - Add a Tailgate Lock

Get a Pock and Lock

Before:

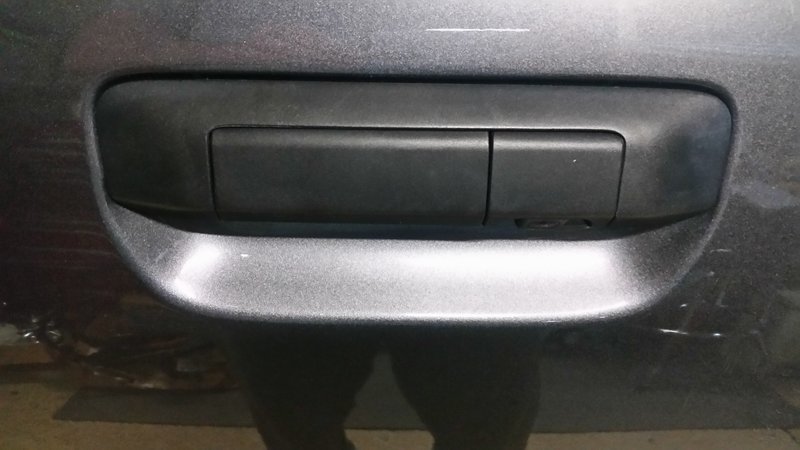

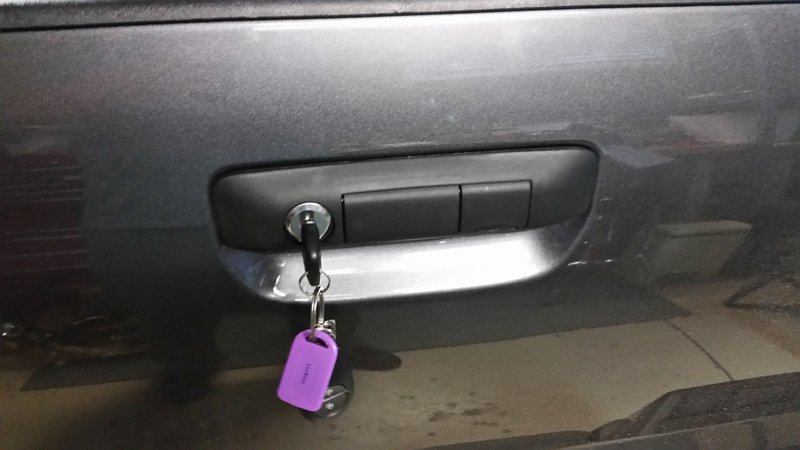

After with it coded to your key:



Out of curiosity, any reason why you opted for the mirror without temperature and added the temperature display from an older Taco?

Seems like you spent more money, and lost a sunglass holder?



Only personal preference. Didn't want that in my mirror



Was the radio basically plug and play?



100%, easiest thing so far.



good to know!, i opted out of the entune when i bought the truck but now would love to have it.......thanks



Depending on where you live.. be strategic about stickers like the "iPAC" and "Infidel" ones.

People are crazy and they WILL vandalize something inanimate because it triggers them.

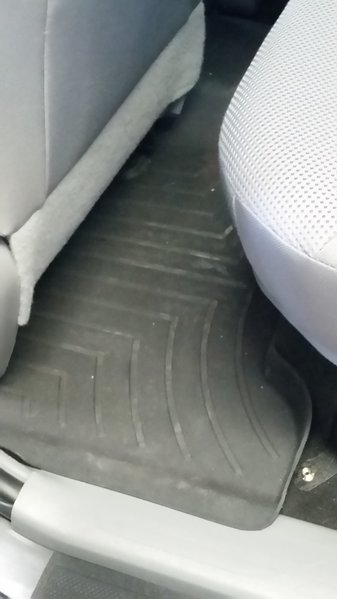

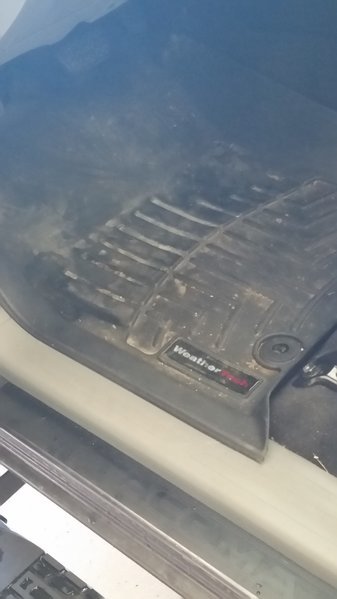

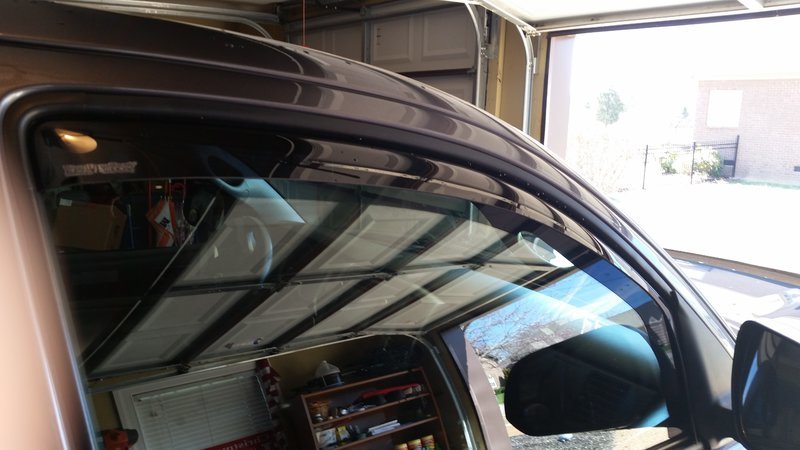

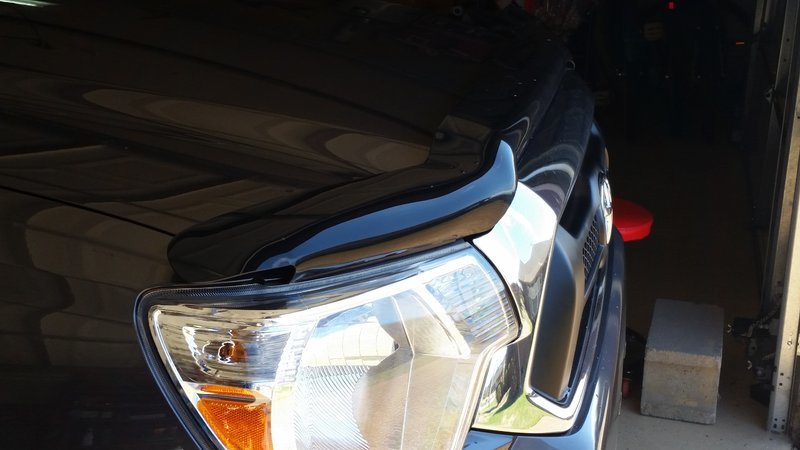

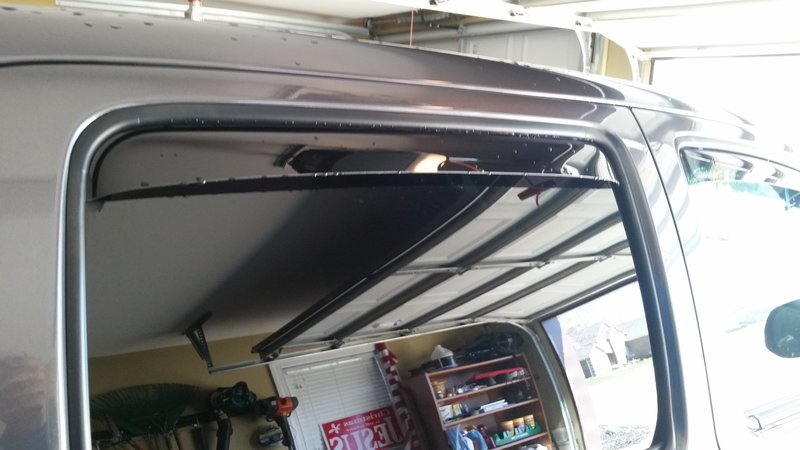

9th Mod - Add WeatherTech Everywhere



With the tailgate locked are you able to remove the extender?

I keep a cable gun lock on mine. Wouldn't take much to remove,but it's a deterrent.



Yes, it's a good combo that I had the same thought and researched before purchase. Next thing I'm adding is a bed cover, but not decided on model yet. The thing I want is the one lock to secure the tail and secure the cover.

BTW, I added the tail lock first to keep the extender from sprouting legs.



10th Mod - Add a Bed Cover

I read a ton on here and on various sites and settled on the Bakflip. I then found out that Gator and Bakflip are the same, but you can get a good discount by buying direct from Gator. Open a chat window and ask them for a discount, then ask a second time. I got $90 off

Before:

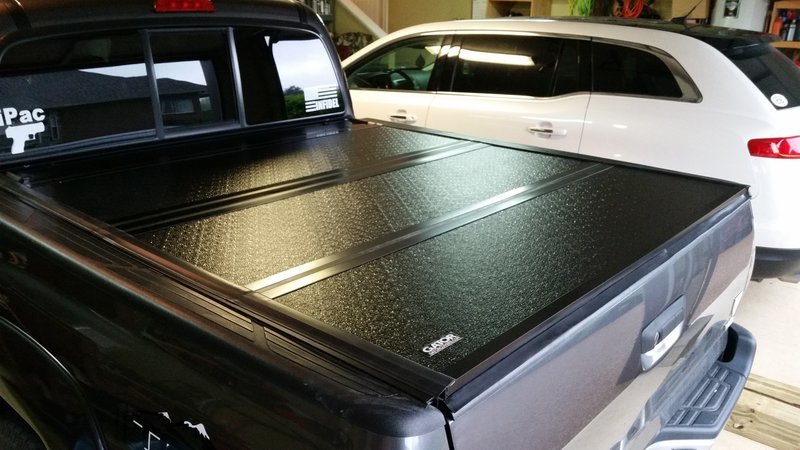

After:



Close to calling this boy done. Things I have left to do:

11. Add 110v AC outlet in cab at back of console
12. Add dual-head USB charging port in place of one of the (2) lighter ports
13. Add seat heaters
14. Add convenience lights for driver and passenger foot area
15. Add convenience light overhead, like in the series 3 Prius
16. Add rear sliding window control
