2015 Tacoma Prerunner Adding Factory Fog Lights

Discussion in '2nd Gen. Tacomas (2005-2015)' started by TNMTX23, Feb 4, 2025.

  1. Feb 4, 2025 at 12:59 PM
    #1
    TNMTX23

    TNMTX23 [OP] Member

    Joined:
    Nov 15, 2023
    Member:
    #437569
    Messages:
    18
    Gender:
    Male
    First Name:
    Thomas
    Texas
    Vehicle:
    2015 Tacoma Prerunner
    My girlfriend's truck was prewired for the factory bumper fog lights, so we got the lights, and installed them.
    Got the factory 4 pin switch and installed it.
    Having trouble finding which relay and fuse powers these.
    Lights do not work as of right now.
    Any help would be greatly appreciated.

  2. Feb 4, 2025 at 2:57 PM
    #2
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,363
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    For 12-15 trucks:

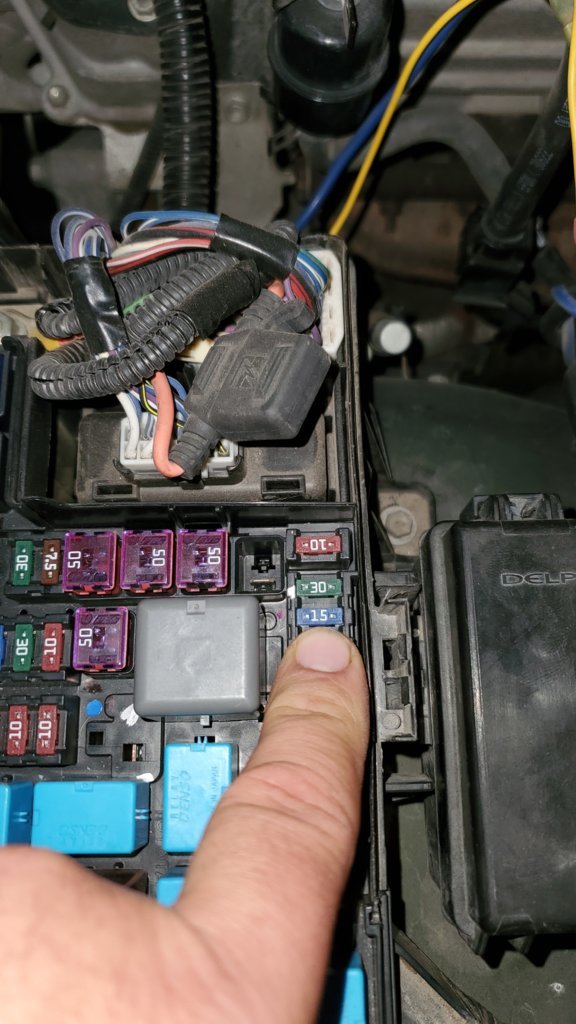

    Fuse in main underhood fuse box labeled FOG FR 15A

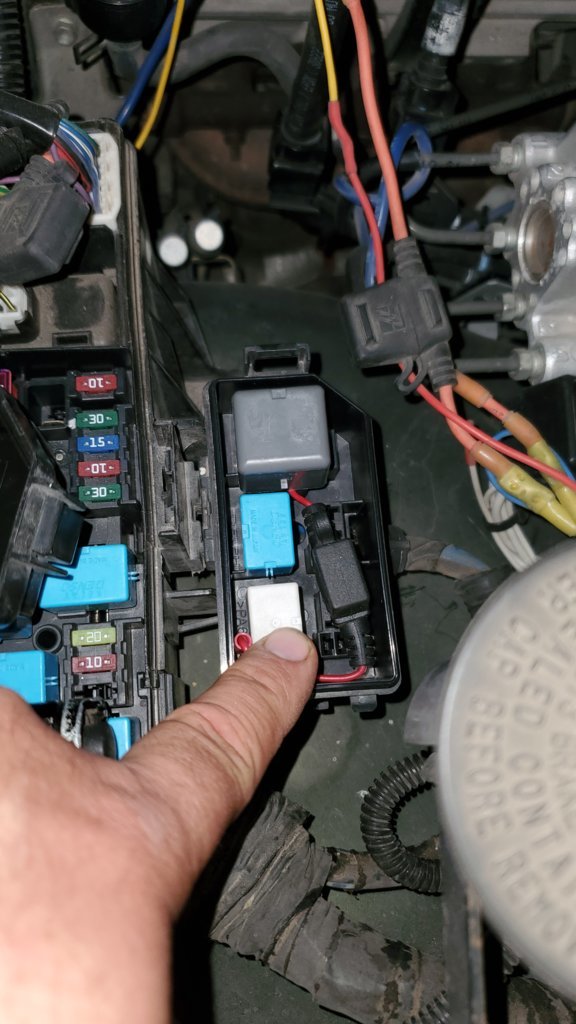

    Relay in auxiliary underhood fuse box labeled FR FOG

    hoffengineering and TNMTX23[OP] like this.
  3. Feb 4, 2025 at 3:16 PM
    #3
    TNMTX23

    TNMTX23 [OP] Member

    Joined:
    Nov 15, 2023
    Member:
    #437569
    Messages:
    18
    Gender:
    Male
    First Name:
    Thomas
    Texas
    Vehicle:
    2015 Tacoma Prerunner
    I will go put a relay in the spot you showed and make sure the fuse is good!
    Thank you!!

  4. Feb 4, 2025 at 3:24 PM
    #4
    TNMTX23

    TNMTX23 [OP] Member

    Joined:
    Nov 15, 2023
    Member:
    #437569
    Messages:
    18
    Gender:
    Male
    First Name:
    Thomas
    Texas
    Vehicle:
    2015 Tacoma Prerunner
    This is all I need to do to make them work?

  5. Feb 4, 2025 at 3:53 PM
    #5
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,363
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    If it's fully pre-wired you need the switch, fuse, relay, and lights.

    TNMTX23[QUOTED][OP] likes this.
