2016 4Runner to 2022 LED’s

Discussion in 'FBC Harness Solutions' started by Trd_pro_adventures, Oct 23, 2023.

  1. Oct 23, 2023 at 6:11 PM
    #1
    Trd_pro_adventures

    #1
    Trd_pro_adventures [OP] New Member

    Joined:
    Oct 23, 2023
    Member:
    #436069
    Messages:
    3
    Gender:
    Male
    First Name:
    Erik
    Vehicle:
    2016 4Runner TRD Pro
    Everything
    I have a 16 pro 4Runner and I’m adding new 21 OEM LED’s. The new headlamps have the three pin. I’m wondering which harness to purchase. Ideally simplest without buttons to press. The low beams don’t work yet obviously but I noticed the high beams/ DRLs are halogen. I have a set of Xenon Depot LED Drivers from my previous modes set that I’m wondering if I could use or if one of your harnesses would be better? I definitely like the look of LED’s as the DRL.

    Trd_pro_adventures, Oct 23, 2023
    #1
  2. Oct 23, 2023 at 6:44 PM
    #2
    daveeasa

    #2
    daveeasa FBC Harness Solutions

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    7,445
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2005 RC 5MT PreRunner, 2002 Tundra SR5 RCLB 4x4
    Quad high beams if you have 3 pins on the headlight.

    daveeasa, Oct 23, 2023
    #2
  3. Oct 23, 2023 at 6:48 PM
    #3
    Trd_pro_adventures

    #3
    Trd_pro_adventures [OP] New Member

    Joined:
    Oct 23, 2023
    Member:
    #436069
    Messages:
    3
    Gender:
    Male
    First Name:
    Erik
    Vehicle:
    2016 4Runner TRD Pro
    Everything
    Thank you!

    Trd_pro_adventures, Oct 23, 2023
    #3
  4. Oct 23, 2023 at 6:56 PM
    #4
    Trd_pro_adventures

    #4
    Trd_pro_adventures [OP] New Member

    Joined:
    Oct 23, 2023
    Member:
    #436069
    Messages:
    3
    Gender:
    Male
    First Name:
    Erik
    Vehicle:
    2016 4Runner TRD Pro
    Everything
    I ordered the non shutter wire one already. Can you cancel order 722839465 ? I just ordered the proper one.
    Please and thank you

    Trd_pro_adventures, Oct 23, 2023
    #4
  5. Oct 27, 2023 at 2:17 PM
    #5
    Fernwehyota

    #5
    Fernwehyota New Member

    Joined:
    Oct 27, 2023
    Member:
    #436338
    Messages:
    2
    Gender:
    Female
    First Name:
    Echo
    Vehicle:
    2018 ORP 4Runner
    OME lift, KC ditch lights, bumper light bar, Warn winch, stubby bumper, LFD roof rack

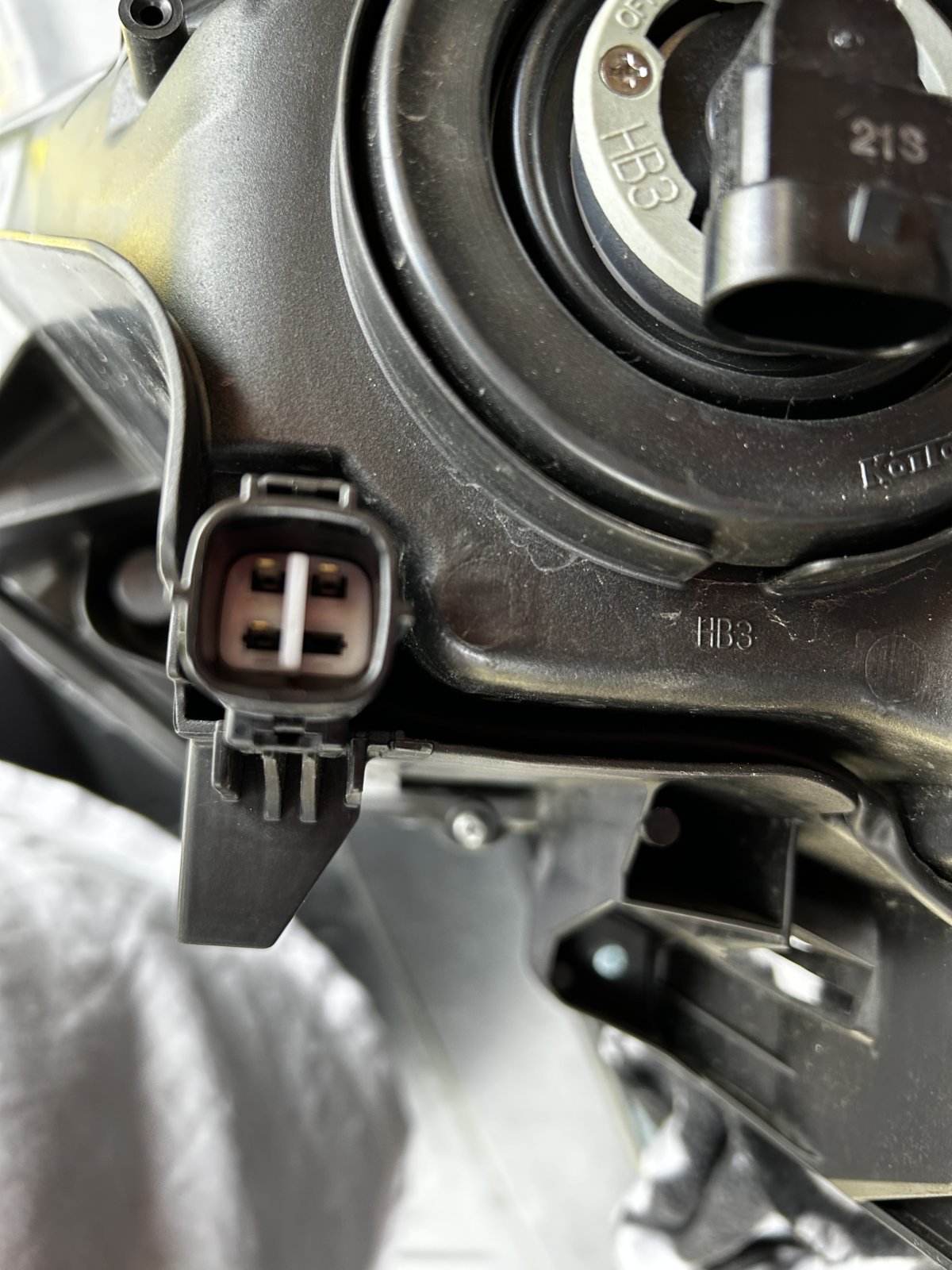

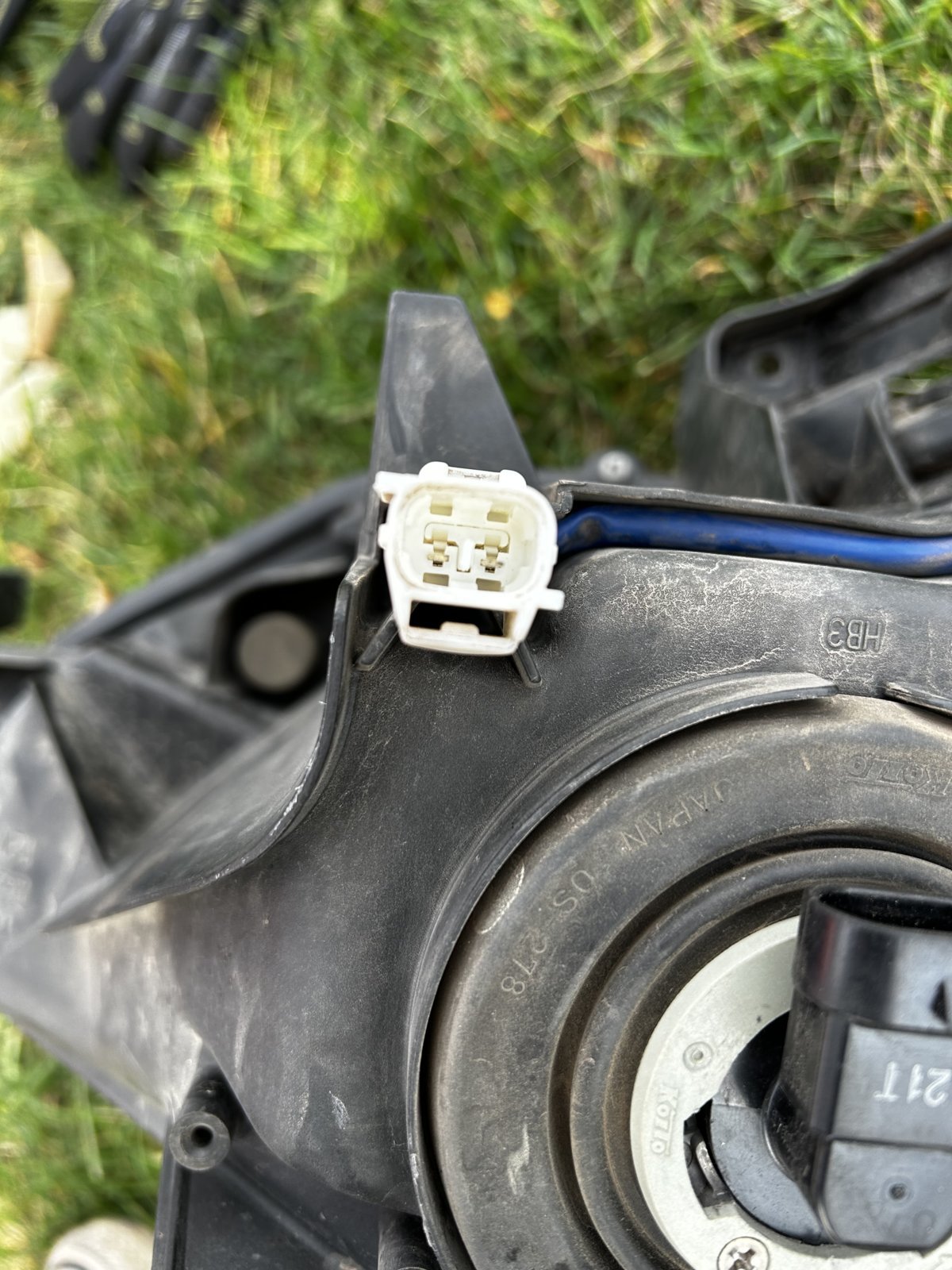

    I’m up grading my headlights from 2018 OEM to the bi-LED out of a 2022 PRO. Everything works except for the low beams, which are the LED’s. I’m assuming I only need the conversion harness without shutter wire. Can you @daveeasa confirm this please? I’ve loaded the plugs on the back of these lights. The first is 2018 OEM headlight.


    Fernwehyota, Oct 27, 2023
    #5
  6. Oct 27, 2023 at 2:26 PM
    #6
    daveeasa

    #6
    daveeasa FBC Harness Solutions

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    7,445
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2005 RC 5MT PreRunner, 2002 Tundra SR5 RCLB 4x4
    It looks to me like you are pinned for shutter so you can choose any of the 3 harnesses.

    https://www.4runners.com/threads/oe...on-adapters-for-14-20-halogen-4runners.25899/

    ^^ That's the thread for more detail on this subject. Most prefer the quad high beam option b/c then you can do an HIR 9011 and have some pretty awesome high beam action. If you do the no shutter harness then you'll use the 9005 for drl and high beam and you won't be taking full advantage of the LED projector capabilities. That matches the behavior from before but note that the high beam reflector bucket, per @mynameistory, may be a little different and may not give as great of a high beam output as before.

    If you don't care about high beams in general, the no shutter option is the most economical.

    daveeasa, Oct 27, 2023
    #6
    tcBob and Fernwehyota like this.
  7. Oct 27, 2023 at 2:42 PM
    #7
    Fernwehyota

    #7
    Fernwehyota New Member

    Joined:
    Oct 27, 2023
    Member:
    #436338
    Messages:
    2
    Gender:
    Female
    First Name:
    Echo
    Vehicle:
    2018 ORP 4Runner
    OME lift, KC ditch lights, bumper light bar, Warn winch, stubby bumper, LFD roof rack
    If I order the harness without shutter and not Happy can I exchange it for the other harness with shutter?

    Fernwehyota, Oct 27, 2023
    #7
  8. Oct 27, 2023 at 4:44 PM
    #8
    daveeasa

    #8
    daveeasa FBC Harness Solutions

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    7,445
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2005 RC 5MT PreRunner, 2002 Tundra SR5 RCLB 4x4
    I think you would be best off asking questions about how the various options function in the 4 runners forum. I don’t own a 4 runner so I can’t help you much.

    daveeasa, Oct 27, 2023
    #8
