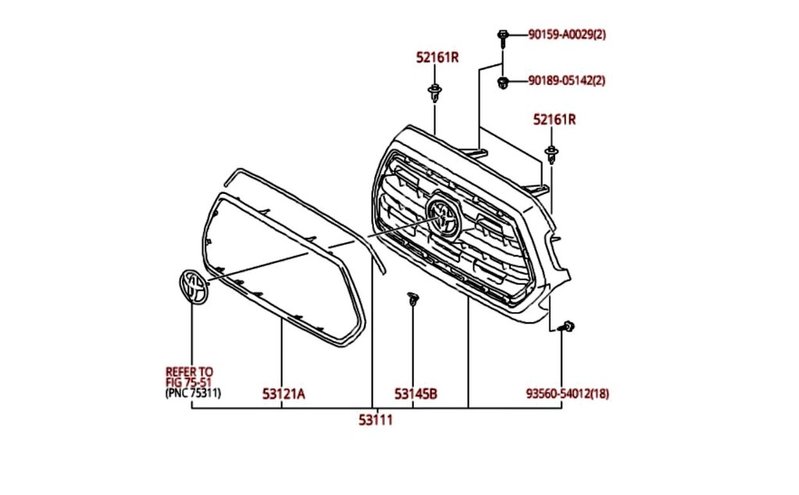

2016 Grille Diagram

Discussion in '3rd Gen. Tacomas (2016+)' started by DeTako, Oct 13, 2015.

  1. Oct 13, 2015 at 9:35 PM
    #1
    DeTako

    DeTako [OP] Well-Known Member

    Joined:
    Sep 27, 2015
    Member:
    #165270
    Messages:
    543
    Gender:
    Male
    First Name:
    Felix
    Florida
    Vehicle:
    '16 TRD Sport 4x4 DCSB
    I'll leave this here. I plan on removing the grille this weekend and painting it matte black. A quick look over and it looks like removing it will be a bitch.

    I plan on heavy sanding, 2 coats primer, 3 coats black, 3 coats clear. Any pointers?

    Let's use this thread to post tips and hints on removing and painting the grille.

  2. Oct 13, 2015 at 9:47 PM
    #2
    2t3x1

    2t3x1 Member

    Joined:
    Oct 6, 2015
    Member:
    #165975
    Messages:
    5
    Gender:
    Male
    Las Vegas
    Vehicle:
    2016 TRD Sport
    Having done it it's really not too bad. It's intimidating messing with something so new though. There are two metal screws on top of the radiator support, and then two plastic push pins to remove. Once those are off there are some clips along the bottom that you need to pull with some pressure to release. That's the scariest part. The grill is two pieces and held in with a handful of phillips head screws. Also getting the chrome ring and grill out of the assembly sucks because of the multiple clips that hold it in. I broke one of the tabs getting it off :(. But I'm not worried since it still secure, and I'm holding out for a possible TRD Pro grill in the future.

  3. Oct 13, 2015 at 9:50 PM
    #3
    DeTako

    DeTako [OP] Well-Known Member

    Joined:
    Sep 27, 2015
    Member:
    #165270
    Messages:
    543
    Gender:
    Male
    First Name:
    Felix
    Florida
    Vehicle:
    '16 TRD Sport 4x4 DCSB
    Glad to see ya on TW!

    In all fairness everyone, 2T3X1 gave me the diagram on Reddit.

    I'll post pictures when I eventually get to the project.

  4. Oct 13, 2015 at 9:54 PM
    #4
    deni

    deni Well-Known Member

    Joined:
    Sep 26, 2015
    Member:
    #165243
    Messages:
    194
    Gender:
    Male
    Orange County, CA
    Vehicle:
    '16 SW DCSB OR 4x4
    i've seen a few pics floating around here of people who used plastidip to fix the out of place chrome look. matte black definitely gives it a meaner look. might be a little easier remedy than sanding/painting

    DeTako [OP] likes this.
  5. Oct 13, 2015 at 9:56 PM
    #5
    2t3x1

    2t3x1 Member

    Joined:
    Oct 6, 2015
    Member:
    #165975
    Messages:
    5
    Gender:
    Male
    Las Vegas
    Vehicle:
    2016 TRD Sport
  6. Oct 13, 2015 at 10:01 PM
    #6
    DeTako

    DeTako [OP] Well-Known Member

    Joined:
    Sep 27, 2015
    Member:
    #165270
    Messages:
    543
    Gender:
    Male
    First Name:
    Felix
    Florida
    Vehicle:
    '16 TRD Sport 4x4 DCSB
    I'm very familiar with plasti-dip. I've dipped all the emblems and it turned out great.

    Dipping the grille may be a problem. Plasti-dip doesn't hold up well to debris and scuffs. First rock that taps it and I wouldn't be surprised if the dip is ruined. I'm hoping the paint and clear coat give me a more permanent mod.

  7. Oct 13, 2015 at 10:12 PM
    #7
    2t3x1

    2t3x1 Member

    Joined:
    Oct 6, 2015
    Member:
    #165975
    Messages:
    5
    Gender:
    Male
    Las Vegas
    Vehicle:
    2016 TRD Sport
    I think it depends on how thick you put it on. I slather that stuff like it's going out of style. Makes it a lot thicker to withstand debris and car washes, and makes it much easier to remove than thin coats.

    Spuds_McKenzie and DeTako [OP] like this.
  8. Oct 14, 2015 at 5:49 AM
    #8
    TRD4WD

    TRD4WD Supreme Leader

    Joined:
    Sep 21, 2015
    Member:
    #164787
    Messages:
    206
    Gender:
    Male
    First Name:
    Micah
    Gonzales, LA
    Vehicle:
    2004 Double Cab TRD
    I think the Toyota emblem painted quicksand would look good against the blacked out grille.

  9. Oct 14, 2015 at 9:17 AM
    #9
    swimmer

    swimmer Well-Known Member

    Joined:
    Apr 21, 2015
    Member:
    #153626
    Messages:
    2,525
    Gender:
    Male
    Tucson
    Vehicle:
    2016 TRDORAC4WD
    Isn't the OEM chrome sort of a darkened chrome. Hopefully someone pulls the grill and does a proper chrome treatment to it.

  10. Oct 14, 2015 at 9:32 AM
    #10
    ThatguyJZ

    ThatguyJZ Instagram: thatguyjz

    Joined:
    Apr 30, 2013
    Member:
    #103173
    Messages:
    735
    Gender:
    Male
    First Name:
    Jim
    TRIAD, NC
    Vehicle:
    2014 MGM DCSB 4x4 TRD Off Road
    A TRD OR built into a Baja/PRO hybrid
    With all that surface area up front, I could see that dip needing to be re-applied at least once a year to stay nice. Not to mention obnoxious to peel off each time. Has any considered hydro-dipping it black, or some other pattern?

  11. Oct 14, 2015 at 9:34 AM
    #11
    ThatguyJZ

    ThatguyJZ Instagram: thatguyjz

    Joined:
    Apr 30, 2013
    Member:
    #103173
    Messages:
    735
    Gender:
    Male
    First Name:
    Jim
    TRIAD, NC
    Vehicle:
    2014 MGM DCSB 4x4 TRD Off Road
    A TRD OR built into a Baja/PRO hybrid

    Paint will chip, just ask all the BMW guys that paint their grills. Dip would hold up better.

  12. Oct 14, 2015 at 9:35 AM
    #12
    blkbelt42

    blkbelt42 Well-Known Member

    Joined:
    Apr 9, 2011
    Member:
    #54635
    Messages:
    3,877
    Gender:
    Male
    Vehicle:
    2016 Black AT DCSB 4x4 TRD Sport
    JL Audio C2690tx Speakers Alpine MRV-F300 JL Audio 10" Sub - Full length Ported Box Kicker Tweeters BFG KO2's 265/70/17 Tint N-Fab Bars Husky WB Mats AVS Visors Console Divider Tacoma Tonneau Cover ALL PRO 1.5" wheel spacers aFe CAI w/ Dry filter TRD Wheels Custom Remote Start TRD Pro Grille ECT always-on mod by MESO OV-Tuned - 1.03 ROAV Dash Cam 3" RC Lift
    great idea!

  13. Oct 14, 2015 at 9:39 AM
    #13
    specter208

    specter208 Well-Known Member

    Joined:
    Oct 6, 2015
    Member:
    #165992
    Messages:
    2,920
    Gender:
    Male
    California
    Vehicle:
    2017 TRD SPORT ACLB w/ 6MT TRUCK WHITE
    TOYOTA OEM: Cast Aluminum Running Boards Mud Guards Bed Mat All-Weather Floor Liner NIssan Frontier Sliding Bed Extender
    Why buy the Black SR grille and do an easy swap.

    pocketsmcaaron and ETAV8R like this.
  14. Nov 10, 2015 at 8:48 PM
    #14
    Soeperman

    Soeperman Well-Known Member

    Joined:
    Sep 17, 2015
    Member:
    #164488
    Messages:
    95
    Gender:
    Male
    Vehicle:
    2016 MGM DCLB TRD Sport

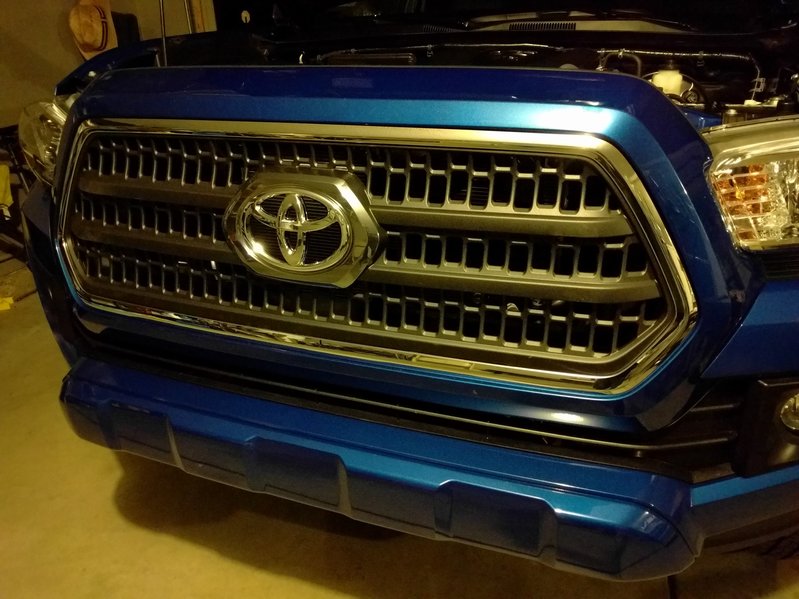

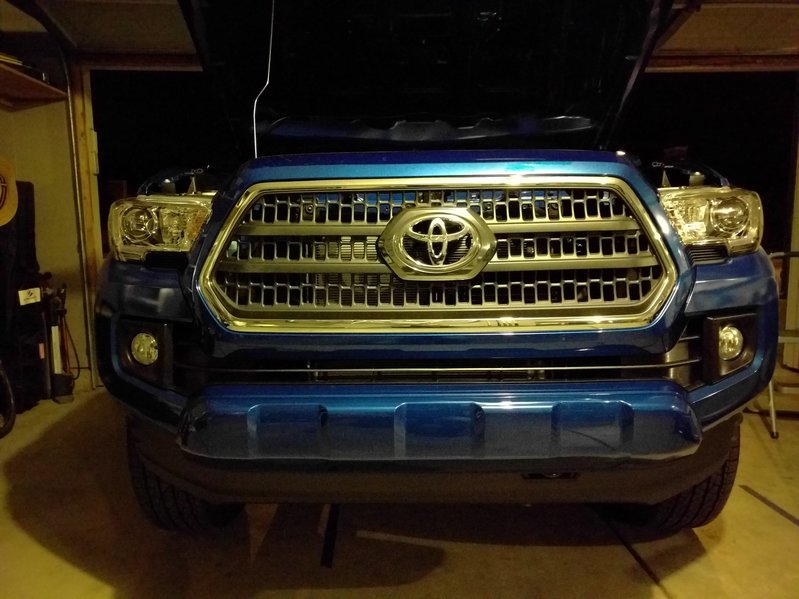

    uploadfromtaptalk1447216757231.jpguploadfromtaptalk1447217216008.jpg just did mine!

    McDerper likes this.
  15. Nov 10, 2015 at 10:28 PM
    #15
    fredgoodsell

    fredgoodsell Well-Known Member

    Joined:
    Jan 14, 2015
    Member:
    #146389
    Messages:
    1,479
    Gender:
    Male
    First Name:
    Matt
    Salt Lake, UT
    Vehicle:
    2017 DC TRD OR
    I photo-hack-jobbed this:

    TheTacoma, V1 rot8 and big_jarv like this.
  16. Nov 10, 2015 at 10:42 PM
    #16
    TacoDan723

    TacoDan723 Well-Known Member

    Joined:
    Jun 20, 2015
    Member:
    #157821
    Messages:
    278
    Gender:
    Male
    First Name:
    Dan
    Pacific Northwest
    Vehicle:
    2015 MGM Tacoma Limited
    What about Duracoat? If they use it on weapons why wouldn't it hold up to road use? Might be a good test.

  17. Nov 11, 2015 at 5:03 AM
    #17
    splitbolt

    splitbolt Well-Known Member

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    4,291
    Gender:
    Male
    Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    As mentioned the chrome surround tabs suck. It's white abs instead of poly; a lot more brittle.
    I laid a blanket out on the carpet to help protect it. I also used socks to stuff in between things so the clips wouldn't re-engage.

  18. Nov 11, 2015 at 6:12 AM
    #18
    Stinson

    Stinson Well-Known Member

    Joined:
    Dec 14, 2012
    Member:
    #93056
    Messages:
    60
    Gender:
    Male
    Did mine last night. The chrome outer needs to come out first, then the center mesh will unclip. Careful with the chrome logo it is brittle. I am thinking I will go body color with the outer thin surround to make the grill look slightly smaller.

    This is what it looks like now.


    Spuds_McKenzie likes this.
  19. Nov 11, 2015 at 6:14 AM
    #19
    TRD4WD

    TRD4WD Supreme Leader

    Joined:
    Sep 21, 2015
    Member:
    #164787
    Messages:
    206
    Gender:
    Male
    First Name:
    Micah
    Gonzales, LA
    Vehicle:
    2004 Double Cab TRD
    I think that would look good.

  20. Nov 11, 2015 at 7:57 AM
    #20
    Mmelaney

    Mmelaney Well-Known Member

    Joined:
    Dec 12, 2010
    Member:
    #47567
    Messages:
    267
    Gender:
    Male
    First Name:
    Mike
    Waynesboro, GA
    Vehicle:
    2016 TRD Sport DCLB
    Is that rhinoliner? Thats actually a really good idea for durability. They also make a spray can of bedliner that may hold up better than plastidip. I always get worried with plastidip and carwashes.
