2016 tacoma fog light Install

Discussion in 'Lighting' started by Ericg3654, Jun 10, 2018.

Post Reply

Jun 10, 2018 at 2:18 PM

#1

#1
Ericg3654 [OP] New Member

Joined:

Jun 10, 2018

Member:

#256017

Messages:

1

Gender:

Male

Hello,

First time posting so I’m not sure if this is in the right spot.

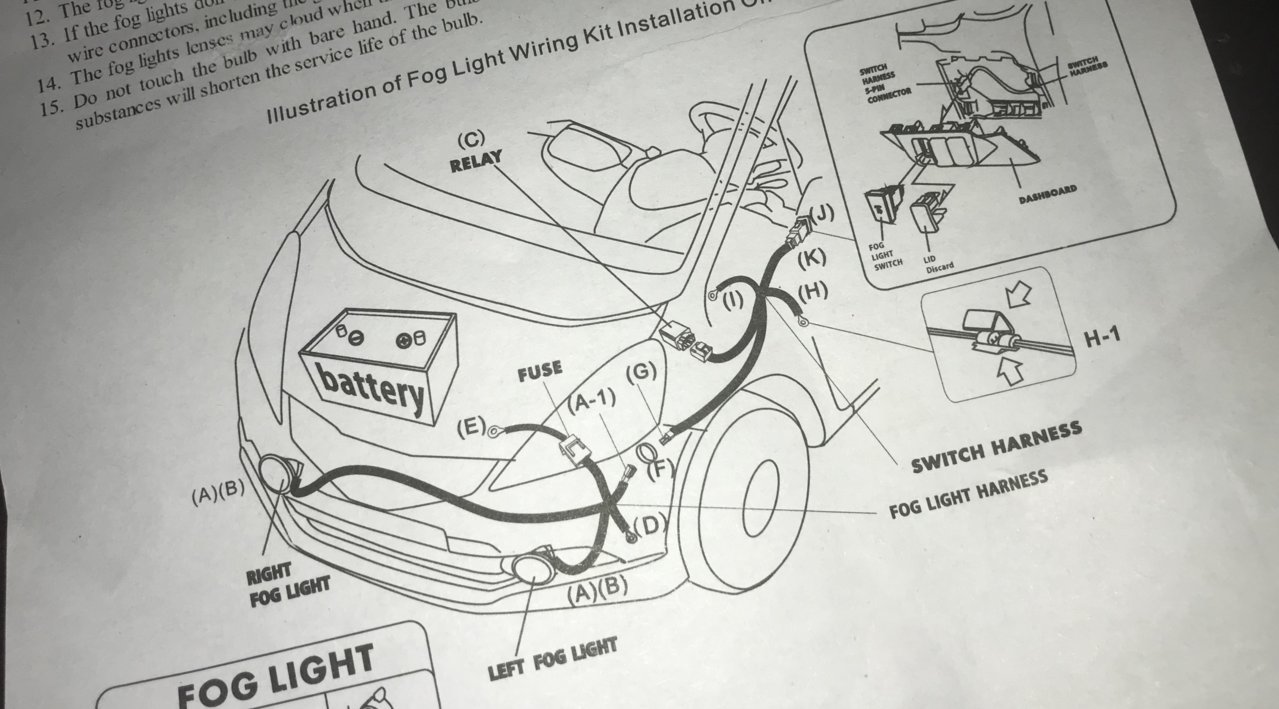

My tacoma did not come with fog lights so I have to do these myself. I thought it would be pretty easy but the instructions aren’t the greatest. It’s tellin me to find the power line to the parking lamp. Where is that and what color is it? I have googled the hell out of it but I can’t find anything. I have a few pictures of the harness and the instructions. Any help would be greatly appreciated.

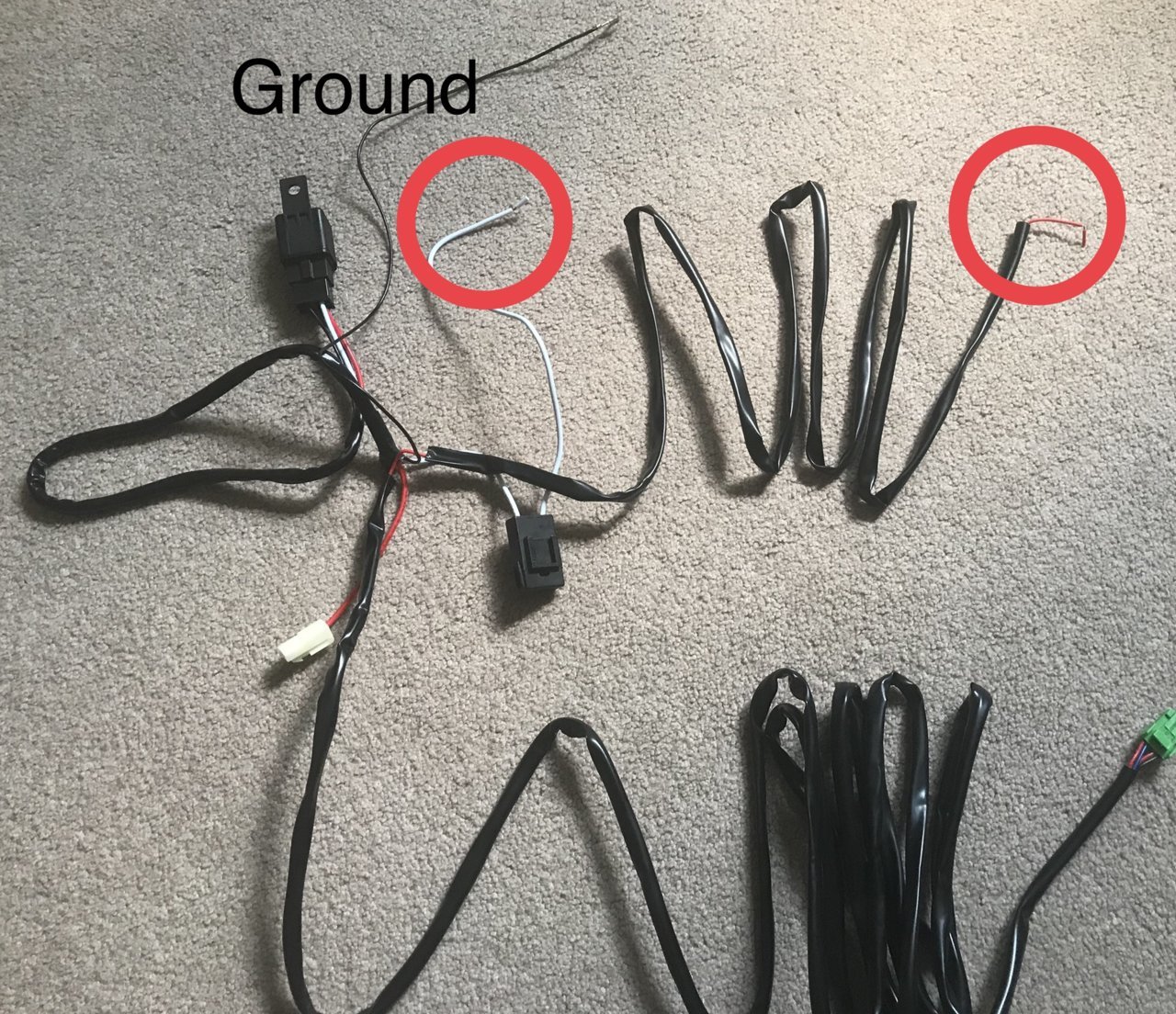

I know the black wire is the ground.

Of the two circled in red, which one gets hooked up to the parking lamp wire once I find it?

Ericg3654, Jun 10, 2018

#1
