Hi all.

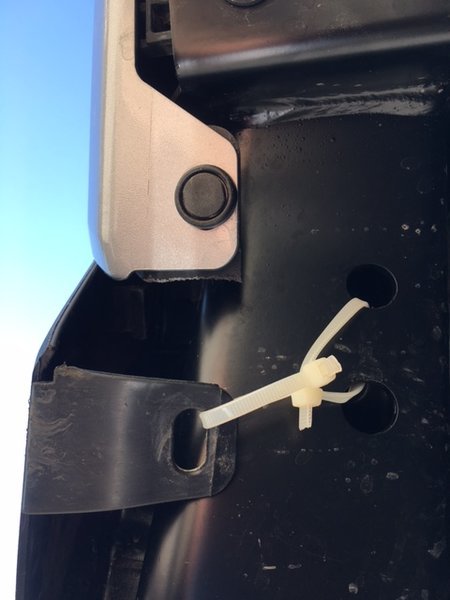

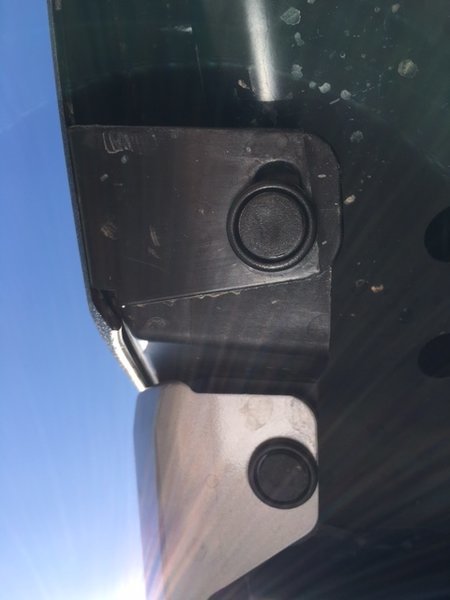

Can anybody post the assembly diagram of the rear bumper? I went off-roading this weekend and ripped off the plastic connection between the black bumper cap and the plastic part that sits behind the color matched side cap. I have it right now zipp tied but would like to do it right and order the right part.
Thanks in advance



dont have a pt# but if you take it into toyota they'll give you another for free i bet.



That would be nice but I highly doubt it as I believe that I ripped off a small bit of a large receiver that is behind the side cap. I expect it to cost about $100...



Not exactly a diagram, but I did a write-up and laid out all the parts (without part numbers). Only piece missing is the metal bumper piece the goes between the upper bumper pad and the two bumper end caps.

Based on your pics, looks like you'll have to buy the black ABS plastic that the rear end caps are attached to.



I highyly doubt that. if you can pull that off at a dealer, please share which dealer. I did that same thing as OP, only it was the front lip of the front bumper (the black part that holds your licenses plate). I went to the dealer to order a new piece... quoted $900. no joke.



im talking about the snap pin guys



Those pins are cheap. If dealers would provide them free of charge, I'm sure HD or Lowes have them for a couple bucks.



Got this from the local toyota parts dept when I was working on a '16 a few weeks ago



Thanks FTApache. That is exactly what I need. The price tag is $220. I think I will live with the zip tie solution for now and hunt for used part on ebay.
Thanks everyone for your replies.
