2016 tow connector location

I have a Redarc Tow-Pro Liberty brake controller to install in my 2016 TRD 4x4 offroad. I tried to find it on the left side of the steering wheel but did not find it. Instruction image shows it to the right of the steering wheel. Could not see it from a under dash view. How do you get to it?



You have to remove the driver side kick panel and it's hiding back behind other wire bundles up against the firewall. There are some pictures in the post linked below.
https://www.tacomaworld.com/threads/brake-controllers.711132/page-5#post-25613635

Also, check out this bracket made by @pgfitzgerald
https://www.etsy.com/listing/1417438984/redarc-tow-pro-mounting-bracket-for-3rd?etsrc=sdt
https://www.tacomaworld.com/threads/my-redarc-tow-pro-liberty-install.773860/



Thank you very much dilbert but my Tacoma is a 2016 and it appears that the tow connector was placed under dash to the right of the steering wheel not to the left of the steering wheel. I am trying to discover how to get to mine, that is not visible under the dash.



Welcome to the forum

Firstly, does your truck have the tow package? It was optional on the first few years.

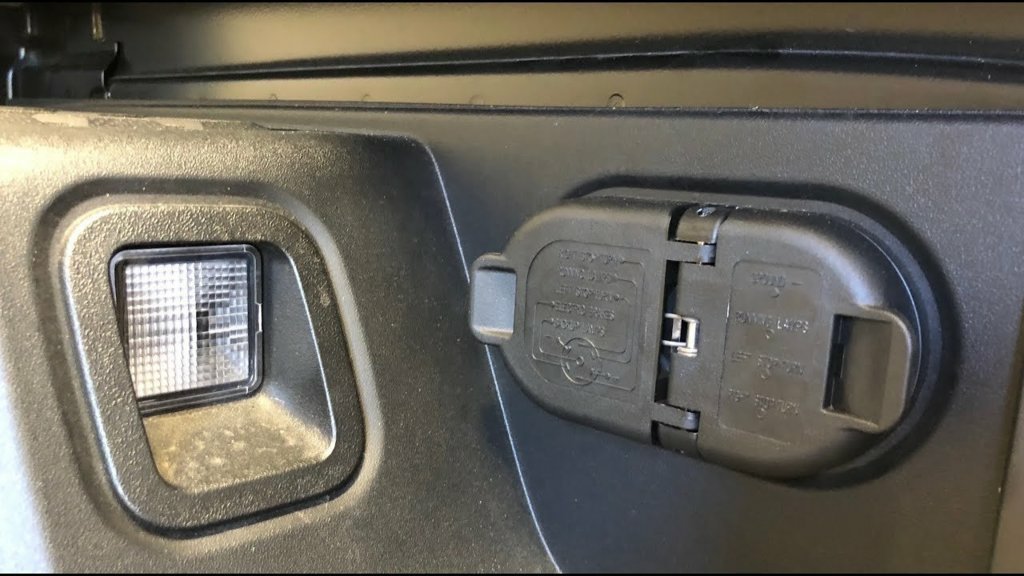

If you have the plug in the photo below on the rear bumper you have the package.



Secondly, that connector is really hiding back there amongst all the wires & connectors, there is a lot of stuff in that small space.

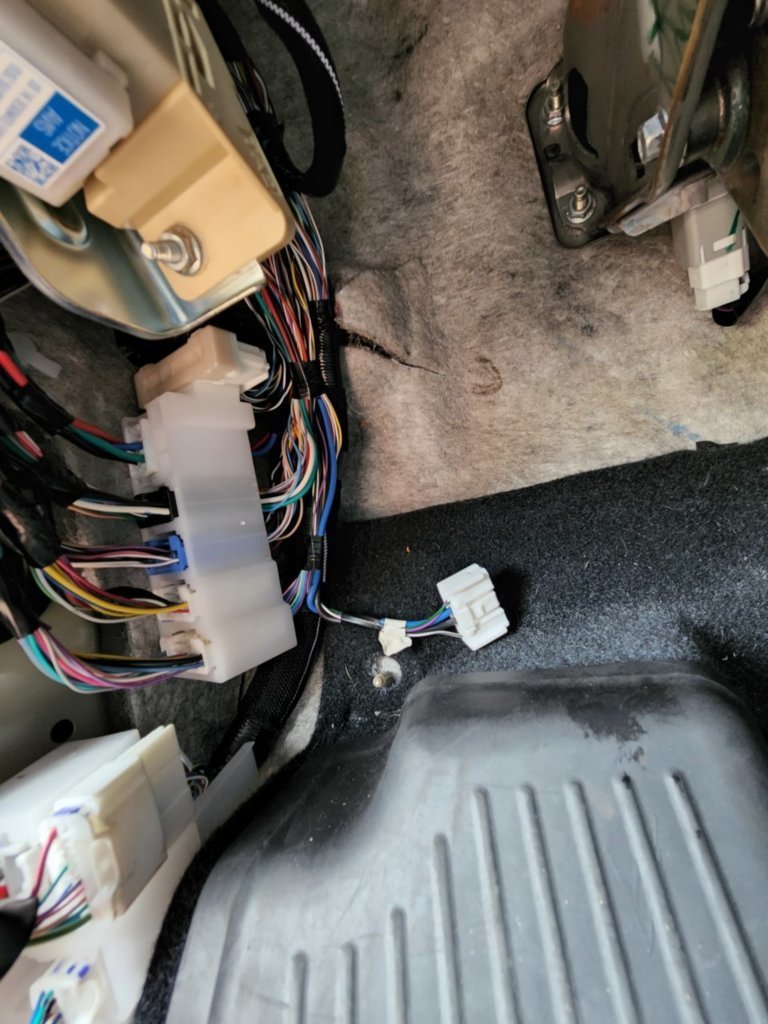

This is what you are prospecting for:



Don't all the TRD's come with a tow package.

As mentioned, look behind the DS kick panel.



It's not to the right of the steering wheel, even on a 2016. It's in the same location for all third gen Tacomas. You need to remove the driver side kick panel to find it.



That's a good point... In 2016 it was an option.



I believe there's an airbag on the back side of that panel (drivers side foot well). You should disconnect the negative battery terminal before taking the two bolt out.



Redarc has a vehicle specific, in this case Tacoma, installation manual/image? I've never seen it. Follow the instructions of the other commenters.



Thanks everyone, problem solved.

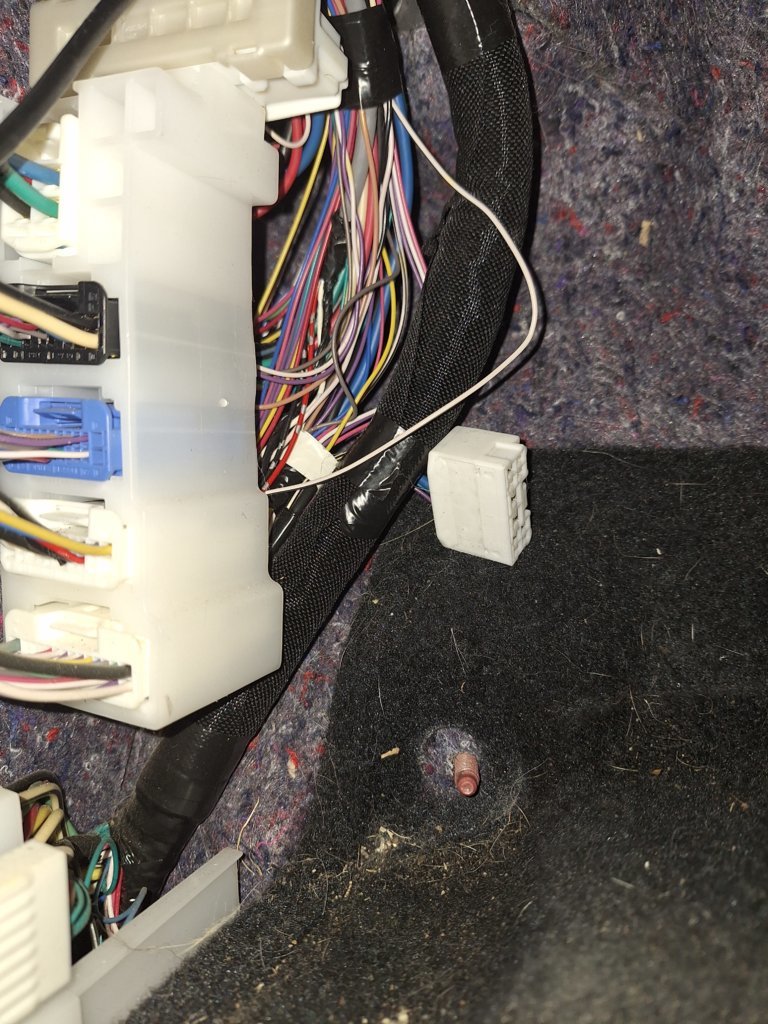

First picture doesn't show connector. Connector is hidden. You can't see it.

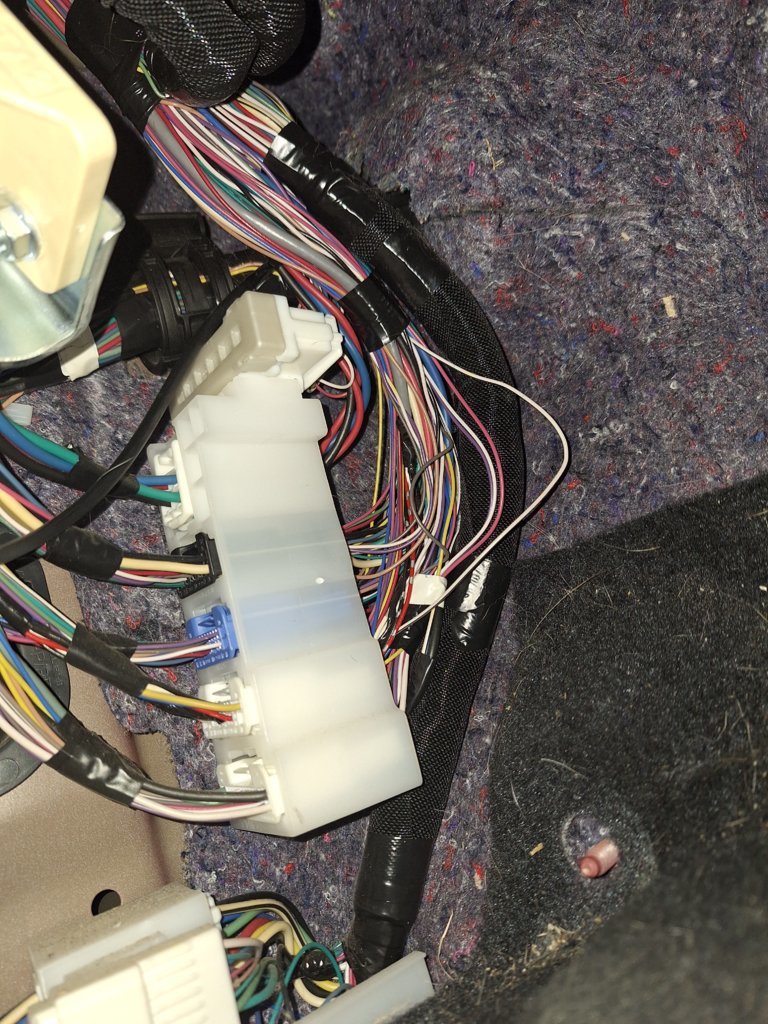

Second picture shows where connector was hidden behind the cable harness.
Since I didn't find it the first time I read the instructions that showed it was on the right side of steering wheel under the dash. Evidently those were misleading instructions.
Because of your insistence I looked again and found the connector hidden behind the cable harness.
Thanks again group.



Yup, we’ve been through the same thing.
