2016 V6 Fuel Injectors

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Modoccamper, Jun 9, 2024.

  1. Jun 9, 2024 at 9:06 AM
    #1
    Modoccamper

    #1
    Modoccamper [OP] New Member

    Joined:
    Jul 21, 2022
    Member:
    #401858
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2016 Tacoma 4dr sport
    Hello,

    I’m looking for a procedure to replace the fuel injectors (port) on my 2016 Tacoma. I have searched high and low and cannot find it anywhere. Has anyone here done this? I have a cylinder 5 injector leaking.
    Thank you!

    Modoccamper, Jun 9, 2024
    #1
  2. Jun 9, 2024 at 10:26 AM
    #2
    Vlady

    #2
    Vlady Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238986
    Messages:
    4,681
    Gender:
    Male
    Issy, WA
    Vehicle:
    2017 White SR5 DCSB V6 4x4

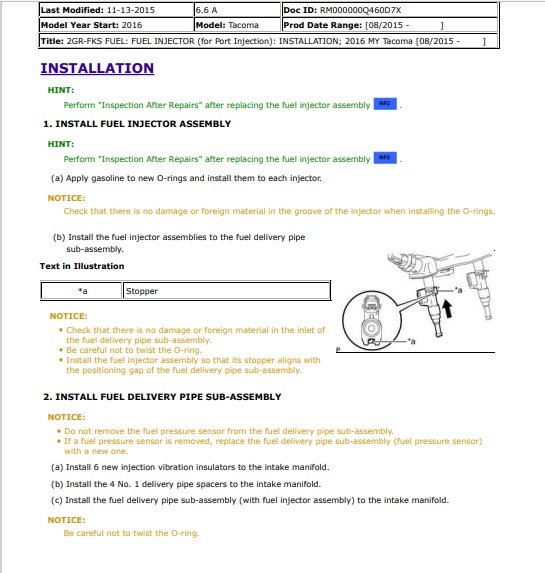

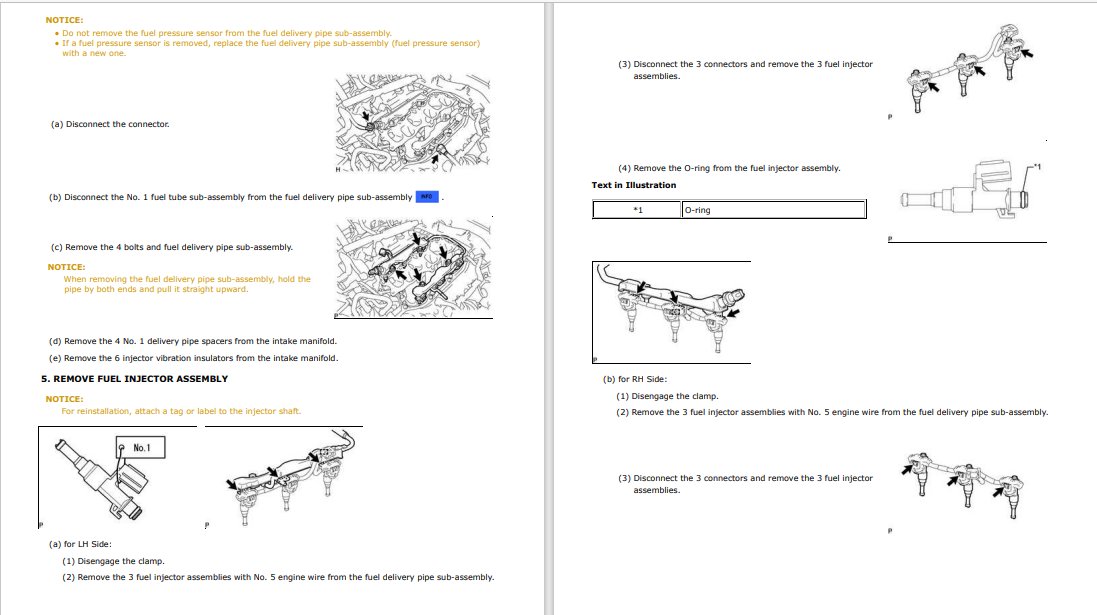

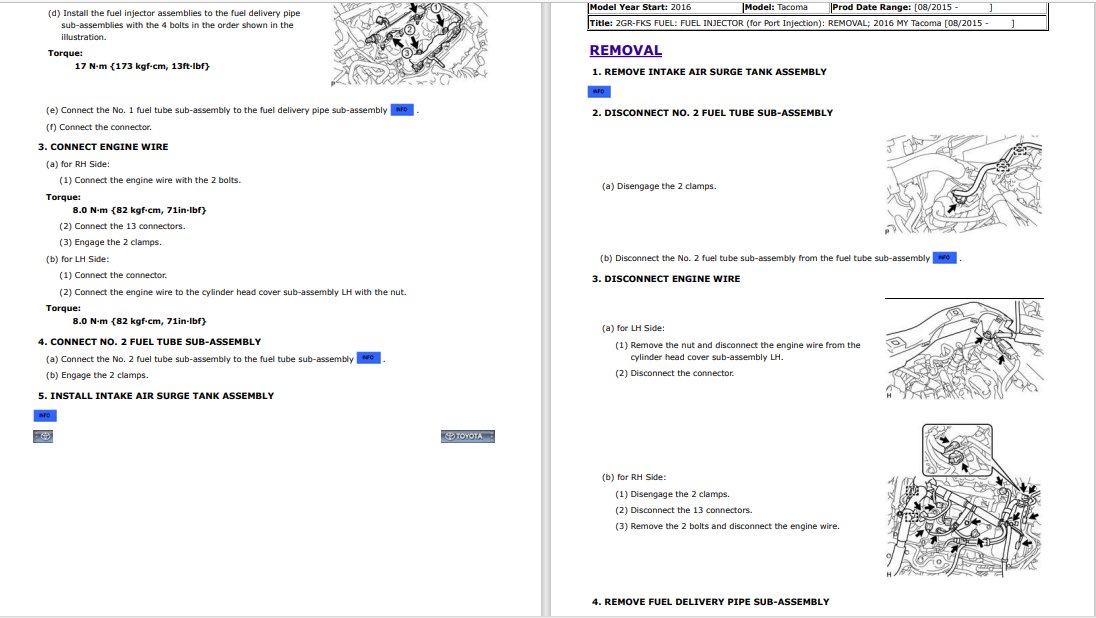

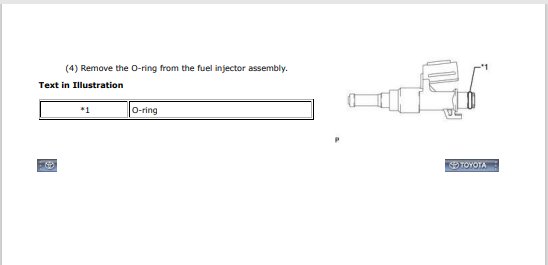

    see attached.


    Vlady, Jun 9, 2024
    #2
    Stevie17, Modoccamper[OP] and ToyodaSun like this.
  3. Jun 9, 2024 at 11:19 AM
    #3
    Modoccamper

    #3
    Modoccamper [OP] New Member

    Joined:
    Jul 21, 2022
    Member:
    #401858
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2016 Tacoma 4dr sport
    Thank you vlady

    Modoccamper, Jun 9, 2024
    #3
    Stevie17 likes this.
  4. Jun 9, 2024 at 7:14 PM
    #4
    Vlady

    #4
    Vlady Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238986
    Messages:
    4,681
    Gender:
    Male
    Issy, WA
    Vehicle:
    2017 White SR5 DCSB V6 4x4
    How did you figure out the injector is leaking?

    Vlady, Jun 9, 2024
    #4
  5. Jun 28, 2024 at 12:43 PM
    #5
    Modoccamper

    #5
    Modoccamper [OP] New Member

    Joined:
    Jul 21, 2022
    Member:
    #401858
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2016 Tacoma 4dr sport
    I had it diagnosed at a shop. I had a bank 1 fuel rich code, and misfire cylinder 5. Replaced plugs and didn’t fix. Took to shop they scoped it and said that fuel was running out of the port injector on #5

    Modoccamper, Jun 28, 2024
    #5
